  1. PM10: Measurement and modelling Ronald Hoogerbrugge

  2. Content • National Network Air Quality • Information to institutions and public (internet and teletext) • Smog and smogprognoses

  3. locationsLML

  4. National background Emision data Transportation model (OPS) Calibrated on regional- urban backgroundstations (LML, GGD-A and DCMR) Also 2010 and 2020 Cooperation with PBL

  5. Calibration FAG FH 62 I-R Rural locations Siginificant slope and Intercept 8 locations 763 data pairs -> complies after kalibration (16 %) 1 individual location does not comply (much lower kalibration factor)

  6. Model for local air quality (trafic) • CAR model (application by municipality) concentrationstreet = background + trafficstreet * emissionfactor Municipaly should estimate trafic Result: actual and future exceedances Old: download computer programme New: all integrated in nation wide system “saneringstool”

  7. Dutch decision air quality -> local authorities • Measurement obligation is performed by national air quality network • Municipalities assess in town location where people might be confronted with exceeding levels of air pollution • Permission on new (building) activities depend on the actual/future assessment of air quality (model)

  8. Trafic contribution on high resolution

  9. SMOG When smog occurs measures hardly work -> information Information threshold -> passive information website + teletekst Alert threshold (smog) -> active information RIVM press release ANP and provinces en GGD’s SO2 (last 1988) NO2 (last1994) Ozon several in 2003, 2005 and 2006

  10. Smog forecast • Statistical models Ozone and PM10 (standard up to June 2009; today used as backup) • Project for data assimilation surface measurements & satellite pictures. New forecast is launched June 2009 both for PM10 and Ozone.

  11. LOTOS EUROS • 3D chemical transport model • Underestimate (no Crustal matter and sec. org. aerosols) • For The Netherlands calibration on LML stations For Europe no calibration yet Part of MACC model ensemble

  12. 1 day NO2 by Sciamachy WWW.TEMIS.NL Important problem: Clouds ! (useful data < 20 % clouds)

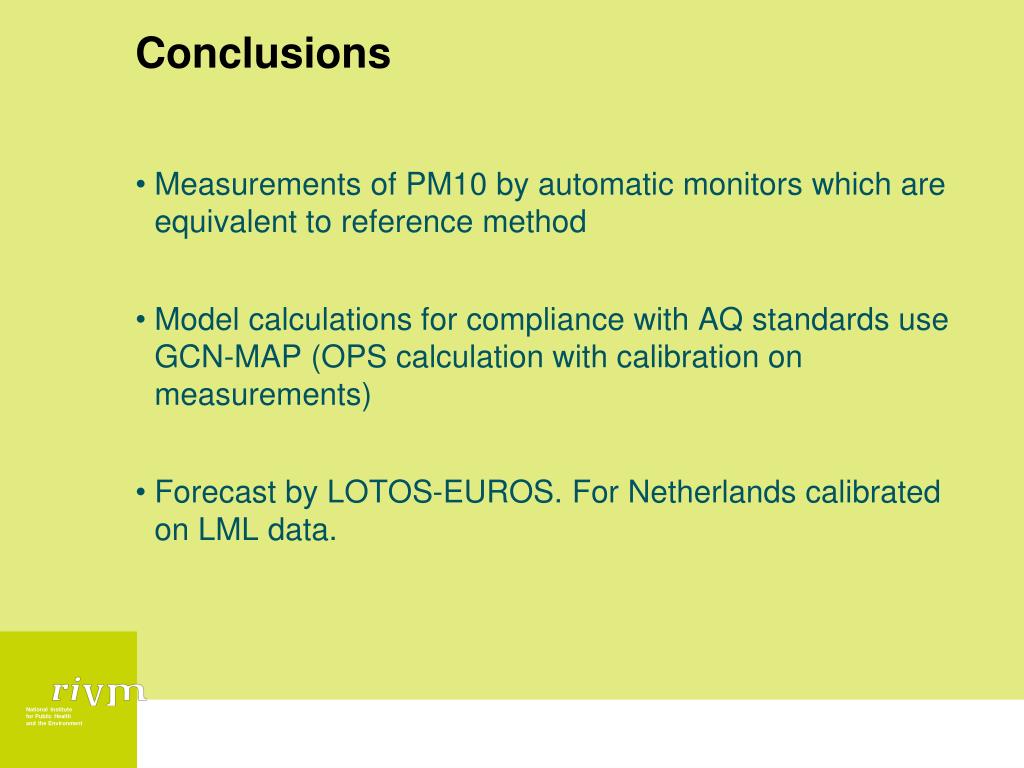

  13. Conclusions • Measurements of PM10 by automatic monitors which are equivalent to reference method • Model calculations for compliance with AQ standards use GCN-MAP (OPS calculation with calibration on measurements) • Forecast by LOTOS-EUROS. For Netherlands calibrated on LML data.

  14. Annual average NO2 2003

  15. PM10 two limit values Yearly average < 40µg/m3 < 35 days with daily average > 50 µg/m3
