  1. The Indexing or Dividing Head Session 14

  2. Indexing (Dividing) Head • Once one of the more important attachments for milling machine • Used to divide circumference of workpiece into equally spaced divisions when milling gear teeth, squares, hexagons, and octagons • Also used to rotate workpiece at predetermined ratio to table feed rate

  3. Index Head Parts • Headstock with index plates • Headstock change gears • Quadrant • Universal chuck • Footstock • Center rest

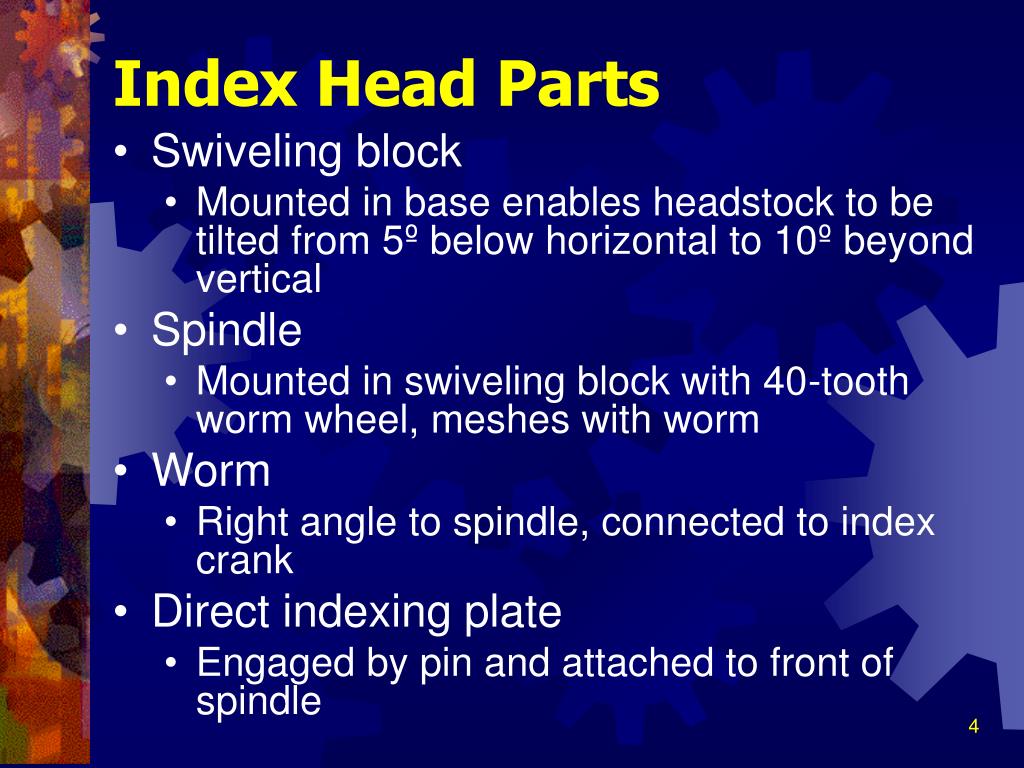

  4. Index Head Parts • Swiveling block • Mounted in base enables headstock to be tilted from 5º below horizontal to 10º beyond vertical • Spindle • Mounted in swiveling block with 40-tooth worm wheel, meshes with worm • Worm • Right angle to spindle, connected to index crank • Direct indexing plate • Engaged by pin and attached to front of spindle

  5. Index Head Parts

  6. Section view of a dividing head

  7. Index Head Parts • Universal chuck • Threaded onto end of spindle

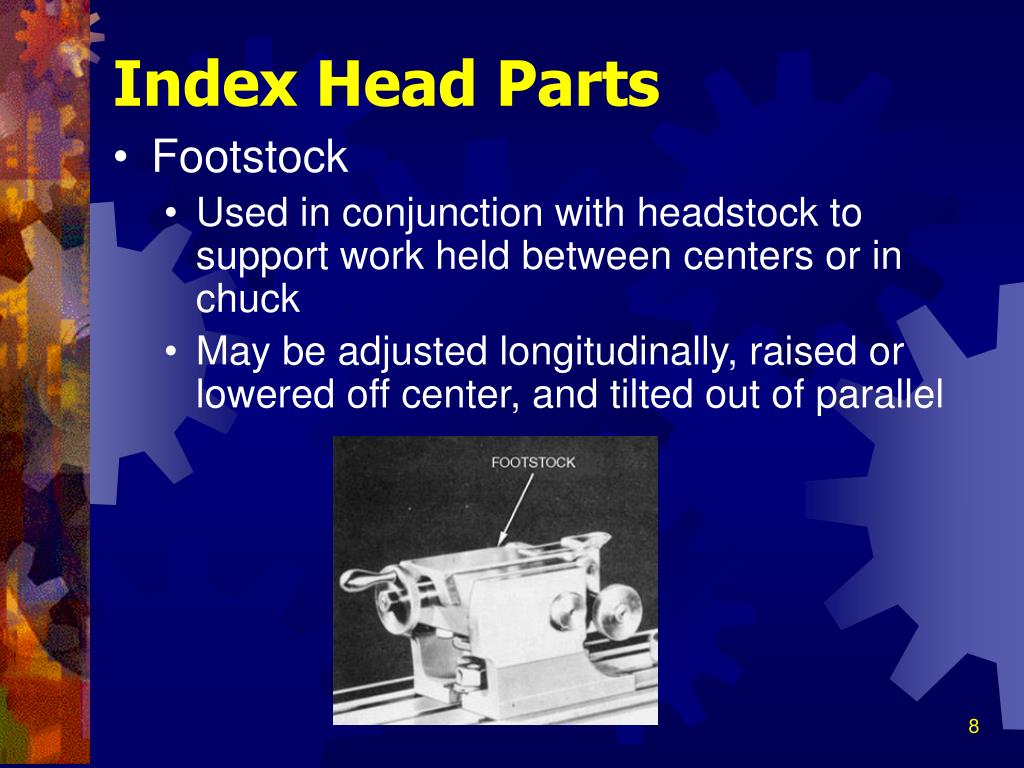

  8. Index Head Parts • Footstock • Used in conjunction with headstock to support work held between centers or in chuck • May be adjusted longitudinally, raised or lowered off center, and tilted out of parallel

  9. Index Head Parts Adjustable center rest • Holds long, slender work between centers

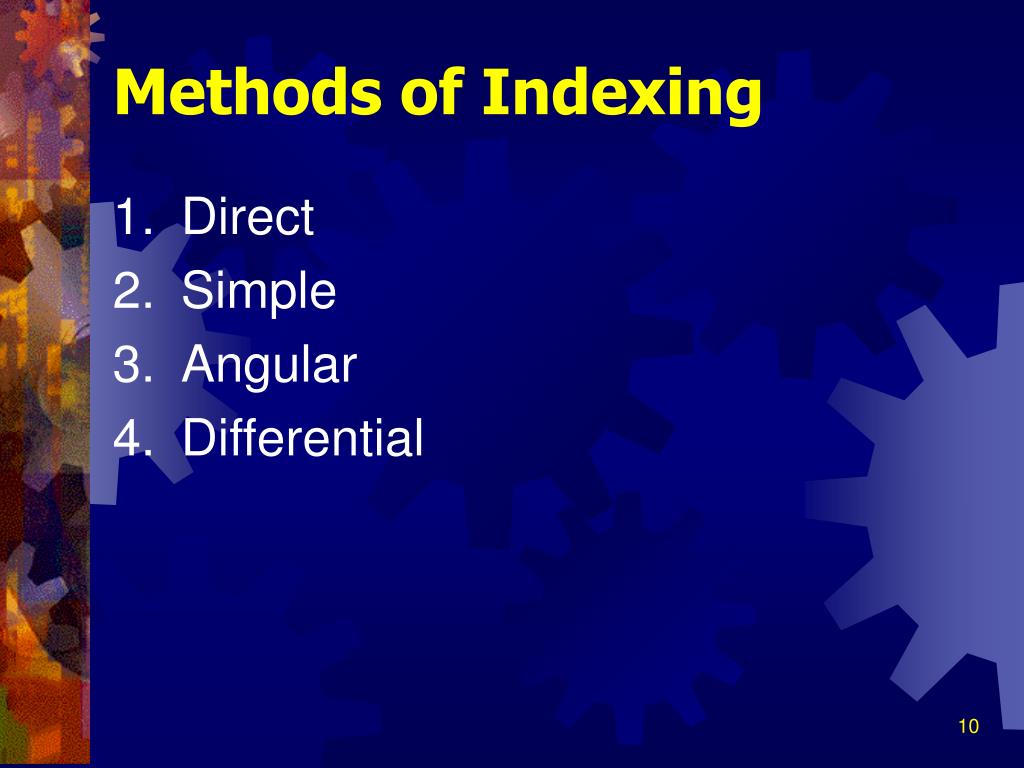

  10. Methods of Indexing • Direct • Simple • Angular • Differential

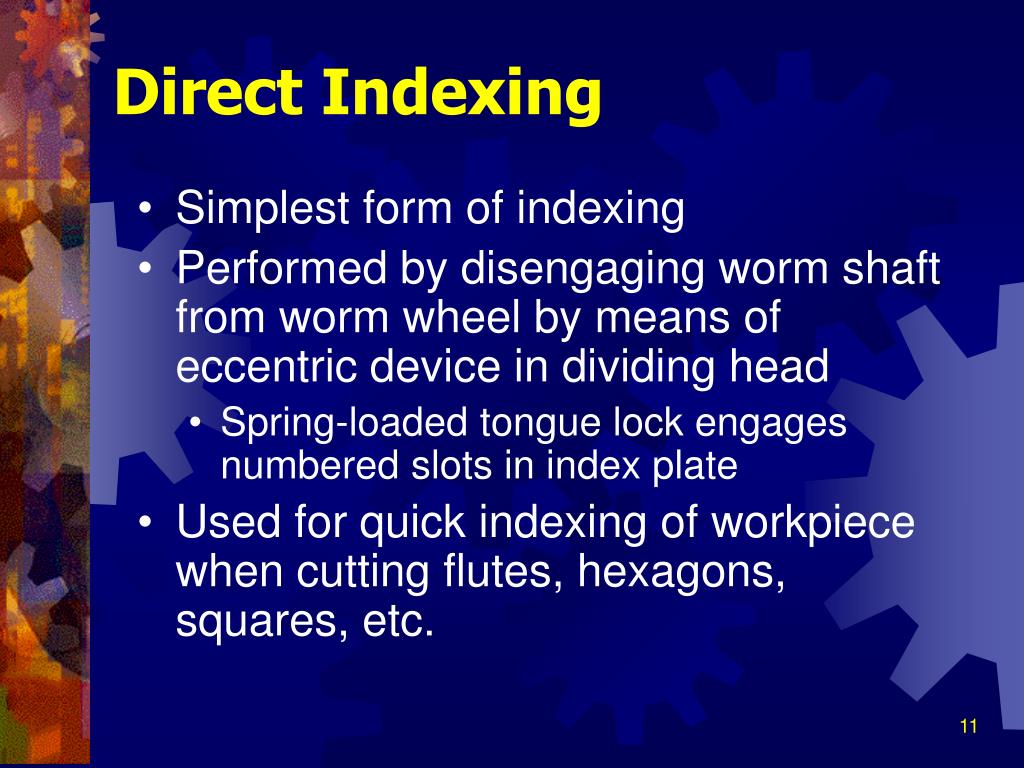

  11. Direct Indexing • Simplest form of indexing • Performed by disengaging worm shaft from worm wheel by means of eccentric device in dividing head • Spring-loaded tongue lock engages numbered slots in index plate • Used for quick indexing of workpiece when cutting flutes, hexagons, squares, etc.

  12. Direct Indexing Divisions • Direct indexing plate usually contains three sets of hole circles or slots: 24, 30, and 36 • Number of divisions possible to index limited to numbers that are factors of 24, 30, 36 Slots Direct indexing divisions 24 2 3 4 _ 6 8 _ __ 12 __ __ 24 __ __ 30 2 3 _ 5 6 _ _ 10 __ 15 __ __ 30 __ 36 2 3 4 _ 6 _ 9 __ 12 __ 18 __ __ 36

  13. Example: Direct Indexing • What direct indexing is necessary to mill eight flutes on a reamer blank? Since the 24-hole circle is the only one divisible by 8 (the required number of divisions), it is the only circle that can be used in this case. Slots Direct indexing divisions 24 2 3 4 _ 6 8 _ __ 12 __ __ 24 __ __ 30 2 3 _ 5 6 _ _ 10 __ 15 __ __ 30 __ 36 2 3 4 _ 6 _ 9 __ 12 __ 18 __ __ 36 Never count the hole or slot in which the index pin is engaged.

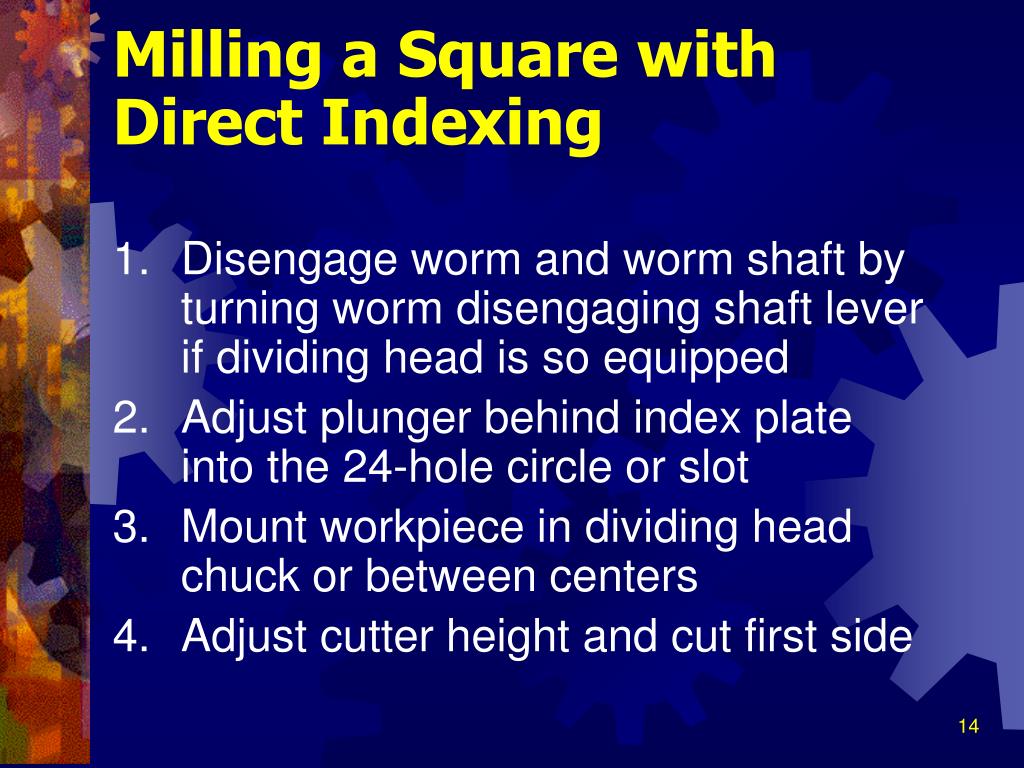

  14. Milling a Square with Direct Indexing • Disengage worm and worm shaft by turning worm disengaging shaft lever if dividing head is so equipped • Adjust plunger behind index plate into the 24-hole circle or slot • Mount workpiece in dividing head chuck or between centers • Adjust cutter height and cut first side

  15. Milling a Square with Direct Indexing • Remove plunger pin using plunger pin lever • Turn plate attached to dividing head spindle one-half turn and engage plunger pin • Take second cut

  16. Milling a Square with Direct Indexing • Measure work across flats and adjust work height if required • Cut remaining sides by indexing every six holes until all surfaces cut • Check for finish size

  17. Simple Indexing • Work positioned by means of crank, index plate, and sector arms • Worm attached to crank must be engaged with worm wheel on dividing head spindle • 40 teeth on worm wheel • One complete turn on index crank cause spindle and work to rotate one-fortieth of a turn (ratio of 40:1)

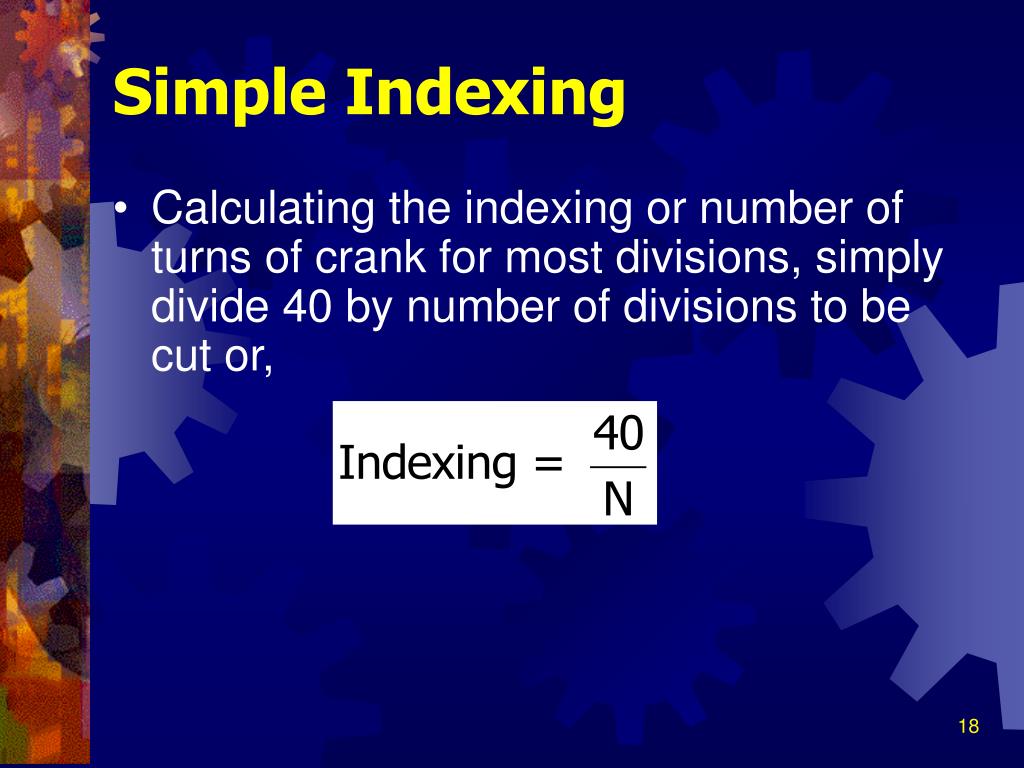

  18. Simple Indexing • Calculating the indexing or number of turns of crank for most divisions, simply divide 40 by number of divisions to be cut or,

  19. Simple Indexing • The indexing required to cut eight flutes: • The indexing required to cut seven flutes: The five-sevenths turn involves use of an index plate and sector arms.

  20. Index Plate and Sector Arms • Index plate • Circular plate provided with series of equally spaced holes into which index crank pin engages • Sector arms • Fit on front of plate and may be set to any portion of a complete turn

  21. Finishing Indexing for Seven Flutes Choose any hole circle that is divisibleby denominator 7 Index-plate hole circles Brown & Sharpe Plate 1 15-16-17-18-19-20 Plate 2 21-23-27-29-31-33 Plate 3 37-39-41-43-47-49 Cincinnati Standard Plate One side 24-25-28-30-34-37-38-39-41-42-43 Other side 46-47-49-51-53-54-57-58-59-62-66 5/7 = /21 15 So, 5 full turns plus15 holes on 21 holecircle!

  22. Finishing Indexing for Seven Flutes Choose any hole circle that is divisibleby denominator 7 Index-plate hole circles Brown & Sharpe Plate 1 15-16-17-18-19-20 Plate 2 21-23-27-29-31-33 Plate 3 37-39-41-43-47-49 Cincinnati Standard Plate One side 24-25-28-30-34-37-38-39-41-42-43 Other side 46-47-49-51-53-54-57-58-59-62-66 5/7 = /49 35 So, 5 full turns plus35 holes on 49 holecircle!

  23. Finishing Indexing for Seven Flutes Choose any hole circle that is divisibleby denominator 7 Index-plate hole circles Brown & Sharpe Plate 1 15-16-17-18-19-20 Plate 2 21-23-27-29-31-33 Plate 3 37-39-41-43-47-49 Cincinnati Standard Plate One side 24-25-28-30-34-37-38-39-41-42-43 Other side 46-47-49-51-53-54-57-58-59-62-66 5/7 = /28 20 So, 5 full turns plus20 holes on 28 holecircle!

  24. Finishing Indexing for Seven Flutes Choose any hole circle that is divisibleby denominator 7 Index-plate hole circles Brown & Sharpe Plate 1 15-16-17-18-19-20 Plate 2 21-23-27-29-31-33 Plate 3 37-39-41-43-47-49 Cincinnati Standard Plate One side 24-25-28-30-34-37-38-39-41-42-43 Other side 46-47-49-51-53-54-57-58-59-62-66 5/7 = /42 30 So, 5 full turns plus30 holes on 42 holecircle!

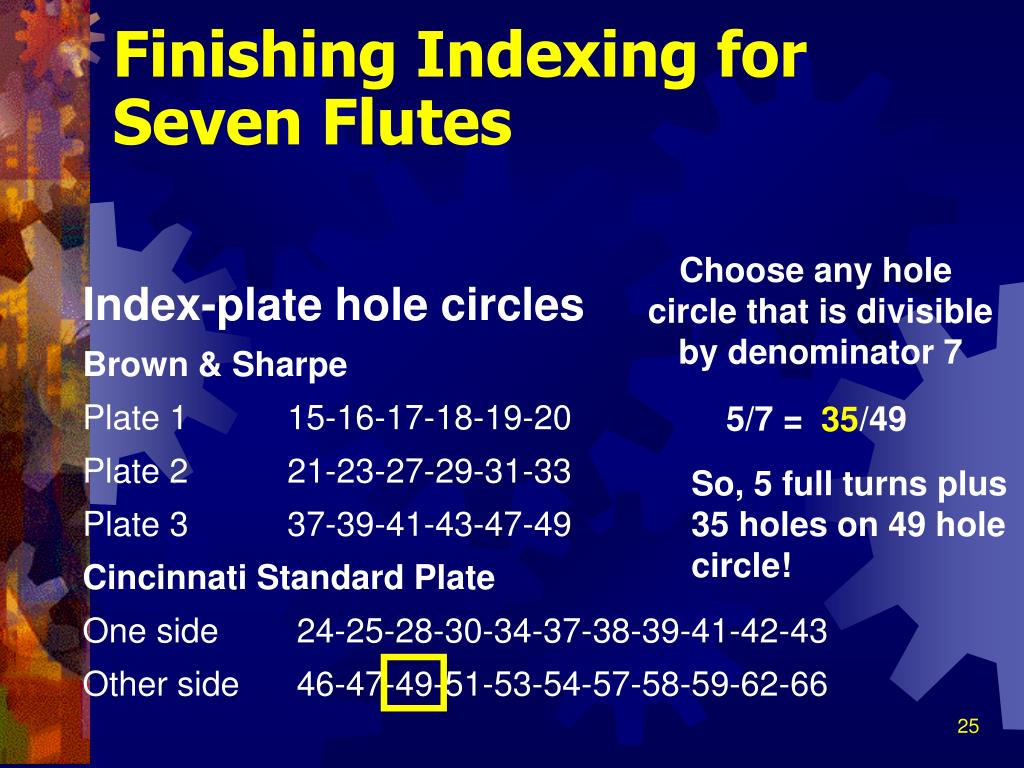

  25. Finishing Indexing for Seven Flutes Choose any hole circle that is divisibleby denominator 7 Index-plate hole circles Brown & Sharpe Plate 1 15-16-17-18-19-20 Plate 2 21-23-27-29-31-33 Plate 3 37-39-41-43-47-49 Cincinnati Standard Plate One side 24-25-28-30-34-37-38-39-41-42-43 Other side 46-47-49-51-53-54-57-58-59-62-66 5/7 = /49 35 So, 5 full turns plus35 holes on 49 holecircle!

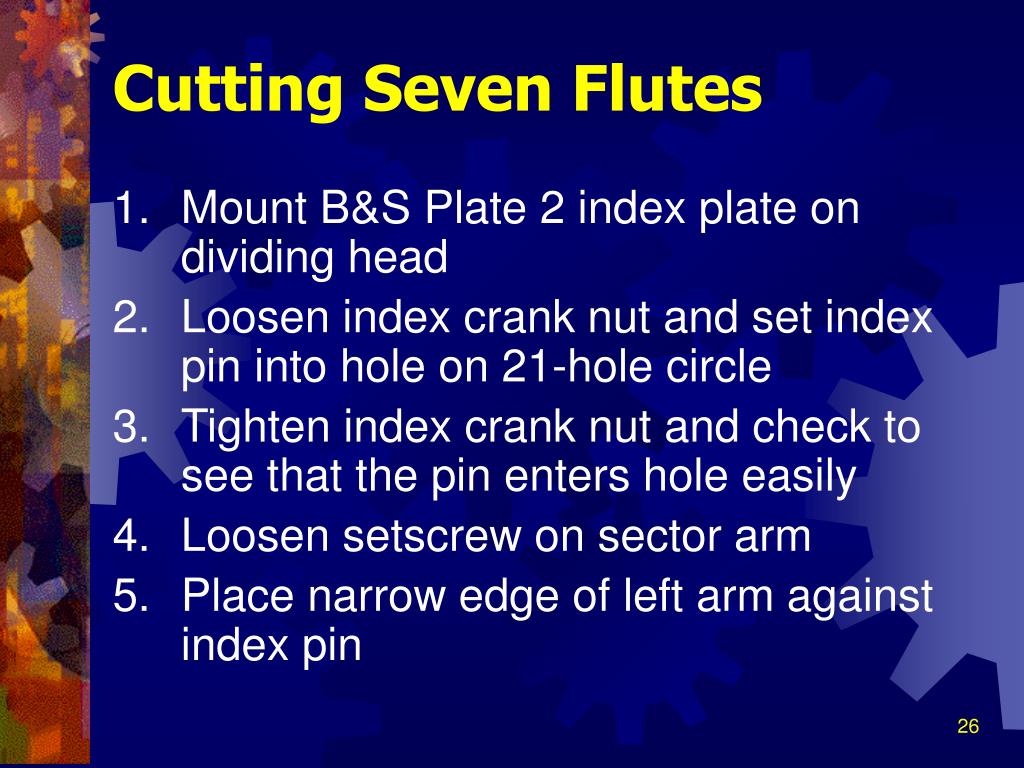

  26. Cutting Seven Flutes • Mount B&S Plate 2 index plate on dividing head • Loosen index crank nut and set index pin into hole on 21-hole circle • Tighten index crank nut and check to see that the pin enters hole easily • Loosen setscrew on sector arm • Place narrow edge of left arm against index pin

  27. Cutting Seven Flutes • Count 15 holes on 21-hole circle • Do not include hole in which index crank pin is engaged. • Move right sector arm slightly beyond fifteenth hole and tighten sector arm setscrew • Align cutter with work piece • Start machine and set cutter to top of work by using paper feeler

  28. Cutting Seven Flutes • Move table so cutter clears end of work • Tighten friction lock on dividing head before making each cut and loosen lock when indexing for spaces • Set depth of cut and take first cut • After first flute has been cut, return table to original starting position

  29. Cutting Seven Flutes • Withdraw index pin and turn crank clockwise five full turns plus the 15 holes indicated right sector arm • Release index pin between 14th and 15th holes and gently tap until it drops into 15th hole • Turn sector arm farthest from pin clockwise until it is against index pin

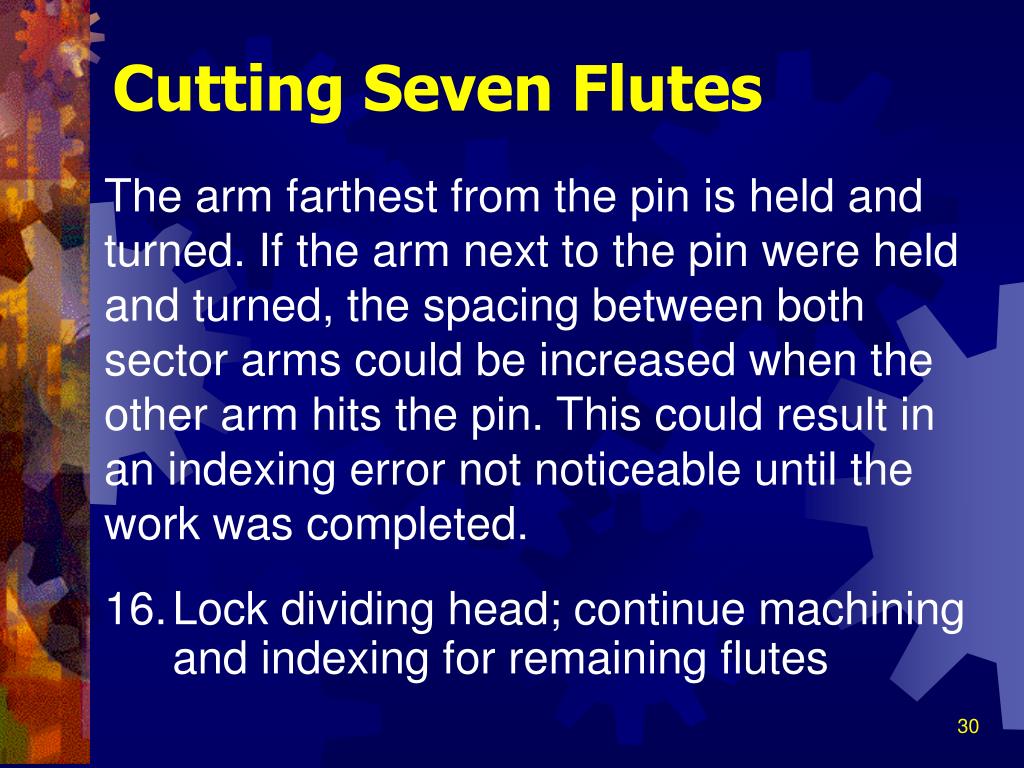

  30. Cutting Seven Flutes The arm farthest from the pin is held and turned. If the arm next to the pin were held and turned, the spacing between both sector arms could be increased when the other arm hits the pin. This could result in an indexing error not noticeable until the work was completed. • Lock dividing head; continue machining and indexing for remaining flutes

  31. Angular Indexing • Setup for simple indexing may be used • Must calculate indexing with angular distance between divisions instead number of divisions • One complete turn of index crank turns work 1/40 of a turn • 1/40 of 360º equals 9 degrees

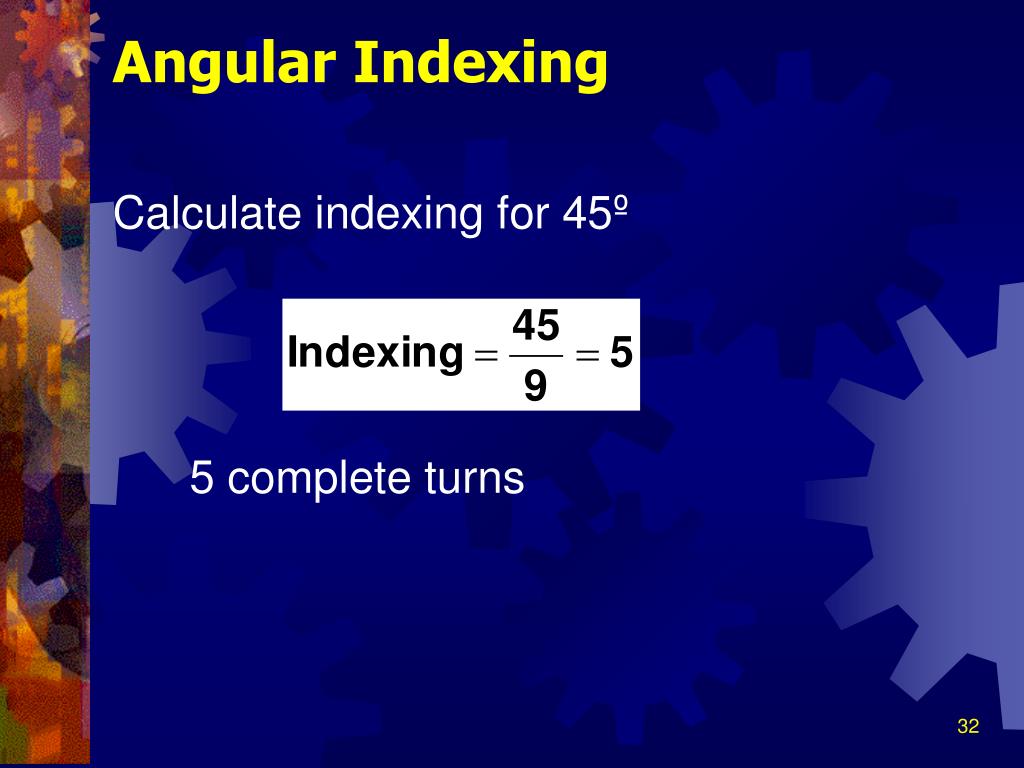

  32. Angular Indexing Calculate indexing for 45º 5 complete turns

  33. Angular Indexing Calculate indexing for 60º 6 full turns plus 12 holes on 18 hole circle

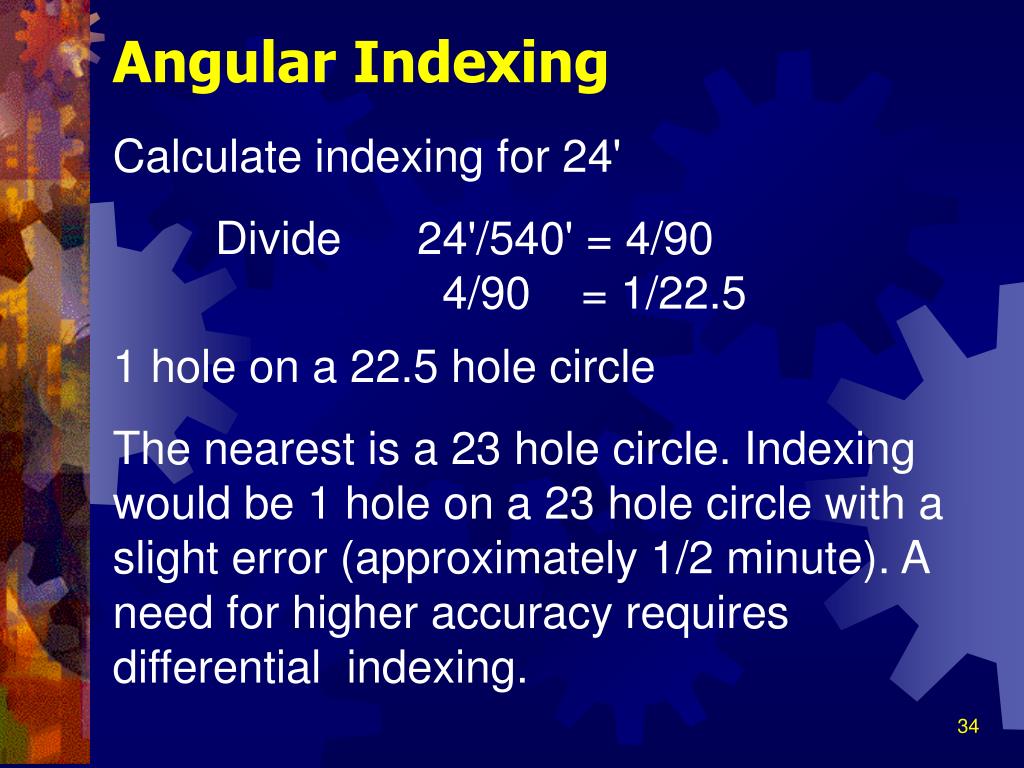

  34. Angular Indexing Calculate indexing for 24' Divide 24'/540' = 4/90 4/90 = 1/22.5 1 hole on a 22.5 hole circle The nearest is a 23 hole circle. Indexing would be 1 hole on a 23 hole circle with a slight error (approximately 1/2 minute). A need for higher accuracy requires differential indexing.

  35. Angular Indexing • Calculate indexing for 24º30' • First, convert angle into minutes (24 x 60') = 1440' now add 30' = 1470‘ Convert 9° to minutes 9°x90’ = 540’ Divide 1470'/540' = 2 13/18 2 full turns and 13 holes on 18 hole circle

  36. Differential Indexing • Used when 40/N cannot be reduced to a factor of one of the available hole circles • Index plate must be revolved either forward or backward part of a turn while index crank turned to attain proper spacing (indexing) • Change of rotation effected by idler gear or gears in gear train

  37. Differential Method • Number chosen close to required divisions that can be indexed by simple indexing • Example: Assume index crank has to be rotated 1/9th of a turn and only 8-hole circle • Crank moved 1/9th, index pin contacts plate at spot before first hole • Exact position would be the difference between 1/8th and 1/9th of a revolution of the crank

  38. Differential Method cont. one-seventy-second of a turn short of first hole Since there is no hole at this point, it is necessary to cause plate to rotate backward by means of change gears one-seventy-second of a turn of pin will engage in hole.

  39. Method of Calculating the Change Gears A = approximate number of divisions N = required number of divisions If A is greater than N, resulting fraction is positive andthe index plate must move in same direction as crank (clockwise). This positive rotation uses an idler gear. If N is greater than A, resulting fraction is negative andindex plate must move counterclockwise. This negativerotation required use of two idler gears.

  40. Gearing • Simple • One idler for positive rotation of index plate and two idlers for negative rotation • Compound • One idler for negative rotation of index plate and two idlers for positive rotation

  41. Example: Calculate the indexing and change gears requiredfor 57 divisions. The change gears supplied with the dividing head are as follows: 24, 24, 28, 32, 40, 44, 48, 56, 64, 72, 86 The available index plate hole circles are as follows: Plate 1: 15, 16, 17, 18, 19, 20 Plate 2: 21, 23, 27, 29, 31, 33 Plate 3: 37, 39, 41, 43, 47, 49 Choose plate 2: 21 holes 5/7 would be 15 holes on 21-hole circle No 57 hole circle so selectnumber close to 57

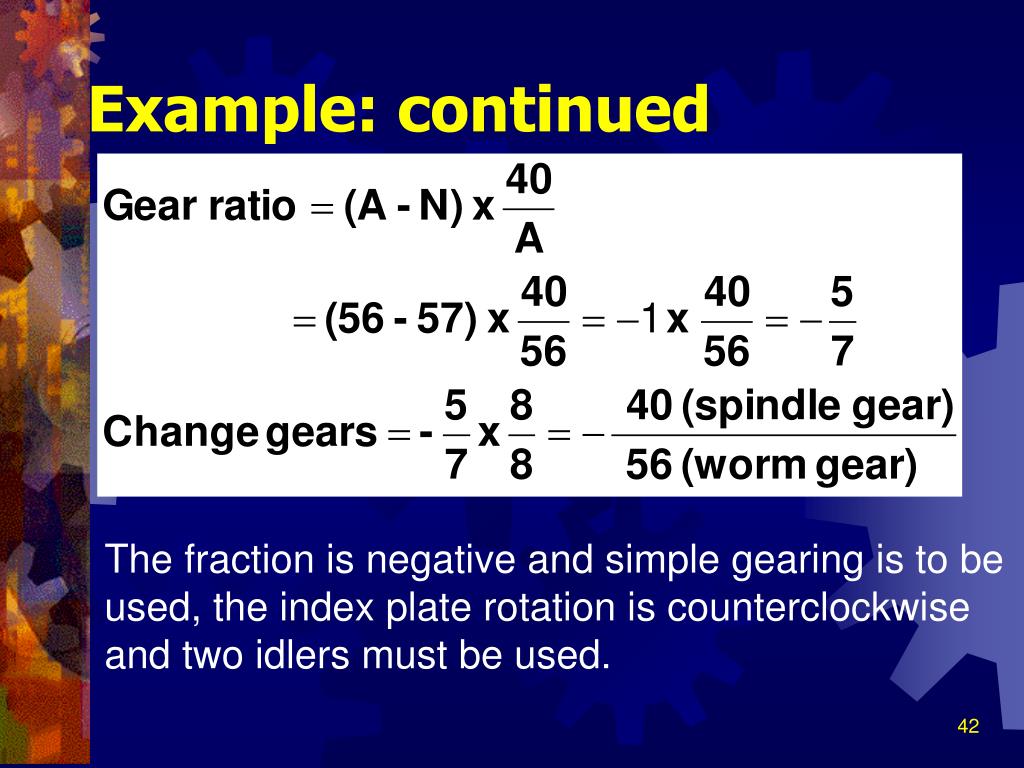

  42. Example: continued The fraction is negative and simple gearing is to be used, the index plate rotation is counterclockwise and two idlers must be used.

  43. Example: continued • For indexing 57 divisions, a 40-tooth gear is mounted on the dividing head spindle and a 56-tooth gear is mounted on the worm shaft. • Index idlers must be used. plate rotation is negative and two • After proper gears installed, the simple indexing for 56 divisions should be followed

  44. Wide-Range Dividing Head • Possible for 2 to 400,000 divisions • Large index plate contains 11 hole circles on each side • Small index plate mounted in front of large, contains a 54 hole and a 100-hole circle • 40:1 ratio betweenworm and dividing head spindle

  45. G – gear housing D - crank A – large index plate B - crank C – small index plate

  46. Indexing for Divisions • One turn of small crank drives index head spindle 1/100 of 1/40, or 1/4000 of a turn • Ratio of large index crank to dividing head 40:1 • Ratio of small index crank 100:1

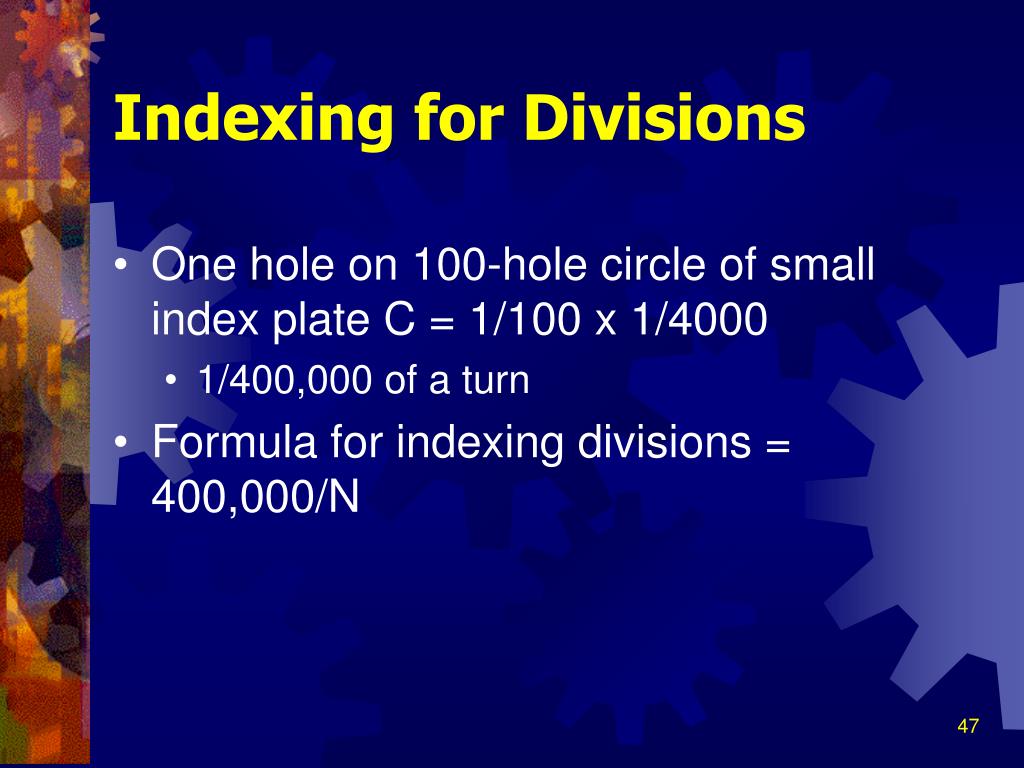

  47. Indexing for Divisions • One hole on 100-hole circle of small index plate C = 1/100 x 1/4000 • 1/400,000 of a turn • Formula for indexing divisions = 400,000/N

  48. Indexing for Divisions No. of turns of large index crank No. of holes on 100-hole circle of large plate No. of holes on 100-hole circle of small plate x x 4 0  0 0  0 0 4 0 4 0  0 0 Number of Divisions N

  49. No. of turnsof large Index Crank = 0 20 holes on the 100-hole circle small plate 40|00|00 1250 No. turns100-hole= Large plate 3 Indexing for Divisions 4 0  0 0 4 0 4 0  0 0  0 0 For 1250 divisions 400000/1250 One hole on 100-holecircle produces 1/4000of a turn; any numberdivides into 4000 areindexed on large plate N 0 3 20 Since ratio of large index crank is 40:1 , any number that divides into 40 (first two numbers) represents full turns of large index crank Zero turns of large crank, 3 turns of 100-hole large plate and 20 holes on 100-hole small plate

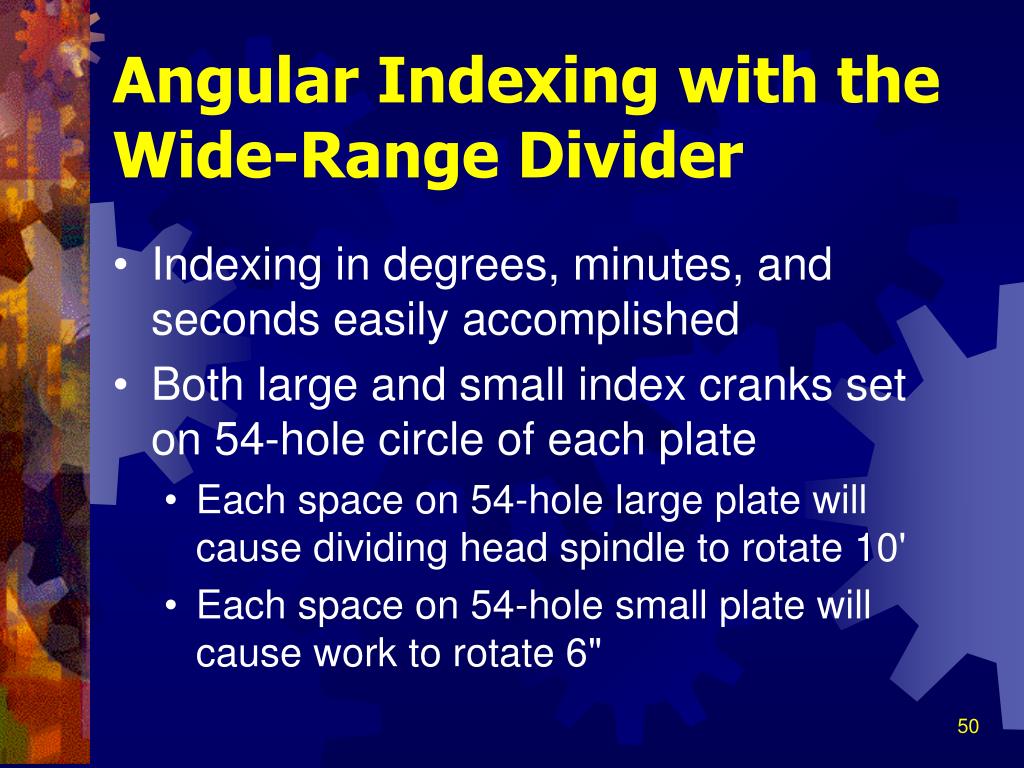

  50. Angular Indexing with the Wide-Range Divider • Indexing in degrees, minutes, and seconds easily accomplished • Both large and small index cranks set on 54-hole circle of each plate • Each space on 54-hole large plate will cause dividing head spindle to rotate 10' • Each space on 54-hole small plate will cause work to rotate 6"
