Trigger Validation Report Update for Physics Validation Meeting on February 12, 2009

harper-mckay avatar
harper-mckay
5 diapositives · 178 Views · Nov 13, 2014

This report summarizes the Trigger Validation meeting held on February 12, 2009, by David Strom and Ricardo Gonçalo on behalf of the trigger validation team. It highlights changes in trigger counts between versions r616 and r598, noting expected rates with some discrepancies in non-physics triggers. Key findings include the performance of Tau16i_EFxe30, muon triggers showing improved rates, and details on effiencies for various triggers. The report also discusses identified inefficiencies and ongoing adjustments to improve muon trigger efficiencies.

#trigger validation report update for physics validation meeting on february 12, 2009 #trigger validation report update for physics validation meeting on february 12, 2009 ppt #powerpoint #presentation
Trigger Validation Report Update for Physics Validation Meeting on February 12, 2009 - slide 1
01 / 5Trigger Validation Report Update for Physics Validation Meeting on February 12, 2009
1 / 17

Télécharger la présentation

Trigger Validation Report Update for Physics Validation Meeting on February 12, 2009
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

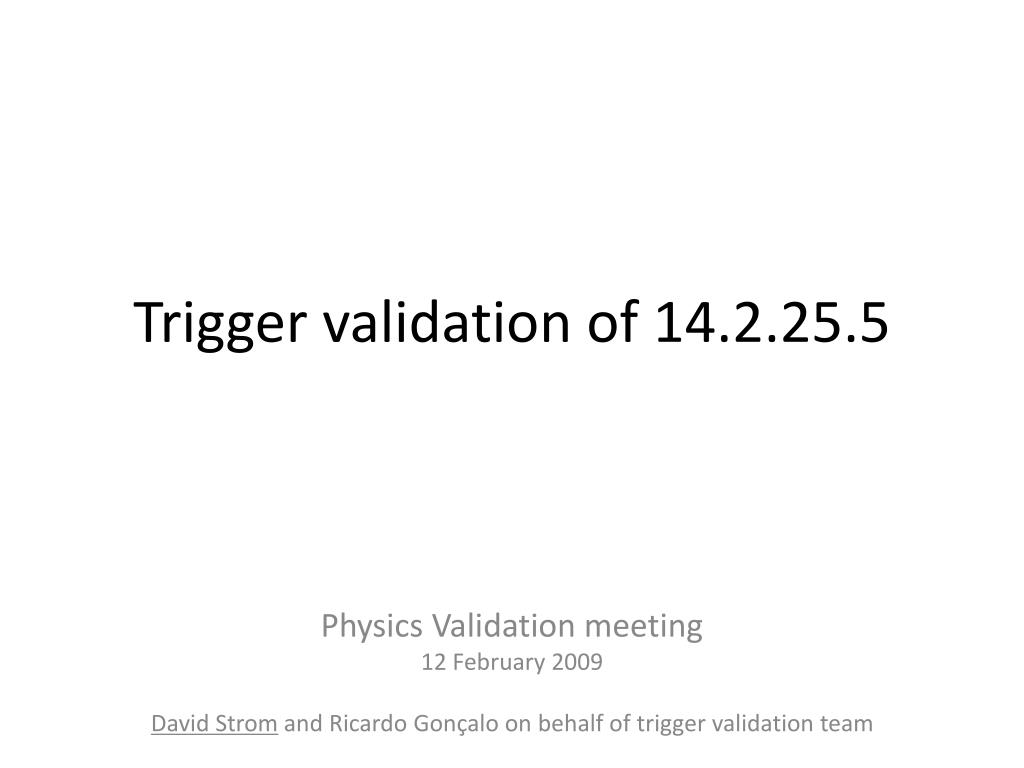

  1. Trigger validation of 14.2.25.5 Physics Validation meeting 12 February 2009 David Strom and Ricardo Gonçalo on behalf of trigger validation team

  2. Trigger Validation Report Ricardo Goncalo and David Strom • Changes in trigger counts are between r616 and previous processing (r598) are as expected ( see attached text files) except for some differences in non-physics triggers • Tau16i_EFxe30 has the expected rate • Triggers with mu4 and mu6 now have reasonable rates • Detailed feedback was provided by taus (see http://www.uoregon.edu/~areinsch/study.compare.142254Vs142255.5188.eps) and by Bphysics (next page) • Muons reported that the changes in top counts were as expected • In r616 IdScan definition of Pi still misses a few digits leading to a small inefficiency

  3. B-physics slice L2 muon efficiencies for run 108407 pp→Jpsimu4mu4 ( tag e347_s462_r541) Clearly see problem with L2_mu4 and L2_mu6 L2 muon efficiencies for Reprocessed sample (tag e380_s494_r616) L2_mu4 and L2_mu6 look to be fixed. Julie Kirk

  4. Tau slice tau16i_xe30 • Tau triggers look fine • Last one requested tau16i_EFxe30 looks ok 14.2.25.4 14.2.25.5 tau16i_xe30 14.2.25.4 14.2.25.5 Andreas Reinsch

  5. Count differences (c1-c2)/<c1,c2> c1 c2 label 42% 509 332 EF_g10_larcalib 21% 360 290 EF_g20_larcalib 36% 443 305 EF_mu4 33% 408 291 EF_mu6 96% 86 29 EF_2mu4 90% 64 24 EF_2mu6 -20% 4 5 EF_FJ120 --- 410 0 EF_tau16i_EFxe30 39% 157 105 EF_tau16i_mu6 48% 96 58 EF_e10_mu6 37% 443 304 EF_mu4_j10 35% 1 0 EF_MU4_Jpsimumu_FS 167% 3 0 EF_2MU4_DiMu --- 0 0 EF_2MU4_Jpsimumu 37% 159 108 EF_mu4_DsPhiPi_FS --- 1000 0 EF_Mbts_2 64% 8 4 EF_2e10_mu6 60% 5 3 EF_2g10_mu6 107% 10 3 EF_2mu6_e10 108% 9 2 EF_2mu6_g10 135% 4 0 EF_3mu6 -25% 267 345 EF_J80_larcalib 37% 1 1 EF_Jpsiee 21% 6 5 EF_Zee 80% 212 90 EF_mu4_j10_matched 84% 177 72 EF_mu4_j18_matched 84% 159 64 EF_mu4_j23_matched 81% 116 49 EF_mu4_j35_matched 78% 97 42 EF_mu4_j42_matched 93% 83 30 EF_mu4_mu6 -17% 337 403 EF_tau16i_loose_EFxe30_j50 39% 143 95 EF_tau20i_mu6 • Changes in 14.2.25.55 (c1) with respect to 14.2.25.4 (c2) • G10_larcalib changes due to a fixed bug in minbias prescales • Others due to new triggers or mu4 and mu6 changes (no pi/K rejection) • Some others just stat fluctuations • Basically all ok
