Chapter 2 Overview of Power Semiconductor Devices

Chapter 2 Overview of Power Semiconductor Devices. Introduction Diodes Thyristors Ideal switches Bipolar transistors MOSFETs MOS-Controlled Thyristors Comparison of controllable switches. Thyristors. Semi-controlled device Latches ON by a gate-current pulse if forward biased

harper-morton
Télécharger la présentation

Chapter 2 Overview of Power Semiconductor Devices

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

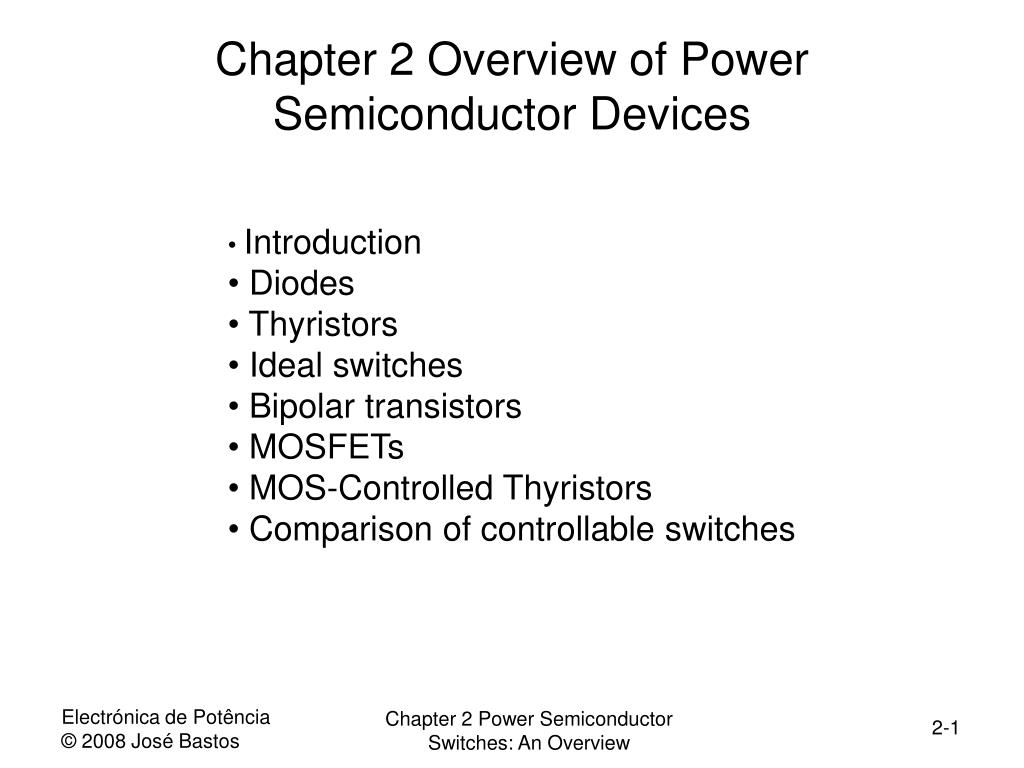

  1. Chapter 2 Overview of Power Semiconductor Devices • Introduction • Diodes • Thyristors • Ideal switches • Bipolar transistors • MOSFETs • MOS-Controlled Thyristors • Comparison of controllable switches

  2. Thyristors • Semi-controlled device • Latches ON by a gate-current pulse if forward biased • Turns-off if current tries to reverse

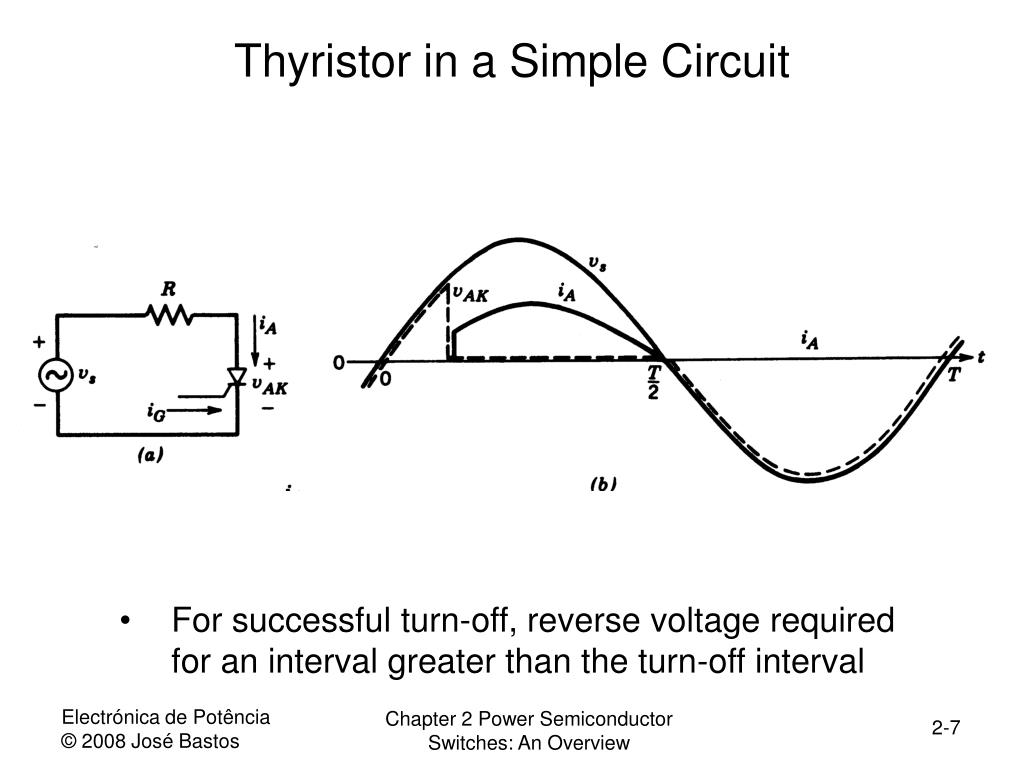

  3. Thyristor in a Simple Circuit • For successful turn-off, reverse voltage required for an interval greater than the turn-off interval

  4. Generic Switch Symbol • Idealized switch symbol • When on, current can flow only in the direction of the arrow • Instantaneous switching from one state to the other • Zero voltage drop in on-state • Infinite voltage and current handling capabilities

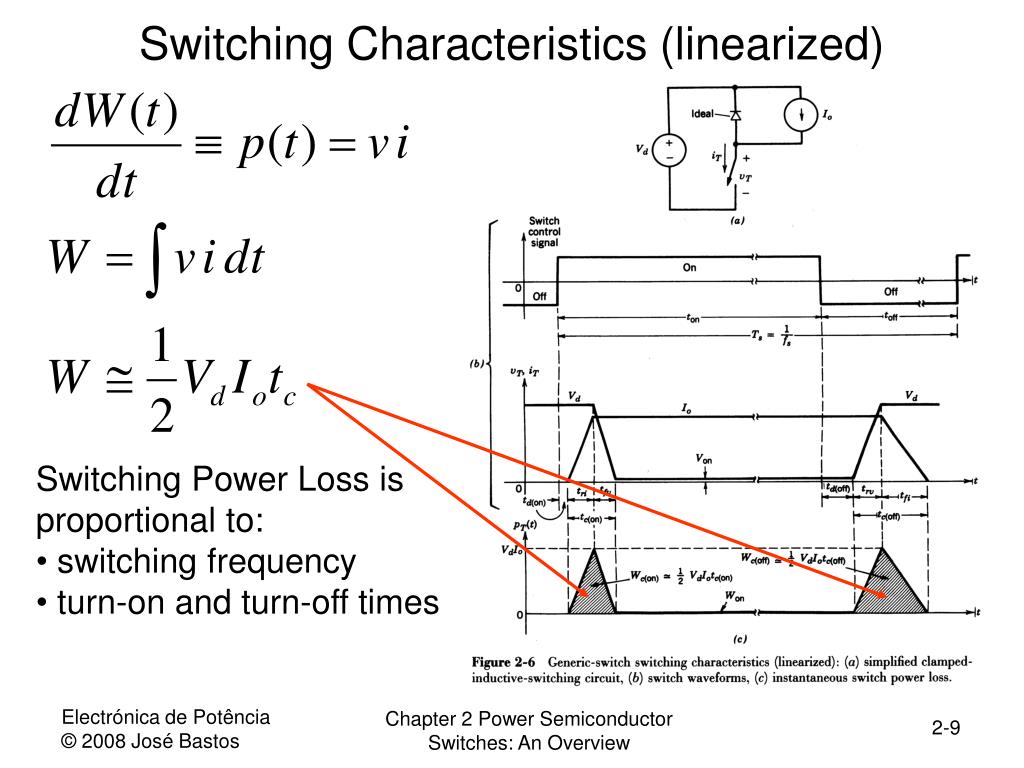

  5. Switching Characteristics (linearized) • Switching Power Loss is proportional to: • switching frequency • turn-on and turn-off times

  6. Switch: ideal characteristics • Small leakage current in off state • Small on state voltage • Short turn-on and turn-off • Large forward and reverse voltage • High on state current rating • Positive temperature coefficient • Small control power required to switch • Capability to survive rated voltage and rated current simultaneously

  7. Bipolar Junction Transistors (BJT) #1 • Used commonly in the past • Now used in specific applications • Replaced by MOSFETs and IGBTs

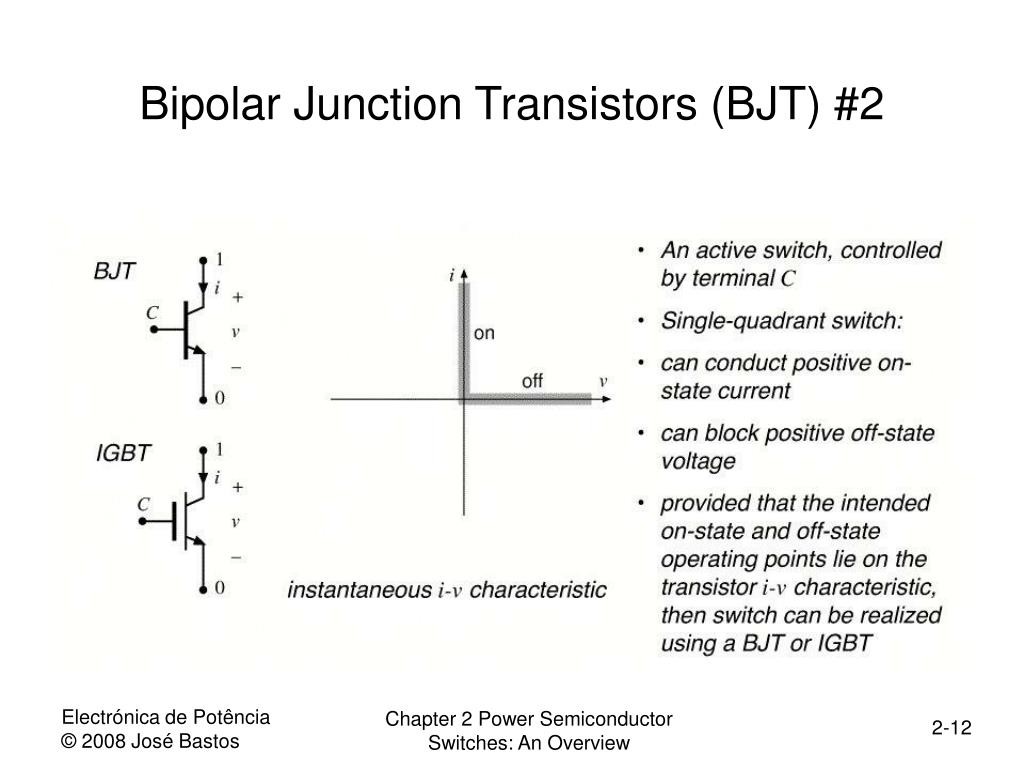

  8. Bipolar Junction Transistors (BJT) #2

  9. Bipolar Junction Transistors (BJT) #3

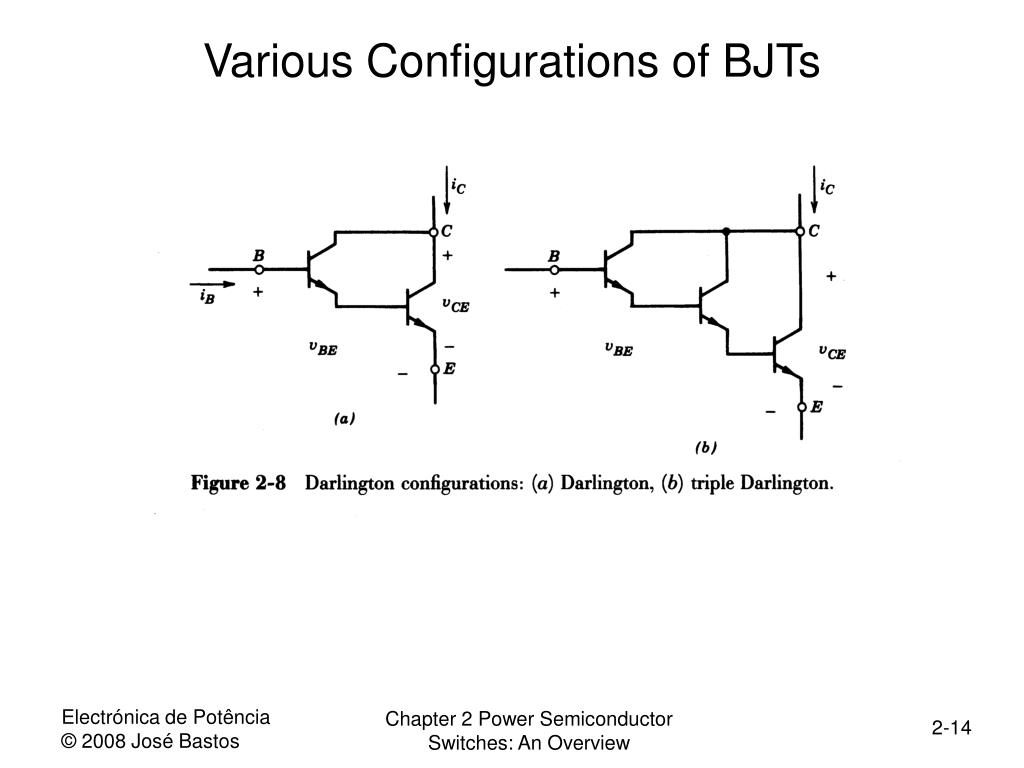

  10. Various Configurations of BJTs

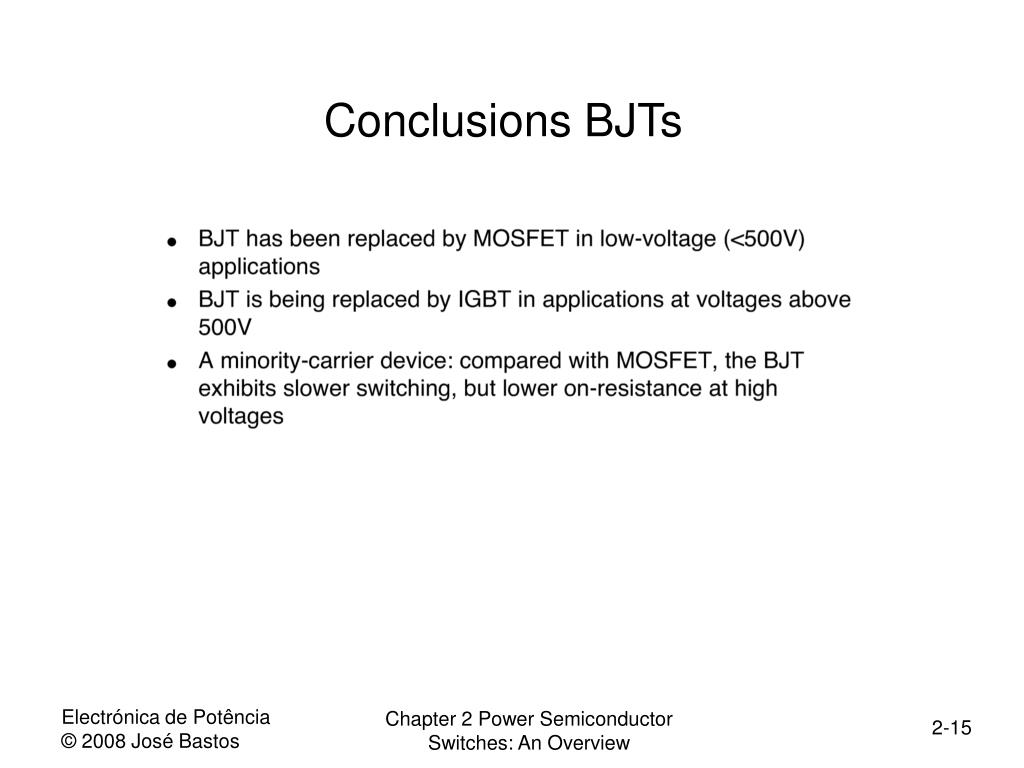

  11. Conclusions BJTs

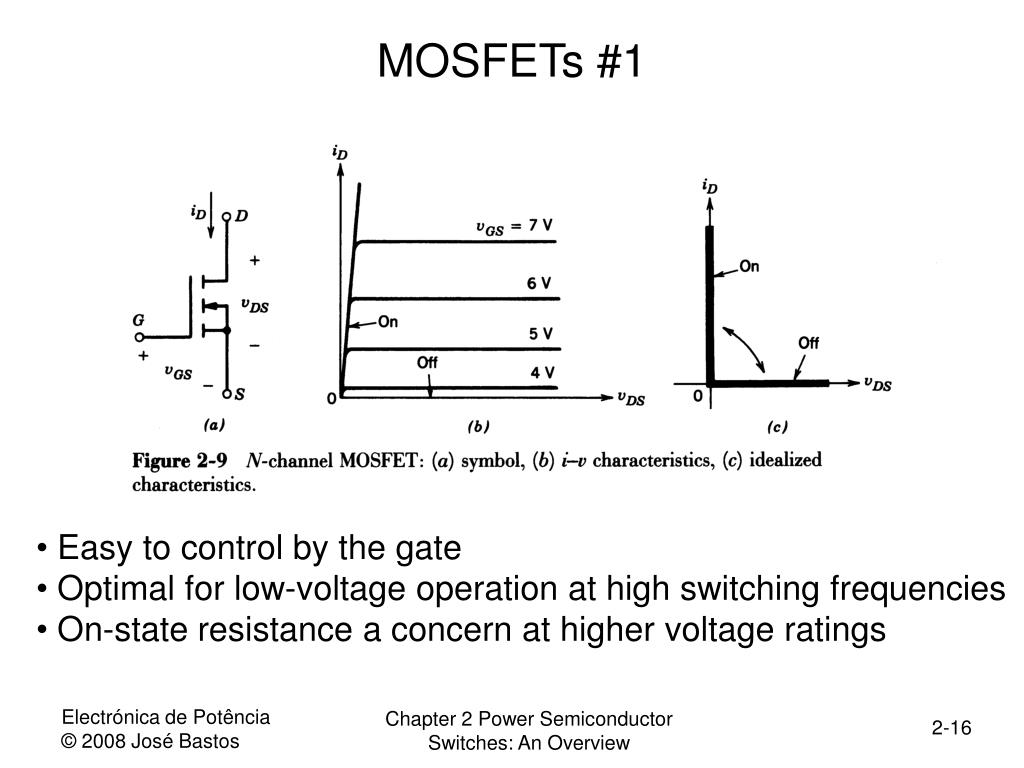

  12. MOSFETs #1 • Easy to control by the gate • Optimal for low-voltage operation at high switching frequencies • On-state resistance a concern at higher voltage ratings

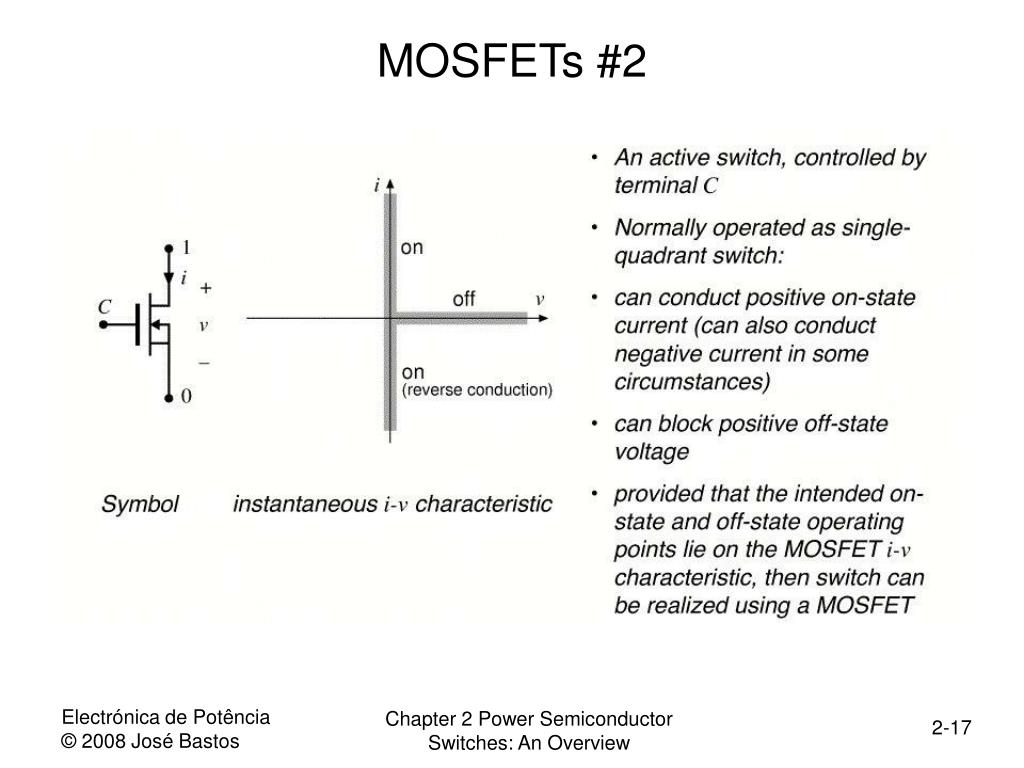

  13. MOSFETs #2

  14. IGBT

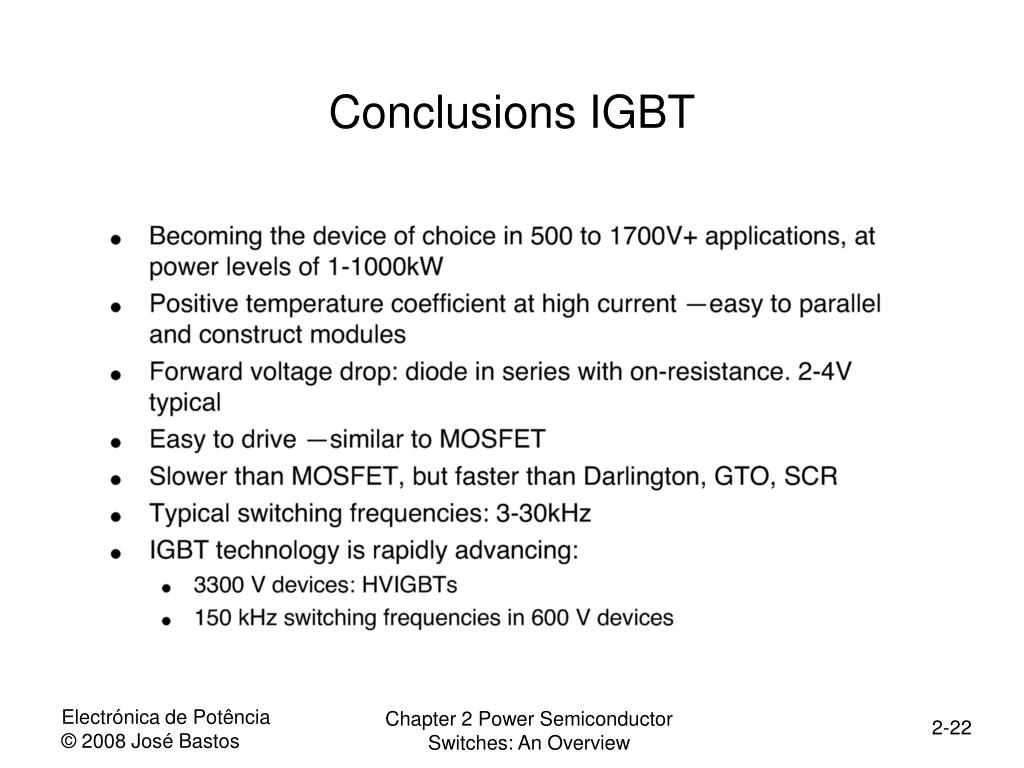

  15. Conclusions IGBT

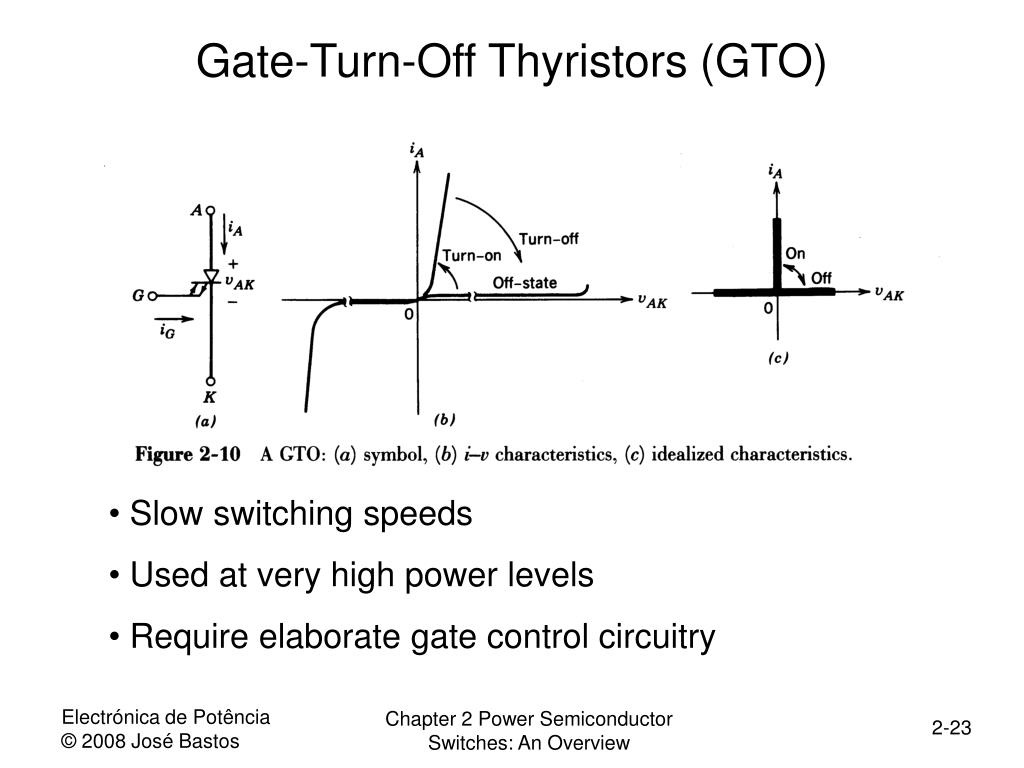

  16. Gate-Turn-Off Thyristors (GTO) • Slow switching speeds • Used at very high power levels • Require elaborate gate control circuitry

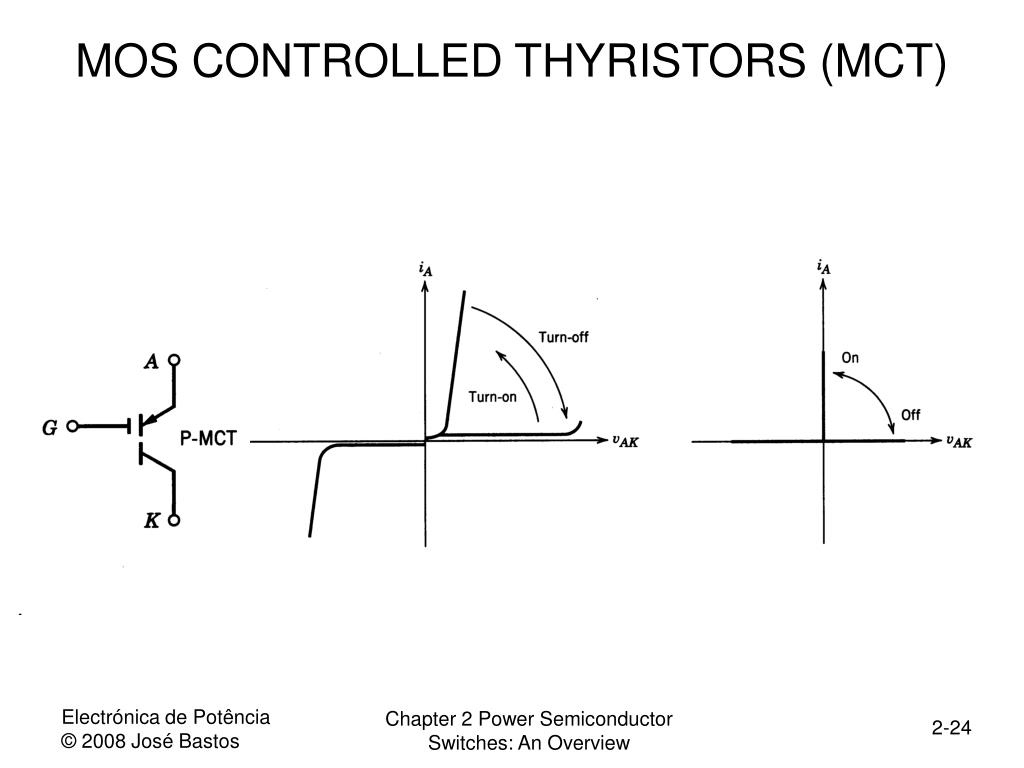

  17. MOS CONTROLLED THYRISTORS (MCT)

  18. Comparison of Controllable Switches

  19. Summary of Device Capabilities
