  1. Pulmonary Function Tests Presenter: Dr. Sofia Patial Moderator: Dr. GianChauhan

  2. GOALS • To predict presence of pulmonary dysfunction • To know the functional nature of disease. • To assess the severity of disease • To assess the progression of disease • To assess the response to treatment • Medicolegal- to assess lung impairment as a result of occupational hazard. • To identify patients at perioperative risk of pulmonary complications

  3. INDICATIONS OF PFT IN PAC TISI GUIDELINES FOR PREOPERATIVE SPIROMETRY • Age > 70 yrs. • Morbid obesity • Thoracic surgery • Upper abdominal surgery • Smoking history and cough • Any pulmonary disease

  4. ACP GUIDELINES FOR PREOPERATIVE SPIROMETRY • Lung resection • H/o smoking, dyspnoea • Cardiac surgery • Upper abdominal surgery • Lower abdominal surgery • Uncharacterized pulmonary disease (defined as history of pulmonary Disease or symptoms and no PFT in last 60 days)

  5. Contraindications: • Hemoptysis of unknown origin • Pneumothorax • Unstable cardiovascular status, recent MI, pulmonary embolism • Thoracic, abdominal or cerebral aneurysms • Recent eye surgery (cataract) • Nausea, vomiting • Recent surgery on thorax or abdomen

  6. Components of PFT’s: • Spirometry for measuring airway mechanics (dynamic flow rates of gases) • Measuring lung volumes and capacities • Measuring diffusion capacity of lung

  7. Spirometry

  8. PREREQUISITIES • Prior explanation to the patient • Not to smoke /inhale short acting bronchodilators 4 hrs prior or oral aminophylline and long acting bronchodilator 12hrs prior. • Remove any tight clothings/ waist belt/ dentures • Pt. Seated comfortably • If obese, child < 12 yrs- standing • Nose clip to close nostrils. • 3 acceptable tracings taken & largest value is used.

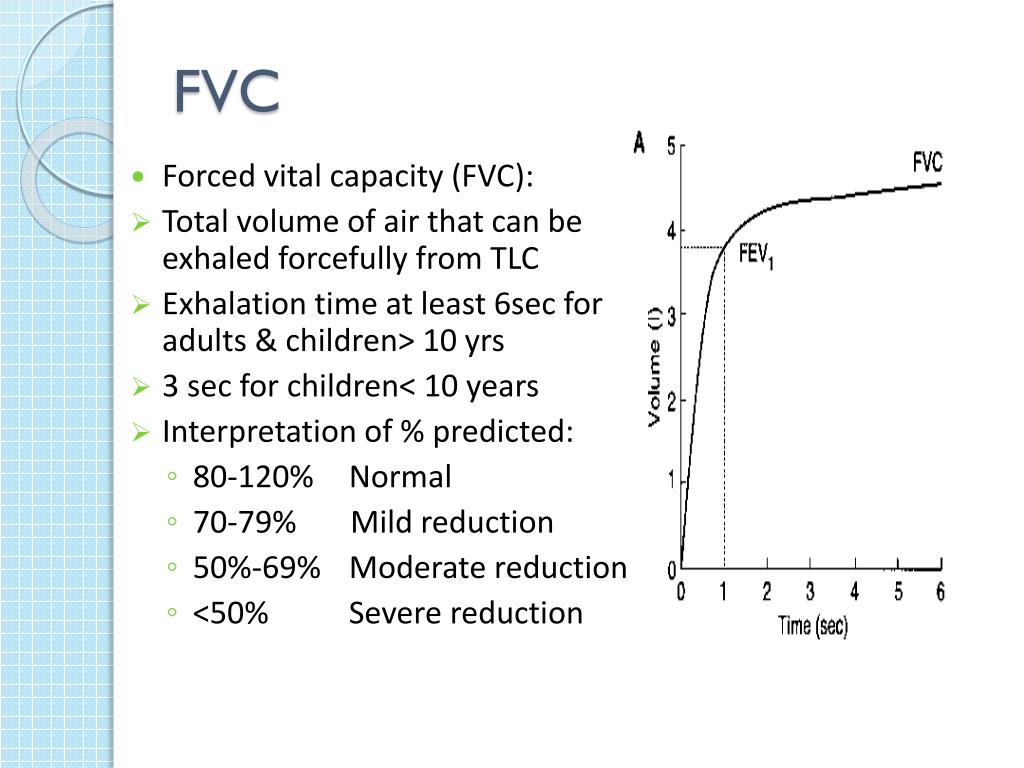

  9. FVC • Forced vital capacity (FVC): • Total volume of air that can be exhaled forcefully from TLC • Exhalation time at least 6sec for adults & children> 10 yrs • 3 sec for children< 10 years • Interpretation of % predicted: • 80-120% Normal • 70-79% Mild reduction • 50%-69% Moderate reduction • <50% Severe reduction

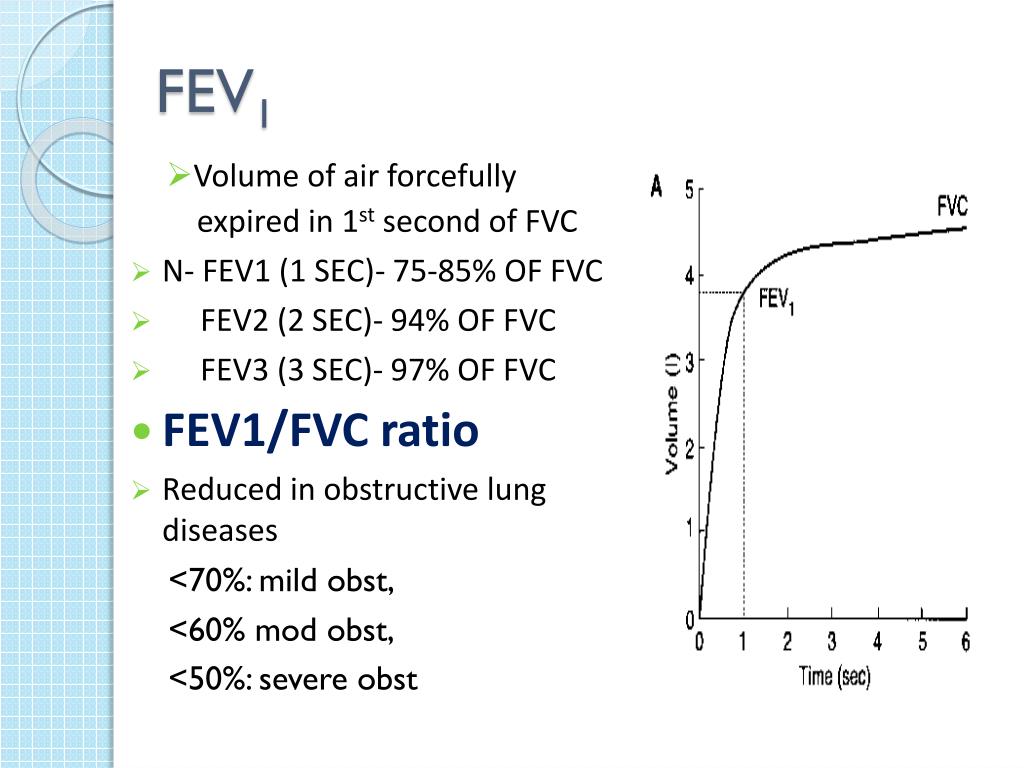

  10. FEV1 • Volume of air forcefully expired in 1st second of FVC • N- FEV1 (1 SEC)- 75-85% OF FVC • FEV2 (2 SEC)- 94% OF FVC • FEV3 (3 SEC)- 97% OF FVC • FEV1/FVC ratio • Reduced in obstructive lung diseases <70%: mild obst, <60% mod obst, <50%: severe obst

  11. FEF25-75 • Mean forced expiratory flow in middle half of FVC • Reflect status of small airways • Effort independent expiration • N value – 4.5-5 l/sec Or 300 l/min. • Upto 2l/sec- acceptable. • CLINICAL SIGNIFICANCE: SENSITIVE & 1st INDICATOR of obstruction of small distal airways • Interpretation of % predicted: • >79% Normal • 60-79% Mild obstruction • 40-59% Moderate obstruction • <40% Severe obstruction

  12. PEFR • max. Flow rate during initial 0.1 sec of FVC . • DETERMINED BY : • Function of caliber of airways • Expiratory muscle strength • Pt’s coordination & effort • Normal value in young adults (<40 yrs) > 500L/min • Clinical significance - values of <200 L/m- impaired coughing & hence likelihood of post-op complication

  13. MAXIMUM BREATHING CAPACITY: (MBC/MVV) • Largest volume that can be breathed per minute by voluntary effort , as hard & as fast as possible. • N – 150-175 l/min. • Estimate of max. ventilation available to meet increased physiological demand. • Measured for 12 secs – extrapolated for 1 min. • MVV = FEV1 X 35 • MVV altered by- airway resistance - Elastic property -Muscle strength - Learning, Coordination, Motivation

  14. RESPIRATORY MUSCLE STRENGTH • MAX STATIC INSP. PRESSURE: (PIMAX)- • Measured when inspiratory muscles are at their optimal length i.e. at RV • PI MAX = -125 CM H2O • CLINICAL SIGNIFICANCE: • IF PI MAX< 25 CM H2O – Inability to take deep breath. • MAX. STATIC EXPIRATORY PRESSURE (PEMAX): • Measured after full inspiration to TLC • N VALUE OF PEMAX IS =200 CM H20 • PEMAX < +40 CM H20 – Impaired cough ability • Particularly useful in pts with NM Disorders during weaning

  15. Flow-Volume Loop • Illustrates maximum expiratory and inspiratory flow-volume curves • Useful to help characterize disease states (e.g. obstructive vs. restrictive)

  16. Reversibility: • Indicate effective therapy • Spirometry before & after bronchodilator • 12% or greater improvement in FEV1 and at least 200 ml increase in FEV1 . post FEV1-pre FEV1 • % improvement= ------------------------- x100 Pre FEV1

  17. Bronchial Challenge: • Detects hyperreactive airway • Indication- patients of seasonal or exercise induced wheezing with normal spirometry results • use of agents like histamine, methacholine, cold air, exercise etc. • Start with NS aerosol- positive response: 10% or more decrease in FEV1

  18. Methacholine aerosol (0.03,0.06,16mg/ml) • Positive response- 20% or more decrease in FEV1 • e.g; PD22FEV1 = 4mg/ml

  19. NORMAL VALUES MALES • IRV 3.3 L • TV 0.5 L • ERV 1.0 L • RV 1-2 L TLC 6.0 L FEMALES 1.9 L 0.5 L 0.7 L 1.1 L 4.2 L

  20. FACTORS INFLUENCING VC • PHYSIOLOGICAL : • physical dimensions- directly proportional to ht. • SEX – more in males : large chest size, more muscle power, more BSA. • AGE – decreases with increasing age • Strength of respiratory muscles • POSTURE – decreases in supine position • PREGNANCY- unchanged or increases by 10% ( increase in AP diameter In pregnancy) • PATHOLOGICAL: • disease of respiratory muscles • Abdominal condition : pain, dis. and splinting

  21. DIFFERENT POSTURES AFFECTING VC • POSITION • TRENDELENBERG • LITHOTOMY • PRONE • RT. LATERAL • LT. LATERAL • DECREASE IN VC • 14.5% • 18% • 10% • 12% • 10% in post operative period if VC falls below 3 times VC– artificial respiration is needed to maintain airway clear of secretions.

  22. FACTORS AFFECTING FRC • FRC INCREASES WITH • Increased height • Erect position (30% more than in supine) • Decreased lung recoil (e.g. emphysema) • FRC DECREASES WITH • Obesity • Muscle paralysis (especially in supine) • Supine position • Restrictive lung disease (e.g. fibrosis, Pregnancy) • Anaesthesia • FRC does NOT change with age.

  23. FUNCTIONS OF FRC • Oxygen store • Buffer for maintaining a steady arterial po2 • Partial inflation helps prevent atelectasis • Minimise the work of breathing • Minimise pulmonary vascular resistance • Minimised V/Q mismatch - only if closing capacity is less than FRC • Keep airway resistance low (but not minimal)

  24. MEASUREMENTS OF VOLUMES • TLC, RV, FRC – MEASURED USING • Nitrogen washout method • Inert gas (helium) dilution method • Total body plethysmography

  25. 1) HELIUM DILUTION METHOD: • Patient breathes in and out of a spirometer filled with 10% helium and 90% o2, till conc. In spirometer and lung becomes same • As no helium is lost; (as He is insoluble in blood) • C1 X V1 = C2 ( V1 +V2)

  26. 2) TOTAL BODY PLETHYSMOGRAPHY: • Subject sits in an air tight box. • At the end of normal exhalation – shuttle of mouthpiece closed and pt. is asked to make resp. efforts. • As subject inhales – expands gas volume in the lung so lung vol. increases and box pressure rises and box vol. decreases. BOYLE’S LAW: PV = CONSTANT (at constant temp.) For Box – p1v1 = p2 (v1- ∆v) For Subject – p3 x v2 =p4 (v2 - ∆v) P1- initial box pr. P2- final box pr. V1- initial box vol. ∆ v- change in box vol. P3- initial mouth pr., p4- final mouth pr. V2- FRC

  27. DIFFERENCE BETWEEN THE TWO METHODS: • In healthy people there is very little difference. • Gas dilution technique measures only communicating gas volume. • Thus, • Gas trapped behind closed airways • Gas in pneumothorax • => are not measured by gas dilution technique, but measured by body plethysmograph

  28. 3) N2 WASH OUT METHOD: • Following a normal expiration (FRC), Pt. inspires 100% O2 and then expires it into spirometer ( free of N2) • over next few minutes (usually 6-7 min.), till all the N2 is washed out of the lungs. • N2 conc. of spirometer is calculated followed by total vol.of AIR exhaled. • As air has 80% N2 →so actual FRC calculated.

  29. PROBLEMS WITH N2 WASH OUT METHOD • Atelectasis may result from washout of nitrogen from poorly ventilated lung zones (obstructed areas) • Elimination of hypoxic drive in CO2 retainers is possible • Underestimates FRC due to underventilation of areas with trapped gas

  30. TESTS FOR GAS EXCHANGE FUNCTION 1) ALVEOLAR-ARTERIAL O2 TENSION GRADIENT: • Sensitive indicator of detecting regional V/Q inequality • N value in young adult at room air = 8 mmHg to upto 25 mmhg in 8th decade (d/t decrease in PaO2) • AbN high values at room air is seen in asymptomatic smokers & chr. Bronchitis (min. symptoms) PAO2 = PIO2 – PaCo2 R

  31. 2) DYSPNEA DIFFENRENTIATION INDEX (DDI): • To differentiate dyspnea due to resp/ cardiac disease DDI = PEFR x PaCO2 1000 • DDI- Lower in resp. pathology

  32. 3) DIFFUSING CAPACITY OF LUNG: • depends upon gradient and thickness of alveolo-capillary membrane. • defined as the rate at which gas enters into blood divided by its driving pressure. • DRIVING PRESSURE: gradient b/w alveoli & end capillary tensions. • DL CO = Vco /(P A CO–P c CO)

  33. SINGLE BREATH TEST USING CO • Pt inspires a dilute mixture of CO and hold the breath for 10 secs. • CO taken up is determined by infrared analysis • N range 20- 30 ml/min./mmhg. • NORMAL- 75-120% of predicted • DL IS MEASURED BY USING CO, coz: • High affinity for Hb which is approx. 210 times that of O2 , so does not rapidly build up in plasma • Therefore, pulm capillary partial pressure of CO ≈ 0

  34. DLCO decreases in- • Emphysema, lung resection, pul. Embolism, anaemia • Pulmonary fibrosis, sarcoidosis- increased thickness DLCO increases in: (Cond. Which increase pulm. bld flow) • Supine position • Exercise • Obesity • L-R shunt

  35. TESTS FOR CARDIOPLULMONARY INTERACTIONS • Reflects gas exchange, ventilation, tissue O2. • QUALITATIVE- history, exam, ABG, stair climbing test • QUANTITATIVE- 6 minute walk test

  36. 1) STAIR CLIMBING TEST: • If able to climb 3 flights of stairs without stopping/ dypnoea at his/her own pace-↓ed morbidity & mortality • If not able to climb 2 flights – high risk • Quantitative assessment by measuring the max O2 uptake during exercise(VO2max). • A 2-flight stair climb (20 steps/min) without dyspnea is approx VO2max of 16ml/kg/min. • VO2max≥20ml/kg/min: minimal risk • VO2max≤15ml/kg/min: inc cardiopulmonary risk • VO2max≤10ml/kg/min: high risk with 30% mortality

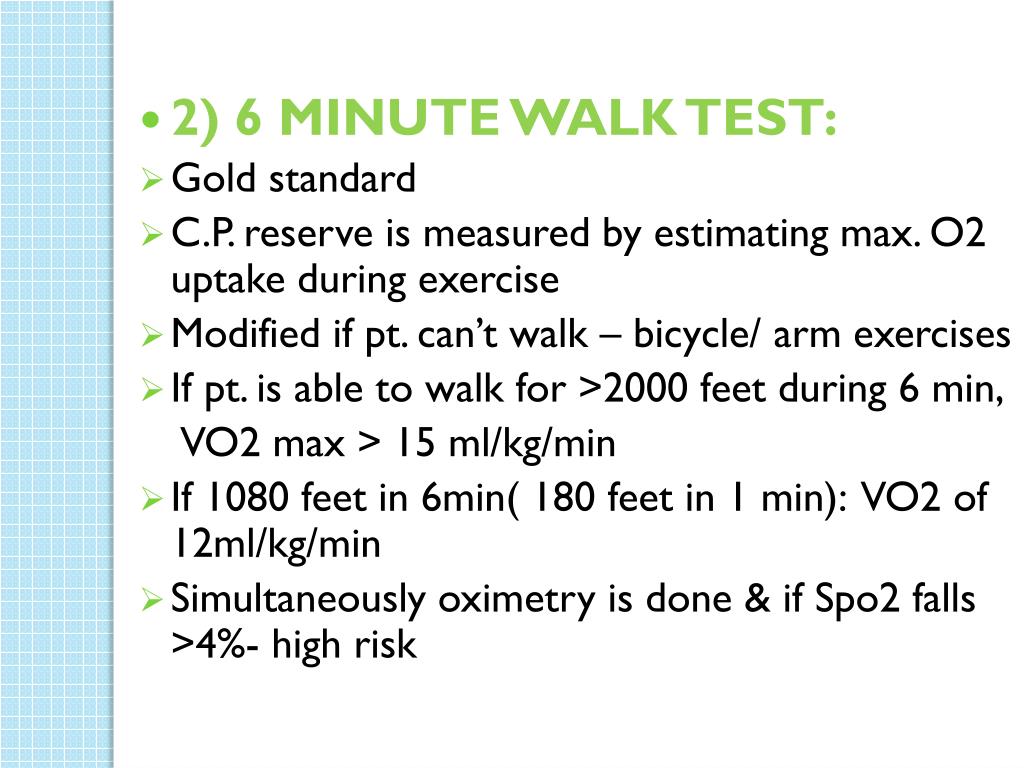

  37. 2) 6 MINUTE WALK TEST: • Gold standard • C.P. reserve is measured by estimating max. O2 uptake during exercise • Modified if pt. can’t walk – bicycle/ arm exercises • If pt. is able to walk for >2000 feet during 6 min, VO2 max > 15 ml/kg/min • If 1080 feet in 6min( 180 feet in 1 min): VO2 of 12ml/kg/min • Simultaneously oximetry is done & if Spo2 falls >4%- high risk

  38. BED SIDE PFT 1).Sabrasez breath holding test: >25 sec.-normal 15-25 sec- limited CPR <15 sec- very poor CPR (Contraindication for elective surgery) 25- 30 SEC - 3500 ml VC 20 – 25 SEC - 3000 ml VC 15 - 20 SEC - 2500 ml VC 10 - 15 SEC - 2000 ml VC 5 - 10 SEC - 1500 ml VC

  39. 2). SINGLE BREATH COUNT: It is a measure of the FRC. >15 : normal <15 : dec reserve 11-15 : mild impairment 5-10 : mod impaired <5 : severe impairment 3). FET (WATCH AND STETHOSCOPE TEST ): After deep breath, exhale maximally and forcefully & keep stethoscope over trachea & listen. N. – 3-5 SECS. OBS.LUNG DIS. - > 6 SEC RES. LUNG DIS.- < 3 SEC

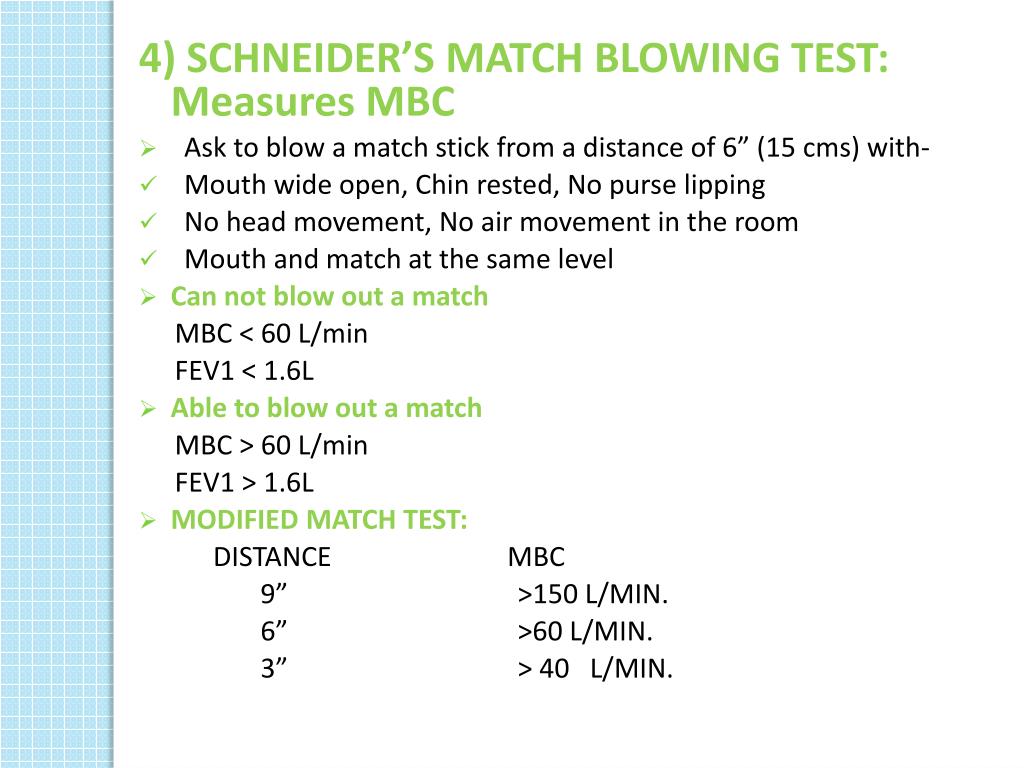

  40. 4) SCHNEIDER’S MATCH BLOWING TEST: Measures MBC • Ask to blow a match stick from a distance of 6” (15 cms) with- • Mouth wide open, Chin rested, No purse lipping • No head movement, No air movement in the room • Mouth and match at the same level • Can not blow out a match MBC < 60 L/min FEV1 < 1.6L • Able to blow out a match MBC > 60 L/min FEV1 > 1.6L • MODIFIED MATCH TEST: DISTANCE MBC 9” >150 L/MIN. 6” >60 L/MIN. 3” > 40 L/MIN.

  41. 5) GREENE & BEROWITZ COUGH TEST: • deep breath f/by cough • ABILITY TO COUGH • STRENGTH • EFFECTIVENESS • INADEQUATE COUGH IF: FVC<20 ML/KG FEV1 < 15 ML/KG PEFR < 200 L/MIN. • VC ~ 3 times TV for effective cough. • wet productive cough / self propagated paraoxysms of coughing – patient susceptible for pulmonary Complication.

  42. 6) WRIGHT PEAK FLOW METER: Measures PEFR N – MALES- 450-700 L/MIN. FEMALES- 350-500 L/MIN. <200 L/min.–inadequate cough efficiency.

  43. 7) DEBONO WHISTLE BLOWING TEST: Measures PEFR. • Patient blows down a wide bore tube at the end of which is a whistle, on the side is a hole with adjustable knob. • As subject blows → whistle blows • leak hole is gradually increased till intensity of whistle disappears. • At the last position at which the whistle can be blown , the PEFR can be read off the scale.

  44. 8)Wright respirometer: measures TV, MV (15 secs times 4) • Instrument- compact, light and portable. • Disadvantage: It under- reads at low flow rates and over- reads at high flow rates. • Can be connected to endotracheal tube or face mask • Prior explanation to patients needed. • Ideally done in sitting position. • MV- instrument record for 1 min. And read directly • TV-calculated and dividing MV by counting Respiratory Rate. • Accurate measurement in the range of 3.7-20l/min.(±10%) • USES: 1)bed side PFT 2) ICU – weanig pts. from ventilation. 9) BED SIDE PULSE OXIMETRY 10) ABG.
