  1. Chap 6. Properties of Vibrating Systems

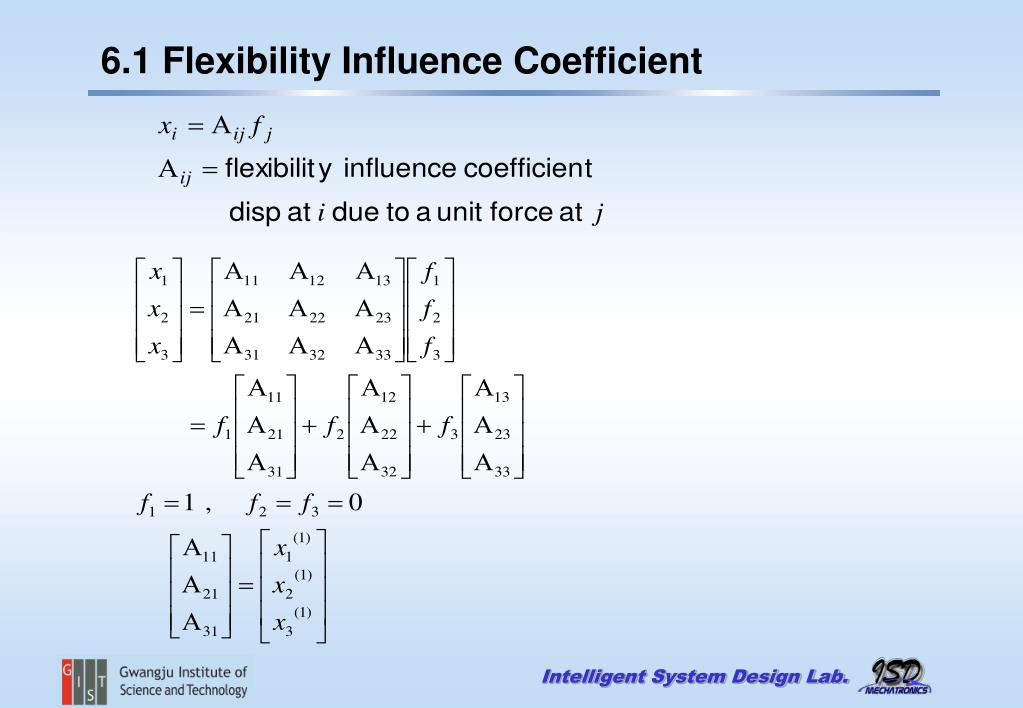

  2. 6.1 Flexibility Influence Coefficient

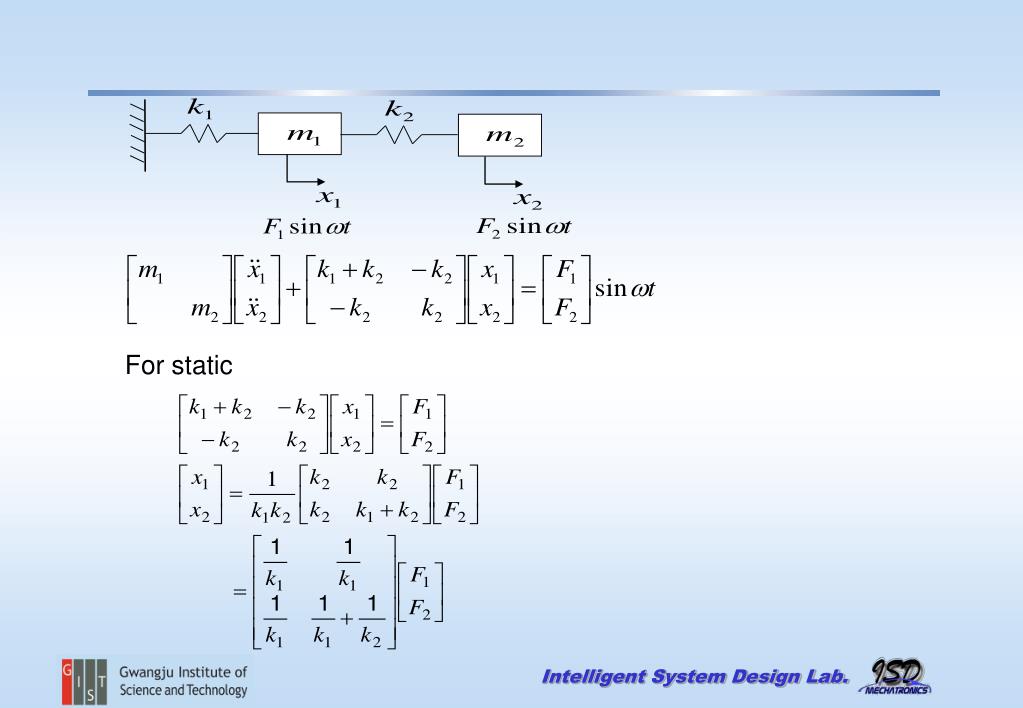

  3. For static

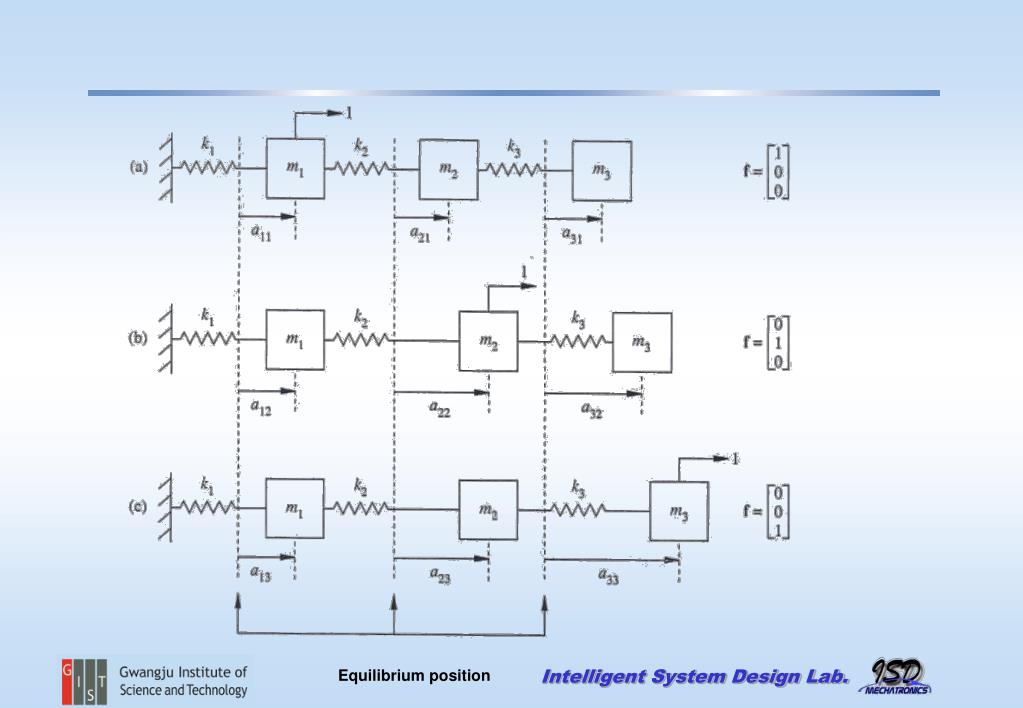

  4. Equilibrium position

  5. Strain Energy where energy density function Complementary Energy density function

  6. For linear elastic behavior, Total potential energy Complementary work(energy) First Castigliano Theorem Total potential energy

  7. The Second Castigliano Theorem Total Complementary energy For linear elastic

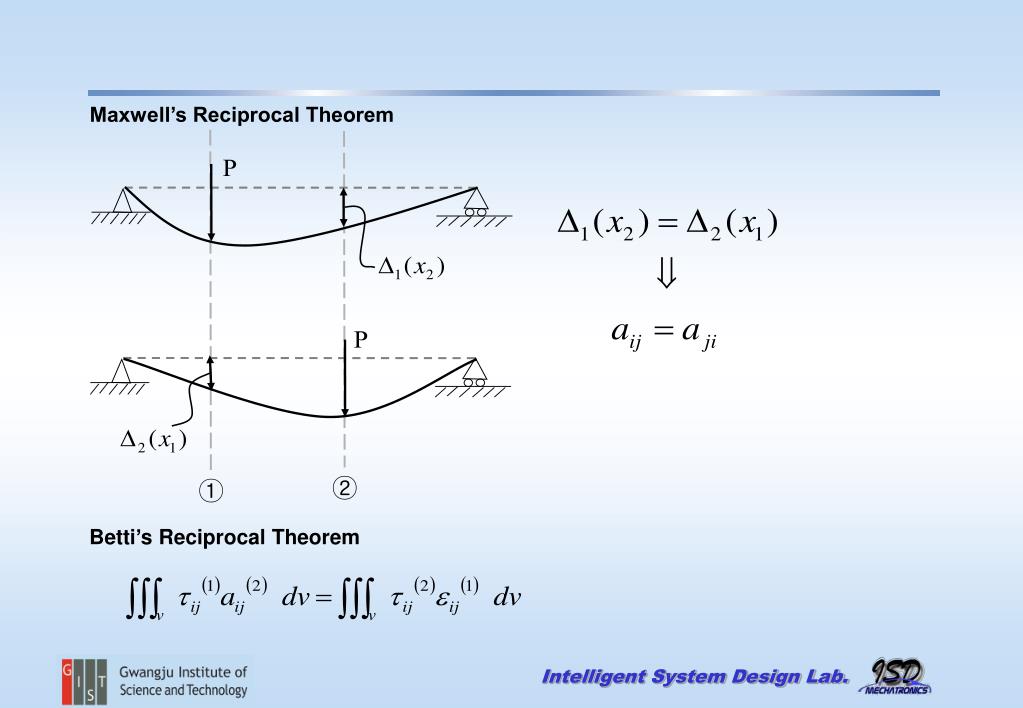

  8. ② ① Maxwell’s Reciprocal Theorem Betti’s Reciprocal Theorem

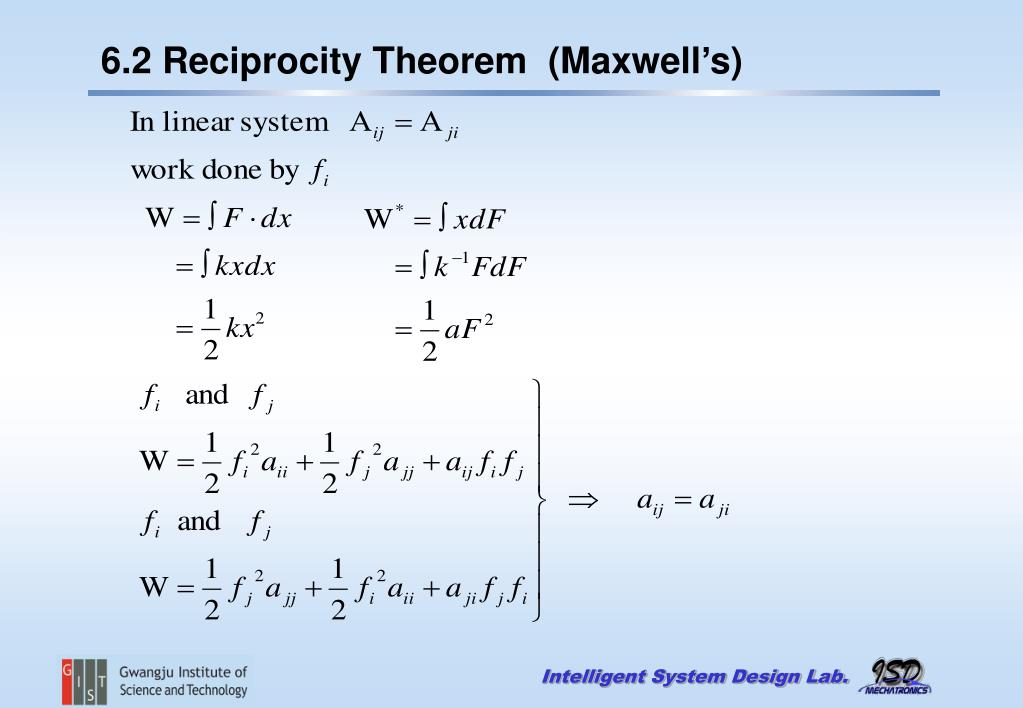

  9. 6.2 Reciprocity Theorem (Maxwell’s)

  10. 6.3 Stiffness Influence Coefficient

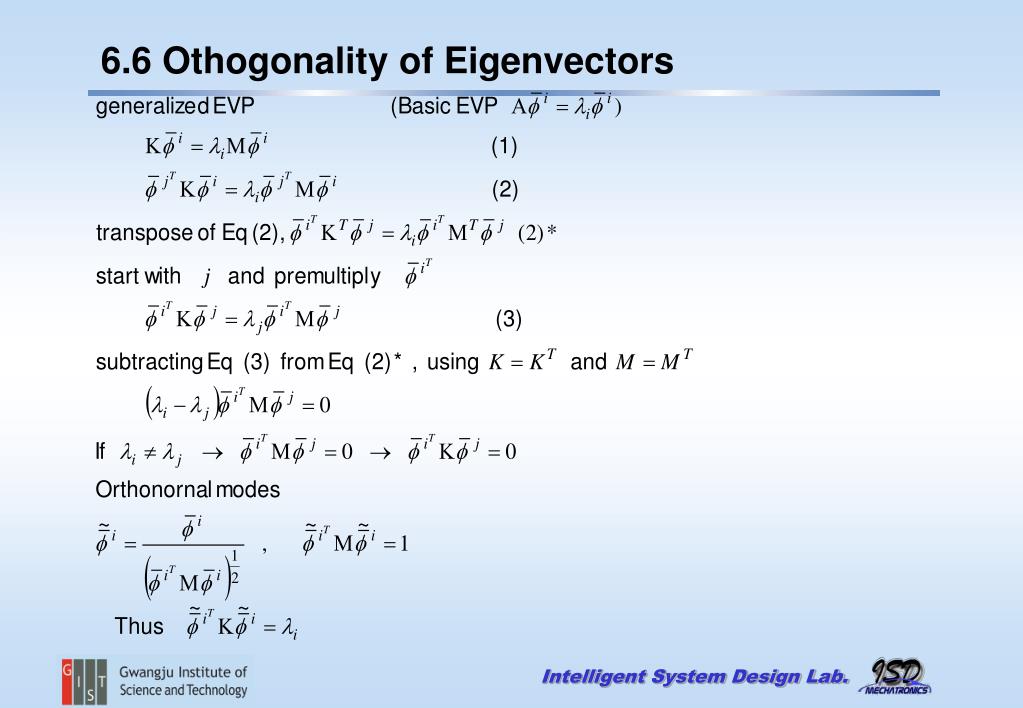

  11. 6.6 Othogonality of Eigenvectors

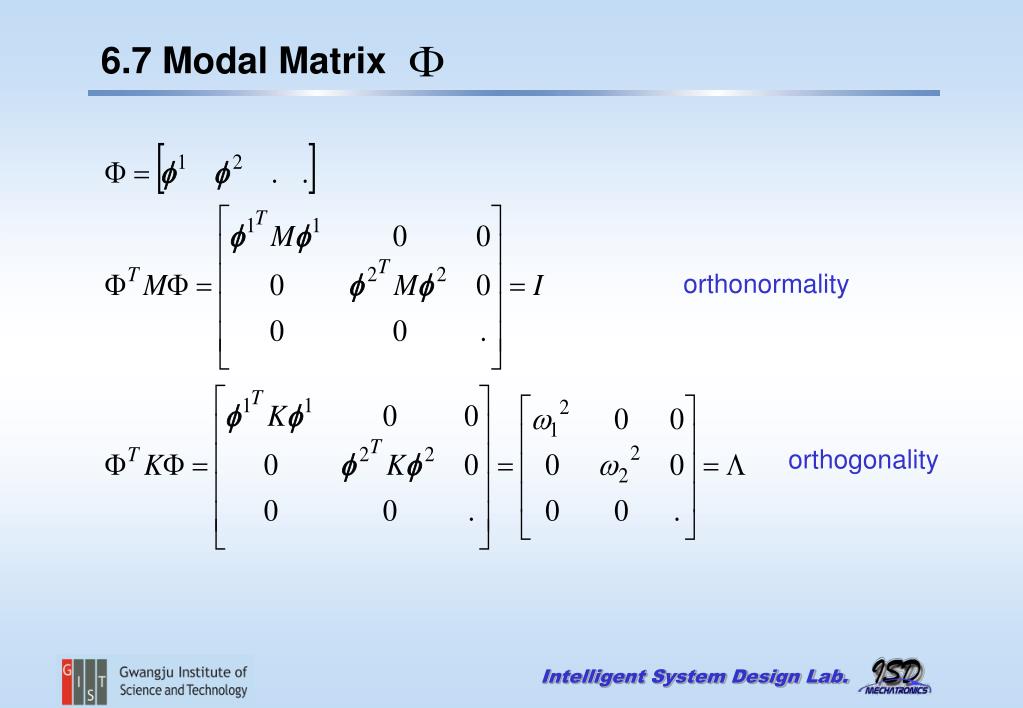

  12. 6.7 Modal Matrix orthonormality orthogonality

  13. 6.8 Decoupling Forced Vibration Equations

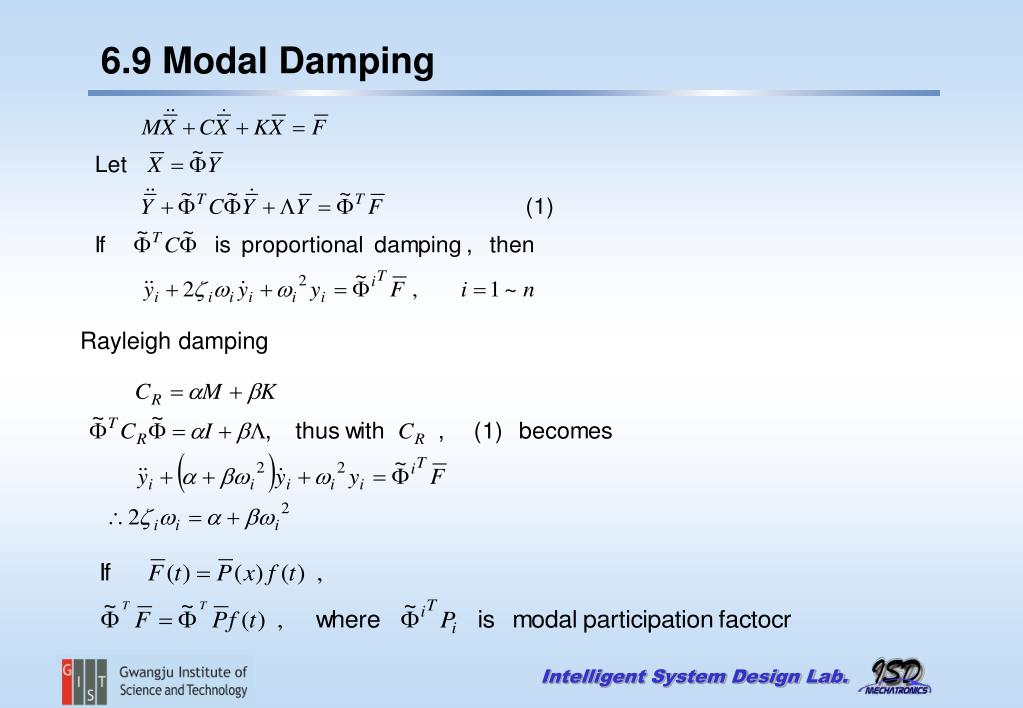

  14. 6.9 Modal Damping Rayleigh damping

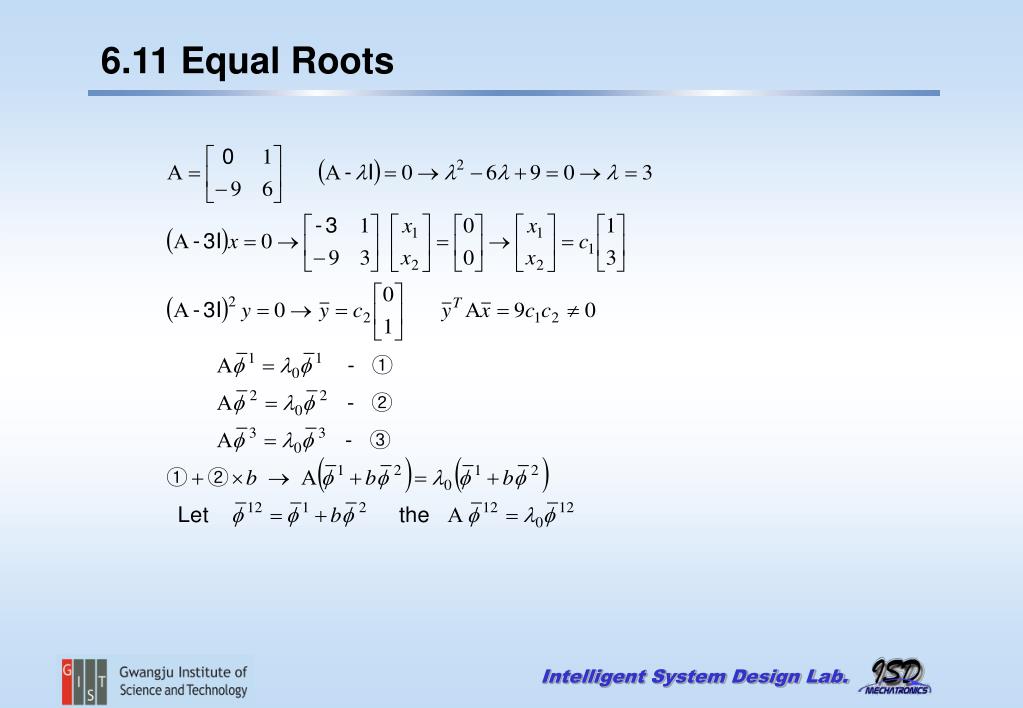

  15. 6.11 Equal Roots
