  1. SmartSTACK ELS100-24TXM and ELS100-24TXG Overview

  2. SmartSTACK FamilyELS100-24TXM/TXG • 24 port 10/100 Fast Ethernet desktop switches with uplinks • Expanding the SmartSTACK family • Designed for ease of use while providing unparalleled performance and features • Based on industry and IEEE standards for interoperability • Interoperable with Cabletron’s SmartSWITCH family • SmartTrunking across SmartSTACK, 2000, 6000 and SSR families

  3. SmartSTACK ELS100-24TXM/TXG features • Performance Features: • 24 port 10/100 autosensing fast Ethernet switch • Wire speed switching on all ports in half & full duplex modes (3.6Mpps). • Switch fabric bandwidth 4.2 Gbps • Plug and play installation • 12,288 address MAC table for TXM and 16,384 for TXG • Flow control • Back pressure (Half Duplex) 802.3x (Full Duplex) • Broadcast control (Throttling)

  4. Management Features • Can be managed by any SNMP based network management station by importing MIB’s • Supported by Spectrum Enterprise Manager • Supported by Spectrum Element Manager • WEB based management • Built in WEB server provides management and configuration capabilities from any WEB browser application (NetScape, Internet Explorer) • 802.1Q standards based VLAN’s (4095 VLAN’s per Switch) • 802.1P Priority Queuing • 4 groups of RMON Supported on all ports • Port Mirroring for fault isolation via Network analyzer

  5. Configuration • Menu Driven Local Console configuration via front panel COM port • TFTP protocol for software download for remote software upgrade • BootP and DHCP support for IP address configuration • Via SNMP network management station • Remotely configurable via Telnet

  6. SmartSTACK ELS100-24TXM/G

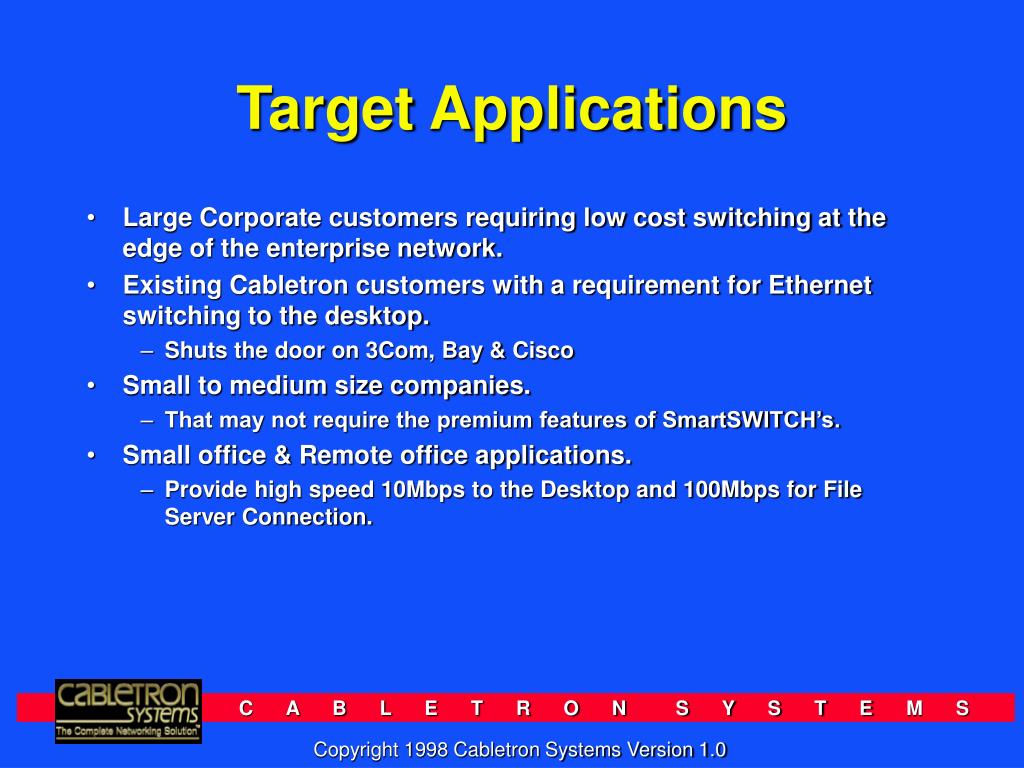

  7. Target Applications • Large Corporate customers requiring low cost switching at the edge of the enterprise network. • Existing Cabletron customers with a requirement for Ethernet switching to the desktop. • Shuts the door on 3Com, Bay & Cisco • Small to medium size companies. • That may not require the premium features of SmartSWITCH’s. • Small office & Remote office applications. • Provide high speed 10Mbps to the Desktop and 100Mbps for File Server Connection.

  8. Competitive positioning • The SmartSTACK ELS100-24TXM/TXG is competitively positioned against products Cisco, 3Com, Bay Networks low cost switching products. • Best Price: List price $3,395 TXM and $3995 TXG allows the SmartSTACK desktop switch to compete • Best performance: Wire Speed as verified by Mier report. • Cabletron’s Quality Service organization • Interoperability with all Cabletron products • SmartTrunking: Making the SmartSTACK family even more cost effective with reducing the number of links needed.

  9. SmartSTACK Roadmap • ELS10-27TX: SmartStack 10 full duplex ethernet switch. 24 port Ethernet switch with 3 10/100 RJ45 and 2 EPIM-100 slots • ELS100-24TX(M/G): SmartStack 100 24 port 10/100BaseTX switch with two slots for Fast Ethernet/Gigabit modular uplink • ELH100-12/24TX:24 port 10/100 hub, base unit with option slots • And coming soon … • ELS100-8TXUF2:SmartStack 8 port 10/100 switch, unmanaged, with one 100BaseFX port • ELS1000-8SX1M: 8 1000Base-SX ports with 1 modular expansion slot • EPIMSTK-2TX: 2 port stacking module w/management • ELS1000-12SX2M: 12 1000Base-SX ports with 2 modular expansion slots

  10. Summary • Competitively Priced • Industry standard feature set • Standards Compliant • Plug and Play installation • Interoperable with existing SmartSWITCH products • Cabletron quality - low cost switching
