Direct Measurement of EEX: Matrix Elements & Bunch Length Analysis

In this study, preliminary EEX transfer matrix data and dispersion data along a line are analyzed. Direct measurements of EEX bunch length show resolution limits of less than 3pSec. A calibration method corrects observed signals for accurate bunch length derivation. Further efforts include refining output analysis and completing matrix element measurements. This is work in progress towards graduation goals.

harva
Télécharger la présentation

Direct Measurement of EEX: Matrix Elements & Bunch Length Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

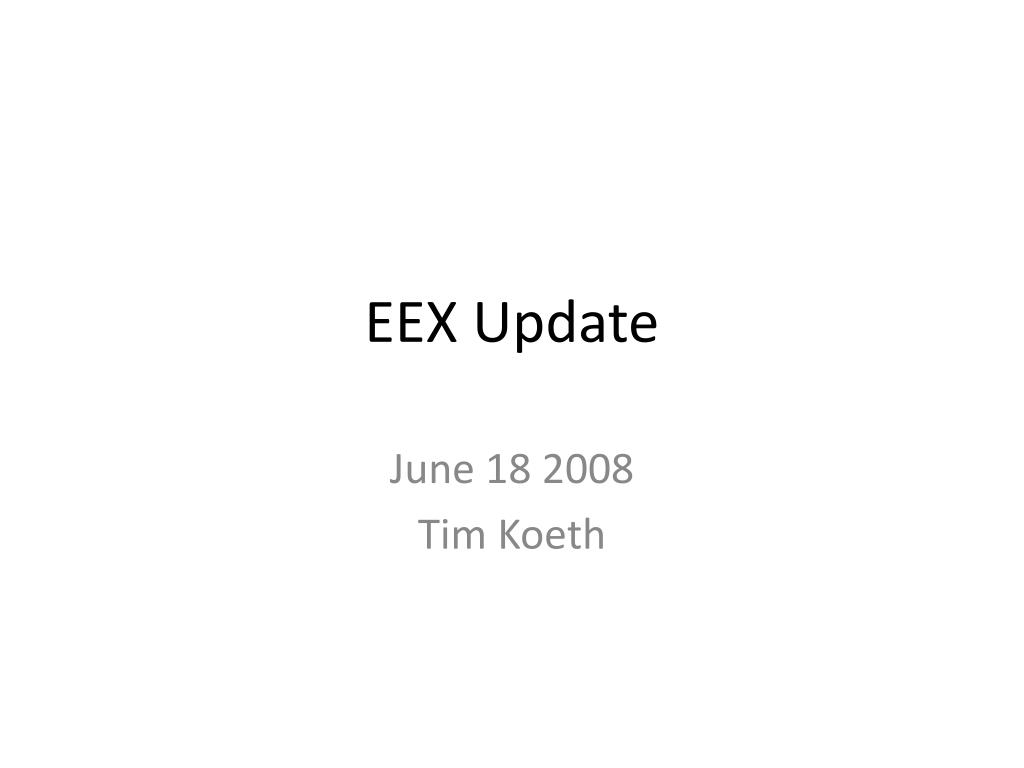

  1. EEX Update June 18 2008 Tim Koeth

  2. Data that we have • Preliminary EEX transfer matrix • (10/16 good) • Dispersion data along line - TBA • Prelimary ex ez direct measurement • Prelimary eZ eX raw data - TBA

  3. X3 (HTBX03)  BPM 28 Matrix

  4. Matrix 2 = redo

  5. Direct Measurement of EEX

  6. Bunch Length Measurements 5 cell off: 5pSec 5 cell on: </=3pSec ! Resolution limit of entire setup Thank you Jinhao & Alex ! Did not see a drastic reduction in momentum spread.

  7. Additional Broaden caused by limiting resolution caused by slit width Intensity Group velocity dispersion Time(ps) Very short OTR signal from e-bunch Broadened OTR signal from e-bunch Shown on the streak camera screen Just before the streak camera Immediate after the OTR screen

  8. Assume a real bunch length first (red line) • Modeled the observed OTR bunch length by streak camera by adding the influence of group velocity dispersion and limiting resolution due to slit width (Blue circles) • Use sum of the terms in quadrature to correct the observed signal and derive the real bunch length (blue dot)

  9. This is the calibration done for Range 1 (0.32ps/channel) with 550 nm LP filter

  10. Take upper limit as 1 pSec with TM110 Cavity On

  11. 86 keV rms

  12. OUTPUT HORIZONTAL EMITTANCE A work in progress X23 SPOT TM110 OFF X23 SPOT TM110 ON

  13. Tim’s to do list for graduation • Finish the Matrix Elements Measurements • X3 (HTBX03)  BPM 28 Transfer matrix • Dispersion measurement throughout entire line • Attempt at a direct EEX measurement • Complete EEX horizontal output analysis • Refine bunch length measurement ?
