  1. Using a DSL and Fine-Grained Model Transformations to Explore the Boundaries of Model Verification Marcel van Amstel Mark van den Brand Luc Engelen

  2. Problem Statement /department of mathematics and computer science

  3. Problem Statement /department of mathematics and computer science

  4. Abstraction Traditional approach ? Model Verification model Implementation /department of mathematics and computer science

  5. Abstraction Traditional approach ? Model Verification model Model Implementation /department of mathematics and computer science

  6. Abstraction ? Model Verification model Traditional approach Model Model Implementation /department of mathematics and computer science

  7. Abstraction ? Model Verification model Model Traditional approach Model Model Implementation /department of mathematics and computer science

  8. Refinement by Model Transformation Abstract model Verification model Verification model Verification model Verification model Model MDE approach: Coarse-grained Transformations Model Concrete model Implementation /department of mathematics and computer science

  9. Refinement by Model Transformation Abstract model Verification model Verification model Verification model Verification model Model MDE approach: Fine-grained Transformations Model Concrete model Implementation /department of mathematics and computer science

  10. Refinement by Model Transformation Abstract model M’ Model Partial refinement Model Concrete model Implementation /department of mathematics and computer science

  11. Simple Language of Communicating Objects /department of mathematics and computer science

  12. DSL Versus Reality Platform gaps /department of mathematics and computer science

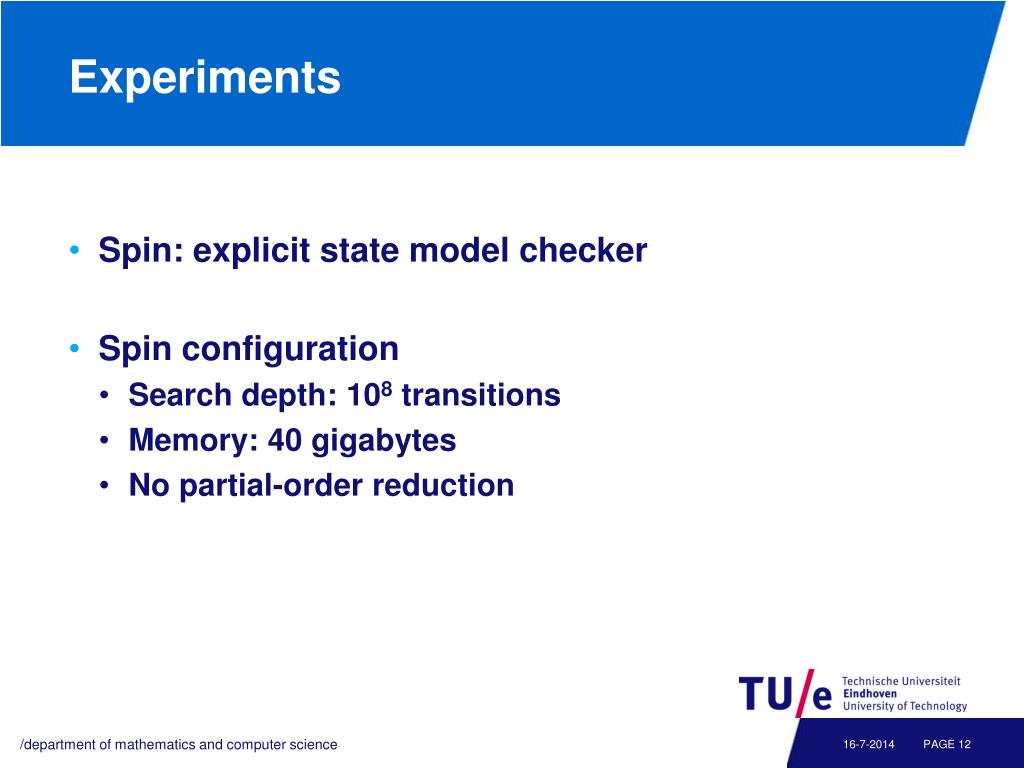

  13. Experiments • Spin: explicit state model checker • Spin configuration • Search depth: 108 transitions • Memory: 40 gigabytes • No partial-order reduction /department of mathematics and computer science

  14. Experiments Abstract Coarse-grained transformations Concrete /department of mathematics and computer science

  15. Experiments Abstract Fine-grained transformations Concrete /department of mathematics and computer science

  16. Conclusions • Fine-grained refining endogenous transformations • Better verifiable • More understandable • Verification applicable to all intermediate models • Partial refinement /department of mathematics and computer science

  17. Alternative Approach Abstract model Verification model Model Proving correctness of transformations Model Concrete model Implementation /department of mathematics and computer science
