  1. Data Check for MAGIC Raquel de los Reyes Universidad Complutense de Madrid (U.C.M.) Udine - April 19th 2004

  2. Contents • The program • Central control data check • DAQ data check • Conclusions Udine - April 19th 2004

  3. Program Group of scripts and Root macros to check the subsystems and the data taken at the end of each night shift. • Two scripts: CCDataChecking & DAQDataChecking • Two macros: CCDataCheck.C & DAQDataCheck.C http://www.magic.iac.es/operations/datacheck Thanks to F. Goebel and R. Wagner Udine - April 19th 2004

  4. Central control data check • Drive system • General camera status • Camera HV • Camera DC • Camera LV • Cooling system • Trigger system • Trigger macro cells • Weather station Udine - April 19th 2004

  5. CrabNebula OffCrab4 Mrk421 OffMrk421-1 no reported Drive system(CC_2004_02_15.ps) 21:58 & 03:22 :Cosy crashed Thanks to T. Bretz and D. Dorner Udine - April 19th 2004

  6. 21:35: Guagua crashed End shift Move to CrabNebula Change source: OffCrab4 – Mrk421 General camera status (CC_2004_02_15.ps) Udine - April 19th 2004

  7. 21:35: Guagua crashed 21:35: Guagua crashed no reported Camera High Voltages (HV)(CC_2004_02_15.ps) Failure of master voltage regulator boards and the six adc boards monitoring HV y DC in sectors 3-5 Thanks to J.Flix Udine - April 19th 2004

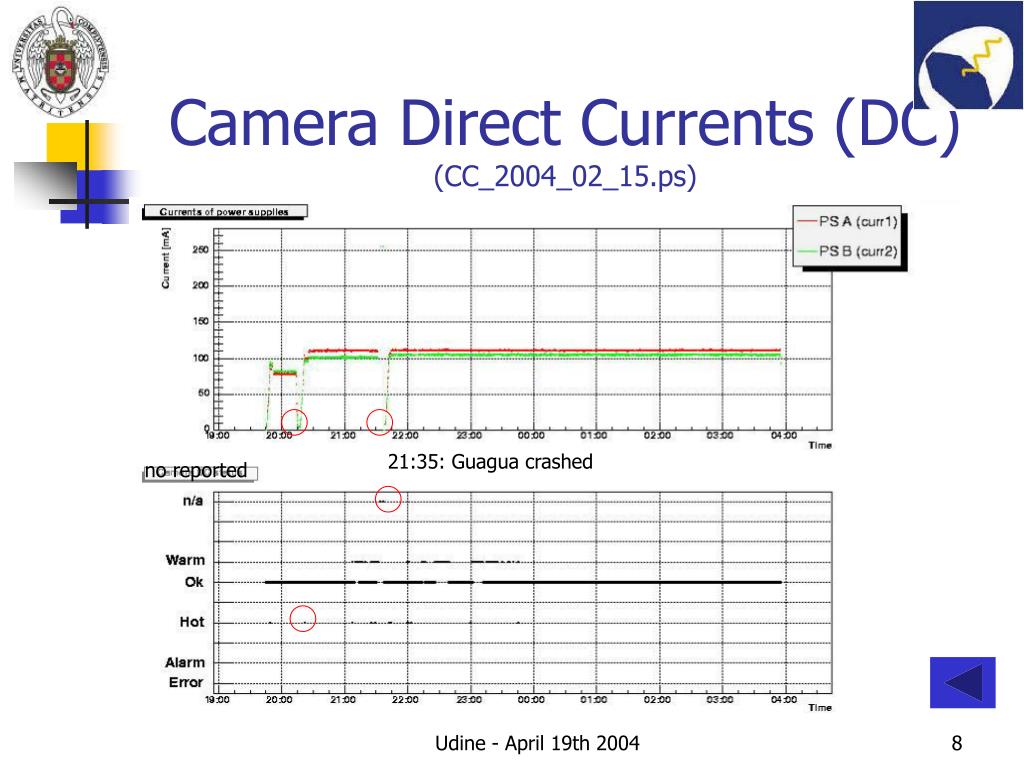

  8. 21:35: Guagua crashed no reported Camera Direct Currents (DC)(CC_2004_02_15.ps) Udine - April 19th 2004

  9. 21:35: Guagua crashed no reported Camera Low Voltages (LV)(CC_2004_02_15.ps) Udine - April 19th 2004

  10. Cooling system(CC_2004_02_15.ps) Thanks to E. Domingo and R. Firpo Udine - April 19th 2004

  11. 21:26: ZetaTauri Firing macrocells 2 and 7 Low threshold pixels 3, 9 and 21 Calibration runs Trigger system(CC_2004_02_15.ps) Pedestal runs(PED)/calibration runs(L1_5NN:L2_DEFAULT) Thanks to R. Paoletti and A. Stamerra Udine - April 19th 2004

  12. UMa51 in pixels 3, 9 and 21: Macrocells 2 and 7 Fire not reported: Pixels(HW) 88, 89, 123, 124, 125, 165, 166 Trigger macro cells(CC_2004_02_15.ps) Udine - April 19th 2004

  13. Weather station(CC_2004_02_15.ps) Thanks to A. Torres Udine - April 19th 2004

  14. DAQ data check • Pedestal • Calibration • Conversion factor • Defect pixels • Fitted charges • Reduced sigma per charge • Absolute arrival times • Timing Udine - April 19th 2004

  15. Pedestals(IFAE sample C (on): 15/02 - 17031-17123) Udine - April 19th 2004

  16. Calibration (I): Conversion factor(IFAE sample C (on): 15/02 - 17031-17123) Thanks to J. Cortina and M. Gaug Udine - April 19th 2004

  17. Calibration (II):Defect pixels(IFAE sample C (on): 15/02 - 17031-17123) Udine - April 19th 2004

  18. Calibration (III):Fitted charges(IFAE sample C (on): 15/02 - 17031-17123) Udine - April 19th 2004

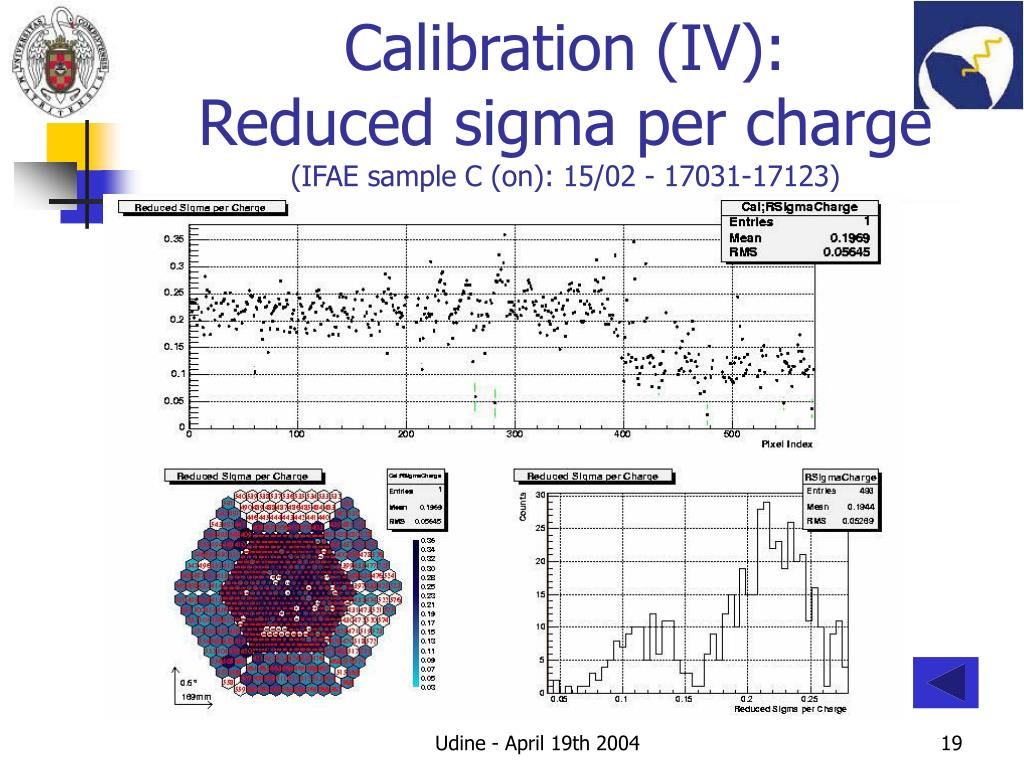

  19. Calibration (IV):Reduced sigma per charge(IFAE sample C (on): 15/02 - 17031-17123) Udine - April 19th 2004

  20. Calibration (V):Absolute arrival times(IFAE sample C (on): 15/02 - 17031-17123) Udine - April 19th 2004

  21. Timing( CrabOn: 17/02 - 18249 – 18482 ) Udine - April 19th 2004 Thanks to M. López

  22. Conclusions • The CC check plots will allow us to take a look to night conditions and hardware problems. • The DAQ check plots will make a preliminar analysis of night data. • In the future these scripts could interact with the DataBase to collect the hardware problems. • STATUS: • CC data check running • DAQ data check in tests. Udine - April 19th 2004
