  1. Introduction to AlvariSTAR

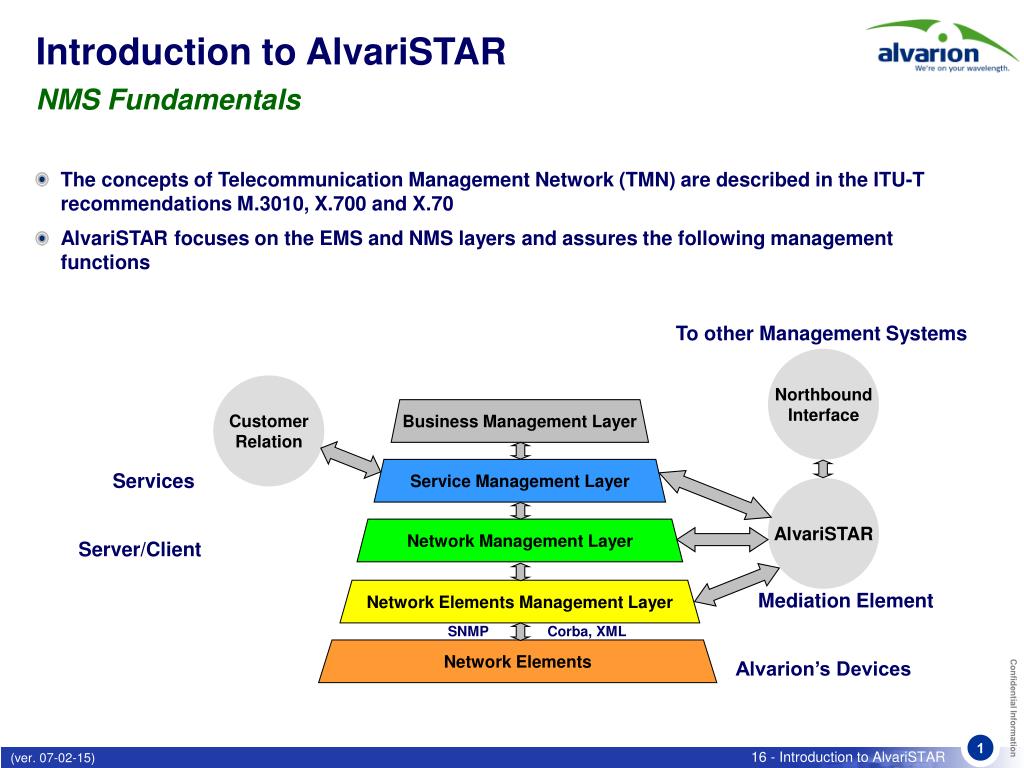

  2. Introduction to AlvariSTAR NMS Fundamentals • The concepts of Telecommunication Management Network (TMN) are described in the ITU-T recommendations M.3010, X.700 and X.70 • AlvariSTAR focuses on the EMS and NMS layers and assures the following management functions To other Management Systems NorthboundInterface CustomerRelation Business Management Layer Service Management Layer Services AlvariSTAR Network Management Layer Server/Client Network Elements Management Layer Mediation Element SNMP Corba, XML Network Elements Alvarion’s Devices

  3. Fault Configuration Accounting Performance Security Introduction to AlvariSTAR NMS Fundamentals FCAPS • AlvariSTAR supports common network management applications in compliance with TMN standards AlvariSTAR

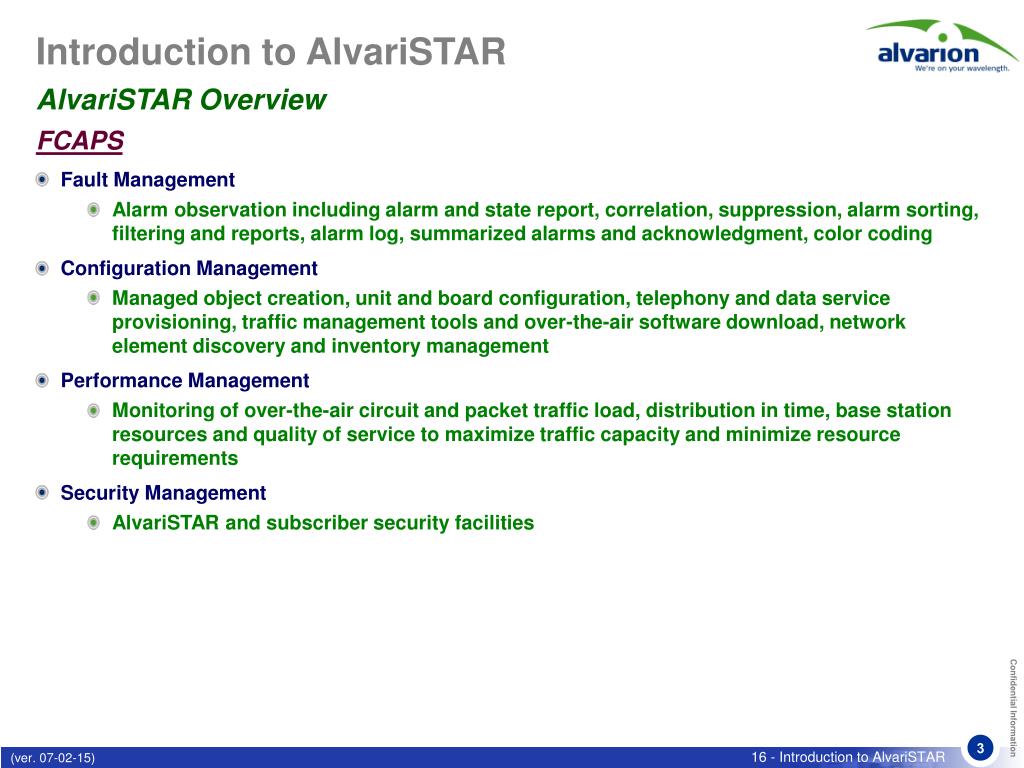

  4. Introduction to AlvariSTAR AlvariSTAR Overview FCAPS • Fault Management • Alarm observation including alarm and state report, correlation, suppression, alarm sorting, filtering and reports, alarm log, summarized alarms and acknowledgment, color coding • Configuration Management • Managed object creation, unit and board configuration, telephony and data service provisioning, traffic management tools and over-the-air software download, network element discovery and inventory management • Performance Management • Monitoring of over-the-air circuit and packet traffic load, distribution in time, base station resources and quality of service to maximize traffic capacity and minimize resource requirements • Security Management • AlvariSTAR and subscriber security facilities

  5. AlvariSTAR Platform Alvarion Device Drivers BA-VL B-MAX WA1K WA3K Others Fault Alarm Handling Logs and Reports Topology MapDevice Discovery Hierarchical Presentation Software Download(via TFTP or FTPproduct-dependent) PerformanceData CollectionData Monitoring SecurityAuthenticationAuthorization Introduction to AlvariSTAR AlvariSTAR Overview Architecture • AlvariSTAR is the network managemet application for all Alvarion equipment

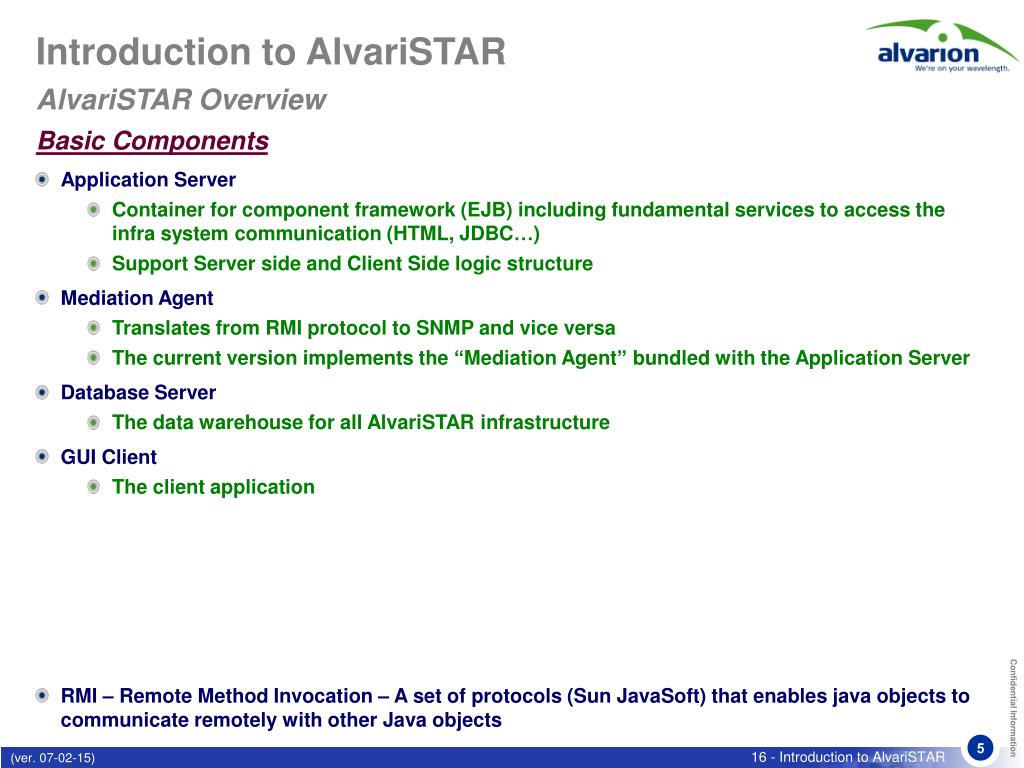

  6. Introduction to AlvariSTAR AlvariSTAR Overview Basic Components • Application Server • Container for component framework (EJB) including fundamental services to access the infra system communication (HTML, JDBC…) • Support Server side and Client Side logic structure • Mediation Agent • Translates from RMI protocol to SNMP and vice versa • The current version implements the “Mediation Agent” bundled with the Application Server • Database Server • The data warehouse for all AlvariSTAR infrastructure • GUI Client • The client application • RMI – Remote Method Invocation – A set of protocols (Sun JavaSoft) that enables java objects to communicate remotely with other Java objects

  7. Introduction to AlvariSTAR AlvariSTAR Overview Basic Components • Enterprise Application Server (EAS) • Implements Enterprise Java Beans • Uses highly scalable RMI (TCP/IP Protocol based) • Coordinates the interaction of all AlvariSTAR system components • Provides system communication with • Management Sub-Systems • Managed Devices • Runs continuously in the background • Based on JBoss Application Server

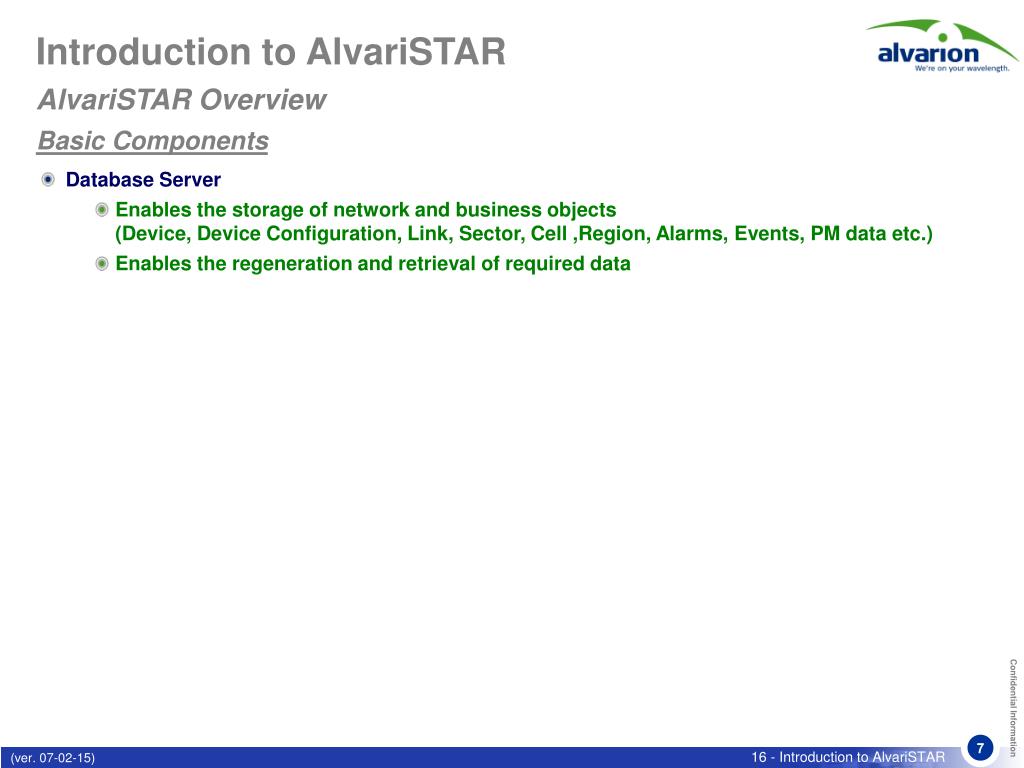

  8. Introduction to AlvariSTAR AlvariSTAR Overview Basic Components • Database Server • Enables the storage of network and business objects (Device, Device Configuration, Link, Sector, Cell ,Region, Alarms, Events, PM data etc.) • Enables the regeneration and retrieval of required data

  9. Introduction to AlvariSTAR AlvariSTAR Overview Basic Components • Mediation Agent • Provides services for communication with external systems and devices • Includes a mediation mapped for Alvarion devices’ MIBs • Runs continuously in the background

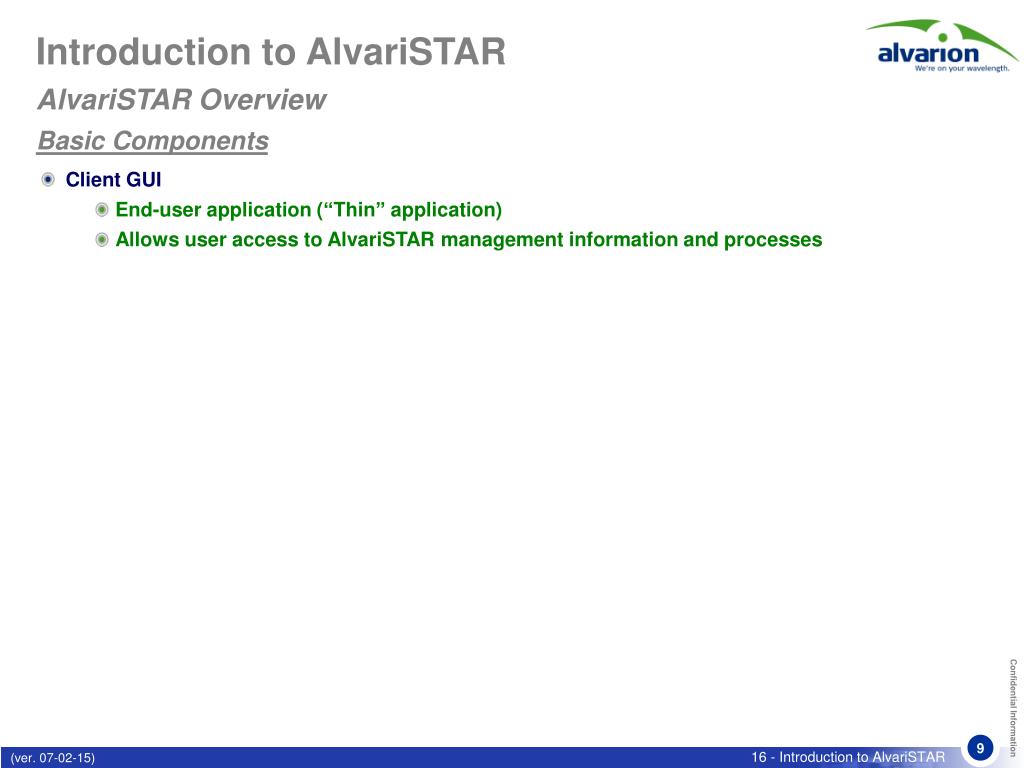

  10. Introduction to AlvariSTAR AlvariSTAR Overview Basic Components • Client GUI • End-user application (“Thin” application) • Allows user access to AlvariSTAR management information and processes

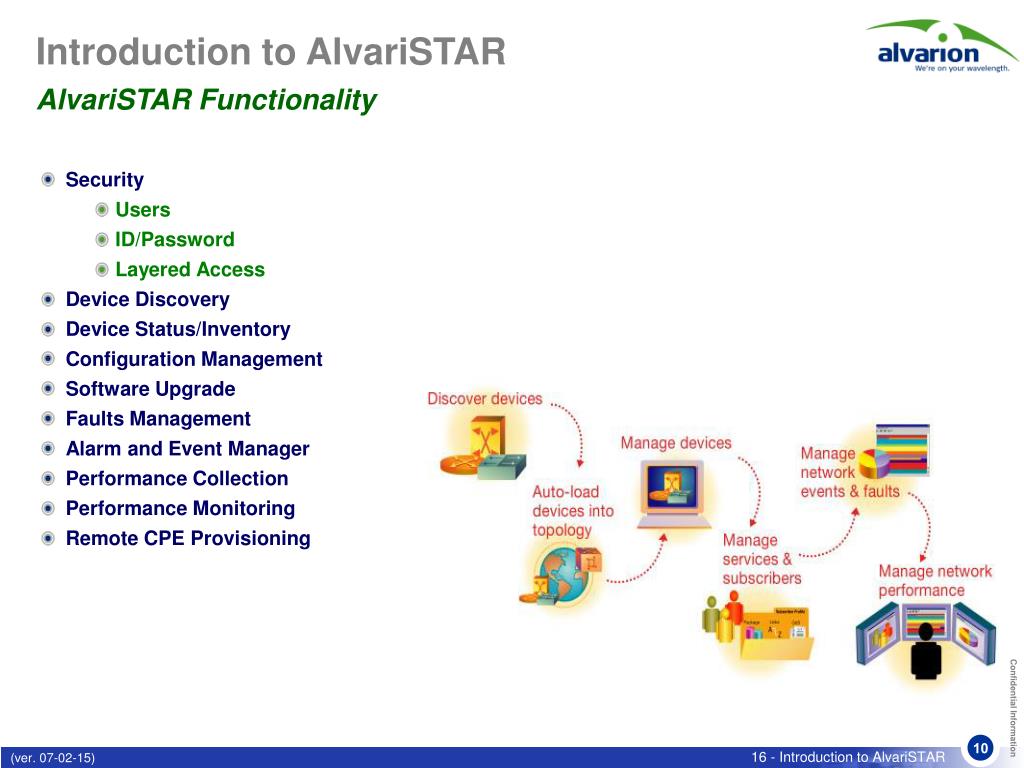

  11. Introduction to AlvariSTAR AlvariSTAR Functionality • Security • Users • ID/Password • Layered Access • Device Discovery • Device Status/Inventory • Configuration Management • Software Upgrade • Faults Management • Alarm and Event Manager • Performance Collection • Performance Monitoring • Remote CPE Provisioning

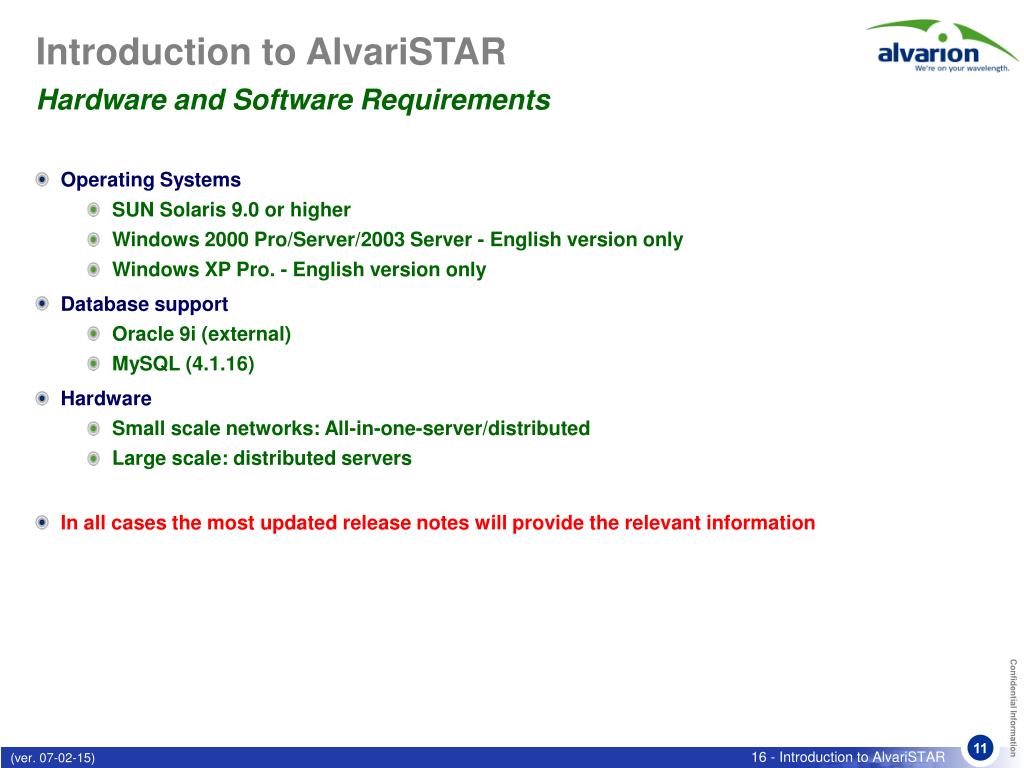

  12. Introduction to AlvariSTAR Hardware and Software Requirements • Operating Systems • SUN Solaris 9.0 or higher • Windows 2000 Pro/Server/2003 Server - English version only • Windows XP Pro. - English version only • Database support • Oracle 9i (external) • MySQL (4.1.16) • Hardware • Small scale networks: All-in-one-server/distributed • Large scale: distributed servers • In all cases the most updated release notes will provide the relevant information
