  1. About Semantic Web & Implementation Speaker: Yu-Sin Chen (Ma090107) Date: 2012-06-08 Advisor: Chen Jyi-Ta About Semantic Web & Implementation

  2. outline • What ‘s Semantic Web? • How to create Semantic Web Information Model? • Implementation • How to use Protégé? • Demo About Semantic Web & Implementation

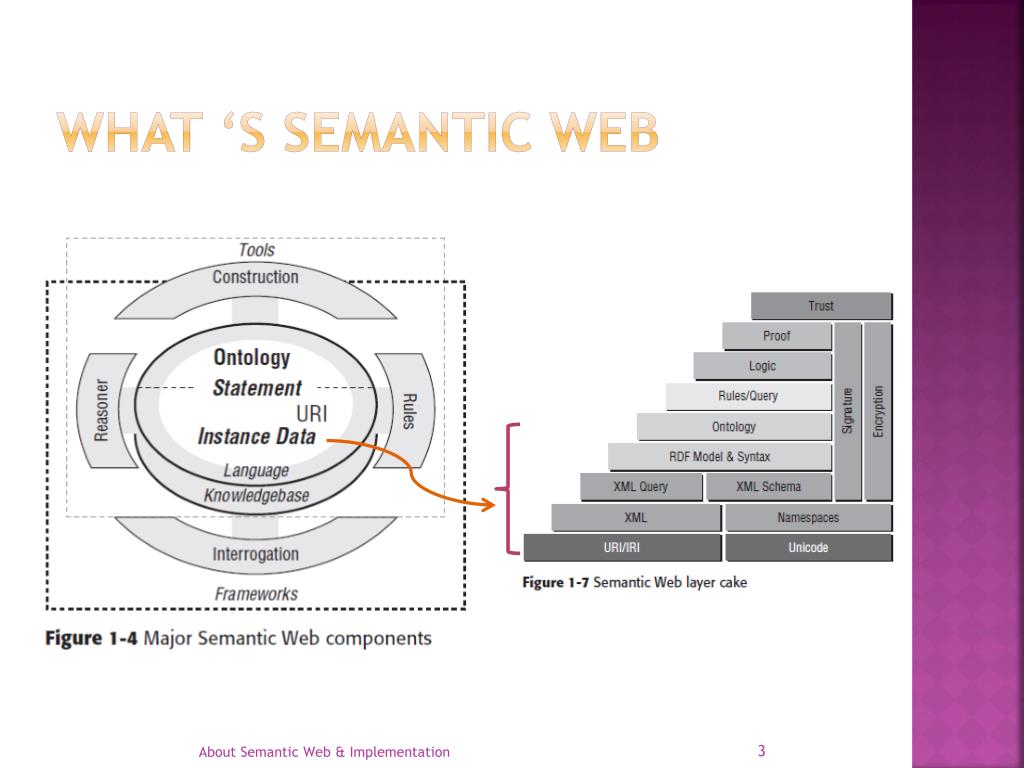

  3. What ‘s Semantic Web About Semantic Web & Implementation

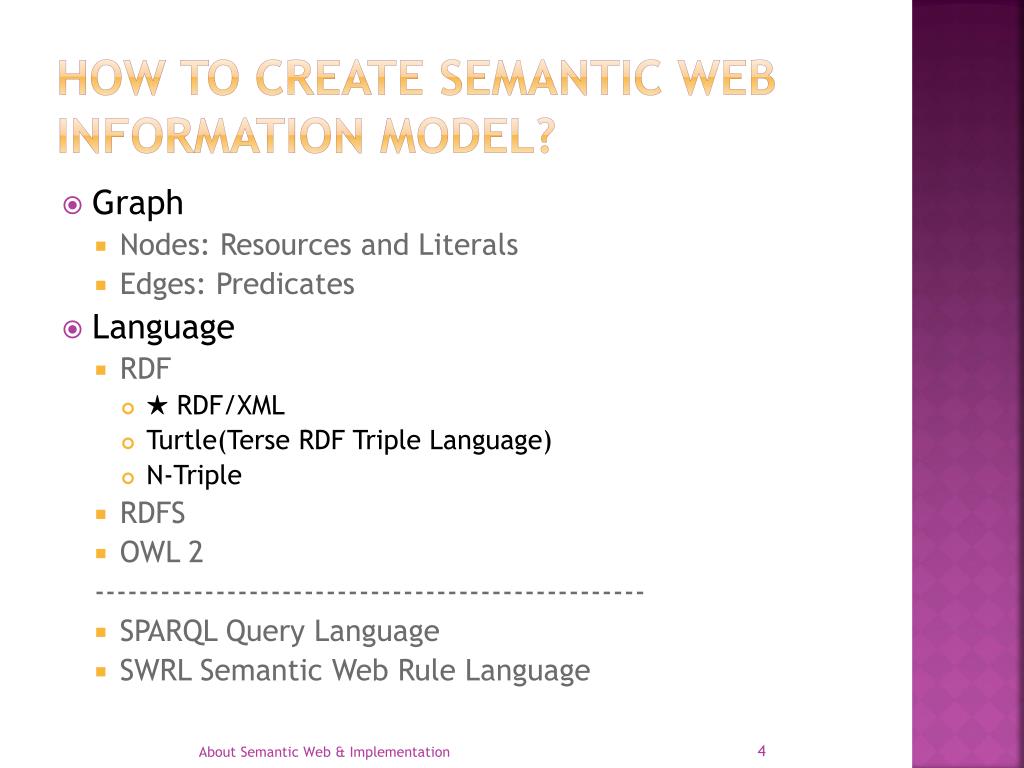

  4. How to create Semantic Web Information Model? • Graph • Nodes: Resources and Literals • Edges: Predicates • Language • RDF • ★ RDF/XML • Turtle(Terse RDF Triple Language) • N-Triple • RDFS • OWL 2 -------------------------------------------------- • SPARQL Query Language • SWRL Semantic Web Rule Language About Semantic Web & Implementation

  5. RDFsyntax N-Triple為Turtle的一種簡化版本，差異在於N-Triple的加入一些簡化約束，且不支持@perfix指令與”;”或”,”的陳述簡寫方法。 About Semantic Web & Implementation

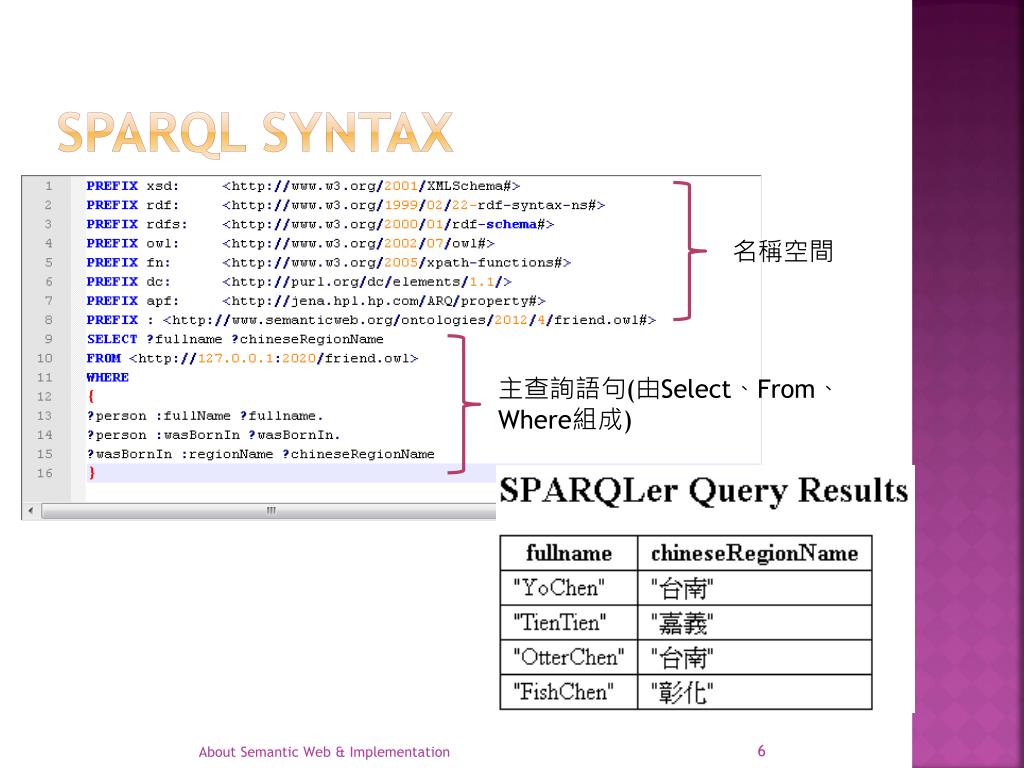

  6. SPARQL syntax 名稱空間 主查詢語句(由Select、From、Where組成) About Semantic Web & Implementation

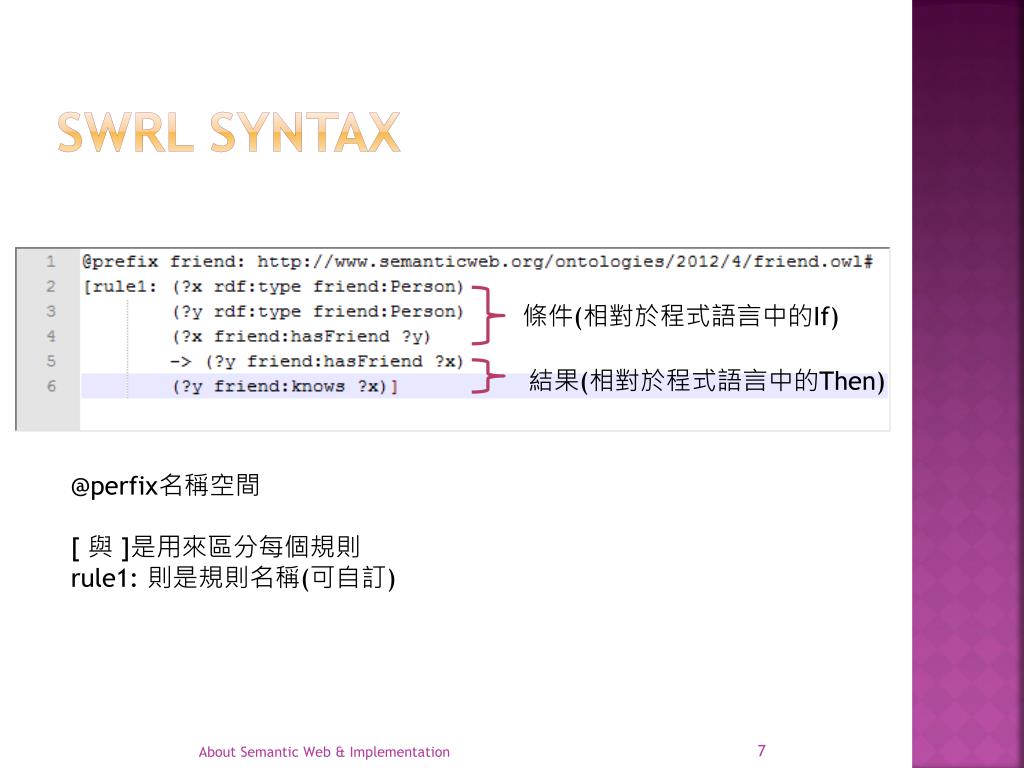

  7. SWRL syntax 條件(相對於程式語言中的If) 結果(相對於程式語言中的Then) @perfix名稱空間 [ 與 ]是用來區分每個規則 rule1: 則是規則名稱(可自訂) About Semantic Web & Implementation

  8. 推理後 (YoChen) 推理前(YoChen) 推理後 (FishChen) 推理前(FishChen) About Semantic Web & Implementation

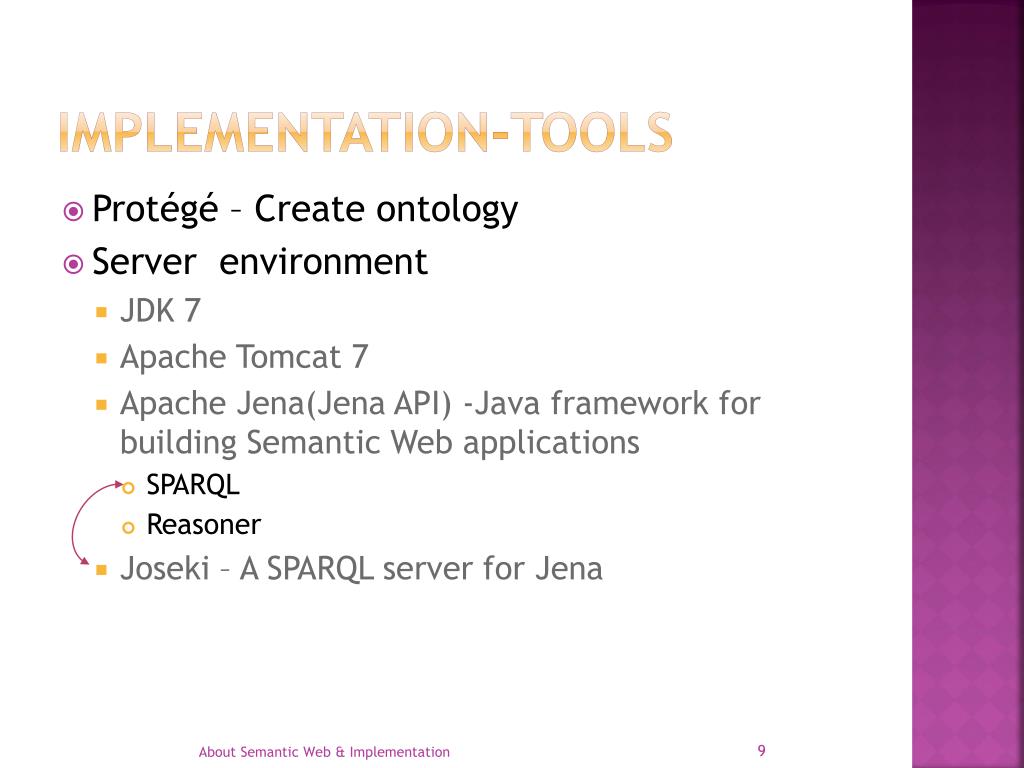

  9. Implementation-Tools • Protégé – Create ontology • Server environment • JDK 7 • Apache Tomcat 7 • Apache Jena(Jena API) -Java framework for building Semantic Web applications • SPARQL • Reasoner • Joseki – A SPARQL server for Jena About Semantic Web & Implementation

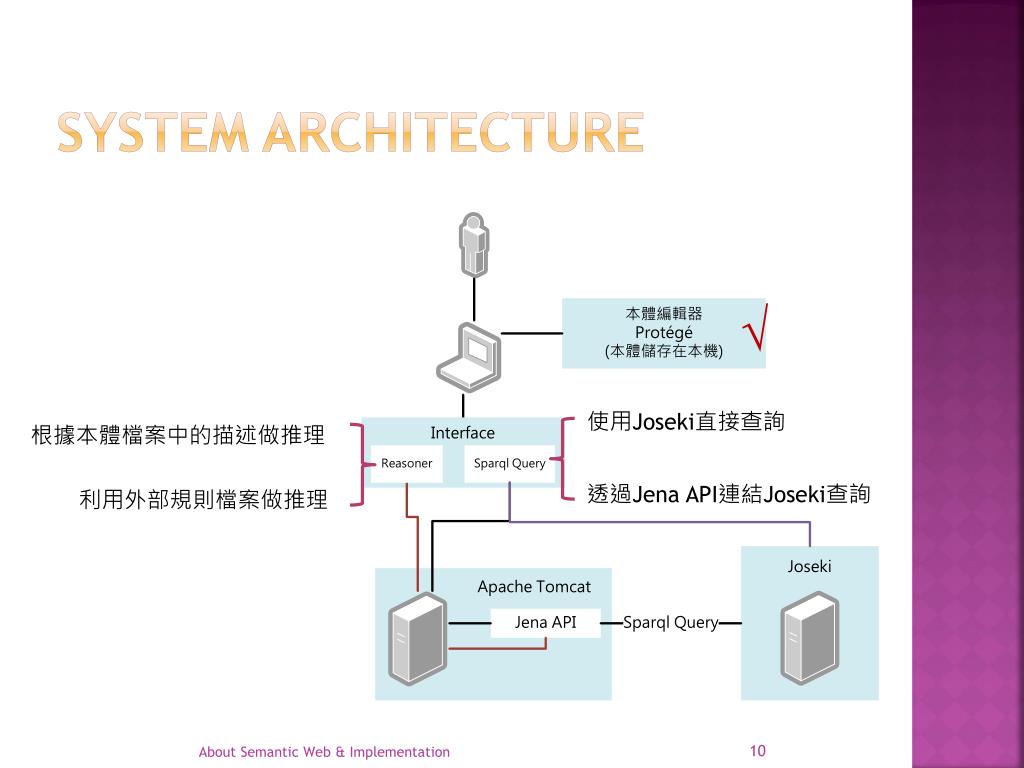

  10. System architecture √ 使用Joseki直接查詢 根據本體檔案中的描述做推理 透過JenaAPI連結Joseki查詢 利用外部規則檔案做推理 About Semantic Web & Implementation

  11. Demo Time About Semantic Web & Implementation
