Leaf Spring prototype preparation

Leaf Spring prototype preparation. M.Lenti. Reminder. Piet ’s proposal : two dowels inserted into two mirror holes ( vertical alignment ); mirror weight as counterbalance Two leaf springs ( horizontal alignment ); pretensioning in nominal “zero” position

hawa
Télécharger la présentation

Leaf Spring prototype preparation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LeafSpringprototypepreparation M.Lenti

  2. Reminder • Piet’s proposal: twodowelsinsertedintotwomirrorholes (verticalalignment); mirrorweightascounterbalance • Twoleafsprings (horizontalalignment); pretensioning in nominal “zero” position • Piezoactuators out ofparticlesacceptance M.Lenti

  3. Piet’s proposal M.Lenti

  4. Carassitidrawings • Delivered on june 3 • Original (Piet’s) approach: center ofhorizontal rotation “on” the mirror • “inverted” approach: center ofhorizontal rotation “far” from the mirror • Bothtaken in consideration M.Lenti

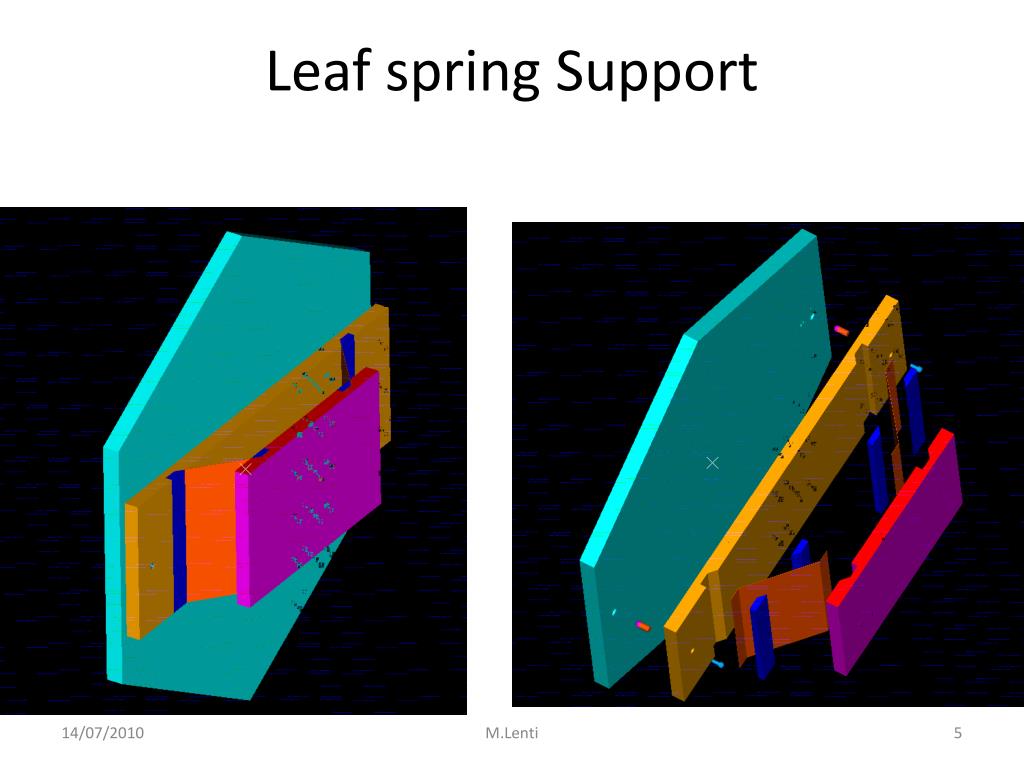

  5. LeafspringSupport M.Lenti

  6. Aluminumclamper M.Lenti

  7. AluminiumDowel M.Lenti

  8. AluminiumLeaf Thickness: 0.5 mm Height: 200 mm M.Lenti

  9. AluminiumSupport M.Lenti

  10. DowelAluminiumPlate M.Lenti

  11. Piet’s correction June 17 M.Lenti

  12. New drawing F.Maletta Can bemounted in with the “original” or “inverted” approach M.Lenti

  13. Prototype situation • Aluminiumraw material arrived last week (!!!) • Executive drawingsready • Mechanicalworshop in Florencereadyforworking • Hopetohave the piecesmachinedbynext week M.Lenti

  14. Resonances • Estimatedby Vito • Glass: very low, just above 0 Hz • Supportstructure: 1° resonancearound 7.5 Hz M.Lenti

  15. Conclusions • A lotoftimelostfor material procurement • Hopetohave some results late in july… M.Lenti
