Systems of Nonlinear Equations and Their Solutions

- - - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

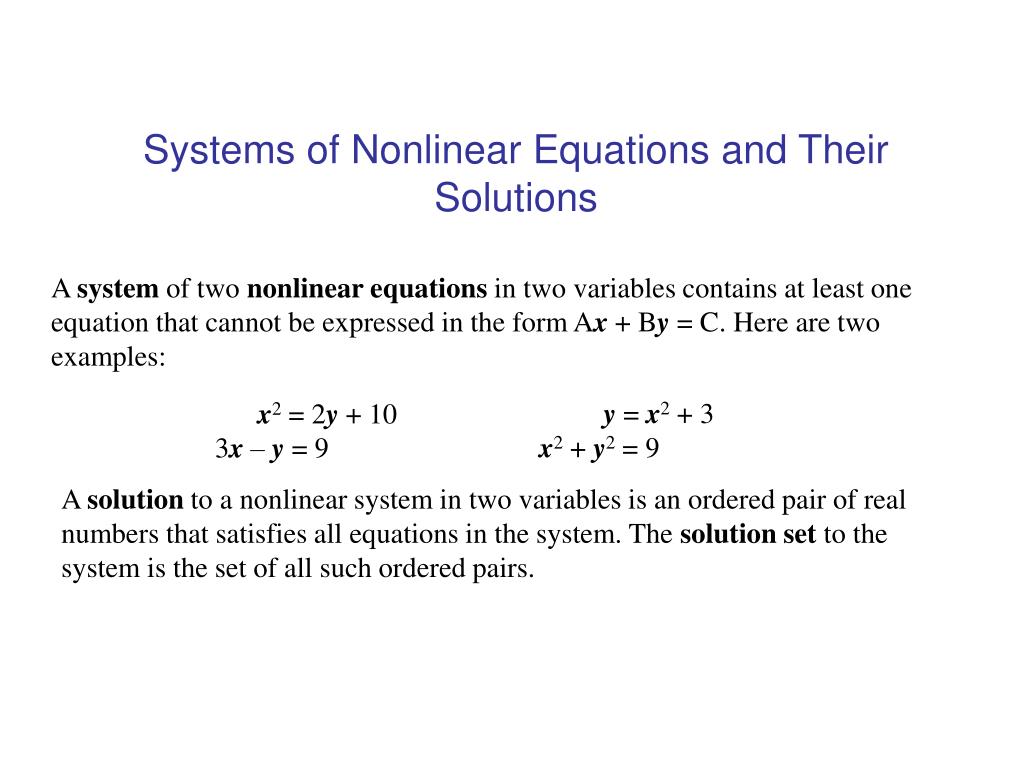

  1. Systems of Nonlinear Equations and Their Solutions A system of two nonlinear equations in two variables contains at least one equation that cannot be expressed in the form Ax + By = C. Here are two examples: y = x2 + 3 x2 + y2 = 9 x2 = 2y + 10 3x – y = 9 A solution to a nonlinear system in two variables is an ordered pair of real numbers that satisfies all equations in the system. The solution set to the system is the set of all such ordered pairs.

  2. Example: Solving a Nonlinear System by the Substitution Method Solve by the substitution method: x – y = 3 (x – 2)2 + (y + 3)2 = 4 The graph is a line. The graph is a circle. SolutionGraphically, we are finding the intersection of a line and a circle whose center is at (2, -3) and whose radius measures 2. Step 1Solve one of the equations for one variable in terms of the other. We will solve for x in the linear equation - that is, the first equation. (We could also solve for y.) x – y = 3 This is the first equation in the given system. x = y + 3 Add y to both sides.

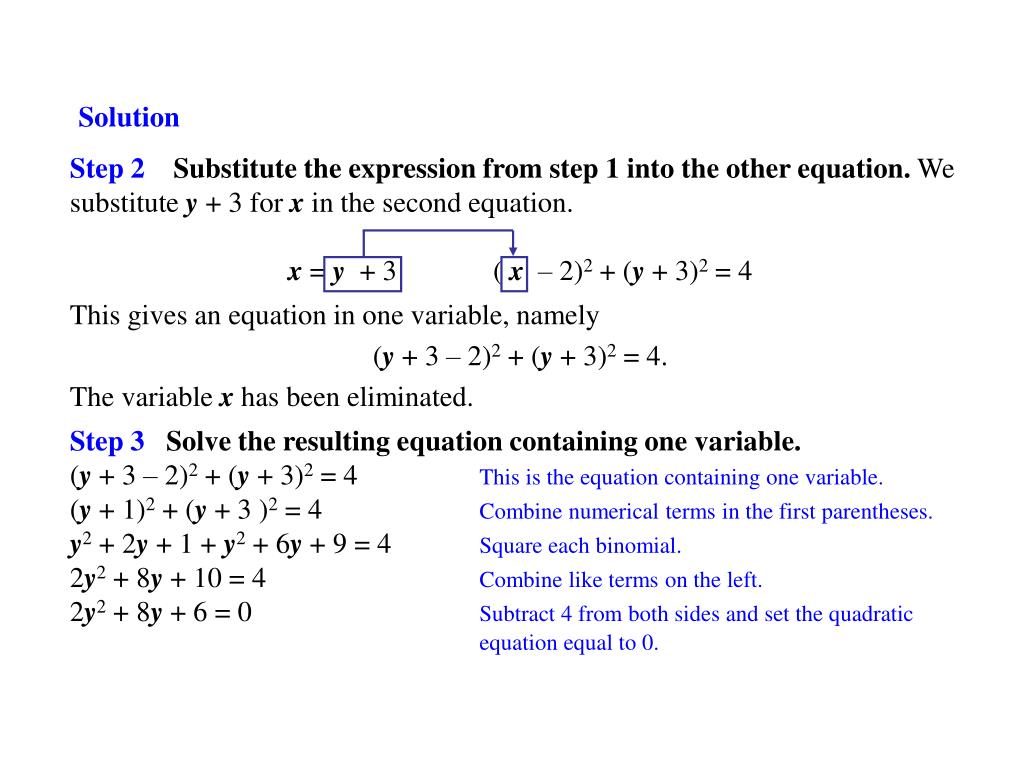

  3. Solution Step 2Substitute the expression from step 1 into the other equation. We substitute y + 3 for x in the second equation. x = y + 3 ( x – 2)2 + (y + 3)2 = 4 This gives an equation in one variable, namely (y + 3 – 2)2 + (y + 3)2 = 4. The variable x has been eliminated. Step 3Solve the resulting equation containing one variable. (y + 3 – 2)2 + (y + 3)2 = 4 This is the equation containing one variable. (y + 1)2 + (y + 3 )2 = 4 Combine numerical terms in the first parentheses. y2 + 2y + 1 + y2 + 6y + 9 = 4 Square each binomial. 2y2 + 8y + 10 = 4 Combine like terms on the left. 2y2 + 8y + 6 = 0 Subtract 4 from both sides and set the quadratic equation equal to 0.

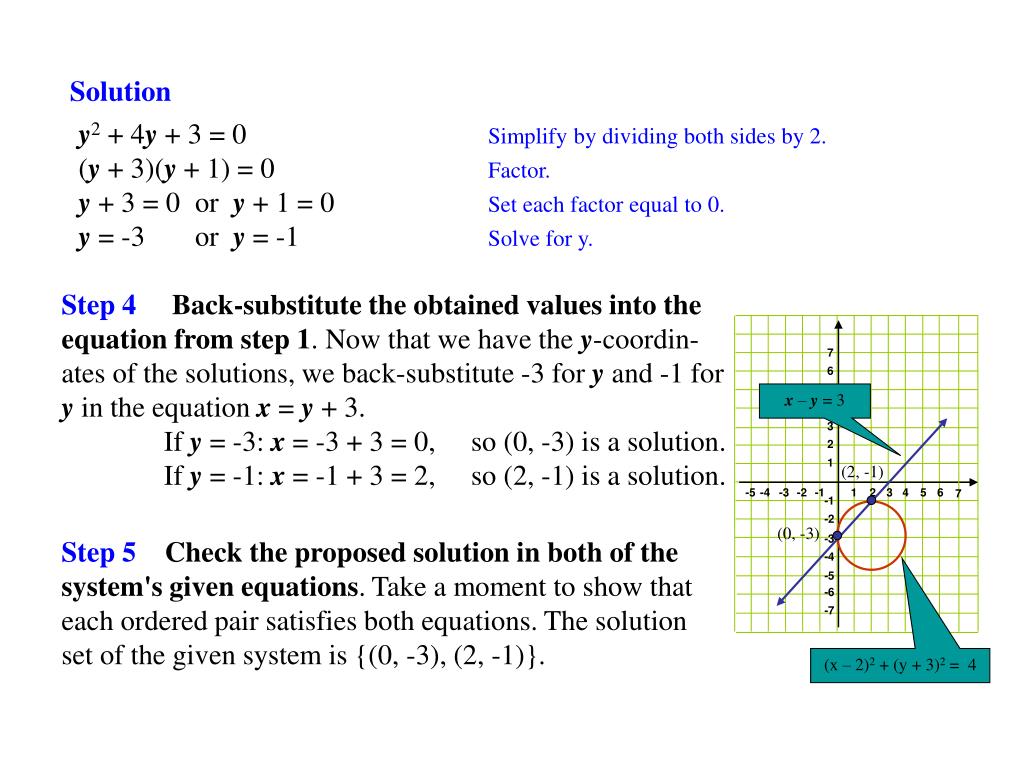

  4. 7 6 5 x – y = 3 4 3 2 1 (2, -1) -5 -4 -3 -2 -1 1 2 3 4 5 6 7 -1 -2 (0, -3) -3 -4 -5 -6 -7 (x – 2)2 + (y + 3)2 = 4 Solution y2 + 4y + 3 = 0 Simplify by dividing both sides by 2. (y + 3)(y + 1) = 0 Factor. y + 3 = 0 or y + 1 = 0 Set each factor equal to 0. y = -3 or y = -1 Solve for y. Step 4Back-substitute the obtained values into the equation from step 1. Now that we have the y-coordin-ates of the solutions, we back-substitute -3 for y and -1 for y in the equation x = y + 3. If y = -3: x = -3 + 3 = 0, so (0, -3) is a solution. If y = -1: x = -1 + 3 = 2, so (2, -1) is a solution. Step 5Check the proposed solution in both of the system's given equations. Take a moment to show that each ordered pair satisfies both equations. The solution set of the given system is {(0, -3), (2, -1)}.

  5. No change. Multiply by -1. Example: Solving a Nonlinear System by the Addition Method Solve the system: 4x2 + y2 = 13 x2 + y2 = 10 Equation 1. Equation 2. SolutionWe can use the same steps that we did when we solved linear systems by the addition method. Step 1Write both equations in the form Ax2 + By2 = C. Both equations are already in this form, so we can skip this step. Step 2If necessary, multiply either equation or both equations by appropriate numbers so that the sum of the x2-coefficients or the sum of the y2-coefficients is 0. We can eliminate y by multiplying Equation 2 by -1.

  6. Solution Steps 3 and 4Add equations and solve for the remaining variable. Add. Step 5Back-substitute and find the values for the other variables. We must back-substitute each value of x into either one of the original equations. Let's use x2 + y2 = 10, Equation 2. If x = 1, 12 + y2 = 10 Replace x with 1 in Equation 2. y2 = 9 Subtract 1 from both sides. y = ±3 Apply the square root method. (1, 3) and (1, -3) are solutions. If x = -1, (-1)2 + y2 = 10 Replace x with -1 in Equation 2. y2 = 9 The steps are the same as before. y = ±3 (-1, 3) and (-1, -3) are solutions.

  7. 7 4x2 + y2 = 13 6 5 4 (-1, 3) (1, 3) 3 2 x2 + y2 = 10 1 -5 -4 -3 -2 -1 1 2 3 4 5 6 7 -1 -2 -3 (-1, -3) (1, -3) -4 -5 -6 -7 Solution Step 6Check. Take a moment to show that each of the four ordered pairs satisfies Equation 1 and Equation 2. The solution set of the given system is {(1, 3), (1, -3), (-1, 3), (-1, -3)}.

  8. Example: Solving a Nonlinear System by the Addition Method Solve the system: y = x2 + 3 Equation 1 (The graph is a parabola.) x2 + y2 = 9 Equation 2 (The graph is a circle.) Solution We could use substitution because Equation 1 has y expressed in terms of x, but this would result in a fourth-degree equation. However, we can rewrite Equation 1 by subtracting x2 from both sides and adding the equations to eliminate the x2-terms. Subtract x2 from both sides of Equation 1. This is Equation 2. Add the equations. Add.

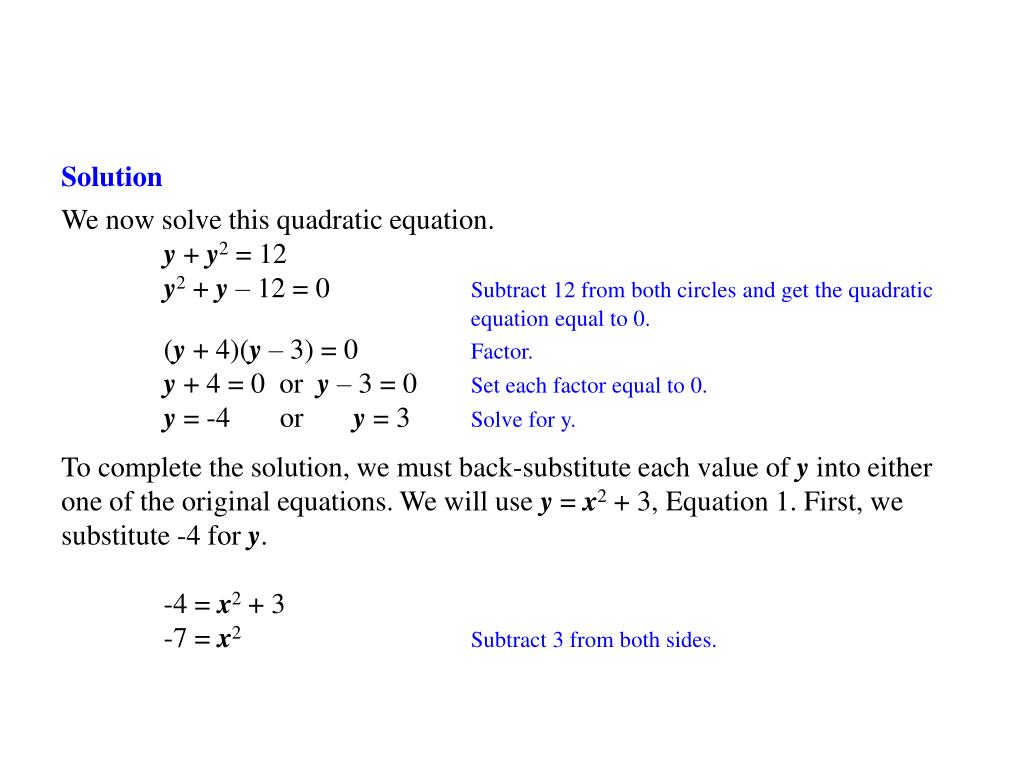

  9. Solution We now solve this quadratic equation. y + y2 = 12 y2 + y – 12 = 0 Subtract 12 from both circles and get the quadratic equation equal to 0. (y + 4)(y – 3) = 0 Factor. y + 4 = 0 or y – 3 = 0 Set each factor equal to 0. y = -4 or y = 3 Solve for y. To complete the solution, we must back-substitute each value of y into either one of the original equations. We will use y = x2 + 3, Equation 1. First, we substitute -4 for y. -4 = x2 + 3 -7 = x2Subtract 3 from both sides.

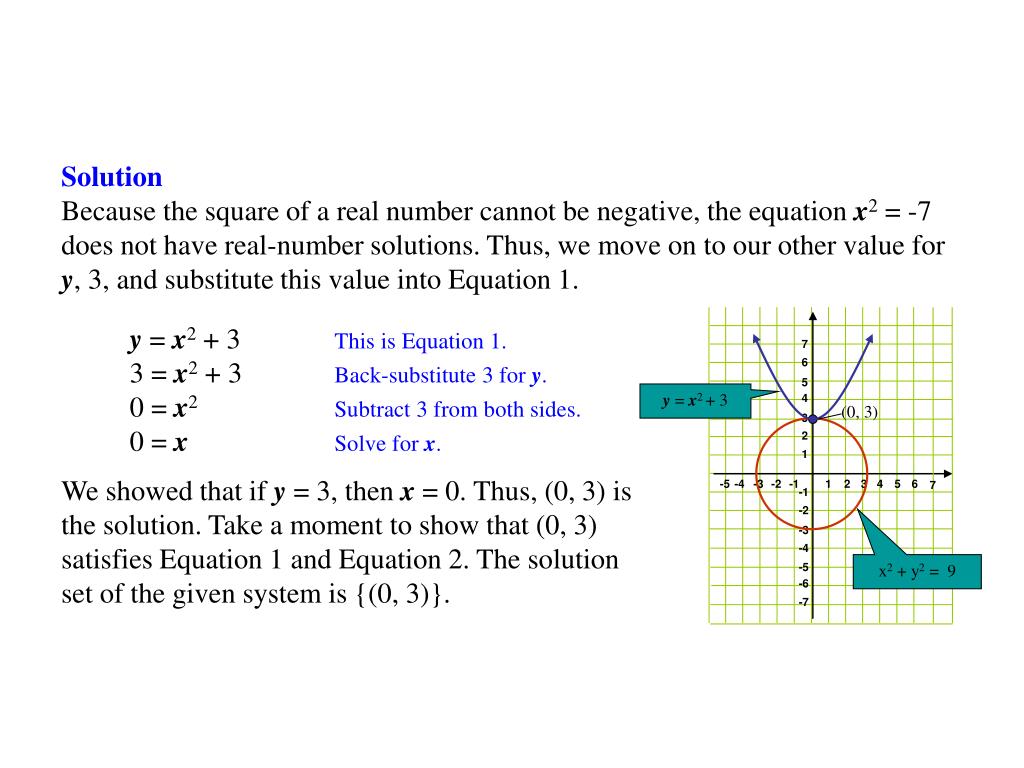

  10. 7 6 5 y = x2 + 3 4 (0, 3) 3 2 1 -5 -4 -3 -2 -1 1 2 3 4 5 6 7 -1 -2 -3 -4 x2 + y2 = 9 -5 -6 -7 Solution Because the square of a real number cannot be negative, the equation x2 = -7 does not have real-number solutions. Thus, we move on to our other value for y, 3, and substitute this value into Equation 1. y = x2 + 3 This is Equation 1. 3 = x2 + 3 Back-substitute 3 for y. 0 = x2Subtract 3 from both sides. 0 = xSolve for x. We showed that if y = 3, then x = 0. Thus, (0, 3) is the solution. Take a moment to show that (0, 3) satisfies Equation 1 and Equation 2. The solution set of the given system is {(0, 3)}.

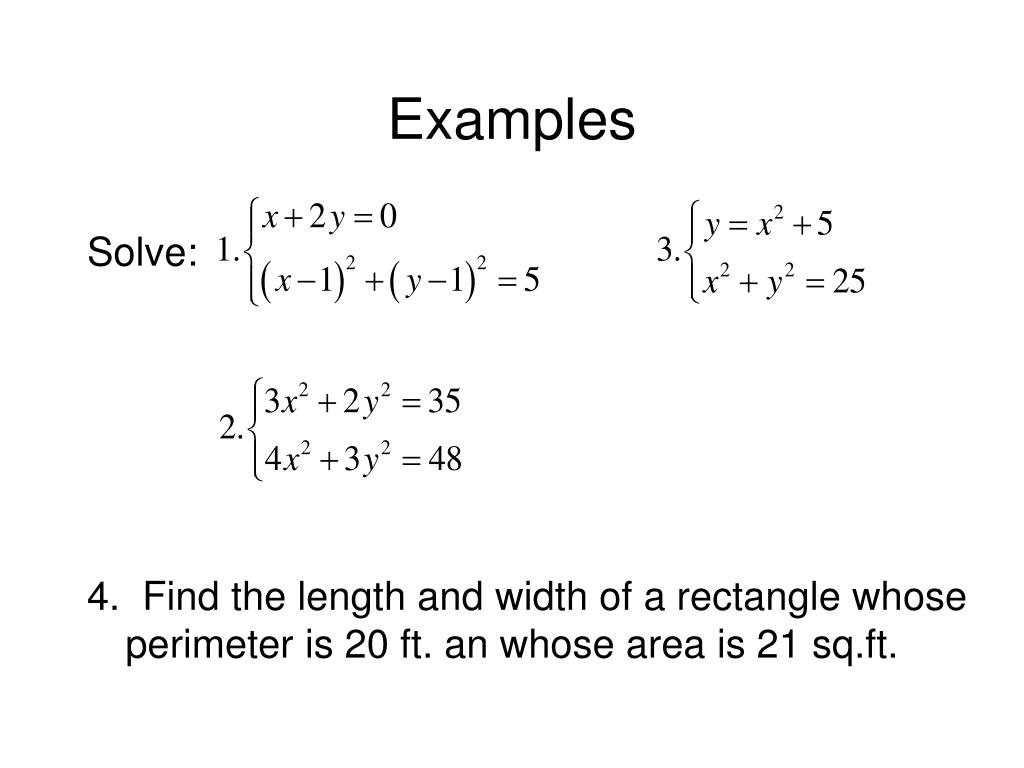

  11. Examples Solve: 4. Find the length and width of a rectangle whose perimeter is 20 ft. an whose area is 21 sq.ft.
