  1. An Asymmetric Fingerprinting Scheme based on Tardos Codes Ana CharpentierINRIA Rennes Caroline Fontaine CNRS Télécom Bretagne Teddy FuronINRIA Rennes Ingemar Cox University College London

  2. The story of this paper • IEEE WIFS’2010, London. • During the tutorial on Tardos Code, Ingemar asked • “You always assume that the Provider is trusted. Why?” • My Answers: • “i)!?!, …Hmm… • ii) Tardos code is not meant for asymmetric fingerprinting • iii) asymmetric fingerprinting is not practical ”

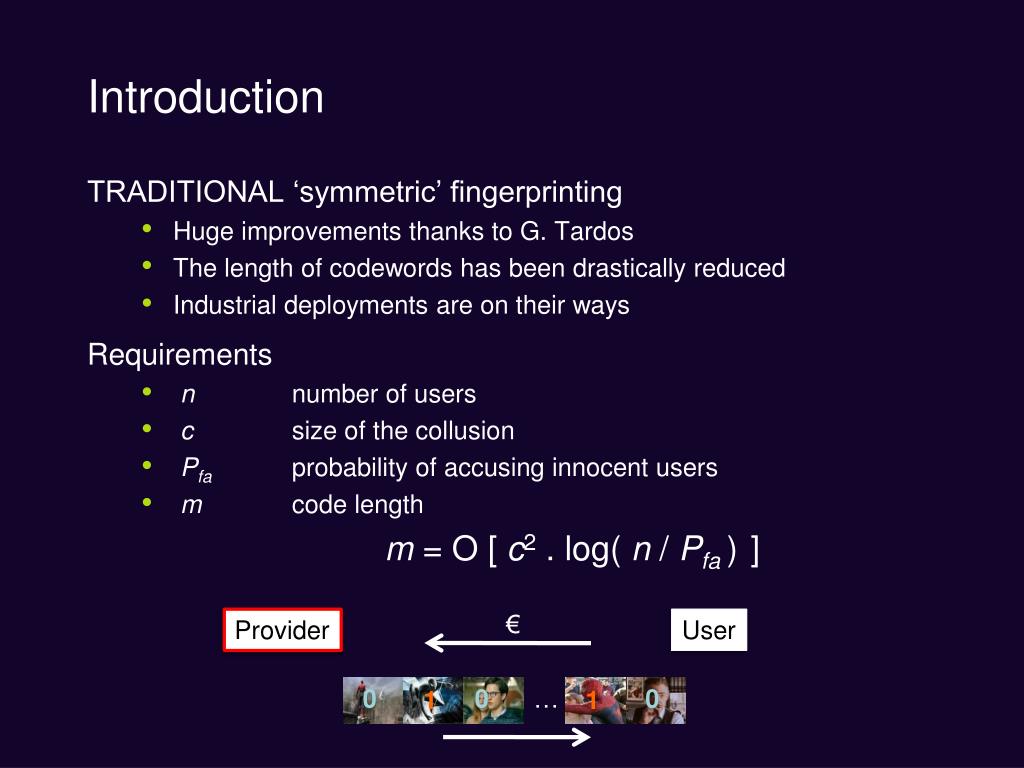

  3. Introduction 1 1 … • TRADITIONAL ‘symmetric’ fingerprinting • Huge improvements thanks to G. Tardos • The length of codewords has been drastically reduced • Industrial deployments are on their ways • Requirements • n number of users • c size of the collusion • Pfa probability of accusing innocent users • m code length m = O [ c2 . log( n / Pfa)] 0 0 0 € Provider User

  4. Introduction II • ASYMMETRIC fingerprinting • Different Trust Model: • Content Provider is untrustworthy • May want to frame an innocent user. • Dates back to 1996 [Pfitzmann&Schunter] • 4 actors: User, Provider, Certification Authority, and the Judge • 4 steps: Key generation, Fingerprinting, Identification and Dispute. CA pirated copy fingerprinted copy Provider User Judge

  5. Tardos code construction • Initialization: generate secret bias vector p • p = (p1, …,pm) 0 < pi < 1 pi ~ f (p) i.i.d. • Code: generate nxm binary matrix X • Each row is a codeword Xj = ( Xj1, …, Xjm) • s.t. Prob [ Xji= 1 ] = pi

  6. Tardos code accusation • When a pirated copy is found… • Extract binary sequence Y = (Y1,…, Ym) • Y is a mixture of the colluders’ codewords • Accusation (Single decoder) • Compute a score per user Sj = G (Y,Xj,p) • Accuse • users whose scores are above threshold T • user with maximum score if above threshold T

  7. Threats on Tardos code I 1 1 1 1 … … 0 0 0 0 0 0 Provider User #j Generate p Generate X Watermark and distribute P2P

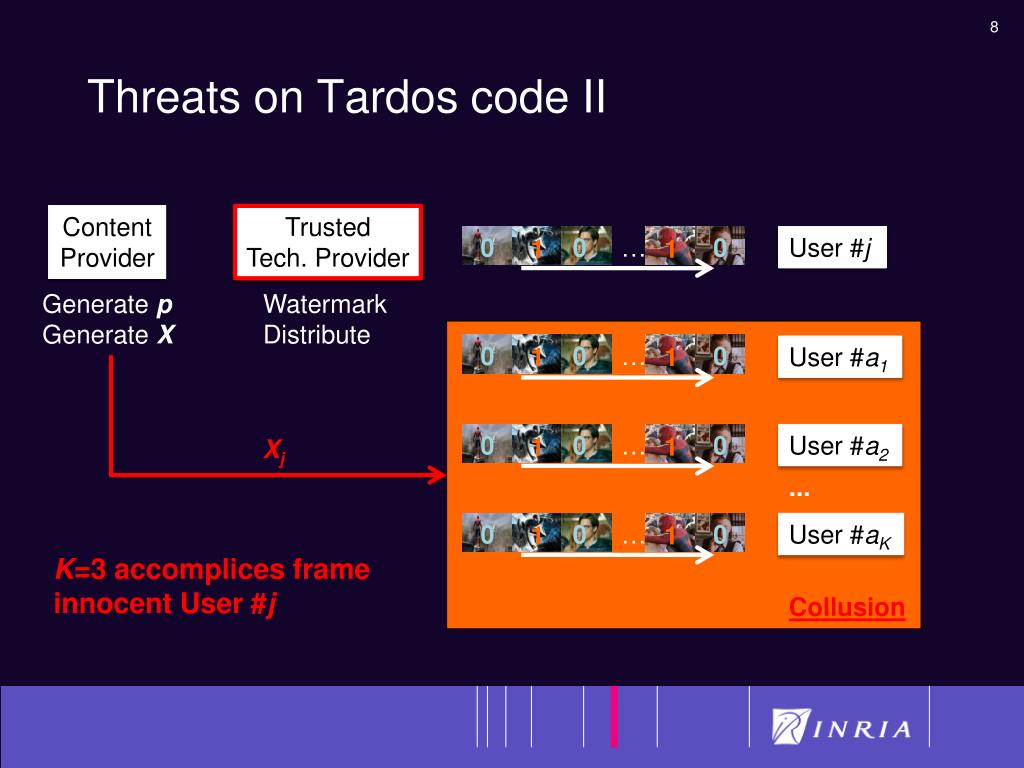

  8. Threats on Tardos code II 1 1 1 1 1 1 1 1 … … … … 0 0 0 0 0 0 0 0 0 0 0 0 Content Provider Trusted Tech. Provider User #j Generate p Generate X Watermark Distribute User #a1 User #a2 Xj ... User #aK K=3 accomplices frame innocent User #j Collusion

  9. Threats on Tardos code III 1 1 … 0 0 0 Y Content Provider Trusted Tech. Provider pirated copy Generate p Generate X Decode Watermark • How to frame innocent user #j during the score computation? • Y and Xj are fixed • The provider is the only one knowing p • It is possible to tweak p into p’s.t. • Score Sj = G (Y,Xj,p’ ) > T • p’ looks like drawn from f

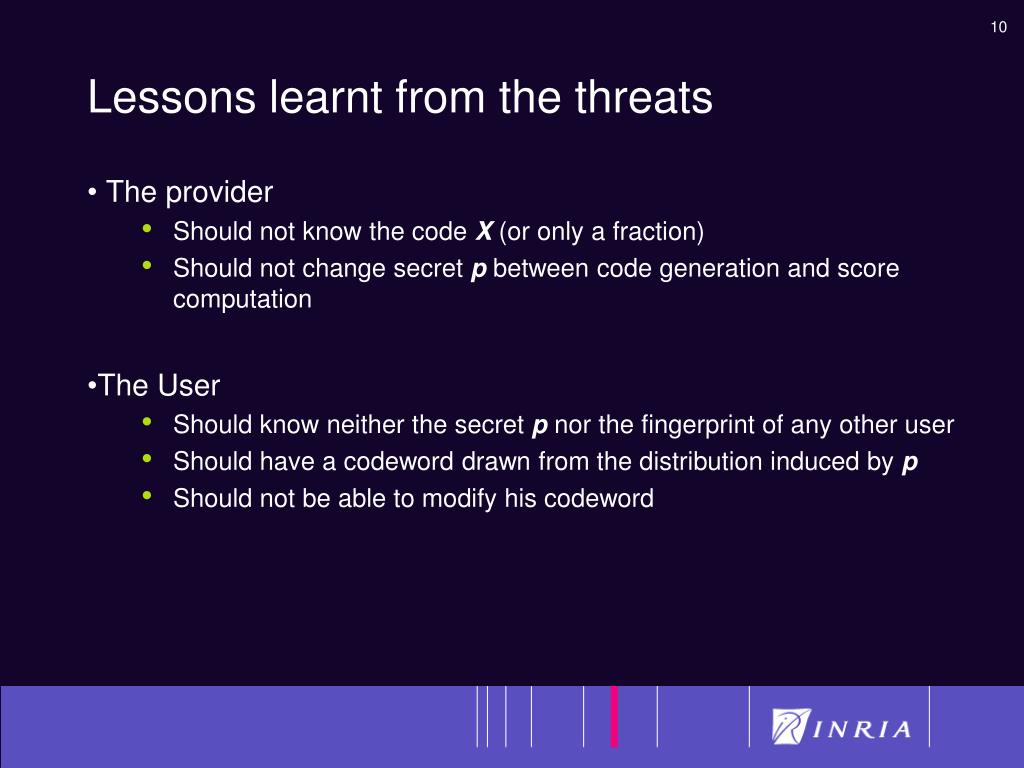

  10. Lessons learnt from the threats • The provider • Should not know the code X (or only a fraction) • Should not change secret p between code generation and score computation • The User • Should know neither the secret p nor the fingerprint of any other user • Should have a codeword drawn from the distribution induced by p • Should not be able to modify his codeword

  11. A protocol based on Oblivious Transfer • OT - 1:N“Pick a card, any card!” Alice Bob A deck of N cards

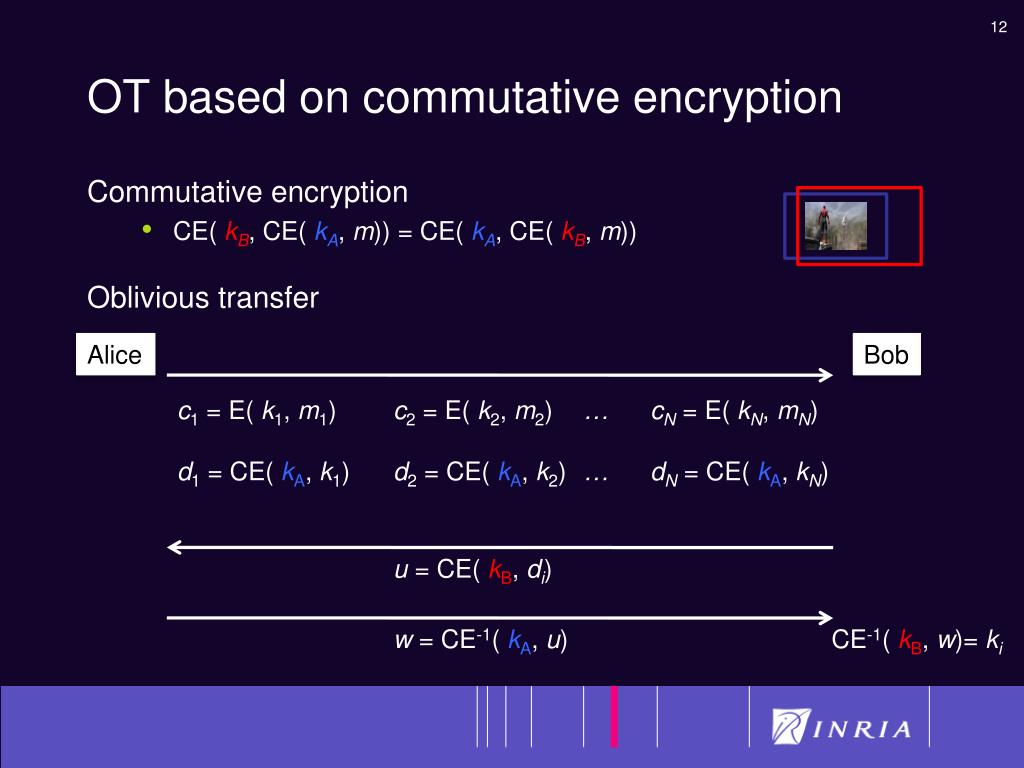

  12. OT based on commutative encryption • Commutative encryption • CE( kB, CE( kA, m)) = CE( kA, CE( kB, m)) Oblivious transfer Alice Bob c1 = E( k1, m1) c2 = E( k2, m2) … cN = E( kN, mN) d1 = CE( kA, k1) d2 = CE( kA, k2) … dN = CE( kA, kN) u = CE( kB, di) w = CE-1( kA, u) CE-1( kB, w)= ki

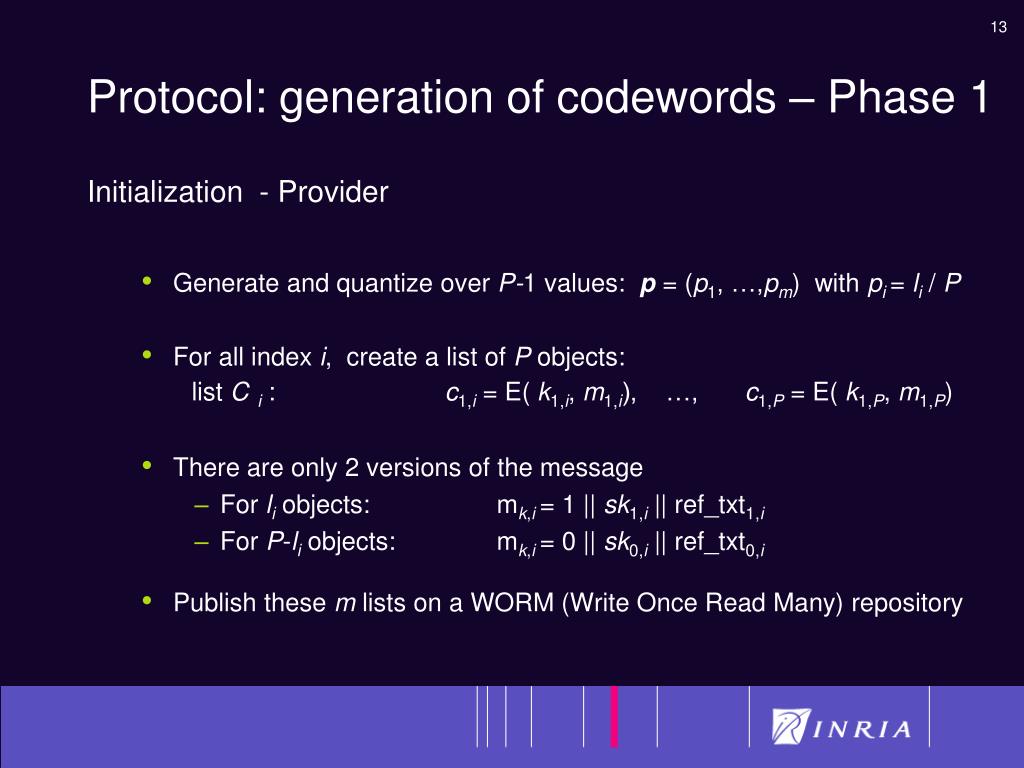

  13. Protocol: generation of codewords – Phase 1 • Initialization - Provider • Generate and quantize over P-1 values: p = (p1, …,pm) with pi= li/ P • For all index i, create a list of P objects: listCi: c1,i = E( k1,i, m1,i), …, c1,P = E( k1,P, m1,P) • There are only 2 versions of the message • For li objects: mk,i= 1 || sk1,i || ref_txt1,i • For P-li objects: mk,i= 0 || sk0,i || ref_txt0,i • Publish these m lists on a WORM (Write Once Read Many) repository

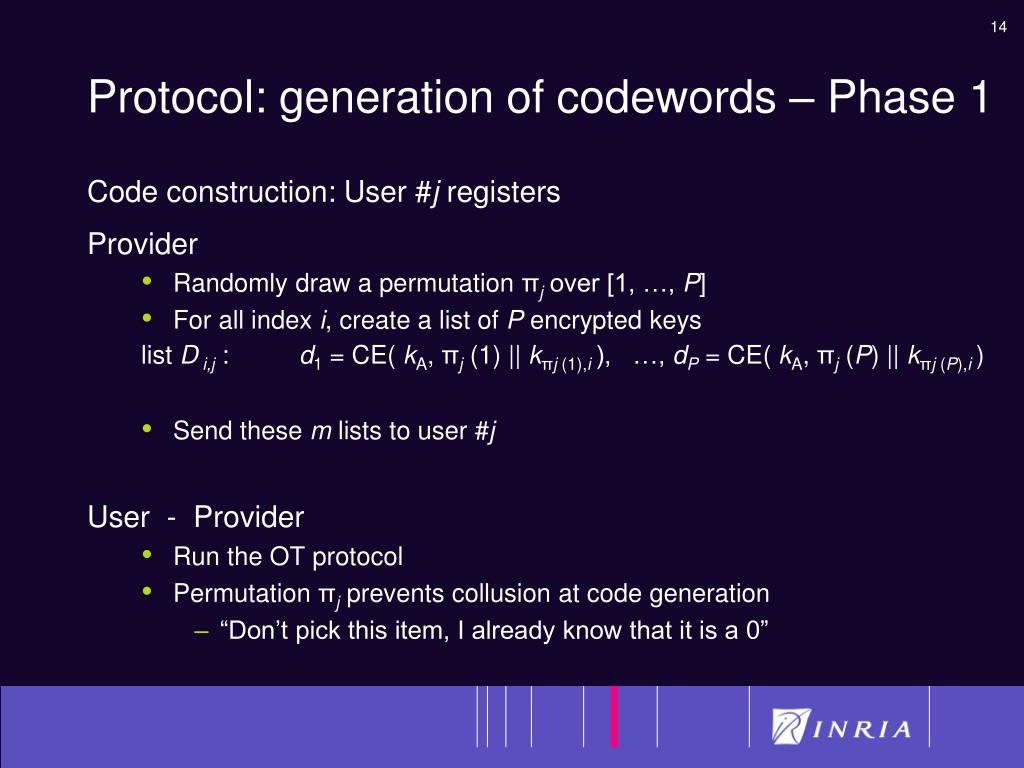

  14. Protocol: generation of codewords – Phase 1 • Code construction: User #j registers • Provider • Randomly draw a permutation πj over [1, …, P] • For all index i, create a list of P encrypted keys listDi,j : d1 = CE( kA, πj(1) || kπj(1),i), …, dP = CE( kA, πj(P) || kπj(P),i) • Send these m lists to user #j • User - Provider • Run the OT protocol • Permutation πj prevents collusion at code generation • “Don’t pick this item, I already know that it is a 0”

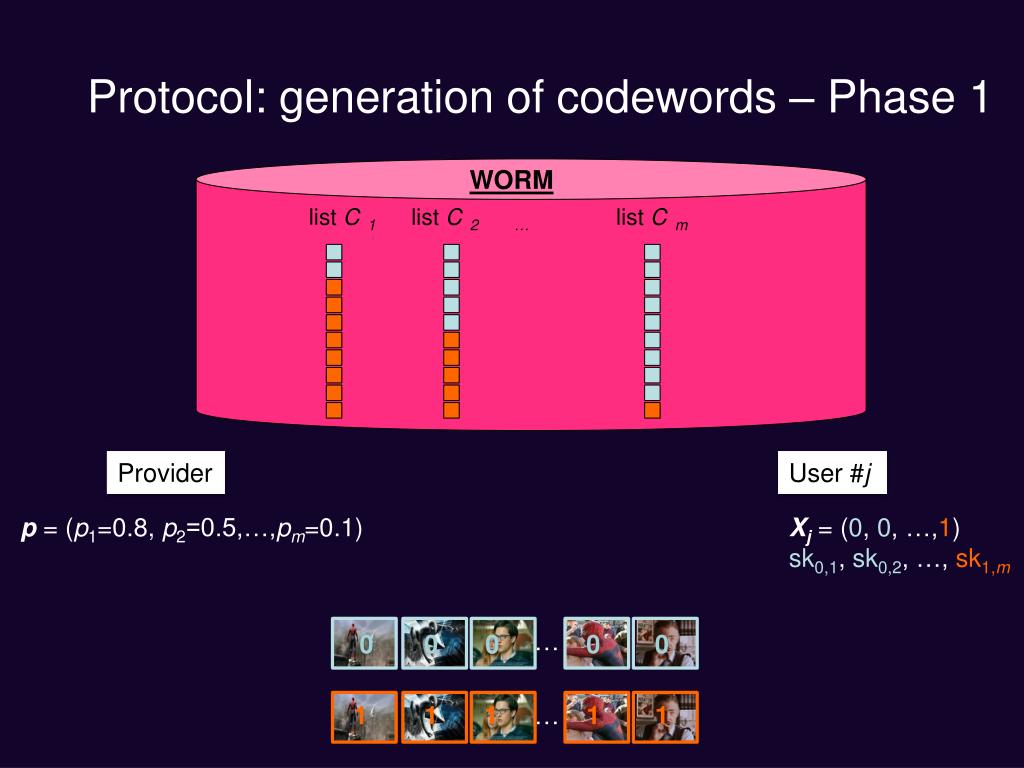

  15. Protocol: generation of codewords – Phase 1 listC1 listC2 … listCm WORM Provider User #j p = (p1=0.8, p2=0.5,…,pm=0.1) Xj = (0, 0, …,1) sk0,1, sk0,2, …, sk1,m … 0 0 0 0 0 1 1 1 … 1 1

  16. Protocol: generation of codewords – Phase 2 • Provider needs a partial knowledge of the codewords • Allow the identification of suspects • Order User #j to reveal mh < m bits of codewords. • So-called halfword[Pfitzmann&Schunter96] Xj = ( 0, 0 , 1, 0, 1, …, 0, 1 ) • Colluders • Should not know the location of the halfword bits • Solution • Yet another Oblivious Transfer OT – mh: m • Alice = User #j • Bob = Provider • Objects = keys used during Phase 1: kB,i • Provider gets mh elements of the listsDi,jchosen by #j(specific to User #j)

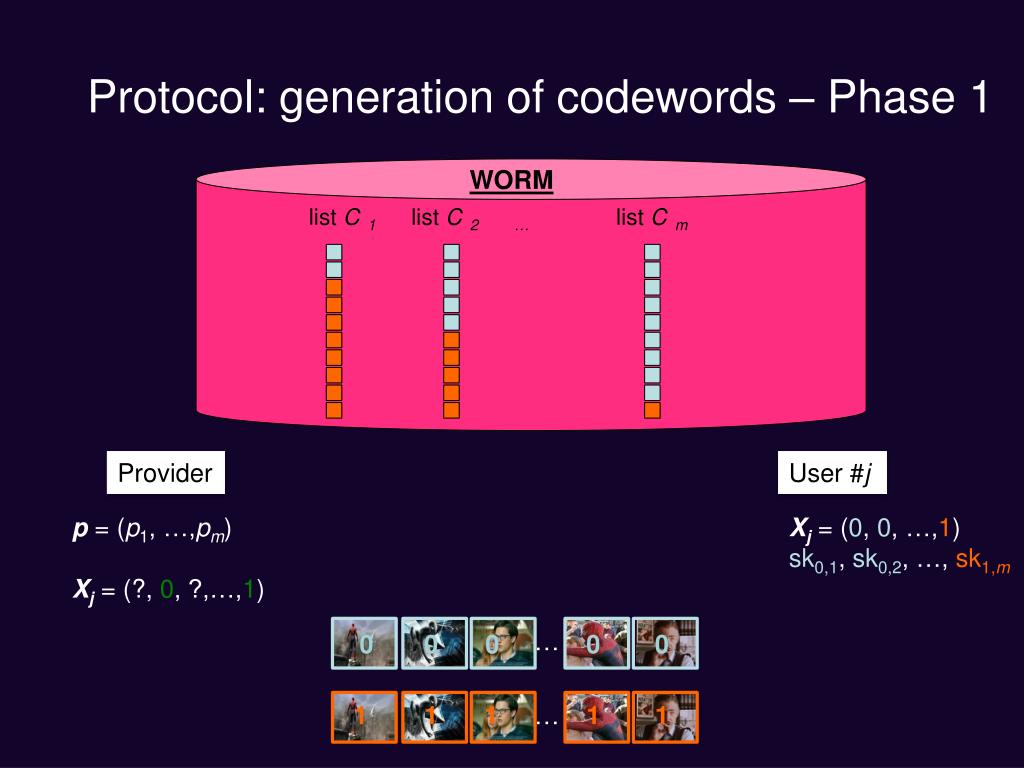

  17. Protocol: generation of codewords – Phase 1 listC1 listC2 … listCm WORM Provider User #j p = (p1, …,pm) Xj = (?, 0, ?,…,1) Xj = (0, 0, …,1) sk0,1, sk0,2, …, sk1,m … 0 0 0 0 0 1 1 1 … 1 1

  18. Accusation • The scouting agency finds a pirated copy. • The Technology Provider extracts sequence Y • The Provider • Compute scores restricted to halfwords • Send a list of suspects with halfwords, secret pand Y • The judge • Verifies computation • Ask Provider for the keys to decrypt Clistsin the WORM p • Ask suspected users for the keys to decrypt the OT Xj • Compute scores over the non-halfword codeword • Compare to threshold T

  19. Conclusion • First asymmetric protocol specific to Tardos fingerprinting code. • Generation of code without CA … but with a WORM • Code length • mh = O[ c2 log (n/ Pfs) ] Pfs= Prob of wrong suspicion • m = O[ c2 log ( n/ (Pfs. Pfa)1/2) ] • If Pfs=Pfa,the length is doubled • List sizes: P > c , we recommend P = 100 • Misc.: • Discussion about security, efficiency and OT implementations • Application to Buyer-Seller with homomorphic encryption watermarking

  20. Fingerprinting in the industry … … … • The DNA approach • Watermarking each block in super high quality 1 0 0 1 0 1 0 1 0 1 Content Provider Technology Provider

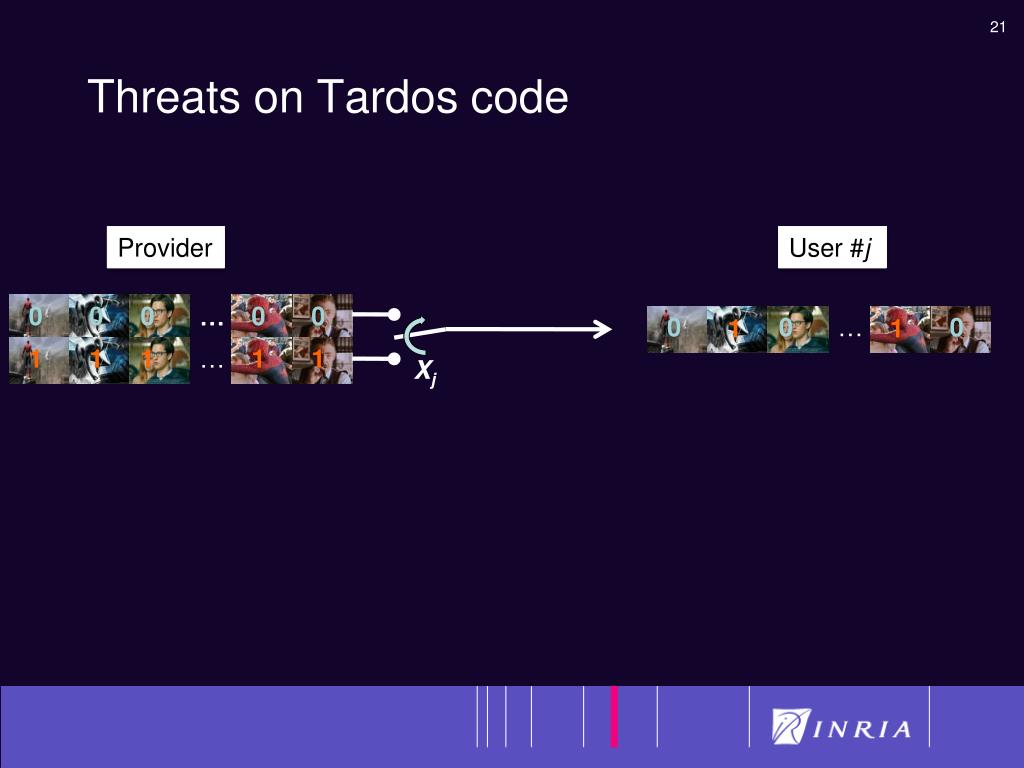

  21. Threats on Tardos code 1 1 … … … 0 0 1 0 1 1 0 0 0 1 1 0 0 Provider User #j Xj
