Understanding the Spark Chamber: The Muon's Role in Particle Ionization

The spark chamber operates by utilizing a muon (µ±) which passes through neutrally charged atoms, ionizing them by knocking off electrons. This process creates free electrons and positively charged ions, triggered by a strong electric field generated by high-voltage plates. As the muon continues its path, the charged particles collide with more neutral atoms, leading to an avalanche of ionization. Once 100 million electrons accumulate, a significant electric field forms, prompting recombination and photon release. This results in continuous plasma formation, enabling a spark to flow between plates due to low electrical resistance.

heath
Télécharger la présentation

Understanding the Spark Chamber: The Muon's Role in Particle Ionization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

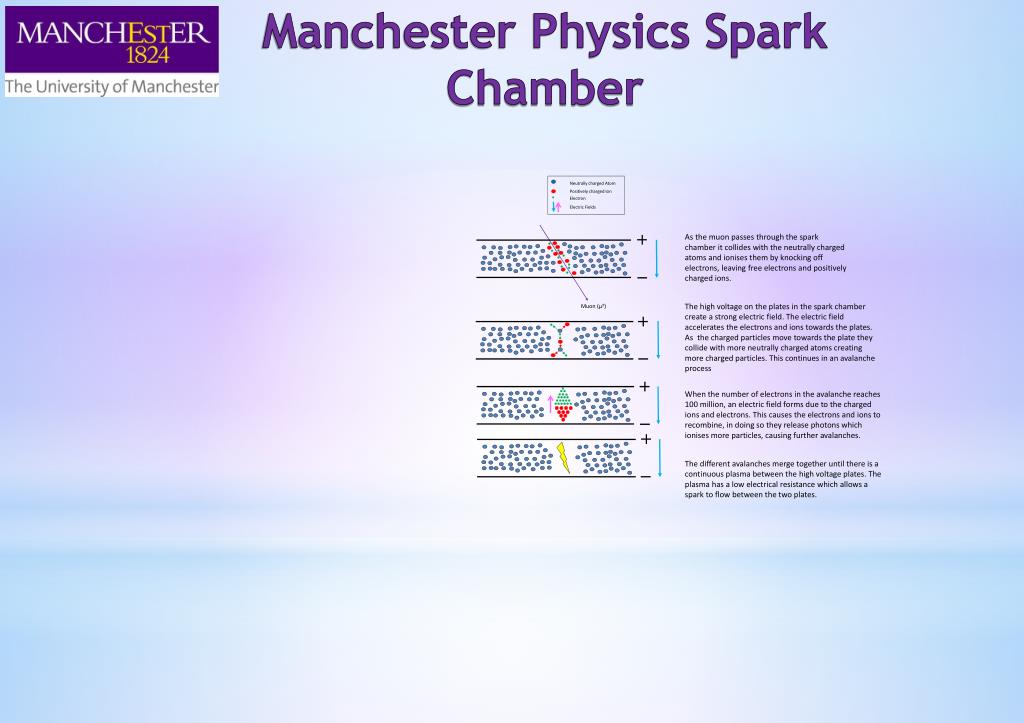

  1. Manchester Physics Spark Chamber Neutrally charged Atom Positively charged Ion Electron Electric Fields Muon (µ±) As the muon passes through the spark chamber it collides with the neutrally charged atoms and ionises them by knocking off electrons, leaving free electrons and positively charged ions. The high voltage on the plates in the spark chamber create a strong electric field. The electric field accelerates the electrons and ions towards the plates. As the charged particles move towards the plate they collide with more neutrally charged atoms creating more charged particles. This continues in an avalanche process When the number of electrons in the avalanche reaches 100 million, an electric field forms due to the charged ions and electrons. This causes the electrons and ions to recombine, in doing so they release photons which ionises more particles, causing further avalanches. The different avalanches merge together until there is a continuous plasma between the high voltage plates. The plasma has a low electrical resistance which allows a spark to flow between the two plates.
