  1. CSE 872 Advanced Computer Graphics • Charles B. Owen (Instructor) • 1138 E. B., 353-6488 • MW 12:30-1:50pm in Kresge Art Center 041

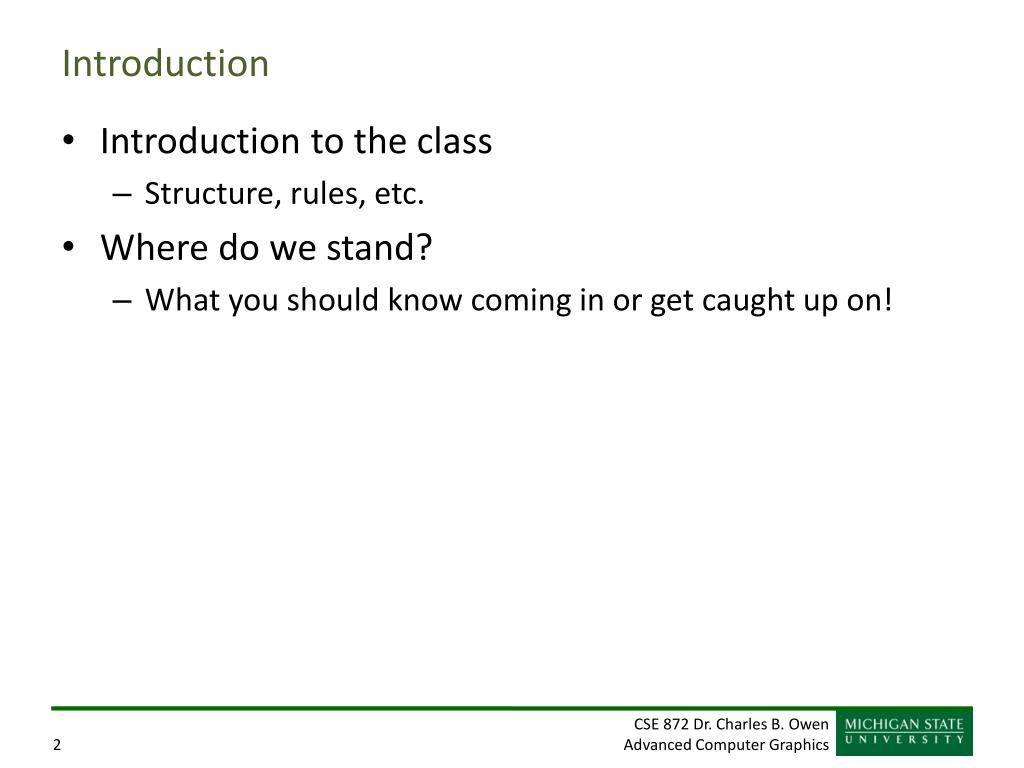

  2. Introduction • Introduction to the class • Structure, rules, etc. • Where do we stand? • What you should know coming in or get caught up on!

  3. Course Content • Basic and advanced modeling • Scan conversion for photorealistic rendering • Ray tracing and related methods • Radiosity and hybrid methods • Particle-based methods • Physical modeling • Water and fire • Curves, splines, NURBS

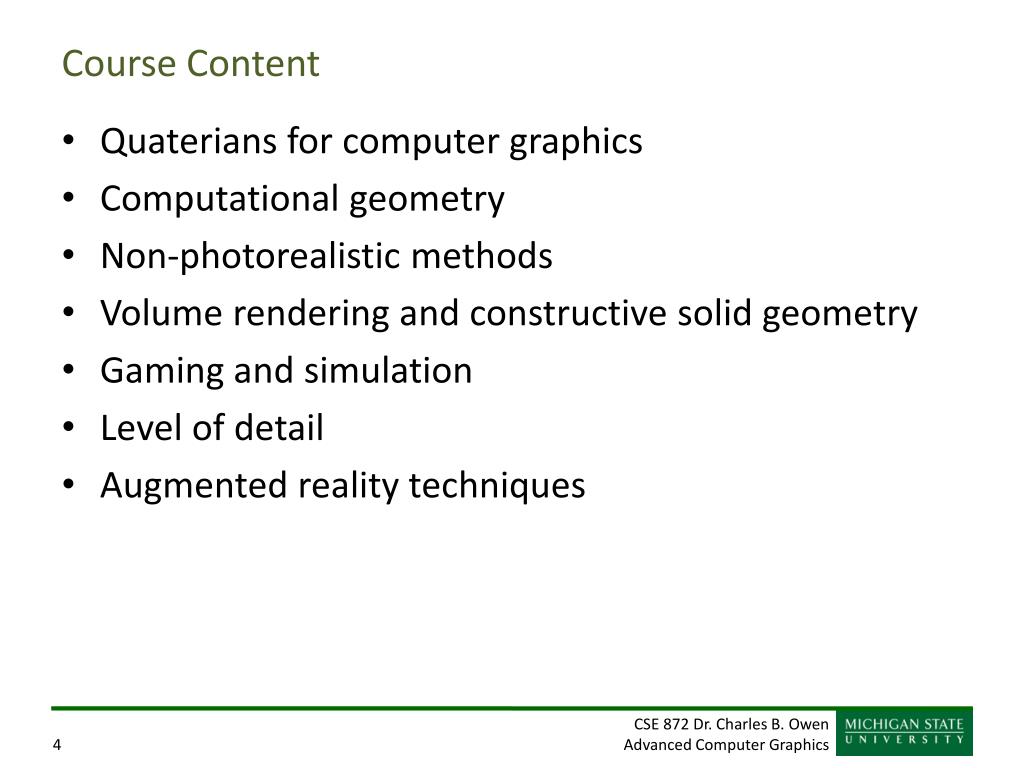

  4. Course Content • Quaterians for computer graphics • Computational geometry • Non-photorealistic methods • Volume rendering and constructive solid geometry • Gaming and simulation • Level of detail • Augmented reality techniques

  5. Course Content: Anything else? • Real time using hardware • Pixel shaders • Virtual reality • Animation techniques • Motion capture • Post-production

  6. Course Structure • See the syllabus

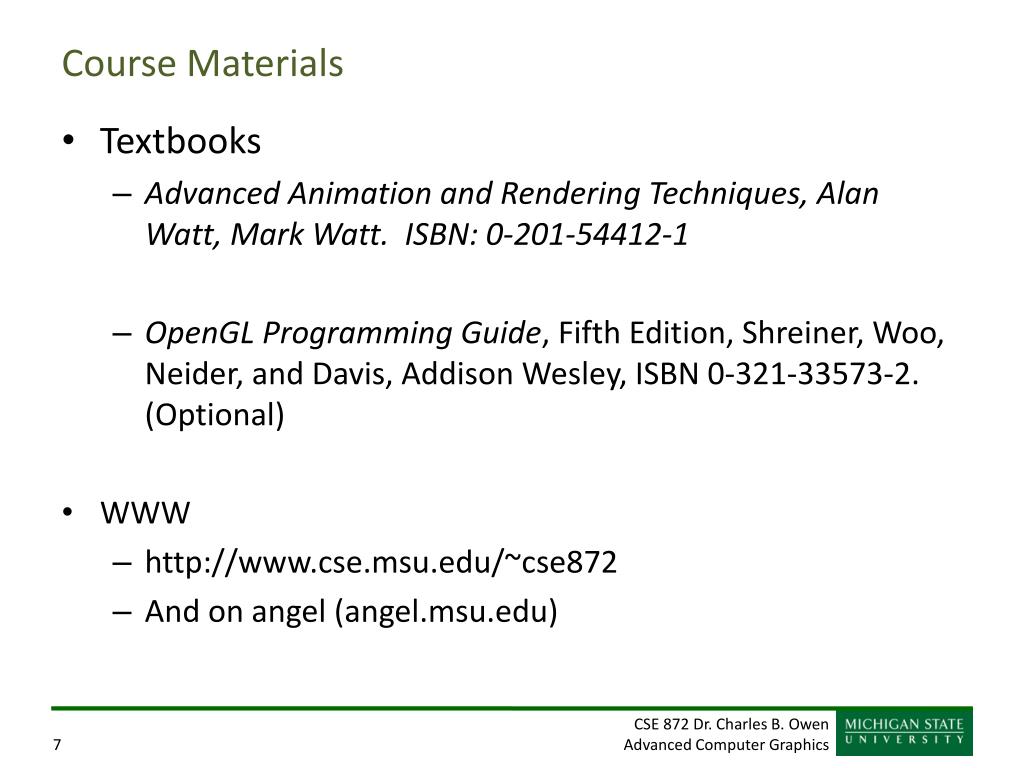

  7. Course Materials • Textbooks • Advanced Animation and Rendering Techniques, Alan Watt, Mark Watt. ISBN: 0-201-54412-1 • OpenGL Programming Guide, Fifth Edition, Shreiner, Woo, Neider, and Davis, Addison Wesley, ISBN 0-321-33573-2. (Optional) • WWW • http://www.cse.msu.edu/~cse872 • And on angel (angel.msu.edu)

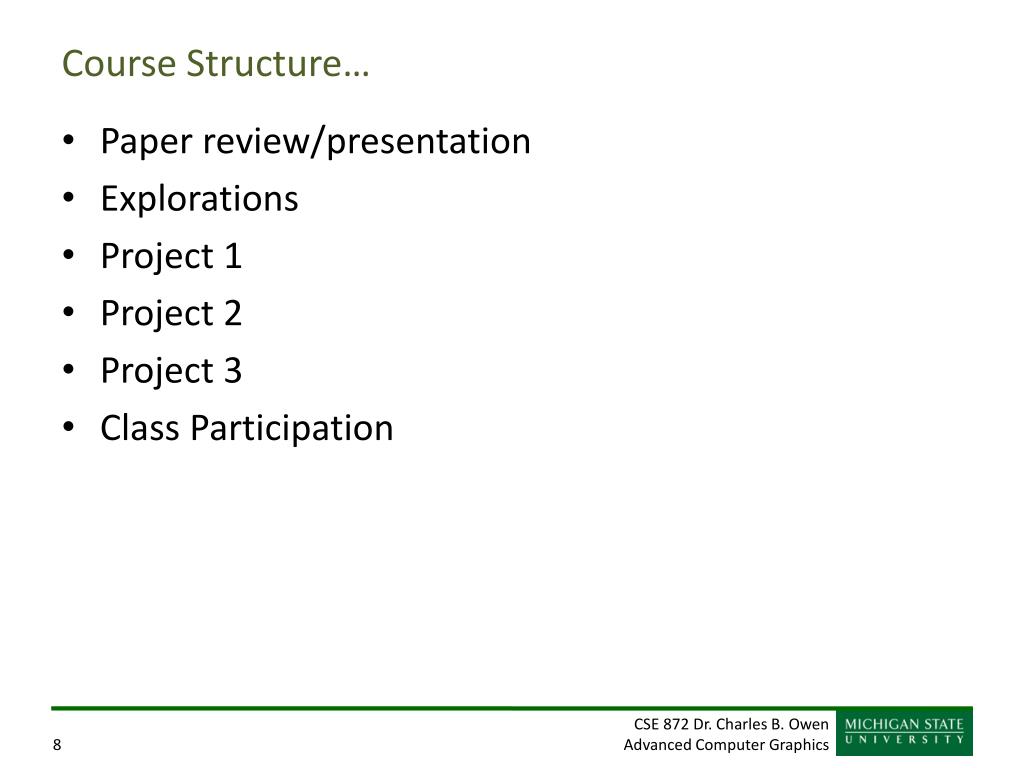

  8. Course Structure… • Paper review/presentation • Explorations • Project 1 • Project 2 • Project 3 • Class Participation

  9. Where do we stand? • What do we know about: • Configuring projection matrices • Configuring modelview matrices • Culling, depth testing • Lighting • Materials • What happens when you do glVertex?

  10. void CChildView::OnGLDraw(CDC *pDC) { glClearColor(0.0f, 0.0f, 0.0f, 0.0f) ; glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); // Set up the camera glMatrixMode(GL_PROJECTION); glLoadIdentity(); // Determine the screen size so we can determine the aspect ratio int width, height; GetSize(width, height); // Set the camera parameters gluPerspective(25., // Vertical field of view in degrees. GLdouble(width) / GLdouble(height), // The aspect ratio. 10., // Near clipping 200.); // Far clipping // Set the camera location glMatrixMode(GL_MODELVIEW); glLoadIdentity(); gluLookAt(20., 10., 50., // eye x,y,z 0., 0., 0., // center x,y,z 0., 1., 0.); // Up direction

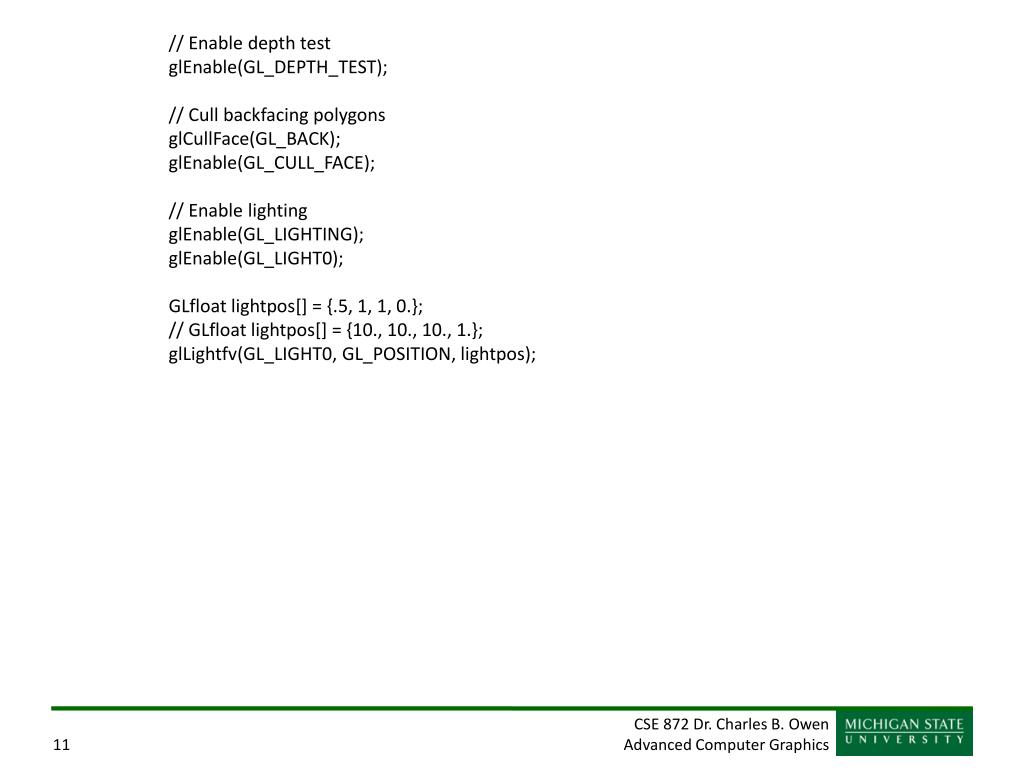

  11. // Enable depth test glEnable(GL_DEPTH_TEST); // Cull backfacing polygons glCullFace(GL_BACK); glEnable(GL_CULL_FACE); // Enable lighting glEnable(GL_LIGHTING); glEnable(GL_LIGHT0); GLfloat lightpos[] = {.5, 1, 1, 0.}; // GLfloat lightpos[] = {10., 10., 10., 1.}; glLightfv(GL_LIGHT0, GL_POSITION, lightpos);

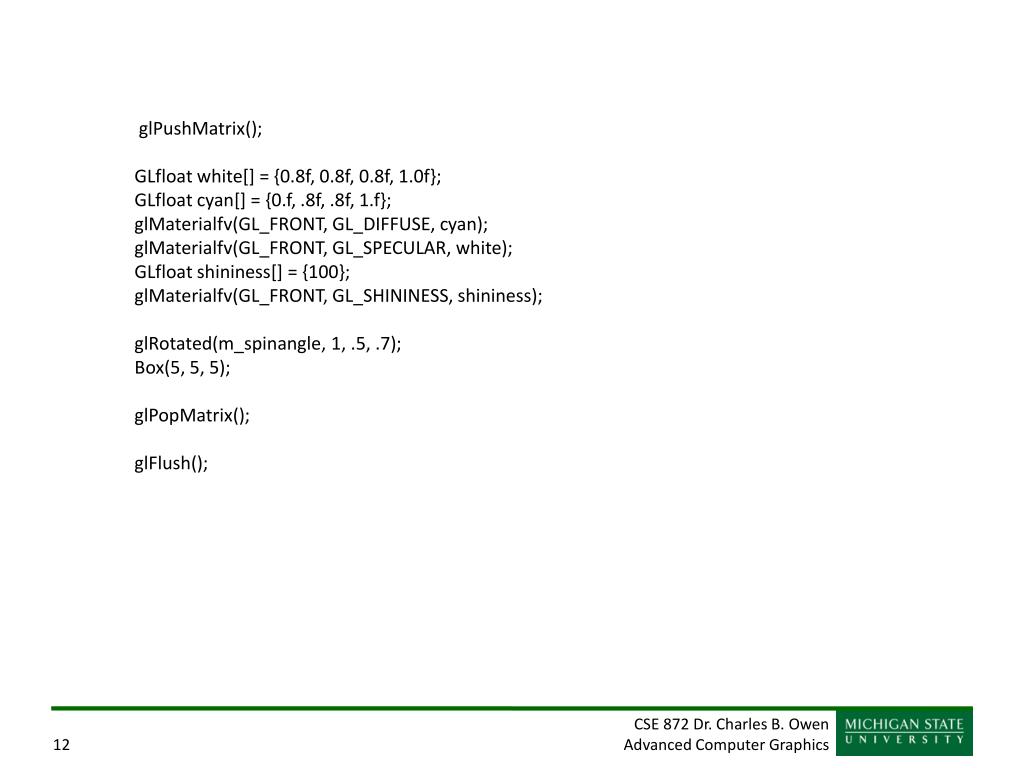

  12. glPushMatrix(); GLfloat white[] = {0.8f, 0.8f, 0.8f, 1.0f}; GLfloat cyan[] = {0.f, .8f, .8f, 1.f}; glMaterialfv(GL_FRONT, GL_DIFFUSE, cyan); glMaterialfv(GL_FRONT, GL_SPECULAR, white); GLfloat shininess[] = {100}; glMaterialfv(GL_FRONT, GL_SHININESS, shininess); glRotated(m_spinangle, 1, .5, .7); Box(5, 5, 5); glPopMatrix(); glFlush();

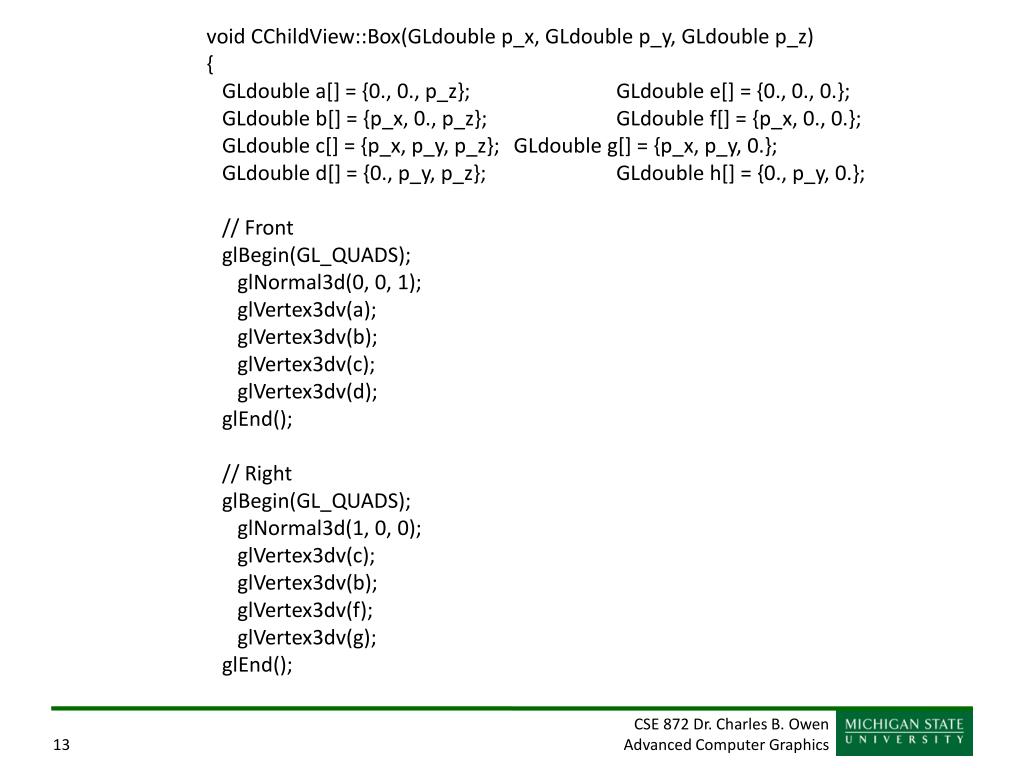

  13. void CChildView::Box(GLdouble p_x, GLdouble p_y, GLdouble p_z) { GLdouble a[] = {0., 0., p_z}; GLdouble e[] = {0., 0., 0.}; GLdouble b[] = {p_x, 0., p_z}; GLdouble f[] = {p_x, 0., 0.}; GLdouble c[] = {p_x, p_y, p_z}; GLdouble g[] = {p_x, p_y, 0.}; GLdouble d[] = {0., p_y, p_z}; GLdouble h[] = {0., p_y, 0.}; // Front glBegin(GL_QUADS); glNormal3d(0, 0, 1); glVertex3dv(a); glVertex3dv(b); glVertex3dv(c); glVertex3dv(d); glEnd(); // Right glBegin(GL_QUADS); glNormal3d(1, 0, 0); glVertex3dv(c); glVertex3dv(b); glVertex3dv(f); glVertex3dv(g); glEnd();
