Circuite Virtuale

Circuite Virtuale. problema. G. G. B. C. G. A. D. G. E. F. G. G. Re ţ eaua. Exemple de circuite virtuale. Originea in nodul A. Originea in nodul B 0 – ABCD 0 - BCD 1 – AEFD 1 - BAE 2 – ABFD 2 - BF 3 – AEC 4 – AECDFB. Ordinea de creere.

hector
Télécharger la présentation

Circuite Virtuale

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Circuite Virtuale problema

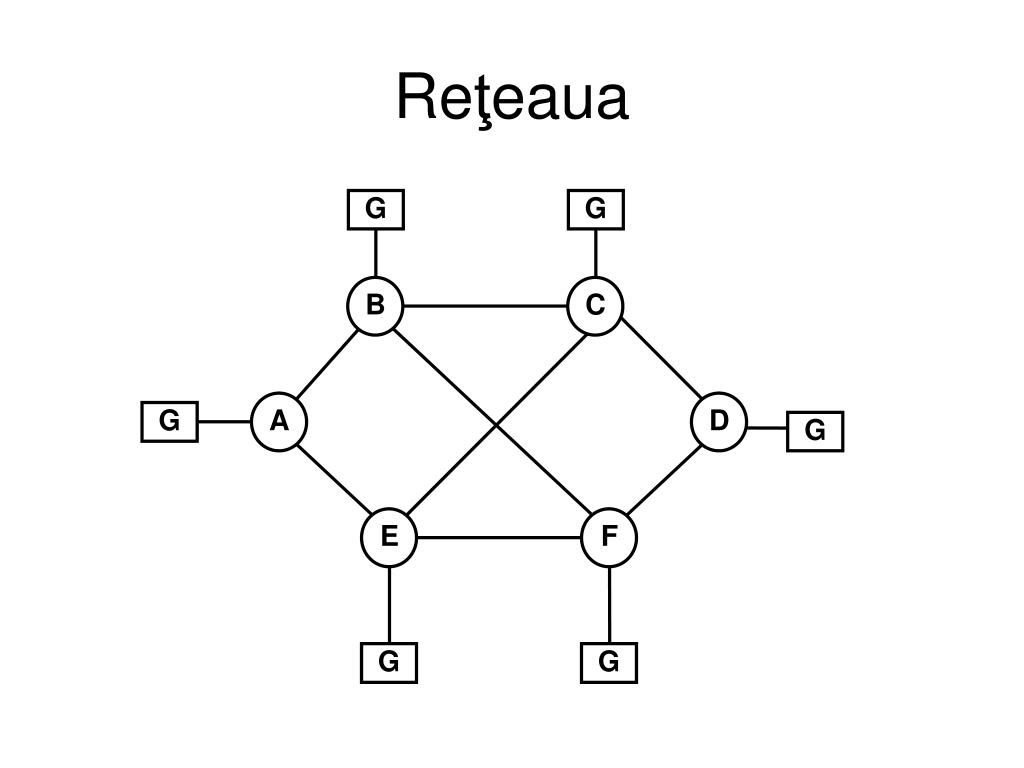

  2. G G B C G A D G E F G G Reţeaua

  3. Exemple de circuite virtuale • Originea in nodul A. Originea in nodul B • 0 – ABCD 0 - BCD • 1 – AEFD 1 - BAE • 2 – ABFD 2 - BF • 3 – AEC • 4 – AECDFB

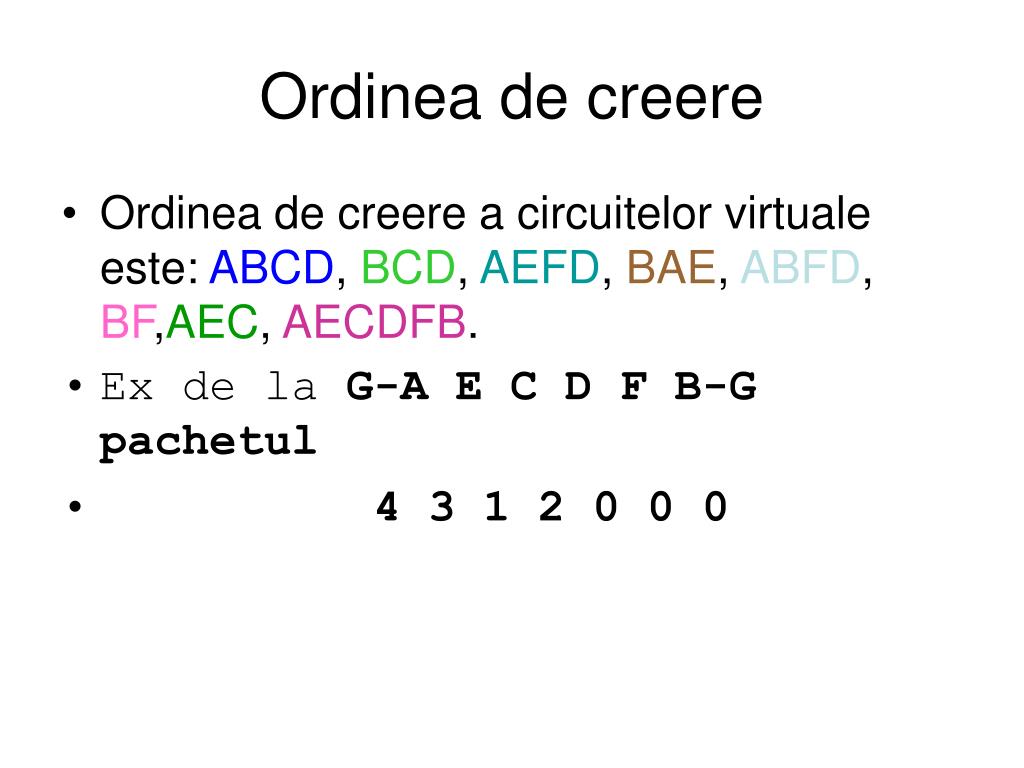

  4. Ordinea de creere • Ordinea de creere a circuitelor virtuale este: ABCD, BCD, AEFD, BAE, ABFD, BF,AEC,AECDFB. • Ex de la G-A E C D F B-G pachetul • 4 3 1 2 0 0 0

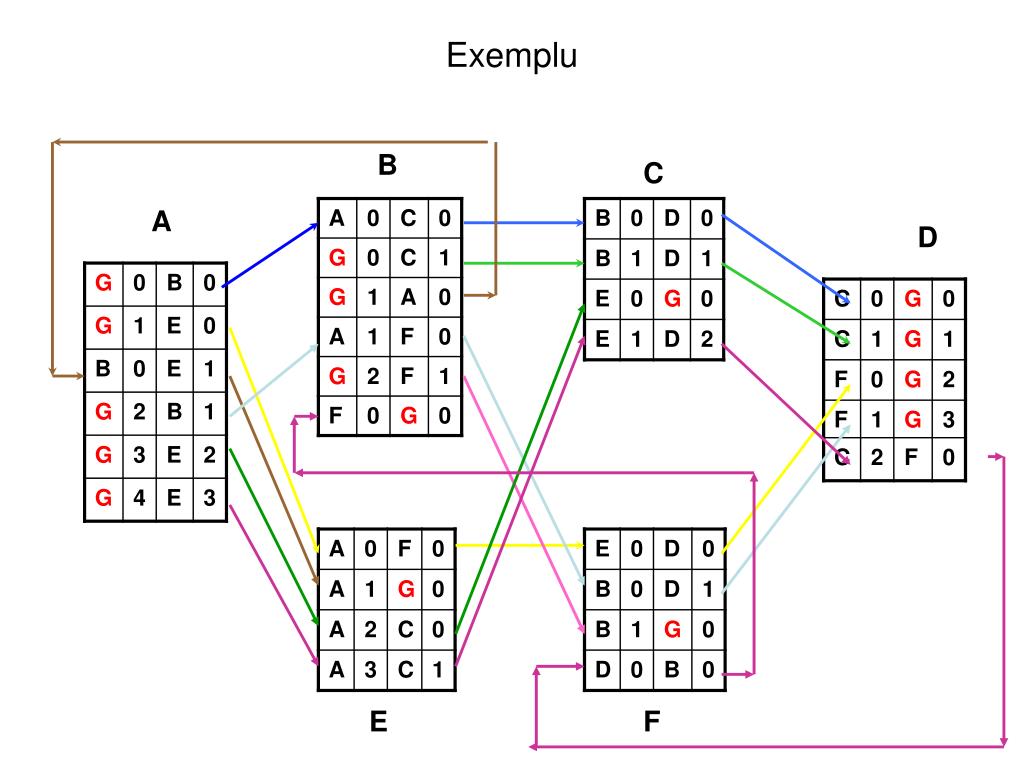

  5. Exemplu B C A D E F

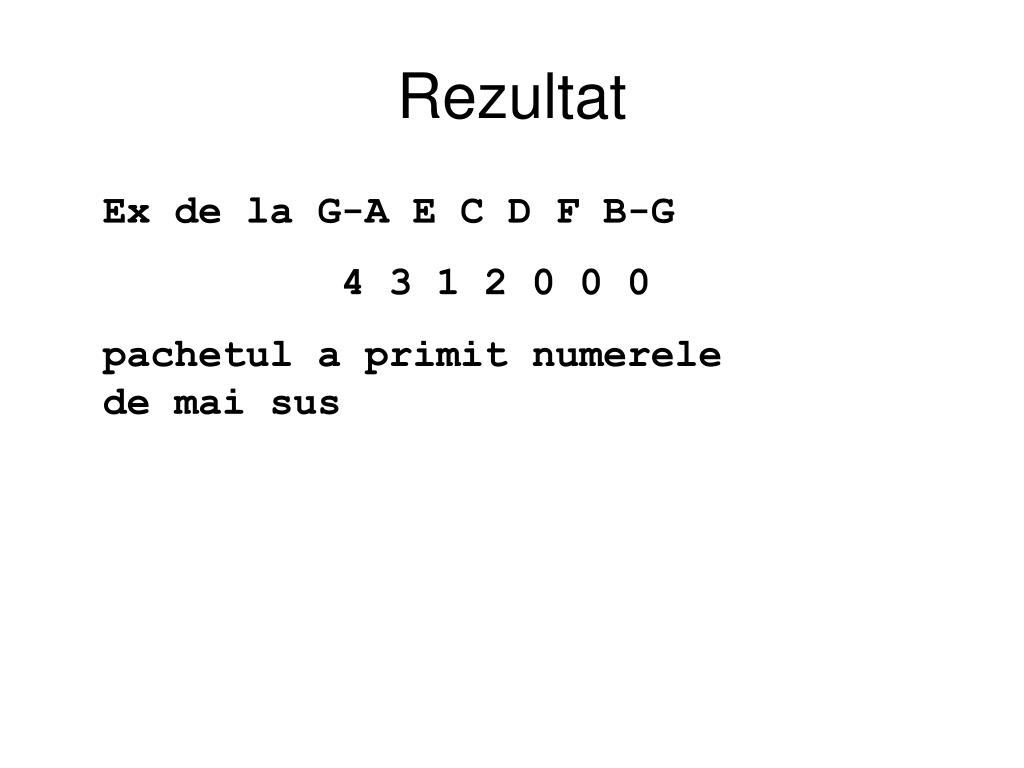

  6. Rezultat Ex de la G-A E C D F B-G 4 3 1 2 0 0 0 pachetul a primit numerele de mai sus
