Methods-Time Measurement MTM

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

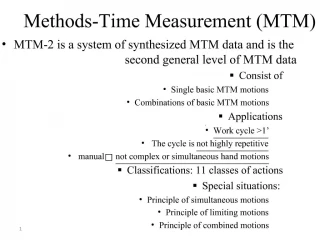

    1. 1 Methods-Time Measurement (MTM) MTM-2 is a system of synthesized MTM data and is the second general level of MTM data Consist of Single basic MTM motions Combinations of basic MTM motions Applications Work cycle >1’ The cycle is not highly repetitive manual? not complex or simultaneous hand motions Classifications: 11 classes of actions Special situations: Principle of simultaneous motions Principle of limiting motions Principle of combined motions

    2. 2 MTM-2 System

    3. 3

    4. 4

    5. 5 Methods-Time Measurement (MTM) MTM-3 Save time at the expense of some accuracy: ±5%,95% Not use for operations: eye focus, eye travel time 4 categories of manual motions: handle, transport, step and foot motions, bend and arise MTM-V Use in metal cutting operations To establish setup time for all typical machine tools MTM-C Use in baking and insurance industries,2-level system To establish time standards for clerical-related works

    6. 6 Methods-Time Measurement (MTM) MTM-M: Use for evaluating operator work using a stereoscopic microscope Other specialized MTM systems MTM-TE: electronic test, 3-level MTM-MEK: electronic test, 3-level, small-lot MTM-UAS: describe process, determine allowed times for batch production, 3-level system MTM systems comparison Criteria: accuracy, number of therbligs utilized, time to analyze a job (at 90% confidence level) MTM-2 is the best

    7. 7 Maynard Operation Sequence Technique (MOST) A simplified system: fast establish time standards MOST identifies 3 basic sequence models: General move: free object movement through the air Controlled move: object remains contact with surface or attached to another objects during the movement Tool use: use of common hand tools Two adaptations: Mini and Maxi MOST Mini MOST: identical, short-cycle operations Maxi MOST: long-cycle operations Both manual and computerized versions

    8. 8

    9. 9

    10. 10

    11. 11
