  1. Engine Condition Diagnosis

  2. Compression test Cranking vacuum test Cylinder leakage test Dynamic compression test Idle vacuum test Paper test Power balance test Restricted exhaust Running compression test Vacuum test Wet compression test KEY TERMS

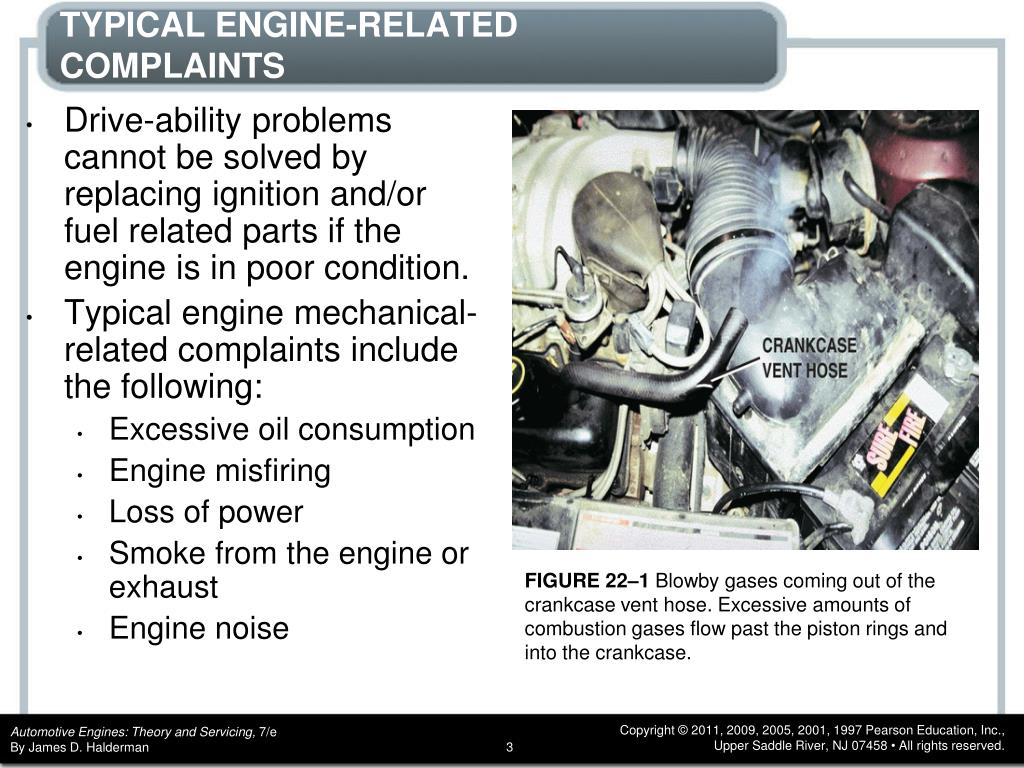

  3. FIGURE 22–1 Blowby gases coming out of the crankcase vent hose. Excessive amounts of combustion gases flow past the piston rings and into the crankcase. TYPICAL ENGINE-RELATED COMPLAINTS • Drive-ability problems cannot be solved by replacing ignition and/or fuel related parts if the engine is in poor condition. • Typical engine mechanical-related complaints include the following: • Excessive oil consumption • Engine misfiring • Loss of power • Smoke from the engine or exhaust • Engine noise

  4. FIGURE 22–2 White steam is usually an indication of a blown (defective) cylinder head gasket that allows engine coolant to flow into the combustion chamber where it is turned to steam. ENGINE SMOKE DIAGNOSIS • The color of engine exhaust smoke can indicate what engine problem might exist. • Blue = oil • Black = fuel • White (steam) = coolant

  5. THE DRIVER IS YOUR BEST RESOURCE • The driver of the vehicle knows a lot about the vehicle and how it is driven. • Before diagnosis is started, always ask the following questions. • When did the problem first occur? • Under what conditions does it occur? • Cold or hot? • Acceleration, cruise, or deceleration? • How far was it driven? • What recent repairs have been performed?

  6. FIGURE 22–3 What looks like an oil pan gasket leak can be a rocker cover gasket leak. Always look up and look for the highest place you see oil leaking; that should be repaired first. VISUAL CHECKS • The first and most important “test” that can be performed is a careful visual inspection. • OIL LEVEL AND CONDITION • COOLANT LEVEL AND CONDITION • OIL LEAKS

  7. VISUAL CHECKS • Most aftermarkets sell dye and UV light kits to diagnose vehicle leaks. • Add the appropriate dye to the suspected system. • Do NOT cross-contaminate dyes.

  8. FIGURE 22–5 Using a black light to spot leaks after adding dye to the oil. • Look for the highest leak.

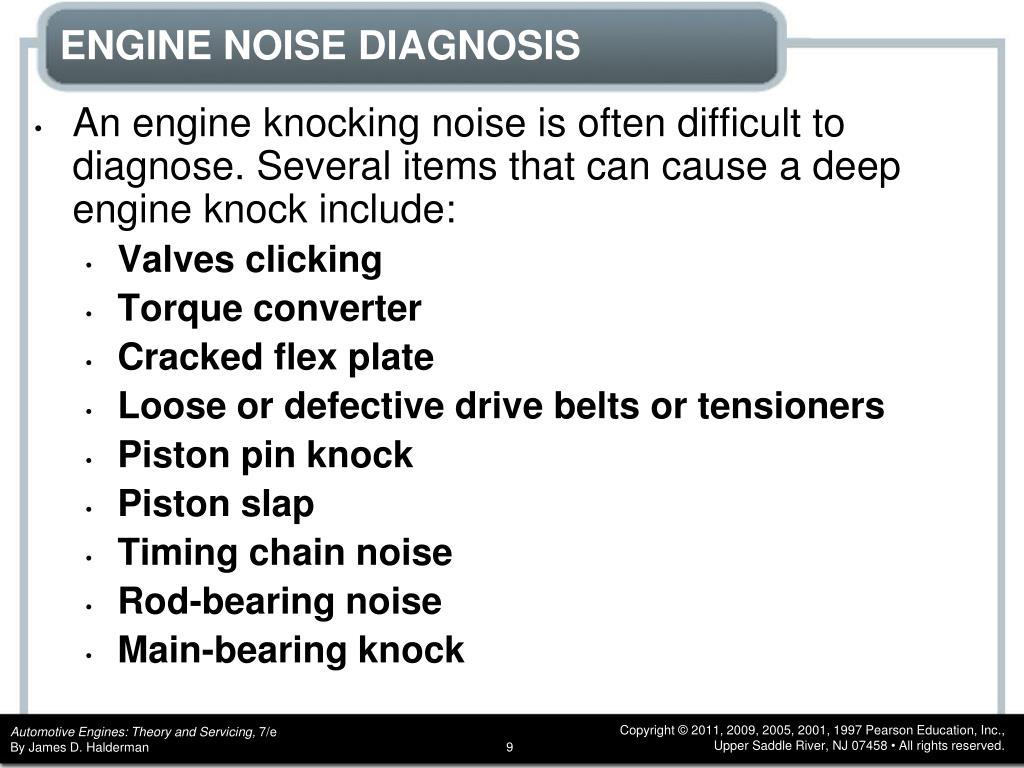

  9. ENGINE NOISE DIAGNOSIS • An engine knocking noise is often difficult to diagnose. Several items that can cause a deep engine knock include: • Valves clicking • Torque converter • Cracked flex plate • Loose or defective drive belts or tensioners • Piston pin knock • Piston slap • Timing chain noise • Rod-bearing noise • Main-bearing knock

  10. Engine Noise and Cost • A light ticking noise often heard at one-half engine speed and associated with valve train noise is a less serious problem than many deep-sounding knocking noises. Generally, the deeper the sound of the engine noise, the more the owner will have to pay for repairs. A light “tick tick tick,” though often not cheap, is usually far less expensive than a deep “knock knock knock” from the engine.

  11. Engine Noise • A scan tool can be used to “short” each cylinder. • If the knock goes away or is drastically reduced • You have found the bad cylinder • Usually bottom end

  12. An inexpensive stethoscope can be used to zero in on the location.

  13. the oil pressure sending (sender) unit usually located near the oil filter. Screw the pressure gauge into the oil pressure sending unit hole. OIL PRESSURE WARNING LAMP • The red oil pressure warning lamp in the dash usually lights when the oil pressure is less than 4 to 7 PSI, depending on vehicle and engine. • The oil light should not be on during driving. • If the oil warning lamp is on, stop the engine immediately. • Always confirm oil pressure with a reliable mechanical gauge before performing engine repairs. • The sending unit or circuit may be defective.

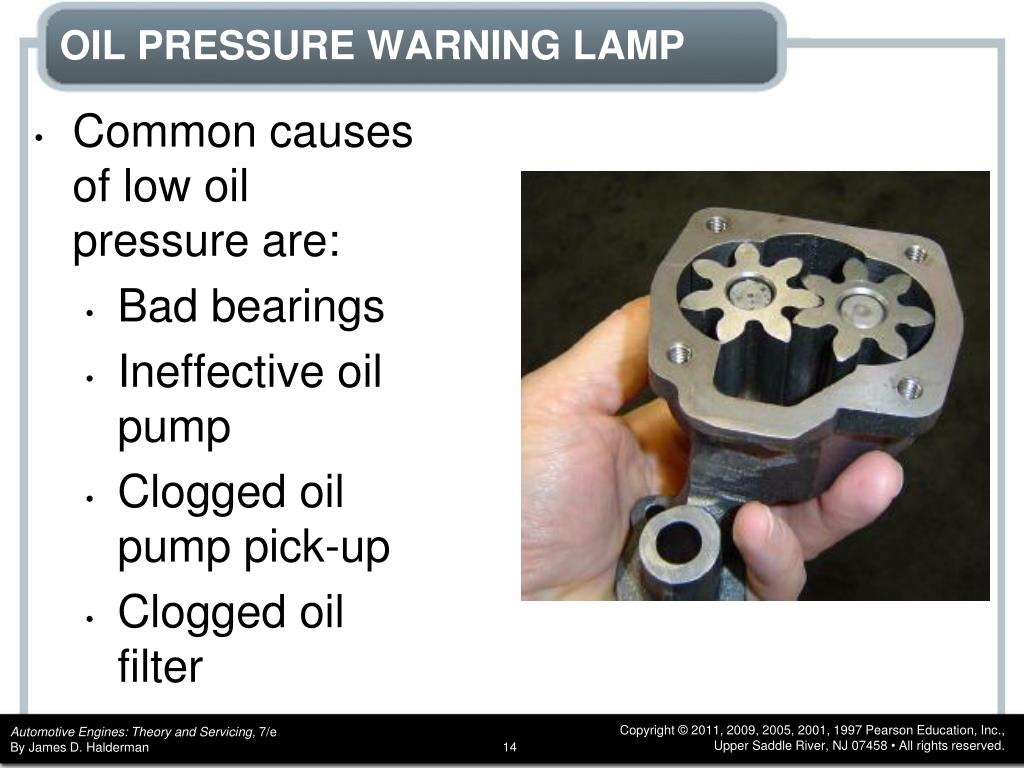

  14. OIL PRESSURE WARNING LAMP • Common causes of low oil pressure are: • Bad bearings • Ineffective oil pump • Clogged oil pump pick-up • Clogged oil filter

  15. FIGURE 22–10 A two-piece compression gauge set. The threaded hose is screwed into the spark plug hole after removing the spark plug. The gauge part is then snapped onto the end of the hose. COMPRESSION TEST • An engine compression test is one of the fundamental engine diagnostic tests that can be performed. • For smooth engine operation, all cylinders must have equal compression. • An engine can lose compression by leakage of air through one or more of only three routes. • Intake or exhaust valve • Piston rings (or piston, if there is a hole) • Cylinder head gasket

  16. COMPRESSION TEST

  17. COMPRESSION TEST

  18. COMPRESSION TEST

  19. COMPRESSION TEST

  20. COMPRESSION TEST

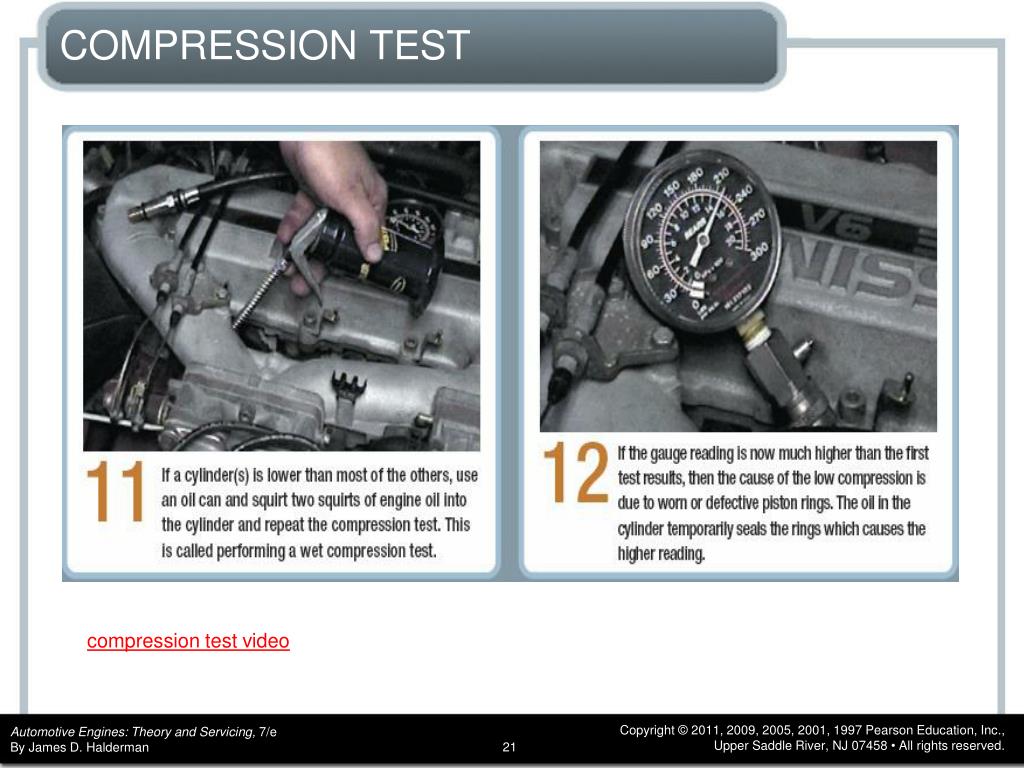

  21. COMPRESSION TEST compression test video

  22. FIGURE 22–12 Badly burned exhaust valve. A compression test could have detected a problem, and a cylinder leakage test (leak-down test) could have been used to determine the exact problem. WET COMPRESSION TEST • If the compression test reading indicates low compression on one or more cylinders, add three squirts of oil to the cylinder and retest. • This is called a wet compression test, when oil is used to help seal around the piston rings. • A significant increase indicates bad rings.

  23. RUNNING (DYNAMIC) COMPRESSION TEST • Running compression at idle should be 50-75 PSI (about half cranking compression). Snap throttle compression should be about 80% of cranking compression

  24. The Paper Test • A soundly running engine should produce even and steady exhaust at the tailpipe. You can test this with the paper test. Hold a piece of paper or a 3 5 index card (even a dollar bill works) within 1 in. (25 mm) of the tailpipe with the engine running at idle. The paper should blow out evenly without “puffing.” If the paper is drawn toward the tailpipe at times, the exhaust valves in one or more cylinders could be burned. Other reasons why the paper might be sucked toward the tailpipe include the following: • 1. The engine could be misfiring because of a lean condition that could occur normally when the engine is cold. • 2. Pulsing of the paper toward the tailpipe could also be caused by a hole in the exhaust system. If exhaust escapes through a hole in the exhaust system, air could be drawn in during the intervals between the exhaust puffs from the tailpipe to the hole in the exhaust, causing the paper to be drawn toward the tailpipe. • 3. Ignition fault causing misfire.

  25. FIGURE 22–9 The paper test involves holding a piece of paper near the tailpipe of an idling engine. A good engine should produce even, outward puffs of exhaust. If the paper is sucked in toward the tailpipe, a burned valve is a possibility. The Paper Test

  26. CYLINDER LEAKAGE TEST • One of the best tests that can be used to determine engine condition is the cylinder leakage test. • This test involves injecting air under pressure into the cylinders one at a time. • The amount and location of any escaping air helps the technician determine the condition of the engine. • The air is injected into the cylinder through a cylinder leakage gauge into the spark plug hole.

  27. FIGURE 22–13 A typical handheld cylinder leakage tester. CYLINDER LEAKAGE TEST • If leaking air is heard through the: • throttle body = bad intake valve • exhaust system = bad exhaust valve • Dipstick or valve cover = bad rings

  28. FIGURE 22–14 A whistle stop used to find top dead center. Remove the spark plug and install the whistle stop, then rotate the engine by hand. When the whistle stops making a sound, the piston is at the top. CYLINDER LEAKAGE TEST

  29. CYLINDER POWER BALANCE TEST • Most large engine analyzers and scan tools have a cylinder power balance feature. • The purpose of a cylinder power balance test is to determine if all cylinders are contributing power equally. • It determines this by shorting out one cylinder at a time. • If the engine speed (RPM) does not drop as much for one cylinder as for other cylinders of the same engine, then the shorted cylinder must be weaker than the other cylinders.

  30. FIGURE 22–16 An engine in good mechanical condition should produce 17 to 21 in. Hg of vacuum at idle at sea level. VACUUM TESTS • CRANKING VACUUM TEST • IDLE VACUUM TEST • LOW AND STEADY VACUUM • FLUCTUATING VACUUM Vacuum Test Video

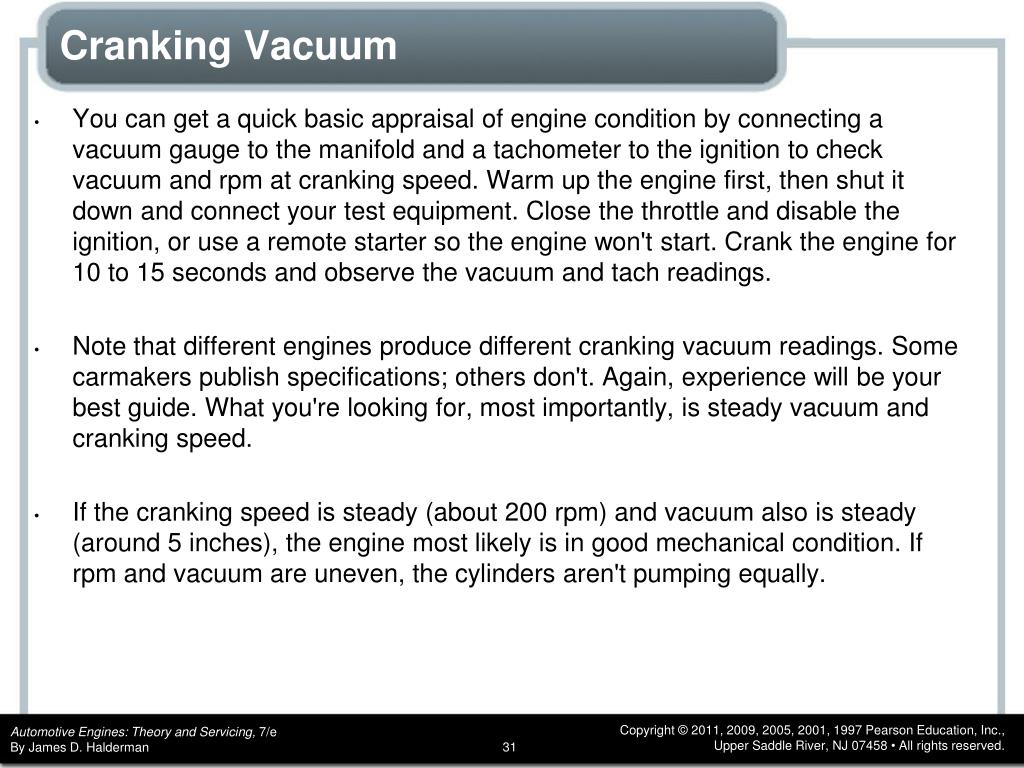

  31. Cranking Vacuum • You can get a quick basic appraisal of engine condition by connecting a vacuum gauge to the manifold and a tachometer to the ignition to check vacuum and rpm at cranking speed. Warm up the engine first, then shut it down and connect your test equipment. Close the throttle and disable the ignition, or use a remote starter so the engine won't start. Crank the engine for 10 to 15 seconds and observe the vacuum and tach readings. • Note that different engines produce different cranking vacuum readings. Some carmakers publish specifications; others don't. Again, experience will be your best guide. What you're looking for, most importantly, is steady vacuum and cranking speed. • If the cranking speed is steady (about 200 rpm) and vacuum also is steady (around 5 inches), the engine most likely is in good mechanical condition. If rpm and vacuum are uneven, the cylinders aren't pumping equally.

  32. FIGURE 22–17 A steady but low reading could indicate retarded valve or ignition timing. VACUUM TESTS Note: A vehicle with a high performance camshaft will exhibit low idle vacuum.

  33. FIGURE 22–19 A leaking head gasket can cause the needle to vibrate as it moves through a range from below to above normal. FIGURE 22–18 A gauge reading with the needle fluctuating 3 to 9 in. Hg below normal often indicates a vacuum leak in the intake system. VACUUM TESTS

  34. FIGURE 22–21 A rapidly vibrating needle at idle that becomes steady as engine speed is increased indicates worn valve guides. FIGURE 22–20 An oscillating needle 1 or 2 in. Hg below normal could indicate an incorrect air-fuel mixture (either too rich or too lean). VACUUM TESTS

  35. FIGURE 22–23 Weak valve springs will produce a normal reading at idle, but as engine speed increases, the needle will fluctuate rapidly between 12 and 24 in. Hg. FIGURE 22–22 If the needle drops 1 or 2 in. Hg from the normal reading, one of the engine valves is burned or not seating properly. VACUUM TESTS

  36. FIGURE 22–24 A steady needle reading that drops 2 or 3 in. Hg when the engine speed is increased slightly above idle indicates that the ignition timing is retarded. FIGURE 22–25 A steady needle reading that rises 2 or 3 in. Hg when the engine speed is increased slightly above idle indicates that the ignition timing is advanced. VACUUM TESTS

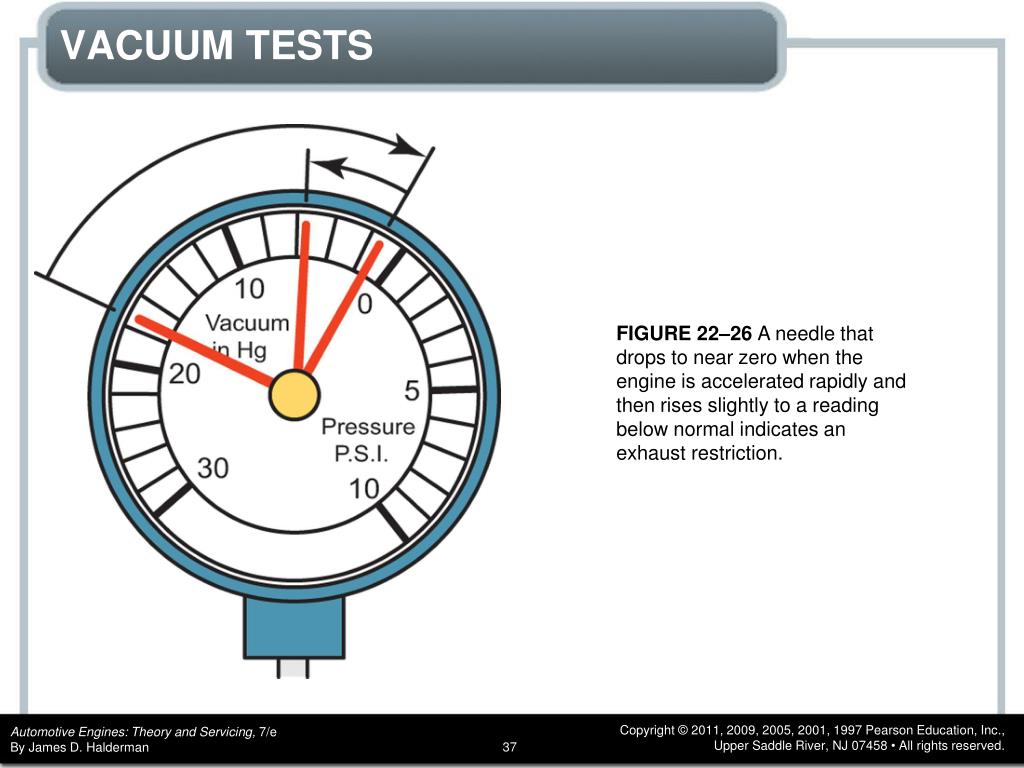

  37. FIGURE 22–26 A needle that drops to near zero when the engine is accelerated rapidly and then rises slightly to a reading below normal indicates an exhaust restriction. VACUUM TESTS

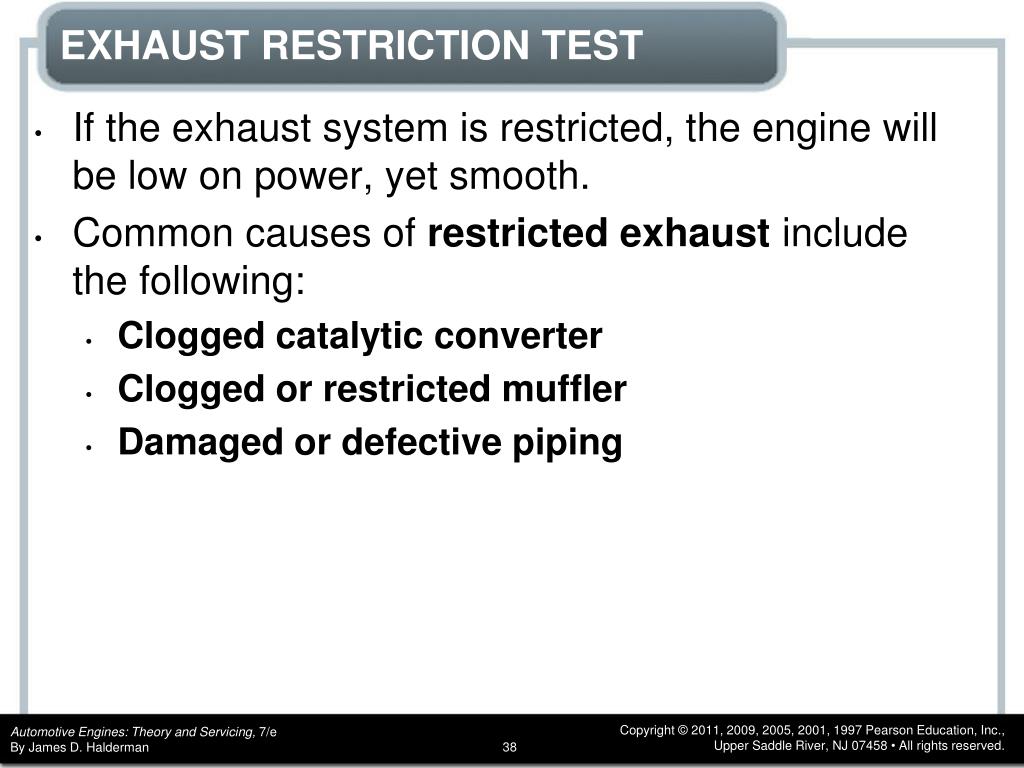

  38. EXHAUST RESTRICTION TEST • If the exhaust system is restricted, the engine will be low on power, yet smooth. • Common causes of restricted exhaust include the following: • Clogged catalytic converter • Clogged or restricted muffler • Damaged or defective piping

  39. TESTING BACK PRESSURE WITH A VACUUM GAUGE • A vacuum gauge can be used to measure manifold vacuum at a high idle (2000 to 2500 RPM). • If the exhaust system is restricted, pressure increases in the exhaust system. • This pressure is called back pressure. • Manifold vacuum will drop gradually if the engine is kept at a constant speed if the exhaust is restricted.

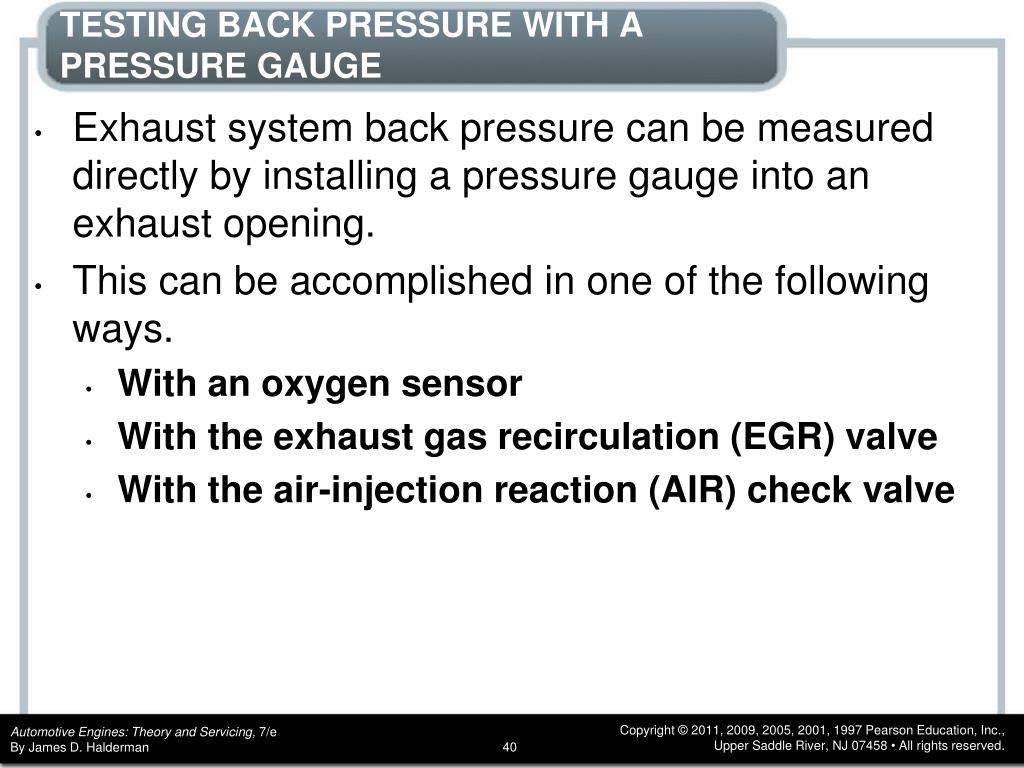

  40. TESTING BACK PRESSURE WITH A PRESSURE GAUGE • Exhaust system back pressure can be measured directly by installing a pressure gauge into an exhaust opening. • This can be accomplished in one of the following ways. • With an oxygen sensor • With the exhaust gas recirculation (EGR) valve • With the air-injection reaction (AIR) check valve

  41. FIGURE 22–27 A technician-made adapter used to test exhaust system back pressure. TESTING BACK PRESSURE WITH A PRESSURE GAUGE

  42. FIGURE 22–28 A tester that uses a blue liquid to check for exhaust gases in the exhaust, which would indicate a head gasket leak problem. DIAGNOSING HEAD GASKET FAILURE • Several items can be used to help diagnose a head gasket failure. • Exhaust gas analyzer • Chemical test • Bubbles in the coolant • Excessive exhaust steam

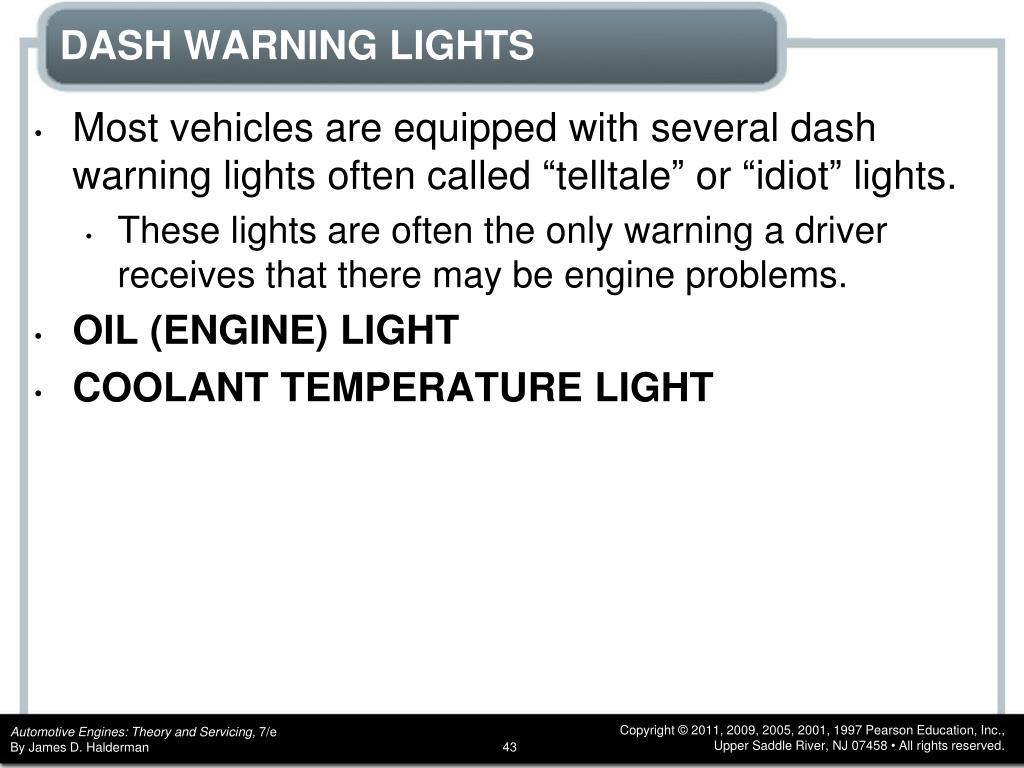

  43. DASH WARNING LIGHTS • Most vehicles are equipped with several dash warning lights often called “telltale” or “idiot” lights. • These lights are often the only warning a driver receives that there may be engine problems. • OIL (ENGINE) LIGHT • COOLANT TEMPERATURE LIGHT

  44. Misfire Diagnosis • If a misfire goes away with propane added to the air inlet, suspect a lean condition.

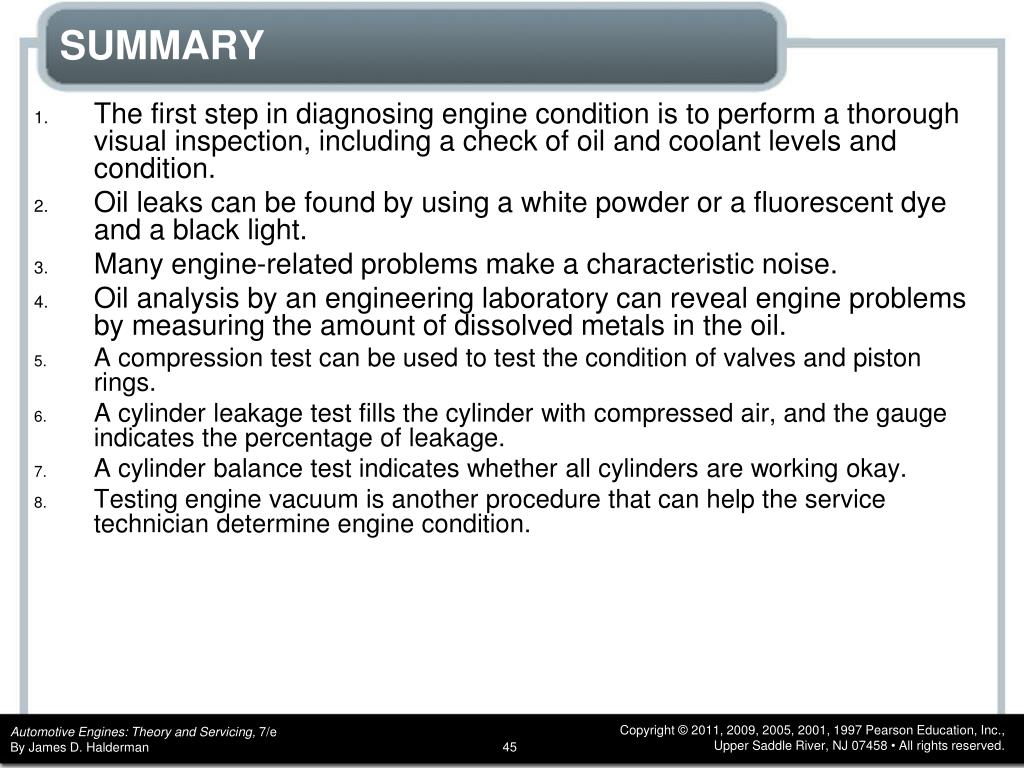

  45. SUMMARY • The first step in diagnosing engine condition is to perform a thorough visual inspection, including a check of oil and coolant levels and condition. • Oil leaks can be found by using a white powder or a fluorescent dye and a black light. • Many engine-related problems make a characteristic noise. • Oil analysis by an engineering laboratory can reveal engine problems by measuring the amount of dissolved metals in the oil. • A compression test can be used to test the condition of valves and piston rings. • A cylinder leakage test fills the cylinder with compressed air, and the gauge indicates the percentage of leakage. • A cylinder balance test indicates whether all cylinders are working okay. • Testing engine vacuum is another procedure that can help the service technician determine engine condition.

  46. REVIEW QUESTIONS • Describe the visual checks that should be performed on an engine if a mechanical malfunction is suspected. • List three simple items that could cause excessive oil consumption. • List three simple items that could cause engine noises. • Describe how to perform a compression test and how to determine what is wrong with an engine based on a compression test result. • Describe the cylinder leakage test. • Describe how a vacuum gauge would indicate if the valves were sticking in their guides. • Describe the test procedure for determining if the exhaust system is restricted (clogged) using a vacuum gauge.

  47. CHAPTER QUIZ 1. Technician A says that the paper test could detect a burned valve. Technician B says that a grayish white stain on the engine could be a coolant leak. Which technician is correct? • Technician A only • Technician B only • Both Technicians A and B • Neither Technician A nor B

  48. CHAPTER QUIZ 2. Two technicians are discussing oil leaks. Technician A says that an oil leak can be found using a fluorescent dye in the oil with a black light to check for leaks. Technician B says that a white spray powder can be used to locate oil leaks. Which technician is correct? • Technician A only • Technician B only • Both Technicians A and B • Neither Technician A nor B

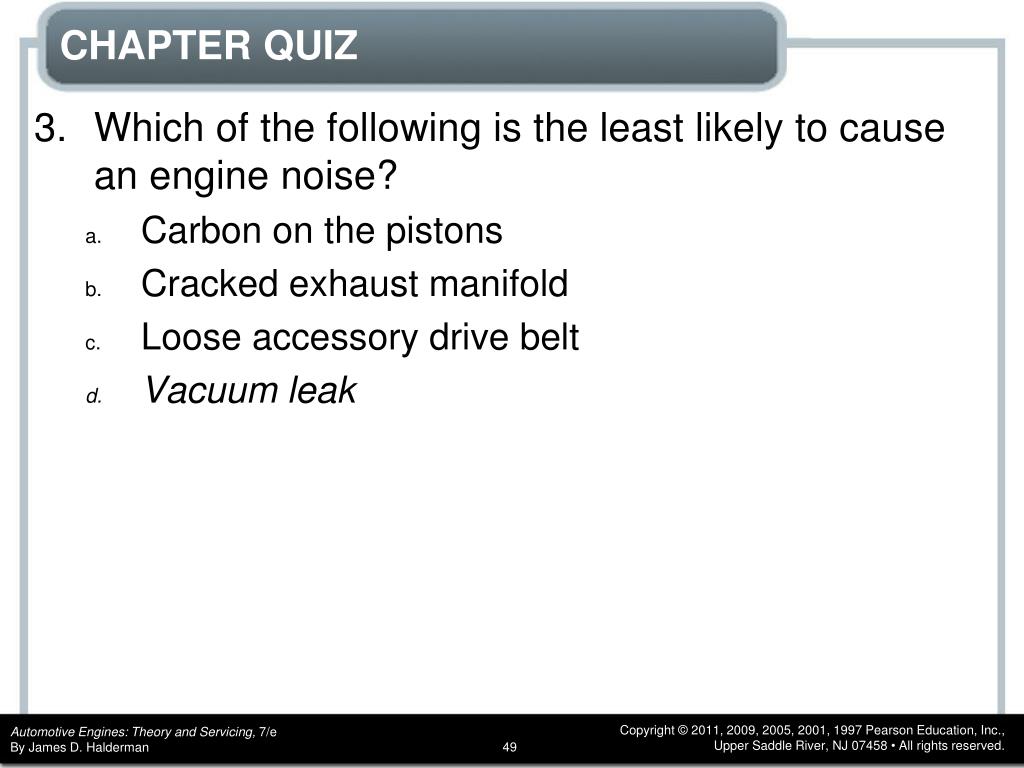

  49. CHAPTER QUIZ 3. Which of the following is the least likely to cause an engine noise? • Carbon on the pistons • Cracked exhaust manifold • Loose accessory drive belt • Vacuum leak

  50. CHAPTER QUIZ 4. A good engine should produce how much compression during a running (dynamic) compression test at idle? • 150 to 200 PSI • 100 to 150 PSI • 60 to 90 PSI • 30 to 60 PSI
