Chapter 16 Ethers, Epoxides, and Sulfides

Chapter 16 Ethers, Epoxides, and Sulfides. Dr. Wolf's CHM 201 & 202. 16-1. Nomenclature of Ethers, Epoxides, and Sulfides. Dr. Wolf's CHM 201 & 202. 16-2. CH 3 O CH 2 CH 3. CH 3 CH 2 O CH 2 CH 2 CH 2 Cl. methoxy ethane. 1-chloro-3- ethoxy propane. CH 3 CH 2 O CH 2 CH 3. ethoxy ethane.

henry
Télécharger la présentation

Chapter 16 Ethers, Epoxides, and Sulfides

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 16Ethers, Epoxides, and Sulfides Dr. Wolf's CHM 201 & 202 16-1

  2. Nomenclature of Ethers, Epoxides, and Sulfides Dr. Wolf's CHM 201 & 202 16-2

  3. CH3OCH2 CH3 CH3CH2OCH2CH2CH2Cl methoxyethane 1-chloro-3-ethoxypropane CH3CH2OCH2 CH3 ethoxyethane Substitutive IUPAC Names of Ethers name as alkoxy derivatives of alkanes Dr. Wolf's CHM 201 & 202 16-3

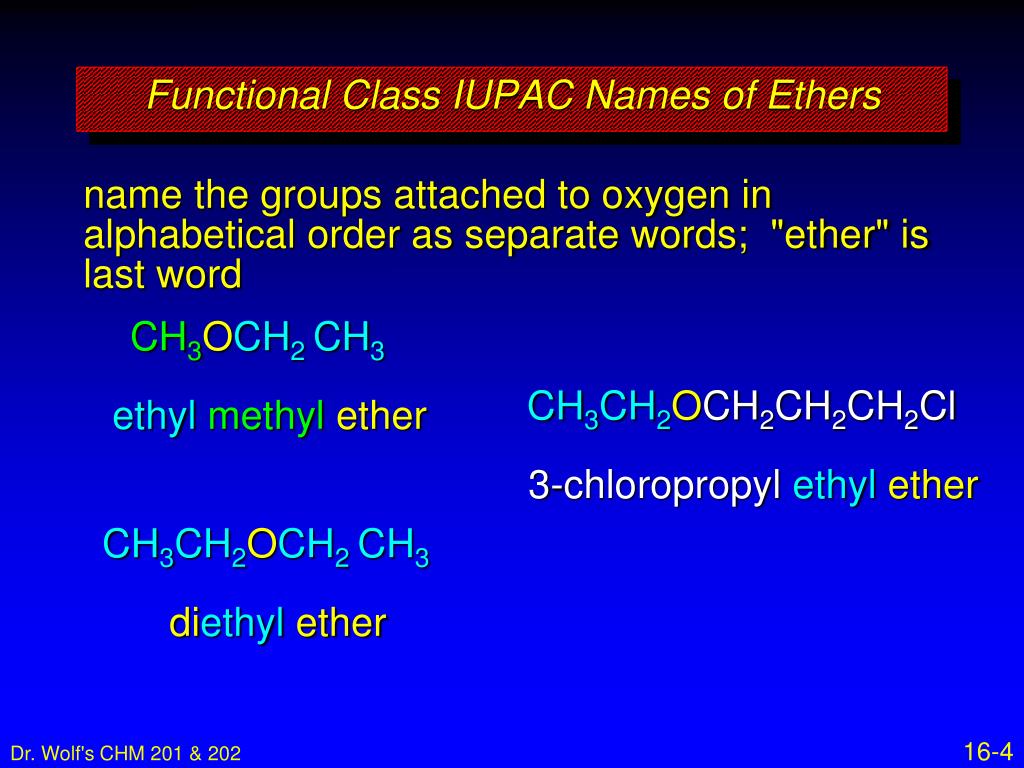

  4. CH3OCH2 CH3 CH3CH2OCH2CH2CH2Cl ethylmethyl ether 3-chloropropylethyl ether CH3CH2OCH2 CH3 diethyl ether Functional Class IUPAC Names of Ethers name the groups attached to oxygen in alphabetical order as separate words; "ether" is last word Dr. Wolf's CHM 201 & 202 16-4

  5. CH3SCH2 CH3 SCH3 methylthioethane CH3CH2SCH2 CH3 ethylthioethane Substitutive IUPAC Names of Sulfides name as alkylthio derivatives of alkanes (methylthio)cyclopentane Dr. Wolf's CHM 201 & 202 16-5

  6. CH3SCH2 CH3 SCH3 ethyl methyl sulfide CH3CH2SCH2 CH3 diethyl sulfide Functional Class IUPAC Names of Sulfides analogous to ethers, but replace “ether” as lastword in the name by “sulfide.” cyclopentyl methyl sulfide Dr. Wolf's CHM 201 & 202 16-6

  7. Names of Cyclic Ethers O O O Oxirane(Ethylene oxide) Oxolane(tetrahydrofuran) Oxetane O O O 1,4-Dioxane Oxane(tetrahydropyran) Dr. Wolf's CHM 201 & 202 16-7

  8. Names of Cyclic Sulfides S S S Thiirane Thiolane Thietane S Thiane Dr. Wolf's CHM 201 & 202 16-8

  9. Structure and BondinginEthers and Epoxides bent geometry at oxygen analogousto water and alcohols, i.e.sp3hybidization Dr. Wolf's CHM 201 & 202 16-9

  10. O C(CH3)3 (CH3)3C Bond angles at oxygen are sensitiveto steric effects O O H H CH3 H 105° 108.5° O CH3 CH3 112° 132° Dr. Wolf's CHM 201 & 202 16-10

  11. An oxygen atom affects geometry in much thesame way as a CH2 group most stable conformation of diethyl etherresembles pentane Dr. Wolf's CHM 201 & 202 16-11

  12. An oxygen atom affects geometry in much thesame way as a CH2 group most stable conformation of tetrahydropyranresembles cyclohexane Dr. Wolf's CHM 201 & 202 16-12

  13. Physical Properties of Ethers Dr. Wolf's CHM 201 & 202 16-13

  14. Ethers resemble alkanes more than alcoholswith respect to boiling point boiling point Intermolecular hydrogenbonding possible in alcohols; not possible in alkanes or ethers. 36°C 35°C O 117°C OH Dr. Wolf's CHM 201 & 202 16-14

  15. Ethers resemble alcohols more than alkaneswith respect to solubility in water solubility in water (g/100 mL) Hydrogen bonding towater possible for ethersand alcohols; not possible for alkanes. very small 7.5 O 9 OH Dr. Wolf's CHM 201 & 202 16-15

  16. Crown Ethers Dr. Wolf's CHM 201 & 202 16-16

  17. Crown Ethers structurecyclic polyethers derived from repeating —OCH2CH2— units propertiesform stable complexes with metal ions applicationssynthetic reactions involving anions Dr. Wolf's CHM 201 & 202 16-17

  18. O O O O O O 18-Crown-6 negative charge concentrated in cavity inside the molecule Dr. Wolf's CHM 201 & 202 16-18

  19. O O O O O O 18-Crown-6 negative charge concentrated in cavity inside the molecule Dr. Wolf's CHM 201 & 202 16-19

  20. O O O O O O 18-Crown-6 forms stable Lewis acid/Lewis base complex with K+ K+ Dr. Wolf's CHM 201 & 202 16-20

  21. O O O O O O 18-Crown-6 forms stable Lewis acid/Lewis base complex with K+ K+ Dr. Wolf's CHM 201 & 202 16-21

  22. Ion-Complexing and Solubility K+F– not soluble in benzene Dr. Wolf's CHM 201 & 202 16-22

  23. O O O O O O Ion-Complexing and Solubility K+F– benzene add 18-crown-6 Dr. Wolf's CHM 201 & 202 16-23

  24. O O O O O O O O O O O O Ion-Complexing and Solubility F– K+ benzene 18-crown-6 complex of K+ dissolves in benzene Dr. Wolf's CHM 201 & 202 16-24

  25. O O O O O O O O O O O O + F– Ion-Complexing and Solubility K+ benzene F– carried into benzene to preserve electroneutrality Dr. Wolf's CHM 201 & 202 16-25

  26. Application to organic synthesis Complexaton of K+ by 18-crown-6 "solubilizes" salt in benzene Anion of salt is in a relatively unsolvated state in benzene (sometimes referred to as a "naked anion") Unsolvated anion is very reactive Only catalytic quantities of 18-crown-6 are needed Dr. Wolf's CHM 201 & 202 16-26

  27. Example KF CH3(CH2)6CH2Br CH3(CH2)6CH2F 18-crown-6 (92%) benzene Dr. Wolf's CHM 201 & 202 16-27

  28. Preparation of Ethers Dr. Wolf's CHM 201 & 202 16-28

  29. H2SO4, 130°C Acid-Catalyzed Condensation of Alcohols* 2CH3CH2CH2CH2OH CH3CH2CH2CH2OCH2CH2CH2CH3 (60%) *Discussed earlier in Section 15.7 Dr. Wolf's CHM 201 & 202 16-29

  30. Addition of Alcohols to Alkenes H+ (CH3)2C=CH2 + CH3OH (CH3)3COCH3 tert-Butyl methyl ether Dr. Wolf's CHM 201 & 202 16-30

  31. The Williamson Ether Synthesis Think SN2! primary alkyl halide + alkoxide nucleophile Dr. Wolf's CHM 201 & 202 16-31

  32. Example CH3CH2CH2CH2ONa +CH3CH2I CH3CH2CH2CH2OCH2CH3 + NaI (71%) Dr. Wolf's CHM 201 & 202 16-32

  33. CH2Cl CH2OCHCH3 CH3 Another Example CH3CHCH3 + ONa (84%) Dr. Wolf's CHM 201 & 202 16-33

  34. CH2Cl CH2OCHCH3 CH3 Another Example Alkoxide ion can be derived from primary, secondary, or tertiary alcohol Alkyl halide must be primary CH3CHCH3 + ONa (84%) Dr. Wolf's CHM 201 & 202 16-34

  35. Origin of Reactants CH3CHCH3 CH2OH OH HCl Na CH3CHCH3 CH2Cl + ONa CH2OCHCH3 (84%) CH3 Dr. Wolf's CHM 201 & 202 16-35

  36. What happens if the alkyl halide is not primary? + CH3CHCH3 CH2ONa Br Dr. Wolf's CHM 201 & 202 16-36

  37. What happens if the alkyl halide is not primary? + CH3CHCH3 CH2ONa Br CHCH3 H2C + CH2OH Elimination by the E2 mechanism becomesthe major reaction pathway. Dr. Wolf's CHM 201 & 202 16-37

  38. Reactions of Ethers:A Review and a Preview Dr. Wolf's CHM 201 & 202 16-38

  39. Summary of reactions of ethers No reactions of ethers encountered to this point. Ethers are relatively unreactive. Their low level of reactivity is one reason why ethers are often used as solvents in chemical reactions. Ethers oxidize in air to form explosive hydroperoxides and peroxides. Dr. Wolf's CHM 201 & 202 16-39

  40. Acid-Catalyzed Cleavage of Ethers Dr. Wolf's CHM 201 & 202 16-40

  41. Example HBr CH3CHCH2CH3 CH3CHCH2CH3 + CH3Br heat OCH3 Br (81%) Dr. Wolf's CHM 201 & 202 16-41

  42. CH3CHCH2CH3 O •• •• •• Br H •• •• CH3CHCH2CH3 + O •• CH3 H Mechanism CH3 Dr. Wolf's CHM 201 & 202 16-42

  43. CH3CHCH2CH3 O •• •• •• Br H •• •• CH3CHCH2CH3 CH3CHCH2CH3 O •• + •• H – O •• •• CH3 •• H Br •• •• Br CH3 •• •• Mechanism CH3 •• Dr. Wolf's CHM 201 & 202 16-43

  44. CH3CHCH2CH3 O •• •• •• Br H •• •• CH3CHCH2CH3 CH3CHCH2CH3 O •• + •• H – O •• •• CH3 •• H Br •• •• Br CH3 •• •• Mechanism CH3CHCH2CH3 Br CH3 HBr •• Dr. Wolf's CHM 201 & 202 16-44

  45. O Cleavage of Cyclic Ethers HI ICH2CH2CH2CH2I 150°C (65%) Dr. Wolf's CHM 201 & 202 16-45

  46. O •• + O H Mechanism ICH2CH2CH2CH2I •• •• HI Dr. Wolf's CHM 201 & 202 16-46

  47. O – •• •• I •• •• •• •• I •• + O •• H Mechanism ICH2CH2CH2CH2I •• •• HI •• O •• H Dr. Wolf's CHM 201 & 202 16-47

  48. O – •• •• I •• •• •• •• I •• + O •• H Mechanism ICH2CH2CH2CH2I •• •• HI HI •• O •• H Dr. Wolf's CHM 201 & 202 16-48

  49. Preparation of Epoxides:A Review and a Preview Dr. Wolf's CHM 201 & 202 16-49

  50. Preparation of Epoxides Epoxides are prepared by two major methods.Both begin with alkenes. reaction of alkenes with peroxy acids(Section 6.19) conversion of alkenes to vicinalhalohydrins, followed by treatmentwith base (Section 16.10) Dr. Wolf's CHM 201 & 202 16-50
