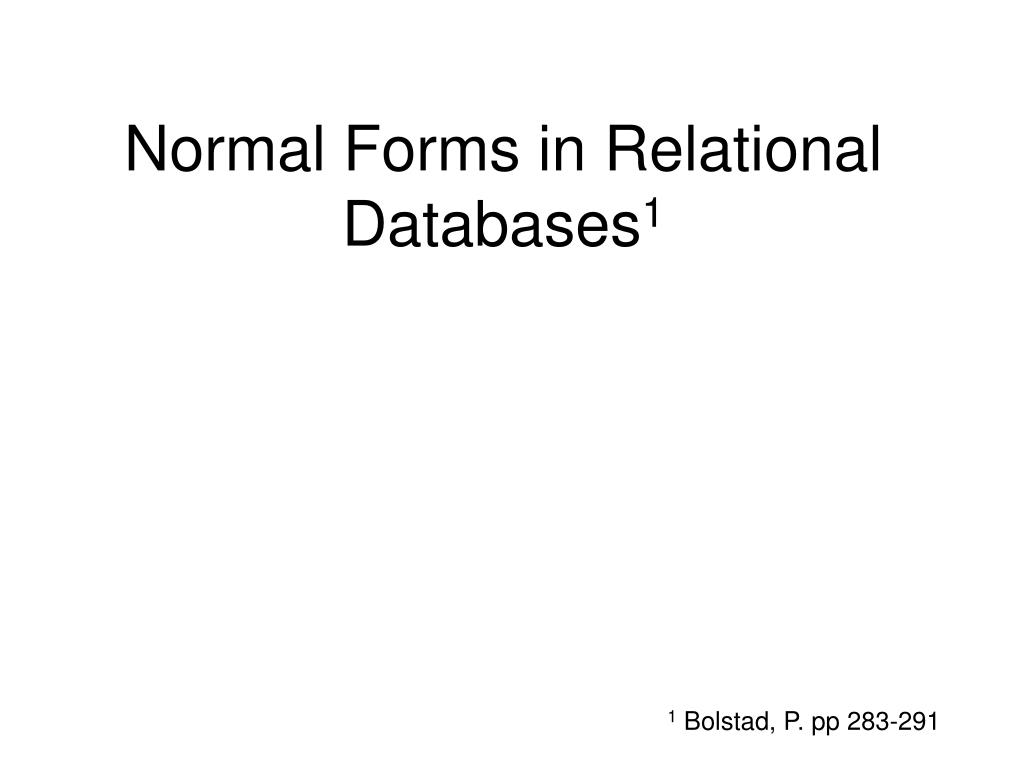

  1. Normal Forms in Relational Databases1 1 Bolstad, P. pp 283-291

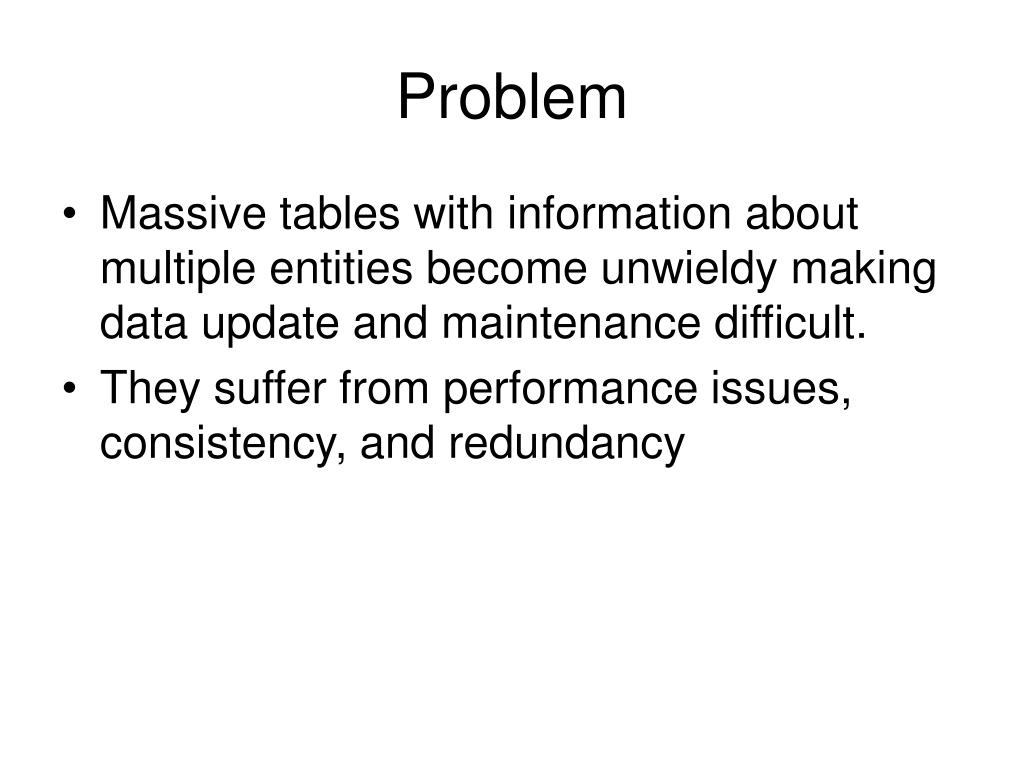

  2. Problem • Massive tables with information about multiple entities become unwieldy making data update and maintenance difficult. • They suffer from performance issues, consistency, and redundancy

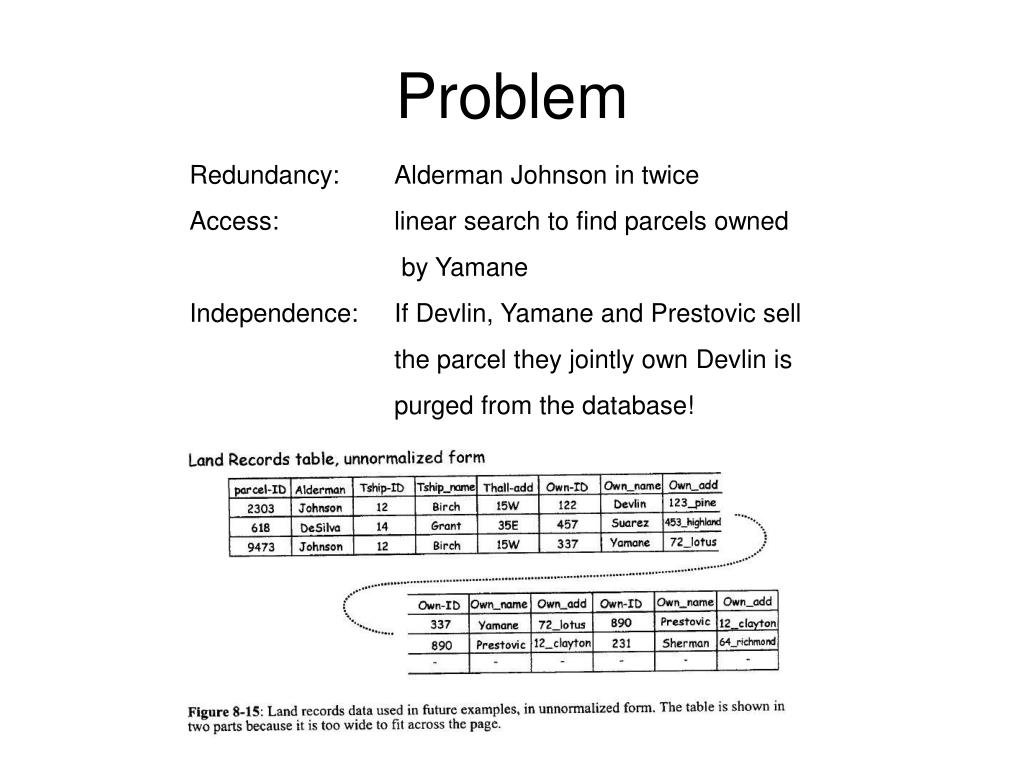

  3. Problem Redundancy: Alderman Johnson in twice Access: linear search to find parcels owned by Yamane Independence: If Devlin, Yamane and Prestovic sell the parcel they jointly own Devlin is purged from the database!

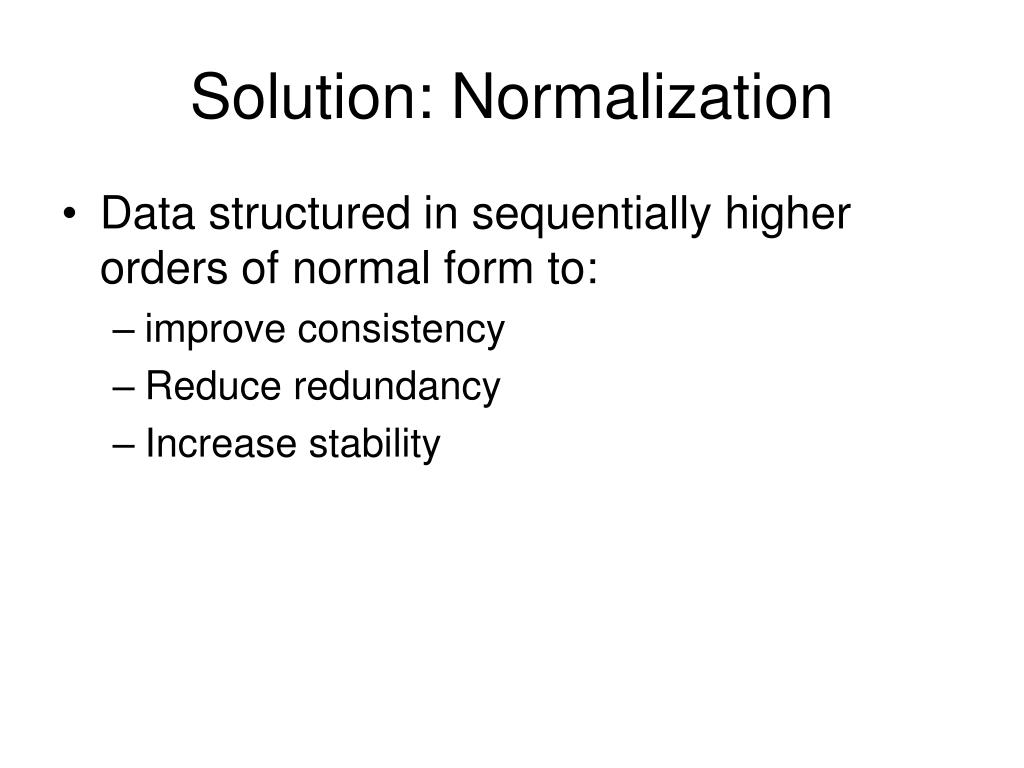

  4. Solution: Normalization • Data structured in sequentially higher orders of normal form to: • improve consistency • Reduce redundancy • Increase stability

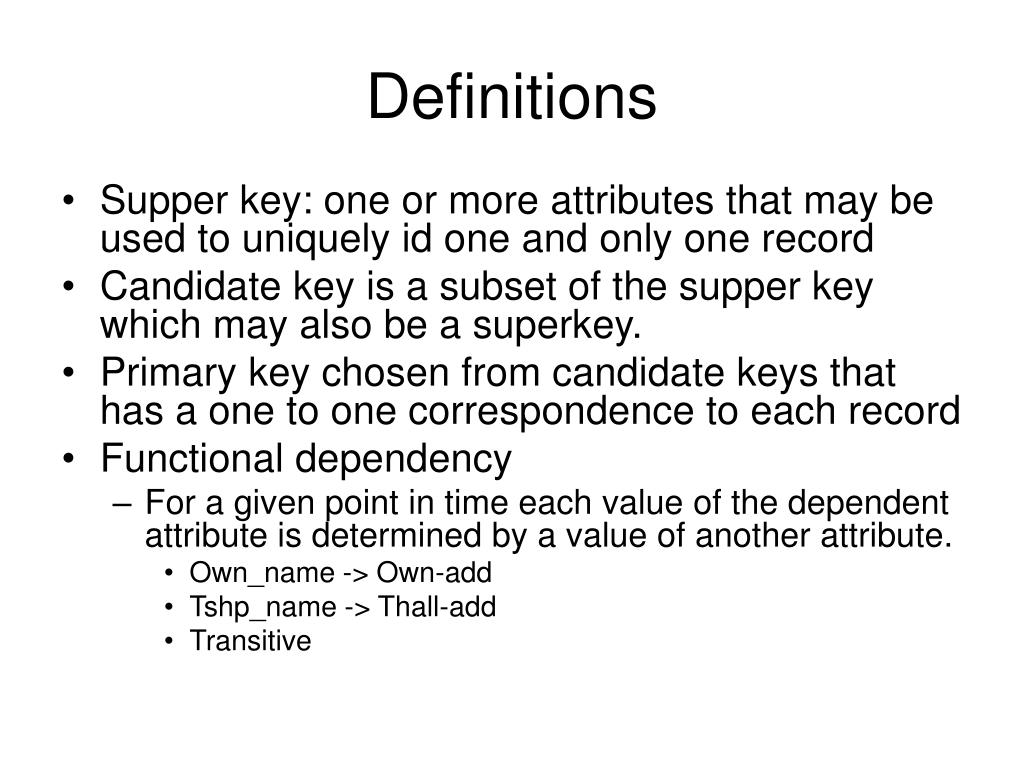

  5. Definitions • Supper key: one or more attributes that may be used to uniquely id one and only one record • Candidate key is a subset of the supper key which may also be a superkey. • Primary key chosen from candidate keys that has a one to one correspondence to each record • Functional dependency • For a given point in time each value of the dependent attribute is determined by a value of another attribute. • Own_name -> Own-add • Tshp_name -> Thall-add • Transitive

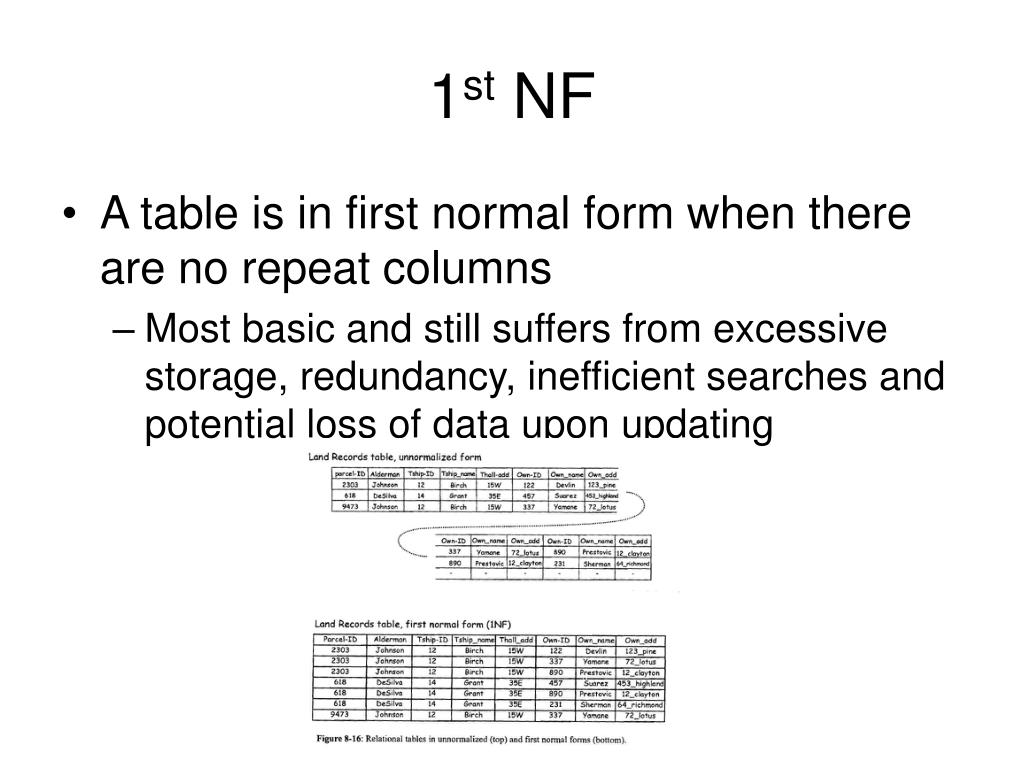

  6. 1st NF • A table is in first normal form when there are no repeat columns • Most basic and still suffers from excessive storage, redundancy, inefficient searches and potential loss of data upon updating

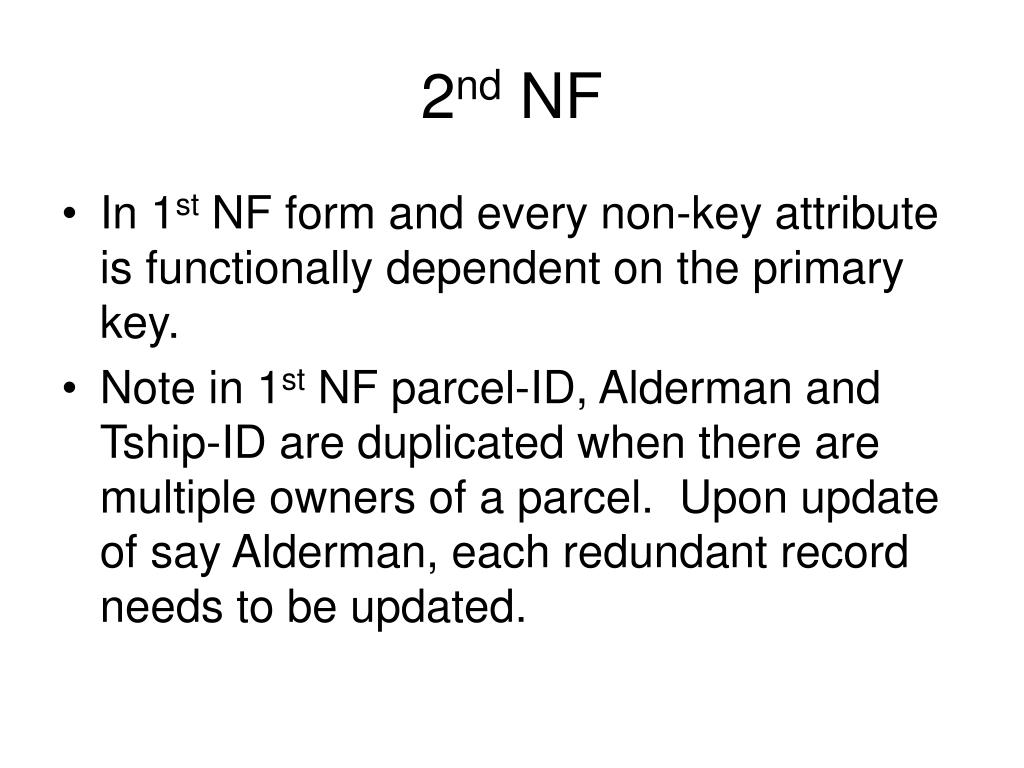

  7. 2nd NF • In 1st NF form and every non-key attribute is functionally dependent on the primary key. • Note in 1st NF parcel-ID, Alderman and Tship-ID are duplicated when there are multiple owners of a parcel. Upon update of say Alderman, each redundant record needs to be updated.

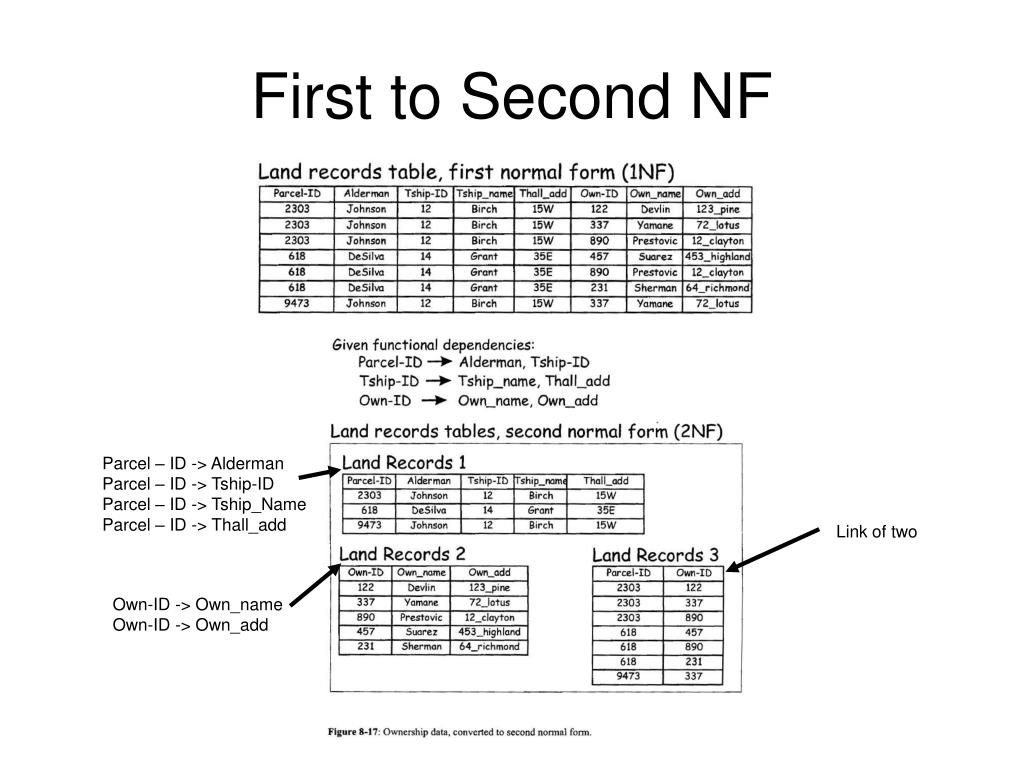

  8. First to Second NF Parcel – ID -> Alderman Parcel – ID -> Tship-ID Parcel – ID -> Tship_Name Parcel – ID -> Thall_add Link of two Own-ID -> Own_name Own-ID -> Own_add

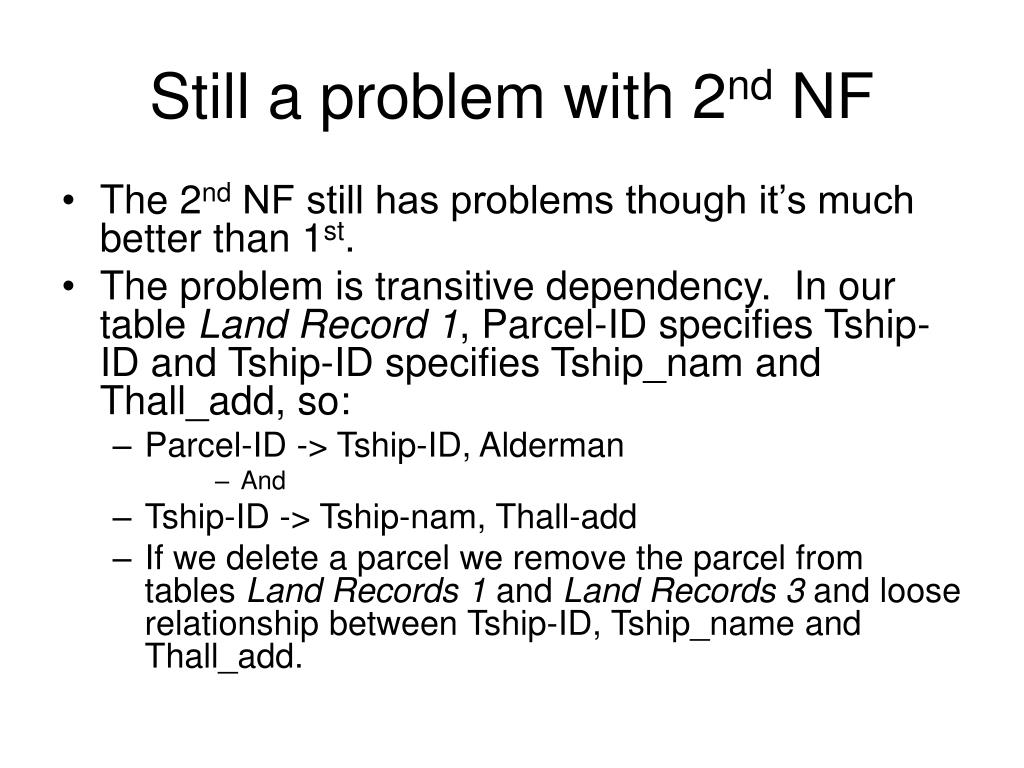

  9. Still a problem with 2nd NF • The 2nd NF still has problems though it’s much better than 1st. • The problem is transitive dependency. In our table Land Record 1, Parcel-ID specifies Tship-ID and Tship-ID specifies Tship_nam and Thall_add, so: • Parcel-ID -> Tship-ID, Alderman • And • Tship-ID -> Tship-nam, Thall-add • If we delete a parcel we remove the parcel from tables Land Records 1 and Land Records 3 and loose relationship between Tship-ID, Tship_name and Thall_add.

  10. Solution: 3rd NF • A table is in third normal fom if and only if for every functional dependency A-> B, A is a superkey or B is a member of a candidate key. • Must ID all transitive functional dependencies and remove then by creating new tables

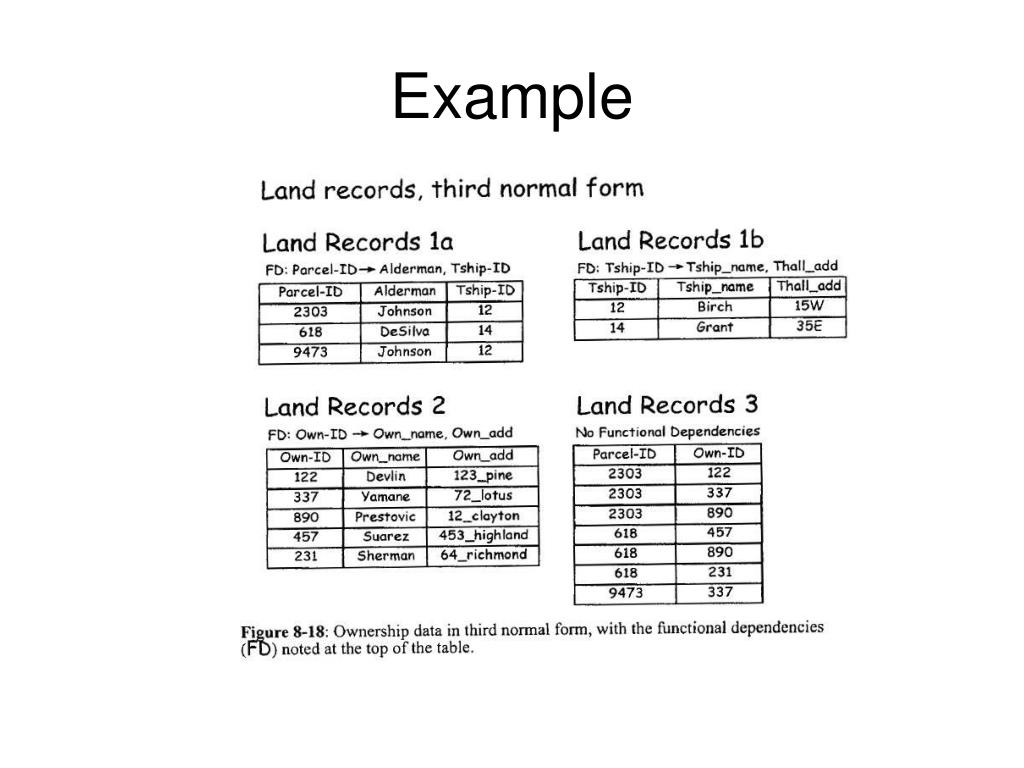

  11. Example
