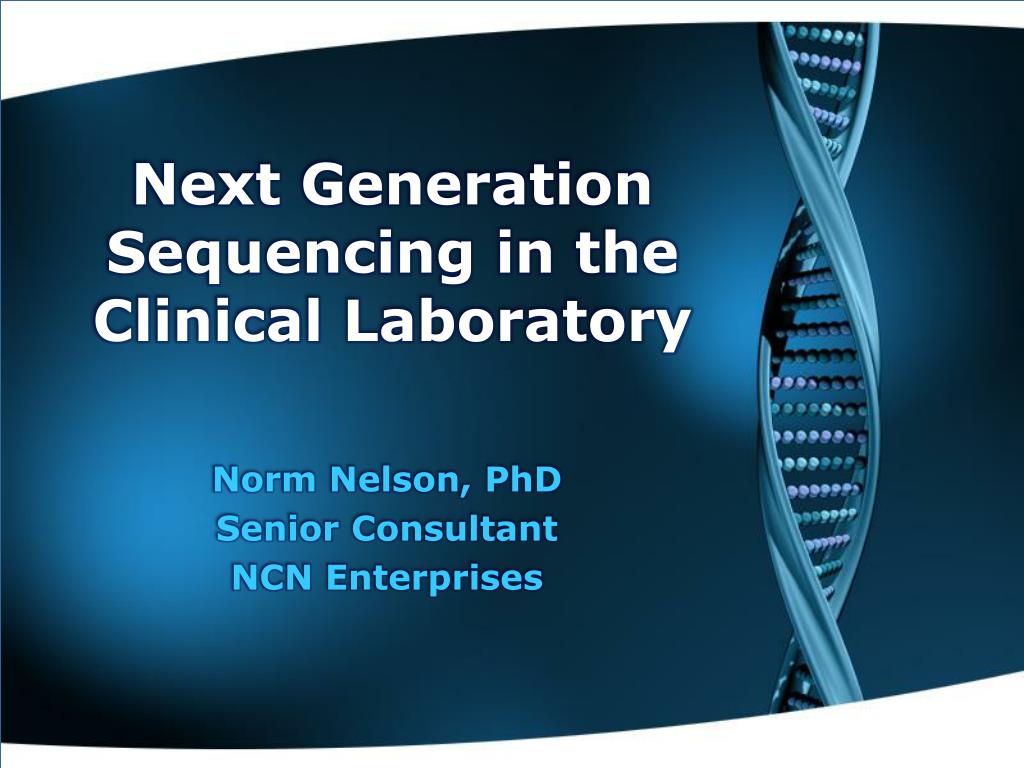

  1. Next Generation Sequencing in the Clinical Laboratory Norm Nelson, PhD Senior Consultant NCN Enterprises

  2. Agenda • What is Next Generation Sequencing (NGS)? • What are potential applications of NGS in human health care? • What are some obstacles to implementing NGS in the clinical laboratory? • Places to find more information about NGS

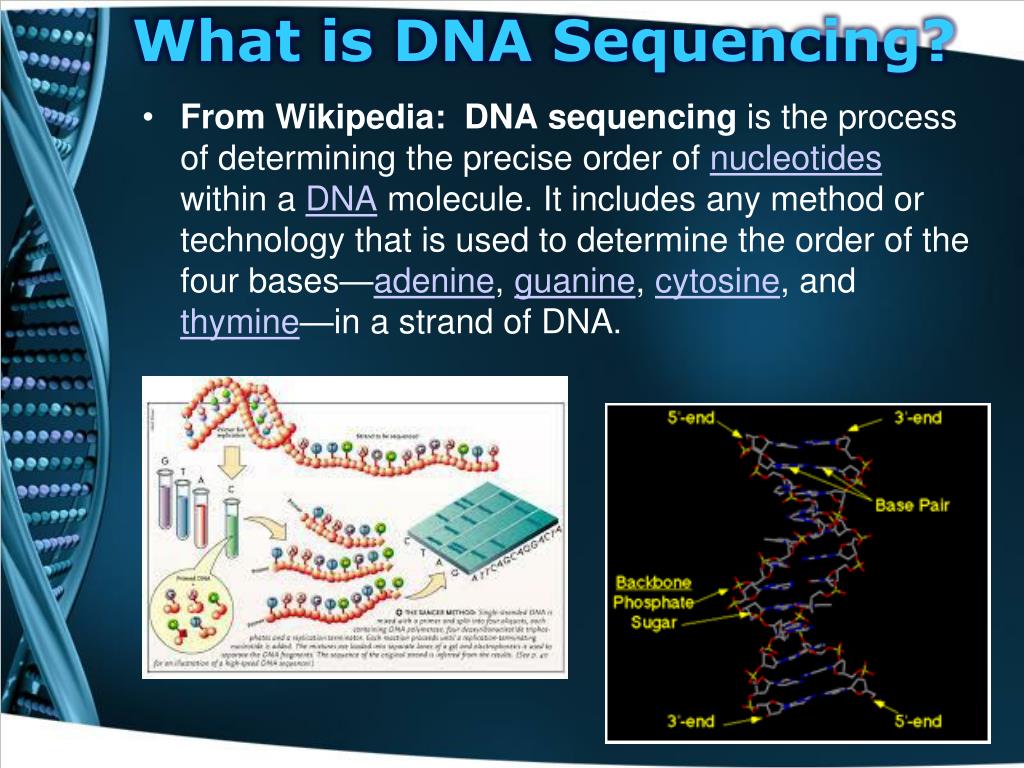

  3. What is DNA Sequencing? • From Wikipedia: DNA sequencing is the process of determining the precise order of nucleotides within a DNA molecule. It includes any method or technology that is used to determine the order of the four bases—adenine, guanine, cytosine, and thymine—in a strand of DNA.

  4. The Human Genome Project • The human genome is the genetic blueprint of the human body • The Human Genome Project was formally initiated in October, 1990, with the goal of sequencing the entire genome from one individual • The project was completed in 2003 • The cost of generating the sequence for one genome was close to $1 billion • The Sanger method was used to sequence the DNA

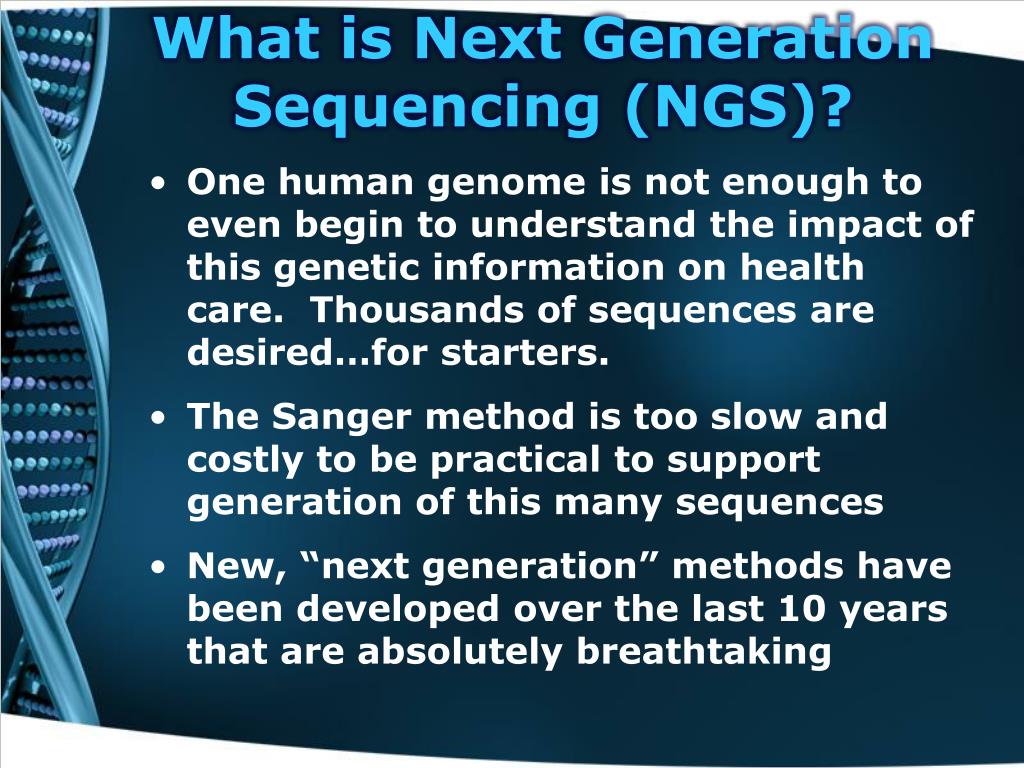

  5. What is Next Generation Sequencing (NGS)? • One human genome is not enough to even begin to understand the impact of this genetic information on health care. Thousands of sequences are desired…for starters. • The Sanger method is too slow and costly to be practical to support generation of this many sequences • New, “next generation” methods have been developed over the last 10 years that are absolutely breathtaking

  6. Illumina sequencing chemistry 3

  7. IlluminaHiSeq 2000 IlluminaMiSeq

  8. Ion Torrent

  9. Roche 454 DNA Library Prep (~ 4.5 hours) Emulsion PCR (~8 hours) Sequencing (~ 10 hours)

  10. Pacific Biosciences

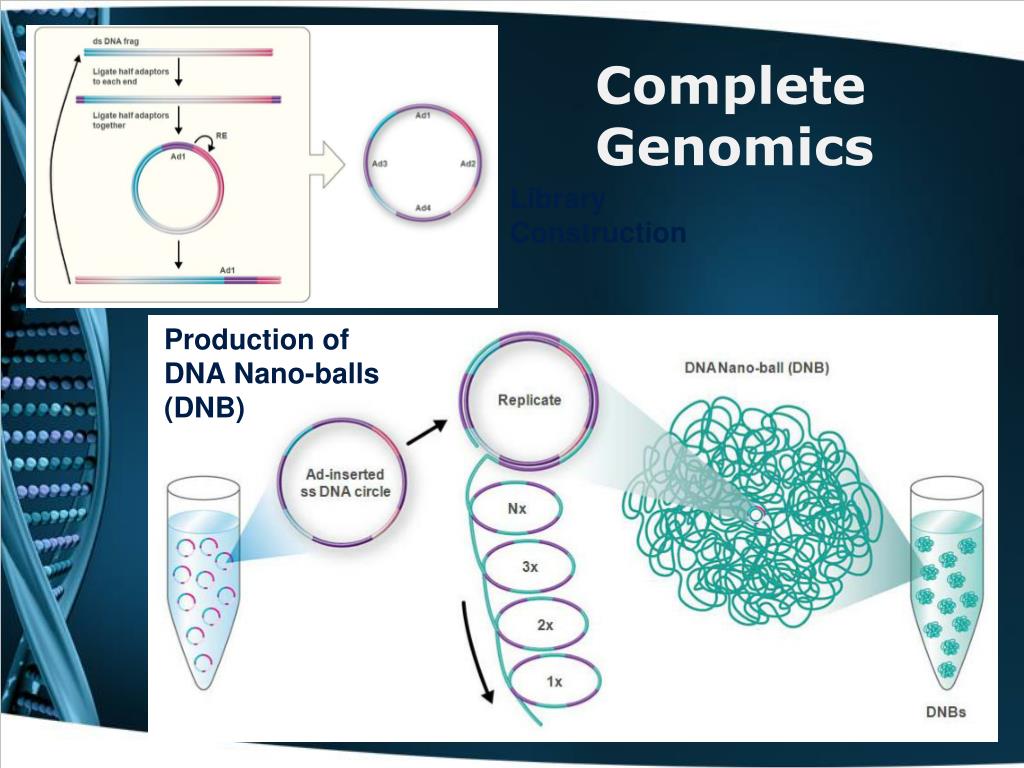

  11. Complete Genomics Library Construction Production of DNA Nano-balls (DNB)

  12. Oxford Nanopore IBM

  13. Precipitous drop in costs

  14. Potential applications of NGS in clinical medicine • Biomarker discovery • Cancer mutation panels • Mendelian disorders • Bacterial ID and susceptibility • Viral rare variant determination (HIV, etc.) • HLA tissue typing • Mystery illnesses (medical odyssey)

  15. Challenges that pose a threat to the adoption of NGS in the clinical arena • NGS technology is still rapidly evolving • By the time a selected approach is commercialized for use as a diagnostic (product development, clinical trials, FDA approval, etc.) it may be obsolete. • Full automation with FDA approval takes years and millions of dollars to develop. This could be a wasted investment if the technology changes and the assays can no longer run on the instrument. • A completely new and novel approach to sequencing that completely changes the way commercialization is pursued could be just around the corner. NCN Enterprises

  16. Challenges to clinical adoption, cont’d • Current workflows not optimal for the clinical laboratory • Too cumbersome, technically challenging & slow • Automation not complete • Prep from real clinical specimen typically not rigorously addressed • Current workflows platform-specific • Expensive • Reagents that meet demanding performance standards may be difficult to manufacture in bulk in an industrial setting • Reagent stability may not be commercially viable in the diagnostics space

  17. Challenges to clinical adoption, cont’d • Data manipulation still too challenging • Significant IT infrastructure required • This can be somewhat reduced by utilizing The Cloud • Bioinformatics staff required • Query against relevant databases cumbersome and not standardized

  18. Challenges to clinical adoption, cont’d • Interpretation of data problematic • The physician ordering a test just wants a simple, actionable result they can use to make a treatment decision • One current protocol for use of NGS data in cancer diagnostics, for example, is to convene a board of experts (oncology, genomics, bioinformatics, pathology, ethics, etc.) to discuss cases one by one and make treatment recommendations • Clinically validated and adequately annotated databases against which to compare patient data are currently inadequate • Biomarker sets with demonstrated clinical utility are sorely lacking

  19. Challenges to clinical adoption, cont’d • Regulatory hurdles • FDA approval for IVD assays is much more rigorous than for LDTs, RUOs and even CE marked assays • Regulatory guidelines for approval of NGS-based IVDs are unclear, as this part of the process is in its infancy • NGS-based assays are inherently highly multiplex, which creates a huge unknown regarding the degree of validation required for FDA approval (will all possible targets require independent validation?) • Clinical validity vs. clinical utility an issue

  20. Challenges to clinical adoption, cont’d • Intellectual property protection • The patentability of genetic biomarkers in question • Landmark case (still in progress) – ACLU v. Myriad Genetics and the University of Utah Research Foundation, which hold patents on the genes BRCA1 and BRCA2 • AKA Association for Molecular Pathology, et al. v. U.S. PTO • Argument – “products of nature” • 3/10 – A New York federal court ruled the patents invalid • 7/11 – Appeals court ruled genes patentable but not methods to compare those genes • 3/12 – Supreme court vacated the appeals court decision and instructed them to reconsider in light of Mayo v. Prometheus • From a IVD Manufacturer’s perspective, potential lack of patent protection brings into question the value proposition of developing and acquiring FDA approval for NGS-based diagnostic assays

  21. Challenges to clinical adoption, cont’d • Reimbursement • Who will pay…and how much? • The issues of clinical utility and highly multiplexed assays (many answers) raised earlier have huge impact on reimbursement decisions as well • The assays will be expensive to develop, acquire approval and manufacture, and a cloudy reimbursement picture will once again bring into question the value proposition for an IVD manufacturer • As with the regulatory piece, the reimbursement issues are in their infancy

  22. General strategic roadmap to overcome these challenges • Fund directed R&D efforts towards development of a fully automated clinical sample to sequencing-ready template workflow that is rapid, simple, inexpensive and manufacturable • Ideally should be easily adaptable for use with different sequencing approaches • Should include automated chip loading interface and ability to easily integrate with the sequencing piece

  23. General strategic roadmap to overcome these challenges • Engage in a wide variety of clinical collaborations • Biomarker discovery • Biomarker validation • Clinical utility demonstration • Access to clinical sample sets • These activities are extremely important in regards to ultimate regulatory approval and reimbursement

  24. General strategic roadmap to overcome these challenges • Develop proprietary content beyond that which may or may not be patentable • Database • Software • Other… These features may be key in developing a competitive advantage

  25. General strategic roadmap to overcome these challenges • Engage early and often in diverse forums and workshops created to discuss these challenges • National Cancer Institute (NCI) • Institute of Medicine (IOM) • Food and Drug Administration (FDA) • College of American Pathologists (CAP) • Association for Molecular Pathology (AMP) • National Human Genome Research Institute (NHGRI) • American College of Medical Genetics and Genomics (ACMG) Be part of the solution

  26. Is this any longer far fetched? • What about this: • Rapid sample prep and template construction in a disposable microfluidic cartridge • Sequencing in 15 minutes • Data workup through a high speed wireless internet connection to a cloud computing center • Sequence compared against a large and growing database • Results sent directly to your PDA

  27. Places to find more information about NGS • DNA sequencing - Wikipedia, the free encyclopedia • Human Genome Project Information (http://www.ornl.gov/sci/techresources/Human_Genome/home.shtml) • All About The Human Genome Project (http://www.genome.gov/10001772) • Instrument manufacturers (www.illumina.com/; www.iontorrent.com/; www.pacificbiosciences.com) • General information about NGS (http://www.blueseq.com/; http://nextgenseek.com; http://seqanswers.com/forums/index.php) • NGS for breast cancer recurrence risk (http://dx.plos.org/10.1371/journal.pone.0040092) • Solution to mystery illness (http://www.illumina.com/documents/icommunity/article_2011_10_SkepticTurnedBeliever.pdf) • Clinical Sequencing article:

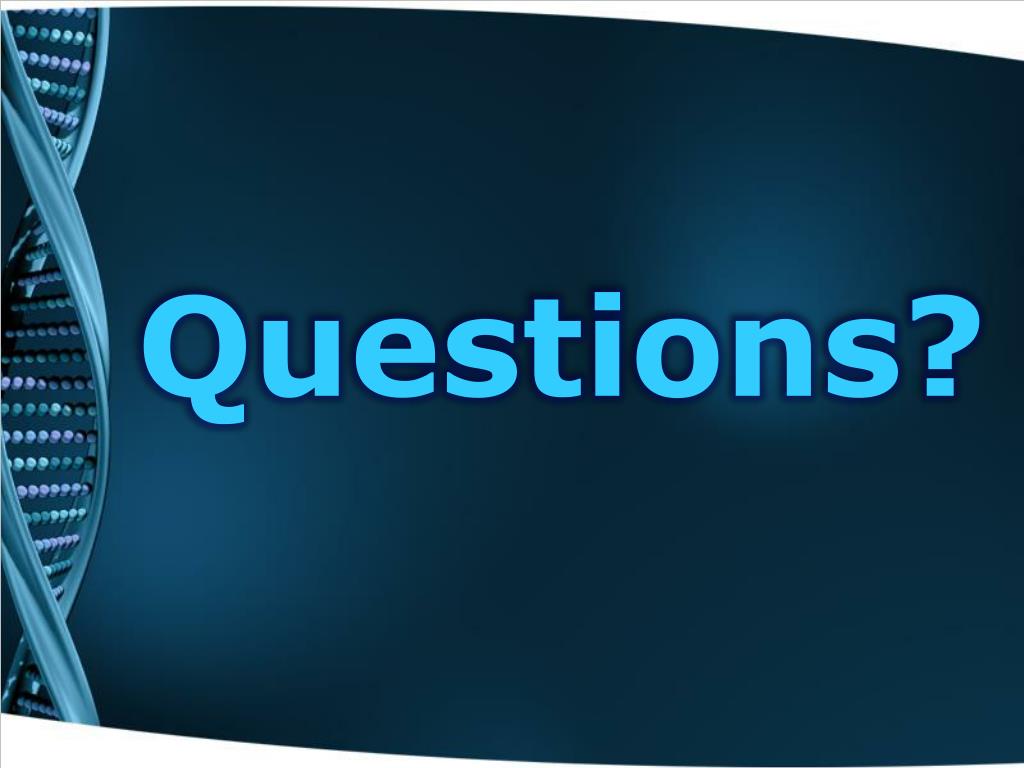

  28. Questions?
