1. SLC Aware IOC Database Service Design Debbie Rogind Nov 11, 2004

2. Topics • DBS Use Cases • Design Considerations • DBS Initialization • Data Structures • Download Sequence • ST0 Conversion • Receive/Process Setpoints and other messages from Alpha • Process/Send SLC IOC udpates to Alpha • DB Input/Output Utilities

3. DB Service Use Cases • DBEX - “Look like” a tcp micro • Same message formats, traffic, use proxy • Req and Accept database (“IPL”) • Accept updated setpoints from Alpha • Provide updated data from IOC • Supertype 3 (ST3) readbacks • Supertype 2 (ST2)setpoints (new) • Accept and reply to diagnostic inquiries • Accept and Process DBEX up/down messages • Console Users • Utilities to edit, dump, get type of various slc data • Application code • Utilities to find, get, put, update slc data • Coded “data flow dependancies” • ??? What else

4. Design Considerations • Port as much existing micro code as possible • Messages from VMS control system are little-endian, VMS format, and packed • The VMS supertype header structure is packed – no “pad” exists between 4 byte boundaries • Support ASCII representations for primary, secondary names and units • Slc IOC needs supplementary data definition: • primary ASCII to # • secondary (secn) ASCII to # mappings for given primary • datum width (for I or Z)

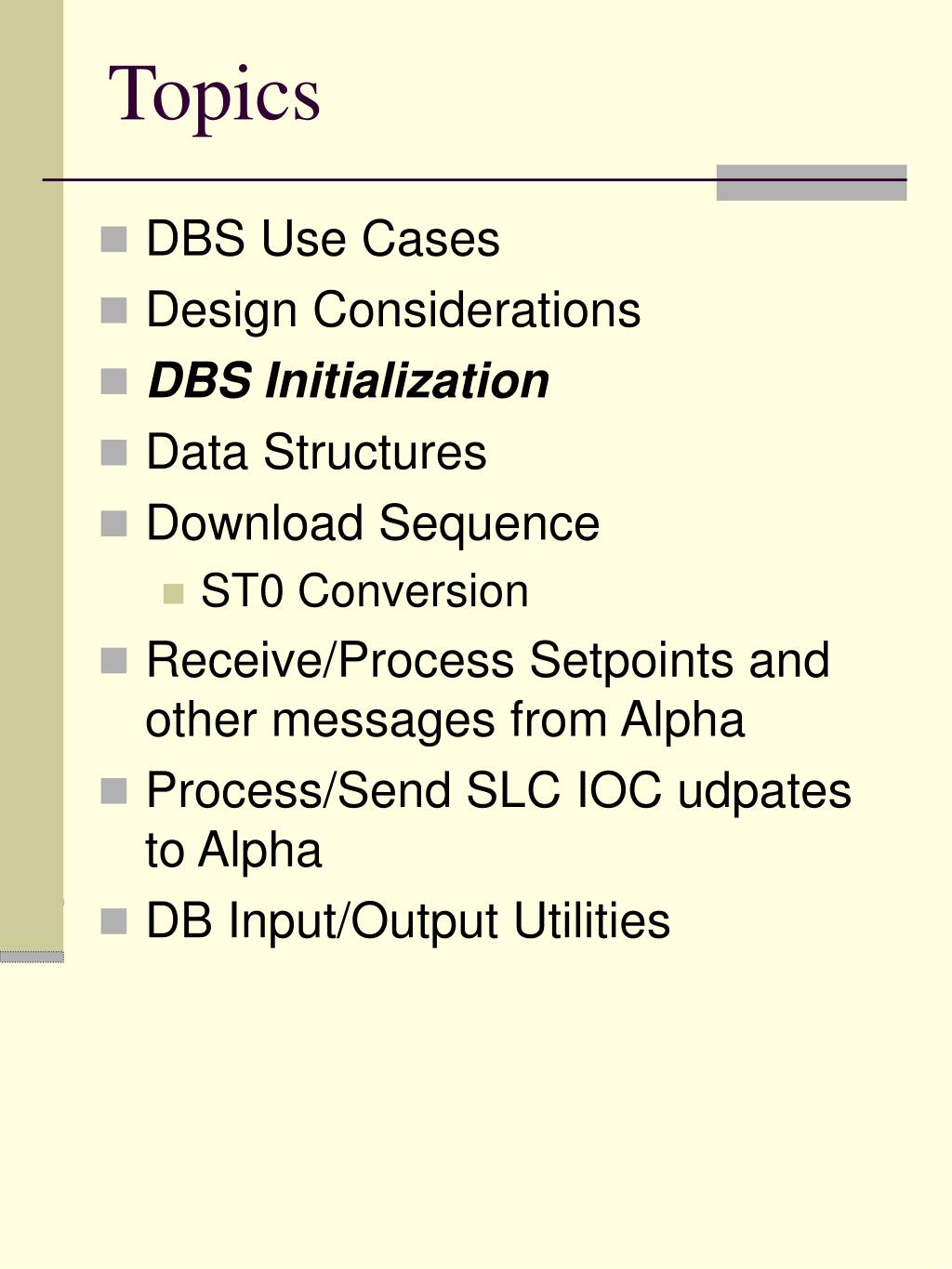

5. Topics • DBS Use Cases • Design Considerations • DBS Initialization • Data Structures • Download Sequence • ST0 Conversion • Receive/Process Setpoints and other messages from Alpha • Process/Send SLC IOC udpates to Alpha • DB Input/Output Utilities

10. DB Thread Initialization • slcExec starts Phase 1 message Q’ed threads dbSend, dbHdlr • slcExec starts Phase 2 dbRecv after all Phase 1 actives are T • All db threads • Create cmlog handle • Init resources • Message queue • Sockets • Memory heap • Timers, semaphores • Set active = T • Wait (at message Q or socket) • dbHdlr thread initializes shared db thread globals • slcExec sends “DB_DOWNLOAD” to dbSend

11. Topics • DBS Use Cases • Design Considerations • DBS Initialization • Data Structures • Download Sequence • ST0 Conversion • Receive/Process Setpoints and other messages from Alpha • Process/Send SLC IOC udpates to Alpha • DB I/0 Utilities

12. DB Service Globals Globals for db threads, initialized by dbHdlr: • downloadEvent, dbExists flag is created by slcExec • dbHdlrThread signals downloadEvent, sets dbExists flag after db download / ST 0 conversion

13. Supertype 0 Byte Streamto/from Alpha

14. Supertype 1-3 Byte Stream

15. Supertype Header & Data

16. Buffer/Q Structures • Rcvbuf, sndbuf get cast to dbsndrcvbuf_ts • dbRecv converts to nativeSB -VMStohSupHdr() • DB Thread Queue message structure • dbSend uses nativeSB • Converts prior to sending htoVMSSupHdr()

17. Secondary Data • The secondary data is discussed in later slides (after ST0 Conversion and the “new” dictionary is discussed)

18. Topics • DBS Use Cases • Design Considerations • DBS Initialization • Data Structures • Download Sequence • ST0 Conversion • Receive/Process Setpoints and other messages from Alpha • Process/Send SLC IOC udpates to Alpha • DB I/0 Utilities

19. DB Service Download Block Diagram

20. dbRecvThread – Download (“IPL”) Sequence • Rcvbuf receives Supertype 0-3 messages from DBEX at dbex socket • VMStohSupHdr(rcvbuf.nativeSB, rcvbuf.supblk) • Sends “DB_DBEX_ACK” to dbSend Q to ack DBEX (if req’ed) • Validates data and proper sequence of download (dbmicromail) • Allocates super block memory (dbsuperalloc) from heap; populates dbnode_p[0] • Copies rcvbuf (dbmsgcopy) to alloc’ed memory; drops proxyhdr • Lock / unlock dbRWMutex around memcpy • Send “DB_CONVERT” to dbHdlr • Upon recv’ing last ST 3 block

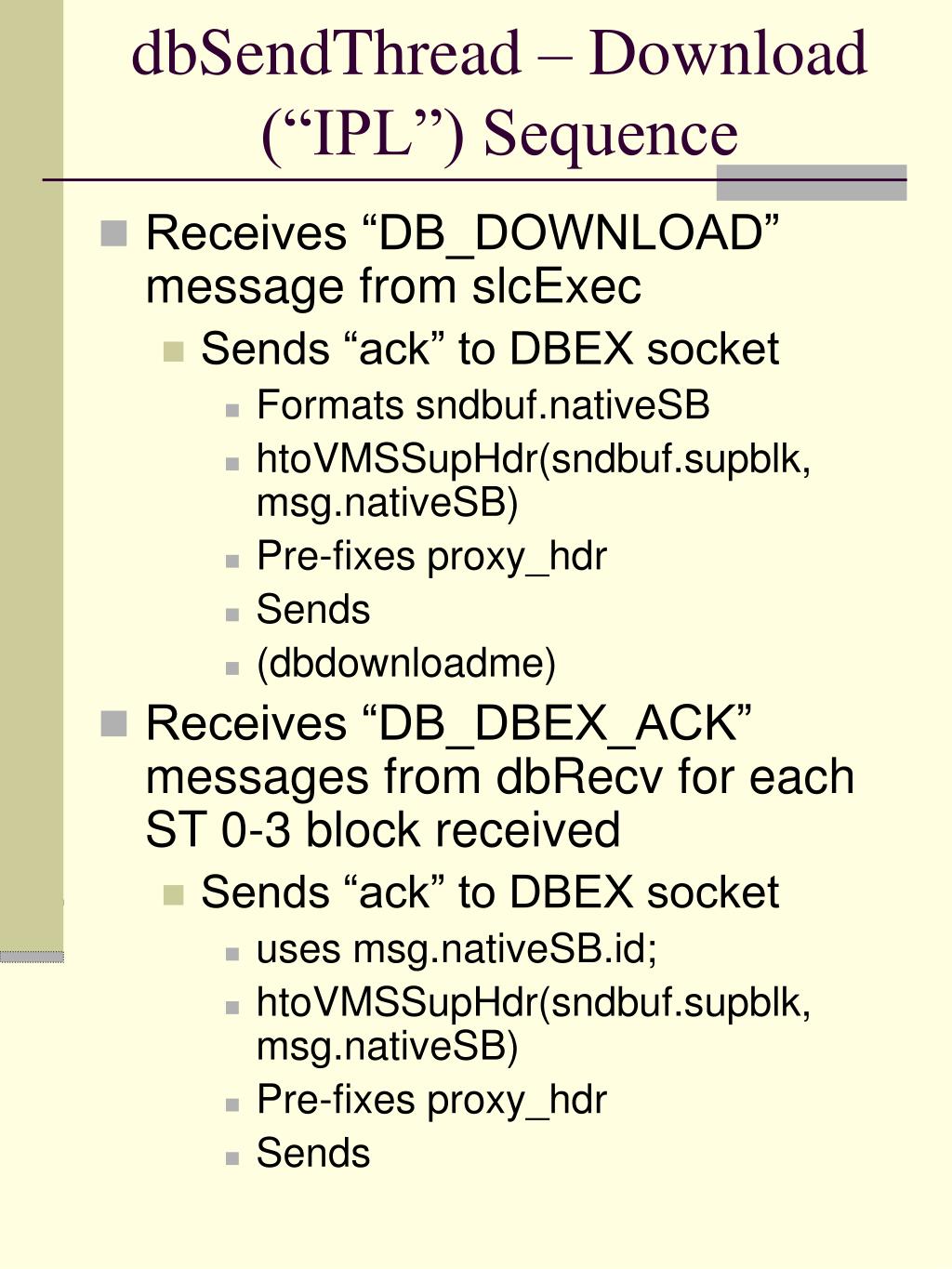

21. dbSendThread – Download (“IPL”) Sequence • Receives “DB_DOWNLOAD” message from slcExec • Sends “ack” to DBEX socket • Formats sndbuf.nativeSB • htoVMSSupHdr(sndbuf.supblk, msg.nativeSB) • Pre-fixes proxy_hdr • Sends • (dbdownloadme) • Receives “DB_DBEX_ACK” messages from dbRecv for each ST 0-3 block received • Sends “ack” to DBEX socket • uses msg.nativeSB.id; • htoVMSSupHdr(sndbuf.supblk, msg.nativeSB) • Pre-fixes proxy_hdr • Sends

22. Topics • DBS Use Cases • Design Considerations • DBS Initialization • Data Structures • Download Sequence • ST0 Conversion • Receive/Process Setpoints and other messages from Alpha • Process/Send SLC IOC udpates to Alpha • DB I/0 Utilities

23. dbHdlrThread • dbHdlr is responsible for • Initializing the DB Globals upon init • Converting the ST0 data to dictionary format • Releasing DB resources upon exit • Resetting global values upon exit • dbExists • downloadEvent • Thread specific – see General Thread Shutdown • Receives DB_CONVERT message to initiate the ST0 Conversion process • After conversion • Sets dbExists = T • Signals downloadEvent • Receives TEST_STOP message • Refer to General Thread Shutdown

24. dbHdlr Block Diagram

26. Secondary Data type Gphash find - gphFind (“name”) - returns GPHENTRY*:

27. dbHdlrThread - ST0 Conversion Sequence • Receives “DB_CONVERT” message from dbRecv • Replace ST0 num-oriented hash table with string based hash table dictionary • Step 1: • Walk thru all structures in ST0 to swap words and longs (if arch. is not little endian) • Step 2: • Read PRIMARY.MAP file and make entries into dictionary, each combining • Secondary data from ST0 • File data – data width, ASCII names • Hash on “primary unit secondary” • Hash on “primary” • Links ALL* units • For primary name error checking • Could also hash on “primary secondary” • For faster secondary name error checking • Structure is optimized for run-time operations

28. dbHdlrThread - ST0 Conversion Sequence • Correlates file with ST0 data PRIMARY.MAP: Prim catn Sec secn fmt width # QUAD 1 BMON 135 R 4 1 QUAD 1 KTIM 31 T 8 1 … • For each unique primary name in file Make “primary” entry call dbunitsST0 (ld_p, catn) if (status OK and ld_p.len>0) for each unit# in list dbgetUpsST0(uptr, catn, unit) link unit in “primary” (for ALL*) for every secondary in file dbgetSecST0(sptr,uptr,secn) store “primary unit sec” with combined ST0 & file data; + link sec in unit entry (for ALL*)

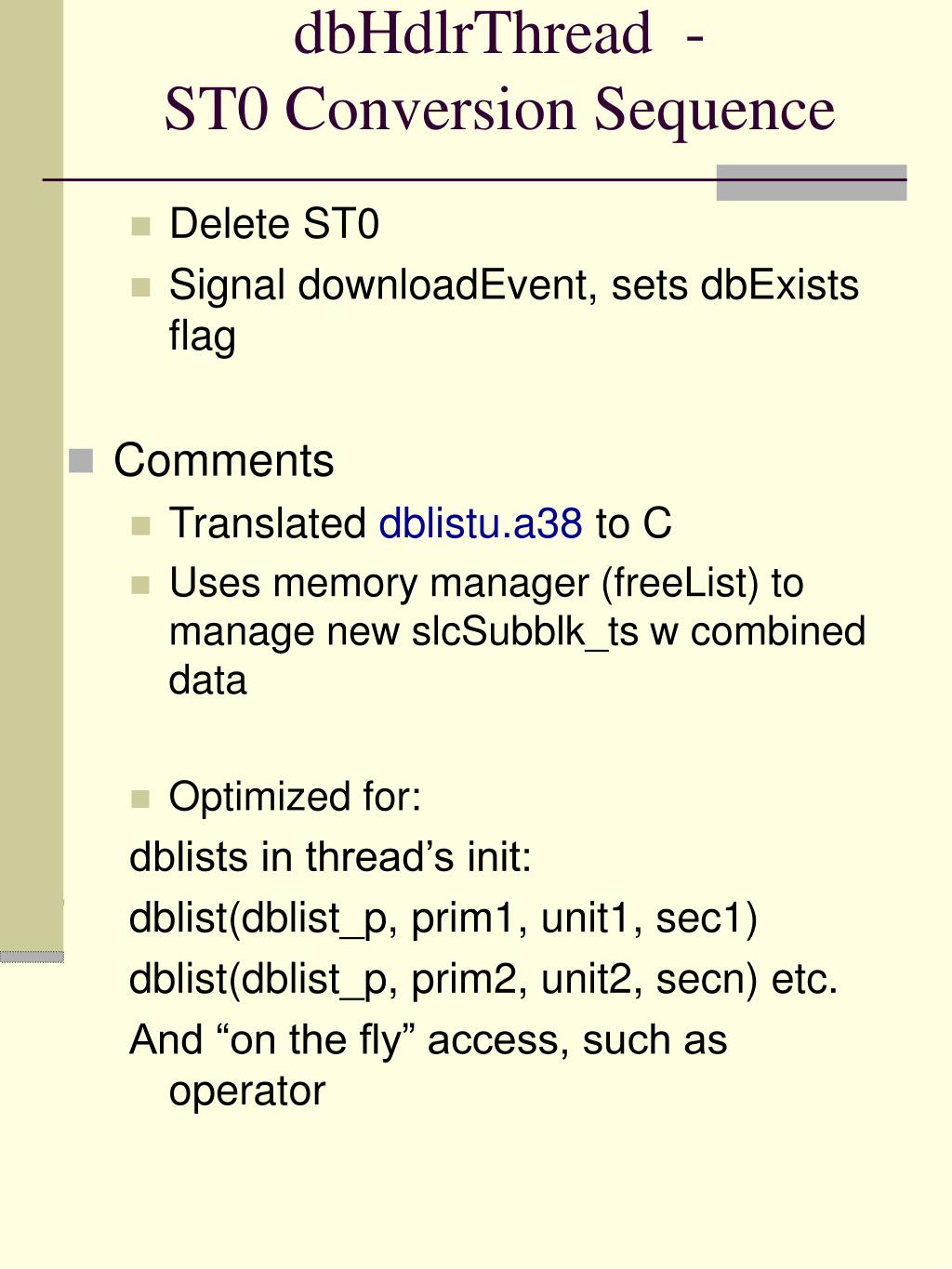

29. dbHdlrThread - ST0 Conversion Sequence • Delete ST0 • Signal downloadEvent, sets dbExists flag • Comments • Translated dblistu.a38 to C • Uses memory manager (freeList) to manage new slcSubblk_ts w combined data • Optimized for: dblists in thread’s init: dblist(dblist_p, prim1, unit1, sec1) dblist(dblist_p, prim2, unit2, secn) etc. And “on the fly” access, such as operator

30. Topics • DBS Use Cases • Design Considerations • DBS Initialization • Data Structures • Download Sequence • ST0 Conversion • Receive/Process Setpoints and other messages from Alpha • Process/Send SLC IOC udpates to Alpha • DB I/0 Utilities

31. Setpoints from Alpha

32. dbRecvThread – Alpha Updates to slc ioc • Receives Supertype 2 (setpoint) update messages from DBEX • Sends “DB_DBEX_ACK” msg to dbSend, if req’ed. • Lock dbRWMutex • Copies super block recv’ed (dbmsgcopy) to slc ioc ST2 block • Unlock dbRWMutex • Other DBEX messages • Receives diagnostic req from DBEX • Sends “DB_DIAG_RPY” to dbSend Q to ack DBEX • Receives “DXDN”, “DXUP” messages from DBEX • Resets/sets dbex_up flag • Stores database version in global dbVersion • If DBEX becoming available, send “DB_UPDATE_ALL” message to dbSend Q to update all jobs (TBD)

33. dbSendThread –Alpha Updates to slc ioc • Receives DB_DBEX_ACK messages from dbRecv for Alpha ST2 updates • Sends “ack” to DBEX socket (same as “IPL” sequence) • Receives DB_DIAG_RPY message from dbRecv • uses msg.nativeSB.id • VMStoh(sndbuf.diag, msg.diag) • Process diagnostic data • htoVMSSupHdr(sndbuf.supblk, msg.nativeSB) • htoVMS(sndbuf.diag, msg.diag) • Pre-fixes proxy_hdr • Sends to dbex socket • (dbmdiag_sendrpy) • Receives TEST_STOP message • Refer to General Thread Shutdown

34. Topics • DBS Use Cases • Design Considerations • DBS Initialization • Data Structures • Download Sequence • ST0 Conversion • Receive/Process Setpoints and other messages from Alpha • Process/Send SLC IOC udpates to Alpha • dblput • DB I/0 Utilities

35. Writing Data from slc ioc (dblput)

36. Topics • DBS Use Cases • Design Considerations • DBS Initialization • Data Structures • Download Sequence • ST0 Conversion • Receive/Process Setpoints and other messages from Alpha • Process/Send SLC IOC udpates to Alpha • Dblput • SLC IOC DB Updates to Alpha • DB I/0 Utilities

37. slc ioc DB Updates to Alpha

38. dbSendThread – slc ioc updates to Alpha • Receives DB_UPDATE messages from various “job threads” to send update • Lock dbhilo_mutex[job] – prevent further updates for this job • Compress job’s list of pending updates, if possible (microdbsendc) • Lock dbRWMutex • Read dbhilo_update[job] sptr pair • memcpy data from ST block indicated by sptr pair into sndbuf (microdbsendb) • Unlock dbRWMutex • Increment msg seq # (1-256), write in proxyhdr.user_byte • store seq #, “job id” locally • Send sndbuf (already in VMS format) to dbex socket

39. dbSendThread – CTL socket After sending data to dbex socket, loop waiting at CTL socket for Ack from DBEX • Further updates for this job are blocked; other job updates q’ed • Timeout after ~15 sec (less if !dbex_up) • Wait 1 sec at ctl socket • Check for slcExec “stop flag” CTL loop exit conditions: 1)Successful Ack (valid msg seq #) • Clear dbhilo_update[job] • If (! dbex_up), set dbex_up flag 2) Invalid msg seq # • If (! dbex_up), set dbex_up flag ; no clear 3) Timeout – no clear 4) Socket error • Set “lost connection flag” ; no clear • Loop waiting for connection • Check for slcExec “stop flag” Unlock dbhilo_mutex[job] Signal ackEvent[job] • Upon dbex_up / connection up • Send updates for all jobs

40. Topics • DBS Use Cases • Design Considerations • DBS Initialization • Data Structures • Download Sequence • ST0 Conversion • Receive/Process Setpoints and other messages from Alpha • Process/Send SLC IOC udpates to Alpha • DB Input/Output Utilities

41. DB I/O Utilities • Threads use dballoc(), dbfree(), and db macros for list management • dballoc() / dbfree() use mem management • Re-entrant • Return 4byte unsigned VMS cond code • Except dbexists returns epicsBoolean • All device args (prim,unit, secn) are 4 chars; blank padded, null-terminated; prim/secn are left justified; unit is right-j? • dblist (dblist_p, “prim”,”unit”,”secn”) • Unit can = “ALL*” • dblunits (dbdata_p, “prim”) • dblget (dbdata_p, dblist) • dblput (dbdata_p, dblist) • dballoc (dbdata_p, numBytes, numElements) • dbfree (dbdata_or_list_p) • dbunit2string (intUnit, “unit”) • dbexists (void)

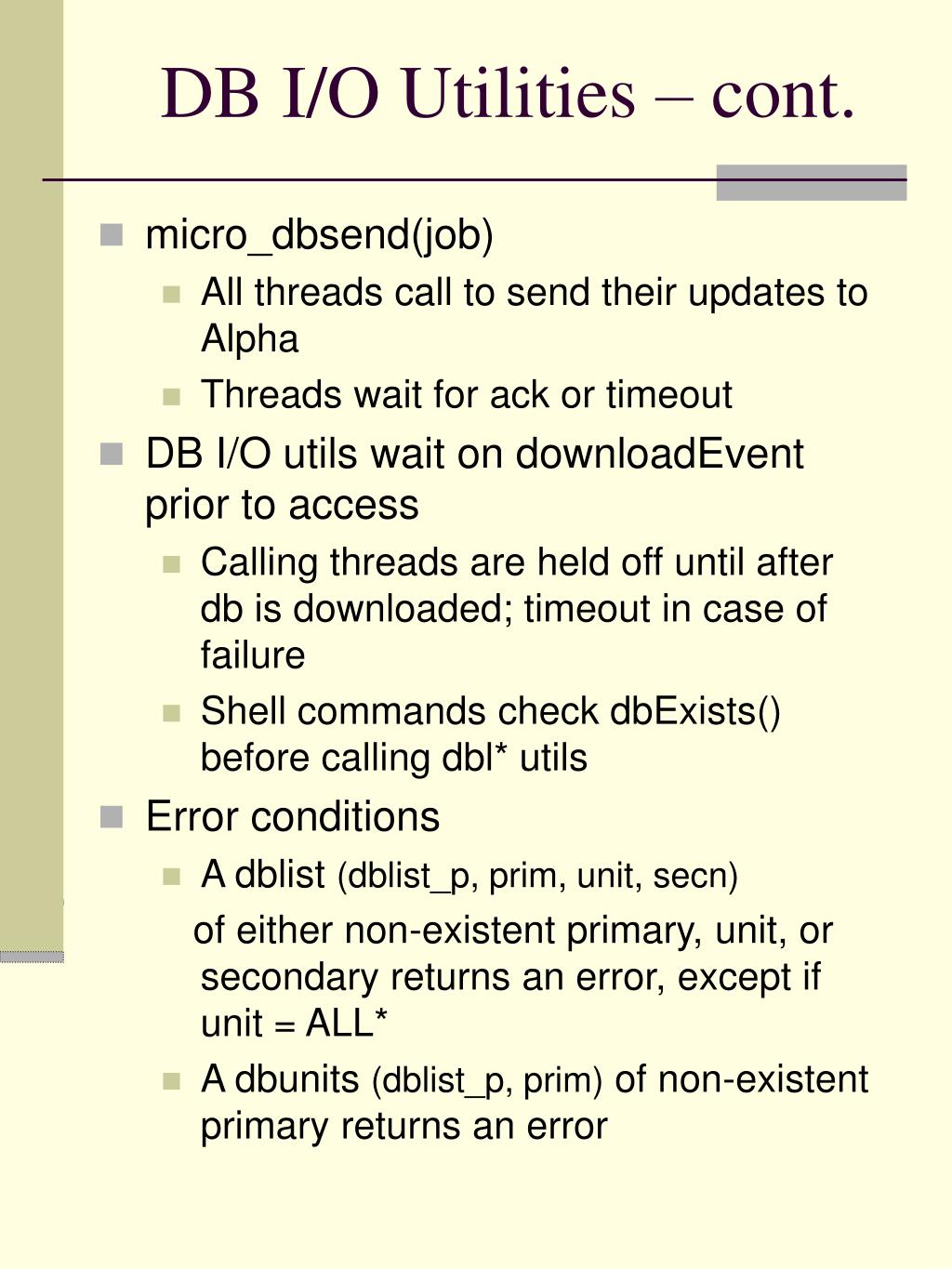

42. DB I/O Utilities – cont. • micro_dbsend(job) • All threads call to send their updates to Alpha • Threads wait for ack or timeout • DB I/O utils wait on downloadEvent prior to access • Calling threads are held off until after db is downloaded; timeout in case of failure • Shell commands check dbExists() before calling dbl* utils • Error conditions • A dblist (dblist_p, prim, unit, secn) of either non-existent primary, unit, or secondary returns an error, except if unit = ALL* • A dbunits (dblist_p, prim) of non-existent primary returns an error

43. DB I/O functionality • Dblist (dblist_p, prim, unit, secn) • Calls gphFind (“prim unit secn”) • Enters ptr to entry into dblist_p • Dblist (dblist_p, prim, ALL*, secn) • Calls gphFind (“prim”) • Traverses linked list of prim/unit; for each entry, traverses linked list of secns to find; gets ptr from matching entry’s data • Enters ptr to entry in dblist_p • Dblunits (dbdata_p, prim) • Calls gphFind (“prim”) • Traverses linked list of prim/unit; for each entry, enters (4 char) unit(s) into dbdata_p

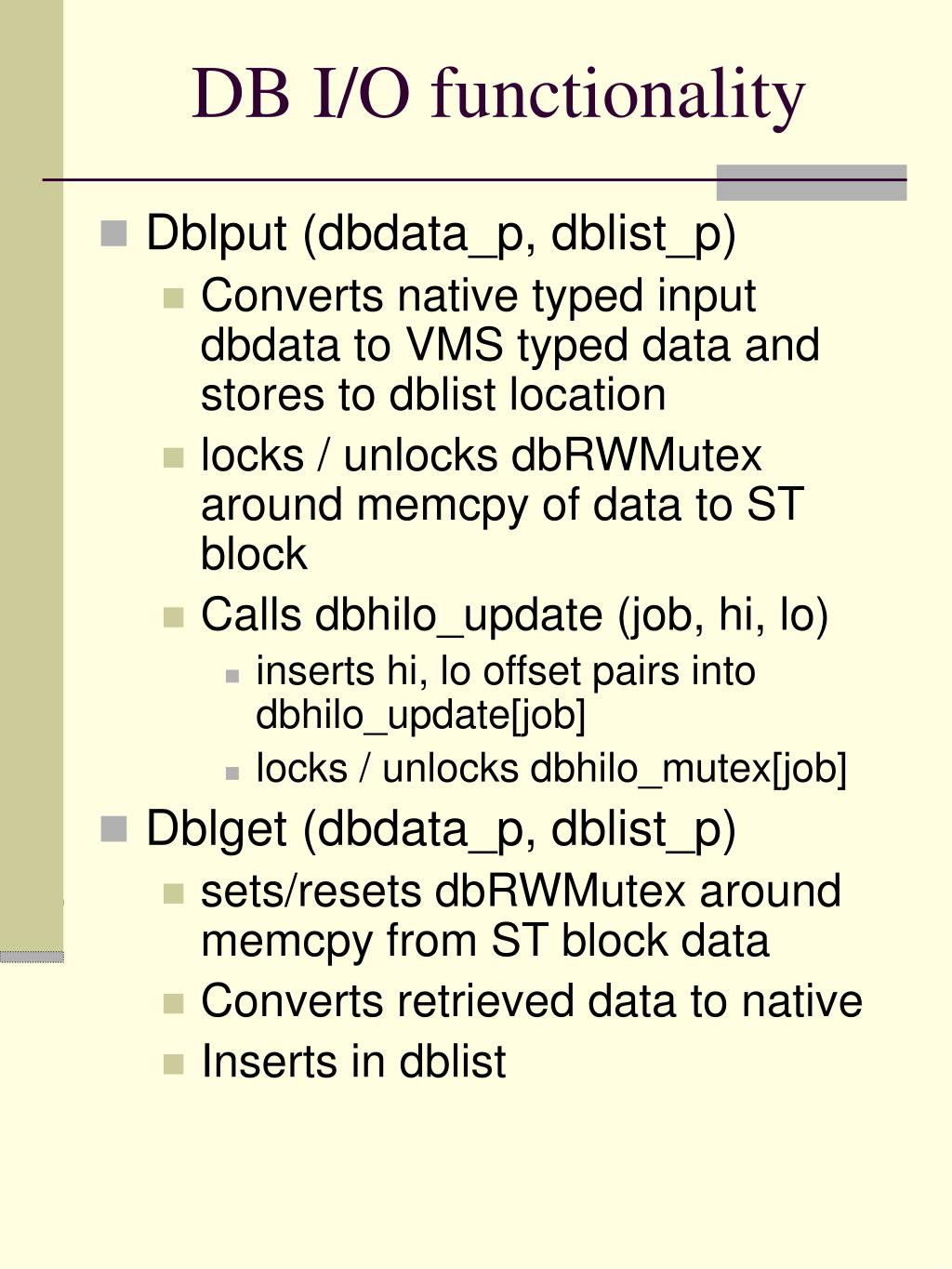

44. DB I/O functionality • Dblput (dbdata_p, dblist_p) • Converts native typed input dbdata to VMS typed data and stores to dblist location • locks / unlocks dbRWMutex around memcpy of data to ST block • Calls dbhilo_update (job, hi, lo) • inserts hi, lo offset pairs into dbhilo_update[job] • locks / unlocks dbhilo_mutex[job] • Dblget (dbdata_p, dblist_p) • sets/resets dbRWMutex around memcpy from ST block data • Converts retrieved data to native • Inserts in dblist

45. Shell commands Shells: EPICS iocsh, RTEMS Cexp, vxWorks • All previous dbl* utils can be called from ioc shell after parsing console input. • dbexists() will be checked prior to calling underlying dbl* utility - no waiting for user • dbgettype (“prim”, “secn”) • dbdump (“prim”, “unit”, “secn”, “<filename>”) • dbdumpunits (“prim”, “<filename>”) • dbedit (“prim”, “unit”, “secn”,…) • dbdumphash (“<filename>”) • dbdumpdatabase (“<filename>”)
