  1. ARISS meeting ESTEC 2014HAM Video Ground Segment HAM TV standard The effects of the off-Nadir orientation of on-board ARISS-41 and ARISS-43 antennas ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

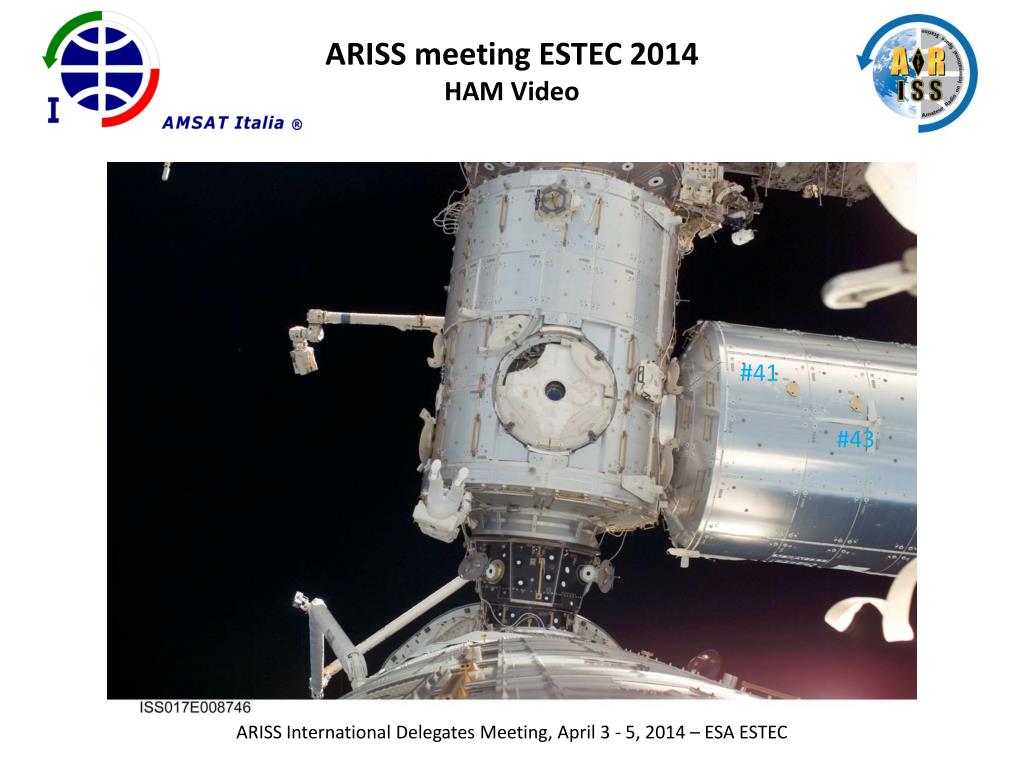

  2. ARISS meeting ESTEC 2014HAM Video #41 #43 ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

  3. ARISS meeting ESTEC 2014HAM Video ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

  4. ARISS meeting ESTEC 2014HAM Video #43 #41 ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

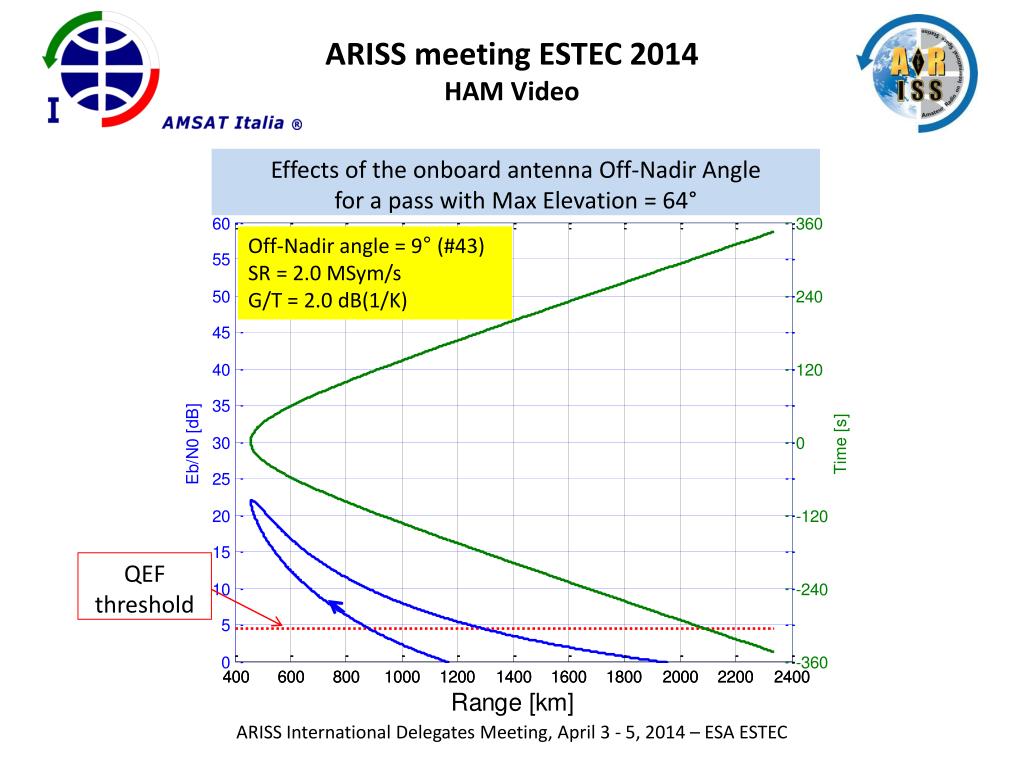

  5. ARISS meeting ESTEC 2014HAM Video Effects of the onboard antenna Off-Nadir Angle for a pass with MaxElevation = 64° Off-Nadir angle = 9° (#43) SR = 2.0 MSym/s G/T = 2.0 dB(1/K) QEF threshold ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

  6. ARISS meeting ESTEC 2014HAM Video Effects of the onboard antenna Off-Nadir Angle for a pass with MaxElevation = 64° Off-Nadir angle = 9° (#43) SR = 2.0 MSym/s G/T = 2.0 dB(1/K) 4’:51’’ LOT AOT ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

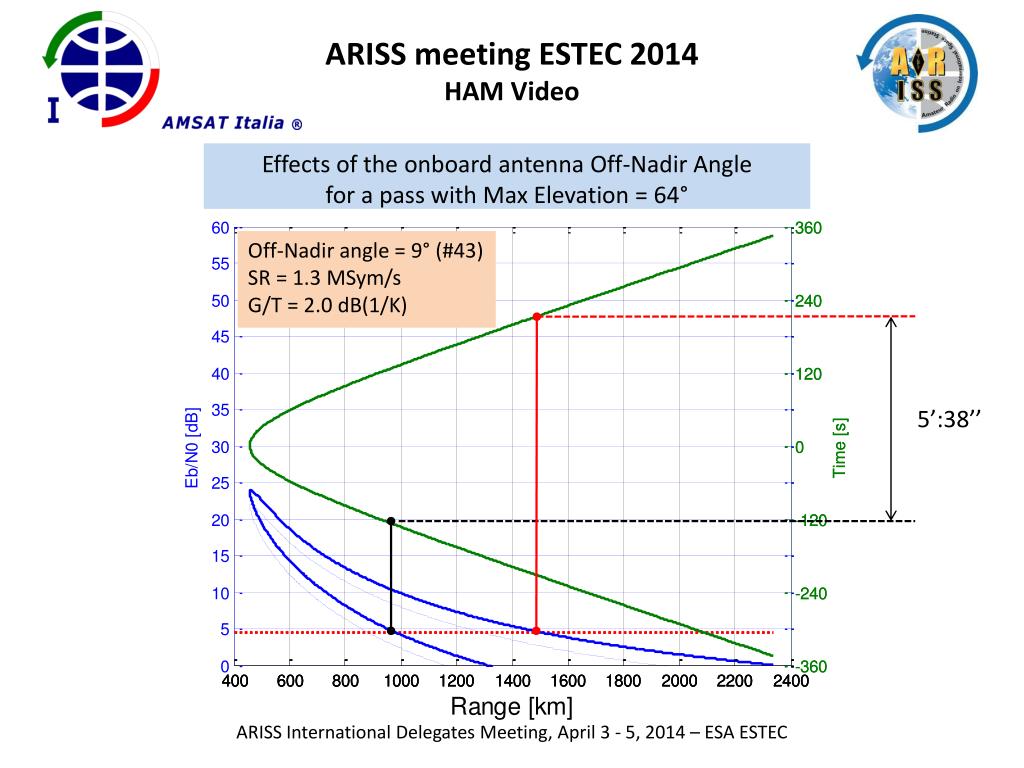

  7. ARISS meeting ESTEC 2014HAM Video Effects of the onboard antenna Off-Nadir Angle for a pass with MaxElevation = 64° Off-Nadir angle = 9° (#43) SR = 1.3 MSym/s G/T = 2.0 dB(1/K) 5’:38’’ ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

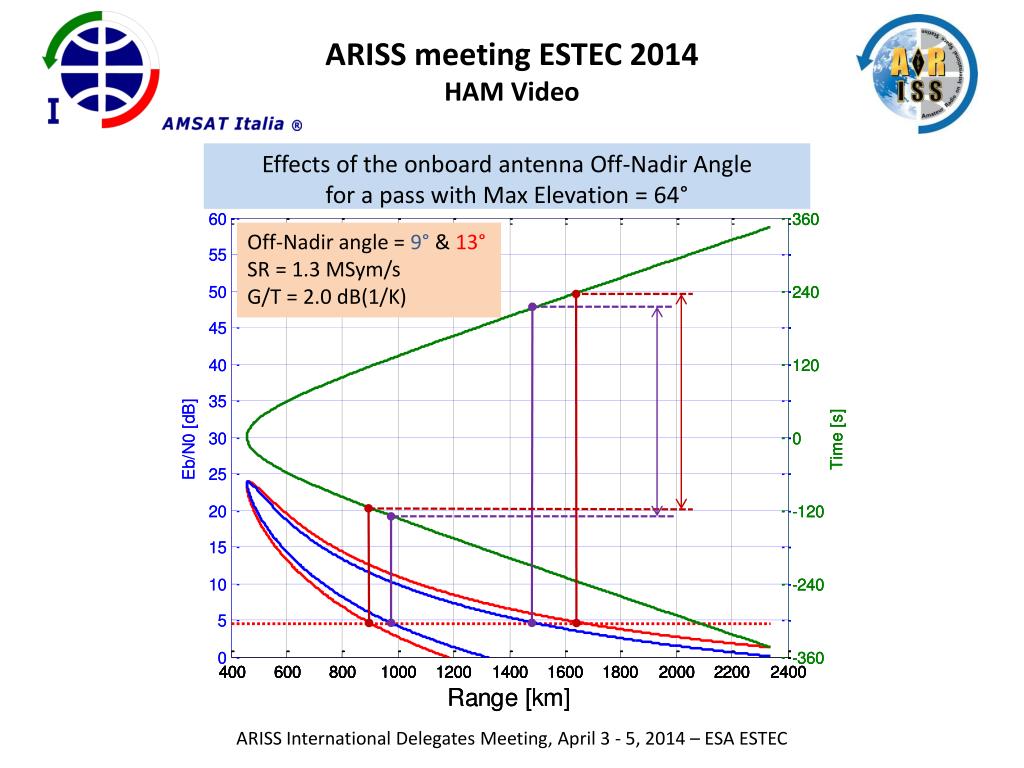

  8. ARISS meeting ESTEC 2014HAM Video Effects of the onboard antenna Off-Nadir Angle for a pass with MaxElevation = 64° Off-Nadir angle = 9° & 13° SR = 1.3 MSym/s G/T = 2.0 dB(1/K) ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

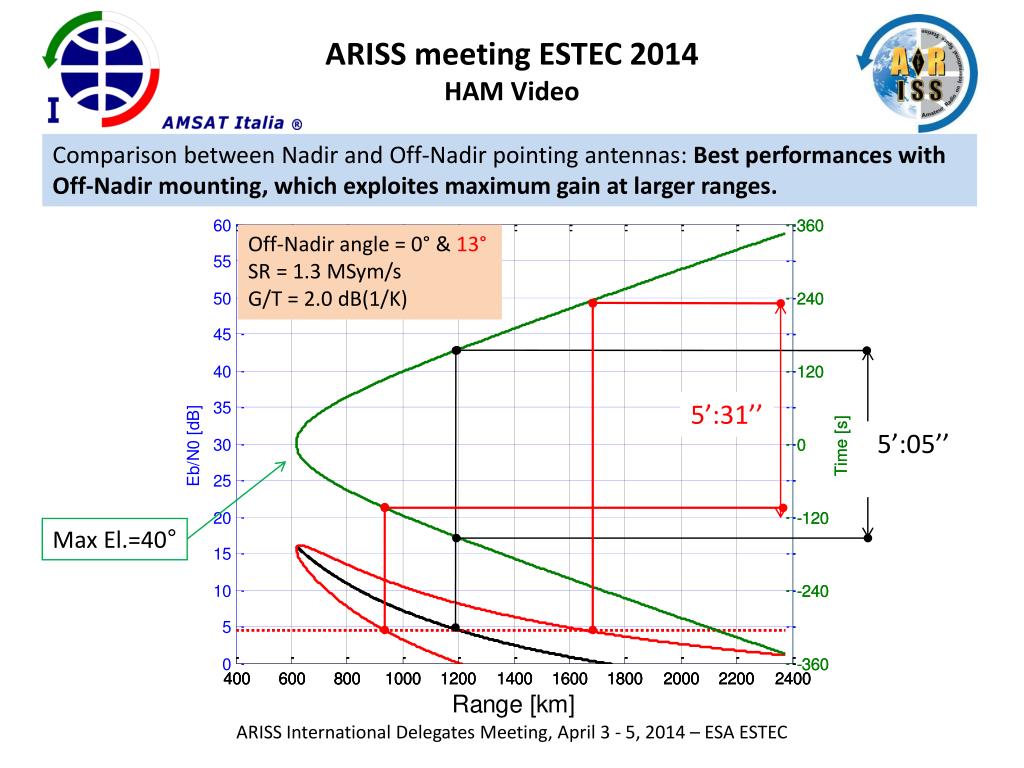

  9. ARISS meeting ESTEC 2014HAM Video Comparisonbetween Nadir and Off-Nadir pointingantennas: Best performances with Off-Nadir mounting, whichexploites maximum gain atlargerranges. Off-Nadir angle = 0°& 13° SR = 1.3 MSym/s G/T = 2.0 dB(1/K) 5’:31’’ 5’:05’’ Max El.=40° ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

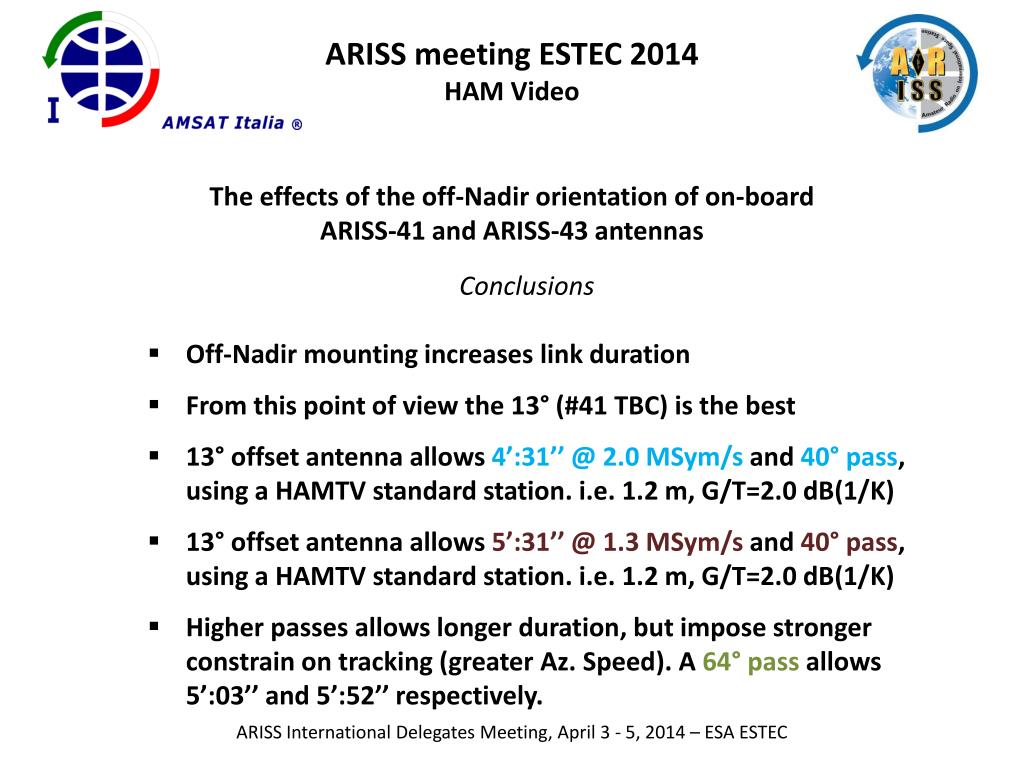

  10. ARISS meeting ESTEC 2014HAM Video The effects of the off-Nadir orientation of on-board ARISS-41 and ARISS-43 antennas • Conclusions • Off-Nadir mountingincreases link duration • From thispoint of view the 13° (#41 TBC) is the best • 13° offset antenna allows4’:31’’ @ 2.0 MSym/s and 40° pass, using a HAMTV standard station. i.e. 1.2 m, G/T=2.0 dB(1/K) • 13° offset antenna allows5’:31’’ @ 1.3 MSym/s and 40° pass, using a HAMTV standard station. i.e. 1.2 m, G/T=2.0 dB(1/K) • Higherpassesallowslongerduration, but impose strongerconstrain on tracking (greater Az. Speed). A 64° pass allows 5’:03’’ and 5’:52’’ respectively. ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

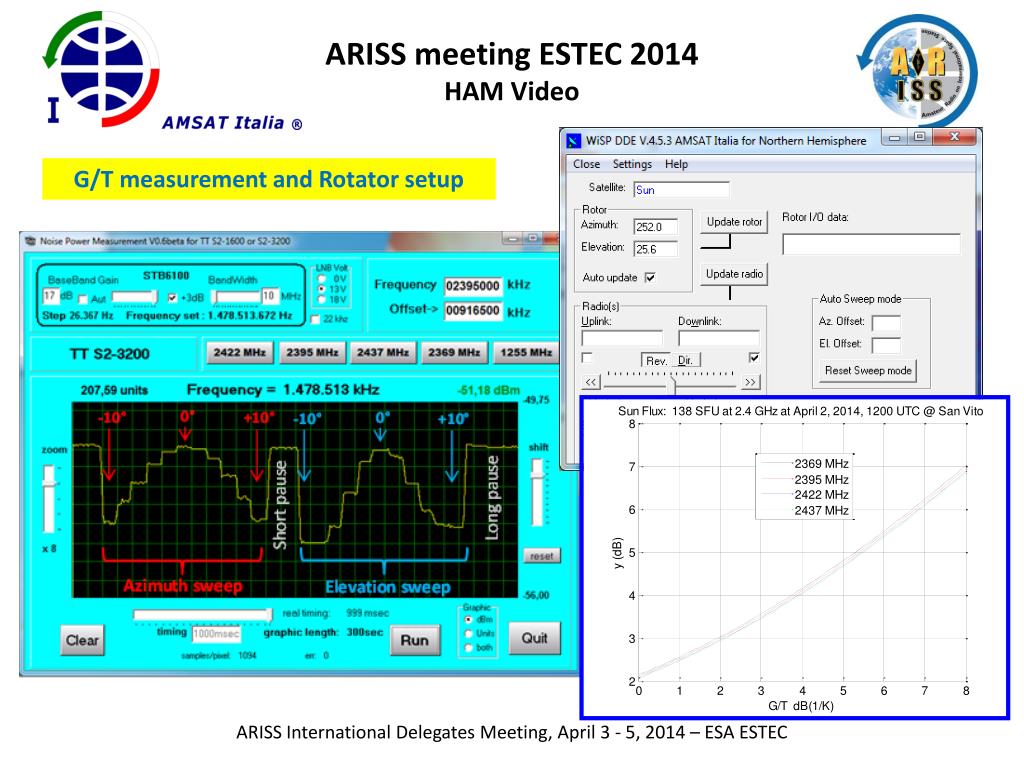

  11. ARISS meeting ESTEC 2014HAM Video G/T measurement and Rotator setup ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

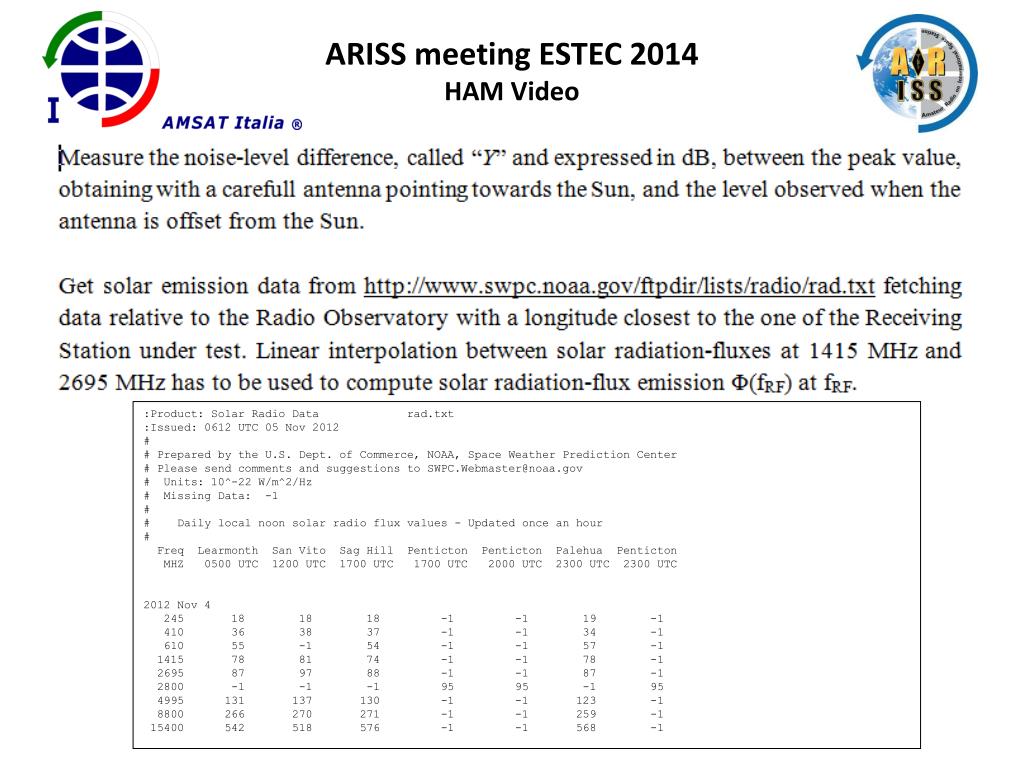

  12. ARISS meeting ESTEC 2014HAM Video :Product: Solar Radio Data rad.txt :Issued: 0612 UTC 05 Nov 2012 # # Prepared by the U.S. Dept. of Commerce, NOAA, Space Weather Prediction Center # Please send comments and suggestions to SWPC.Webmaster@noaa.gov # Units: 10^-22 W/m^2/Hz # Missing Data: -1 # # Daily local noon solar radio flux values - Updated once an hour # Freq Learmonth San Vito Sag Hill Penticton Penticton Palehua Penticton MHZ 0500 UTC 1200 UTC 1700 UTC 1700 UTC 2000 UTC 2300 UTC 2300 UTC 2012 Nov 4 245 18 18 18 -1 -1 19 -1 410 36 38 37 -1 -1 34 -1 610 55 -1 54 -1 -1 57 -1 1415 78 81 74 -1 -1 78 -1 2695 87 97 88 -1 -1 87 -1 2800 -1 -1 -1 95 95 -1 95 4995 131 137 130 -1 -1 123 -1 8800 266 270 271 -1 -1 259 -1 15400 542 518 576 -1 -1 568 -1 ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

  13. ARISS meeting ESTEC 2014HAM Video ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

  14. ARISS meeting ESTEC 2014HAM Video Level Chart for HAMTV ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

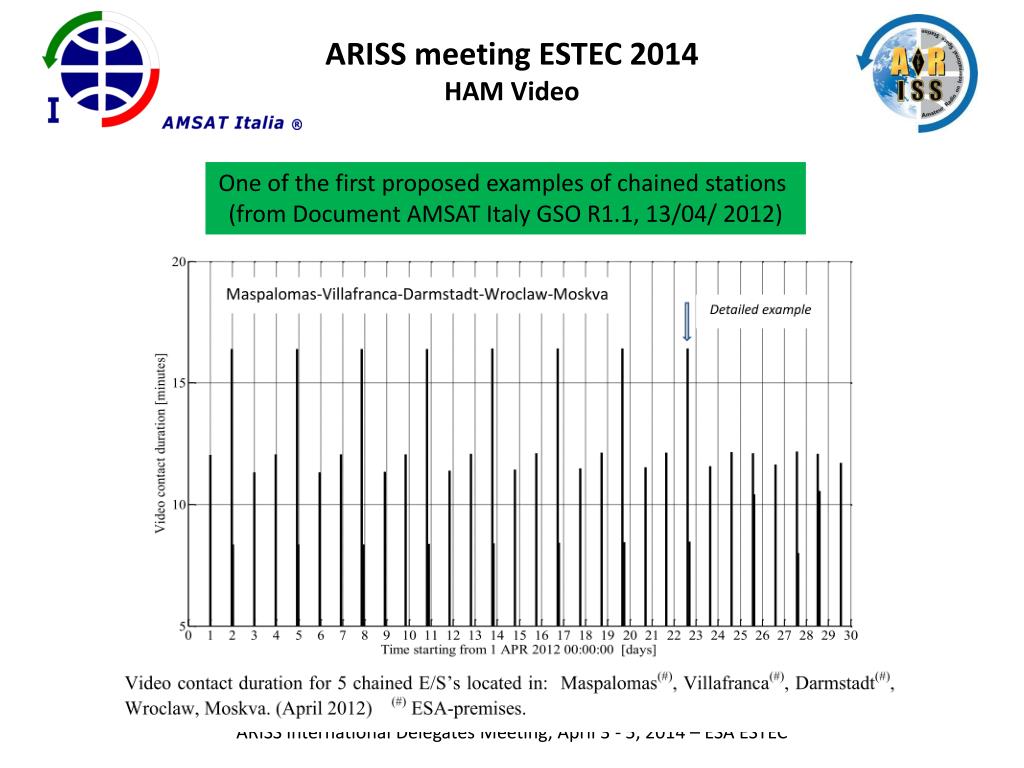

  15. ARISS meeting ESTEC 2014HAM Video One of the first proposed examples of chained stations (from Document AMSAT Italy GSO R1.1, 13/04/ 2012) ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

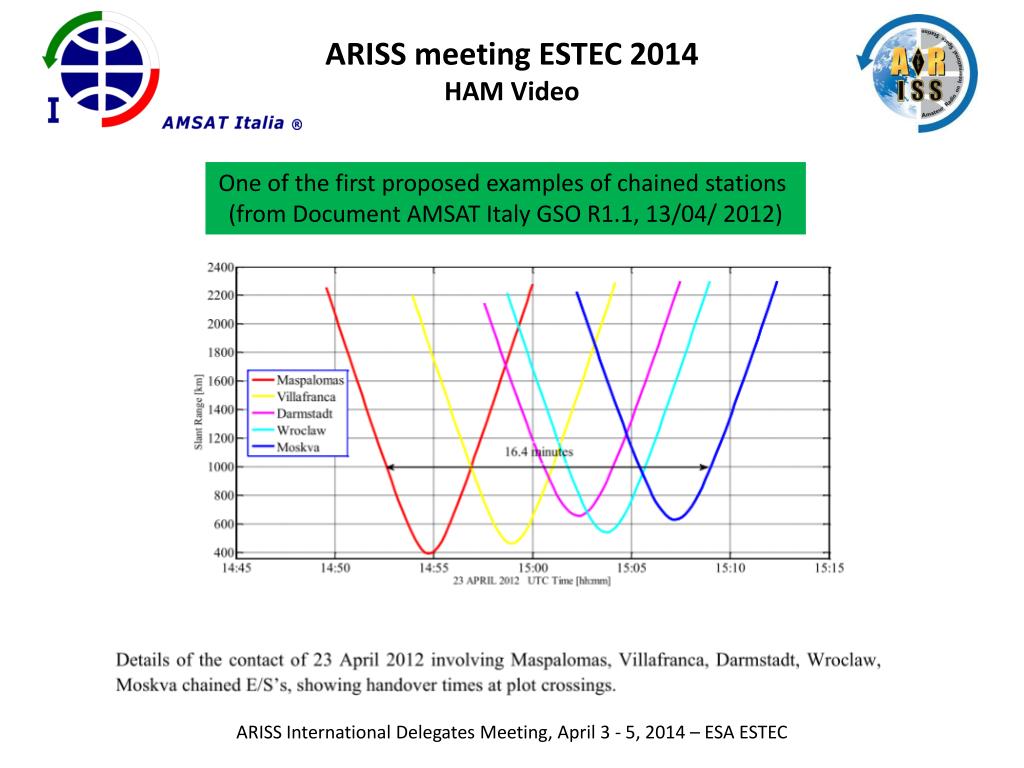

  16. ARISS meeting ESTEC 2014HAM Video One of the first proposed examples of chained stations (from Document AMSAT Italy GSO R1.1, 13/04/ 2012) ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

  17. ARISS meeting ESTEC 2014HAM Video Measured RF performances during commissioning ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

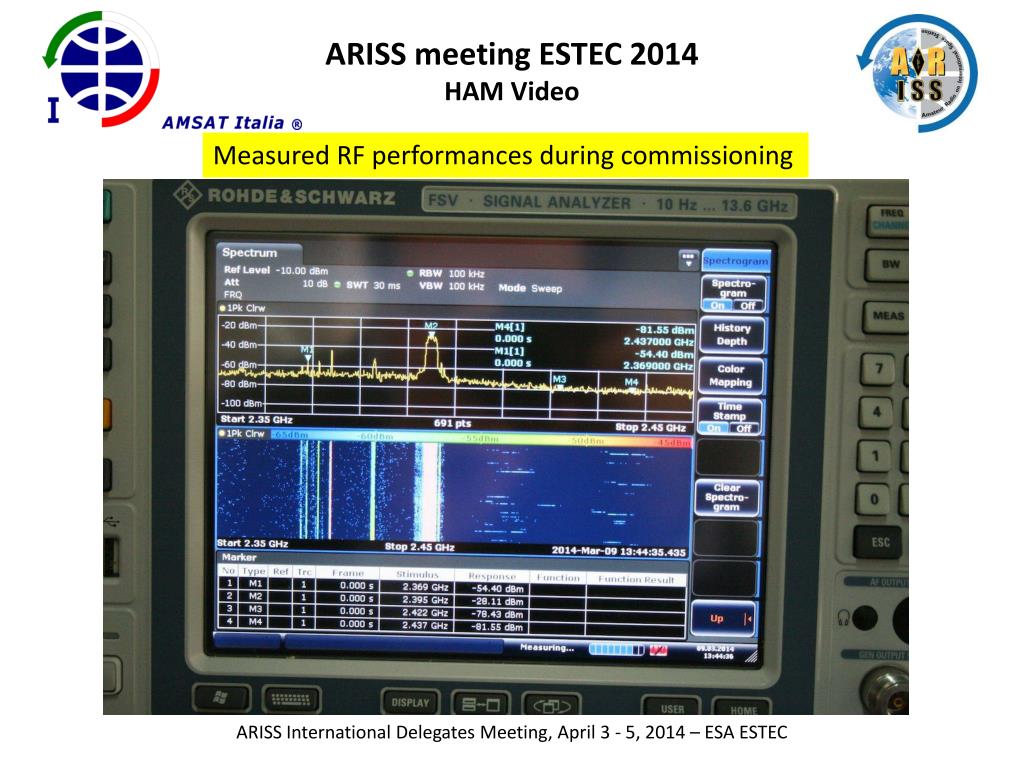

  18. ARISS meeting ESTEC 2014HAM Video Measured RF performances during commissioning ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

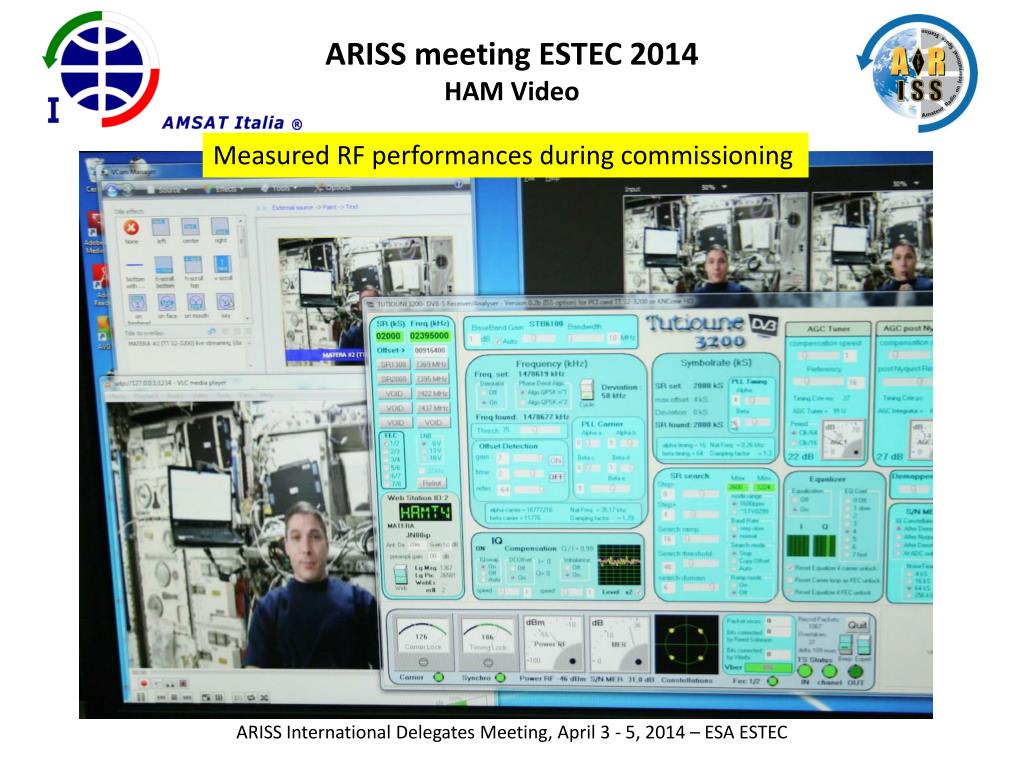

  19. ARISS meeting ESTEC 2014HAM Video Measured RF performances during commissioning ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

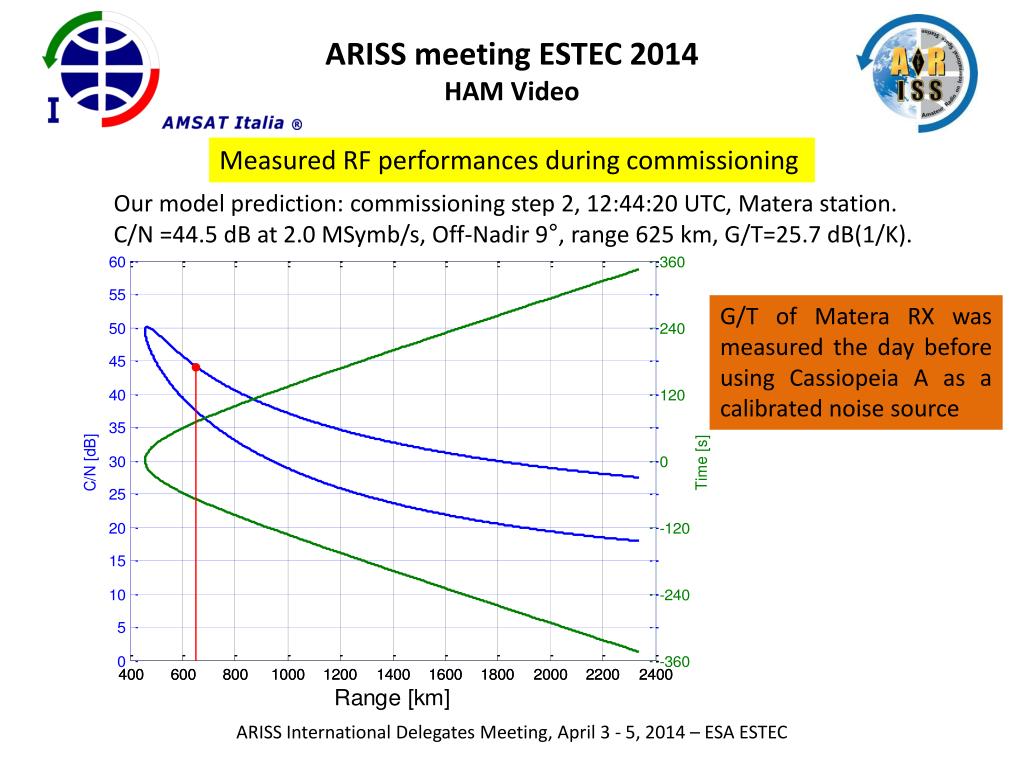

  20. ARISS meeting ESTEC 2014HAM Video Measured RF performances during commissioning Our model prediction: commissioning step 2, 12:44:20 UTC, Matera station. C/N =44.5 dB at 2.0 MSymb/s, Off-Nadir 9°, range 625 km, G/T=25.7 dB(1/K). G/T of Matera RX wasmeasured the daybeforeusingCassiopeia A as a calibratednoise source ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC

  21. ARISS meeting ESTEC 2014HAM Video Thank you ARISS International Delegates Meeting, April 3 - 5, 2014 – ESA ESTEC
