Hardtop Deck Harness Wiring and Lighting Layout

This technical drawing outlines the wiring and lighting configuration for the hardtop deck of Pacer Marine Engineering's models. It includes detailed junction information for various speakers and lights, ensuring proper installation without harness flexing. Specific attention is given to the port and starboard lighting configurations and their respective junctions. The drawing is a proprietary document of Pacer Marine Engineering, detailing integral components and connections for marine applications. All rights are reserved, and unauthorized use or reproduction is prohibited.

hesper
Télécharger la présentation

Hardtop Deck Harness Wiring and Lighting Layout

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

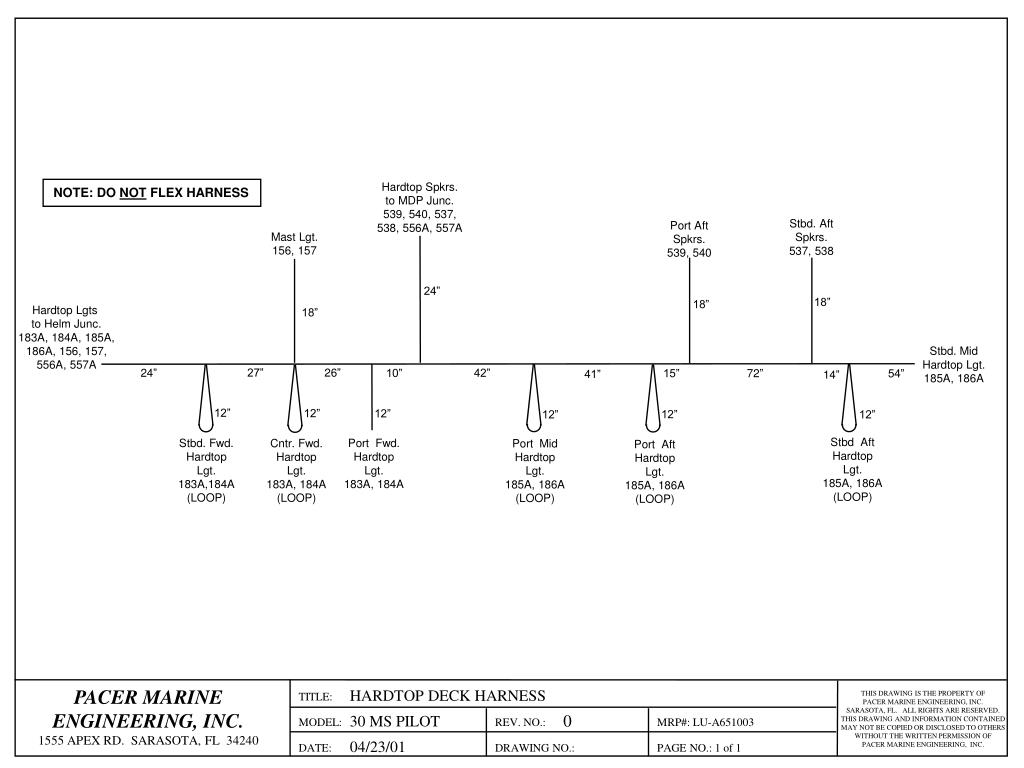

  1. Hardtop Spkrs. to MDP Junc. 539, 540, 537, 538, 556A, 557A NOTE: DO NOT FLEX HARNESS Stbd. Aft Spkrs. 537, 538 Port Aft Spkrs. 539, 540 Mast Lgt. 156, 157 24” 18” 18” Hardtop Lgts to Helm Junc. 183A, 184A, 185A, 186A, 156, 157, 556A, 557A 18” Stbd. Mid Hardtop Lgt. 185A, 186A 27” 26” 24” 42” 10” 15” 72” 54” 41” 14” 12” 12” 12” 12” 12” 12” Stbd Aft Hardtop Lgt. 185A, 186A (LOOP) Stbd. Fwd. Hardtop Lgt. 183A,184A (LOOP) Port Fwd. Hardtop Lgt. 183A, 184A Cntr. Fwd. Hardtop Lgt. 183A, 184A (LOOP) Port Mid Hardtop Lgt. 185A, 186A (LOOP) Port Aft Hardtop Lgt. 185A, 186A (LOOP) PACER MARINE ENGINEERING, INC. 1555 APEX RD. SARASOTA, FL 34240 HARDTOP DECK HARNESS THIS DRAWING IS THE PROPERTY OF PACER MARINE ENGINEERING, INC. SARASOTA, FL. ALL RIGHTS ARE RESERVED. THIS DRAWING AND INFORMATION CONTAINED MAY NOT BE COPIED OR DISCLOSED TO OTHERS WITHOUT THE WRITTEN PERMISSION OF PACER MARINE ENGINEERING, INC. TITLE: 0 30 MS PILOT MODEL: REV. NO.: MRP#: LU-A651003 04/23/01 DATE: DRAWING NO.: PAGE NO.: 1 of 1
