  1. Wallace Library Special Collections Final Presentation

  2. Cary Graphic Arts Collection • Located on the second floor of the Wallace Library • Consists of over 40,000 volumes • 13 mechanical printing presses • Posters, photographs, artwork, manuscripts • All of these pieces must be stored in a particular environment for preservation.

  3. Objective Tree

  4. Function Decomposition

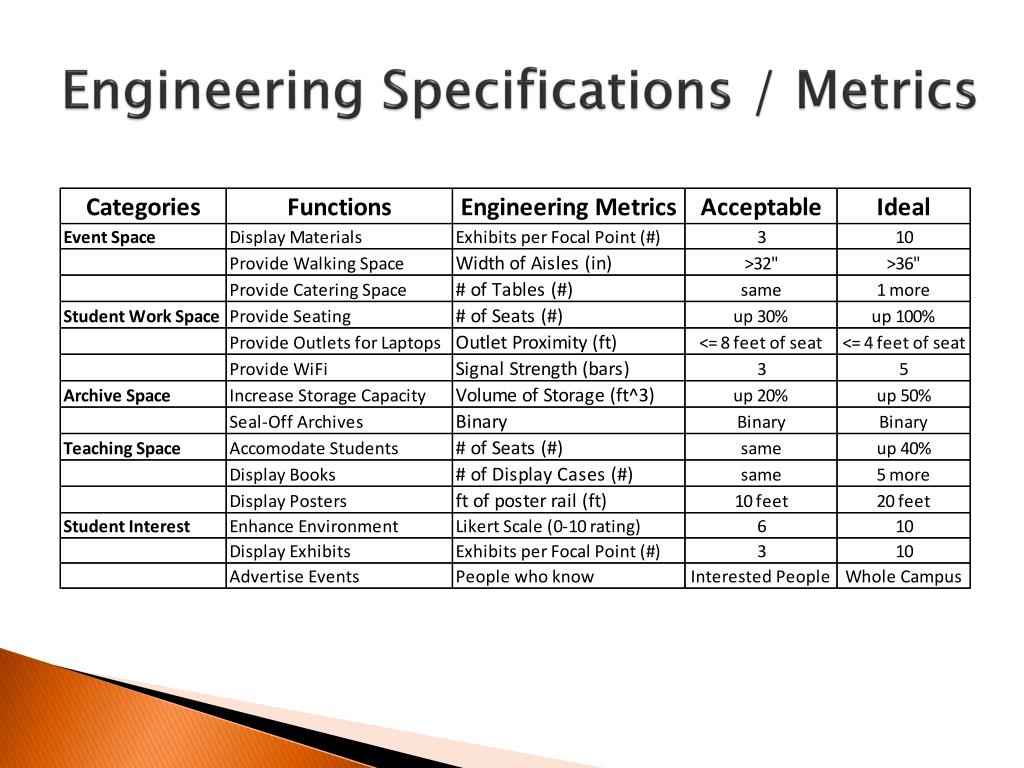

  5. Engineering Specifications / Metrics

  6. Feasibility Analysis- Space Requirements • Workspace: • Typical 2 person workspace 4 x 4’ =16 ft2 • Typical 4 person workspace 6’ x 6’ =36 ft2 • Meeting space for 10 people 10’x15’ =150ft2 • Teaching space for 20 students 20’x25’ =500 ft2 • Teaching space for 30 students 30’x35’ =1050 ft2 • Teaching space for 40 students 40’x35’ =1400 ft2 • Teaching space for 50 students 45’x40’ =1800 ft2 • Space for large couch 8’x4’ =32 ft2 • Space for medium couch 6’x4’ =24 ft2 • Space for small couch 3’x4’ =12 ft2 • Low table 3’x3’ =9 ft2 • Current Usage of Space: • Printing press room 33.5’x21’ =704 ft2 • Graphic Design Archives 45‘x46‘-18’x24’ =1638 ft2 • Wash room 20‘x23‘ =460 ft2 • Student space 34‘x29‘ =986 ft2 • Exhibit space 66‘x44‘ =2904 ft2 • Teaching Space =0 ft2

  7. Feasibility Analysis- Cost Analysis

  8. Lawson Center Improvements • Improvements were estimated to cost $200,000

  9. Solution 1- Modern Ambience Cost: $264,453

  10. Feasibility Analysis – Cost & Space • Estimated Cost: • Space Analysis: • Seating for 70 general use students • Teaching space for 30 • GDA area meets minimum requirement

  11. Solution 2- Print/Classroom Swap Cost: $62,513

  12. Solution 3- Extended GDA Cost: $188,791

  13. Pugh Matrix

  14. Areas of Uncertainty • Budget • Cost of installation • Floor support weight • Current HVAC capabilities

  15. Risk Analysis

  16. Questions?
