  1. Assignments • Read from Chapter 3, 3.6 (pp. 100-106), • Master Problems…3.12, 3.15, 3.20, • Chapter 4, Problems 1, 2, • Questions 4.1 - 4.4, 4.6, 4.7, 4.9, 4.11 -4.14, 4.19 - 4.20 a,b,c,d. • Exam Week from Friday… • One hour (you can use the entire 80 minutes, but no more). One 8” x 11”, one sided crib sheet.

  2. Sex Determination Systems • Different mechanisms of sex selection exist: • XX / XO (O = null), • ZW / ZZ (female ZW, Male ZZ), • haplo / diplo (males are haploid), • XX / XY (most mammals).

  3. Sex Chromosomesmost mammals… ...‘X’ and ‘Y’ chromosomes that determine the sex of an individual in many organisms, Females: XX Males: XY

  4. a a A hemizygous: condition where gene is present in only one dose (one allele). Differential Region Differential Region Paring Region Paring Region XX: female XY: male

  5. X Linkage …the pattern of inheritance resulting from genes located on the X chromosome. • X-Linked Genes… • …refers specifically to genes on the X-chromosome, with no homologs on the Y chromosome.

  6. Blue is dominant. P x Blue Female Pink Male Gametes or

  7. Gametes or F1 Blue Female Blue Male

  8. F1 x Blue Female Blue Male Gametes or or

  9. Gametes or or F2 Blue Female Blue Male Blue Female Pink Male

  10. F2 Blue Female Blue Male Blue Female Pink Male 3 : 1 Blue to Pink 1 : 1 Female to Male

  11. P x Pink Female Blue Male Gametes or

  12. Gametes or F1 Blue Female Pink Male

  13. Gametes or or F2 Pink Female Pink Male Blue Female Blue Male

  14. F2 Pink Female Pink Male Blue Female Blue Male 1 1 1 1 1 : 1 Female to Male 1 : 1 Pink to Blue

  15. Sex Linkage to Ponder • Female is homozygous recessive X-linked gene, • what percentage of male offspring will express? • what percentage of female offspring will express if, • mate is hemizygous for the recessive allele? • mate is hemizygous for the dominant allele? • Repeat at home with female heterozygous X-linked gene!

  16. Sex-Linked vs. Autosomal • autosomal chromosome: non-sex linked chromosome, • autosomal gene: a gene on an autosomal chromosome, • autosomes segregate identically in reciprocal crosses.

  17. X-Linked Recessive TraitsCharacteristics • Many more males than females show the phenotype, • female must have both parents carrying the allele, • male only needs a mother with the allele, • Very few (or none) of the offspring of affected males show the disorder, • all of his daughters are carriers, • roughly half of the sons born to these daughters are carriers.

  18. X-Linked Dominant • Affected males married to unaffected females pass the phenotype to their daughters, but not to their sons, • Heterozygous females married to unaffected males pass the phenotype to half their sons and daughters, • Homozygous dominant females pass the phenotype on to all their sons and daughters.

  19. Autosomal Dominant • Phenotypes appear in every generation, • Affected males and females pass the phenotype to equal proportions of their sons and daughters.

  20. (p)boy Pedigree for Very Rare Trait? = kid with trait 1/2 1/2 Recessive? ---> Yes! 1/2 x 1/2 x ? 1/2 = 1/8 ? x 1/2 = 1/16 Autosomal? X-Linked? ---> Yes!

  21. X-Linked Dominantexamples (OMIM) • HYPOPHOSPHATEMIA: “Vitamin-D resistant Rickett’s”, • LISSENCEPHALY: “smooth brain”, • FRAGILE SITE MENTAL RETARDATION: mild retardation, • RETT Syndrome: neurological disorder, • More on OMIM…

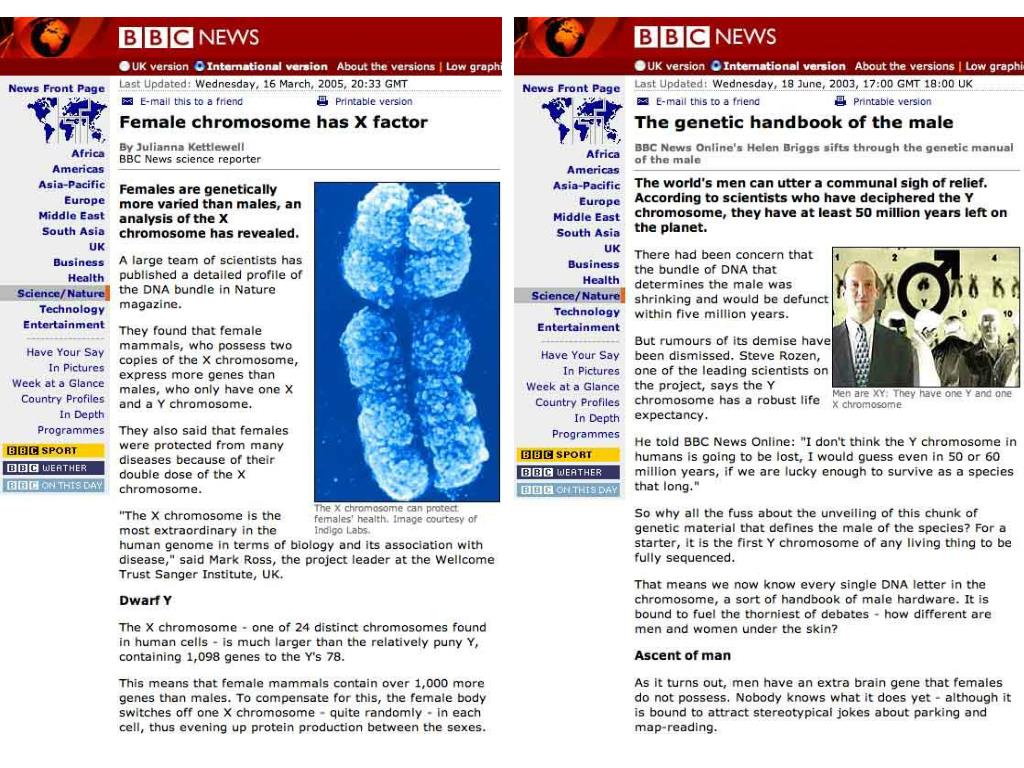

  22. Genetics: …in the News

  23. Linkage • Genes linked on the same chromosome may segregate together.

  24. Independent Assortment A a B b 2n = 4 A A a B b B a b

  25. 2n = 1 MeiosisNo Cross Over A a Parent Cell B b A A a a B B b b Daughter Cells Have Parental Chromosomes

  26. 2n = 1 MeiosisWith Cross Over A a Parent Cell B b A A a a B b B b Daughter Cells Have Recombinant Chromosomes

  27. Dihybrid Cross phenotype genotype gametes genotype yellow/round green/wrinkled GGWW x ggww GW gw GgWw P F1

  28. .25 .25 .25 .25 Gamate Formation in F1 Dihybrids P: GGWW x ggww, Independent Assortment F1 Genotype: GgWw G g W w alleles gametes GW Gw gW gw probability

  29. GW Gw gW gw .25 .25 .25 .25 How do you test for assortment of alleles? F1: GgWw Test Cross: phenotypes of the offspring indicate the genotype of the gametes produced by the parent in question.

  30. GW (.25) gw (1) GgWw (.25) x Gw (.25) x gw (1) G gww (.25) gW (.25) x gw (1) ggWw (.25) gw (.25) gw (1) ggww (.25) x Test CrossGgWw x ggww

  31. P R R P F1 parental types GgWw and gwgw recombinant types Ggww and ggWw Test CrossGgWw x ggww GW (.25) x gw (1) GgWw (.25) Gw (.25) x gw (1) Ggww (.25) gW (.25) gw (1) ggWw (.25) x gw (.25) gw (1) ggww (.25) x

  32. Recombination Frequency …or Linkage Ratio: the percentage of recombinant types, • if 50%, then the genes are not linked, • if less than 50%, then linkage is observed.

  33. Linkage • Genes closely located on the same chromosome do not recombine, • unless crossing over occurs, • The recombination frequency gives an estimate of the distance between the genes.

  34. Recombination Frequencies • Genes that are adjacent have a recombination frequency near 0%, • Genes that are very far apart on a chromosome have a recombination frequency of 50%, • The relative distance between linked genes influences the amount of recombination observed.

  35. homologs A B In this example, there is a 2/10 chance of recombination. A C a c In this example, there is a 4/10 chance of recombination. a b

  36. GW Gw gW gw determine ? ? ? ? Linkage RatioP GGWW x ggwwTestcross F1: GgWw x ggww # recombinant # total progeny x 100 = Linkage Ratio Units: % = mu (map units) - or - % = cm (centimorgan)

  37. Study Figs 4.2, 4.3, and 4.5 Fly Crosses (simple 3-point mapping)(white eyes, minature, yellow body) • In a white eyes x miniature cross, 900 of the 2,441 progeny were recombinant, yielding a map distance of 36.9 mu, • In a separate white eyes x yellow body cross, 11 of 2,205 progeny were recombinant, yielding a map distance of 0.5 mu, • When a miniature x yellow body cross was performed, 650 of 1706 flies were recombinant, yielding a map distance of 38 mu.

  38. 0.5 mu 36.9 mu y w m 38 mu Simple Mapping • white eyes x miniature = 36.9 mu, • white eyes x yellow body = 0.5 mu, • miniature x yellow body = 38 mu,

  39. Do We have to Learn More Mapping Techniques? • Yes, • three point mapping, • Why, • Certainty of Gene Order, • Double crossovers, • To answer Cyril Napp’s questions, • and, for example: over 4000 known human diseases have a genetic component, • knowing the protein produced at specific loci facilitates the treatment and testing.

  40. cis “coupling”

  41. trans “repulsion”

  42. target Classical Mapping Cross an organism with a trait of interest to homozygous mutants of known mapped genes. • Then, determine if segregation is random in the F2 generation, • if not, then your gene is linked (close) to the known mapped gene. What recombination frequency do you expect between the target and HY2? What recombination frequency do you expect between the target and TT2?

  43. Gene Order • It is often difficult to assign the order of genes based on two-point crosses due to uncertainty derived from sampling error. A x B = 37.8 mu, A x C = 0.5 mu, B x C = 37.6 mu,

  44. Double Crossovers • More than one crossover event can occur in a single tetrad between non-sister chromatids, • if recombination occurs between genes A and B 30% of the time (p = 0.3), then the probability of the event occurring twice is 0.3 x 0.3 = 0.09, or nearly one map unit. • If there is a double cross over, does recombination occur? • how does it affect our estimation of distance between genes?

  45. target Classical Mappingmodel organisms Cross an organism with a trait of interest to homozygous mutants of known mapped genes. • Then, determine if segregation is random in the F2 generation, • if not, then your gene is linked (close) to the known mapped gene. What recombination frequency do you expect between the target and HY2? What recombination frequency do you expect between the target and TT2?
