  1. Building Envelope

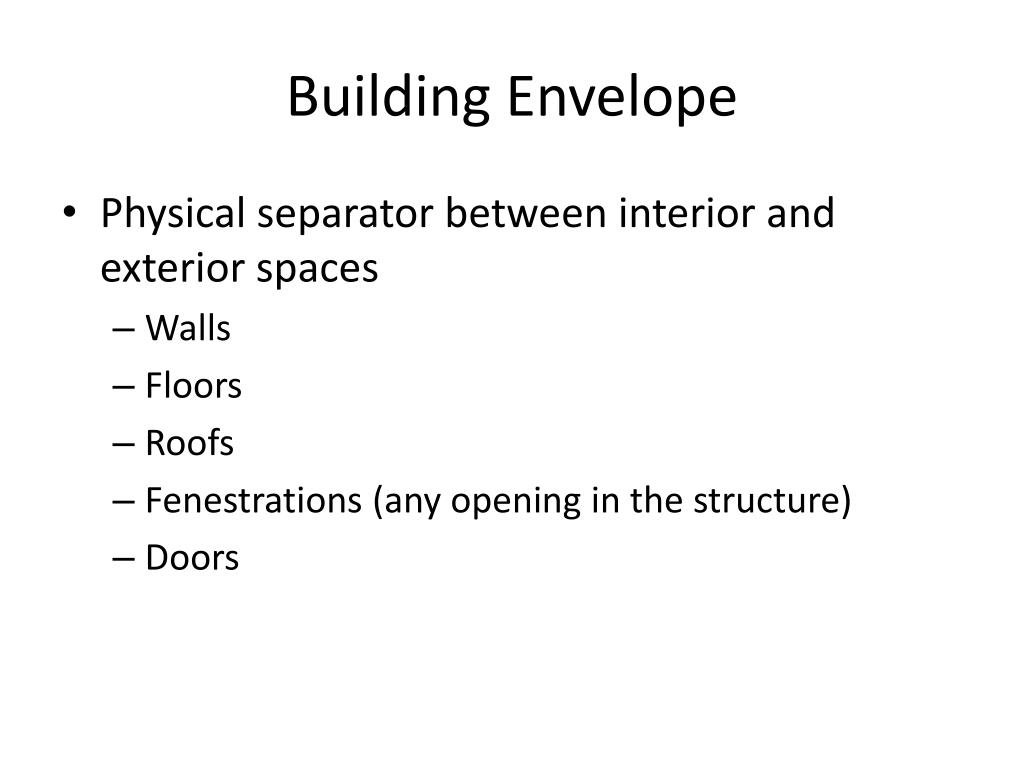

  2. Building Envelope • Physical separator between interior and exterior spaces • Walls • Floors • Roofs • Fenestrations (any opening in the structure) • Doors

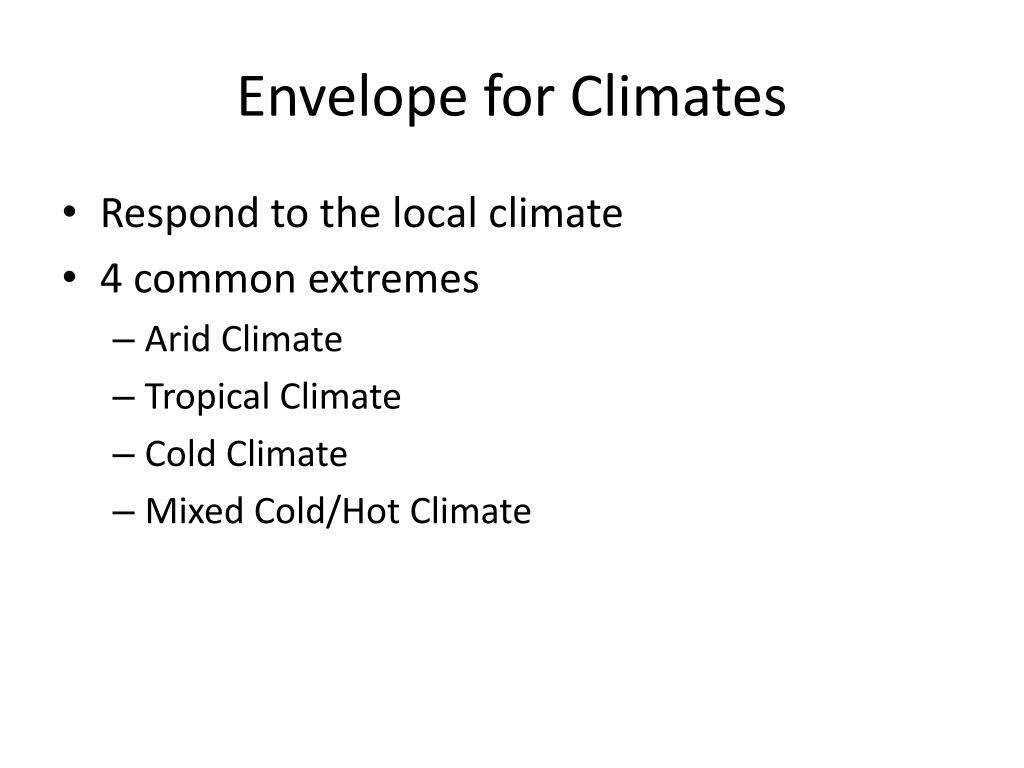

  3. Envelope for Climates • Respond to the local climate • 4 common extremes • Arid Climate • Tropical Climate • Cold Climate • Mixed Cold/Hot Climate

  4. Arid Climate • Dry and hot but have large swings of temp. from the day to night • Thermal mass on the outside is most crucial design strategy to even out temp swings • Consistently hot locations it helps to have high ceilings and shaded breezeways, light colors, daylighting via reflected light (not direct sun) • Courtyards with natural ventilation, pools or fountains can provide evaporative cooling

  5. Arid Climate

  6. Tropical Climate • Hot and humid areas • Keep the heat of the sun off and maximize ventilation, reflective insulated roof with walls that pass breeze but not rain • Light colored

  7. Cold Climate • Maximize insulation, use windows for solar gain on thermal mass inside the envelope • Air tight envelope, avoid infiltration

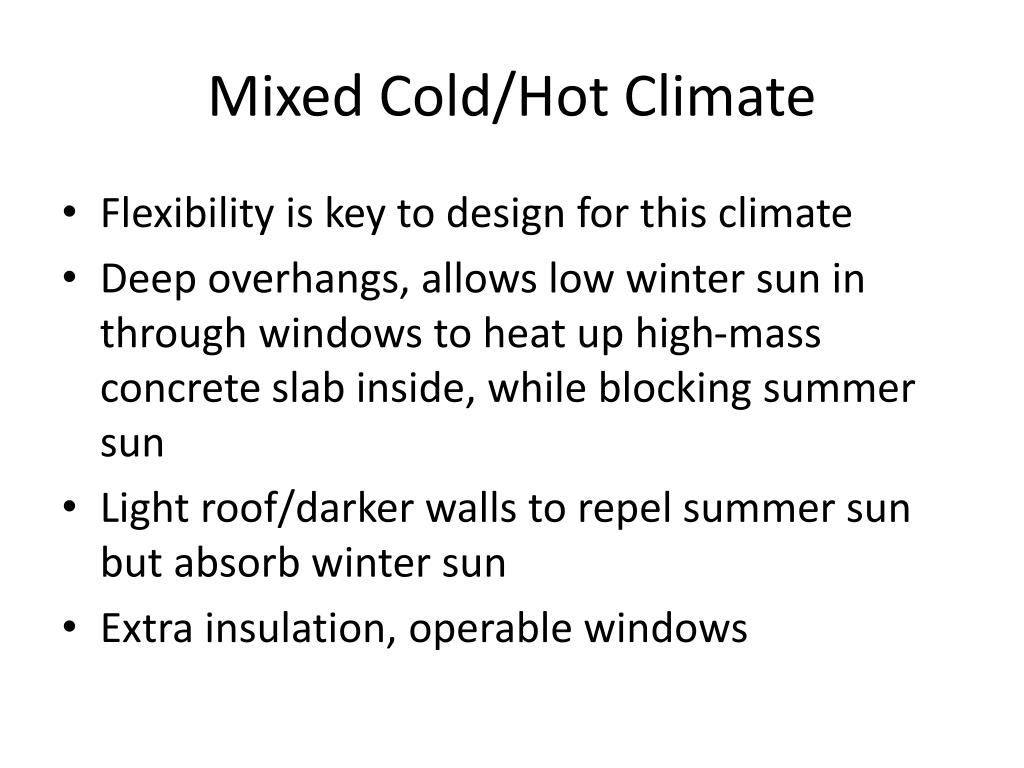

  8. Mixed Cold/Hot Climate • Flexibility is key to design for this climate • Deep overhangs, allows low winter sun in through windows to heat up high-mass concrete slab inside, while blocking summer sun • Light roof/darker walls to repel summer sun but absorb winter sun • Extra insulation, operable windows

  9. Mixed Cold/Hot Climate

  10. Envelope Energy Flow • Envelope is a composition of layers with varying thermal and permeability properties • Composed of membranes, sheets, blocks and preassembled components • Choice is governed by climate • 2 opposite design concepts • Open frame • Closed shell

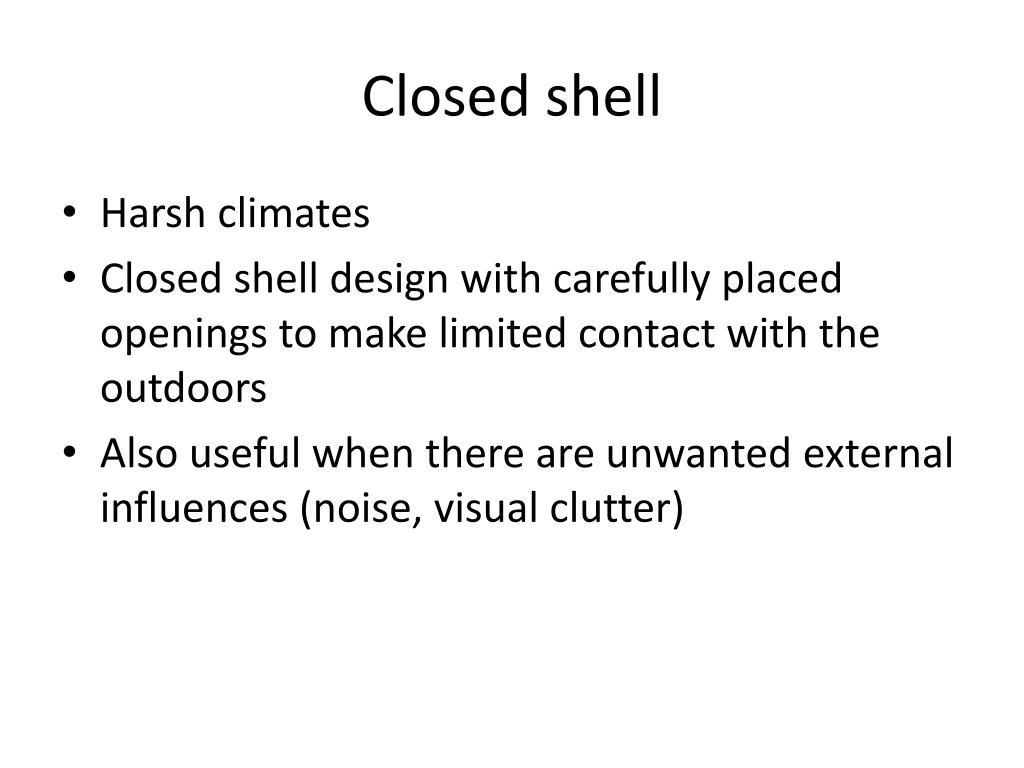

  11. Closed shell • Harsh climates • Closed shell design with carefully placed openings to make limited contact with the outdoors • Also useful when there are unwanted external influences (noise, visual clutter)

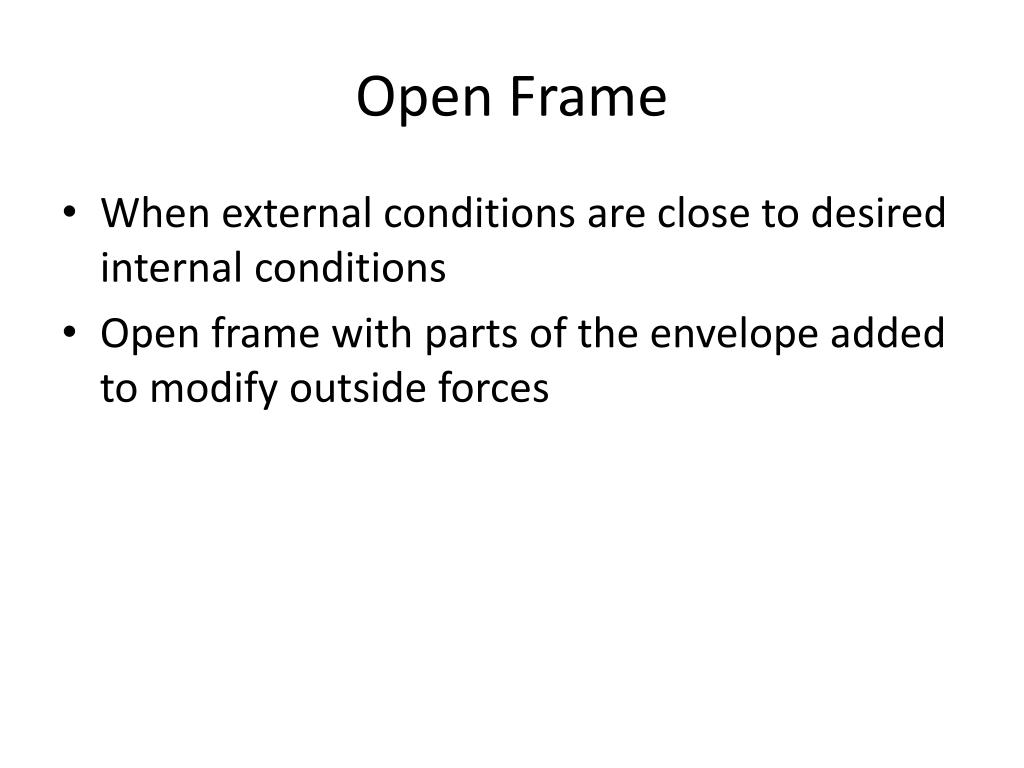

  12. Open Frame • When external conditions are close to desired internal conditions • Open frame with parts of the envelope added to modify outside forces

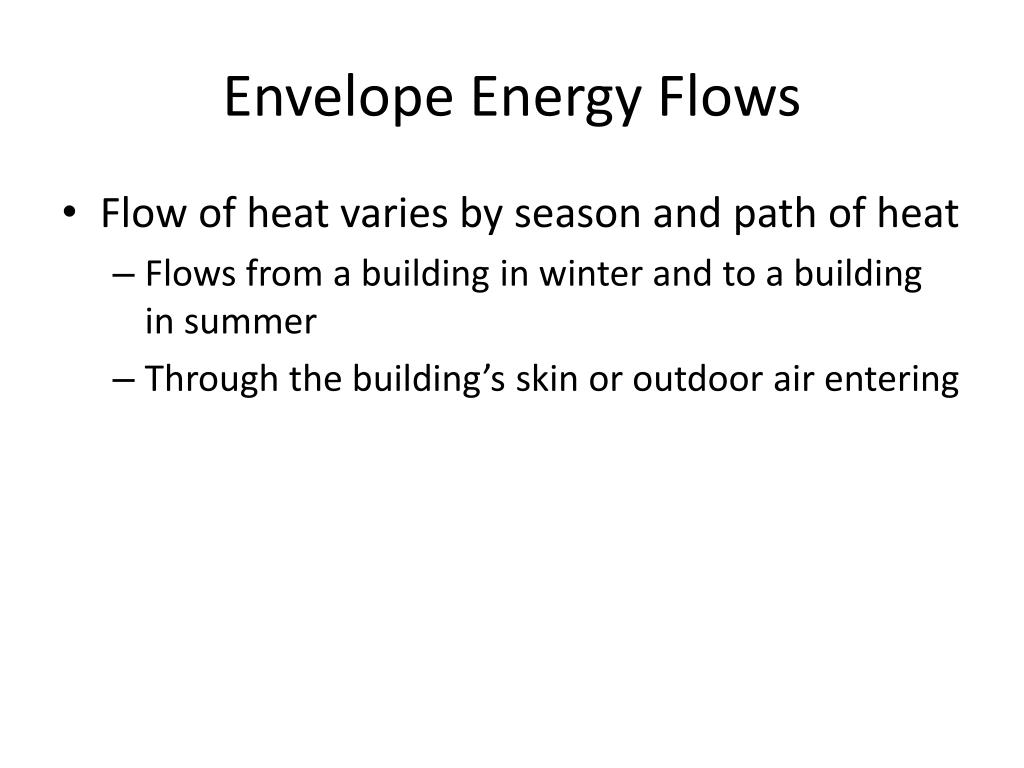

  13. Envelope Energy Flows • Flow of heat varies by season and path of heat • Flows from a building in winter and to a building in summer • Through the building’s skin or outdoor air entering
