Multicasting Across Internet2 from the Edges of the Network

1. Multicasting Across Internet2 from the Edges of the Network Presenters: Dan Cotton, Bob Dixon, Kevin Gamble, Jim Sturm

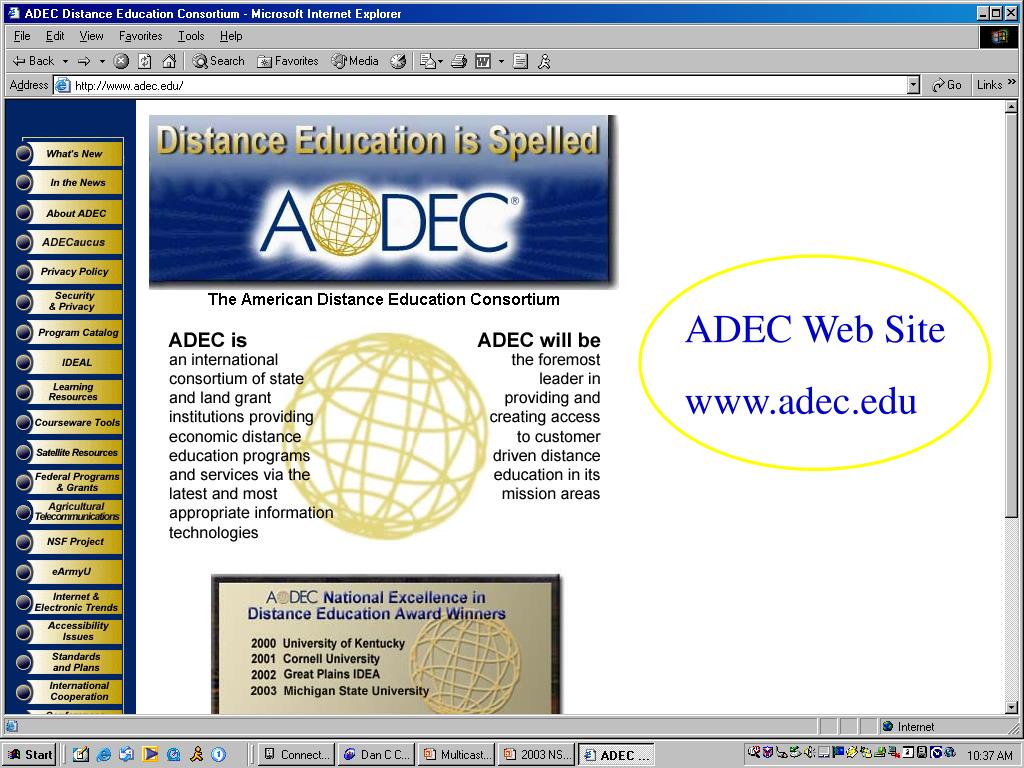

2. ADEC Web Site www.adec.edu

4. Goal: Bring advanced networking applications to geographically remote learners for purposes of research, teaching and extension.

5. Objectives AISEP will: • explore use of satellite to deliver Internet services to determine compatibility of satellite technology with I2 services and applications

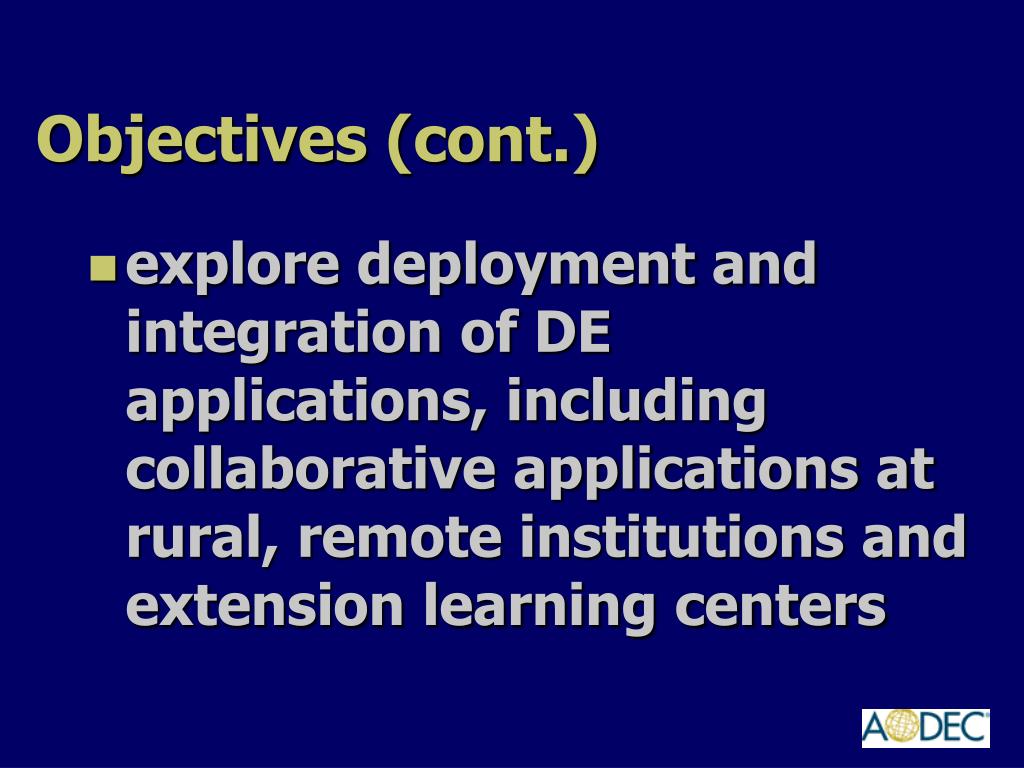

6. Objectives (cont.) • explore deployment and integration of DE applications, including collaborative applications at rural, remote institutions and extension learning centers

7. Research questions • establish standards for "acceptable, application-based Internet" for remote locations • understand how to establish, build and support a satellite-based IP network

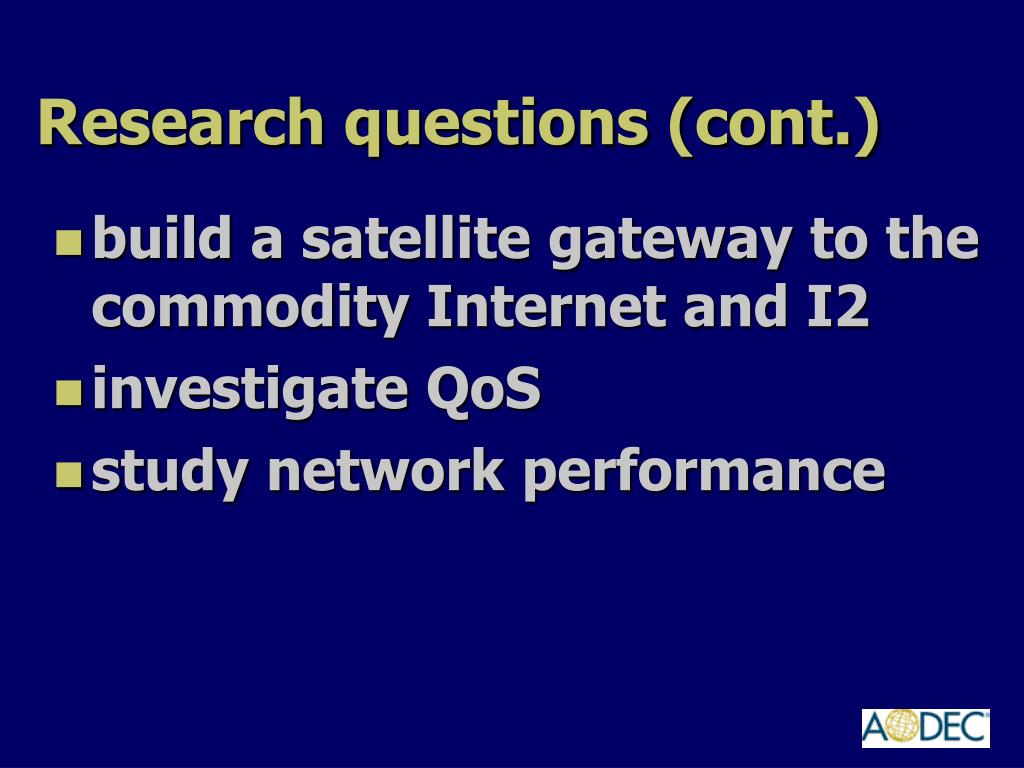

8. Research questions (cont.) • build a satellite gateway to the commodity Internet and I2 • investigate QoS • study network performance

10. Network Map Goes Here

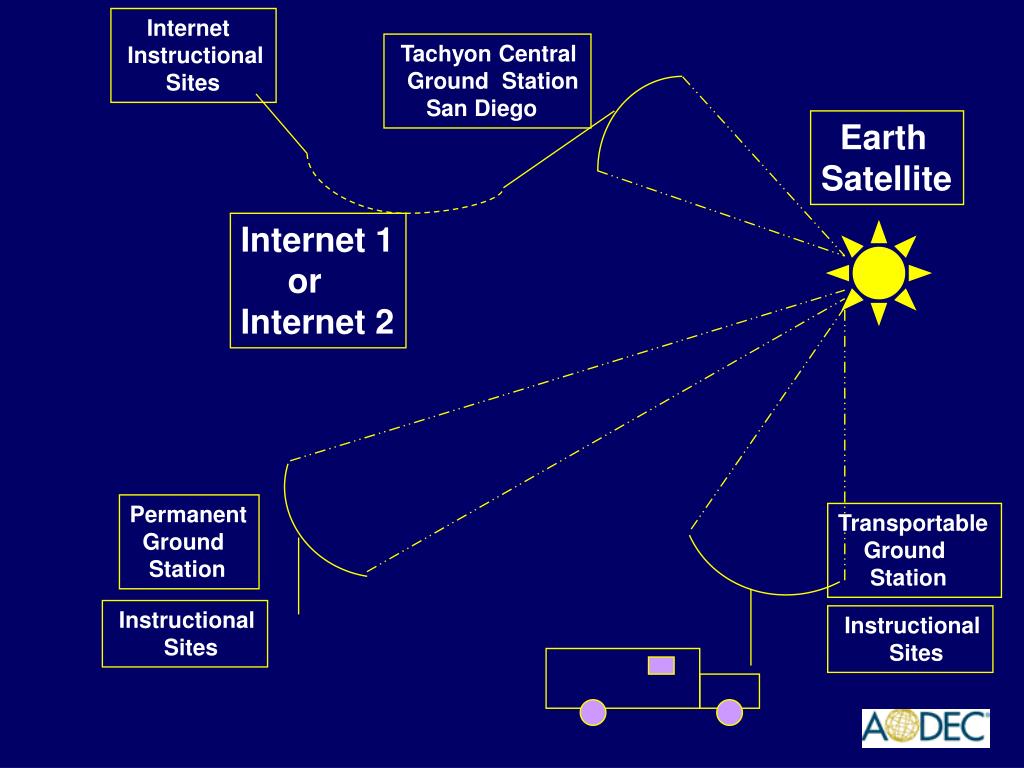

11. Internet Instructional Sites Tachyon Central Ground Station San Diego Earth Satellite Internet 1 or Internet 2 Permanent Ground Station Transportable Ground Station Instructional Sites Instructional Sites

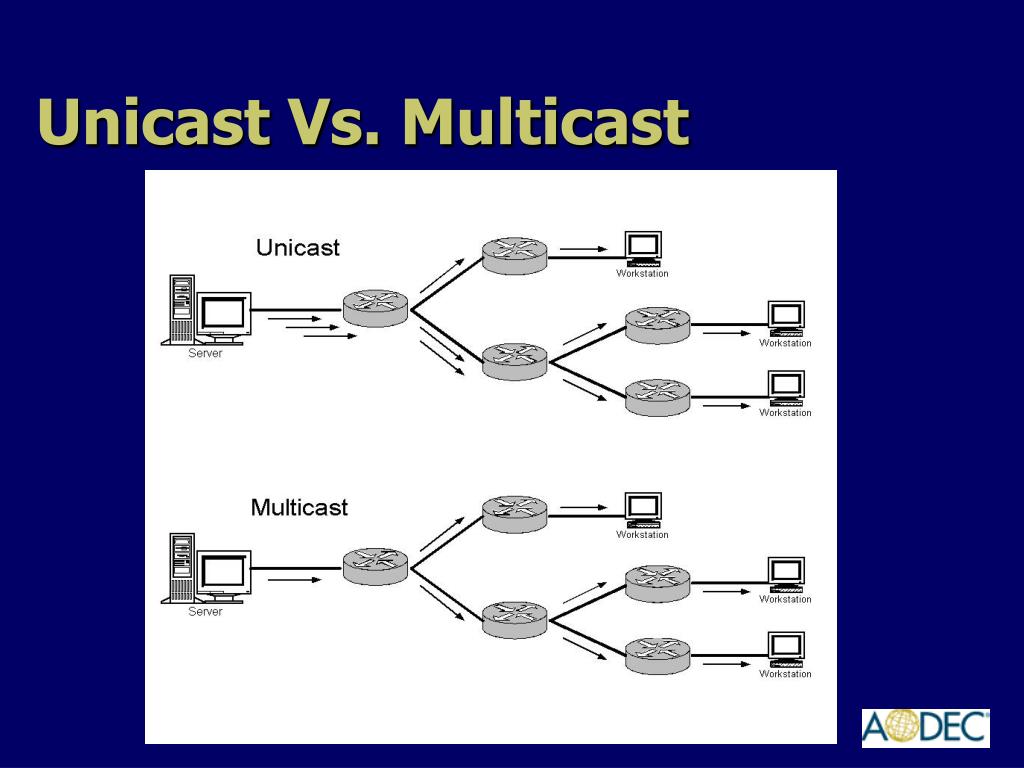

12. Unicast Vs. Multicast

13. Multicast Advantages • Increases network efficiency • Consolidates bandwidth • Reduces server load and cost • It scales

14. Multicast: End-to-End • Internet2 • PIM Sparse Mode versus DVMRP • Iowa State University • Multicast video streaming • ITEC-Ohio • ADEC router configuration • Monitoring • SDSC

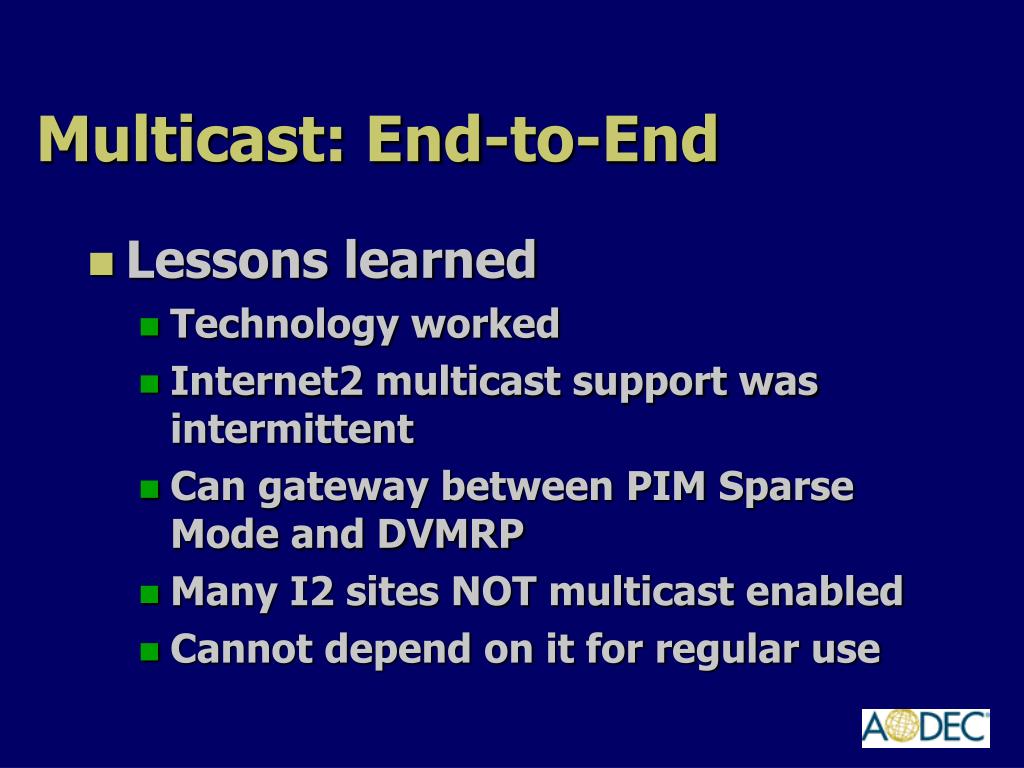

15. Multicast: End-to-End • Lessons learned • Technology worked • Internet2 multicast support was intermittent • Can gateway between PIM Sparse Mode and DVMRP • Many I2 sites NOT multicast enabled • Cannot depend on it for regular use

16. Multicast: Head-end

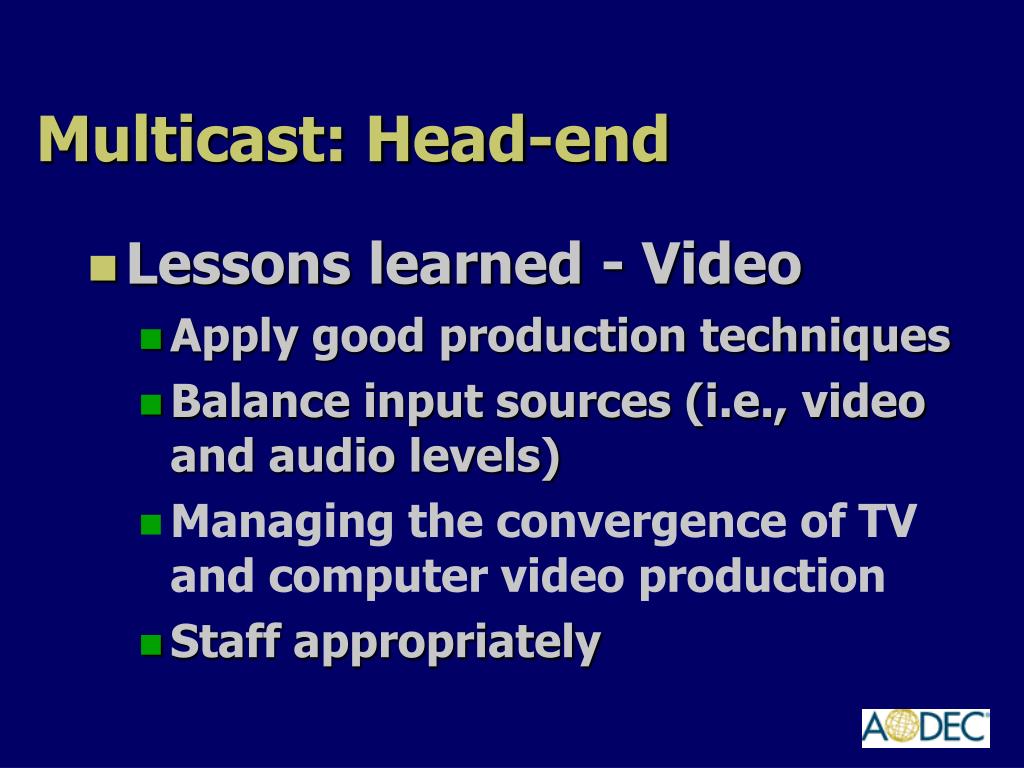

17. Multicast: Head-end • Lessons learned - Video • Apply good production techniques • Balance input sources (i.e., video and audio levels) • Managing the convergence of TV and computer video production • Staff appropriately

18. Multicast: Head-end • Lessons learned - Network • Running Mrouted (i.e., daemon running on local CPE) • Coping with the LAN (i.e. NAT, firewall, filters, etc.) • Educating local sites

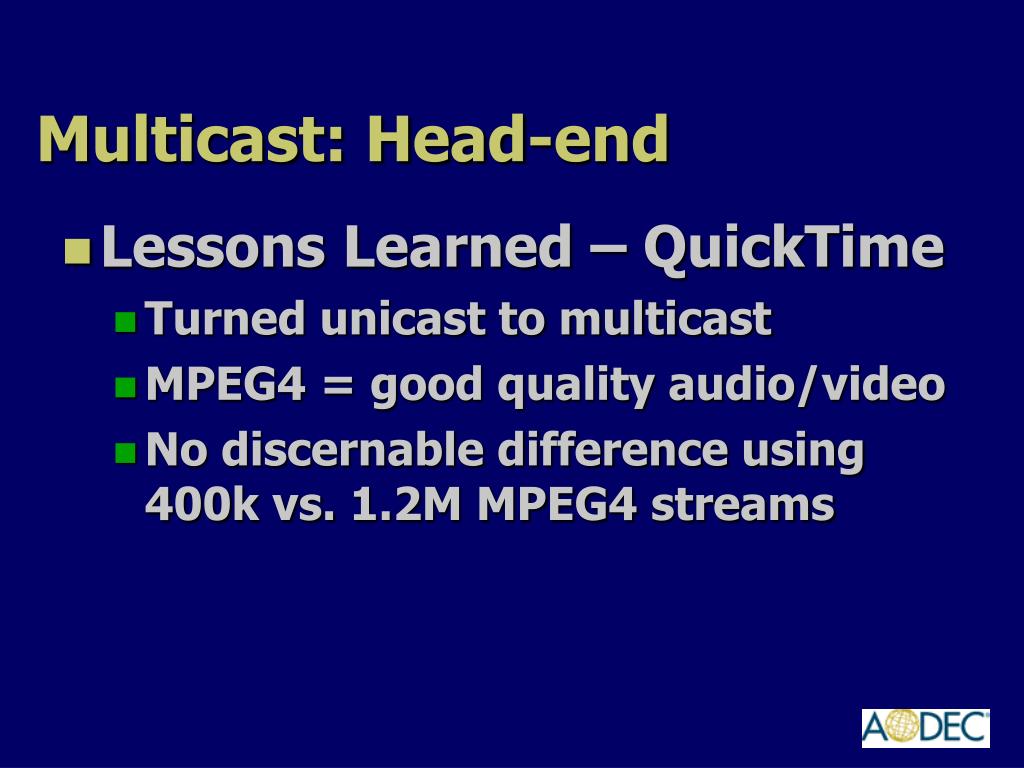

19. Multicast: Head-end • Lessons Learned – QuickTime • Turned unicast to multicast • MPEG4 = good quality audio/video • No discernable difference using 400k vs. 1.2M MPEG4 streams

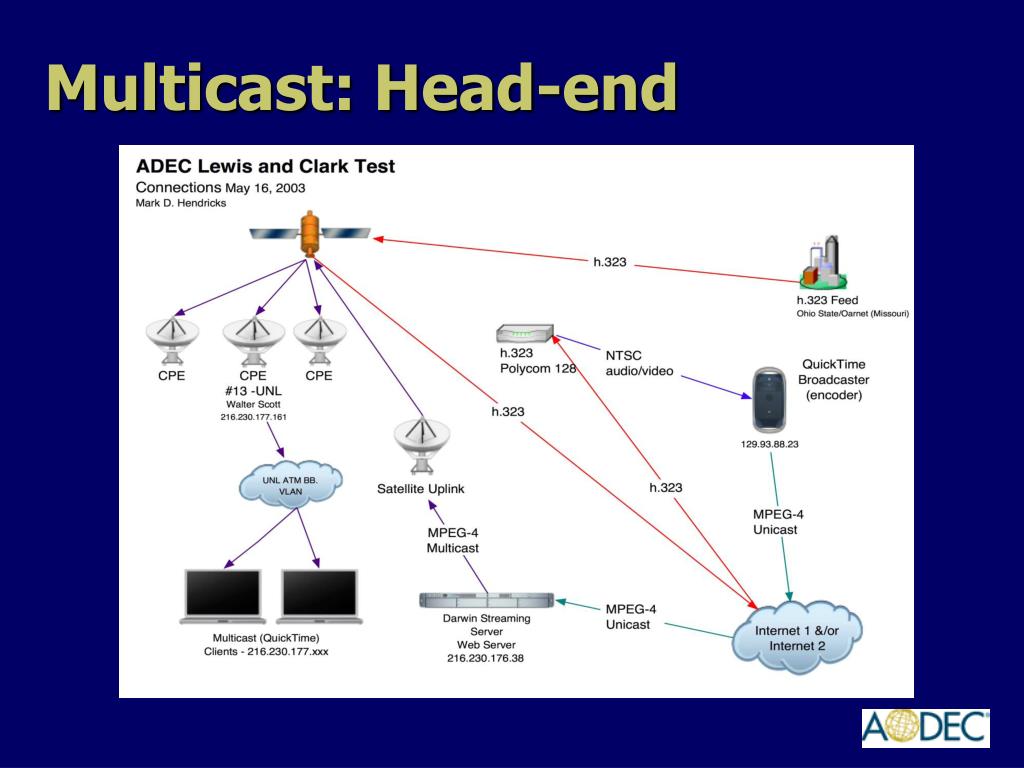

20. Multicast: Head-end

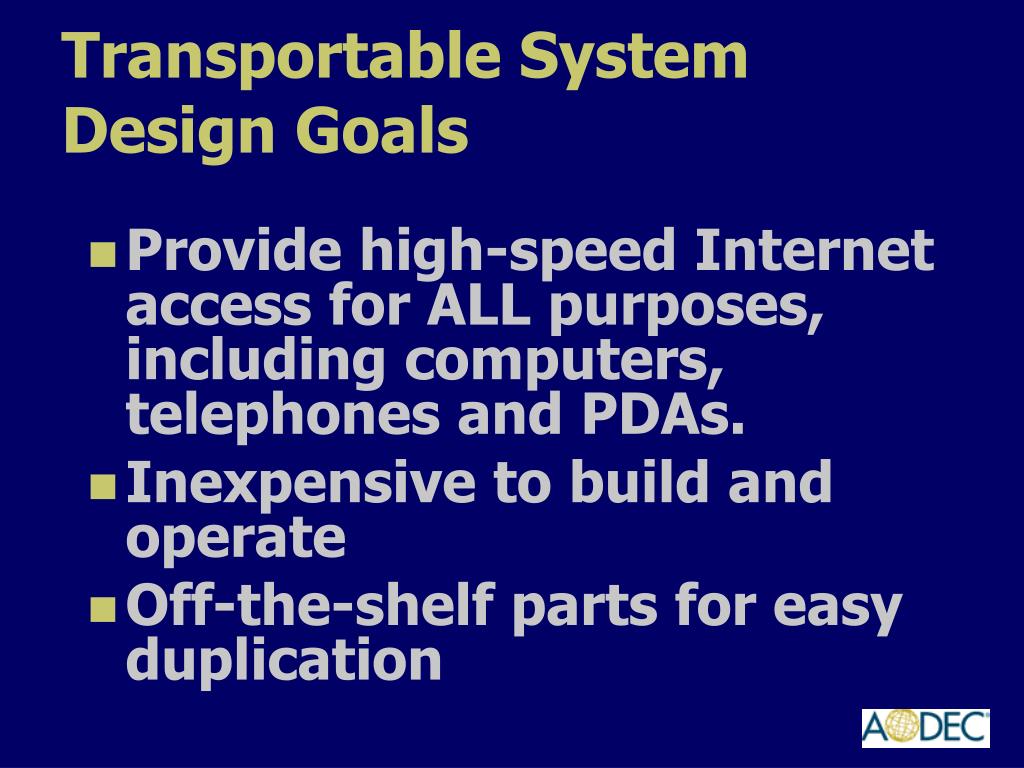

21. Transportable System Design Goals • Provide high-speed Internet access for ALL purposes, including computers, telephones and PDAs. • Inexpensive to build and operate • Off-the-shelf parts for easy duplication

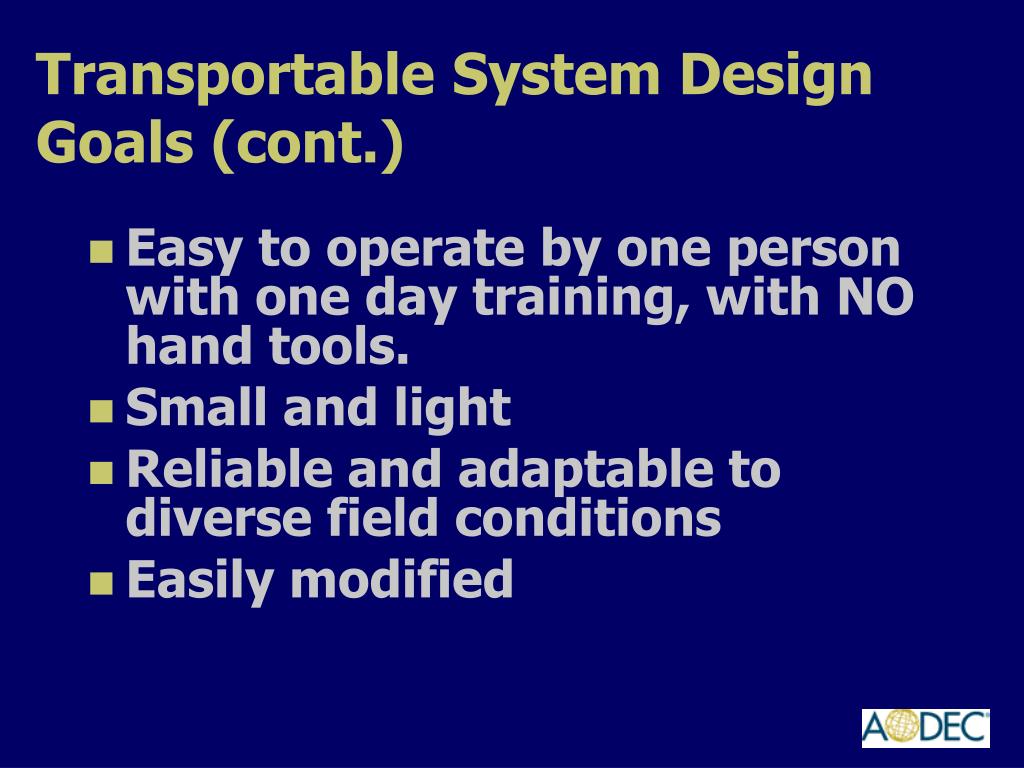

22. Transportable System Design Goals (cont.) • Easy to operate by one person with one day training, with NO hand tools. • Small and light • Reliable and adaptable to diverse field conditions • Easily modified

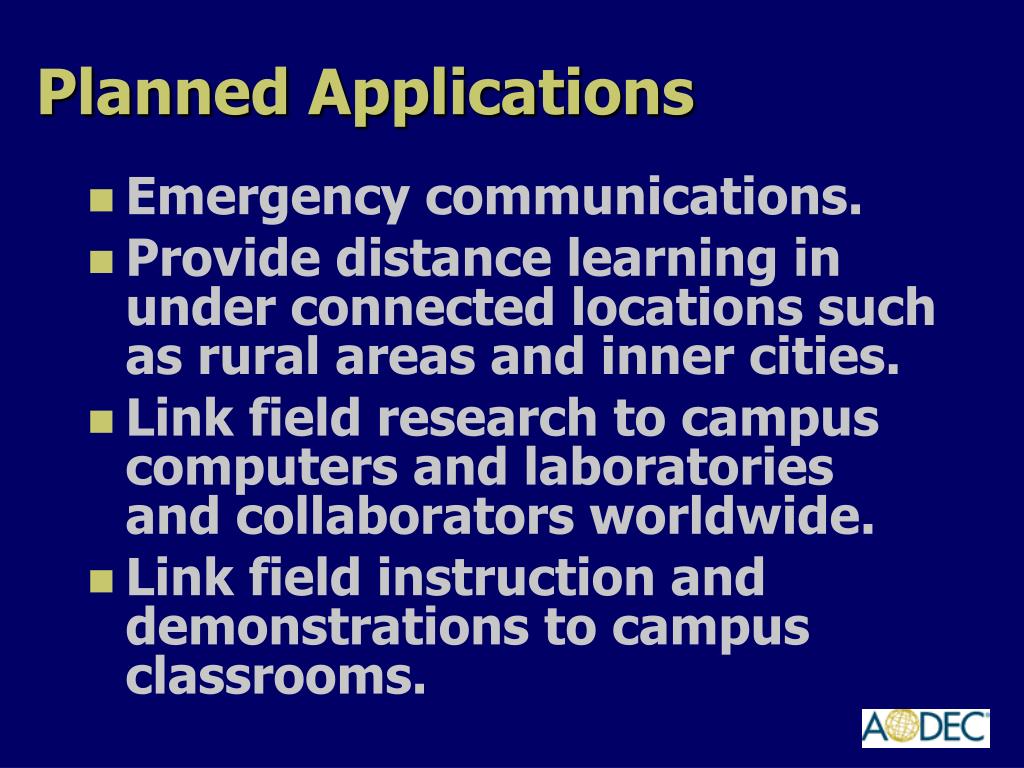

23. Planned Applications • Emergency communications. • Provide distance learning in under connected locations such as rural areas and inner cities. • Link field research to campus computers and laboratories and collaborators worldwide. • Link field instruction and demonstrations to campus classrooms.

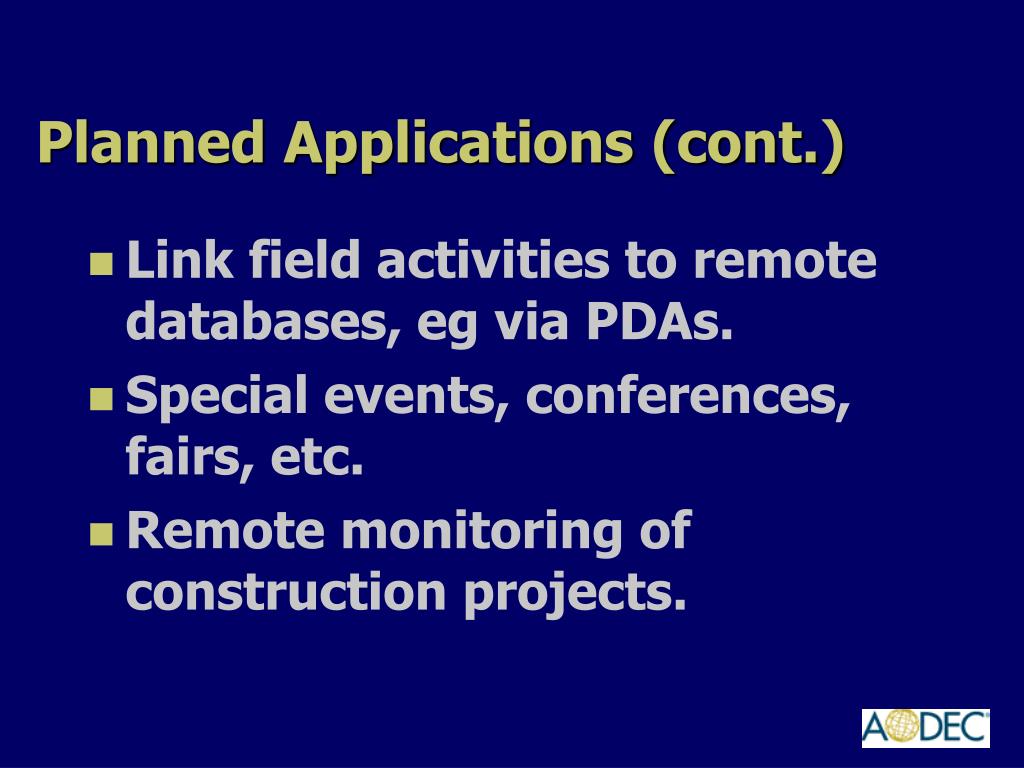

24. Planned Applications (cont.) • Link field activities to remote databases, eg via PDAs. • Special events, conferences, fairs, etc. • Remote monitoring of construction projects.

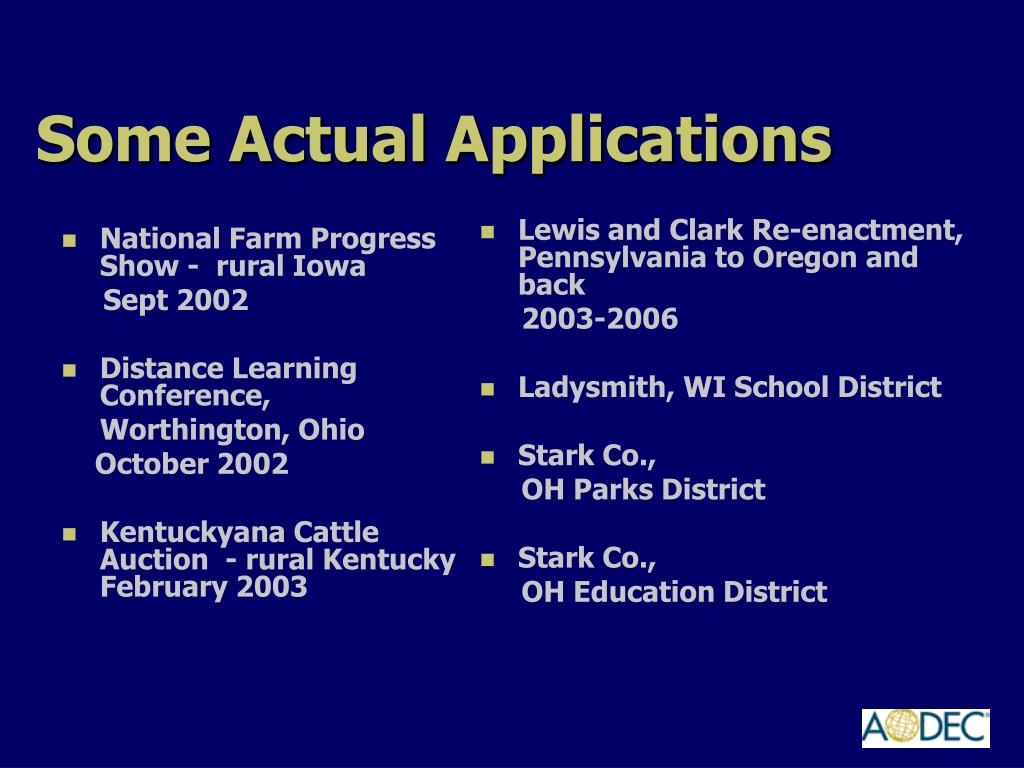

25. National Farm Progress Show - rural Iowa Sept 2002 Distance Learning Conference, Worthington, Ohio October 2002 Kentuckyana Cattle Auction - rural Kentucky February 2003 Lewis and Clark Re-enactment, Pennsylvania to Oregon and back 2003-2006 Ladysmith, WI School District Stark Co., OH Parks District Stark Co., OH Education District Some Actual Applications

26. Ladysmith-Hawkins School DistrictLadysmith, Wisconsinwww.lhsd.k12.wi.us • Students aiding the Wisconsin Department of Natural Resources tracking wolf pack locations. • Involve classroom-based students in analysis of stream quality and release of brown trout. • Virtual field trips to copper mines in Upper Michigan.

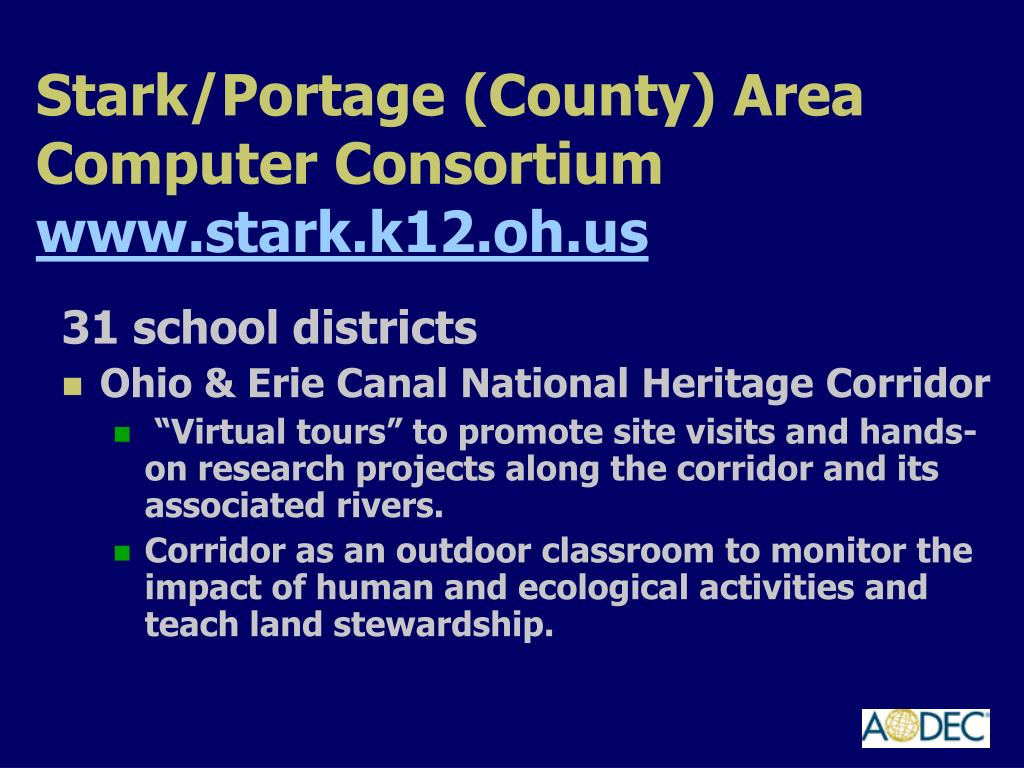

27. Stark/Portage (County) Area Computer Consortiumwww.stark.k12.oh.us 31 school districts • Ohio & Erie Canal National Heritage Corridor • “Virtual tours” to promote site visits and hands-on research projects along the corridor and its associated rivers. • Corridor as an outdoor classroom to monitor the impact of human and ecological activities and teach land stewardship.

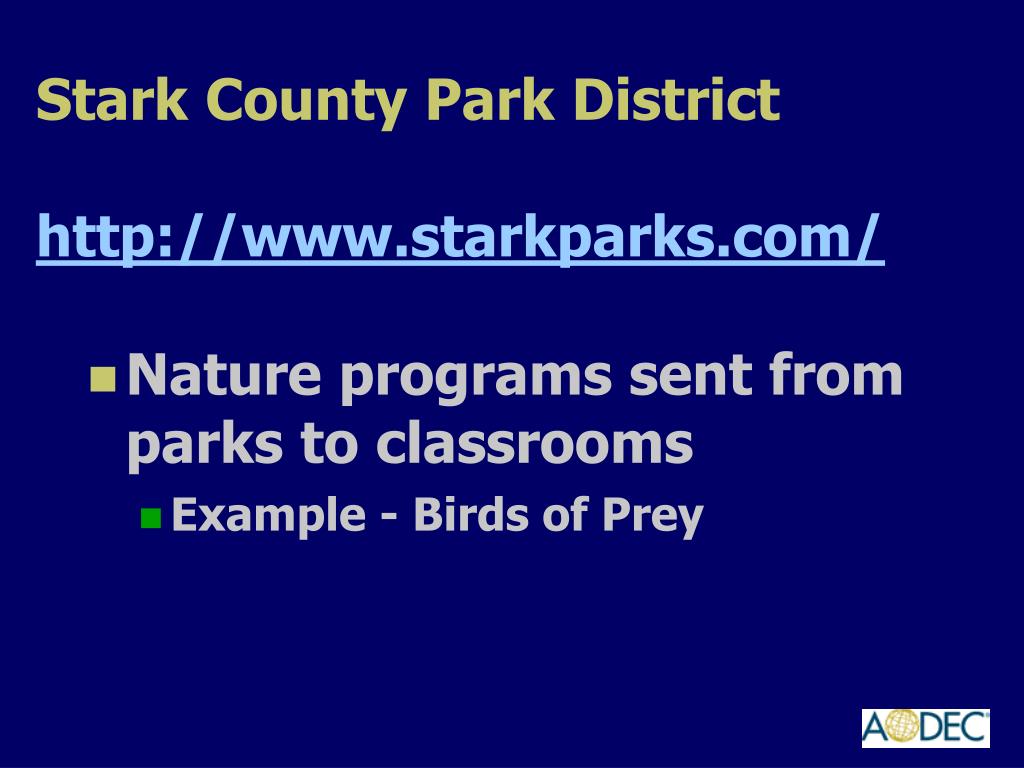

28. Stark County Park Districthttp://www.starkparks.com/ • Nature programs sent from parks to classrooms • Example - Birds of Prey

29. Satellite Trailer Subsystems • Dish and Radio Transceiver • Power • Leveling and Aiming • Heating and Cooling • On-Board Computer • Local Wired and Wireless Connections • Specialized Remote Units • Telephone • Video Broadcasting and Conferencing

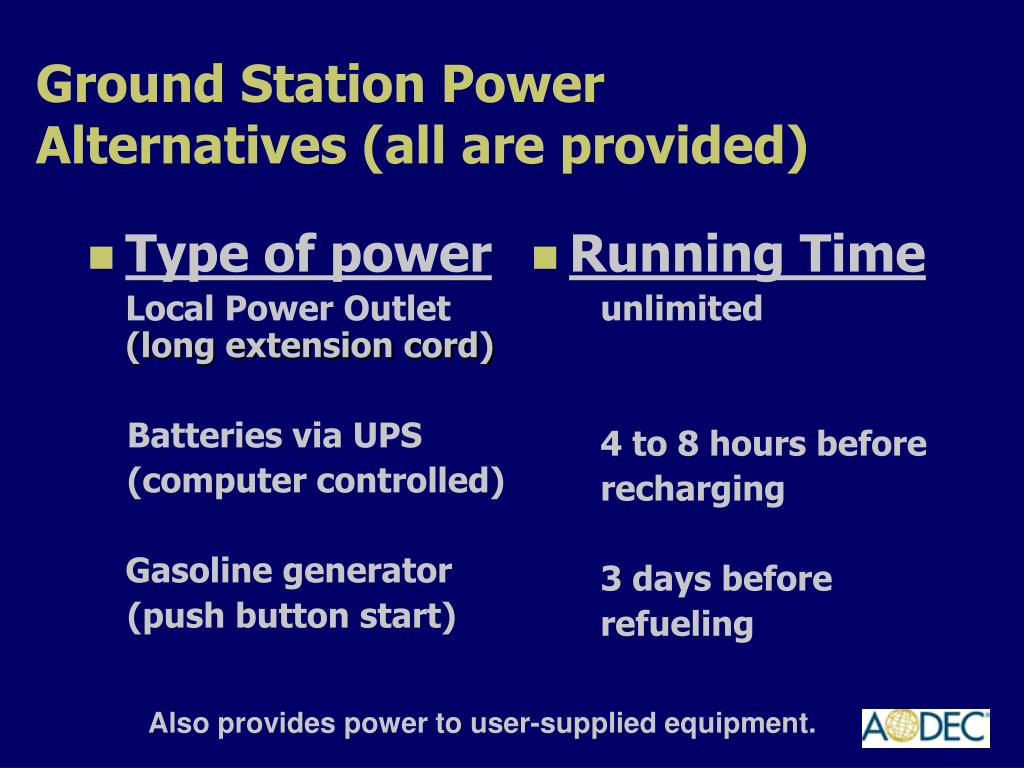

30. Type of power Local Power Outlet (long extension cord) Batteries via UPS (computer controlled) Gasoline generator (push button start) Running Time unlimited 4 to 8 hours before recharging 3 days before refueling Ground Station Power Alternatives (all are provided) Also provides power to user-supplied equipment.

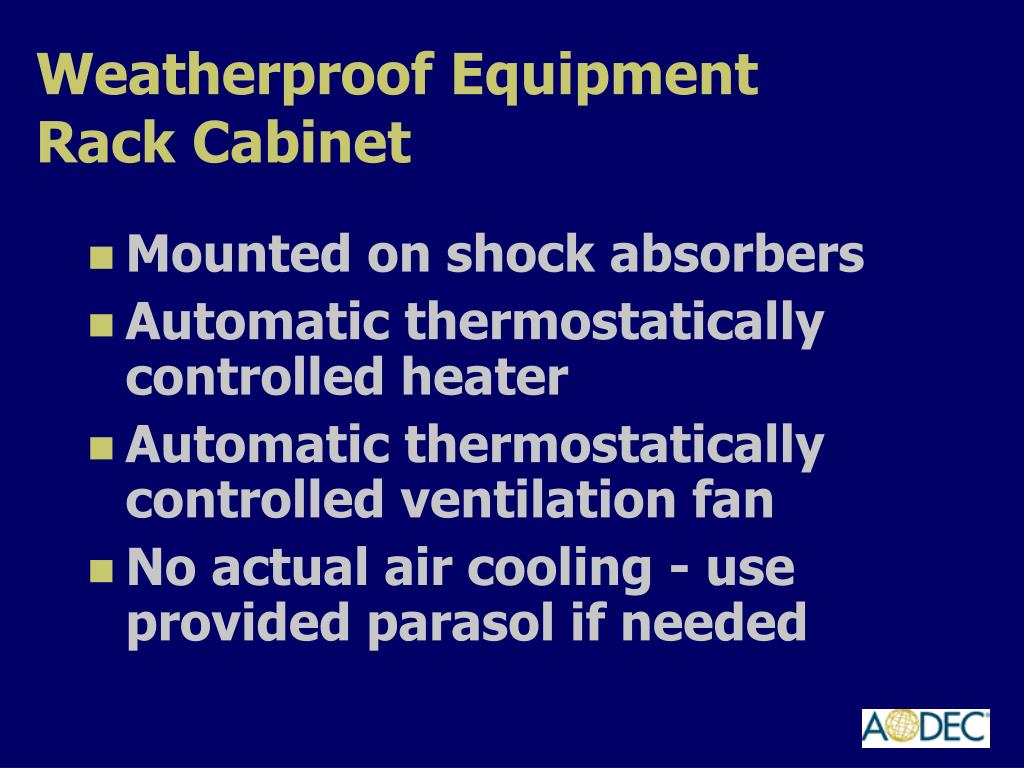

31. Weatherproof Equipment Rack Cabinet • Mounted on shock absorbers • Automatic thermostatically controlled heater • Automatic thermostatically controlled ventilation fan • No actual air cooling - use provided parasol if needed

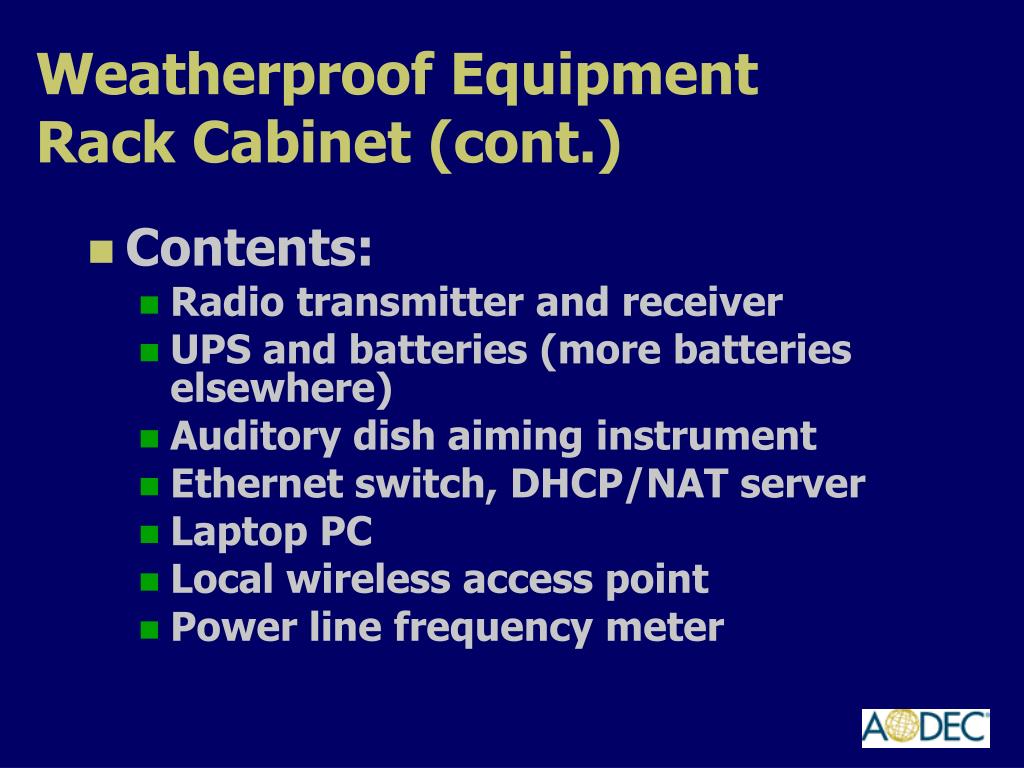

32. Weatherproof Equipment Rack Cabinet (cont.) • Contents: • Radio transmitter and receiver • UPS and batteries (more batteries elsewhere) • Auditory dish aiming instrument • Ethernet switch, DHCP/NAT server • Laptop PC • Local wireless access point • Power line frequency meter

33. Computing System • Laptop PC • Runs 3 special programs: • Satellite aiming • Dish Transceiver control and monitoring • UPS control and battery monitoring

34. Computing System (cont.) • Also supports all Internet access tools such as: • Web browsing • E-mail • H.323 video conferencing • Distance learning tools • Optional encryption

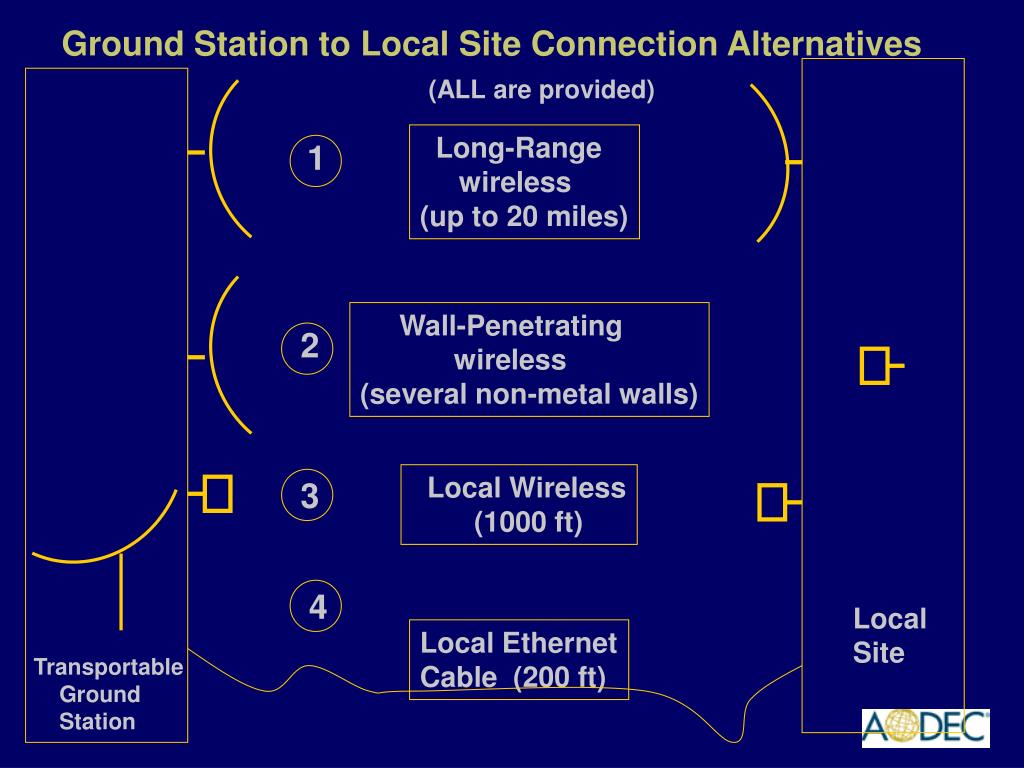

35. Ground Station to Local Site Connection Alternatives (ALL are provided) Long-Range wireless (up to 20 miles) 1 Wall-Penetrating wireless (several non-metal walls) 2 Local Wireless (1000 ft) 3 4 Local Site Local Ethernet Cable (200 ft) Transportable Ground Station

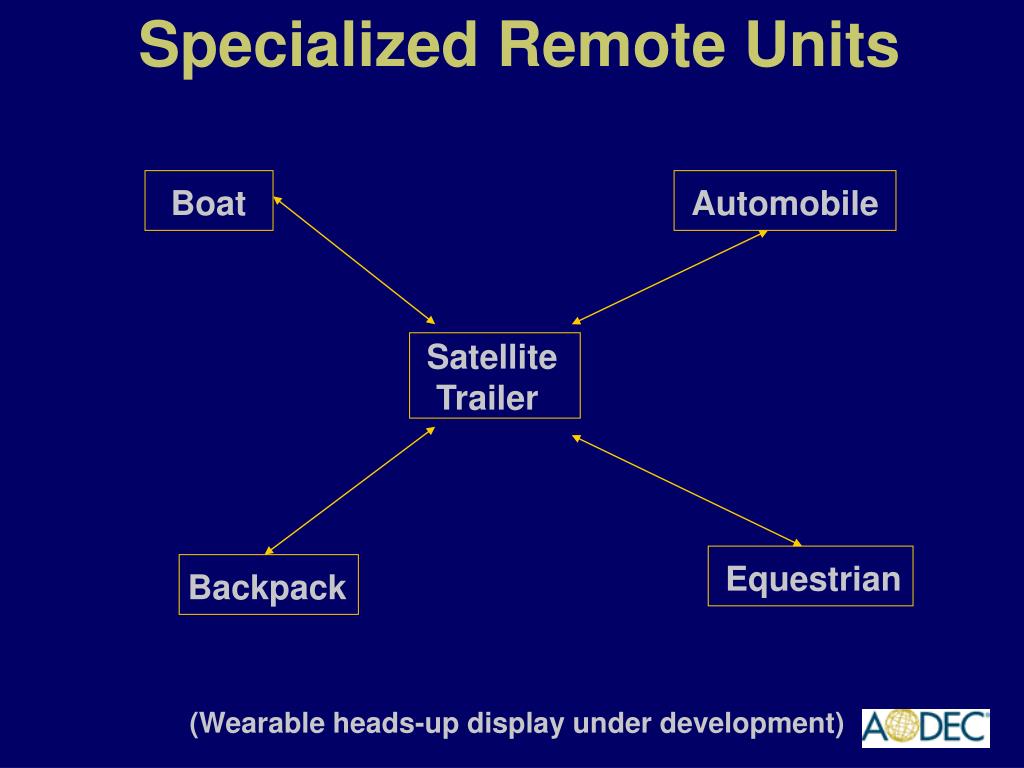

36. Specialized Remote Units Satellite Trailer Boat Automobile Equestrian Backpack (Wearable heads-up display under development)

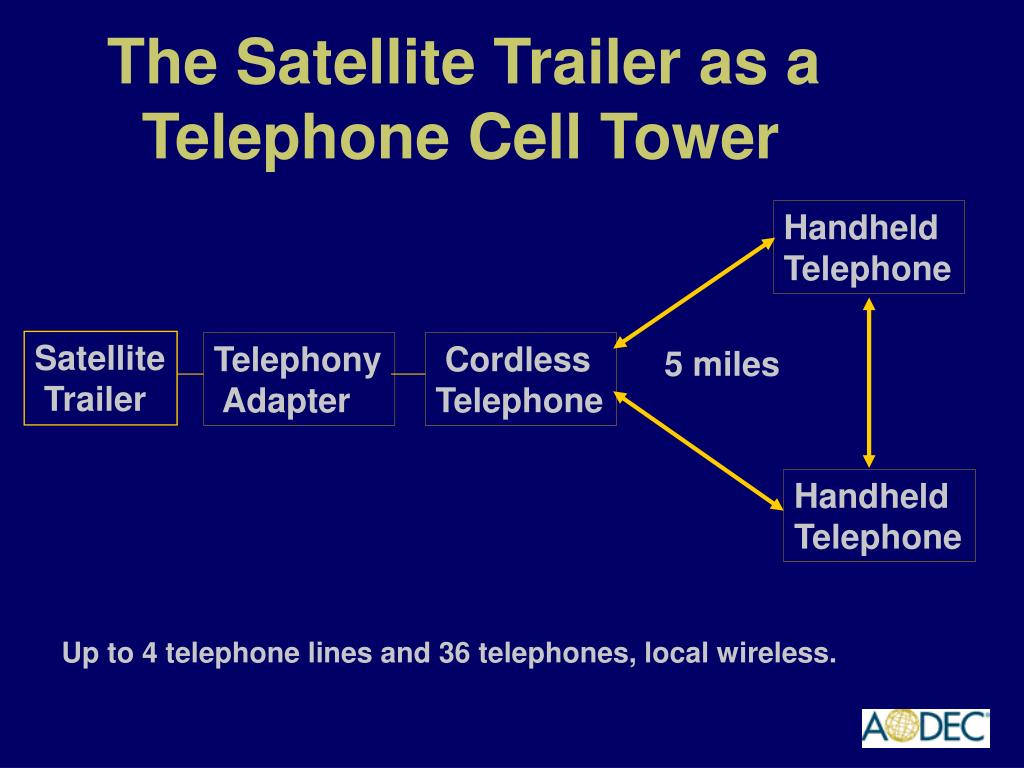

38. The Satellite Trailer as a Telephone Cell Tower Handheld Telephone Satellite Trailer Telephony Adapter Cordless Telephone 5 miles Handheld Telephone Up to 4 telephone lines and 36 telephones, local wireless.

39. Transportable Satellite Internet System

40. Transportable Satellite Internet System

41. Transportable Satellite Internet System

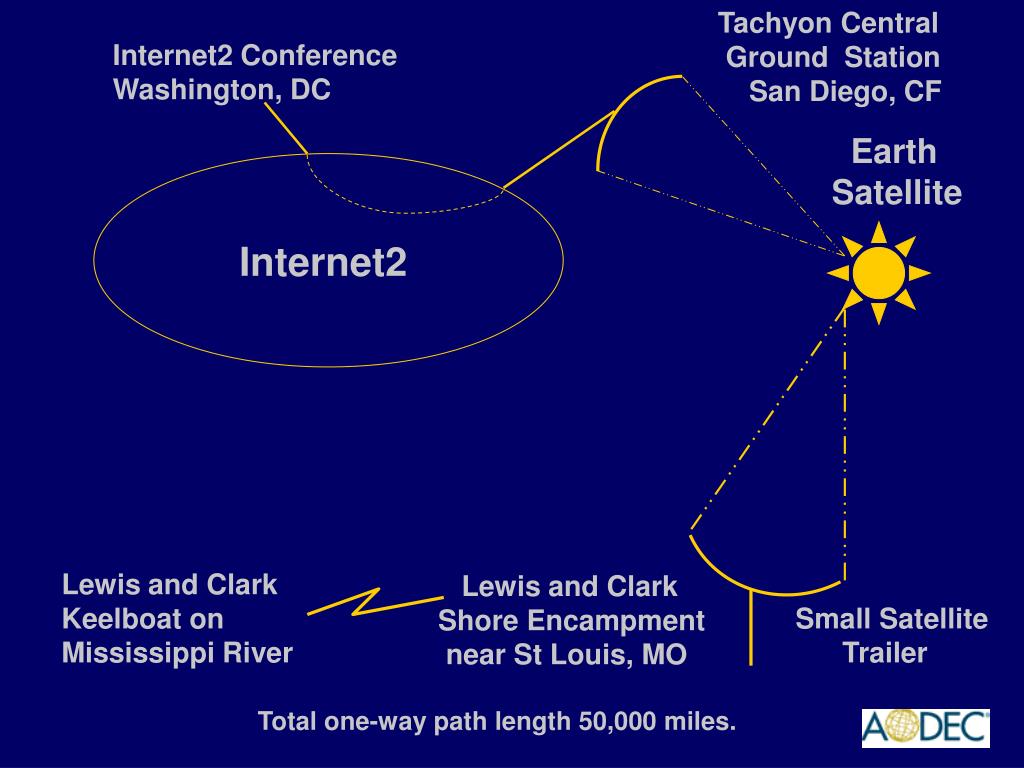

42. Tachyon Central Ground Station San Diego, CF Internet2 Conference Washington, DC Earth Satellite Internet2 Lewis and Clark Keelboat on Mississippi River Lewis and Clark Shore Encampment near St Louis, MO Small Satellite Trailer Total one-way path length 50,000 miles.

43. Lewis and Clark MORENet Apple Research Channel Weekly Educational Broadcasts andConferences Mobile Satellite Link Internet

47. Questions
