  1. Compression for Synthetic Aperture Sonar Signals Thomas Higdon MDDSP Feb. 25, 2008

  2. Outline • What is synthetic aperture sonar? • Why do we need compression? • Some current research • Prospective research directions

  3. What is synthetic aperture processing? • Collect sensor data at a series of physical locations. • Aggregate the data and process it to form an image.

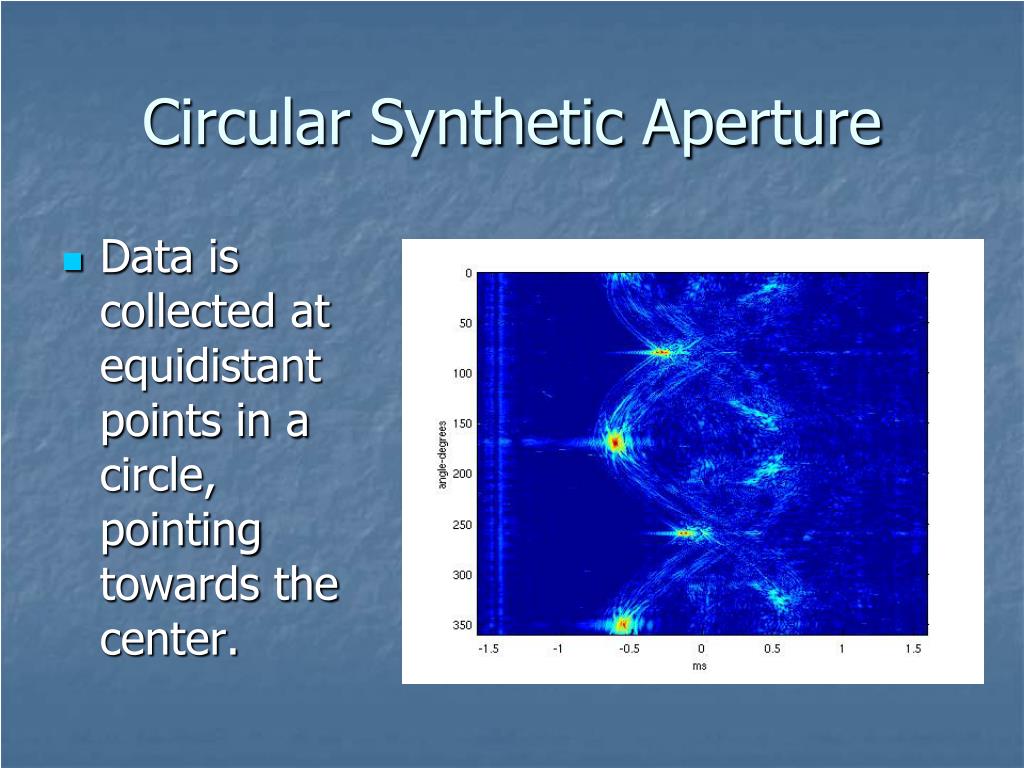

  4. Circular Synthetic Aperture • Data is collected at equidistant points in a circle, pointing towards the center.

  5. Projection-Slice Theorem • The Fourier transform of a projection is a slice of the 2D Fourier transform.

  6. Image Formation • Project the image to polar coordinates and then inverse 2D FFT to yield the object’s image.

  7. Why compression is needed • Data for a typical sonar array might arrive at many gigabytes/sec. • Storage on autonomous vehicles is limited. • Compression might allow data to be reasonably transmitted via underwater communication links.

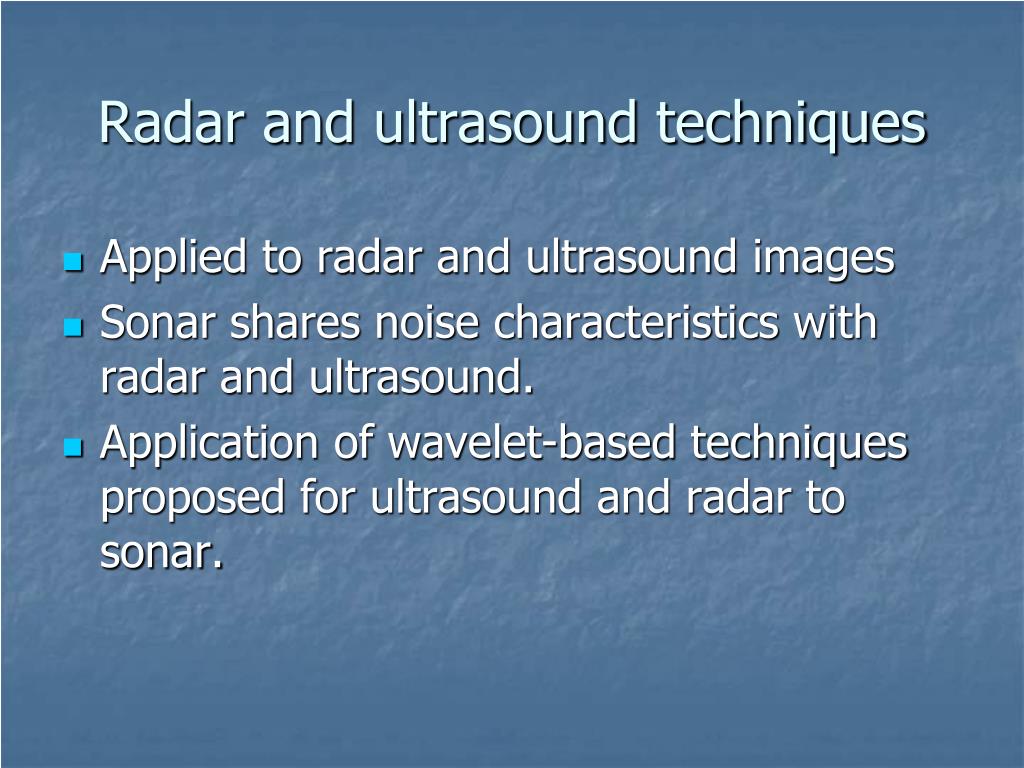

  8. Radar and ultrasound techniques • Applied to radar and ultrasound images • Sonar shares noise characteristics with radar and ultrasound. • Application of wavelet-based techniques proposed for ultrasound and radar to sonar.

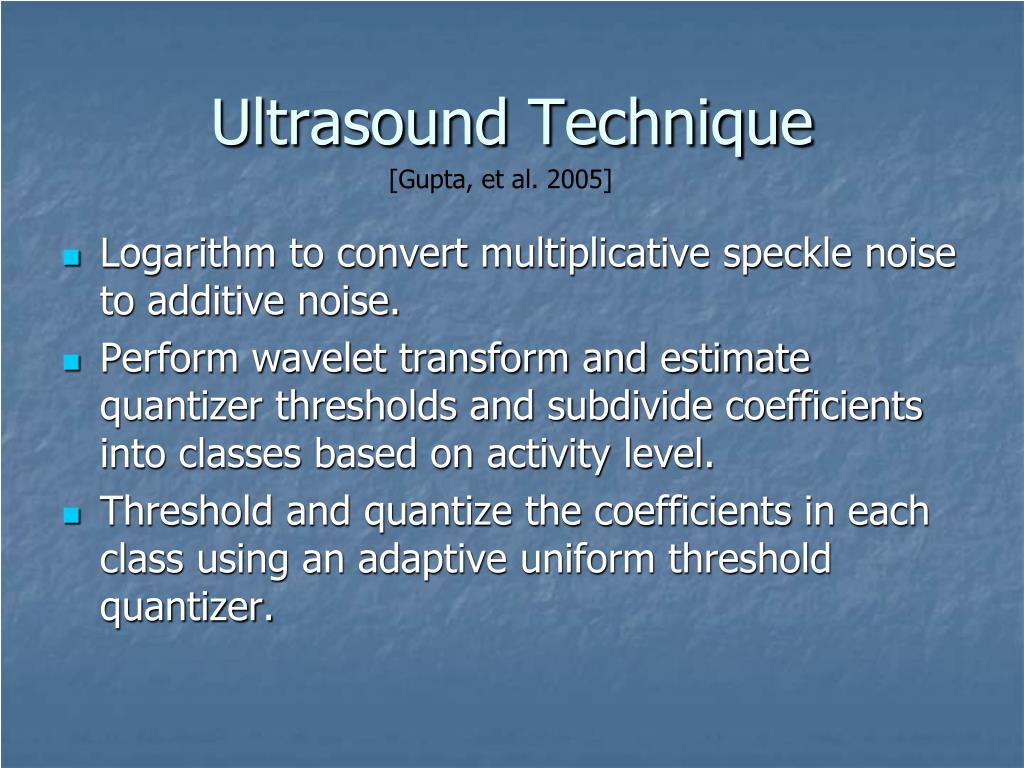

  9. Ultrasound Technique [Gupta, et al. 2005] • Logarithm to convert multiplicative speckle noise to additive noise. • Perform wavelet transform and estimate quantizer thresholds and subdivide coefficients into classes based on activity level. • Threshold and quantize the coefficients in each class using an adaptive uniform threshold quantizer.

  10. Results – 40:1 compression

  11. Image Processing • The reduction of noise that does not contain image information will allow more efficient compression. • Conversion to log space to allow reduction of multiplicative noise.

  12. Compression Techniques • The performance of DCT (JPEG-style) and wavelet-based compression will be investigated. • Correlation of images received by different sensors

  13. Image Assessment • Evaluation of the performance of different techniques requires a metric. • Sonar images typically processed by human operators and/or object-detection algorithms. • PSNR will be used to evaluate the mean squared difference between the compressed and uncompressed images.

  14. Questions
