Exploring Design Space for 3D Clustered Architectures

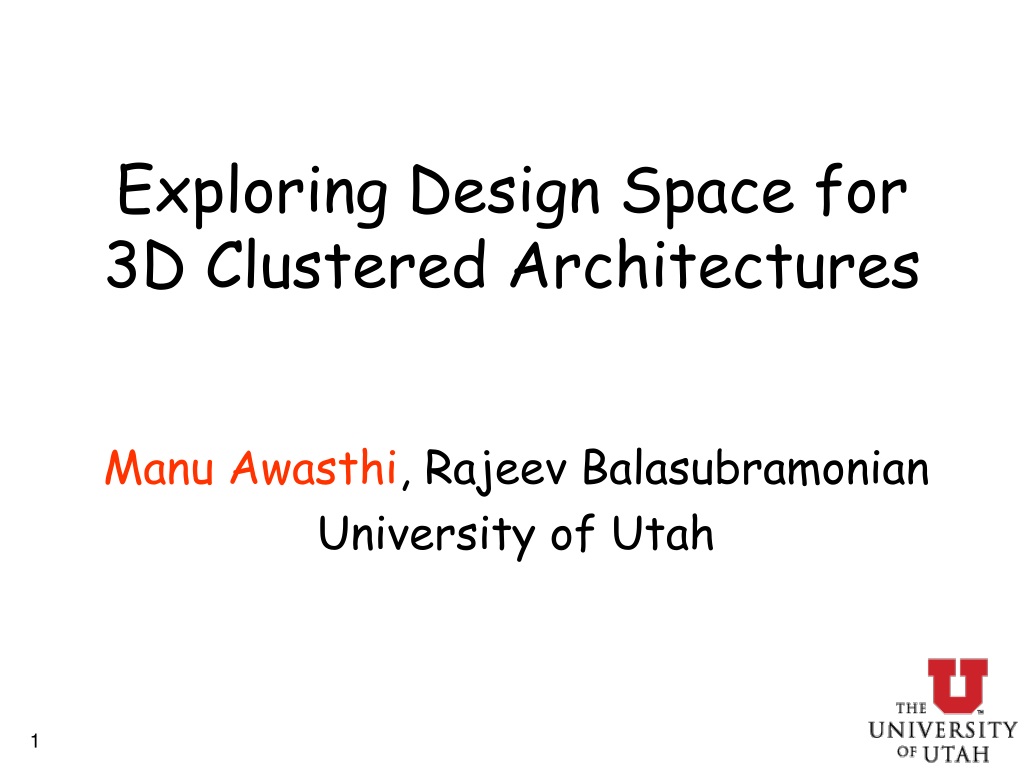

1. Exploring Design Space for 3D Clustered Architectures Manu Awasthi, Rajeev Balasubramonian University of Utah

2. Layer 2 Device Layer 2 Layer 1 Vertical Interconnect 1 Device Layer Silicon Silicon 3D Technologies Very Small ~ 10µm • Multiple layers of active devices • Vertical interconnects between layers 3D Chip 2D Chip 1 Courtesy: K.Bernstein, IBM

3. Benefits of 3D • Reduction of global interconnect L L • Delay/Power reduction • Bandwidth • Mix-technology integration

4. Previous Proposals All are active HEAT!!! • Previously in 3D… • Break and stack (Folding) [Puttaswamy et al] • Vertical stacking of active devices Reduced Intra-block latency RegFile Break and Stack

5. An alternative approach? Die 1 3D Chip 2D Chip Die 0 • Prudent Stacking Can: • Improve Performance • Result in better thermal profile

6. Wire Delays and Performance

7. Clustered Architectures • Centralized front-end • I-Cache & D-Cache • LSQ, Rename, Decode • Branch Predictor • Clustered back-end • Issue Queue • Regfile, FUs L1 D Cache Cluster Front- End Higher clock Frequency, High ILP!! Crossbar/Router

8. Decentralized Cache Banks L1 D Cache L1 D Cache L1 D Cache Possibly better performance

9. Decentralized Cache Banks L1 D Cache L1 D Cache L1 D Cache Replicated Cache Banks

10. Decentralized Cache Banks Odd Words Even Words L1 D Cache L1 D Cache Word Interleaved Cache Banks

11. Outline • Introduction • Motivation • 3D Architectures • Clustered Architectures • Proposals • Results • Conclusions

12. Architecture 1 Die 1 Intra Die Interconnect Inter Die Interconnect Die 0 Cache-on-cluster Cluster Cache Bank

13. Architecture 2 Die 1 Intra Die Interconnect Inter Die Interconnect Die 0 Cluster-on-cluster Cluster Cache Bank

14. Architecture 3 Die 1 Intra Die Interconnect Inter Die Interconnect Die 0 Staggered Cluster Cache Bank

15. Outline • Introduction • Motivation • 3D Architectures • Clustered Architectures • Proposals • Results • Conclusions

16. Experimental Setup • Framework • Simplescalar, Wattch and Hotspot 3.0 • Wire model : 8x global metal plane • Benchmarks • SPEC 2K, single threaded • Processor Configuration • 8 Clusters • 64 kB L1 I/D Caches, 2 way set-assoc • L1 Data cache Word-Interleaved or Replicated • 2D Centralized Cache – Base Case

17. Base Case Performances Best Case 2D Config

18. The 3D Effect 3D Replicated vs 2D Centralized

19. The 3D Effect 3D WI vs 2D Centralized

20. Comparisons Best Case 2D Best Case 3D - Rep Best Case 3D - WI 2D Case 3D Replicated 3D WI 12% Improvement for best case 3D vs best case 2D

21. Thermal Analysis • Wattch for power numbers • HotSpot 3.0 for thermal model (grid) • 500x500 grid resolution • Interconnect power modeling • Attributed to functional units • 8X plane wires • Router + Crossbar modeled as separate entity

22. Thermal Profiles Peak Temperature : Hottest on-chip Unit (Celsius)

23. Outline • Introduction • Motivation • 3D Architectures • Clustered Architectures • Proposals • Results • Conclusions

24. Conclusions • Wire delays are critical to performance • Some are more important than others. • Prudent block stacking • Performance improvement upto 12% over 2D • WI banks + Arch 3 (3D) • Better thermal profiles compared to folding

25. Backup Slides

26. 4 Cluster Arrangements Cluster Cache bank Intra-die horizontal wire Inter-die vertical wire Die 1 Die 0 (a) Arch-1 (cache-on-cluster) (b) Arch-2 (cluster on cluster) (c) Arch-3 (staggered)
