1. Integer to ASCII string

1. Integer to ASCII string. For example, if $a0 = 0000002A, which is 101010 two =42 ten , then $a1 = 00003234 addi $t0, $zero, 10 div $a0, $t0 # $a0/10 mflo $a1 # $a1 = quotient addi $a1, $a1, 0x30 # convert to ASCII mfhi $t0 # $t0 = remainder

holden
Télécharger la présentation

1. Integer to ASCII string

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

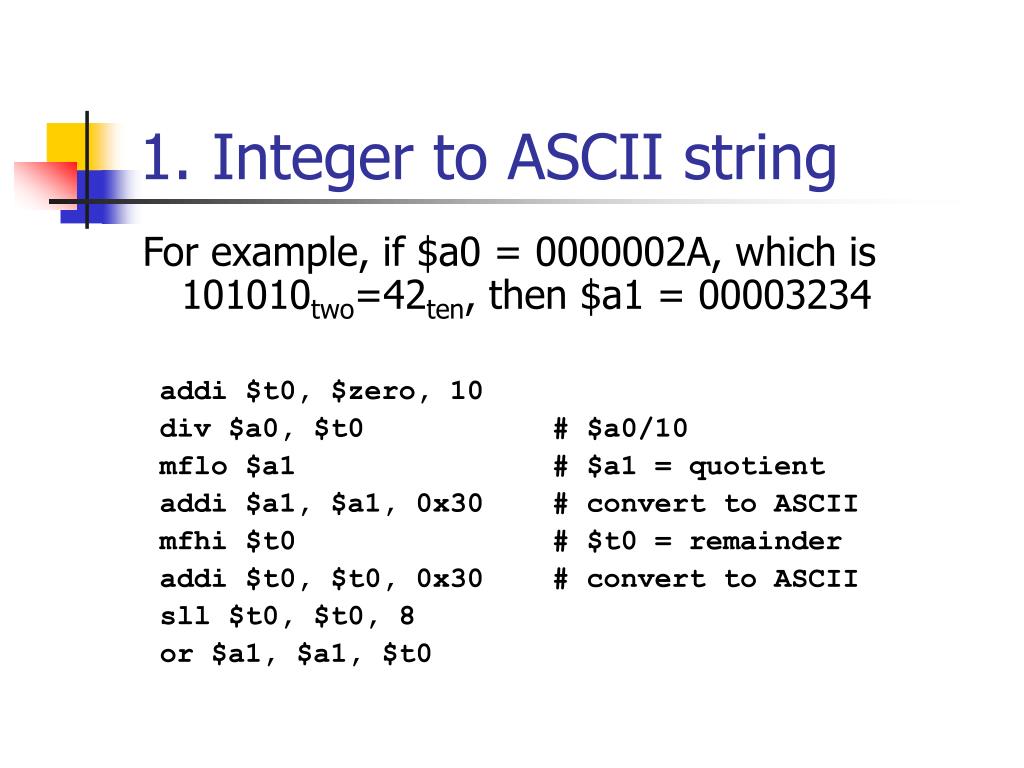

  1. 1. Integer to ASCII string For example, if $a0 = 0000002A, which is 101010two=42ten, then $a1 = 00003234 addi $t0, $zero, 10 div $a0, $t0 # $a0/10 mflo $a1 # $a1 = quotient addi $a1, $a1, 0x30 # convert to ASCII mfhi $t0 # $t0 = remainder addi $t0, $t0, 0x30 # convert to ASCII sll $t0, $t0, 8 or $a1, $a1, $t0

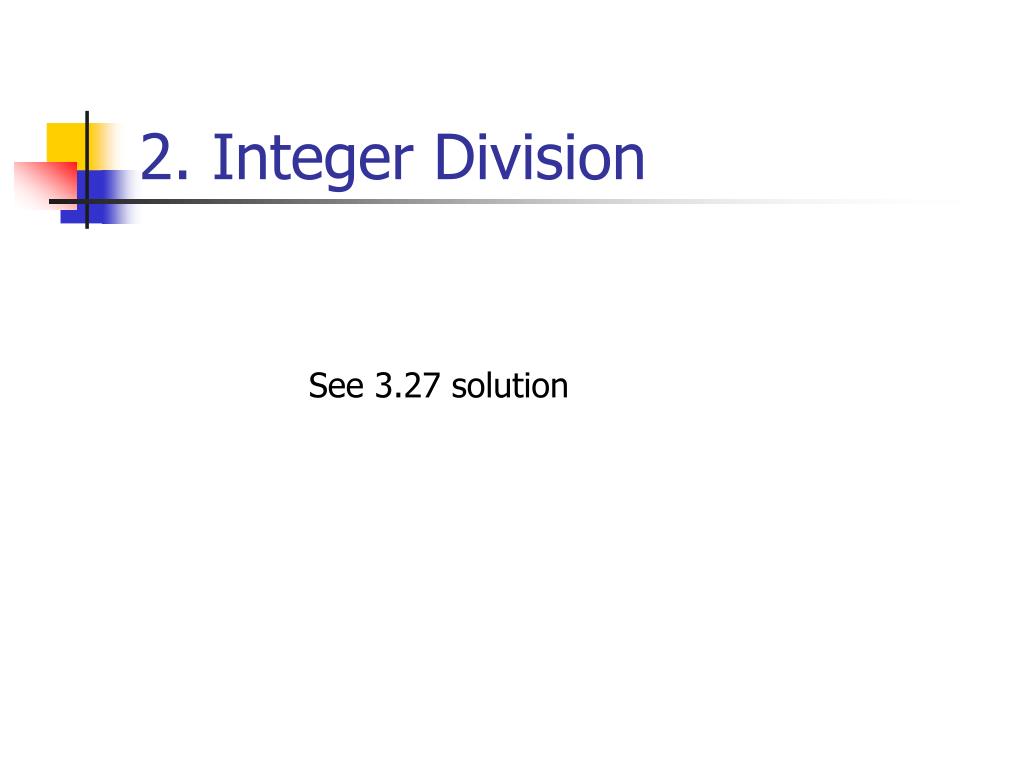

  2. 2. Integer Division See 3.27 solution

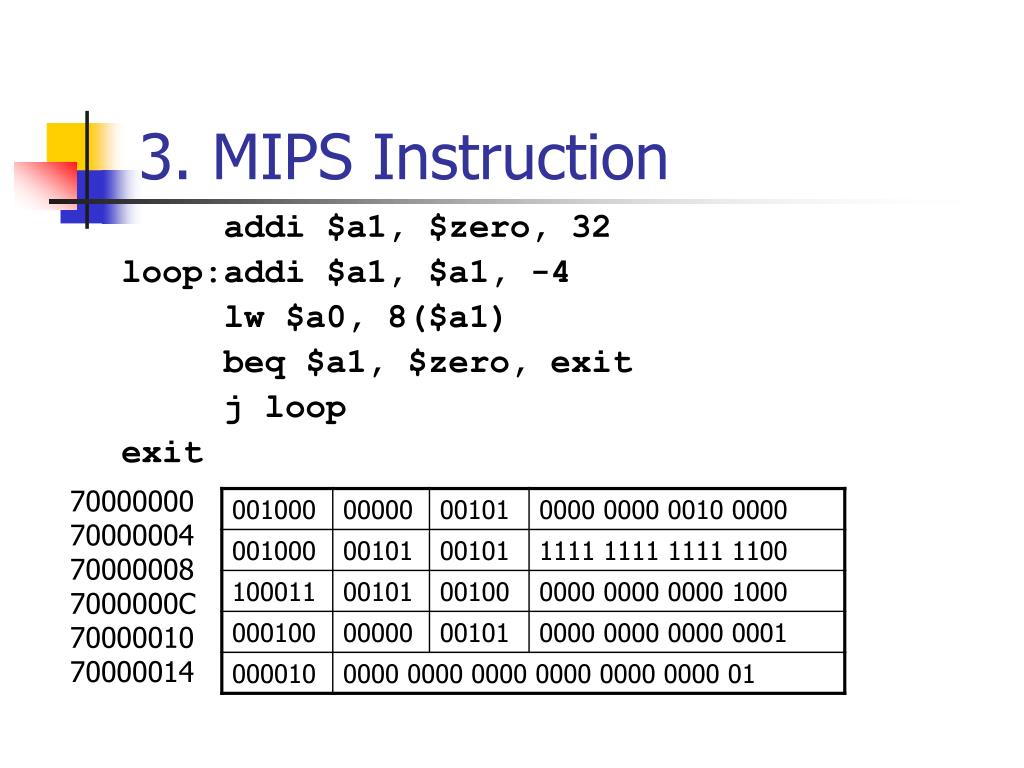

  3. 3. MIPS Instruction addi $a1, $zero, 32 loop: addi $a1, $a1, -4 lw $a0, 8($a1) beq $a1, $zero, exit j loop exit 70000000 70000004 70000008 7000000C 70000010 70000014

  4. 4. Floating-Point (0.3)oct=3/8 • 110000000010 1100 0000 0000 0000 0000 • 1*8513-511*0.011=64*(1/4+1/8)=24 • Smallest number > 8-512*2-22 >10-600 • Why no hidden bit? • For base 2, we can always normalize to 1.M*2e. For example, (0.1)two = (1.0)two*21, (0.01)two= (1.0)two*22, (0.001)two = (1.0)two*23 • For base 8, it is not always possible to normalize to 1.M*8e. For example, (0.1)two=(0.1)two*80=(100.0)two*8, (0.01)two=(0.01)two*80=(10.0)two*81 • For any base other than 2, there can not be any hidden bit.

  5. 5. Questions • Booths algorithm: • See 00, 11 do nothing • See 01, addition • See 10, subtraction • Best if 11111111111…, 1 add, 1 sub • Worst if 101010101…, 16 add, 16 sub

  6. Speedup • 2 hours from CLL to AUS • 4 hours from AUS to LAX, 1200 miles • Total 6 hours • Speedup 2, meaning 3 hours • Alternative answer (assume perm between AUS and LAX) • 1 hour from AUS to LAX => 1200/hour • Total 4 hours • 2 hours from AUS to LAX => 600/hour

  7. b) MIPS • Convert beq $a0, 0x1234abcd, exit • Answer: • lui $at, 0x1234 • ori $at, $at, 0xabcd • beq $a0, $at, exit

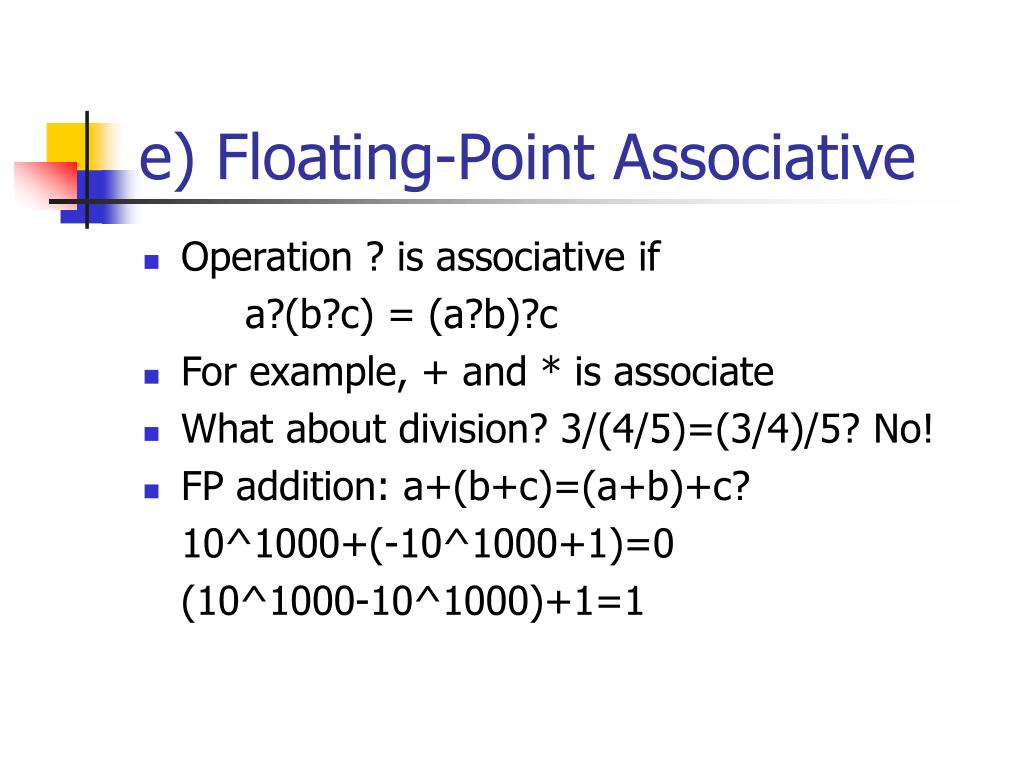

  8. e) Floating-Point Associative • Operation ? is associative if a?(b?c) = (a?b)?c • For example, + and * is associate • What about division? 3/(4/5)=(3/4)/5? No! • FP addition: a+(b+c)=(a+b)+c? 10^1000+(-10^1000+1)=0 (10^1000-10^1000)+1=1

  9. Example: Avoid FP error • To compute the average age for all people in USA • Method 1: • Add age of all people into total • Compute total/295,000,000 • Method 2: • Compute average age for each group of 1,000 people • Compute the average of every 1,000 groups • Compute the average of the 295 averages • Which method produces more accurate result?
