  1. SURFnet6 Kees Neggers SURFnet iGrid2005 L1/L2 panel

  2. SURFnet and SURFnet6 • 170 connected organisations, 750,000 users • A hybrid optical and packet switching infrastructure, yielding native IPv4, IPv6 and Lightpath services • Based on SURFnet-owned managed dark fiber all the way to the customers premises • Functionality and flexibility pushed to L1/L2, resulting in a vastly reduced number of L3 routed locations • SURFnet6 via NetherLight connected to networks participating in GLIF

  3. SURFnet6 on dark fiber

  4. SURFnet infrastructure Non-SURFnet SURFnet6: IP Network SURFnet6 Core Routers Avici SSR External IP connectivity Avici SSR Avici SSR Avici SSR 10 GE Nortel OM 5000 10 GE Nortel OME 6500 Nortel OM 5000 Nortel OME 6500 SURFnet6 Common Photonic Layer Nortel OM 5000 1 GE Nortel OME 6500 Nortel Passport 8600 10 Gigabit Ethernet Customer CPE 1 Gigabit Ethernet Customer Nortel OME 6500 Nortel OME 6500 10 GE CPE 1 GE

  5. AMS2 AMS1 Nortel HDXc European Lightpaths Intercontinental Lightpaths Nortel transport box Nortel transport box SURFnet6 Common Photonic Layer Nortel transport box Nortel transport box Customer equipment Customer equipment 10GE End user End-to-End Lightpath SURFnet infrastructure End user Non-SURFnet SURFnet6 Lightpath provision

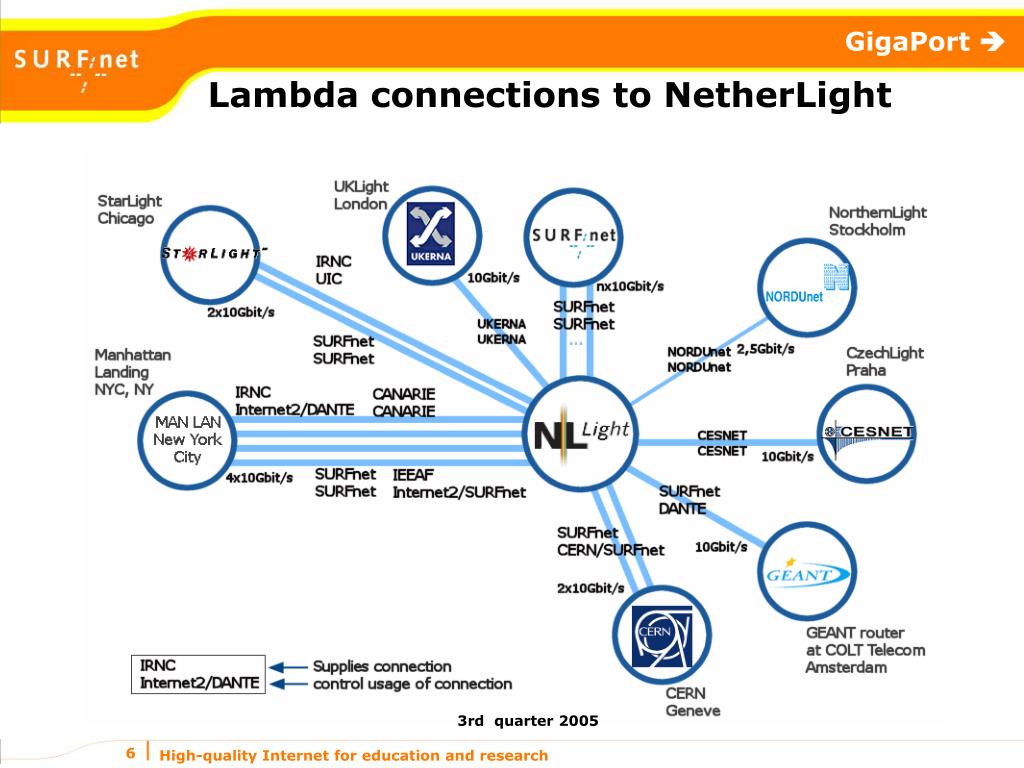

  6. Lambda connections to NetherLight 3rd quarter 2005

  7. Roadmap: Optical Services intra-domain user provisioned lightpaths Dynamic optically switched lightpath operator initiated lightpaths OPN Inter-domain user provisioned lightpaths 2005 2006 2007 2008 2009 2010

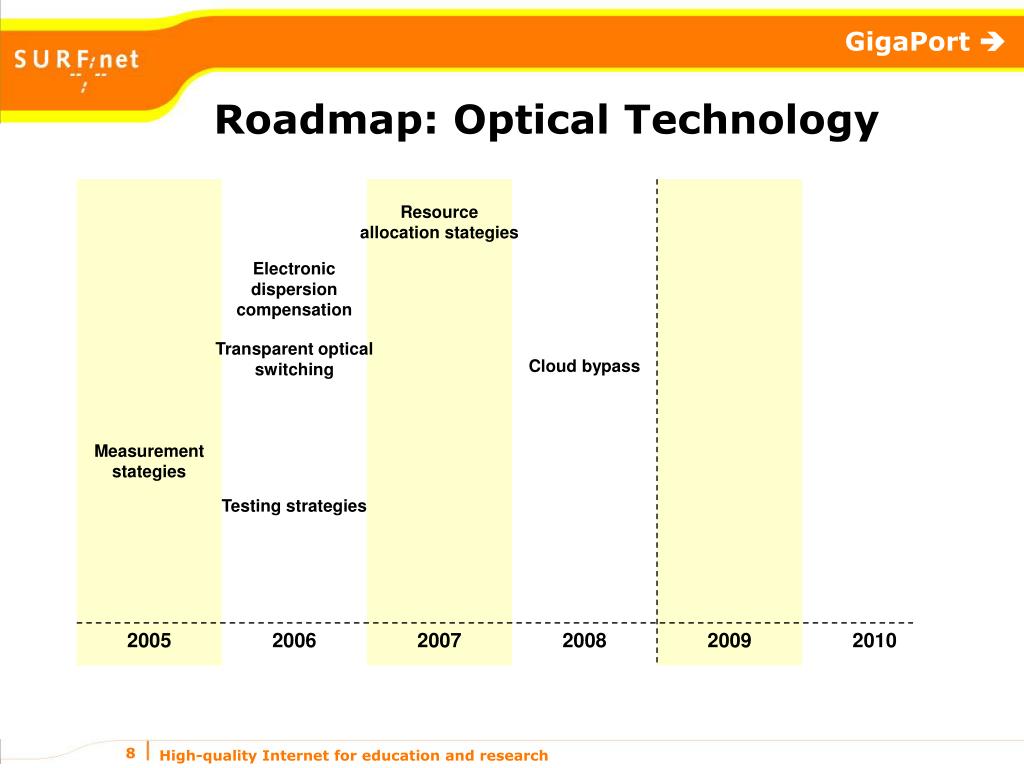

  8. Roadmap: Optical Technology Resource allocation stategies Electronic dispersion compensation Transparent optical switching Cloud bypass Measurement stategies Testing strategies 2005 2006 2007 2008 2009 2010

  9. Roadmap: Interoperability Issues Inter-domain control plane Inter-domain dynamic optically switched lightpaths Inter-domain AAA Inter-domain user provisioned lightpaths 2005 2006 2007 2008 2009 2010

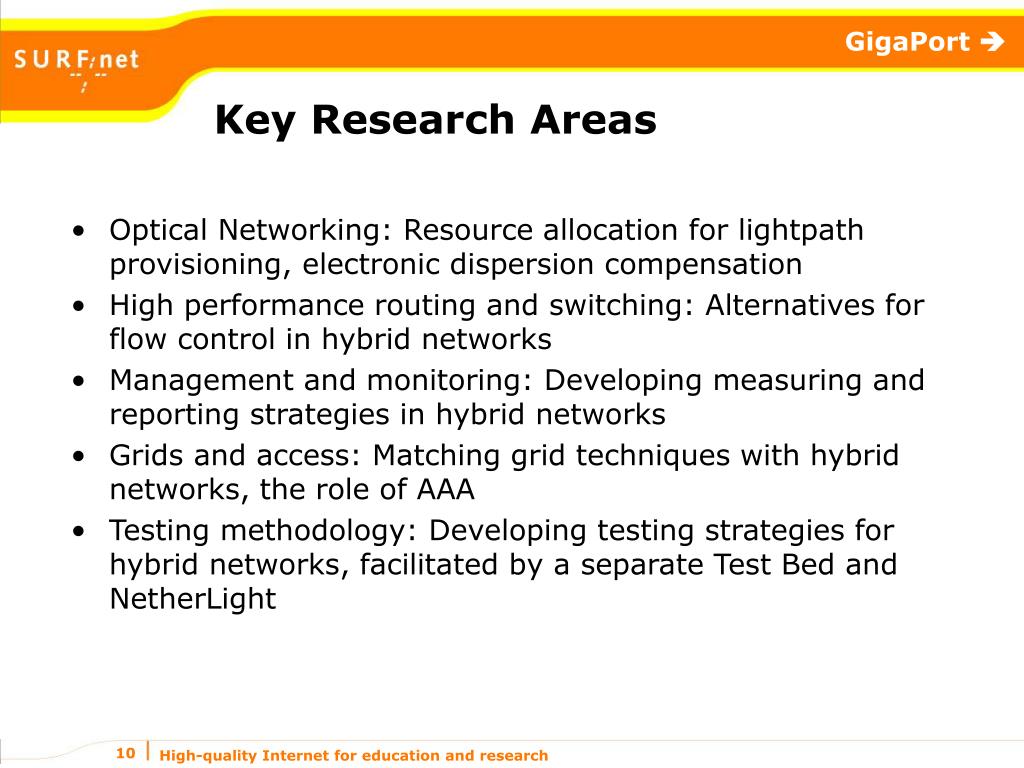

  10. Key Research Areas • Optical Networking: Resource allocation for lightpath provisioning, electronic dispersion compensation • High performance routing and switching: Alternatives for flow control in hybrid networks • Management and monitoring: Developing measuring and reporting strategies in hybrid networks • Grids and access: Matching grid techniques with hybrid networks, the role of AAA • Testing methodology: Developing testing strategies for hybrid networks, facilitated by a separate Test Bed and NetherLight
