  1. Interface Automata 29-September-2011

  2. Modeling Temporal Behavior of Component • Component behaves with Environment • Traditional (pessimistic) approach • Environment is free to behave as it wants to • Two components are compatible if no environment leads them into an error state • Optimistic approach of Interface Automata • Components designed with assumptions about environment • Two components are compatible if some environment can make both of them work together • In context of this course • Write code ONCE and know that it works

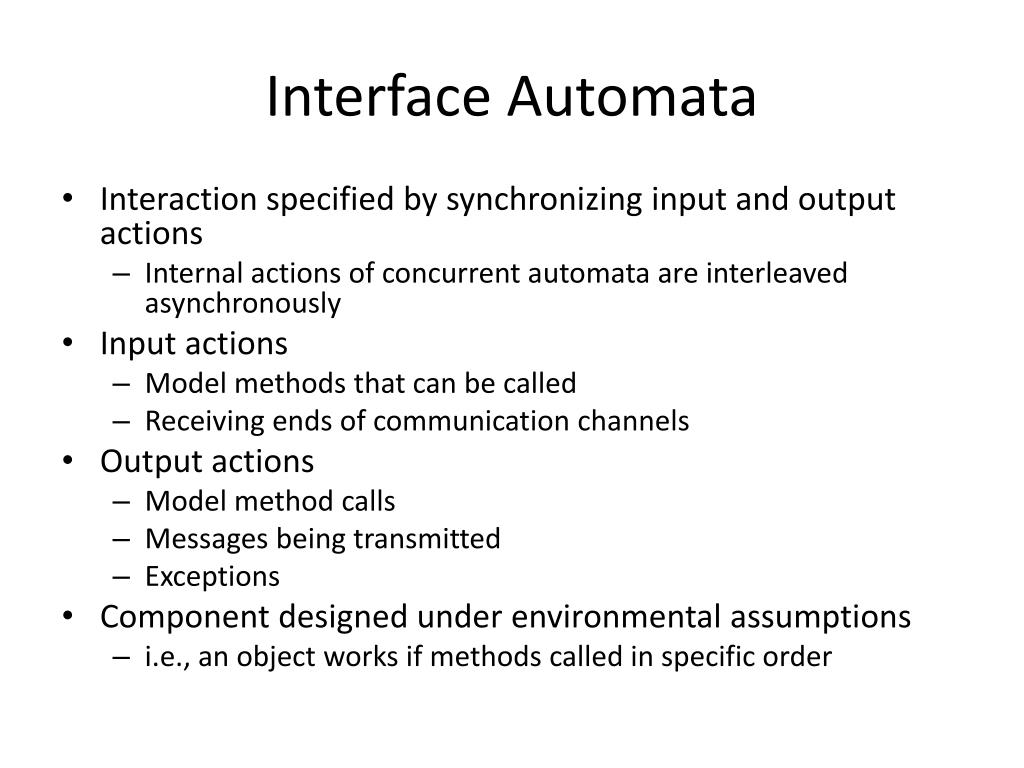

  3. Interface Automata • Interaction specified by synchronizing input and output actions • Internal actions of concurrent automata are interleaved asynchronously • Input actions • Model methods that can be called • Receiving ends of communication channels • Output actions • Model method calls • Messages being transmitted • Exceptions • Component designed under environmental assumptions • i.e., an object works if methods called in specific order

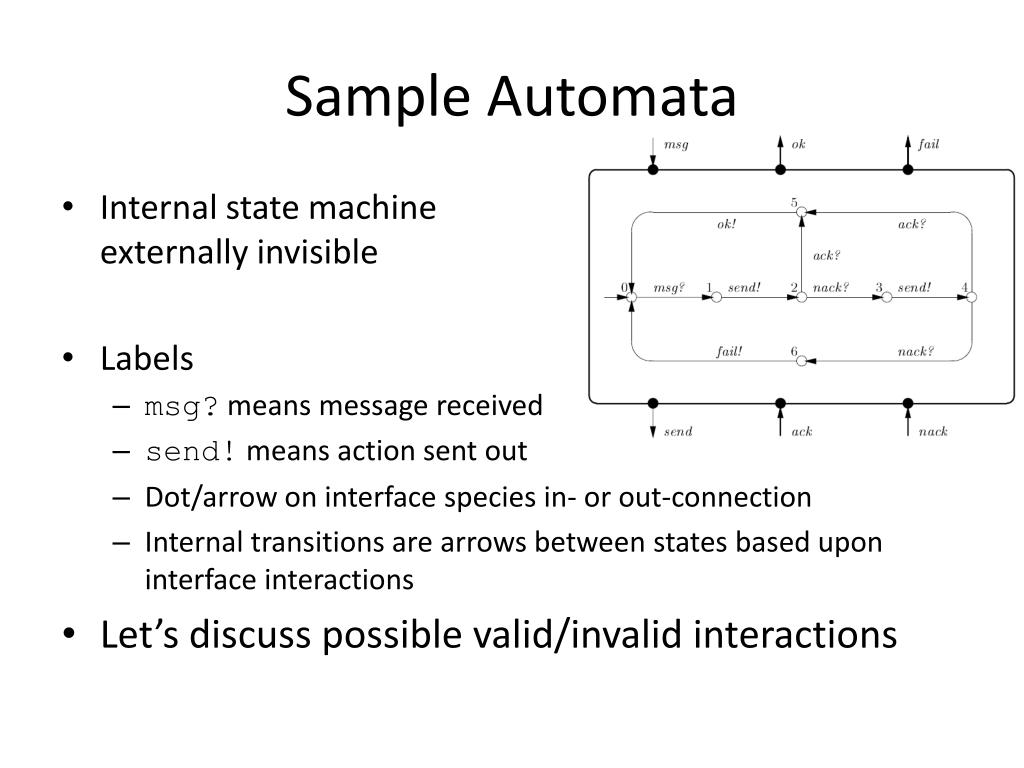

  4. Sample Automata • Internal state machineexternally invisible • Labels • msg? means message received • send! means action sent out • Dot/arrow on interface species in- or out-connection • Internal transitions are arrows between states based upon interface interactions • Let’s discuss possible valid/invalid interactions

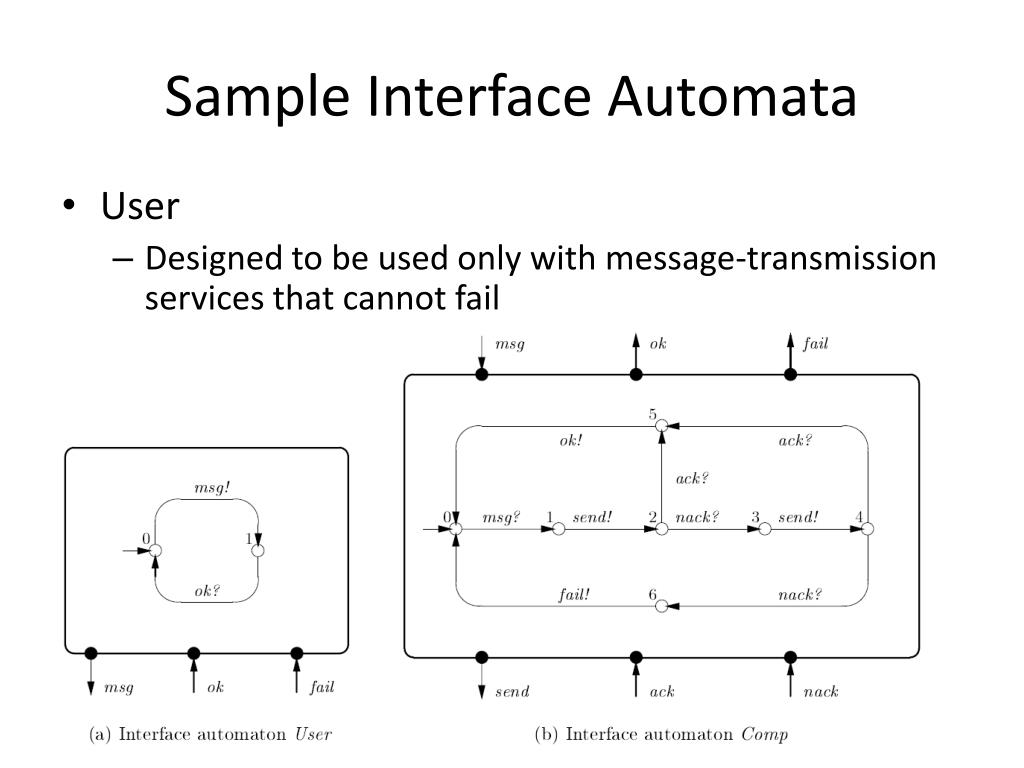

  5. Sample Interface Automata • User • Designed to be used only with message-transmission services that cannot fail

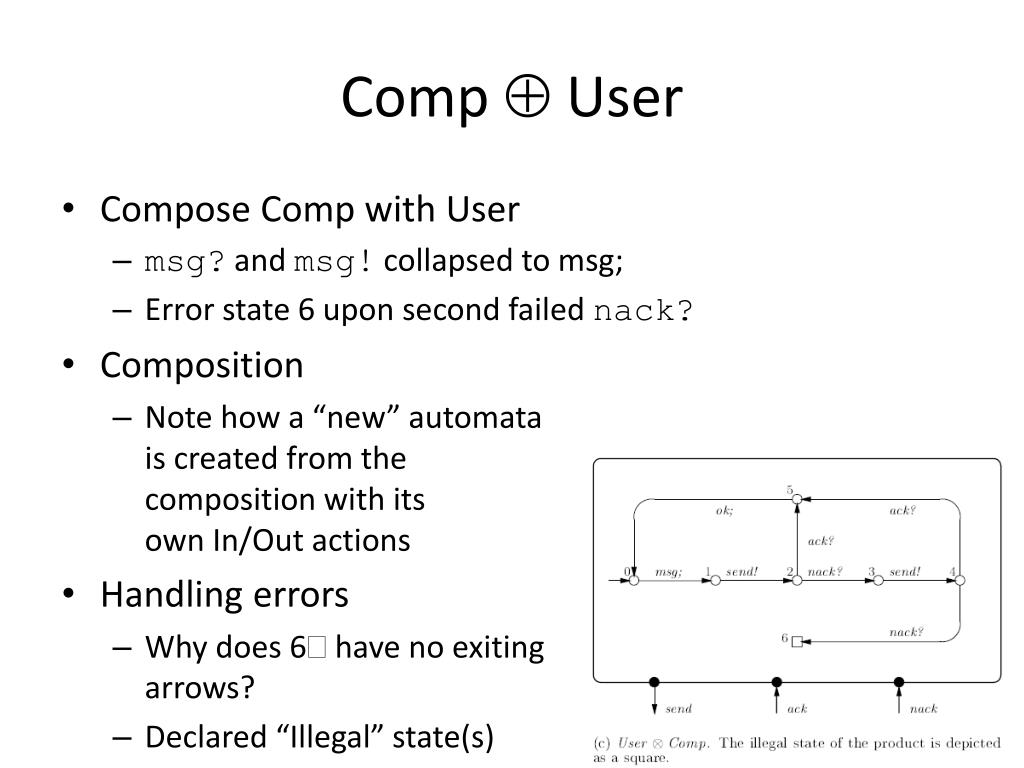

  6. Comp  User • Compose Comp with User • msg? and msg! collapsed to msg; • Error state 6 upon second failed nack? • Composition • Note how a “new” automatais created from thecomposition with its own In/Out actions • Handling errors • Why does 6 have no exitingarrows? • Declared “Illegal” state(s)

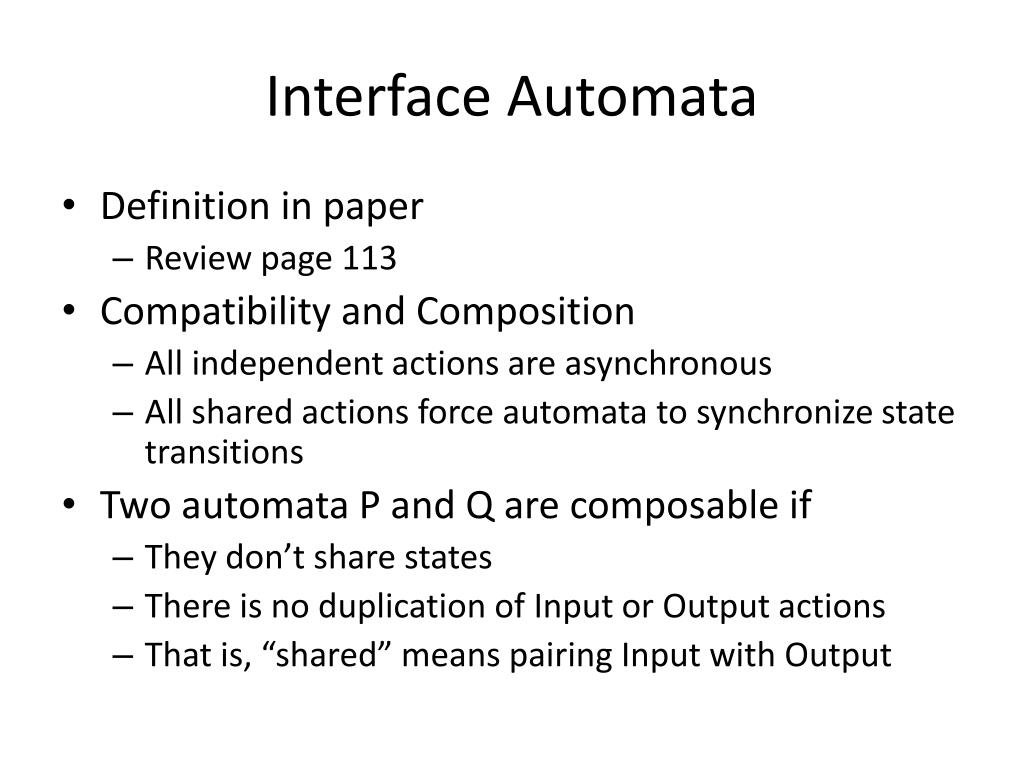

  7. Interface Automata • Definition in paper • Review page 113 • Compatibility and Composition • All independent actions are asynchronous • All shared actions force automata to synchronize state transitions • Two automata P and Q are composable if • They don’t share states • There is no duplication of Input or Output actions • That is, “shared” means pairing Input with Output

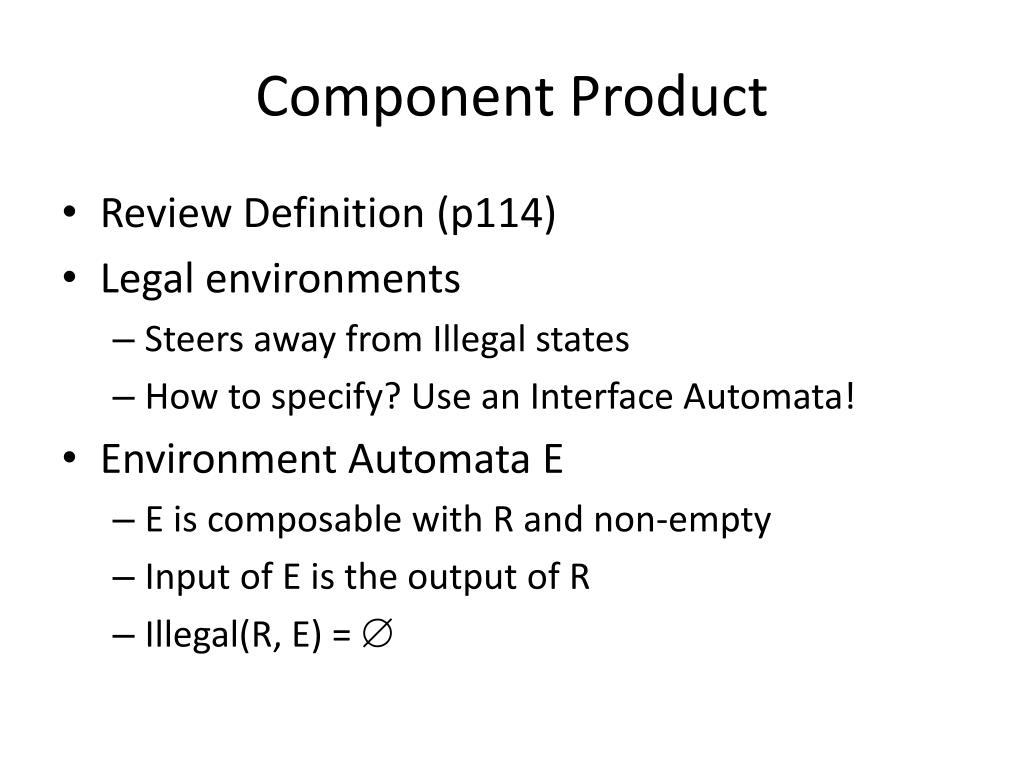

  8. Component Product • Review Definition (p114) • Legal environments • Steers away from Illegal states • How to specify? Use an Interface Automata! • Environment Automata E • E is composable with R and non-empty • Input of E is the output of R • Illegal(R, E) = 

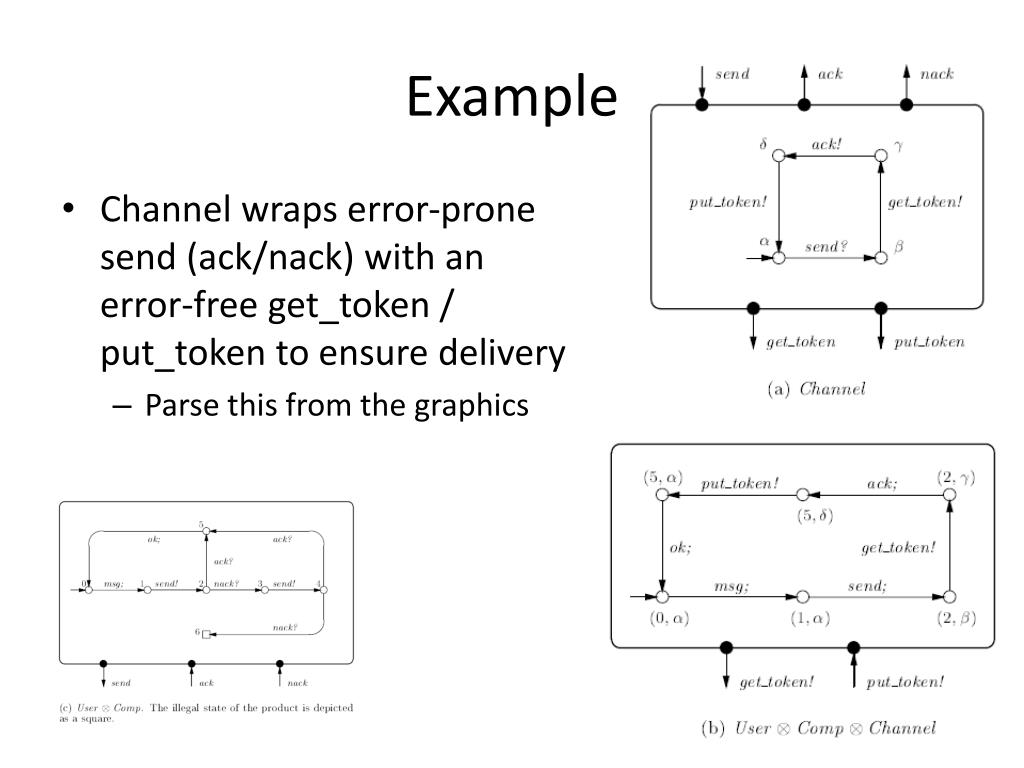

  9. Example • Channel wraps error-prone send (ack/nack) with an error-free get_token / put_token to ensure delivery • Parse this from the graphics

  10. Final Notation • Automata Product Composition: Comp  User • Restricted Composition:Comp || User • Nice features of composition • Associative (P || Q) ||R == P || (R || Q) if either is defined • Some automata cannotbe composed in thisrestrictive way

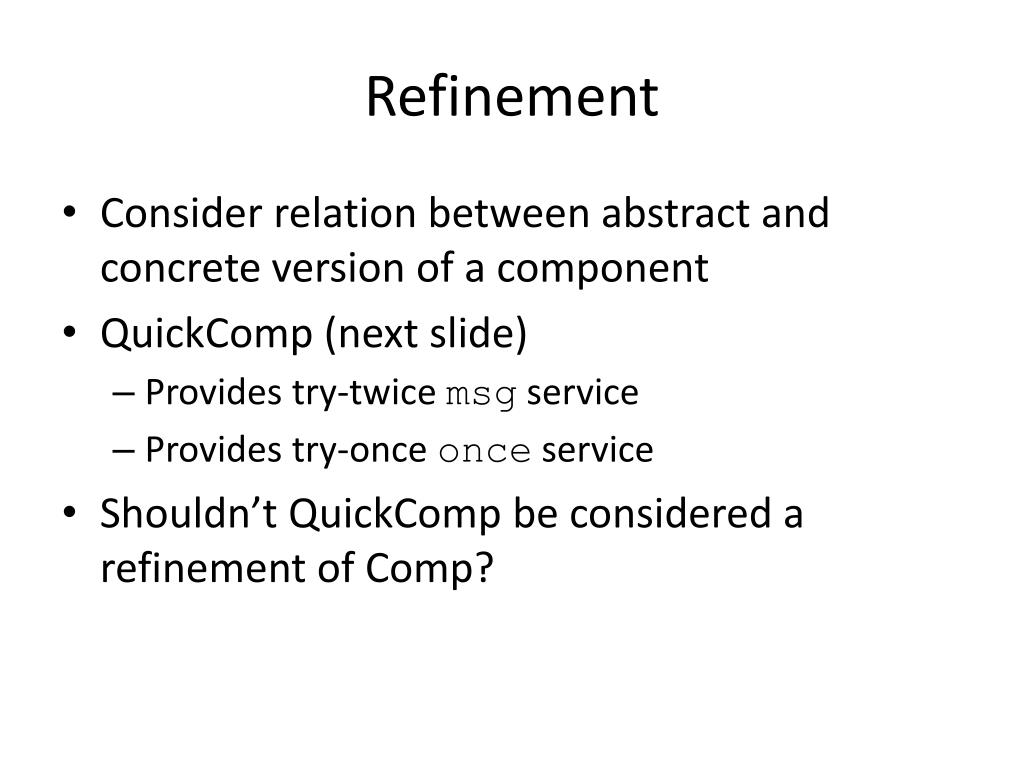

  11. Refinement • Consider relation between abstract and concrete version of a component • QuickComp (next slide) • Provides try-twice msg service • Provides try-once once service • Shouldn’t QuickComp be considered a refinement of Comp?

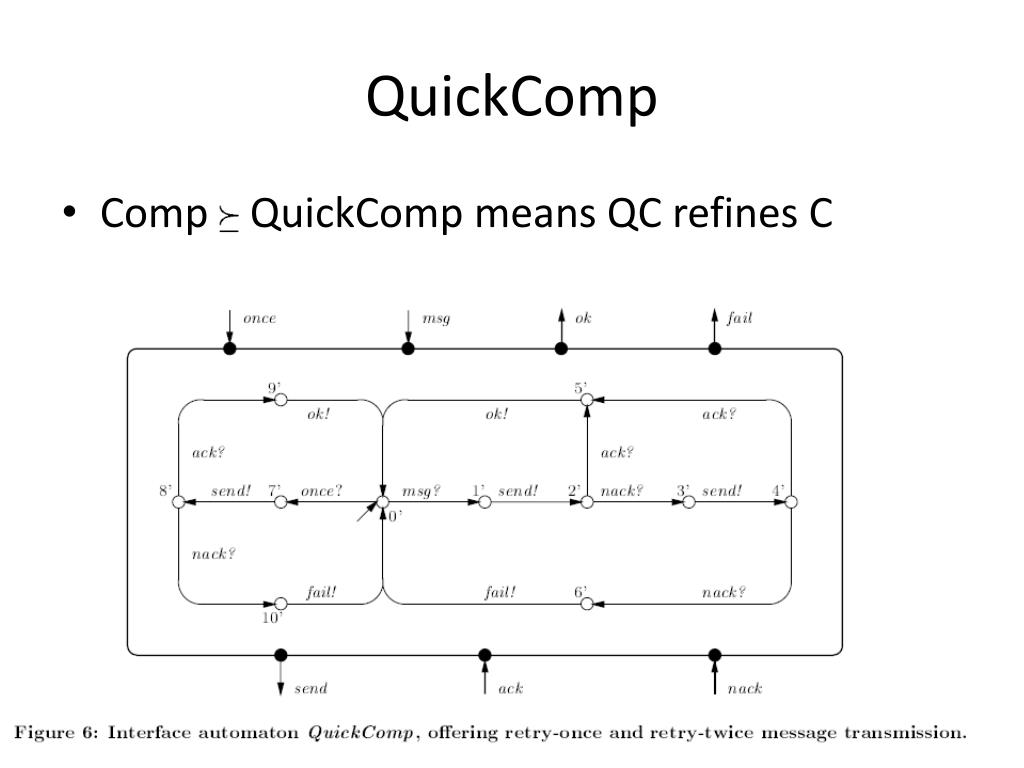

  12. QuickComp • Comp QuickComp means QC refines C

  13. Contravariance • Refined automata must allow for (possibly) more legal inputs and (possibly) fewer outputs • Weaken the pre-condition • Strengthen the post-condition • Notion of alternating simulation • Q refines P if • all input steps of P can be simulated by Q • all output steps of Q can be simulated by P • works because internal state transitions are invisible to external viewers • Captures a simple kind of subclassing • If Q refines P then implementation Q is able to provide more services than specification P • Q must be consistent with P on shared services

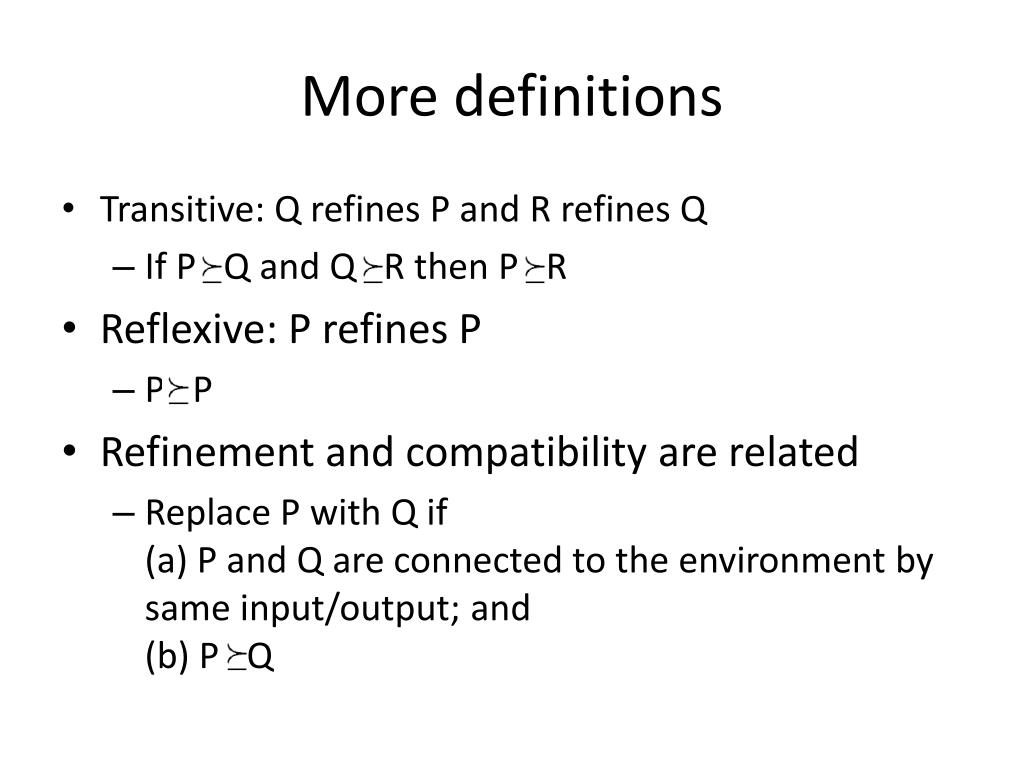

  14. More definitions • Transitive: Q refines P and R refines Q • If P Q and Q R then P R • Reflexive: P refines P • P P • Refinement and compatibility are related • Replace P with Q if (a) P and Q are connected to the environment by same input/output; and (b) P Q

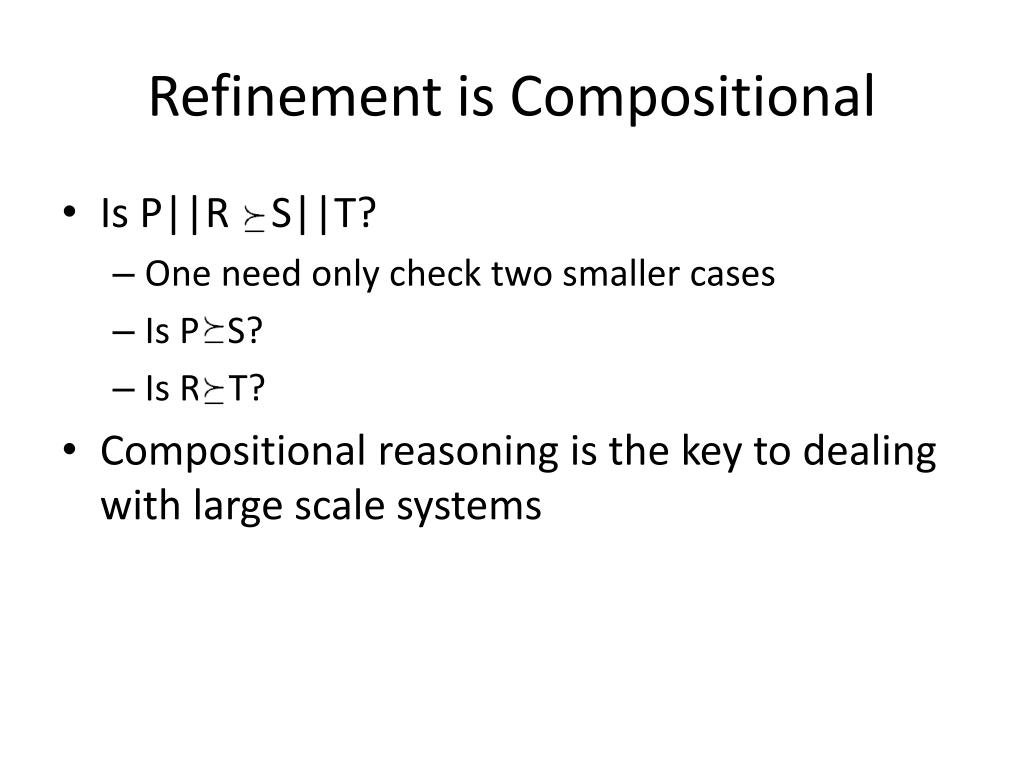

  15. Refinement is Compositional • Is P||R S||T? • One need only check two smaller cases • Is P S? • Is R T? • Compositional reasoning is the key to dealing with large scale systems

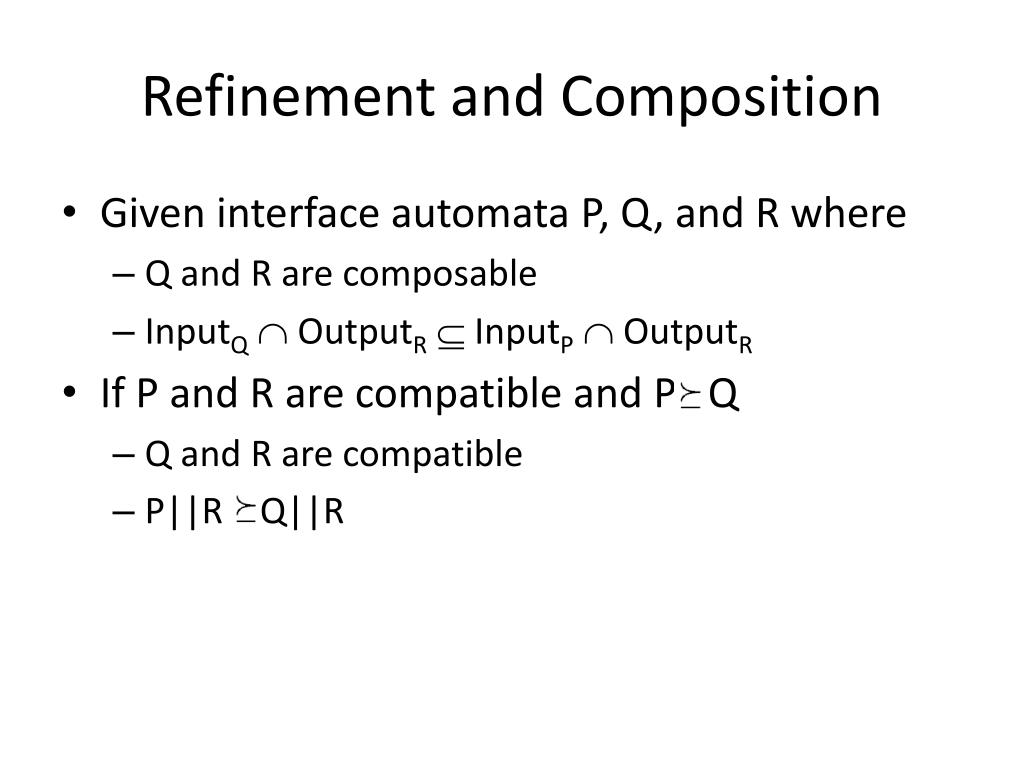

  16. Refinement and Composition • Given interface automata P, Q, and R where • Q and R are composable • InputQ OutputR InputP OutputR • If P and R are compatible and P Q • Q and R are compatible • P||R Q||R

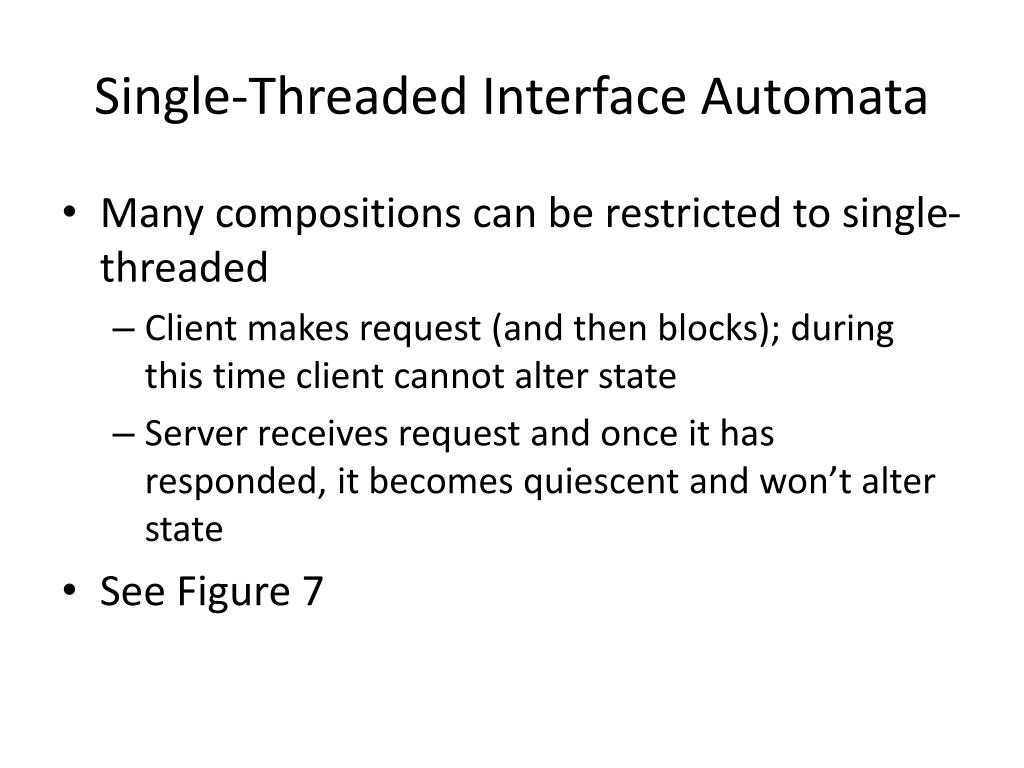

  17. Single-Threaded Interface Automata • Many compositions can be restricted to single-threaded • Client makes request (and then blocks); during this time client cannot alter state • Server receives request and once it has responded, it becomes quiescent and won’t alter state • See Figure 7

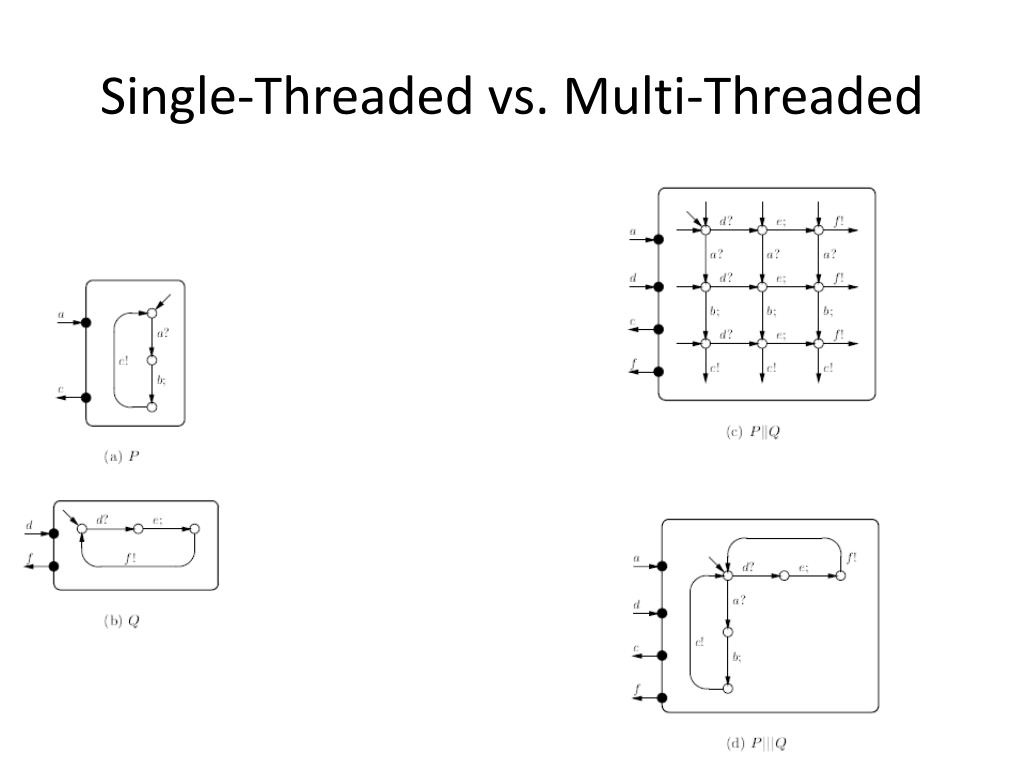

  18. Single-Threaded vs. Multi-Threaded
