PeopleTools 8.45 Upgrade Musings

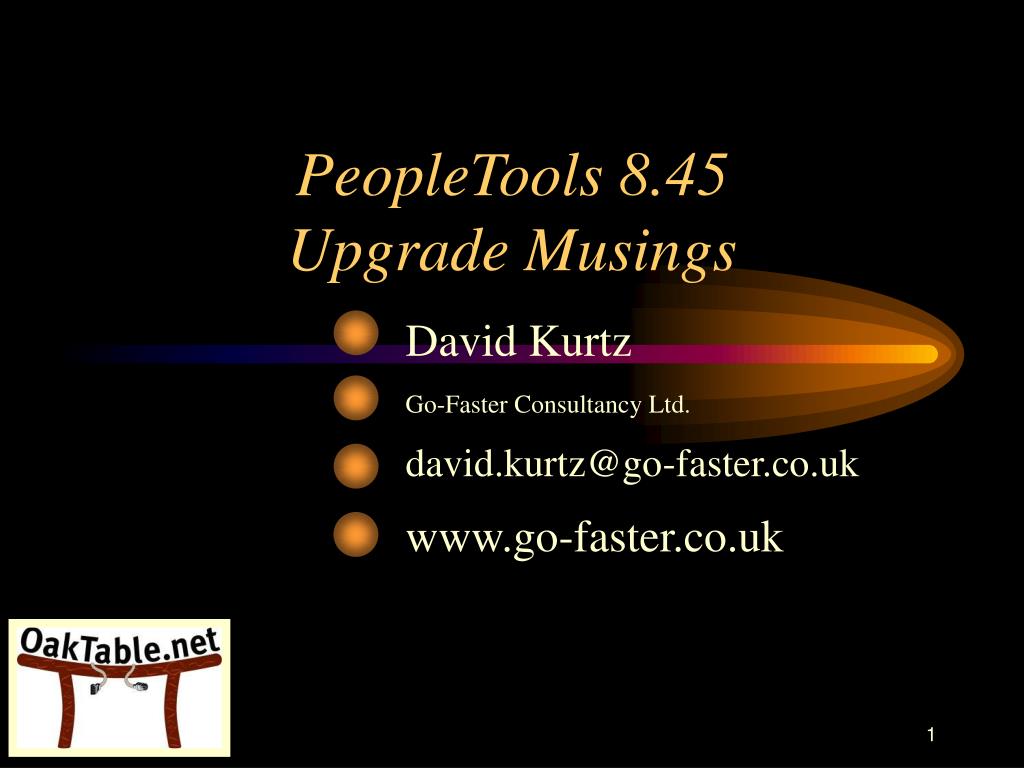

1. PeopleTools 8.45 Upgrade Musings David Kurtz Go-Faster Consultancy Ltd. david.kurtz@go-faster.co.uk www.go-faster.co.uk

2. Oracle DBA Independent consultant System Performance tuning PeopleSoft ERP Oracle RDBMS UK Oracle User Group Unix SIG Oak Table www.oaktable.net www.baarf.com Book www.psftdba.com Who am I? www.go-faster.co.uk

3. Resources • If you can’t hear me say so now. • Please feel free to ask questions as we go along. • The presentation will be available from • Customer Connection Tech PUG Page • www.go-faster.co.uk www.go-faster.co.uk

4. Financials 8.4 SP0 No service packs PT8.41.06 Oracle 8.1.7.0.0 Windows Developed own Polish translation! No App Change PT8.45.10 Oracle 9.2.0.5 Sun Solaris 9 Base language swap to Polish My recent experience www.go-faster.co.uk

5. Business Drivers • Handling of Polish characters • New version of SQR shipped with PT8.44 • Oracle 8i going out of support • Which doesn’t mean that support washes their hands of you, • but there is no error correction. www.go-faster.co.uk

6. Strategy • Build a new database on the target platform/Oracle version • Oracle export/import sysadm schema • And another schema for legacy data migration • 8Gb export in 2Gb parts • Could have used Data Mover • But it would have been slower • Mandatory if changing database platform! www.go-faster.co.uk

7. PeopleSoft Documentation • Enterprise PeopleTools 8.45 Installation for Oracle • Fairly comprehensive • Some omissions and inconsistencies • even fairly comprehensible! • Enterprise PeopleTools 8.45 Upgrade www.go-faster.co.uk

8. 4 x 1.25GHz 1Gb 4 x 1.25GHz 4+Gb Node Node Web Server Tuxedo Application Server DBMS Configuration www.go-faster.co.uk

9. Application Server CPU intensive cannot starve DBMS of CPU Horizontally scalable Fewer CPUs cheaper /CPU Oracle licence Different kernel configuration Node Node Web Server Tuxedo Application Server DBMS My personal preference… www.go-faster.co.uk

10. Unix Kernel Configuration • On Solaris it is set in /etc/system • settings recommended in Chapter 6B of PeopleSoft install guide • permit 1024 file handles per process • set rlim_fd_cur=1024 • set rlim_fd_max=1024 www.go-faster.co.uk

11. Unix Kernel Configuration • settings recommended in PSFT on-line performance red paper for 8.44 • And further adjusted by me • Increase IPC message size • set msgsys:msginfo_msgmax=262144 • set msgsys:msginfo_msgmnb=262144 www.go-faster.co.uk

12. Unix Kernel Configuration • Increase maximum number of queues • set msgsys:msginfo_msgmni=1024 • 1 per Tuxedo queue • So 1 per process type: PSAPPSRV, PSQRYSRV etc. • 1 per server process • 3 PSAPPSRVs => 3 queues • 1 per WSL, WSH, JSL and JSH • 1 per BBL www.go-faster.co.uk

13. Unix Kernel Configuration • Mainly required by Oracle • set semsys:seminfo_semmns=4096 (max semaphores) • set semsys:seminfo_semmnu=4096 • set semsys:seminfo_semmni=512 (semaphore sets) • set semsys:seminfo_semmap=512 • set semsys:seminfo_semume=10 • set semsys:seminfo_semmsl=8 • set shmsys:shminfo_shmmni=100 (max shared mem segs) • set msgsys:msginfo_msgtql=1024 www.go-faster.co.uk

14. Oracle 8.1.7.4.1 Terminal Release Went out of support 31.12.2004 Certified up to PT8.45 Oracle 9.2.0.5 Highest version certified by PSFT Security Patch 68? 9.2.0.6 Includes security patch Only Some platforms certified so far 10g? Not yet certified Oracle Versions www.go-faster.co.uk

15. Oracle Database Creation • PeopleSoft Database Creation Wizard • ‘magic’ is about illusions, everything is hidden • I refuse to use it to create my database because I can’t see/control what it is going to on! • PSFT abandoned Oracle DBCA in PT8.4 • It was better because DBA could control it • Can generate a set of scripts • Manual scripts are still Oracle 8 oriented www.go-faster.co.uk

16. Oracle SQL*Net • Query Kill from PT8.44 requires SQLNET.EXPIRE_TIME • ps doc says this is seconds, but it is actually minutes. • Oracle Metalink note 151972.1: DCD explained • BEQUEATH_DETACH=YES • Oracle Metalink note 74839.1 www.go-faster.co.uk

17. GSC 200723987: SQL*Net Fix • Application server error on pslibora • Extra symbolic link on SQL*Net library • ln -s $ORACLE_HOME/lib32/libclntsh.so.9.0 $ORACLE_HOME/lib/libclntsh.so.8.0 www.go-faster.co.uk

18. Oracle SQL*Net Bug • Use the 9.2.0.5 client • Oracle OCI bug fix 9.2.0.2 • Remember to patch the client not just server! • GSC 200737351 www.go-faster.co.uk

19. Application Designer Projects • XML from PT8.4x • XML Very flexible • Buzzword compliant • But • slow to open • CPU intensive to parse www.go-faster.co.uk

20. PLTLSCUR upgrade projects • Relative to 8.40 • PT Upgrade Project • 35m • PT ML Upgrade slow • 3x larger • 1h25m! (all languages) • 5000+ fields www.go-faster.co.uk

21. Unix Installation • Java Installer • GUI interface under X-terminal • Xterminal on the cheap - www.realvnc.org • Also good across slow network link! • Same interface as windows • Same concept as Oracle Universal Installer • Add /usr/openwin/bin to path • Set DISPLAY=<IP address>:0.0 www.go-faster.co.uk

22. Notes • BEA Tuxedo 8.1 • R2 CDs shipped with PT8.45 – RP89 • Win – De-install rolling patch before applying new RP. • Weblogic 6.1 from PT8.40 • Weblogic 8.1 from PT8.43/44? • PIA now under PS_HOME not WL_HOME! www.go-faster.co.uk

23. Cobol • Financials uses remote call • On-line voucher edit and post • Application server synchronously initiates Cobol batch program • So must have Cobol compiler on same OS as application server www.go-faster.co.uk

24. Gotchas • REN server configuration • PTWEBSERVER operator • Base Language Swap • Various process scheduler problems • PeopleBooks www.go-faster.co.uk

25. GSC 200761534: REN Sever • Previously optional • Now used for standard functionality from 8.44 • Defaults to port 7180 • Specified in psappsrv.cfg • But also in database • Changing psappsrv.cfg not enough • UPDATE PSREN SET PORT_NUM = 7780; www.go-faster.co.uk

26. GSC 200761492: PTWEBSERVER user • User ID used by sign-on panel before sign-on. • Put this in in PIA install • In WebLogic config.xml • Encrypt PSCipher.sh • Add user PTWEBSERVER • PeopleTools Web Server role • PeopleTools permission list PTPT1500 www.go-faster.co.uk

27. Data Mover Bug • Base Language Swap • If date-time field as a part of unique key • Data Mover strips time portion of data • Can result in duplicate key error • Putting date-timestamp in primary key is poor design www.go-faster.co.uk

28. GSC 200777344: Process Scheduler Privileges • Add ProcessSchedulerAdmin role to user who starts process scheduler. www.go-faster.co.uk

29. Process Scheduler • Additional purge classes in PT8.44 • Remember to set purge settings BEFORE you start process scheduler www.go-faster.co.uk

30. Default Process Scheduler • Defaults in process scheduler page UPDATE psprcsruncntls SET servername = ' ' WHERE servername != ' '; • Assign primary OS and enable load balancing www.go-faster.co.uk

31. New process scheduler functionality • From PT8.44, it is now possible to have different elements of a job running on different process schedulers. • Eg. • Cobol process on Unix • because application server on Unix and remote call • Crystal report on Windows • Must leave scheduler name blank • else will get error on submission www.go-faster.co.uk

32. GSC 200766251: Processes remain queued • Processes remain queued when no server name in request • Set blank categories to Default www.go-faster.co.uk

33. Process Still Remain Queued when Scheduler is blank - RTFM • Remember to set process server system settings • PeopleTools -> Process Scheduler -> System Settings • Assign a Primary OS • Can also Load Balance to any OS or just Primary OS www.go-faster.co.uk

34. Report Repository • Posting status help separately on PSPRCSRQST • Report Node held on PS_CDM_AUTH_LIST www.go-faster.co.uk

35. GSC 200780041: SchedulerTransfer servlet • SchedulerTransfer servlet for HTTP transfer to Report Repository • Even if you use FTP need servlet to verify transfer (new in 8.44?) • Servlet was subject of a security alert • Authentication added • Set password (any password) on default local node • PeopleTools -> Integration Broker -> Node Definitions www.go-faster.co.uk

36. GSC 200728339: Cobol Compilation • Need to add /usr/ccs/bin to path • GSC 16201: • ignore “01 or 77 level required” errors when compiling ??C?????.cbl. • These are copy books and so can be ignored. www.go-faster.co.uk

37. GSC 200944167: PeopleBooks • From 8.44 install on Unix • Batch transfer replaced • PT8.45 PB can be installed over old application PeopleBooks • Collection (for indexing) does not work • Need to delete srch.js in language subdirectories prior to new PB installation • Single Weblogic Server Issues • PSOL not PORTAL server www.go-faster.co.uk

38. GSC 200946000: Performance Monitor • Allow access to monitor servlet diagnostic information • PeopleTools>Web Profile> Web Profile Configuration>"Profile Name">Customer Properties • PPMConsole = true www.go-faster.co.uk

39. Other Issues • 200735163 - PeopleTools objects read only in permission list ALLPAGES – since 8.42 • 200751620 - Crystal Date Format Issue – affects pt8.42 only, says fixed in 8.43? • ICE Incident 569443000 • command line parameter -LX0 to Crystal process type • Fixed the date issue in pt8.45 but not number issue. www.go-faster.co.uk

40. Side Effects • PSFT didn’t ship Polish translations for FSCM 8.4 SP0 • So customer developed their own translations • PT8.45 does ship with Polish translations • Decision taken to take ‘vanilla’ PeopleSoft translations • Various effects on many application panels • Eg. Next, Previous, Save buttons etc. www.go-faster.co.uk

41. Questions? • How many on PT8.4? • How many >= PT8.44? • PT8.45? • Oracle? • Oracle 9? • Oracle 10 (elsewhere)? www.go-faster.co.uk

42. PeopleTools 8.45 Upgrade Musings David Kurtz Go-Faster Consultancy Ltd. david.kurtz@go-faster.co.uk www.go-faster.co.uk
