Proportionality Theorems: Triangle & Parallel Lines

Explore using proportions with triangles or parallel lines to determine if lines are parallel or find unknown side lengths. Learn to apply Theorem 6.6 and Theorem 6.7 through practical examples.

holmes-franks
Télécharger la présentation

Proportionality Theorems: Triangle & Parallel Lines

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

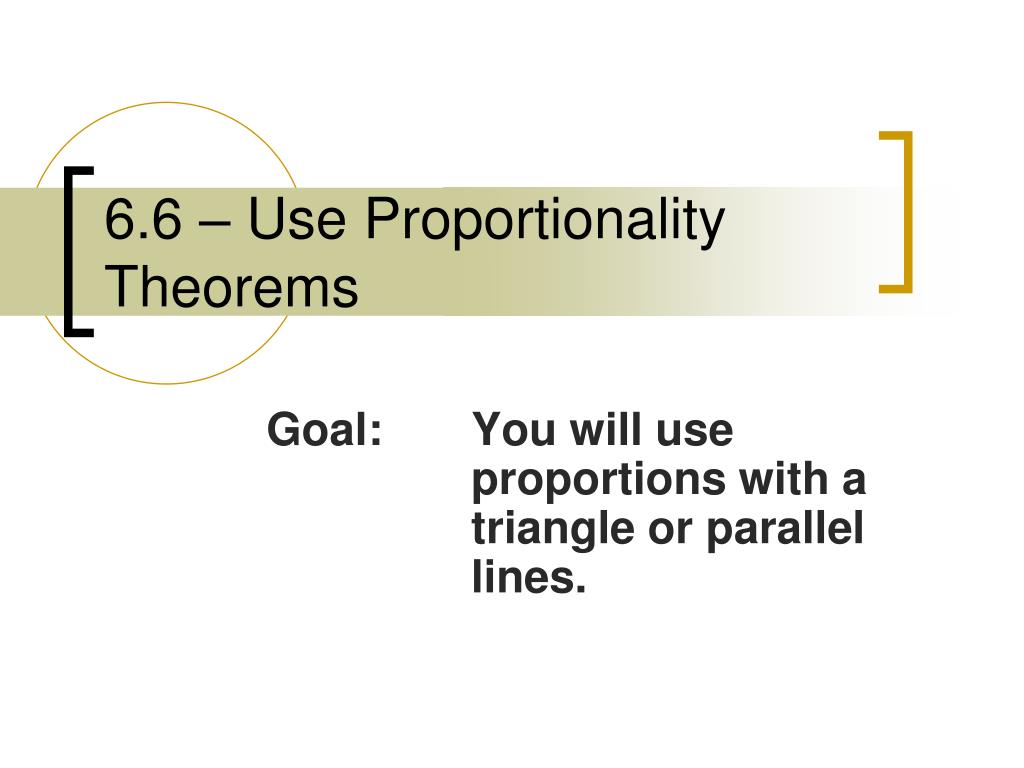

  1. 6.6 – Use Proportionality Theorems Goal: You will use proportions with a triangle or parallel lines.

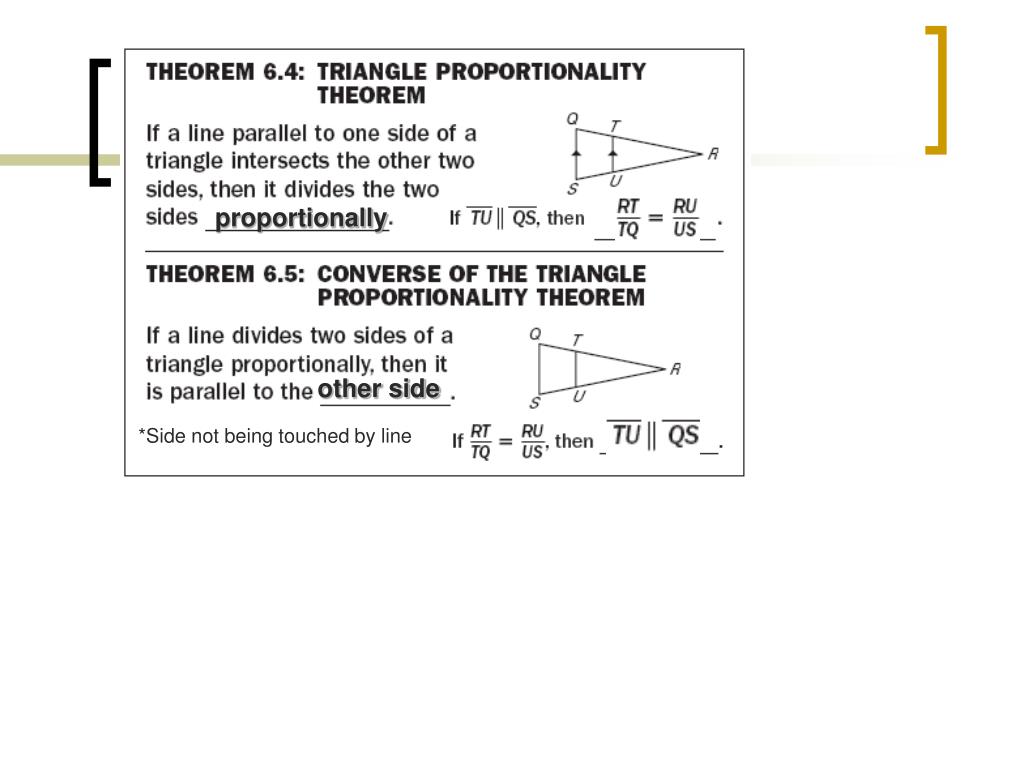

  2. proportionally other side *Side not being touched by line

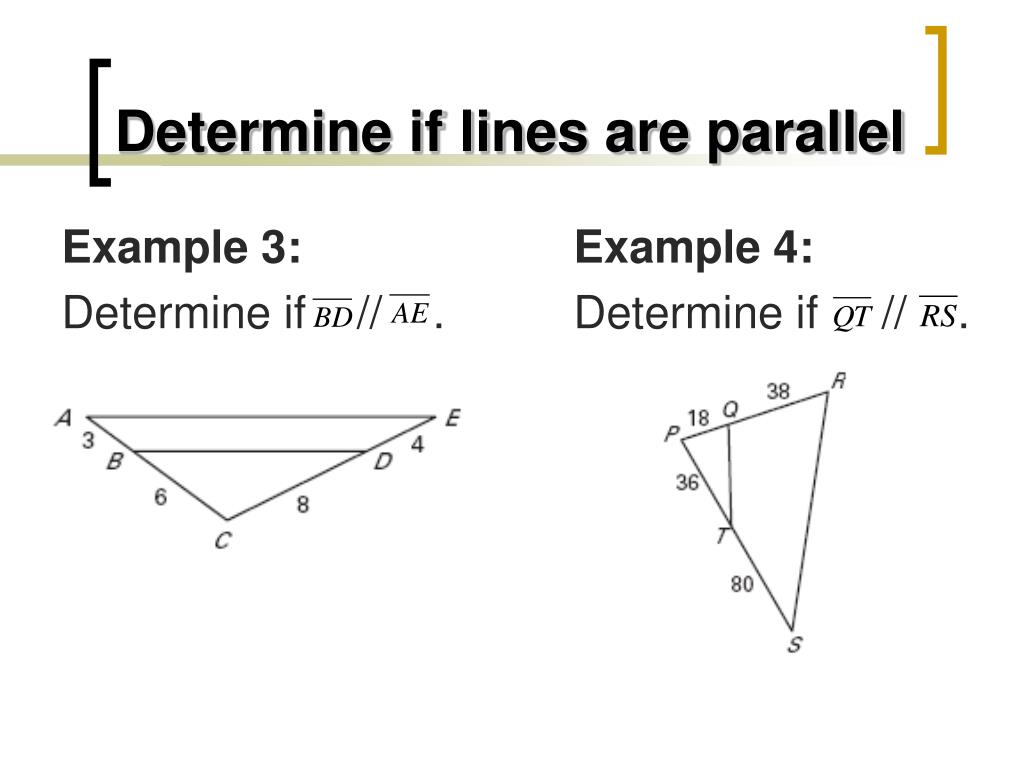

  3. Determine if lines are parallel Example 3: Example 4: Determine if // . Determine if // .

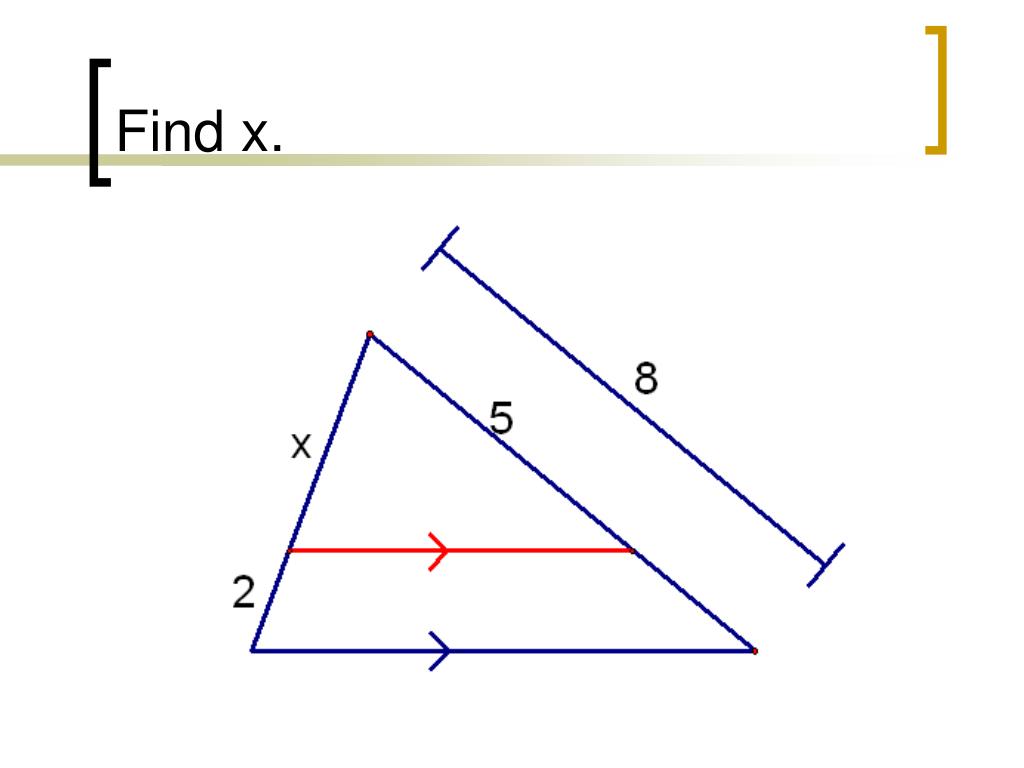

  4. Find x.

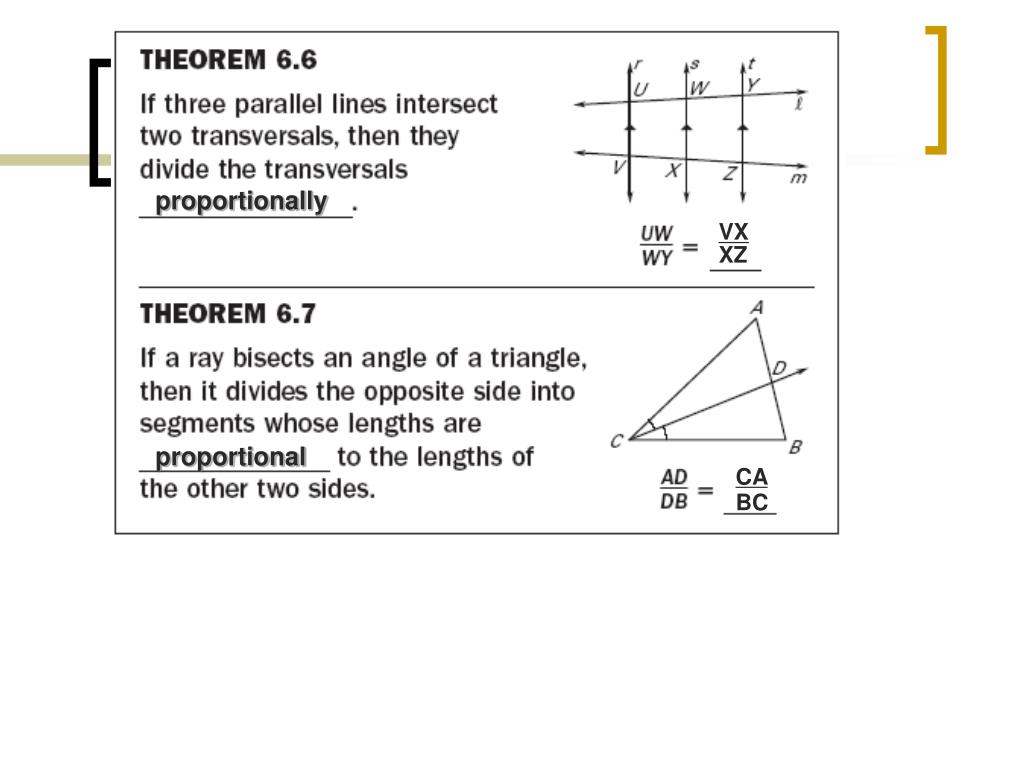

  5. proportionally VX XZ proportional CA BC

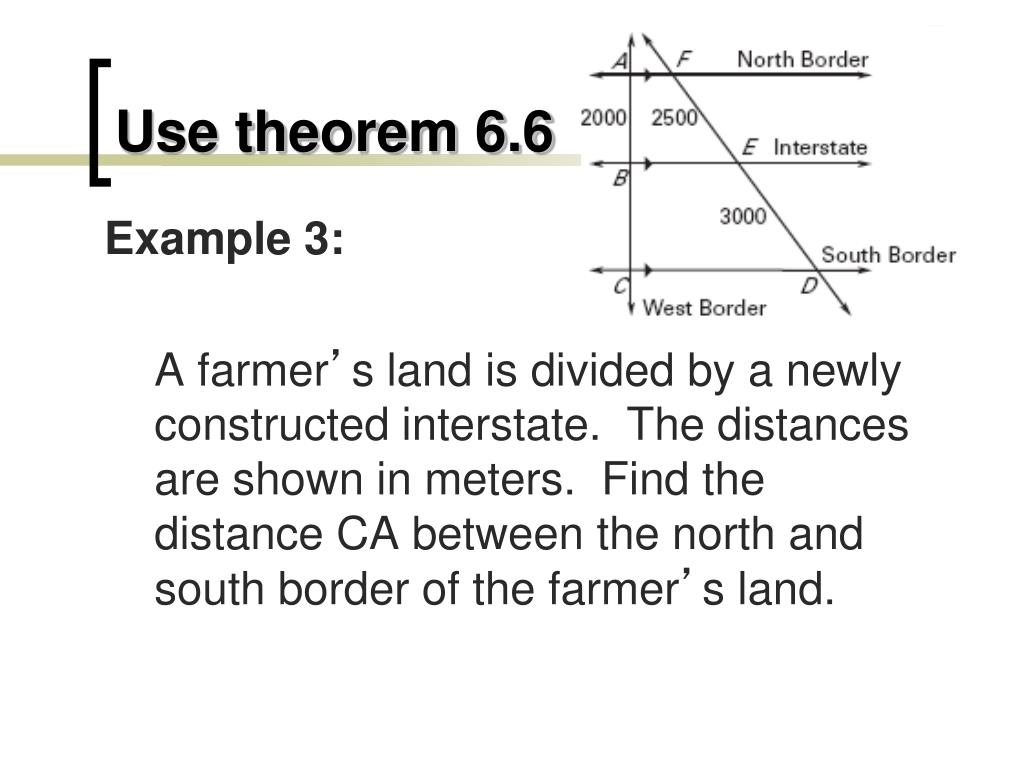

  6. Use theorem 6.6 Example 3: A farmer’s land is divided by a newly constructed interstate. The distances are shown in meters. Find the distance CA between the north and south border of the farmer’s land.

  7. Use theorem 6.6 Example 4: Find AB.

  8. Use theorem 6.7 Example 5: In the diagram, . Use the given side lengths to find DG.

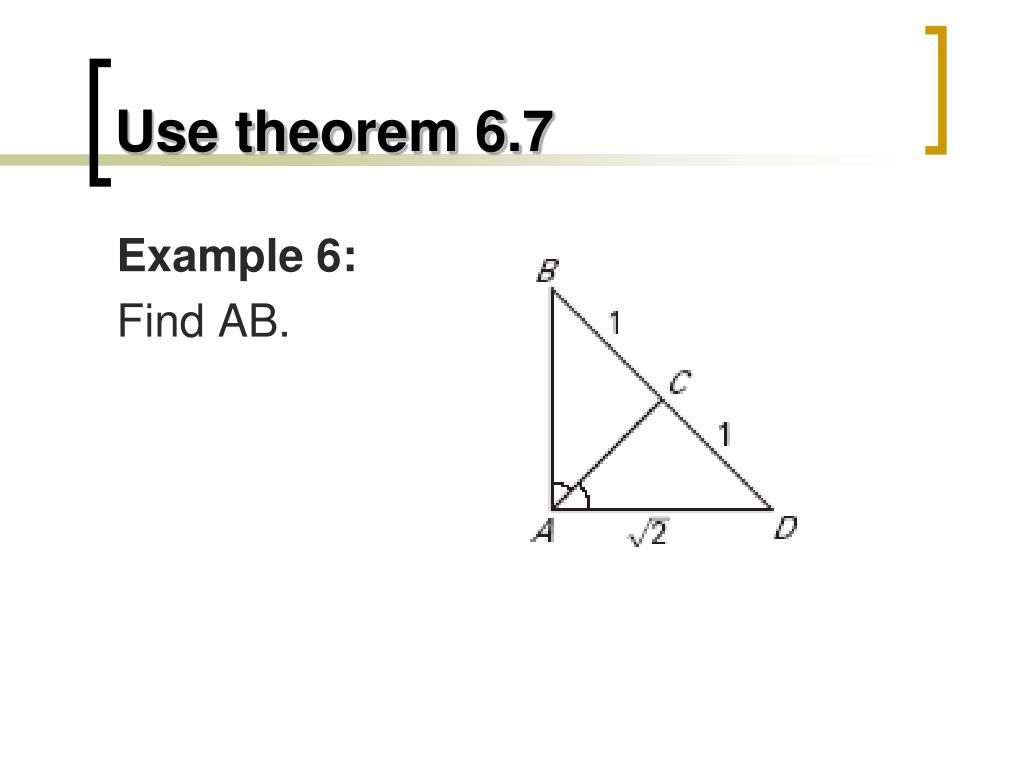

  9. Use theorem 6.7 Example 6: Find AB.
