CONCEPTUAL EXAMPLE 10.1

holt avatar
holt
4 diapositives · 250 Views · Sep 05, 2014

CONCEPTUAL EXAMPLE 10.1. Repeat Units in Polymers. What is the repeat unit in polyvinylidene chloride? A segment of the polymer is represented as H Cl H Cl H Cl ~C C C C C C~ H Cl H Cl H Cl. Solution. The repeat unit is H Cl C C H Cl

CONCEPTUAL EXAMPLE 10.1 - slide 1
01 / 4CONCEPTUAL EXAMPLE 10.1
1 / 17

Télécharger la présentation

CONCEPTUAL EXAMPLE 10.1
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. CONCEPTUAL EXAMPLE 10.1 Repeat Units in Polymers What is the repeat unit in polyvinylidene chloride? A segment of the polymer is represented as H Cl H Cl H Cl ~C C C C C C~ H Cl H Cl H Cl Solution The repeat unit is H Cl C C H Cl Joining three of these units forms the segment shown; joining hundreds of the units would form a molecule of the polymer. Exercise 10.1 What is the repeat unit in polyacrylonitrile? A segment of the polymer is represented as ~CH2CHCH2CHCH2CHCH2CHCH2CHCH2CH~ CN CN CN CN CN CN

  2. EXAMPLE 10.2 Structures of Polymers Give the structure of the polymer made from vinyl fluoride (CH2 CHF). Show at least four repeat units. Solution The carbon atoms become bonded in a chain with only single bonds between the carbon atoms. The fluorine atom is a substituent on the chain. (Two of the electrons in the double bond of the monomer are used to join the units.) The polymer is ~CH2CHCH2CHCH2CHCH2CH~ F F F F Exercise 10.2B Give the structure of the polymer made from vinyl acetate (CH2 CHOCOCH3). Show at least fourrepeat units. Exercise 10.2A Give the structure of the polymer made from methyl vinyl ether (CH2 CHOCH3). Show at least four repeat units.

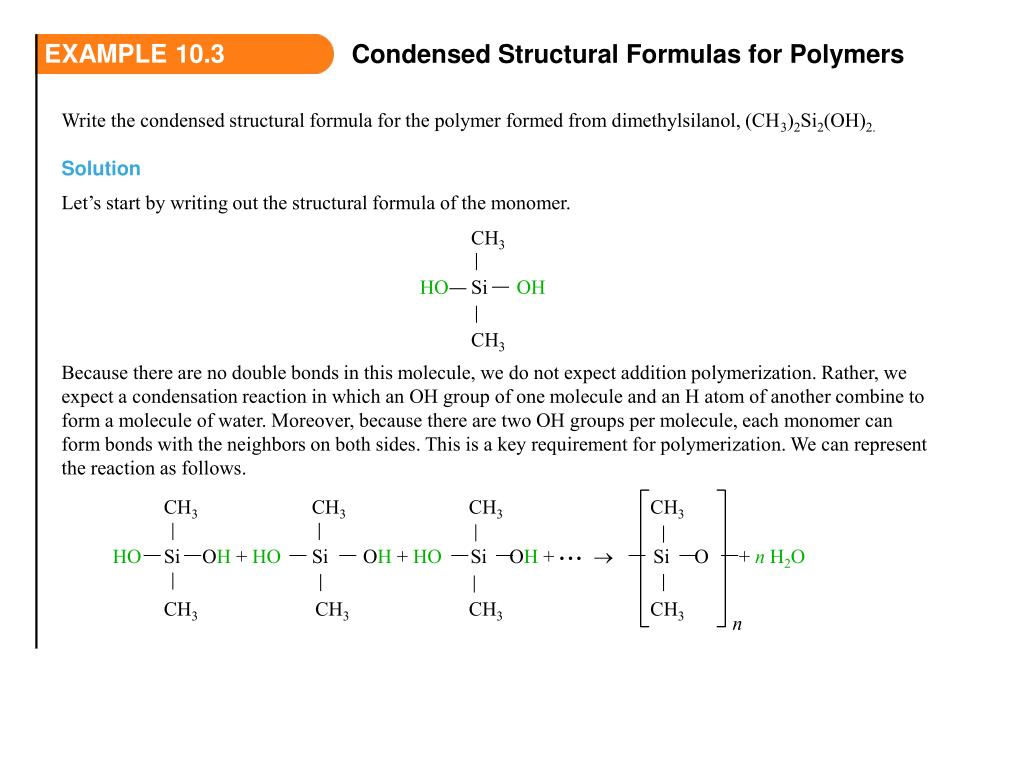

  3. EXAMPLE 10.3 Condensed Structural Formulas for Polymers Solution Let’s start by writing out the structural formula of the monomer. CH3 HO Si OH CH3 Because there are no double bonds in this molecule, we do not expect addition polymerization. Rather, we expect a condensation reaction in which an OH group of one molecule and an H atom of another combine to form a molecule of water. Moreover, because there are two OH groups per molecule, each monomer can form bonds with the neighbors on both sides. This is a key requirement for polymerization. We can represent the reaction as follows. CH3 CH3 CH3 CH3 HO Si OH + HO Si OH + HO SiOH + • • •  Si O +n H2O CH3 CH3 CH3 CH3 n Write the condensed structural formula for the polymer formed from dimethylsilanol, (CH3)2Si2(OH)2.

  4. EXAMPLE 10.03 Condensed Structural Formulas for Polymers continued Exercise 10.3 (a) Write the structural formula for the polymer formed from 3-hydroxypropanoic acid (HOCH2CH2COOH),showing at least four repeat units. (b) Write a condensed structural formula in which the repeat unit is shown in brackets.
