  1. Configuration of the controller function in JUMO-Controllers 久茂控制器控制功能组态Dipl.-Ing. Manfred Schleicher Welcome欢迎

  2. Cooling or Heating Example. 0/4…20 mA Cooling or Heating Heating and Cooling • This presentation provides assistance with the configuration of JUMO controllers as此讲义提供久茂控制器组态的帮助 • 2-state controller 2位式控制器 加热 或 冷却 • continuous controller 连续控制器 例如0/4---20mA 加热 或 冷却 加热 3-state controller 和 3位式控制器冷却 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

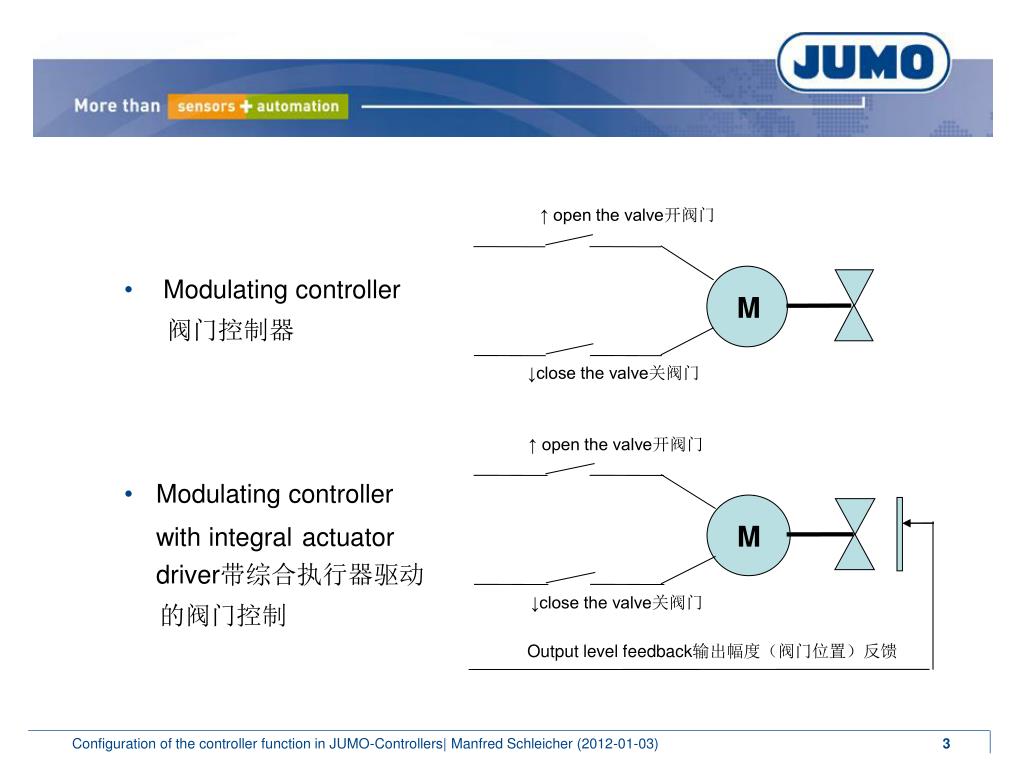

  3. ↑ open the valve开阀门 M ↓close the valve关阀门 ↑ open the valve开阀门 M ↓close the valve关阀门 Output level feedback输出幅度（阀门位置）反馈 • Modulating controller 阀门控制器 • Modulating controller with integralactuator driver带综合执行器驱动 的阀门控制 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  4. default settings of JUMO-Controllers and overview 久茂控制器的缺损设置及概览 • 2-state controller两位式控制器 • continuous controller连续控制器 • 3-state controller三位式控制器 • Modulating controller阀门控制器 • Modulating controller with integral actuator driver 带综合执行器驱动的阀门控制器 • Further settings in the controller menue控制器菜单中的进一步设置 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  5. Default settings of JUMO-Controllers and overview久茂控制器的缺损设置及概览

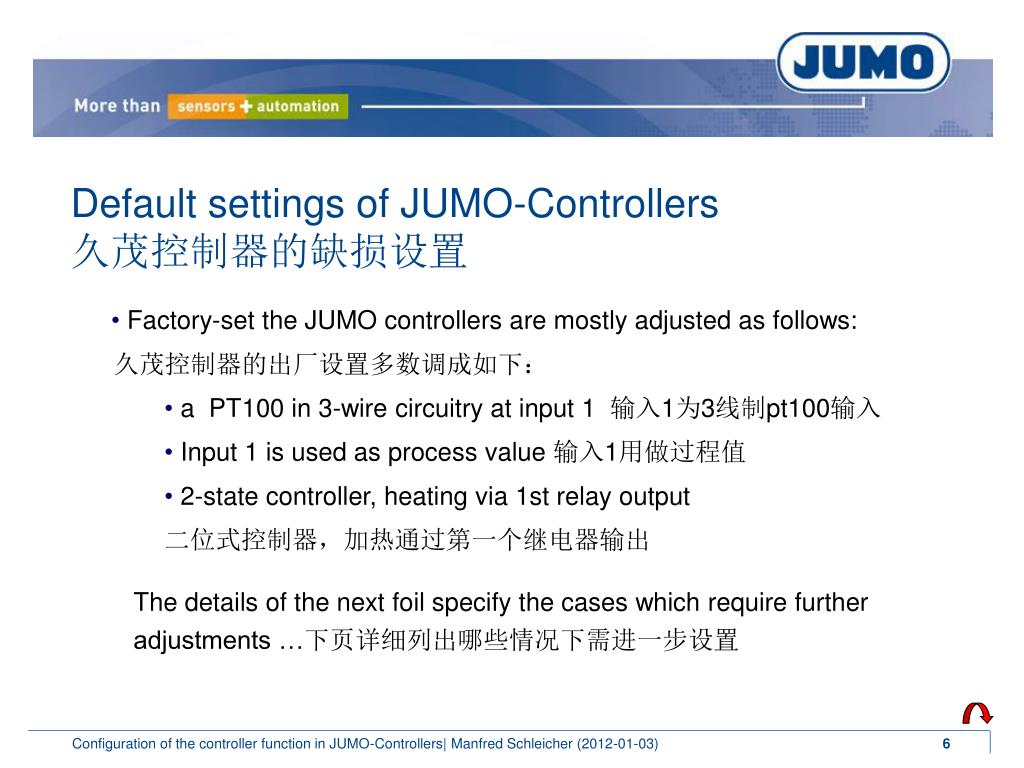

  6. Default settings of JUMO-Controllers久茂控制器的缺损设置 • Factory-set the JUMO controllers are mostly adjusted as follows: • 久茂控制器的出厂设置多数调成如下： • a PT100 in 3-wire circuitry at input 1 输入1为3线制pt100输入 • Input 1 is used as process value 输入1用做过程值 • 2-state controller, heating via 1st relay output • 二位式控制器，加热通过第一个继电器输出 The details of the next foil specify the cases which require further adjustments …下页详细列出哪些情况下需进一步设置 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

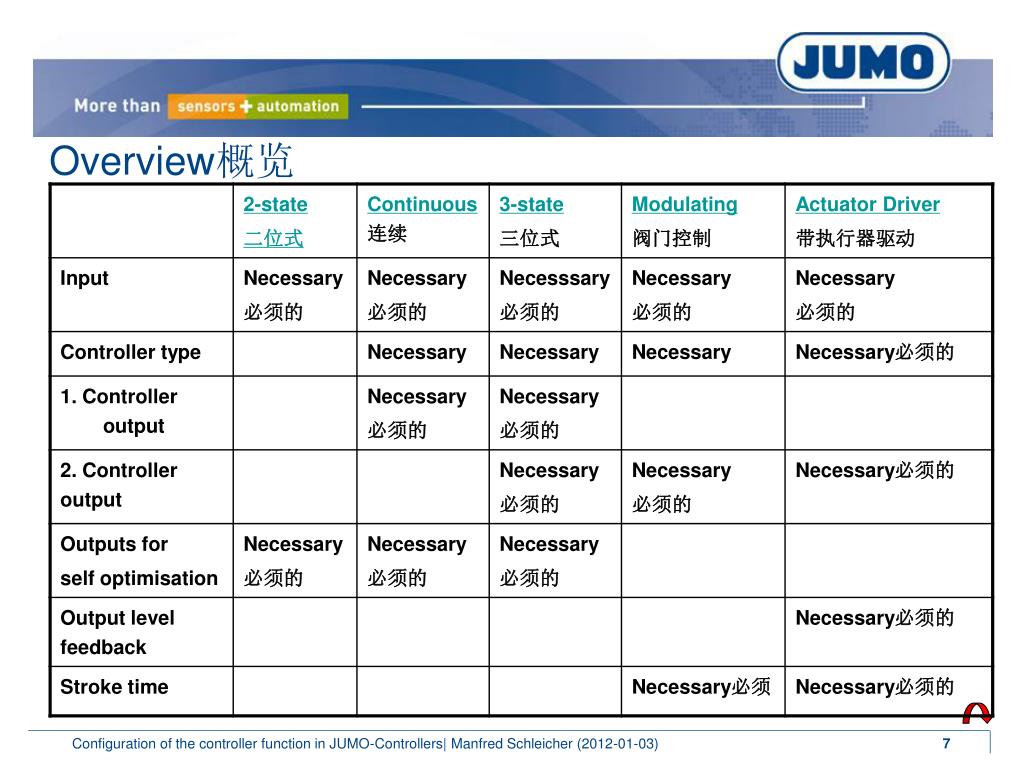

  7. Overview概览 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  8. Configuration as 2-state controller二位式控制器组态

  9. Factory-set JUMO-controllers are defined as 2-state controllers; most of the parameters can be taken …出厂设置的久茂控制器被定义成二位式控制器；多数参数可用。 加热 或 冷却 Cooling or Heating 2-state controller二位式控制器 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  10. Input configuration输入组态 • Factory-set the analog input 1 is used as process value. If a different input is used, this must be adjusted in the controller menu:出厂设置的 模拟输入1是被用做过程值。如果用不同的输入，必须在控制器菜单中调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

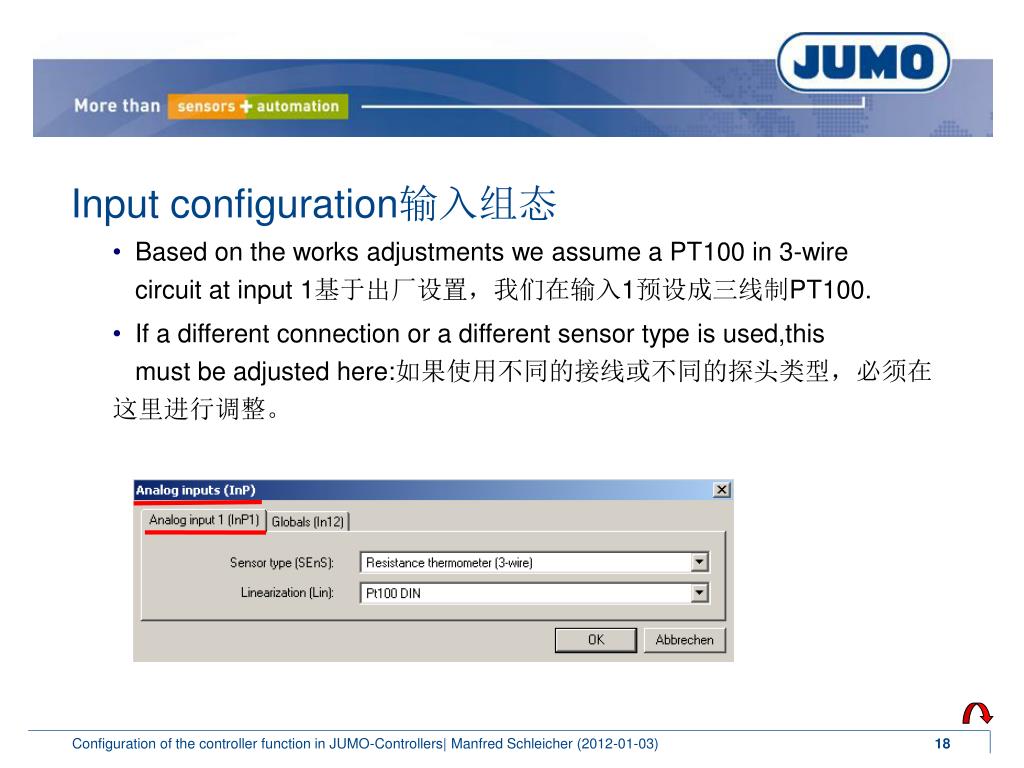

  11. Input configuration输入组态 • Based on the works adjustments we assume a PT100 in 3-wire circuit at input 1基于出厂设置，我们在输入1预设成三线制PT100. • If a different connection or a different sensor type is used,this must be adjusted here:如果使用不同的接线或不同的探头类型，必须在这里进行调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  12. Adjustment of controller type and control action 控制器类型和控制动作的设置 • Adjustment of controller type and control action控制器类型和控制动作的设置 • With the adjustment of the control action „inverse“ the controller reduces it‘s output, if the actual value rises (heating, humidification, rising pressure etc. ) 当控制动作设成”反向“，控制器在实际值上升时，减小它的输出（加热，湿化，加压等。） • For processes like cooling, de-humidification, pressure reduction etc. the control action „direct“ must be selected.对于诸如冷却，除湿，减压等过程，控制动作必须设成”正向“。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

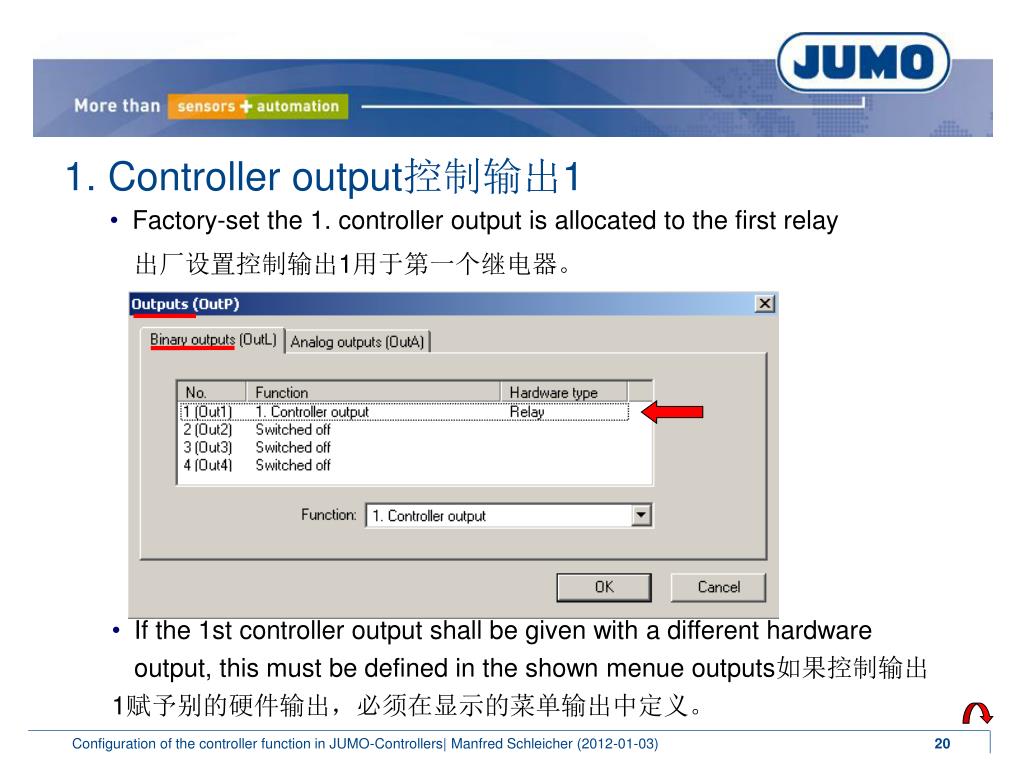

  13. 1. Controller output控制输出1 • Factory-set the 1. controller output is allocated to the first relay 出厂设置控制输出1用于第一个继电器。 • If the 1st controller output shall be given with a different hardware output, this must be defined in the shown menue outputs如果控制输出1赋予别的硬件输出，必须在显示的菜单输出中定义。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  14. Output self-optimization输出自优化 • Beside the control parameters the self-optimization calculates the cyle time (Cy)处了控制参数，自优化还计算循环时间 • If „relay“ is selected, the max. possible Cy is determined (this spares the relays)如果选择的是继电器，最大可能的循环时间将被选择（让继电器动作慢一点） • If „solid state + logic“ is selected, after self-optimization Cy is set to the lowest possible value如果选择的是固态+逻辑，则自由化后，Cy被设成 最小可能的值。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  15. Configuration as continuous controller组态成连续控制器

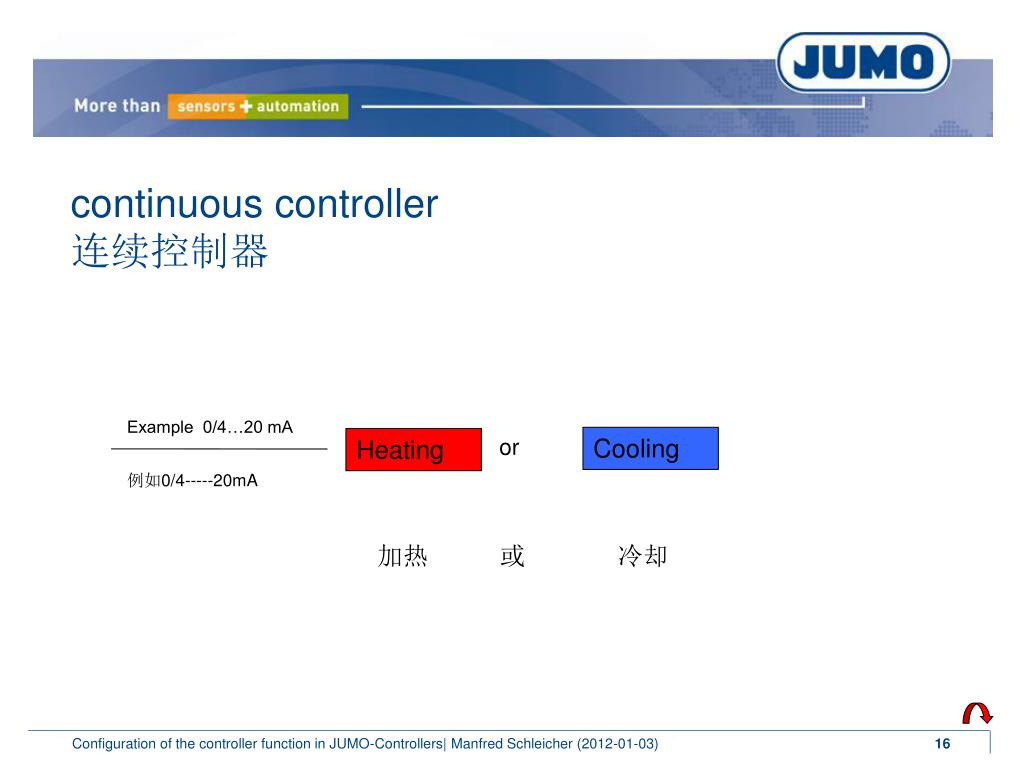

  16. Example 0/4…20 mA 例如0/4-----20mA Cooling or Heating continuous controller 连续控制器 加热 或 冷却 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  17. Input configuration 输入组态 • Factory-set the analog input 1 is used as process value. If a different input is used, this must be adjusted in the controller menu:出厂设置的模拟输入1是用于过程值，如果用别的输入， • 必须在控制器菜单中调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  18. Input configuration输入组态 • Based on the works adjustments we assume a PT100 in 3-wire circuit at input 1基于出厂设置，我们在输入1预设成三线制PT100. • If a different connection or a different sensor type is used,this must be adjusted here:如果使用不同的接线或不同的探头类型，必须在这里进行调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

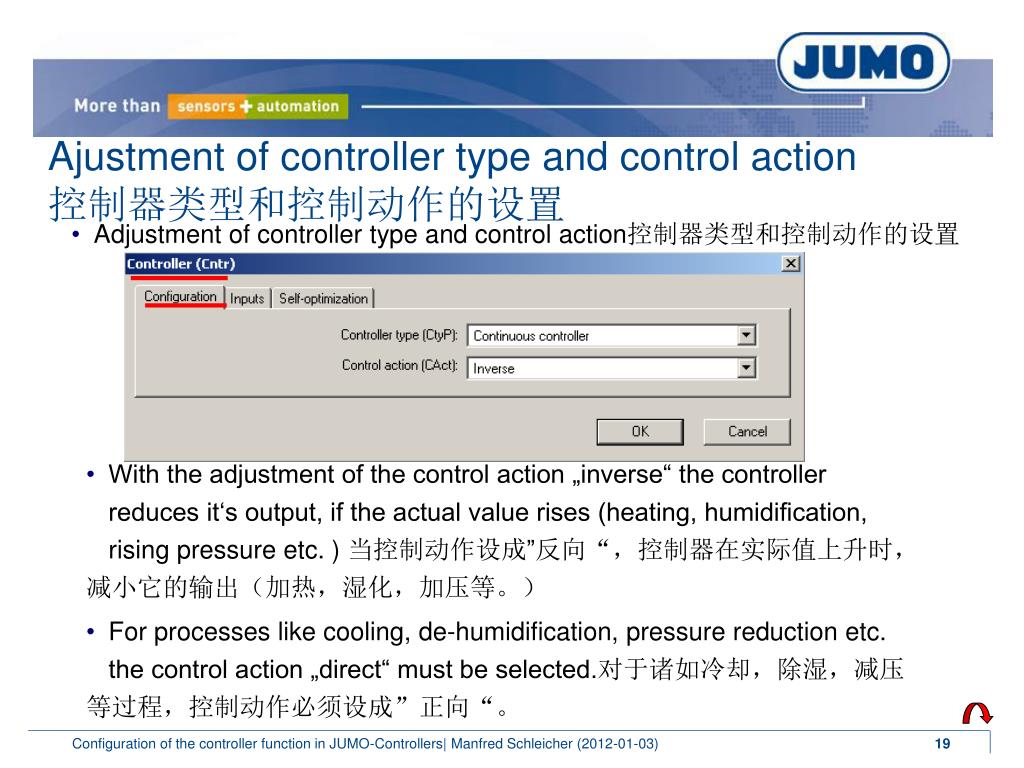

  19. Ajustment of controller type and control action 控制器类型和控制动作的设置 • Adjustment of controller type and control action控制器类型和控制动作的设置 • With the adjustment of the control action „inverse“ the controller reduces it‘s output, if the actual value rises (heating, humidification, rising pressure etc. ) 当控制动作设成”反向“，控制器在实际值上升时，减小它的输出（加热，湿化，加压等。） • For processes like cooling, de-humidification, pressure reduction etc. the control action „direct“ must be selected.对于诸如冷却，除湿，减压等过程，控制动作必须设成”正向“。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  20. 1. Controller output控制输出1 • Factory-set the 1. controller output is allocated to the first relay 出厂设置控制输出1用于第一个继电器。 • If the 1st controller output shall be given with a different hardware output, this must be defined in the shown menue outputs如果控制输出1赋予别的硬件输出，必须在显示的菜单输出中定义。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  21. 1. Controller output控制输出1 • The first controller output must be allocated to an analog output 控制输出1必须设在一个模拟输出上 • In our example the 1st controller ouput is allocated to analog output 5 (0…100 % which corresponds to 0…20 mA)在我们的例子中，控制输 出1设在了模拟输出5上。（0-100%对应0-20mA） Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  22. Output self-Optimization输出自优化 • For the self-optimization „analog“ must be selected for controller output 1 • 对于自优化，对于控制输出1，必须选“模拟” Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  23. Configuration as 3-state controller三位式控制器的组态

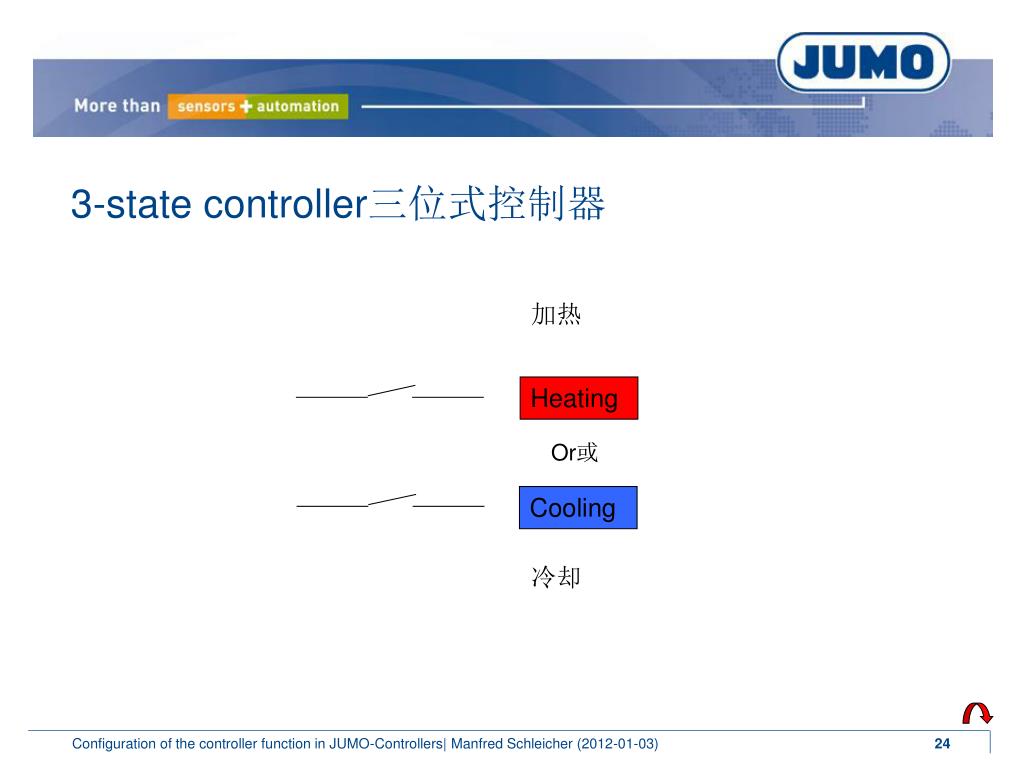

  24. Heating Or或 Cooling 3-state controller三位式控制器 加热 冷却 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  25. Input configuration输入组态 • Factory-set the analog input 1 is used as process value. If a different input is used, this must be adjusted in the controller menu:出厂设置的 模拟输入1是被用做过程值。如果用不同的输入，必须在控制器菜单中调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  26. Input configuration输入组态 • Based on the works adjustments we assume a PT100 in 3-wire circuit at input 1基于出厂设置，我们在输入1预设成三线制PT100. • If a different connection or a different sensor type is used,this must be adjusted here:如果使用不同的接线或不同的探头类型，必须在这里进行调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  27. The controller must be defined as 3-state controller 控制器类型必须被设成三位式控制器 Adjustment of controller type控制器类型的设置 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  28. 1. Controller output控制器输出1 • Factory-set the output 1 is given with the 1st relay出厂设置输出1给予第一个继电器 • If „heating“ shall be realised with this output, this adjustment is o.k. 如果加热是通过此输出，那么此设置是对的 • If a different analog output shall be used (logic output, solid-state relay etc.) the 1. controller output must be allocated accordingly如果使用别的模拟输出（或逻辑，固态继电器等）控制器输出1必须相应地重新分配 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  29. 1. Controller output控制器输出1 • Some applications require an analog output for „heating“ 某些应用需要一个模拟输出用于加热 • In such cases the 1. controller output must be allocated to an analog output在这种情况下，控制器输出1必须分配给莫逆输出 • In this example the 1. controller output is allocated to analog output 5 (0…100 % which corresponds to 0…20 mA)此例中，控制输出1设在了模拟输出5上。（0-100%对应0-20mA） Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  30. The 2. controller output activates the „cooling“控制输出2激活”冷却“ • If this is realised with an binary output, the 2. controller output must be allocated to this output如果这通过一个开关量输出来实现，控制器输出2必须设在这个输出上 2. Controller output控制输出2 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  31. 2. Controller output控制输出2 • Some applications require an analog output for „cooling“ 某些应用需要一个模拟输出用于冷却 • In such cases the 2. controller output must be allocated to an analog output此时，输出2控制器输出2必须设在一个莫逆输出上 • In our example the 2. controller output is allocated to analog output 5 (0…100 % which corresponds to 0…20 mA)在我们的例子中，控制器输出2被设在模拟输出5上（0-100%对应0-20mA） Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  32. For the self-optimization the type of the two controller outputs must be selected对于自优化，2个控制器输出的类型必须选择 Output-self Omtimization输出自优化 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

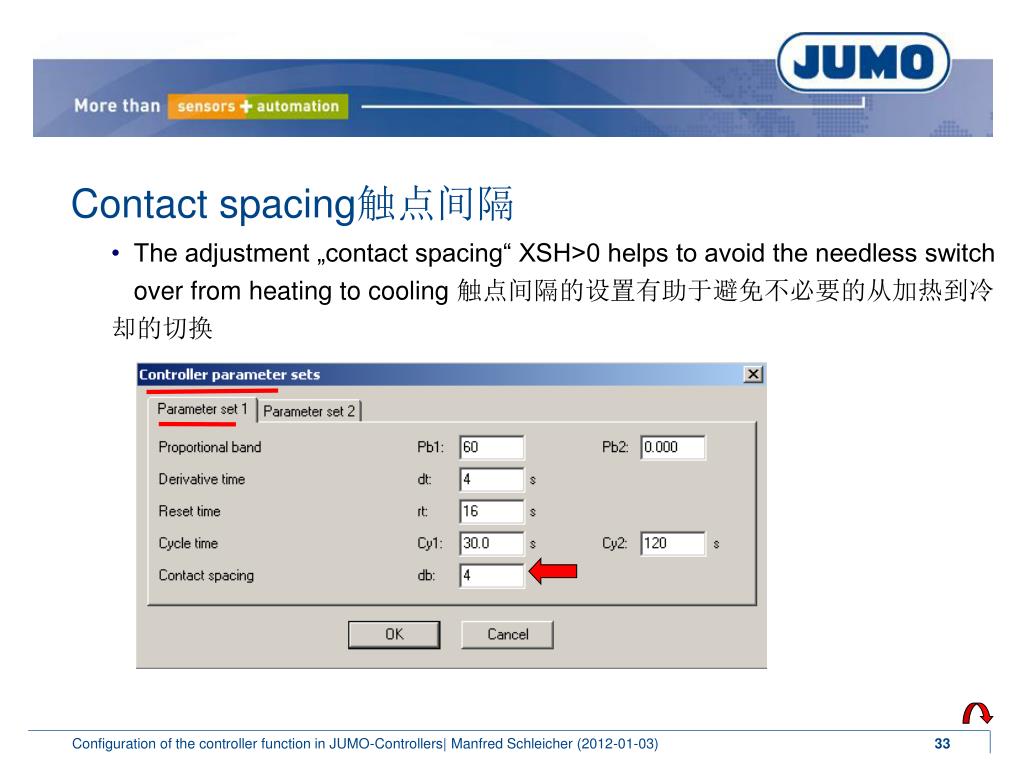

  33. The adjustment „contact spacing“ XSH>0 helps to avoid the needless switch over from heating to cooling 触点间隔的设置有助于避免不必要的从加热到冷却的切换 Contact spacing触点间隔 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  34. Configuration as modulating controller阀门控制器的组态

  35. Modulation controller阀门控制器 ↑ open the valve开阀门 M ↓close the valve关阀门 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  36. Input configuration输入组态 • Factory-set the analog input 1 is used as process value. If a different input is used, this must be adjusted in the controller menu:出厂设置的 模拟输入1是被用做过程值。如果用不同的输入，必须在控制器菜单中调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  37. Input configuration输入组态 • Based on the works adjustments we assume a PT100 in 3-wire circuit at input 1基于出厂设置，我们在输入1预设成三线制PT100. • If a different connection or a different sensor type is used,this must be adjusted here:如果使用不同的接线或不同的探头类型，必须在这里进行调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  38. Adjustment of controller type and control action 控制器类型和控制动作的设置 • The controller must be defined as modulating controller控制器必须定义成阀门控制器 • With the adjustment of the control action „inverse“ the controller reduces it‘s output, if the actual value rises. (heating, humidification, rising pressure etc. )当控制动作设成”反向“，控制器在实际值上升时，减小它的输出（加热，湿化，加压等。） • For processes like cooling, de-humidification, pressure reduction etc. the control action „direct“ must be selected.对于诸如冷却，除湿，减压等过程，控制动作必须设成”正向“。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  39. Factory-set the 1. controller output is allocated to the 1. relay; with this output the valve is opened出厂设置控制器输出1设在继电器1，次数出用于开阀门 1. Controller output控制器输出1 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  40. The 2. controller output closes the valve控制器输出2用于关阀门 • The 2. controller output must be allocated to a hardware type (in our example output 2)控制器输出2必须设在一个硬件类型上（在我们的例子中是输出2） 2. Controller output控制器输出2 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  41. The stroke time must be defined行程时间必须被定义 Stroke time行程时间 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  42. Contact spacing触点间隔 • The adjustment contact spacing XSH(db)>0 spares the 触点将放缓执行器 actuator (but it increases the inaccuracy to max. XSH/2)但这将降低精度 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  43. Configuration as modulating controller with integral actuator driver带综合执行器驱动的阀门控制器的组态

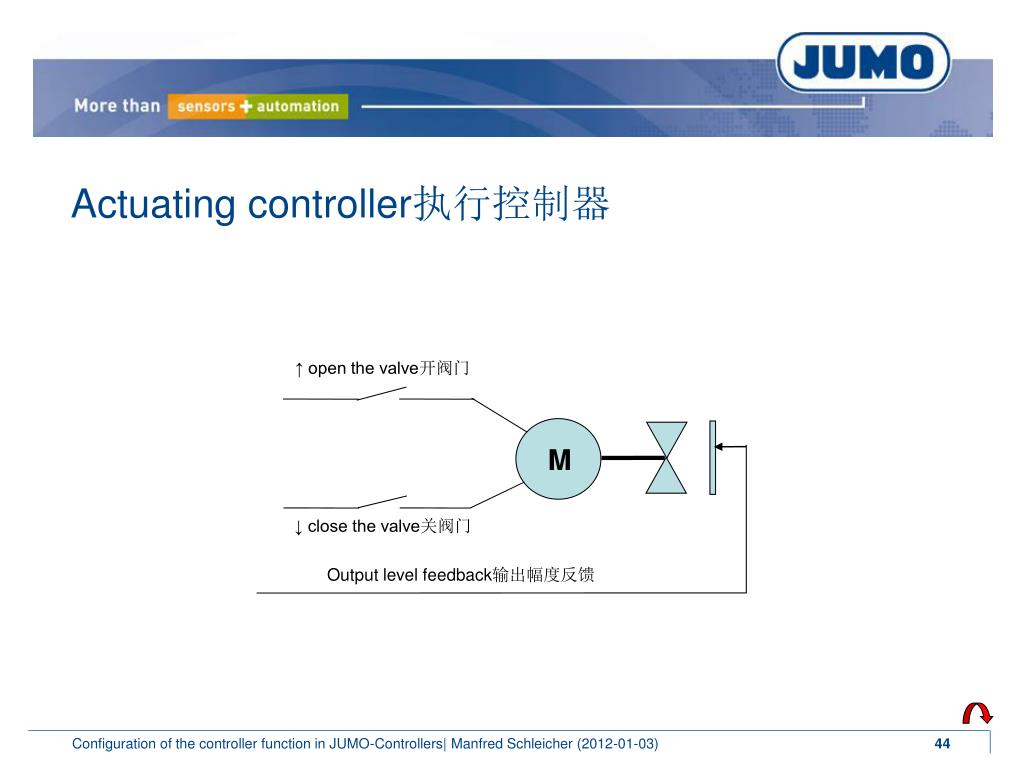

  44. Actuating controller执行控制器 ↑ open the valve开阀门 M ↓ close the valve关阀门 Output level feedback输出幅度反馈 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  45. Input configuration输入组态 • Factory-set the analog input 1 is used as process value. If a different input is used, this must be adjusted in the controller menu:出厂设置的 模拟输入1是被用做过程值。如果用不同的输入，必须在控制器菜单中调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  46. Input configuration输入组态 • Based on the works adjustments we assume a PT100 in 3-wire circuit at input 1基于出厂设置，我们在输入1预设成三线制PT100. • If a different connection or a different sensor type is used,this must be adjusted here:如果使用不同的接线或不同的探头类型，必须在这里进行调整。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  47. Adjustment of controller type and control action 控制器类型和控制动作的设置 • The controller must be defined as continuous controller with integral actuator driver控制器必须设成带综合执行器驱动的连续控制器 • With the adjustment of the control action „inverse“ the controller reduces it‘s output, if the actual value rises. (heating, humidification, rising pressure etc.)当控制动作设成”反向“，控制器在实际值上升时，减小它的输出（加热，湿化，加压等。） • For processes like cooling, de-humidification, pressure reduction etc. the control action „direct“ must be selected.对于诸如冷却，除湿，减压等过程，控制动作必须设成”正向“。 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  48. Factory-set the 1. controller output is allocated to the 1. relay; with this output the valve is opened出厂设置控制器输出1设在继电器1，次数出用于开阀门 1. Controller output控制器输出1 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  49. The 2. controller output closes the valve控制器输出2用于关阀门 • The 2. controller output must be allocated to a hardware type (in our example output 2)控制器输出2必须设在一个硬件类型上（在我们的例子中是输出2） 2. Controller output控制器输出2 Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03)

  50. Output level feedback Definition of input signal输出幅度反馈输入信号的定义 • Mostly the output is retransmitted via potentiometer or resistance transmitter • 多数情况下，输出时通过电位器或电阻变送器再传送的 • A connection at analog input 2 is recommendable; configuration as follows: • 建议接在模拟输出2上，组态如下： Configuration of the controller function in JUMO-Controllers| Manfred Schleicher (2012-01-03) 50
