  1. RL/M SERIES

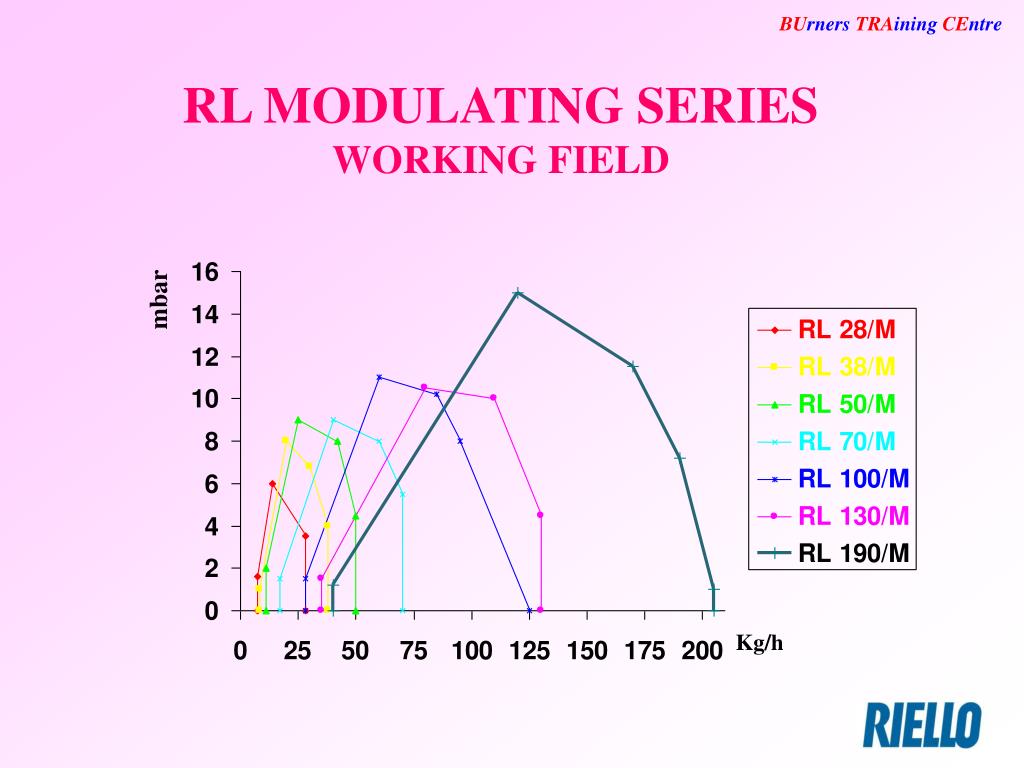

  2. RL MODULATING SERIES WORKING FIELD mbar Kg/h

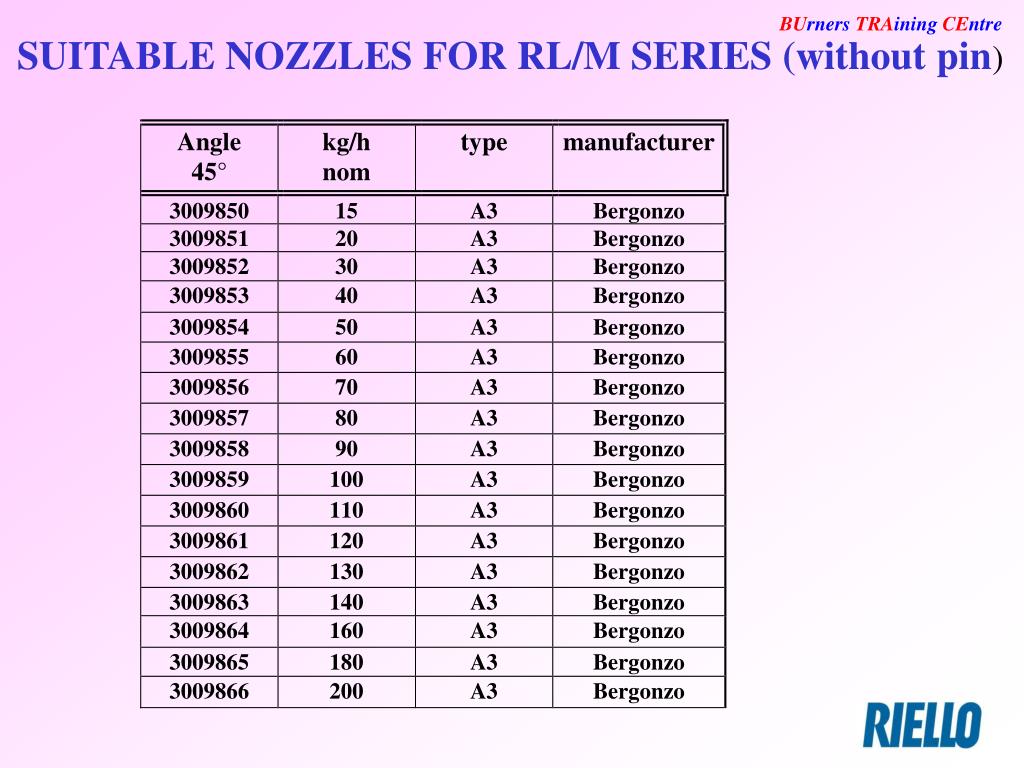

  3. SUITABLE NOZZLES FOR RL/M SERIES (without pin)

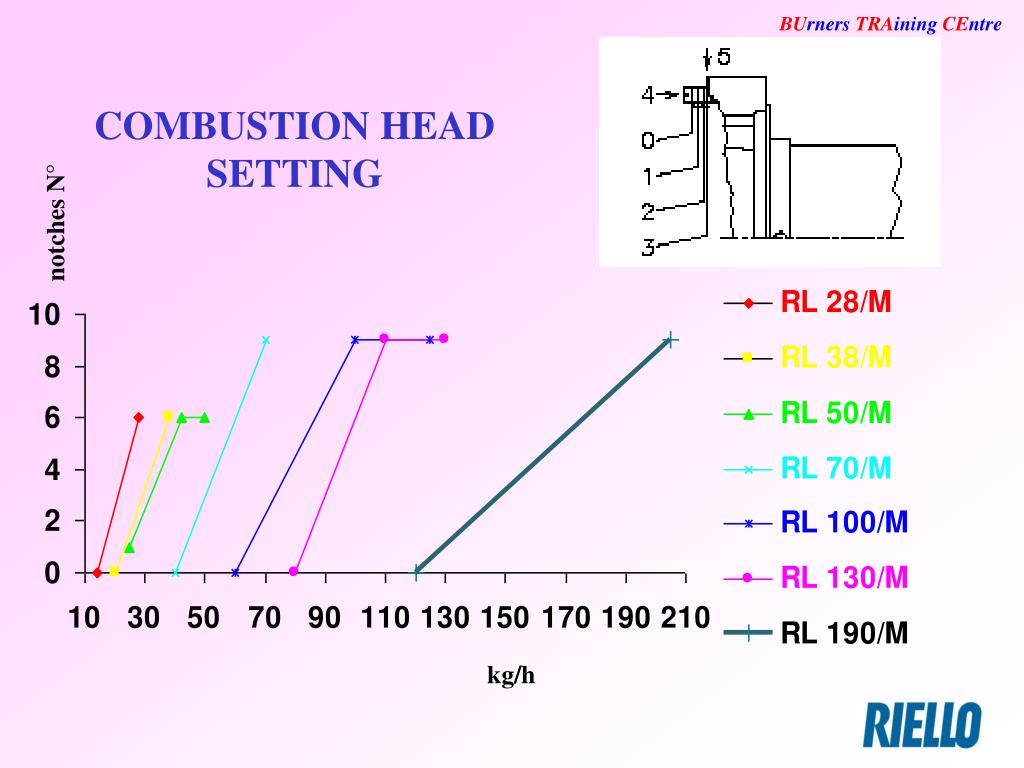

  4. COMBUSTION HEAD SETTING notches N° kg/h

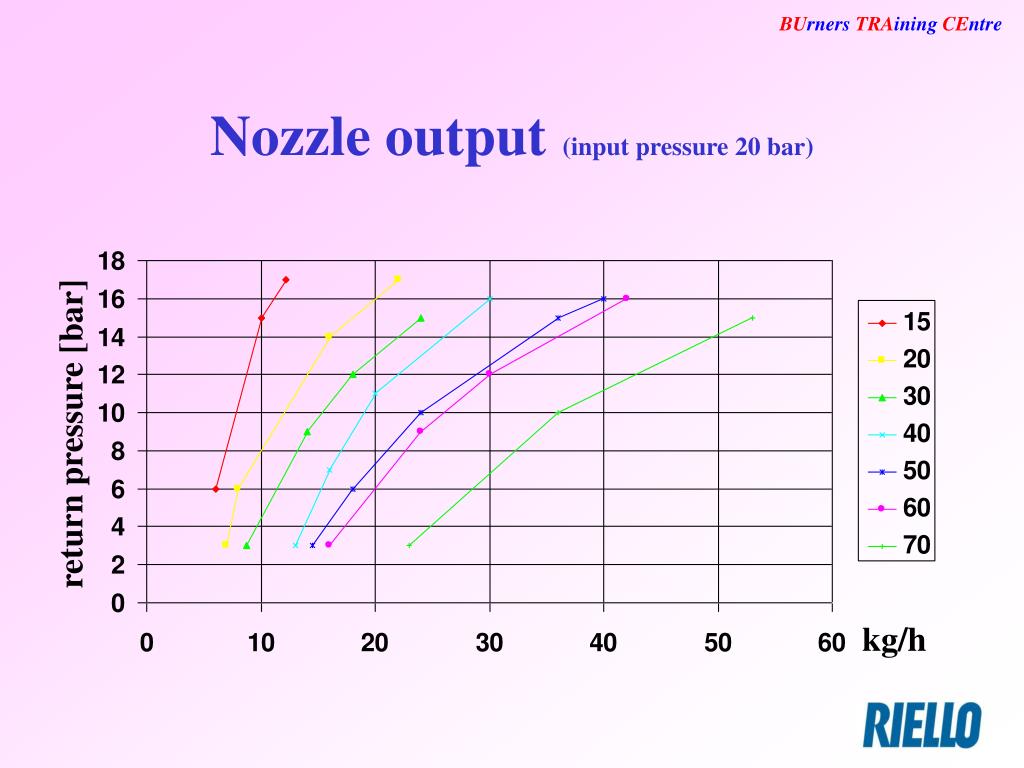

  5. Nozzle output(input pressure 20 bar) return pressure [bar] kg/h

  6. Nozzle output(input pressure 20 bar) return pressure [mbar] kg/h

  7. Min oil pressure switch on FS2 models (18bar) P P HYDRAULIC SCHEME nozzle output valves servomotor: 28-50 => SQN90.560A2793 70-190 => SQN 31.402A2700 return pressure regulator return valves (two on 130 and 190 type and FS2 mode operation) pump regulator pressure range: from 20 to 24 bar return manometer M type: RL 28 => AL 75 C RL 38 - 50 => AL 95 C RL 70-100-130 => J7C RL 190 => TA 3 air damper pump by Suntec return pressure switch (4bar) manometer by-pass screw bar return suction return

  8. P BURNER STARTING: 0” both the motor and the control box start to run RL 70-190/M M bar return suction return

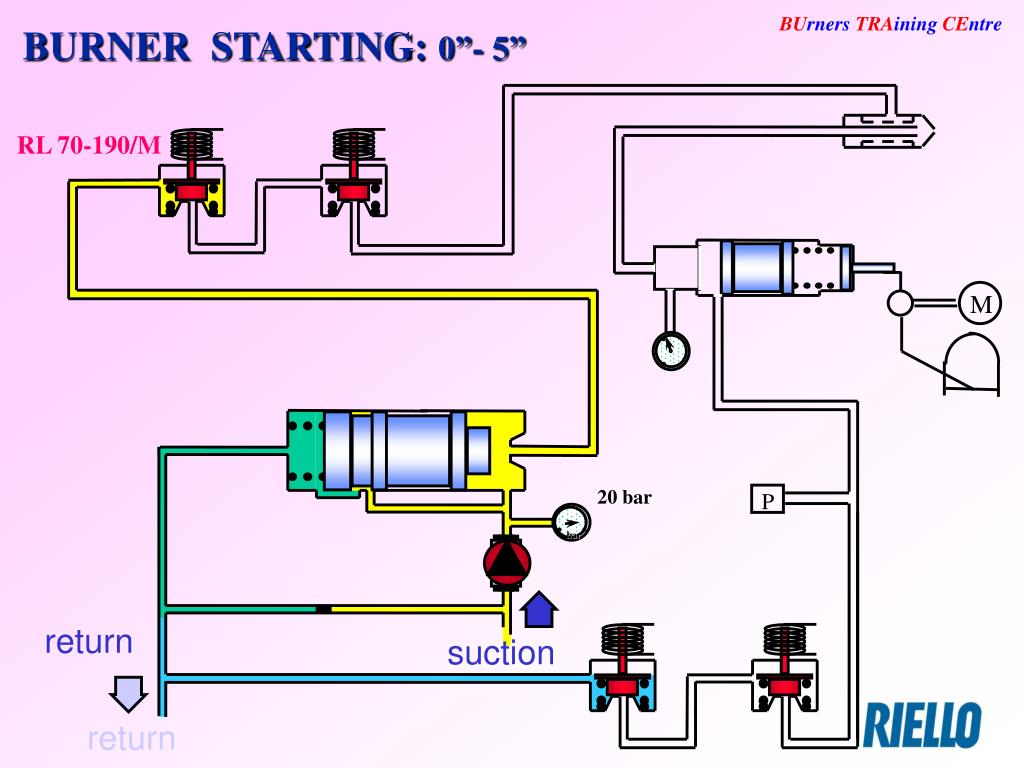

  9. P BURNER STARTING: 0”- 5” RL 70-190/M M bar return suction return

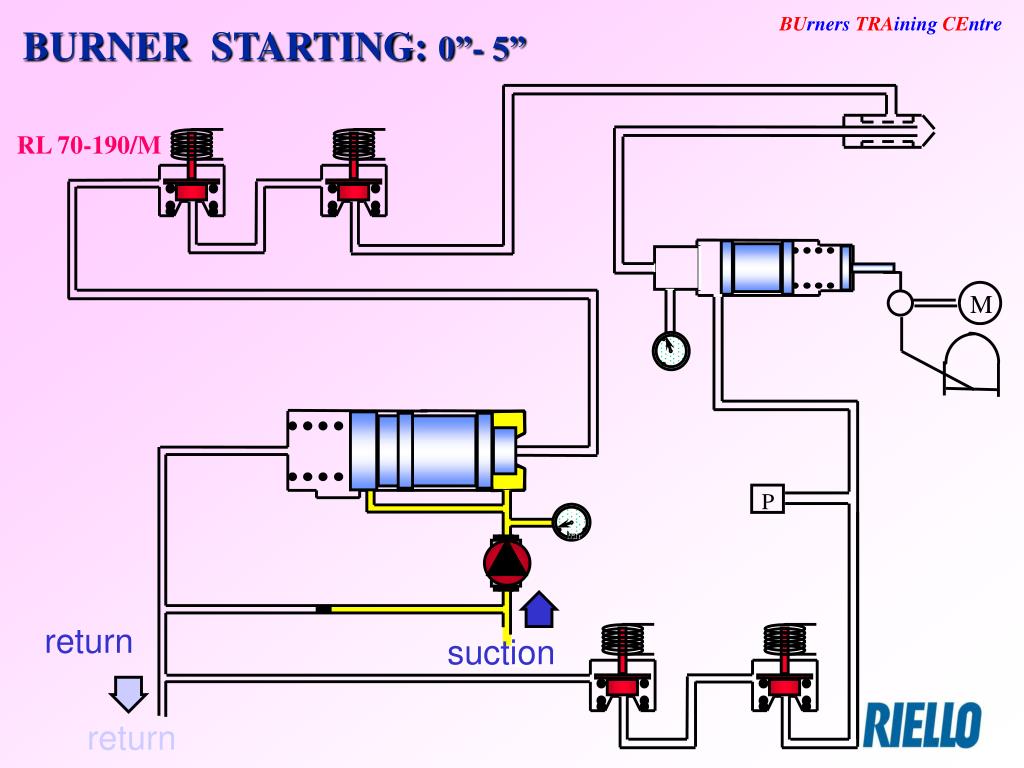

  10. P BURNER STARTING: 0”- 5” RL 70-190/M M 20 bar bar return suction return

  11. P BURNER STARTING: 0”- 5” RL 70-190/M M 20 bar bar return suction return

  12. P BURNER STARTING: 5”- 47” the servomotor opens to max (130°) RL 70-190/M M 20 bar bar return suction return

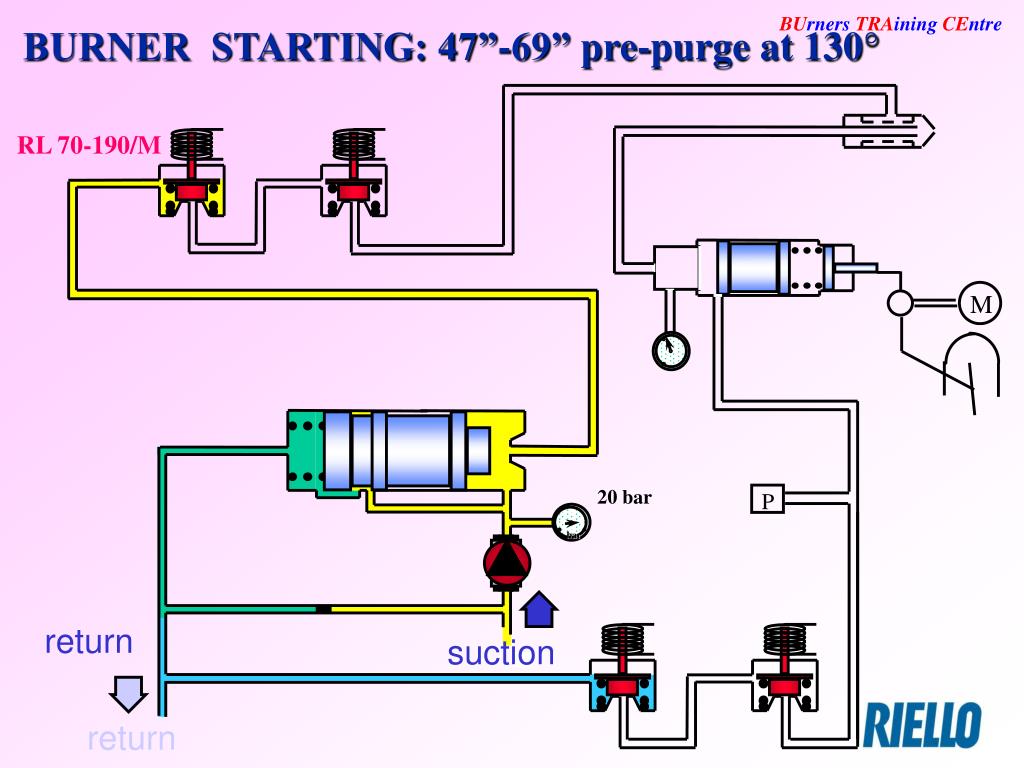

  13. P BURNER STARTING: 47”-69” pre-purge at 130° RL 70-190/M M 20 bar bar return suction return

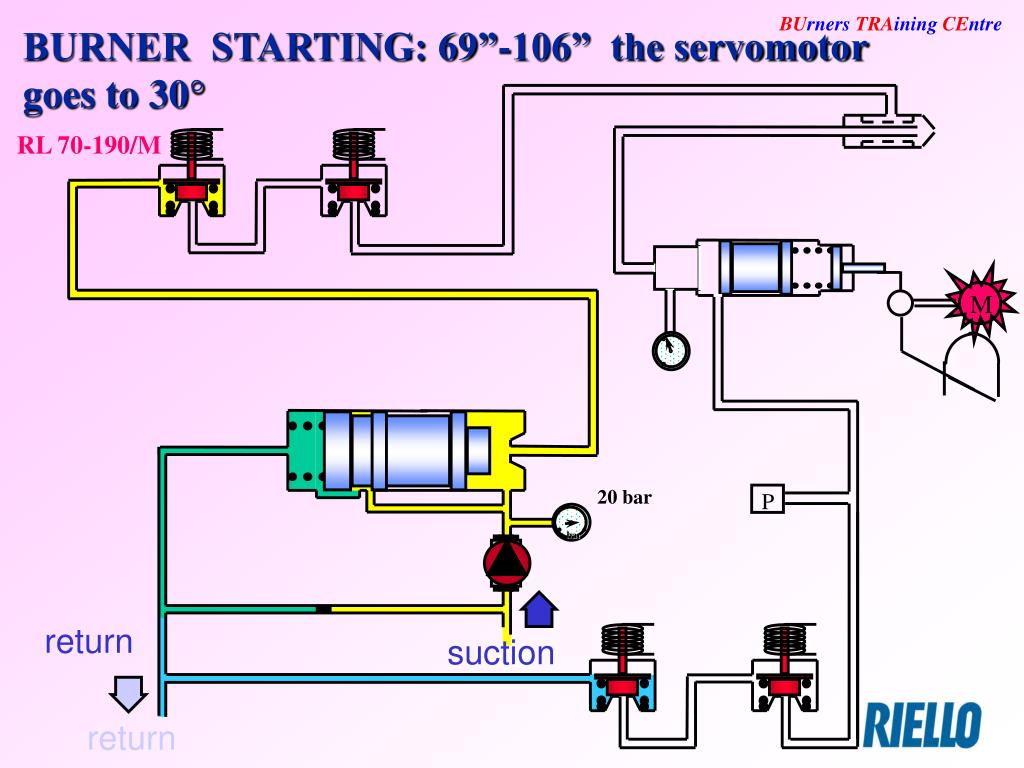

  14. P BURNER STARTING: 69”-106” the servomotor goes to 30° RL 70-190/M M 20 bar bar return suction return

  15. P BURNER STARTING: 108” the transformer is ON RL 70-190/M M 20 bar bar return suction return

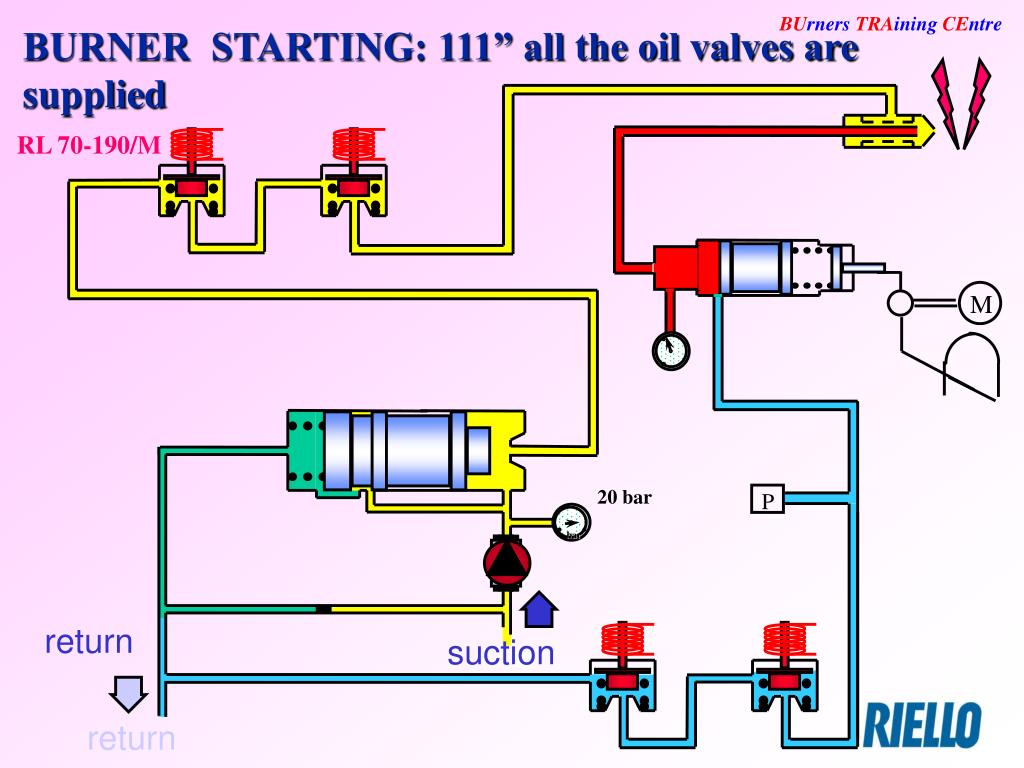

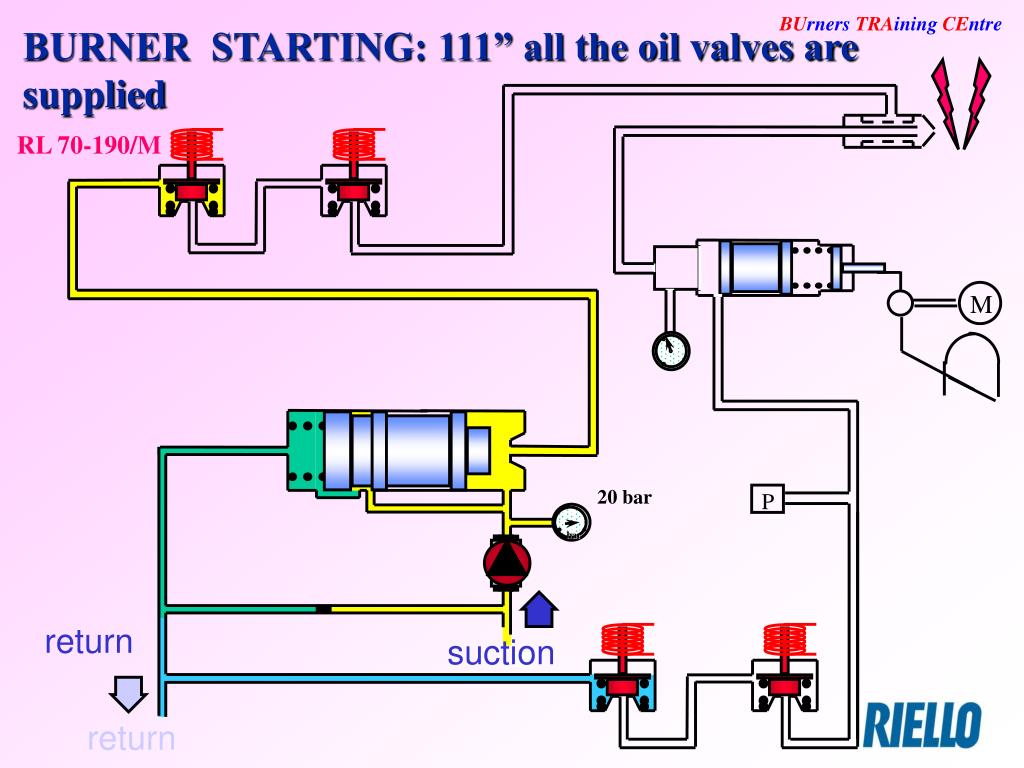

  16. P BURNER STARTING: 111” all the oil valves are supplied RL 70-190/M M 20 bar bar return suction return

  17. P BURNER STARTING: 111” all the oil valves are supplied RL 70-190/M M 20 bar bar return suction return

  18. P BURNER STARTING: 111” all the oil valves are supplied; ignition (max 5”) RL 70-190/M M 3 bar 20 bar bar return suction return

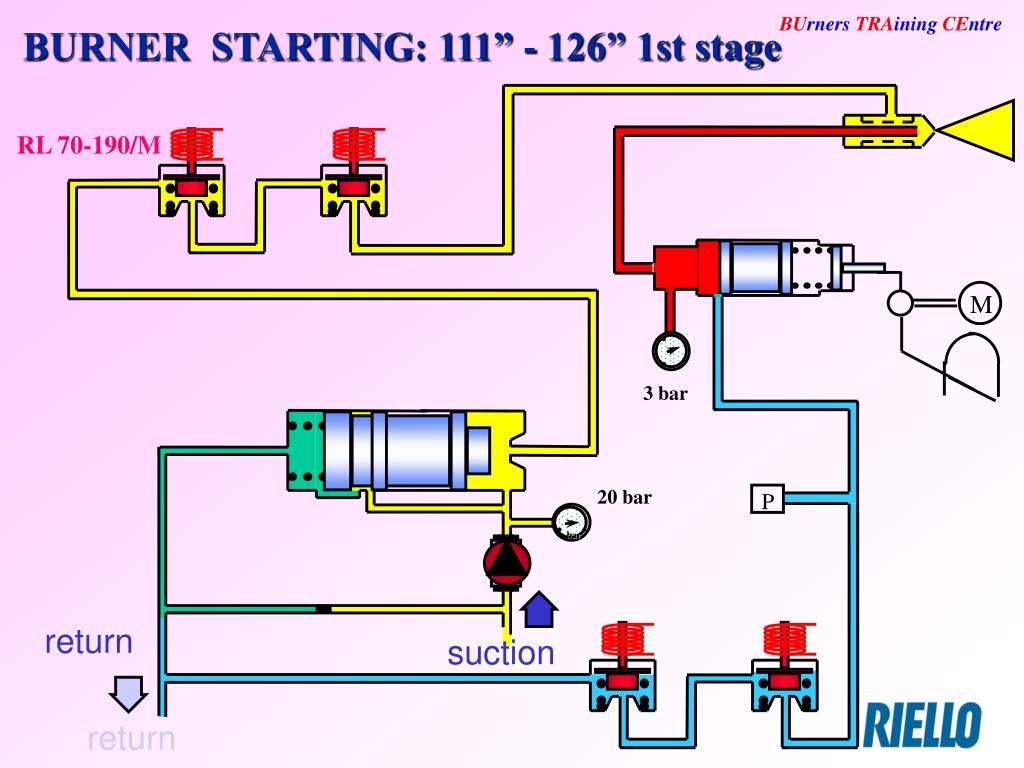

  19. P BURNER STARTING: 111” - 126” 1st stage RL 70-190/M M 3 bar 20 bar bar return suction return

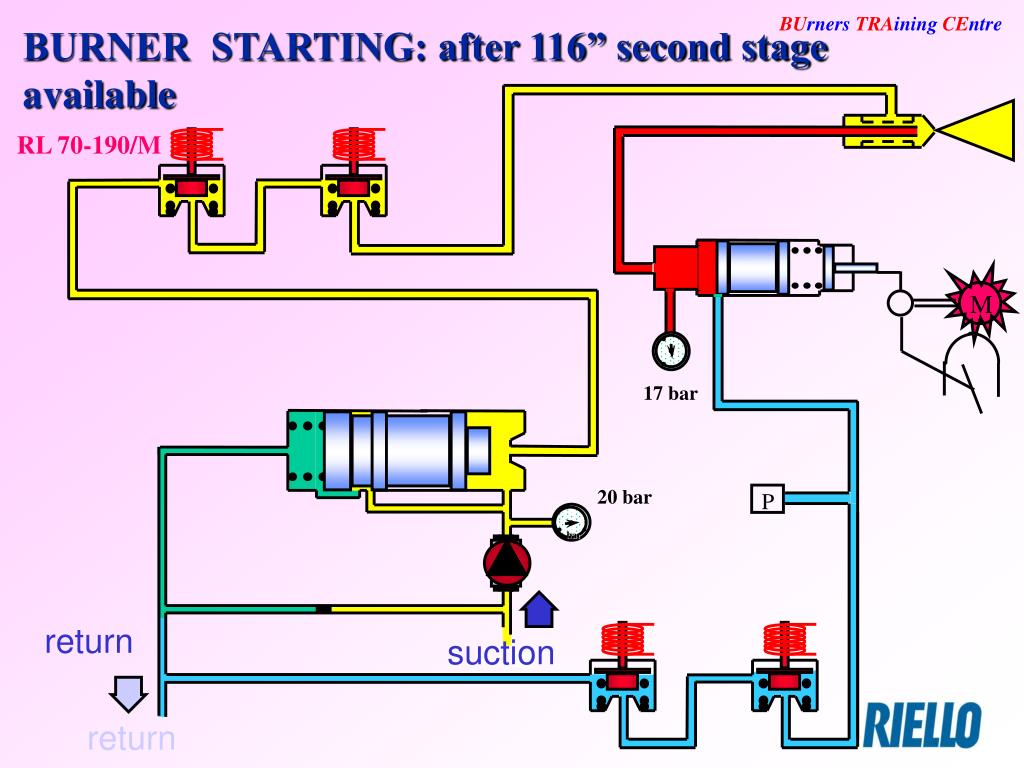

  20. P BURNER STARTING: after 116” second stage available RL 70-190/M M 17 bar 20 bar bar return suction return
