  1. Data Manipulation CSC 2001 TTU

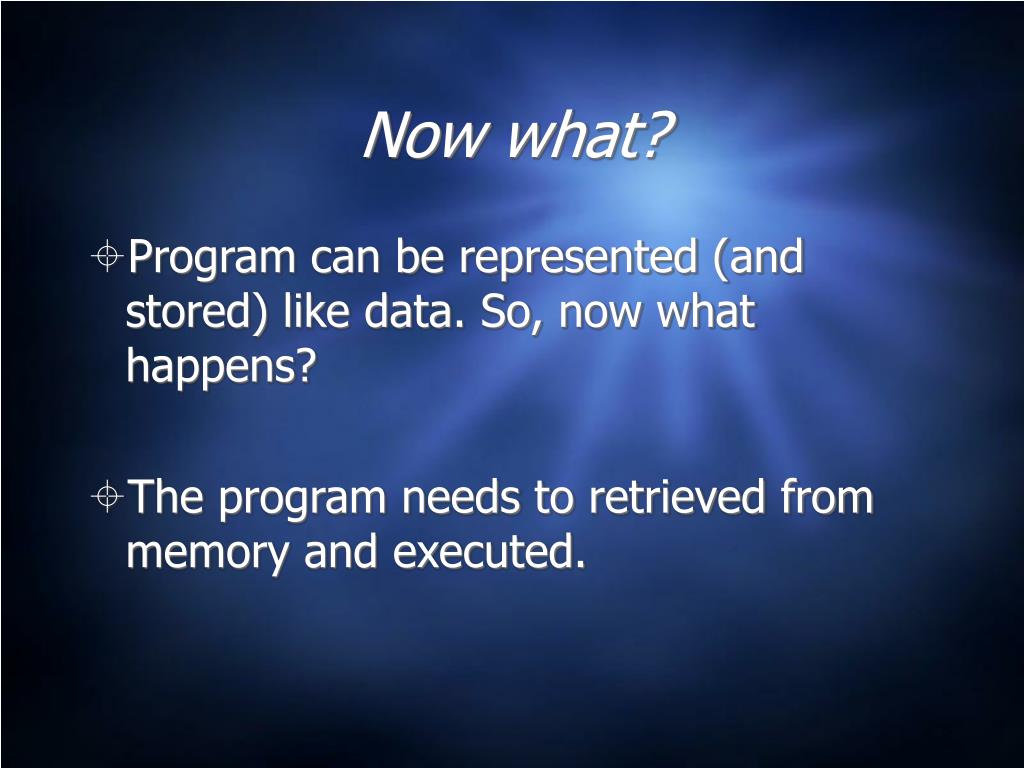

  2. Now what? • Program can be represented (and stored) like data. So, now what happens? • The program needs to retrieved from memory and executed.

  3. Program execution • Need to “add” some special purpose registers to the CPU to help with this. • Program counter • Keeps up with location in program (address of next instruction). • Instruction register • Holds the instruction being executed.

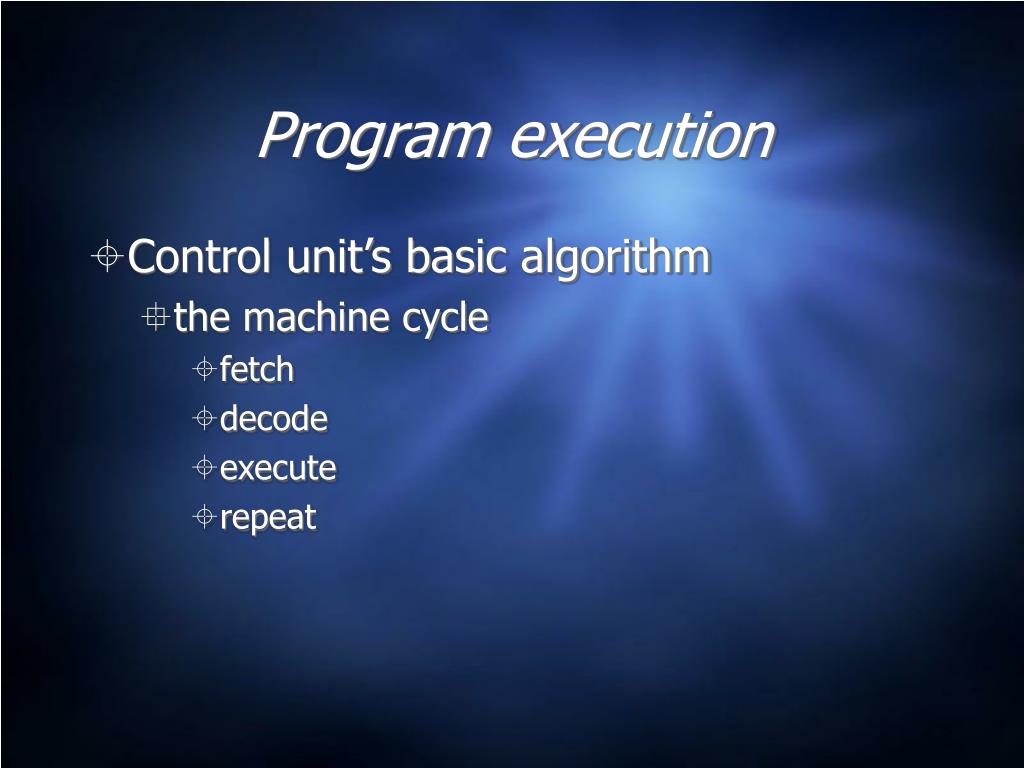

  4. Program execution • Control unit’s basic algorithm • the machine cycle • fetch • decode • execute • repeat

  5. Program execution • Fetch • Retrieve the next instruction from memory and increment the program counter. • Decode • Decode the bit pattern in the instruction register. • Execute • Perform the action required by the decoded instruction.

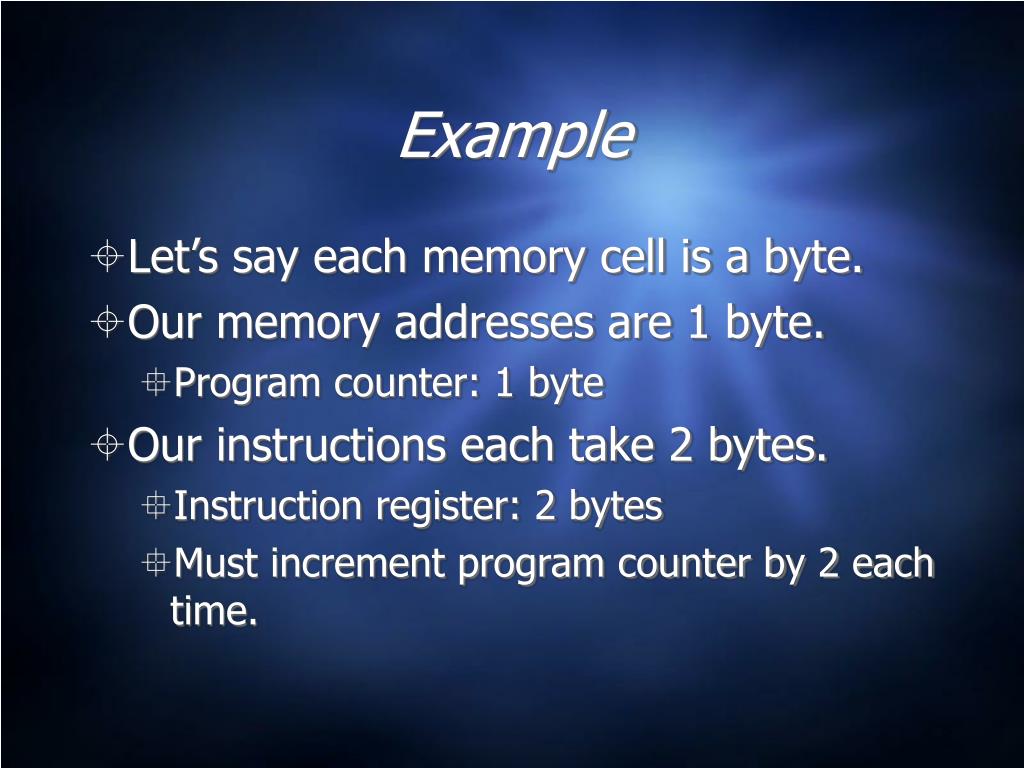

  6. Example • Let’s say each memory cell is a byte. • Our memory addresses are 1 byte. • Program counter: 1 byte • Our instructions each take 2 bytes. • Instruction register: 2 bytes • Must increment program counter by 2 each time.

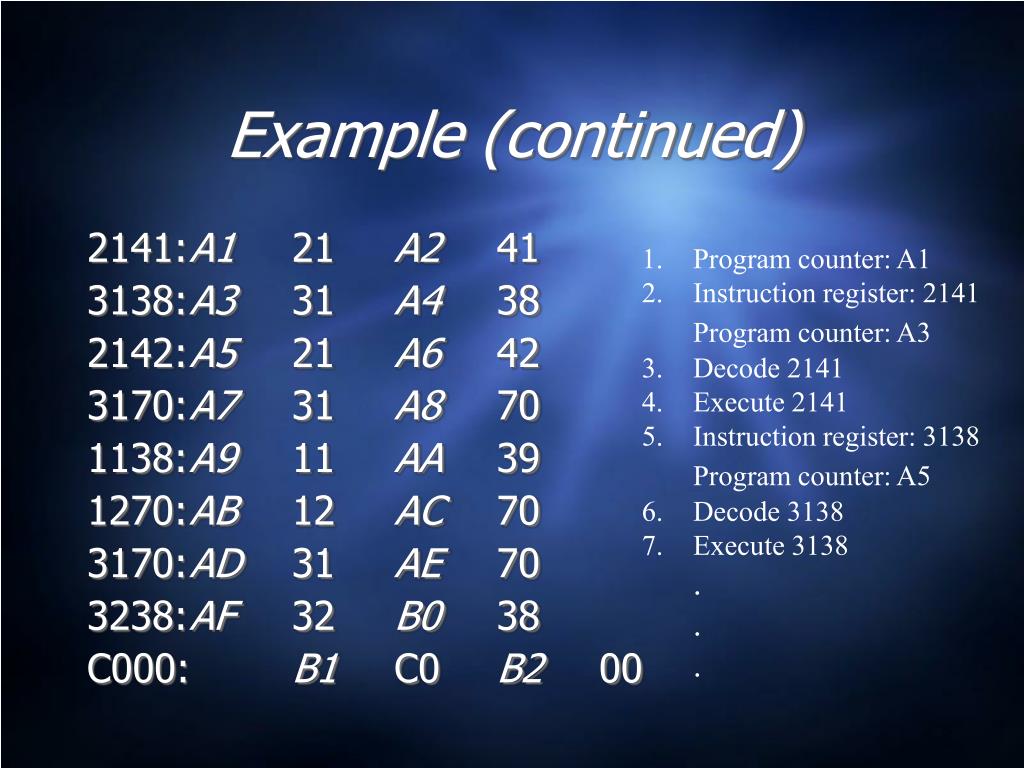

  7. Example (continued) 2141: A1 21 A2 41 3138: A3 31 A4 38 2142: A5 21 A6 42 3170: A7 31 A8 70 1138: A9 11 AA 39 1270: AB 12 AC 70 3170: AD 31 AE 70 3238: AF 32 B0 38 C000: B1 C0 B2 00 Program counter: A1 Instruction register: 2141 Program counter: A3 Decode 2141 Execute 2141 Instruction register: 3138 Program counter: A5 Decode 3138 Execute 3138 . . .

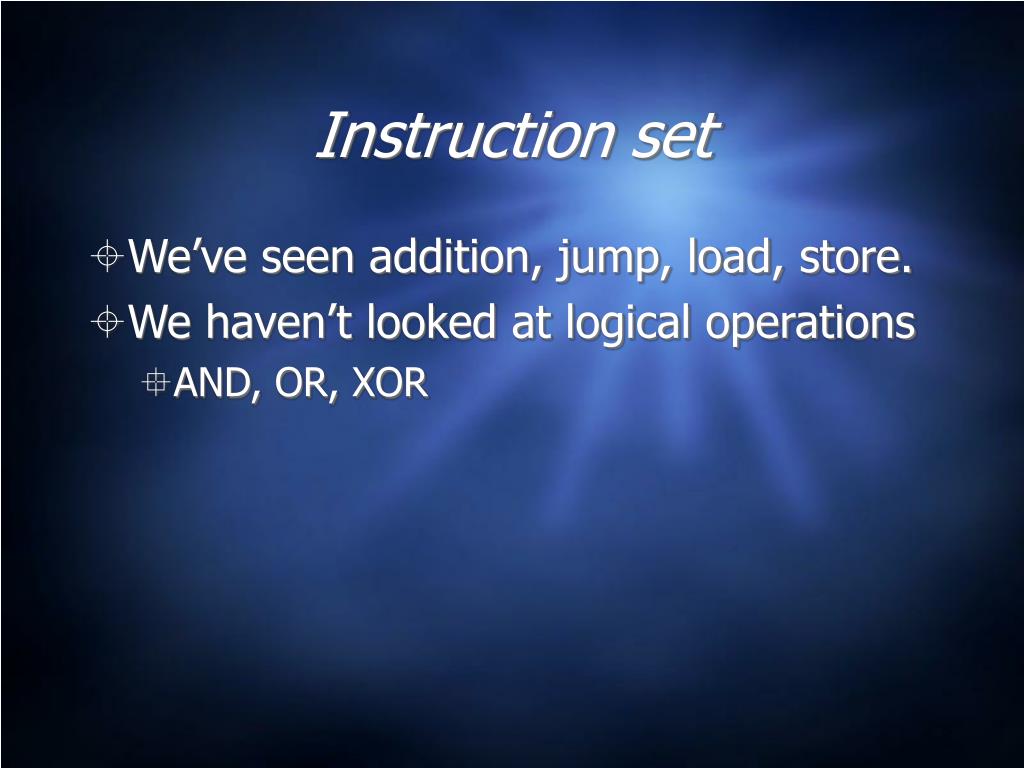

  8. Instruction set • We’ve seen addition, jump, load, store. • We haven’t looked at logical operations • AND, OR, XOR

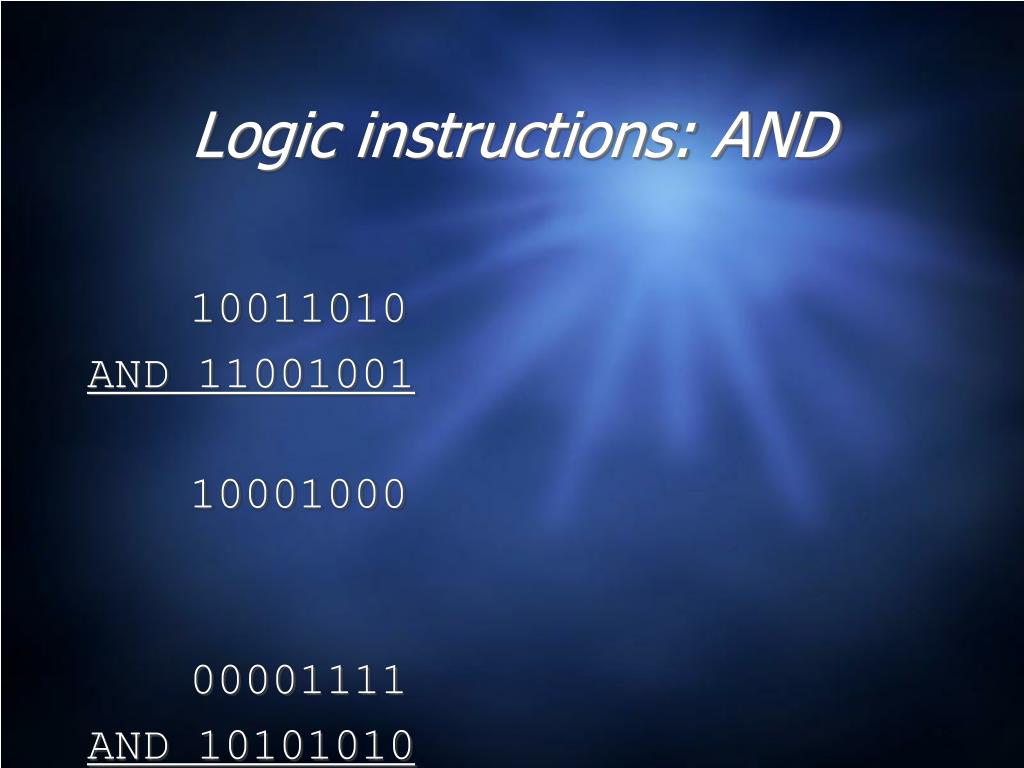

  9. Logic instructions: AND 10011010 AND 11001001 10001000 00001111 AND 10101010 00001010

  10. Logic instructions: OR 10011010 OR 11001001 11011011 00001111 OR 10101010 10101111

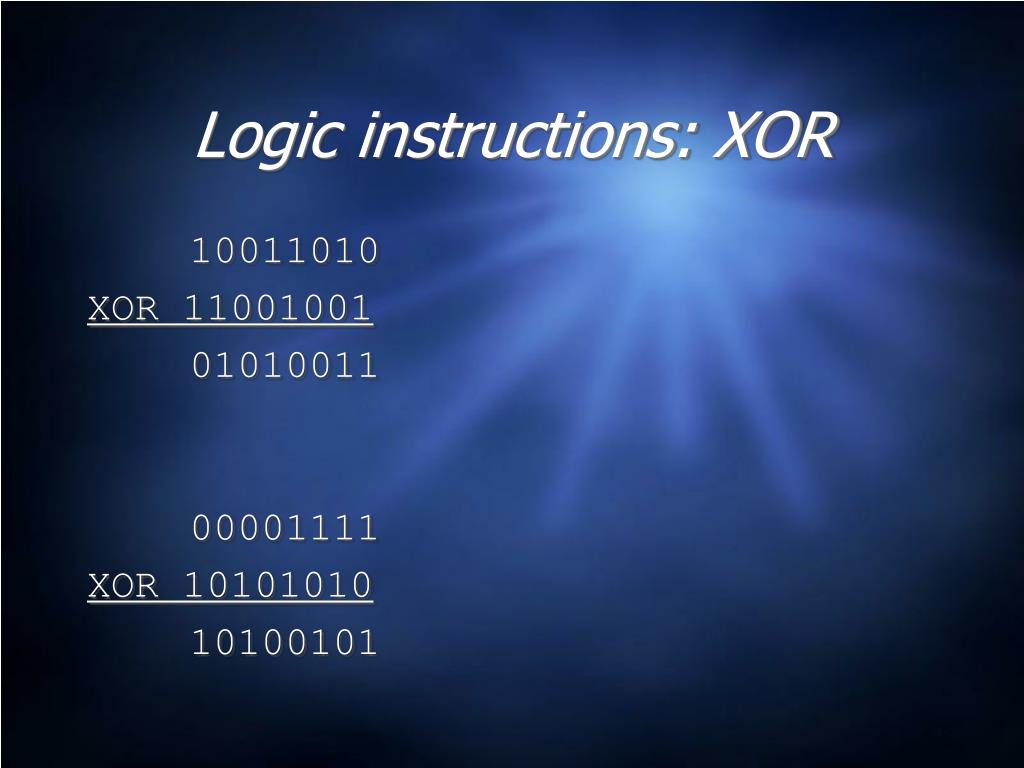

  11. Logic instructions: XOR 10011010 XOR 11001001 01010011 00001111 XOR 10101010 10100101

  12. Bit maps and masking • Using a bit string to represent the presence (or absence) of something. • Meaning of bit string specific to use. • Examples: • attendance • keeping up with what users have seen within a computer application

  13. Masking with AND • Checking for the presence of a 1. 10011010 AND 10000000 10000000 10011010 AND 00000001 00000000

  14. Masking with OR • Setting a bit without disturbing other bits 10011010 OR 00000001 10011011 10011010 OR 10000000 10011010

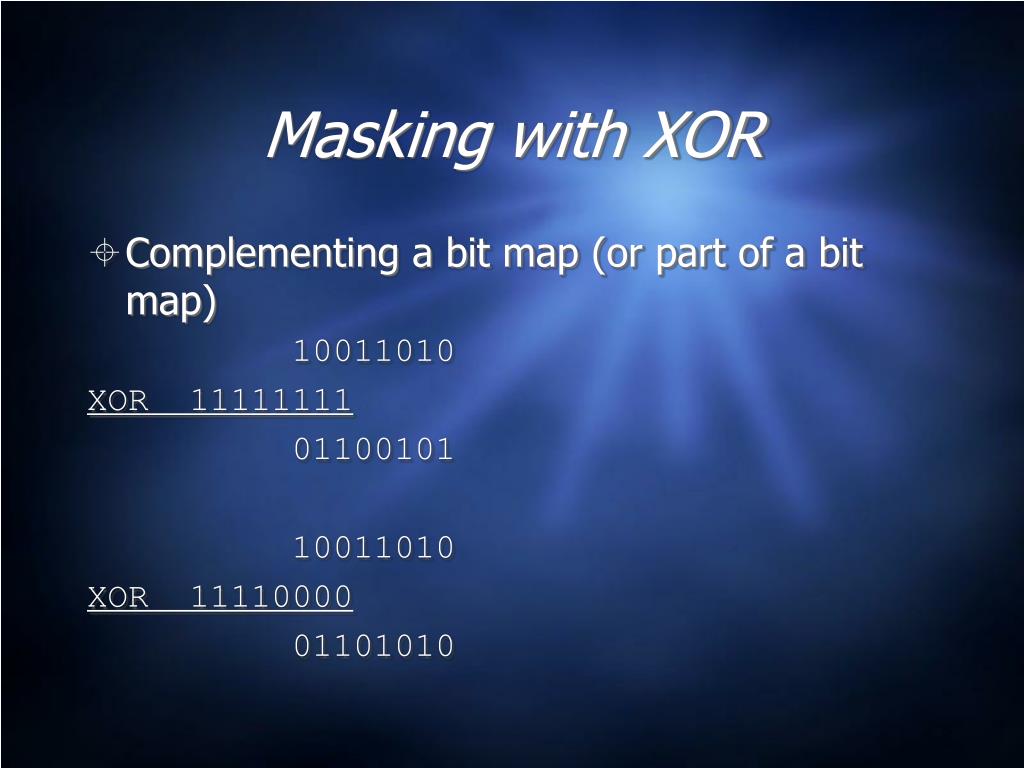

  15. Masking with XOR • Complementing a bit map (or part of a bit map) 10011010 XOR 11111111 01100101 10011010 XOR 11110000 01101010

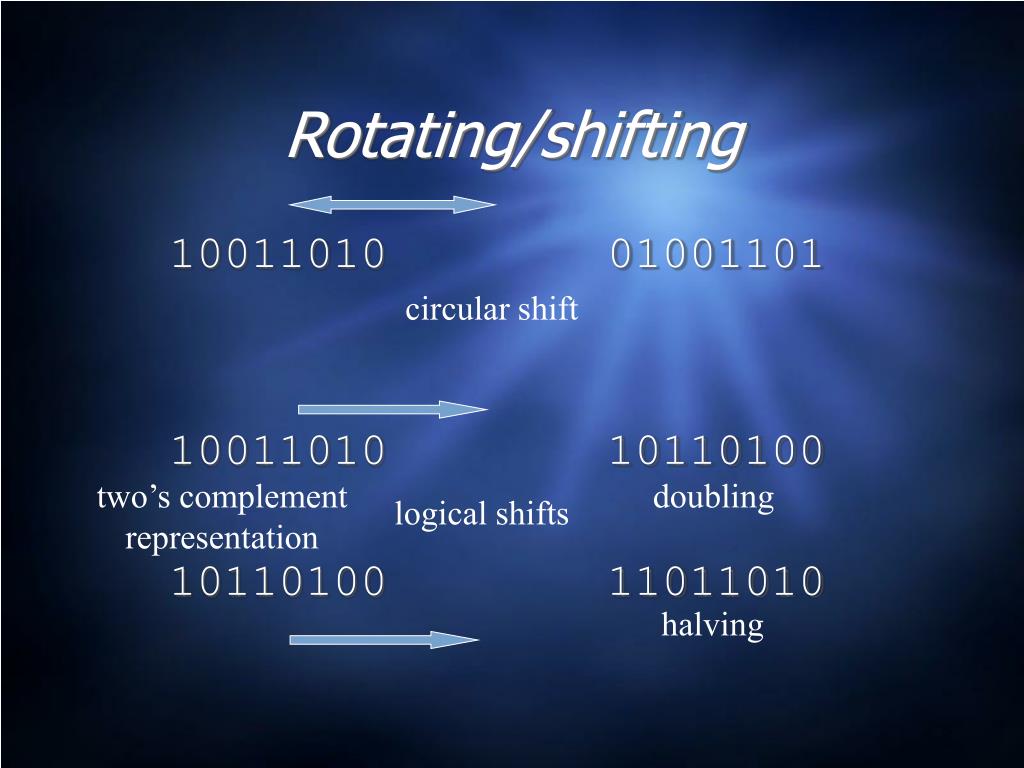

  16. Rotating/shifting 10011010 01001101 10011010 10110100 10110100 11011010 circular shift two’s complement representation doubling logical shifts halving

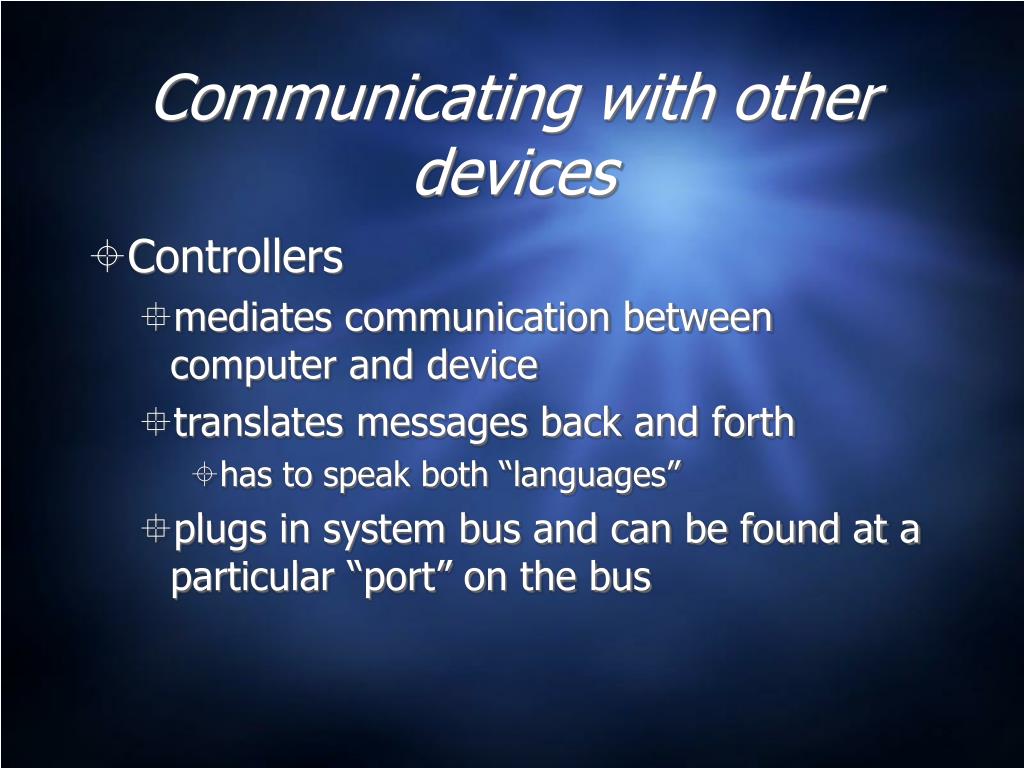

  17. Communicating with other devices • Controllers • mediates communication between computer and device • translates messages back and forth • has to speak both “languages” • plugs in system bus and can be found at a particular “port” on the bus

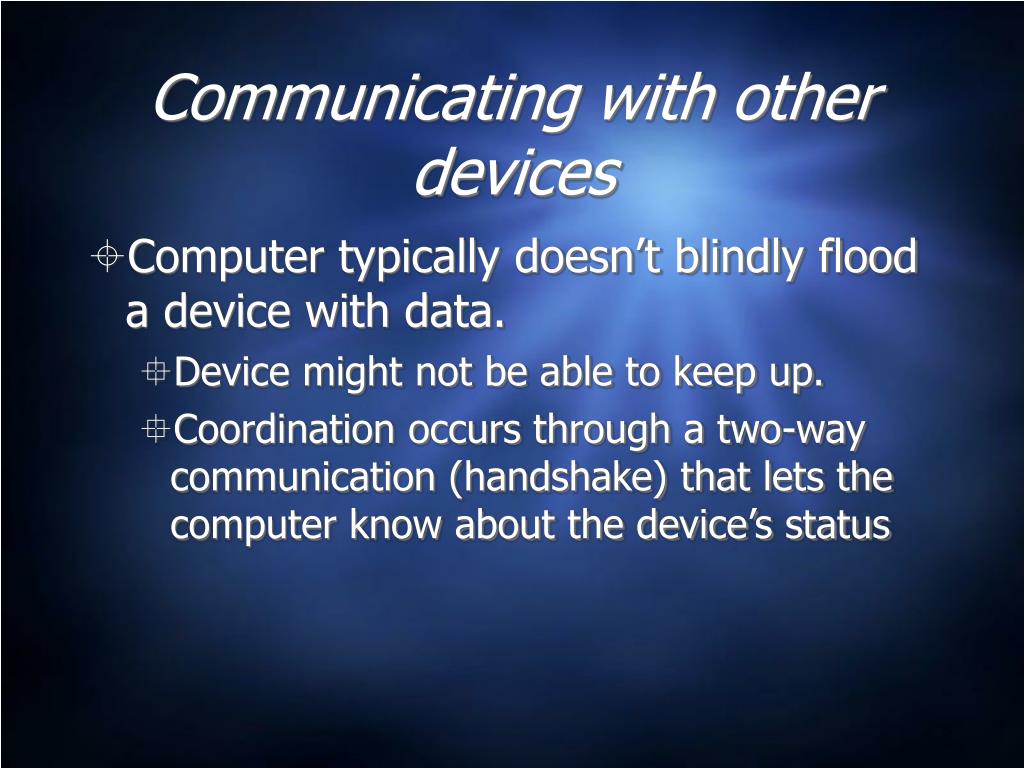

  18. Communicating with other devices • Computer typically doesn’t blindly flood a device with data. • Device might not be able to keep up. • Coordination occurs through a two-way communication (handshake) that lets the computer know about the device’s status

  19. Communication rates • Rate of bit transfer • bps (bits per second) • Kbps • Mbps • Gbps

  20. Communication types • parallel • multiple bits sent simultaneously down several lines • faster, but more complicated • serial • one bit at a time sent along same wire

  21. Exam 1 review • Try not to surprise on tests • However, these notes are not necessarily comprehensive • Aim for understanding over memorizing • But the two are not mutually exclusive

  22. Exam 1 review • Chapters 0 - 2 • 0.1 - 0.4 • 1.1 - 1.7 • 2.1 - 2.5 • Lectures

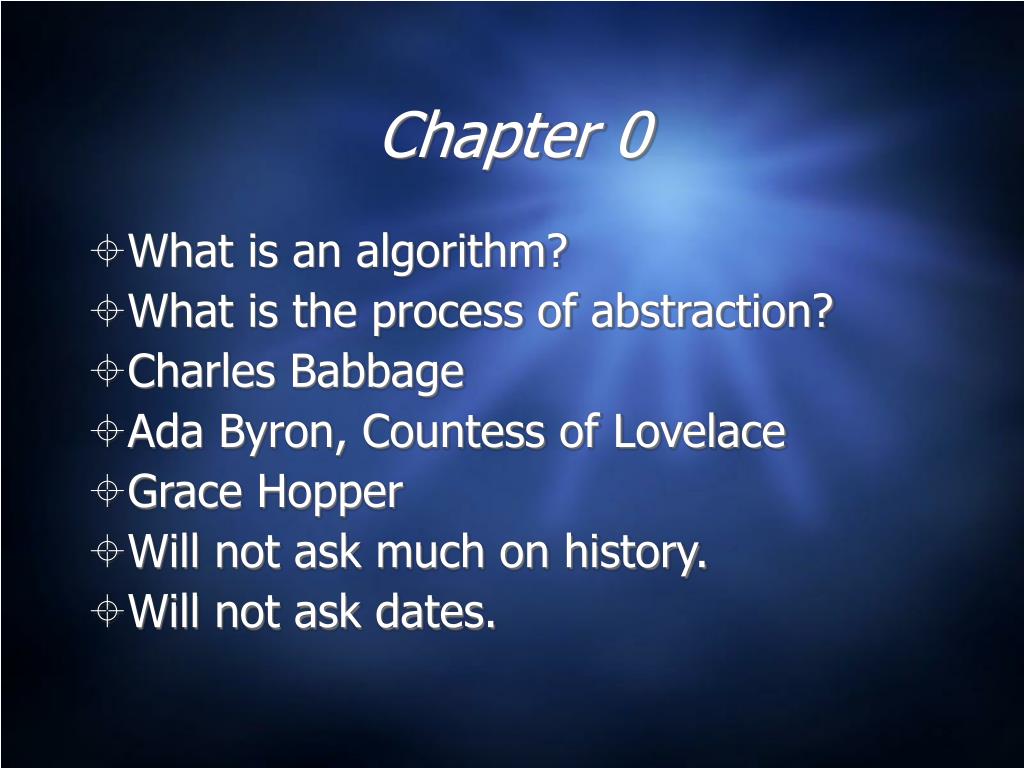

  23. Chapter 0 • What is an algorithm? • What is the process of abstraction? • Charles Babbage • Ada Byron, Countess of Lovelace • Grace Hopper • Will not ask much on history. • Will not ask dates.

  24. Data storage • Boolean operators • Gates • Evaluate inputs • Translate between Boolean logic and circuit • Convert between bases 10, 2, and 16 • Basic memory organization • Understand seek time, latency time, access time, transfer time

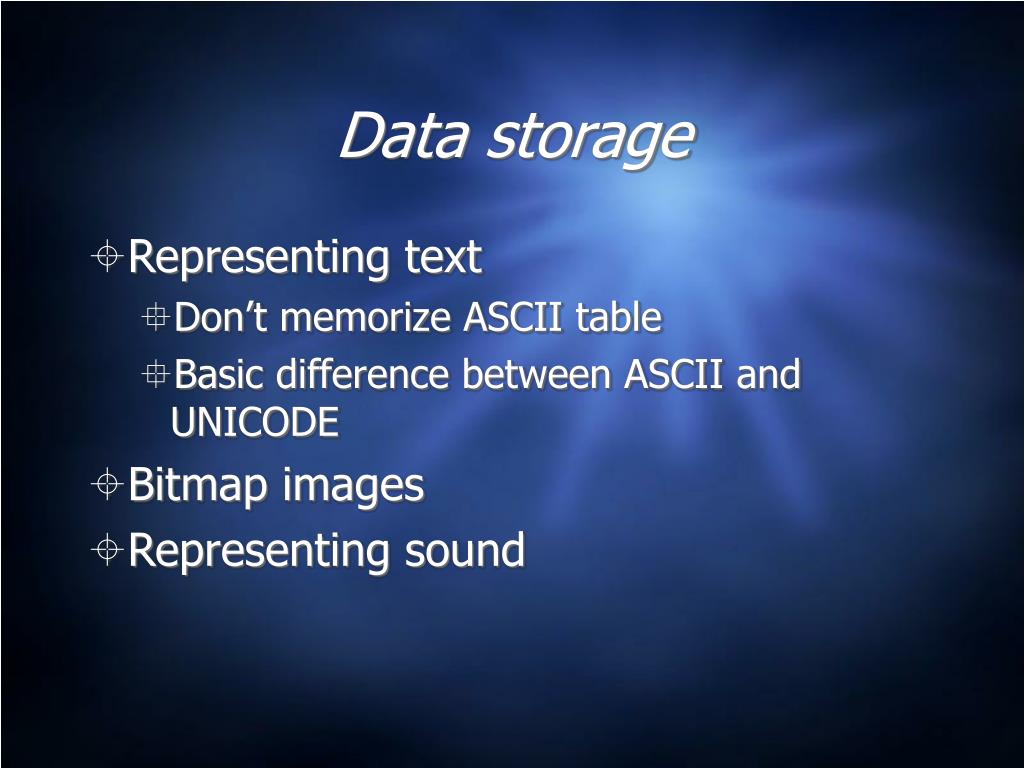

  25. Data storage • Representing text • Don’t memorize ASCII table • Basic difference between ASCII and UNICODE • Bitmap images • Representing sound

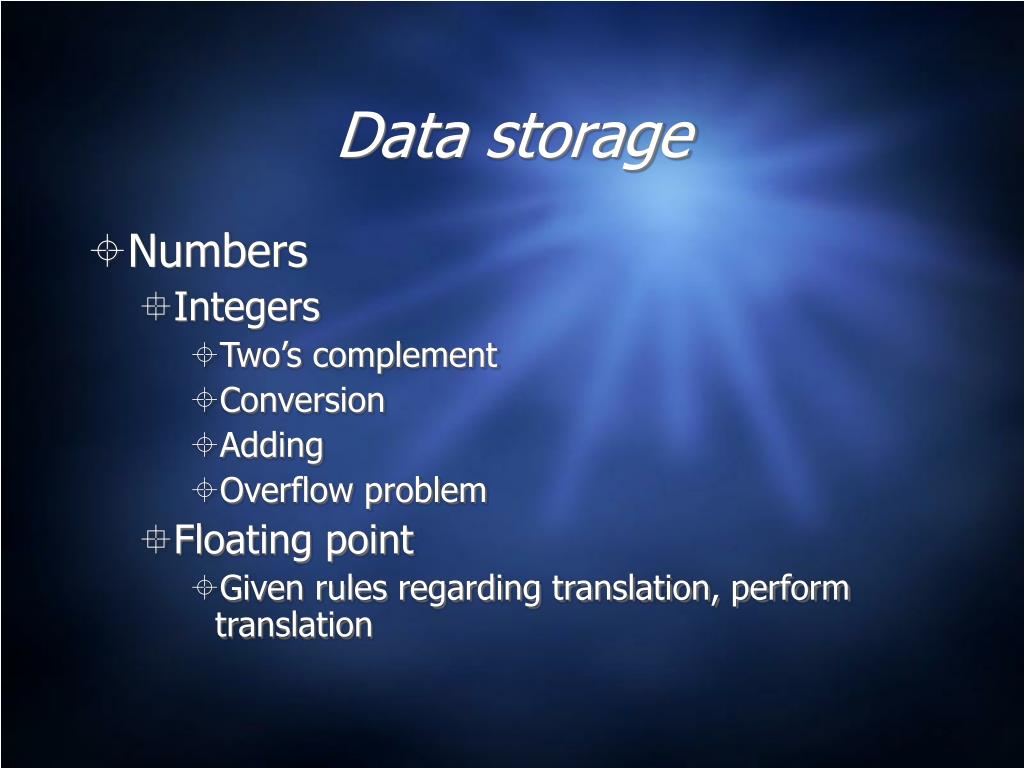

  26. Data storage • Numbers • Integers • Two’s complement • Conversion • Adding • Overflow problem • Floating point • Given rules regarding translation, perform translation

  27. Data manipulation • Basic architecture • Basic machine language • RISC vs. CISC • Understand and be able to work with sample machine language (Appendix will be provided here if needed.)
