Enhancing Java with JML Assertions and ESC/Java: A Practical Guide for Developers

This guide introduces practitioners to using JML (Java Modeling Language) assertions and ESC/Java for adding specifications to Java code. It covers how to implement preconditions, postconditions, and class invariants, drawing parallels with the Design-by-Contract approach from Eiffel. By embedding assertions as comments or pragmas, developers can specify properties that must hold true, improving code reliability and maintainability. The document also highlights challenges and the limitations of ESC/Java, emphasizing its role in capturing important properties within Java applications.

hovan
Télécharger la présentation

Enhancing Java with JML Assertions and ESC/Java: A Practical Guide for Developers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

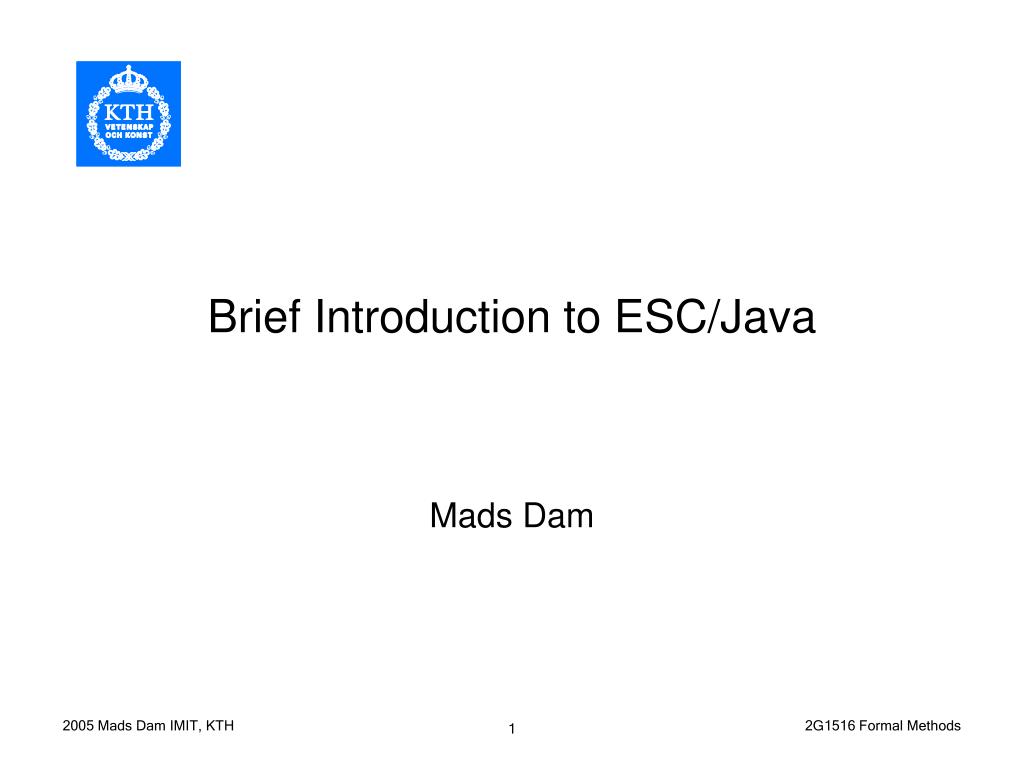

  1. Brief Introduction to ESC/Java Mads Dam

  2. JML Adding assertions to Java source code, e.g. • Preconditions • Postconditions • Class invariants Similar to Eiffel (Design-by-Contract) Goal: Lightweight, usable by practising programmers Properties specified as extended Java boolean expressions JML assertions added as comments (ESC/Java: pragma’s) in .java file, between /*@ ... @*/, or after //@ ESC/Java syntax slightly different from JML proper

  3. Pre- and Postconditions Example: /*@ requires amount >= 0; ensures balance == \old(balance) – amount && \result == balance @*/ public int debit(int amount) { ... } \old(E): E evaluated in state before method was called \result: The return value

  4. Class Invariants Class invariants must always be preserved public class Wallet { public static final short MAX_BALANCE = 1000 ; private short balance; /*@ invariant 0 <= balance && balance <= MAX_BALANCE @*/ ... Invariants must be • Preserved by all methods, i.e. implicitly included in both pre- and postcondition of methods, including exceptional termination • Established by all constructors, i.e. implicitly included in postconditions of constructors

  5. Other Pragmas Introducing assumptions: /*@ assume balance >= 0 @*/ Exceptional postconditions: /*@ requires amount >= 0 ; ensures true ; exsures (SomeException) balance >= 0 @*/ public int debit(int amount) throws SomeException ... Only SomeException can be thrown Whenever SomeException is thrown, balance >= 0 Assertions: /*@ assert balance >=0 @*/ See ESC/Java manuals for more pragmas

  6. ESC/Java Extended static checker by Leino et al, Compaq • Checks JML annotated Java code • Unsound • Annotations might be wrong, but ESC/Java does not identify a problem • Incomplete • ESC/Java might report an error, even if no error is actually present • Good at routine checks of relatively simple properties • Like: Absence of runtime exceptions • Bad at loops • Loops only traversed once

  7. ESC/Java Benefits • ESC/Java forces important properties to be noted and recorded • Often the properties are obvious, if you understand the code • But for larger programs, who has complete understanding of everything? • If you have the important properties properly noted then • understanding • maintenance is much easier

  8. ESC/Java Limitations Typical example: for (i = 0; i < buffer.length ; i++) { ... } //@ assert i == buffer.length ; ... Not provable in ESC/Java!
