  1. Cross Platform Mobile Development with .NET Greg Shackles Senior Software Engineer OLO Online Ordering greg@gregshackles.com

  2. MARQUEE SPONSOR

  3. PLATINUM SPONSOR

  4. PLATINUM SPONSOR

  5. GOLD SPONSOR

  6. GOLD SPONSOR

  7. GOLD SPONSOR

  8. GOLD SPONSOR

  9. GOLD SPONSOR

  10. GOLD SPONSOR

  11. SILVER SPONSORS

  12. Who is this guy? Greg Shackles greg@gregshackles.com gregshackles.com Twitter: @gshackles Google+: plus.tl/gshackles github.com/gshackles

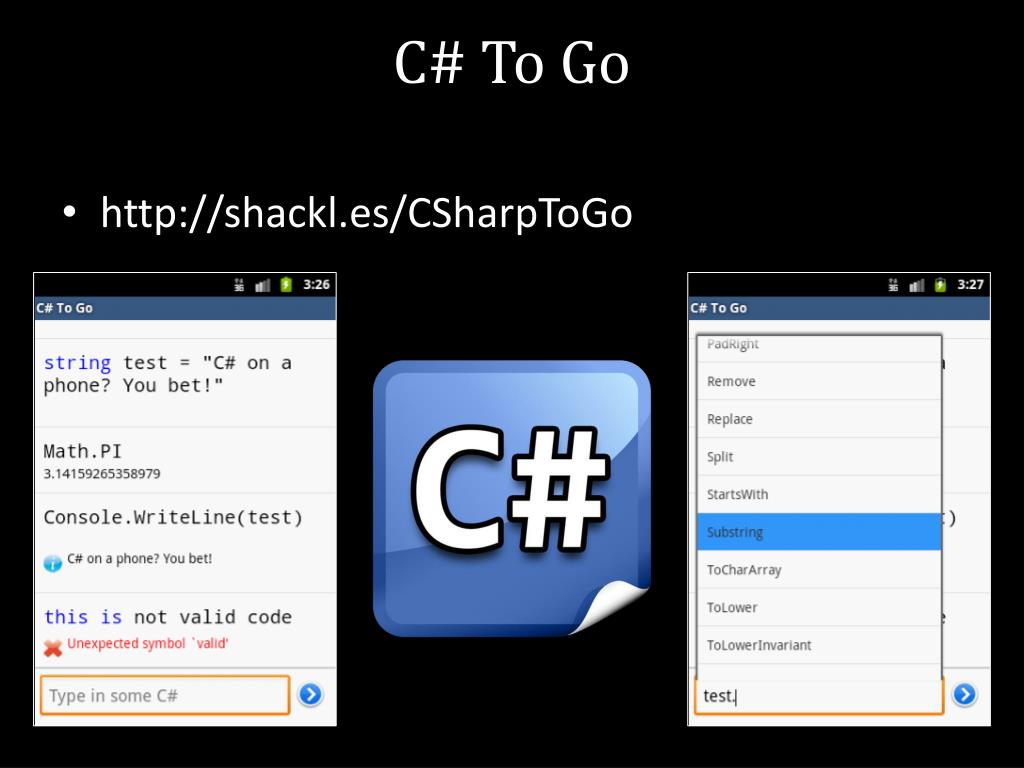

  13. C# To Go http://shackl.es/CSharpToGo

  14. Market Share (US)

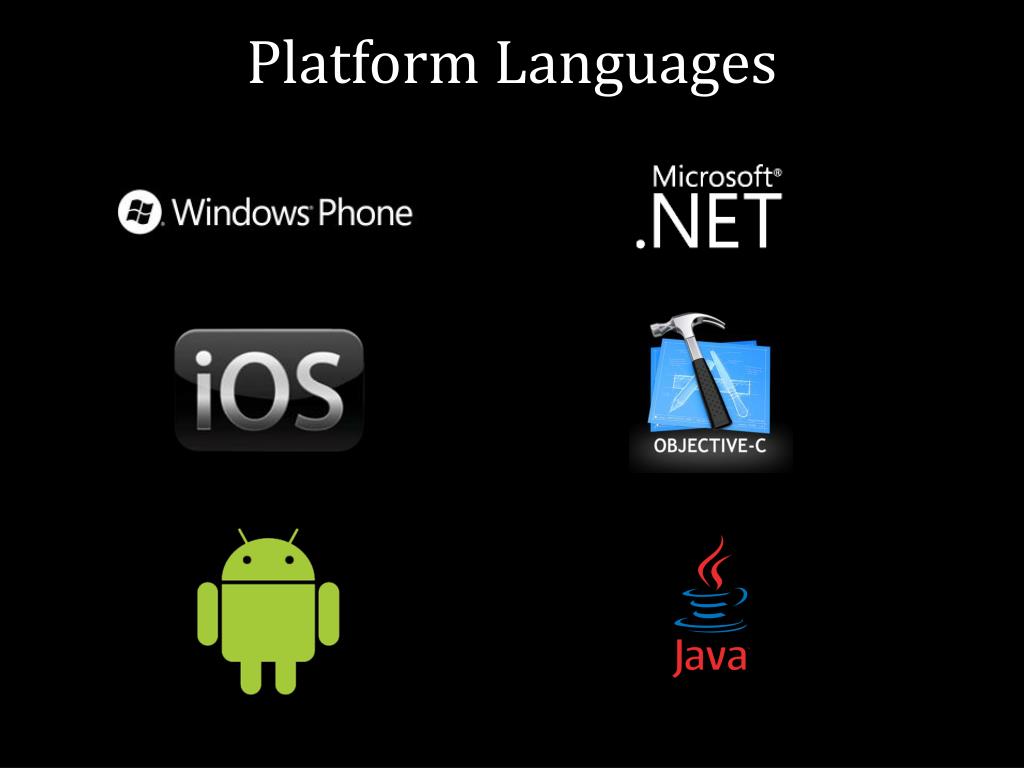

  15. Platform Languages

  16. Cross Platform Solutions and many more…

  17. Spoiler Alert

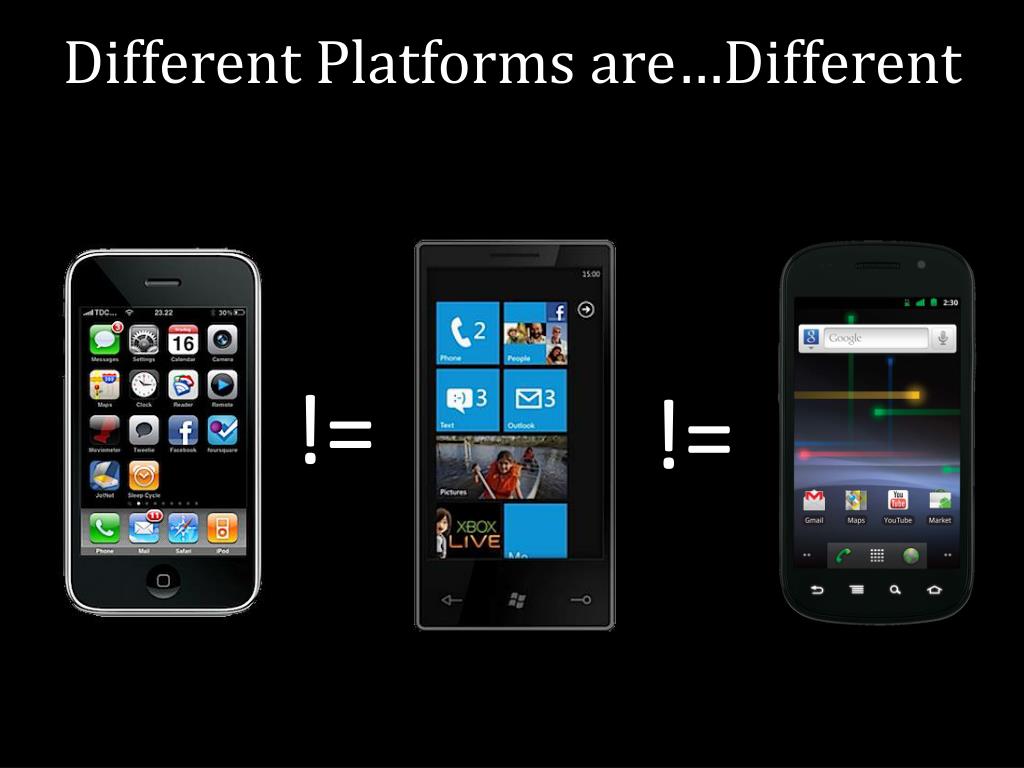

  18. Different Platforms are…Different != !=

  19. .NET to the Rescue!

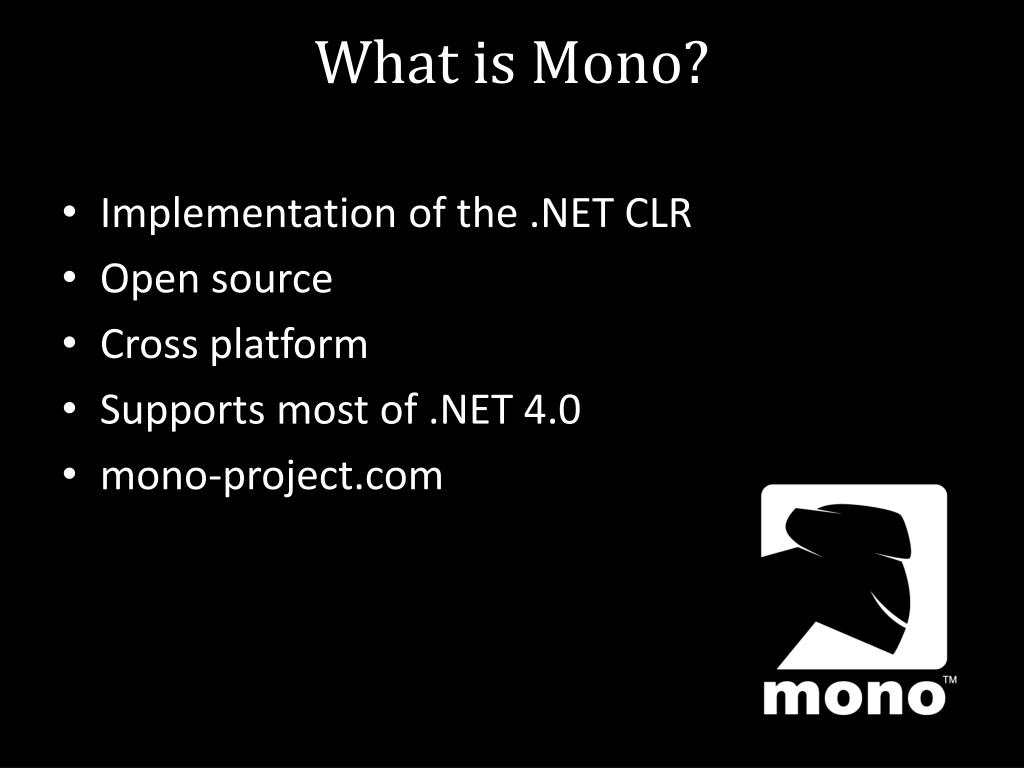

  20. What is Mono? Implementation of the .NET CLR Open source Cross platform Supports most of .NET 4.0 mono-project.com

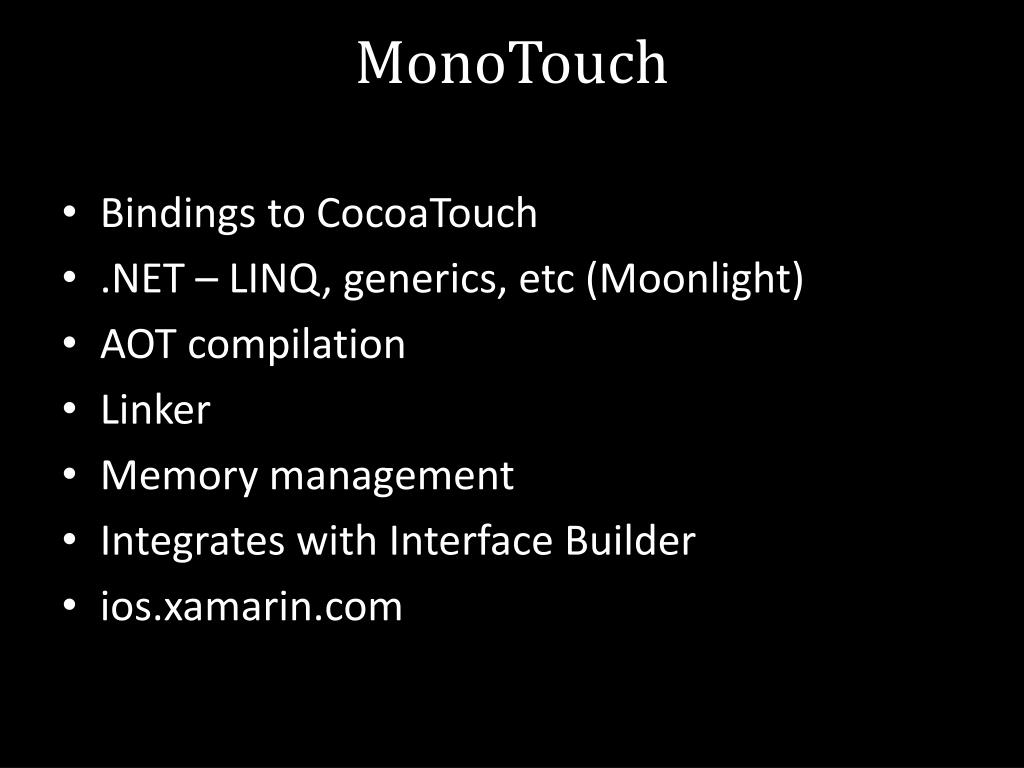

  21. MonoTouch Bindings to CocoaTouch .NET – LINQ, generics, etc (Moonlight) AOT compilation Linker Memory management Integrates with Interface Builder ios.xamarin.com

  22. Mono for Android Wraps Java/Android API .NET – LINQ, generics, etc (Moonlight) Linker Visual Studio 2010 or MonoDevelop android.xamarin.com http://xamarin.com/androidbeta

  23. Mono for Android Architecture • Android/Managed Callable Wrappers • JNI bridges to talk between Android and Mono

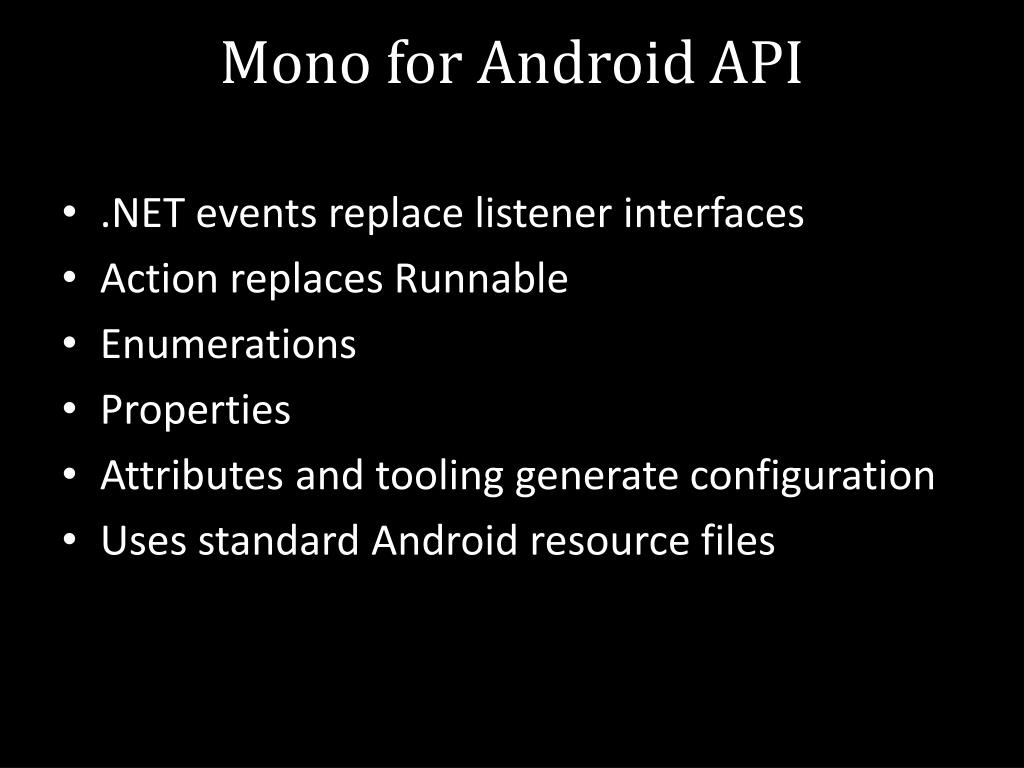

  24. Mono for Android API .NET events replace listener interfaces Action replaces Runnable Enumerations Properties Attributes and tooling generate configuration Uses standard Android resource files

  25. Why?

  26. Sharing

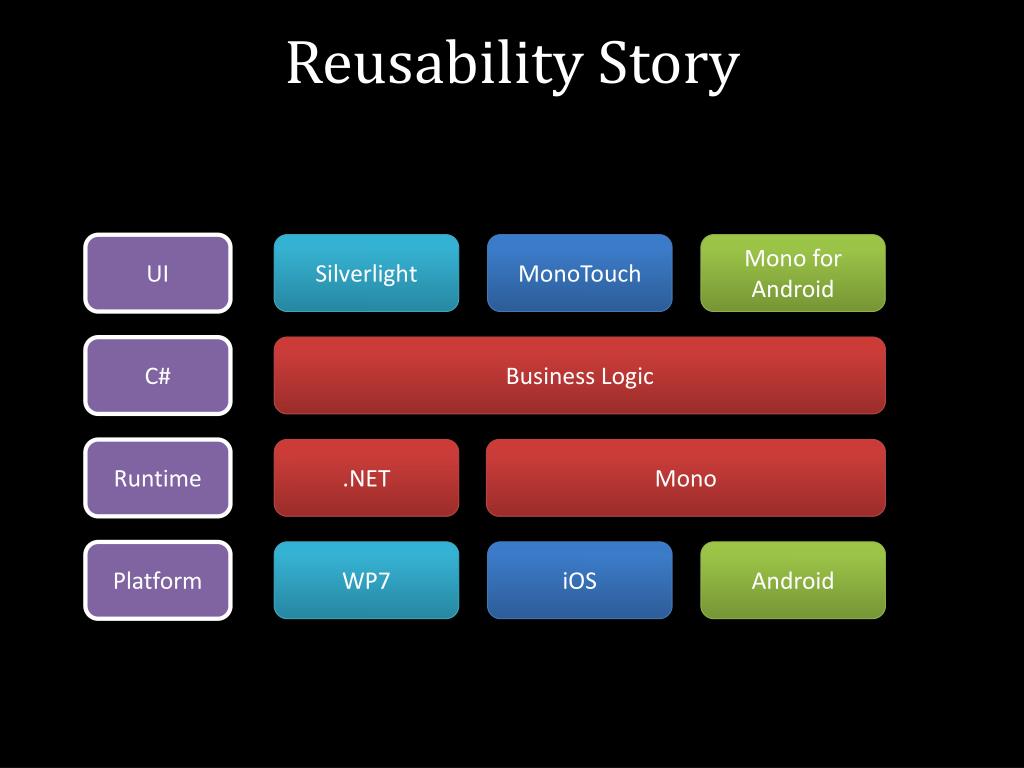

  27. Reusability Story UI Silverlight MonoTouch Mono for Android C# Business Logic Runtime .NET Mono Platform WP7 iOS Android

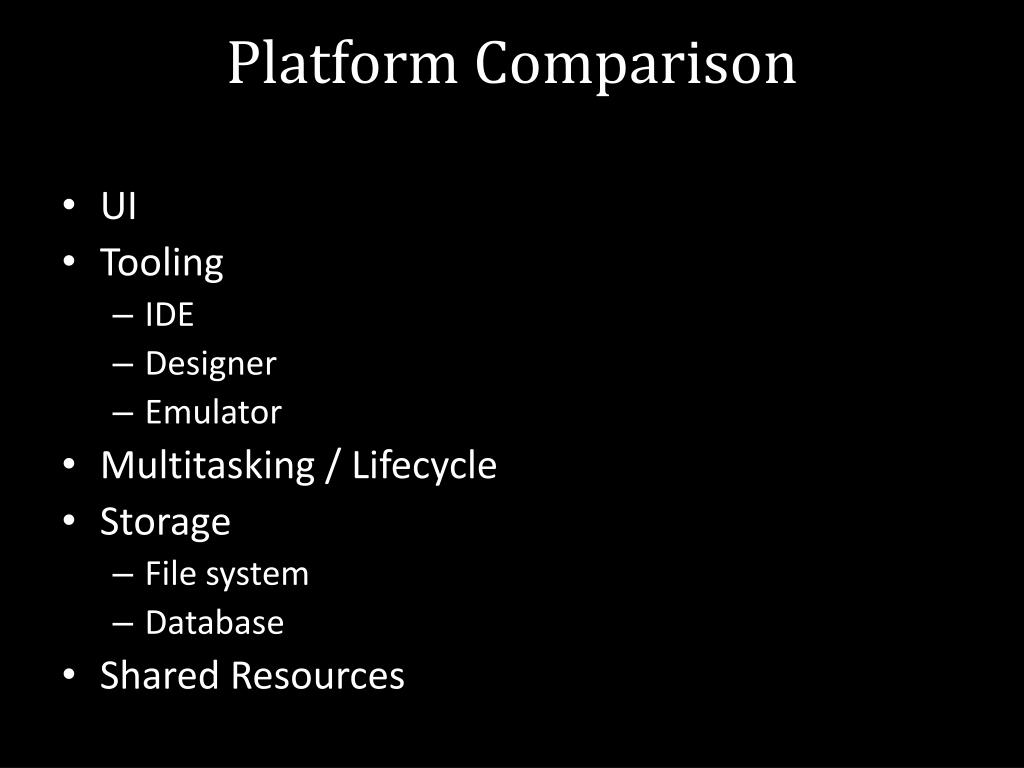

  28. Platform Comparison • UI • Tooling • IDE • Designer • Emulator • Multitasking / Lifecycle • Storage • File system • Database • Shared Resources

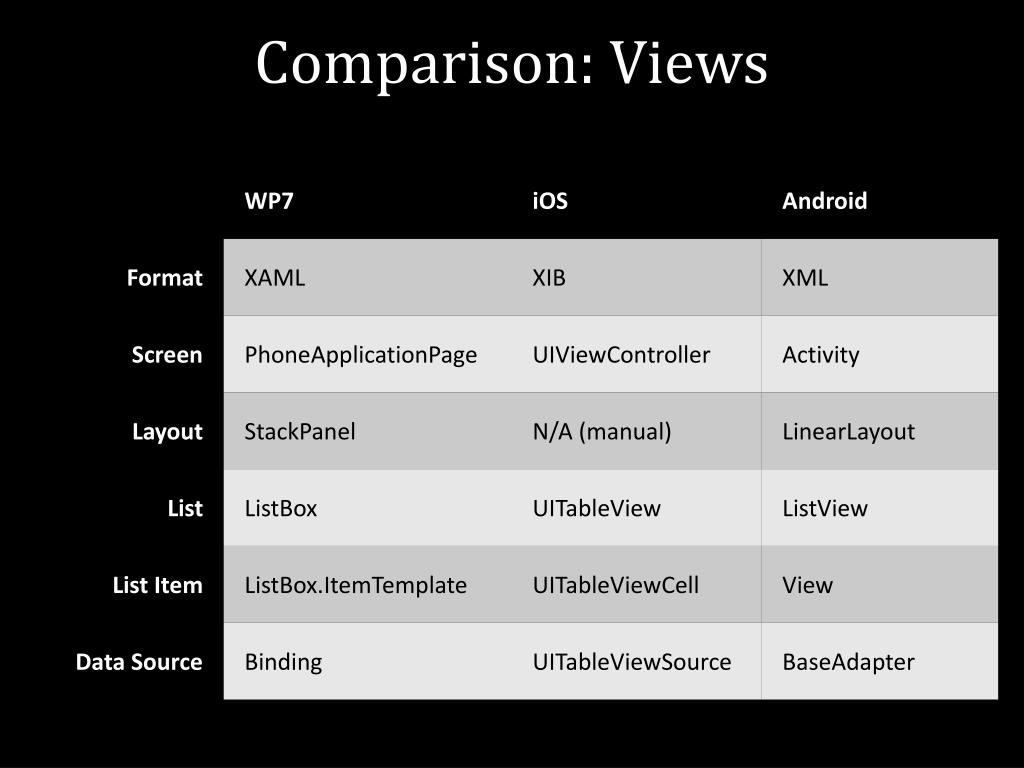

  29. Comparison: Views WP7 iOS Android Format XAML XIB XML Screen PhoneApplicationPage UIViewController Activity Layout StackPanel N/A (manual) LinearLayout List ListBox UITableView ListView List Item ListBox.ItemTemplate UITableViewCell View Data Source Binding UITableViewSource BaseAdapter

  30. Comparison: Navigation Windows Phone 7 NavigationService.Navigate( newUri("/NextPage.xaml?id=42",UriKind.Relative))); iOS NavigationController.PushViewController( newNextController(42),true); Android var intent = newIntent(); intent.SetClass(this, typeof(NextActivity)); intent.PutExtra(“id",42); StartActivity(intent);

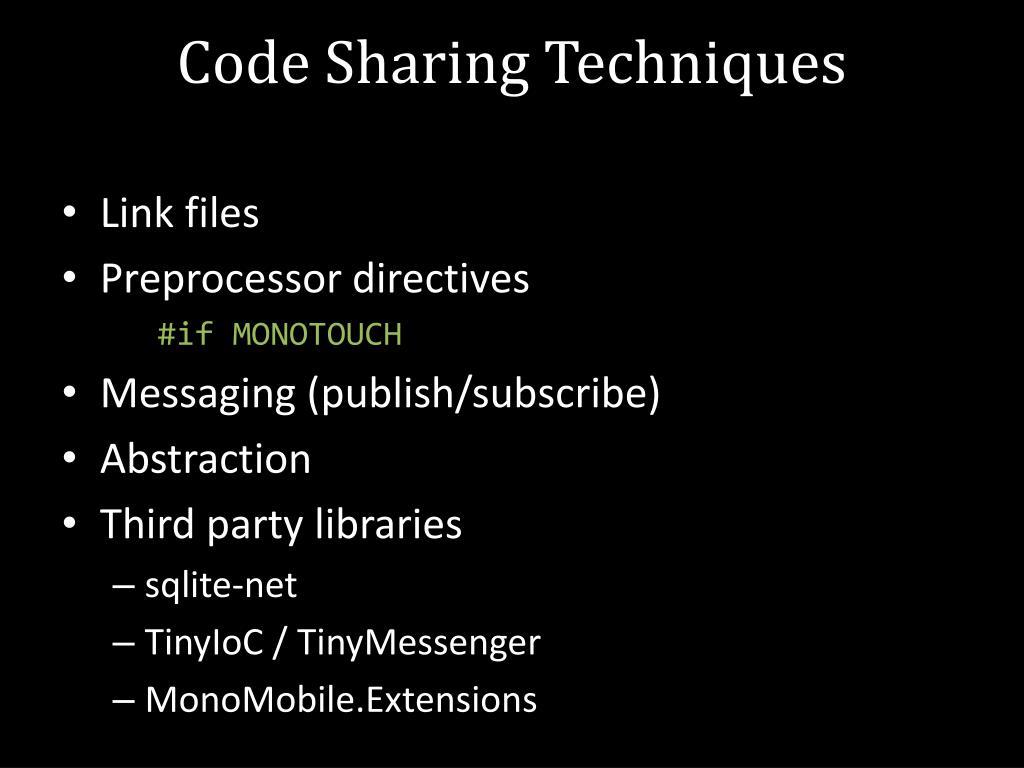

  31. Code Sharing Techniques • Link files • Preprocessor directives #if MONOTOUCH • Messaging (publish/subscribe) • Abstraction • Third party libraries • sqlite-net • TinyIoC/ TinyMessenger • MonoMobile.Extensions

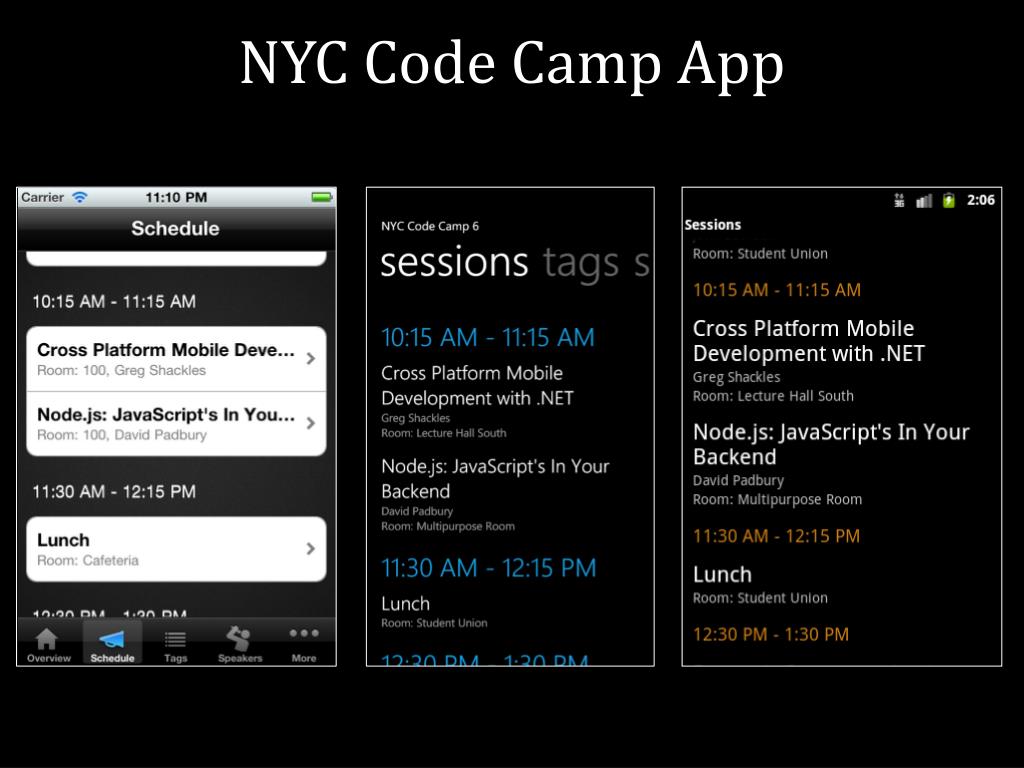

  32. NYC Code Camp App

  33. App Architecture App.MonoTouch App.MonoAndroid App.WP7 CC.Core.MonoTouch CC.Core.MonoAndroid CC.Core.WP7 CodeCamp.Core Entities Libraries DataAccess Messaging ViewModels

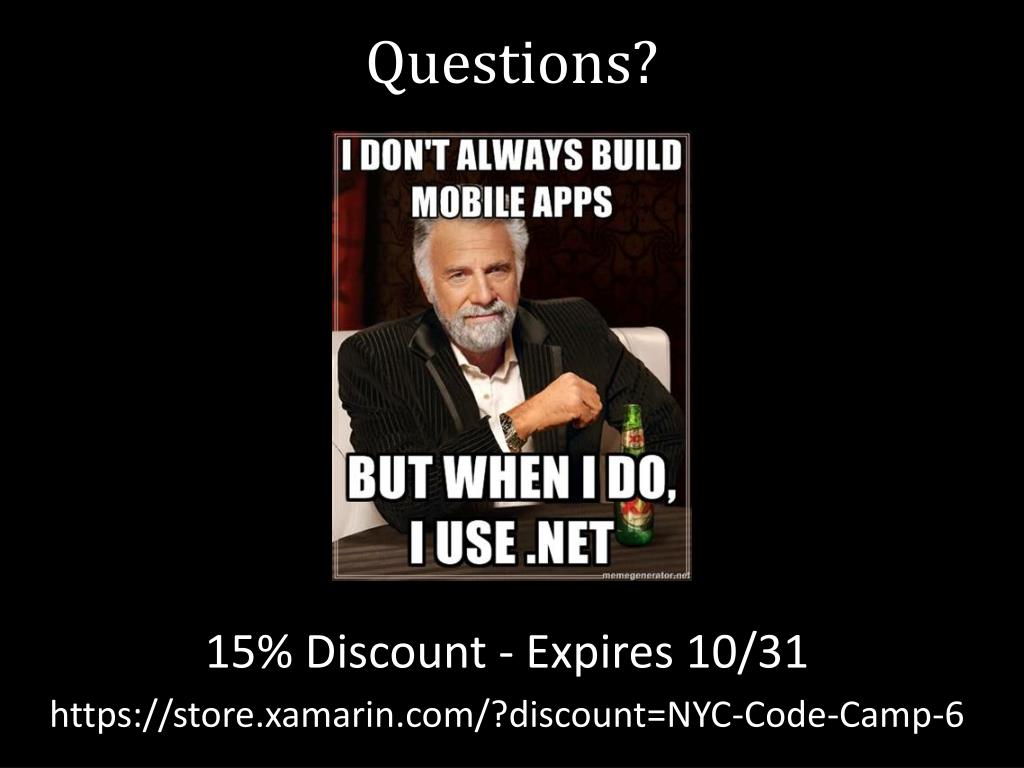

  34. Questions? 15% Discount - Expires 10/31 https://store.xamarin.com/?discount=NYC-Code-Camp-6
