  1. Cross Platform Mobile Application Development with Titanium Dane Baldwin Nathan Brown David Riggleman

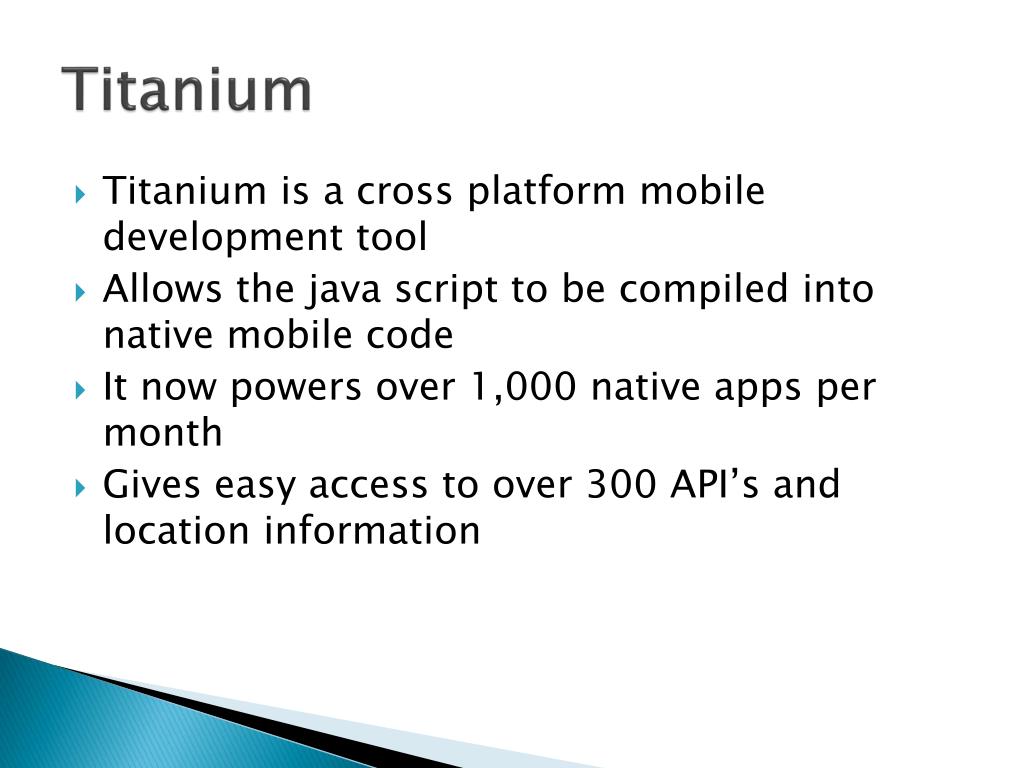

  2. Titanium • Titanium is a cross platform mobile development tool • Allows the java script to be compiled into native mobile code • It now powers over 1,000 native apps per month • Gives easy access to over 300 API’s and location information

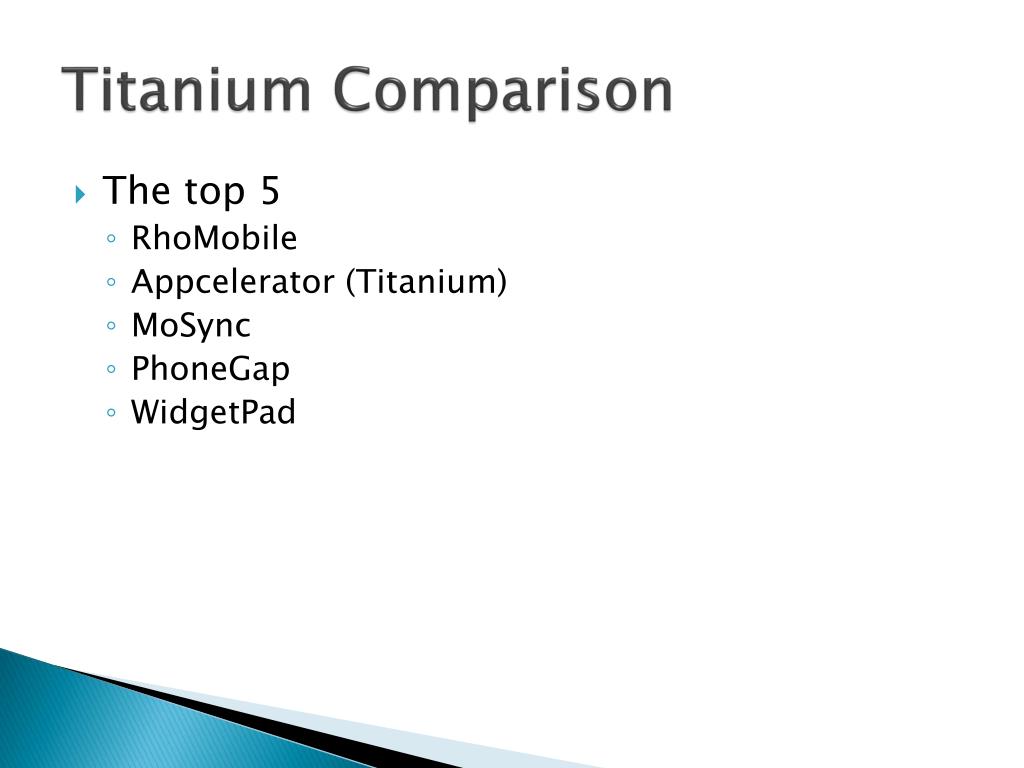

  3. Titanium Comparison • The top 5 • RhoMobile • Appcelerator (Titanium) • MoSync • PhoneGap • WidgetPad

  4. Titanium Comparison • Titanium • Programming Language • JavaScript • Debugger support • Yes (just this year) • Emulator • 3rd party emulators • IDE • Internal SDK • Cross platform • iOS, Black Berry, and android

  5. Titanium Comparison • RhoMobile • Programming Language • Ruby and HTML • Debugger support • Yes • Emulator • Run in win32 runner • IDE • xCode or Eclipse • Cross platform • iOS, Mobile Windows, Black Berry, Symbian and android

  6. Titanium Comparison • MoSync • Programming Language • C, C++, Lua, HTML , CSS, JavaScript(experimental) • Debugger support • Yes • Emulator • Yes • IDE • Eclipse, Visual Studio, MoBuildwith text editors • Cross platform • Java ME, Mobin, Smartphone 2003, iOS, Mobile Windows, Black Berry, Symbian and android

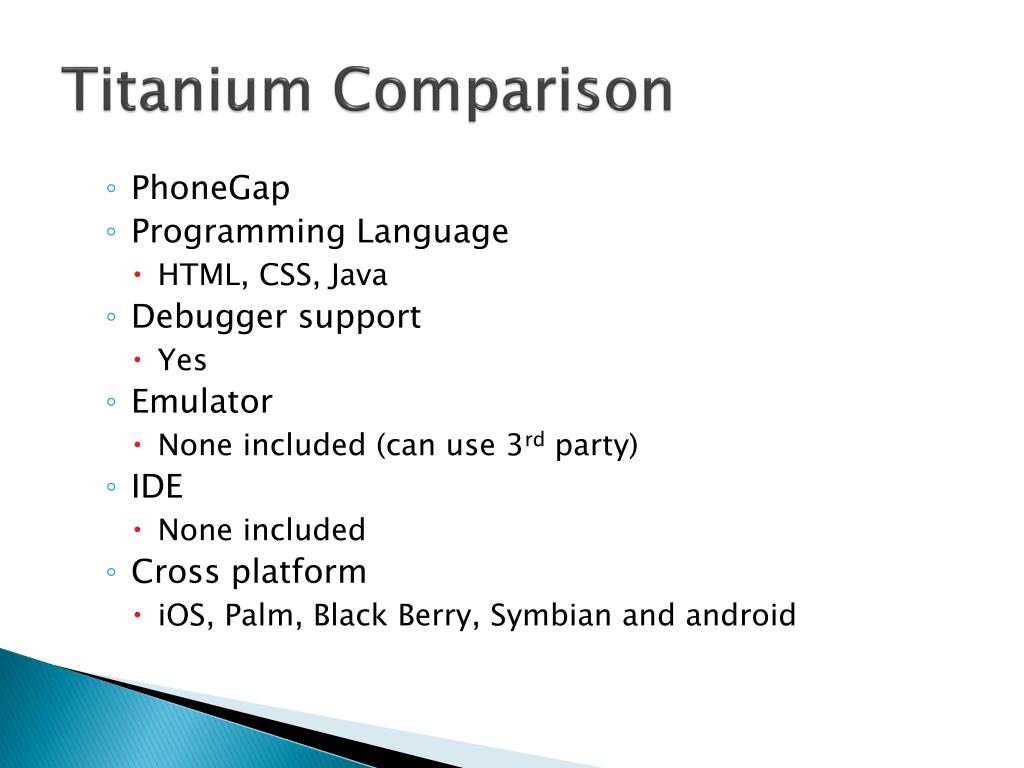

  7. Titanium Comparison • PhoneGap • Programming Language • HTML, CSS, Java • Debugger support • Yes • Emulator • None included (can use 3rd party) • IDE • None included • Cross platform • iOS, Palm, Black Berry, Symbian and android

  8. Titanium Comparison • WidgetPad • Programming Language • CSS, HTML and JavaScript • Debugger support • Yes • Emulator • Could not find a good answer on this • IDE • Yes, its own web based IDE • Cross platform • iOS, Android and WebOS

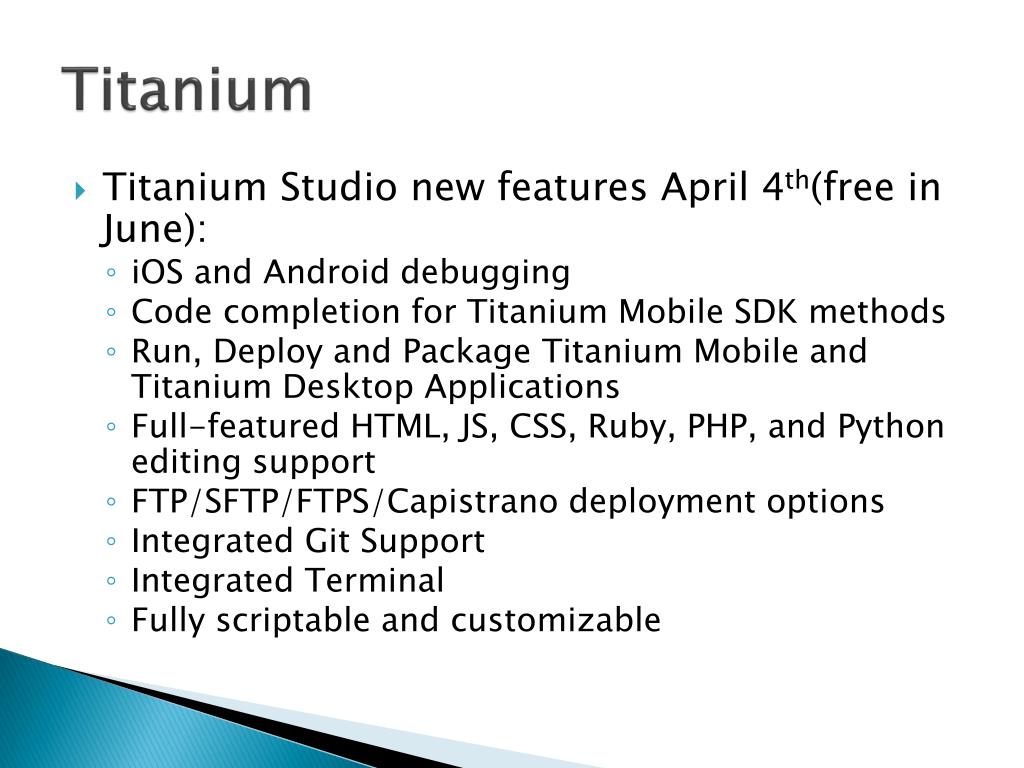

  9. Titanium • Titanium Studio new features April 4th(free in June): • iOS and Android debugging • Code completion for Titanium Mobile SDK methods • Run, Deploy and Package Titanium Mobile and Titanium Desktop Applications • Full-featured HTML, JS, CSS, Ruby, PHP, and Python editing support • FTP/SFTP/FTPS/Capistrano deployment options • Integrated Git Support • Integrated Terminal • Fully scriptable and customizable

  10. Titanium • The Titanium website states “While Titanium applications are written using HTML, CSS and JavaScript – they are compiled into native applications (dependent on the mobile device) and run on the device as standalone applications. These applications have a very powerful API for accessing mobile features such as GPS and Camera, on-device Databases and other awesome features.”

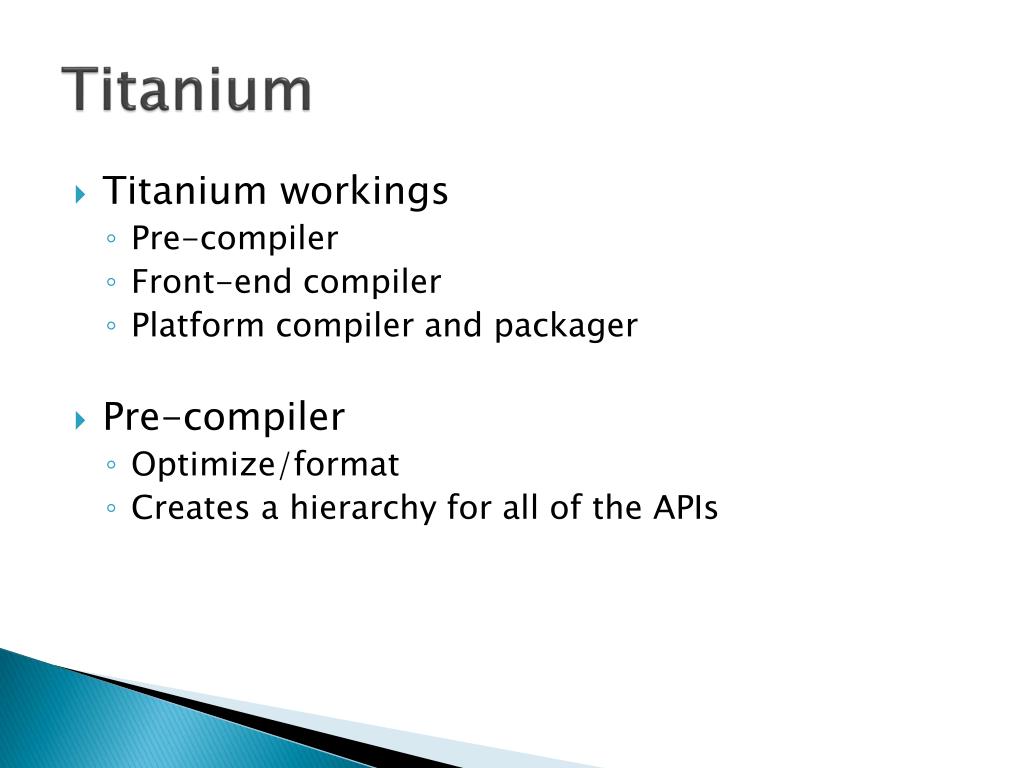

  11. Titanium • Titanium workings • Pre-compiler • Front-end compiler • Platform compiler and packager • Pre-compiler • Optimize/format • Creates a hierarchy for all of the APIs

  12. Titanium • Front-end Compiler • Generate platform specific native code • Create native projects (if it needs to) • Builds any specific code that is necessary to compile • Platform Compiler and Packager • Uses the each native platform tool to compile • Packages the app for running

  13. Titanium • Bad things • Moving too quickly • Support • Debugger glitches • After compile glitches

  14. Titanium • Good things • Compiles to native code • Progressive • Many Users • Documentation • Developer Blog • http://developer.appcelerator.com/blog/

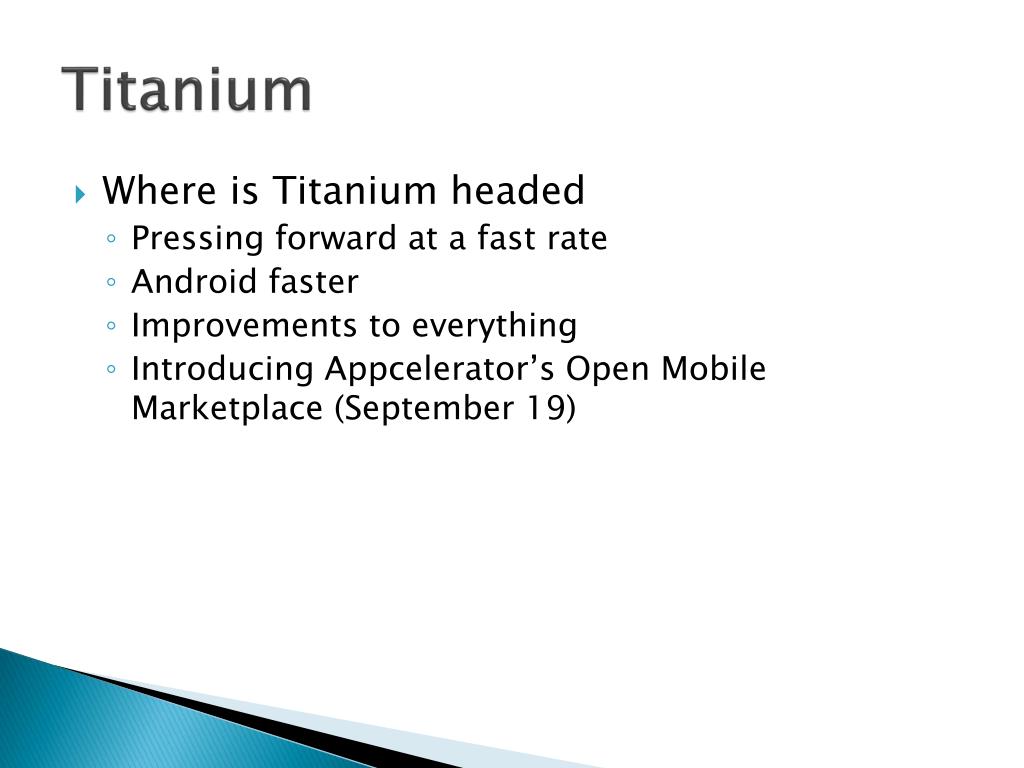

  15. Titanium • Where is Titanium headed • Pressing forward at a fast rate • Android faster • Improvements to everything • Introducing Appcelerator’s Open Mobile Marketplace (September 19)

  16. Installing Titanium Get out your wrench…

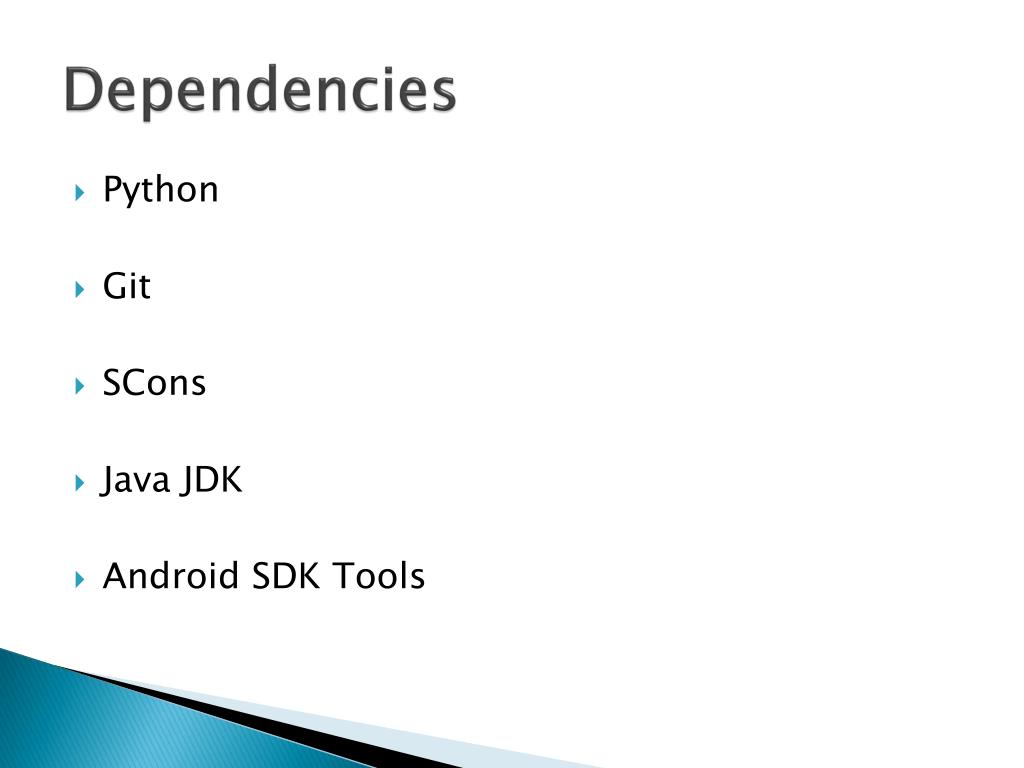

  17. Dependencies • Python • Git • SCons • Java JDK • Android SDK Tools

  18. Python • Overview • Programming language • Requirements • Version: 2.6 or greater (Java JDK 6) • Type: 32-bit (sCons) • Recommended path: C:\Program Files\Python[nn : version]

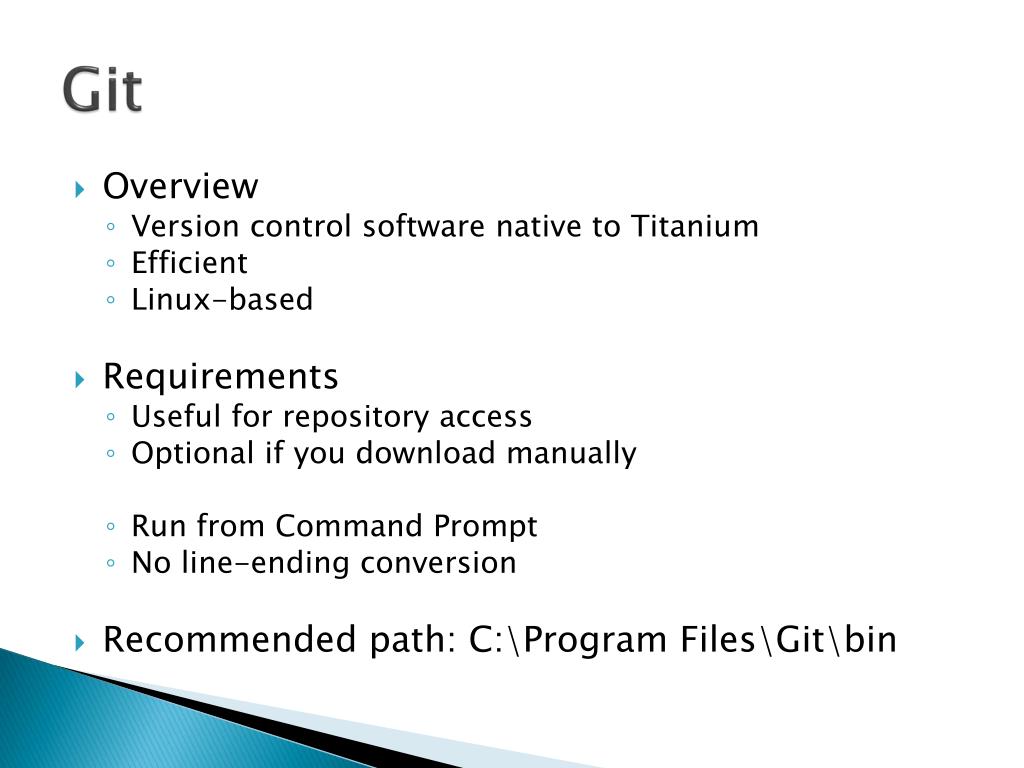

  19. Git • Overview • Version control software native to Titanium • Efficient • Linux-based • Requirements • Useful for repository access • Optional if you download manually • Run from Command Prompt • No line-ending conversion • Recommended path: C:\Program Files\Git\bin

  20. SCons • Overview • Software construction tool – Python script • Similar to make • Requirements • Must have Python installed first • Recommended path: %Python%\Scripts

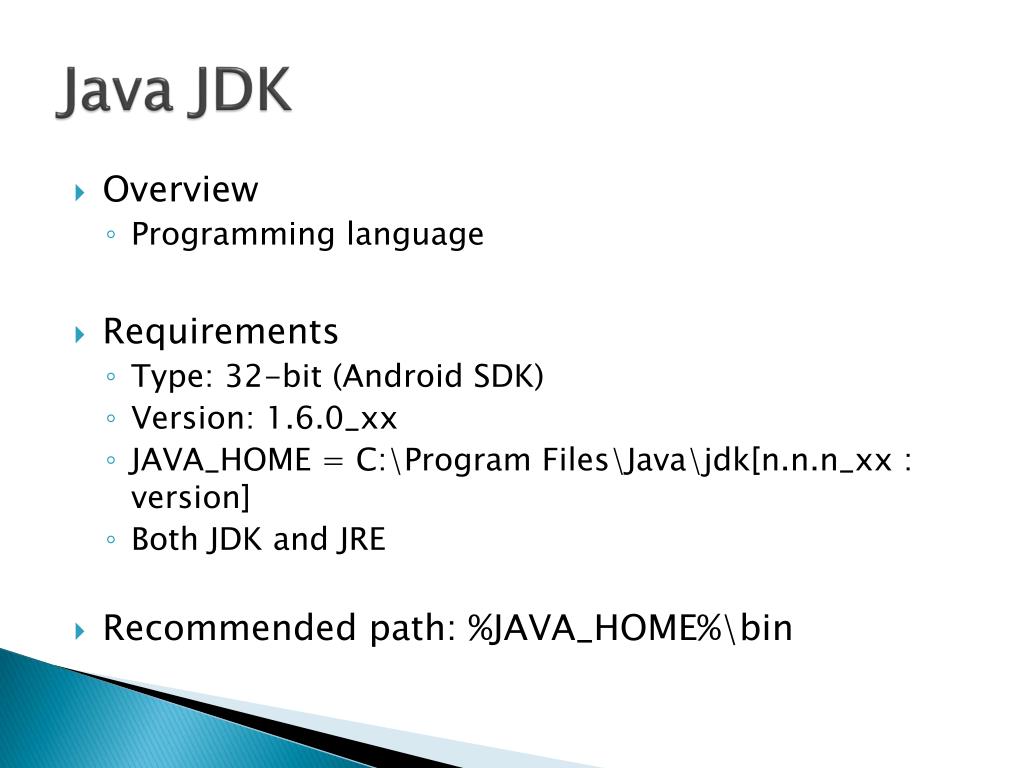

  21. Java JDK • Overview • Programming language • Requirements • Type: 32-bit (Android SDK) • Version: 1.6.0_xx • JAVA_HOME = C:\Program Files\Java\jdk[n.n.n_xx : version] • Both JDK and JRE • Recommended path: %JAVA_HOME%\bin

  22. Android SDK • Overview • Required for Android emulation • Requirements • Match Titanium SDK (see compatibility matrix) • No spaces in path (use C:\Program_Files) • ANDROID_SDK = C:\Program_Files\android-sdk-windows • Delete virtual devices after each update • Recommended path: %Android_SDK%\platform-tools

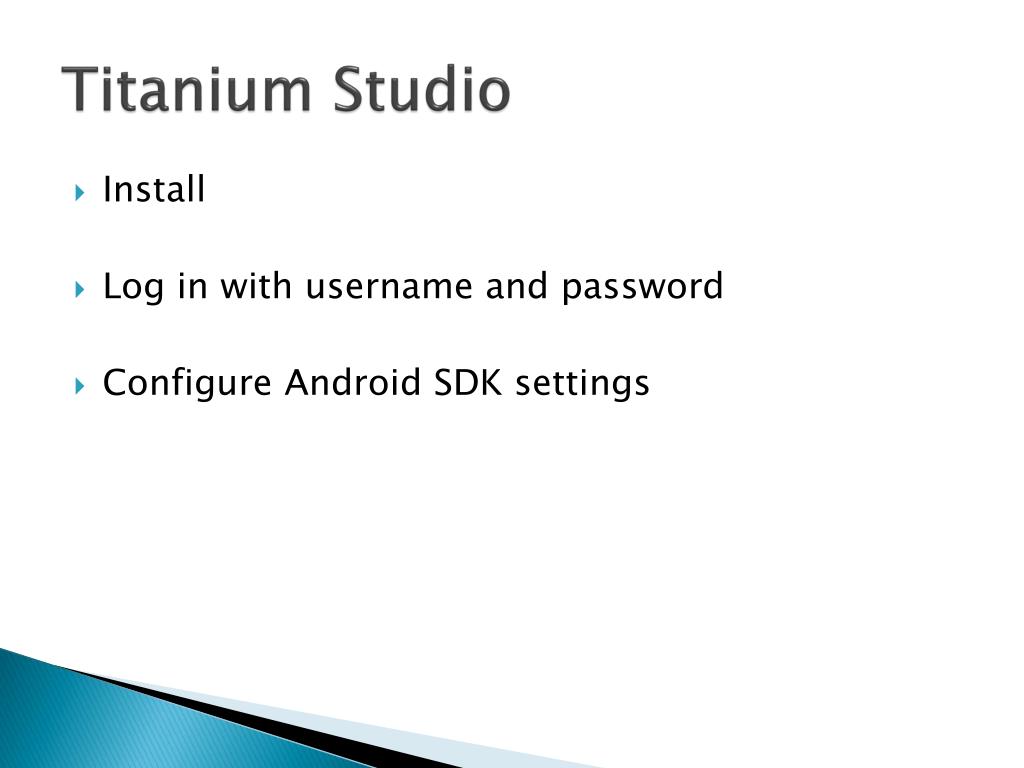

  23. Titanium Studio • Install • Log in with username and password • Configure Android SDK settings

  24. Debugging With Titanium As intuitive as a flyswatter…

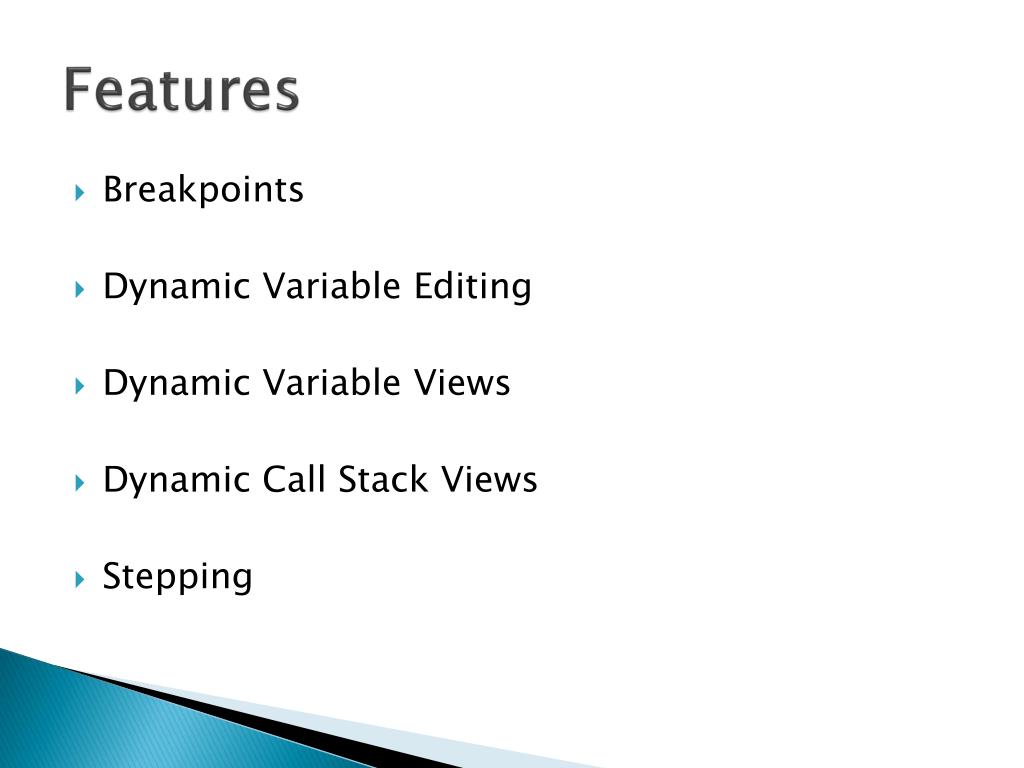

  25. Features • Breakpoints • Dynamic Variable Editing • Dynamic Variable Views • Dynamic Call Stack Views • Stepping

  26. Project Breakdown The deep, dark insides of Titanium (feat. David Riggleman)

  27. Application Layout • tiapp.xml • Main application descriptor file • Contains information used by packager and runtime • README • Describes project • Not included in final application • LICENSE.txt • Contains End User License Agreement (EULA) • Currently not used in mobile projects

  28. Application Layout • LICENSE • Describes Appcelerator License for reference • Apache License Version 2 • build (Folder) • Contains phone specific project files and resources • Used for compiling, building, and packaging native distributions of the application • Use caution in editing files in this folder • May render application unusable

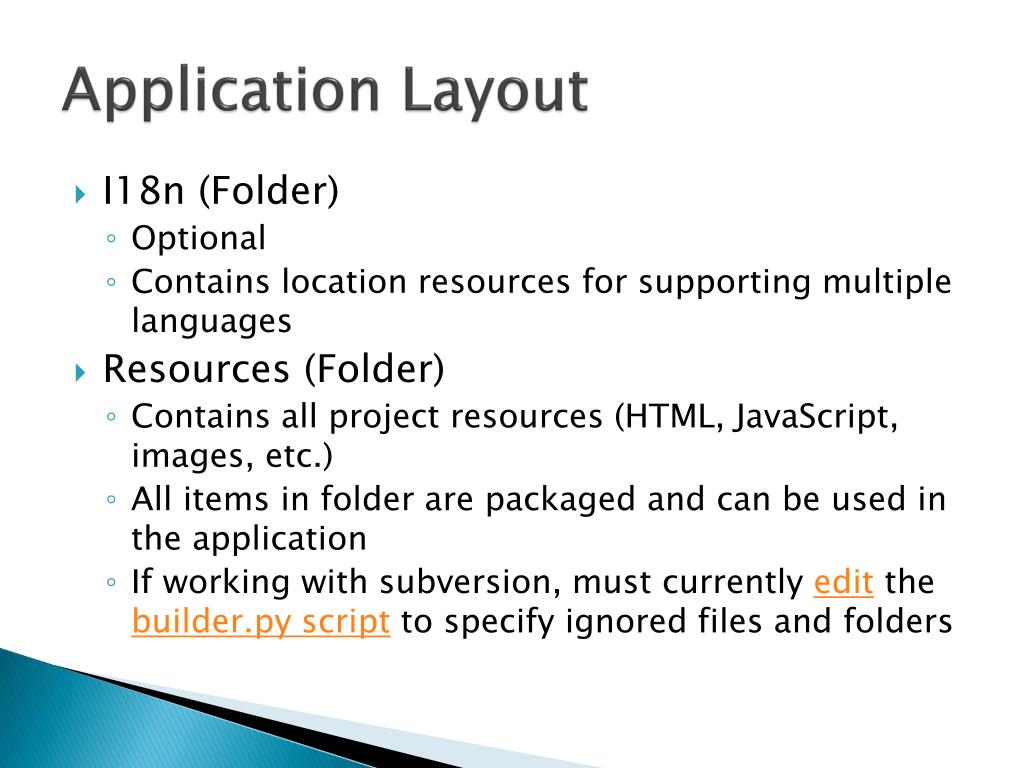

  29. Application Layout • I18n (Folder) • Optional • Contains location resources for supporting multiple languages • Resources (Folder) • Contains all project resources (HTML, JavaScript, images, etc.) • All items in folder are packaged and can be used in the application • If working with subversion, must currently edit the builder.py script to specify ignored files and folders

  30. Application Layout • app.js • Most important file • Entry point into application (“bootstrap file”) • All coding of any mobile application starts here

  31. Platform Specific Resources • Allows for customization of resources for each platform • Files placed in Resources/PLATFORM/ • Resources/android • Resources/iphone

  32. Platform Specific Resources • Example • The file Resources/android/foo.png will override Resources/foo.png • When Titanium compiles a project, only one foo.png file will be included • Directory structure preserved • File should be referenced in application as foo.png • Platform is not specified in reference

  33. Density Specific Resources • Allows for different resolution of pictures depending on capability of device • iPhone • Low-res version: myButton.png • High-res version: myButton@2x.png • In code, both referenced as myButton.png • Android (long and notlong refer to aspect ratio) • res-long-land-hdpi/myButton.png • res-long-port-mdpi/myButton.png • res-notlong-port-ldpi/myButton.png

  34. Special Resources • Splash Screen • Specified by Default.png • Application Icon • Controlled by <icon> entry in tiapp.xml

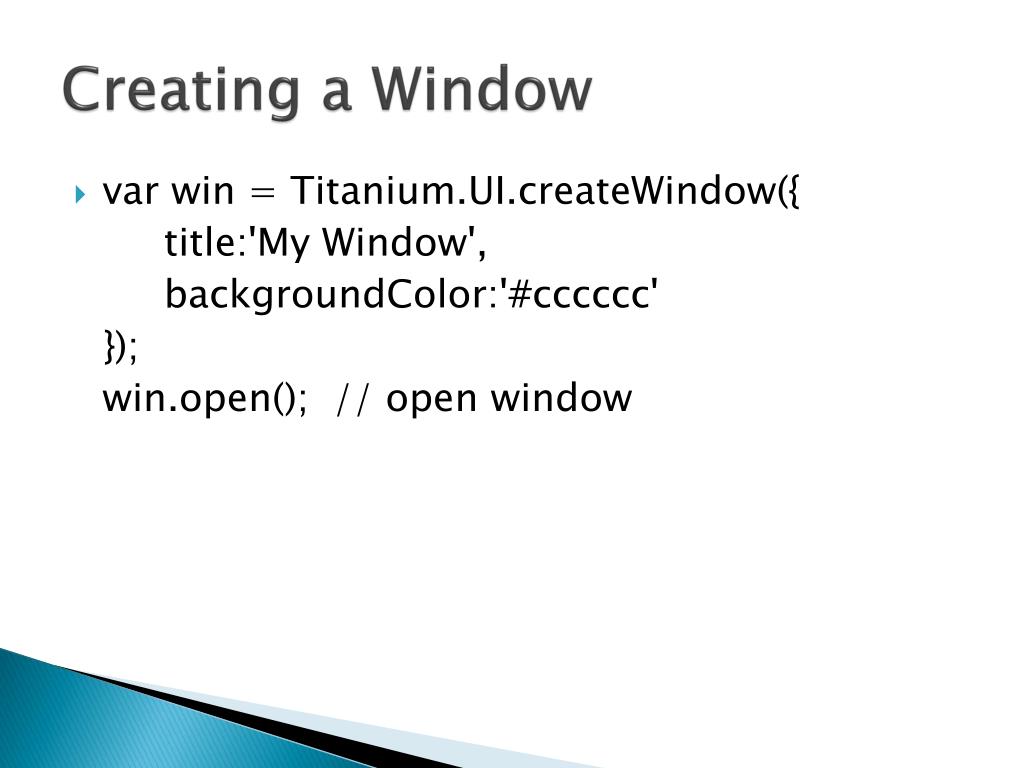

  35. Creating a Window • var win = Titanium.UI.createWindow({   title:'My Window',   backgroundColor:'#cccccc' }); win.open();  // open window

  36. Creating a Label • var label = Titanium.UI.createLabel({   color:'#999',   text:'Hello World',   font:{fontSize:20},   textAlign:'center' }); win.add(label); // add label to window win.open();     // open window

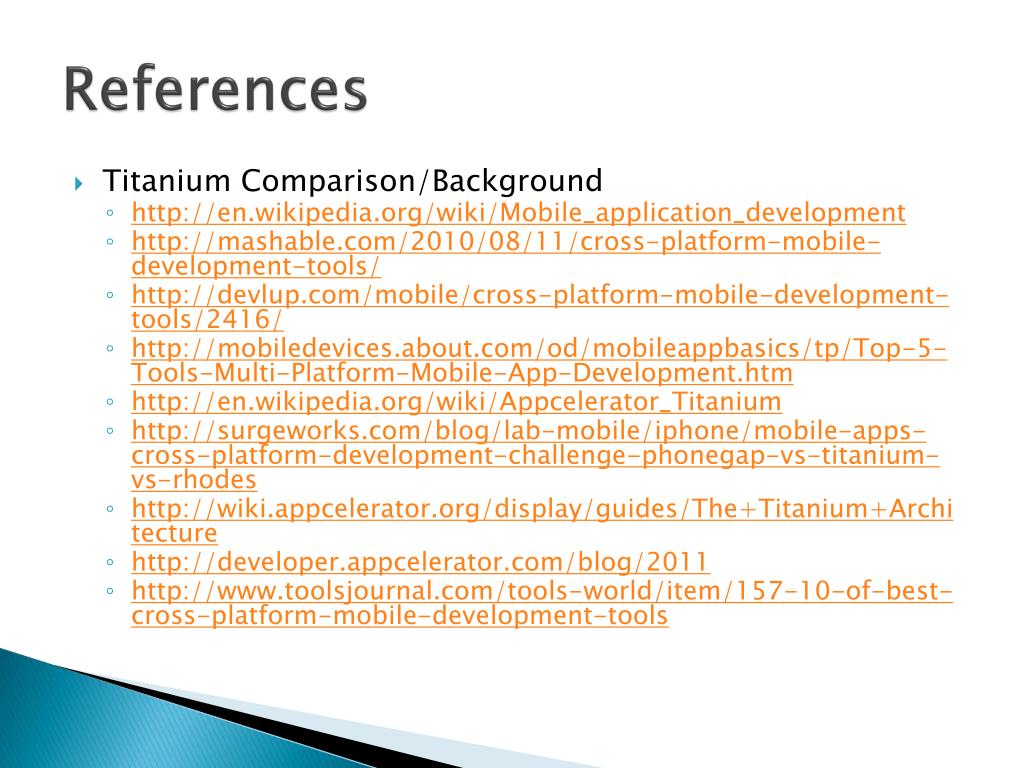

  37. References • Titanium Comparison/Background • http://en.wikipedia.org/wiki/Mobile_application_development • http://mashable.com/2010/08/11/cross-platform-mobile-development-tools/ • http://devlup.com/mobile/cross-platform-mobile-development-tools/2416/ • http://mobiledevices.about.com/od/mobileappbasics/tp/Top-5-Tools-Multi-Platform-Mobile-App-Development.htm • http://en.wikipedia.org/wiki/Appcelerator_Titanium • http://surgeworks.com/blog/lab-mobile/iphone/mobile-apps-cross-platform-development-challenge-phonegap-vs-titanium-vs-rhodes • http://wiki.appcelerator.org/display/guides/The+Titanium+Architecture • http://developer.appcelerator.com/blog/2011 • http://www.toolsjournal.com/tools-world/item/157-10-of-best-cross-platform-mobile-development-tools

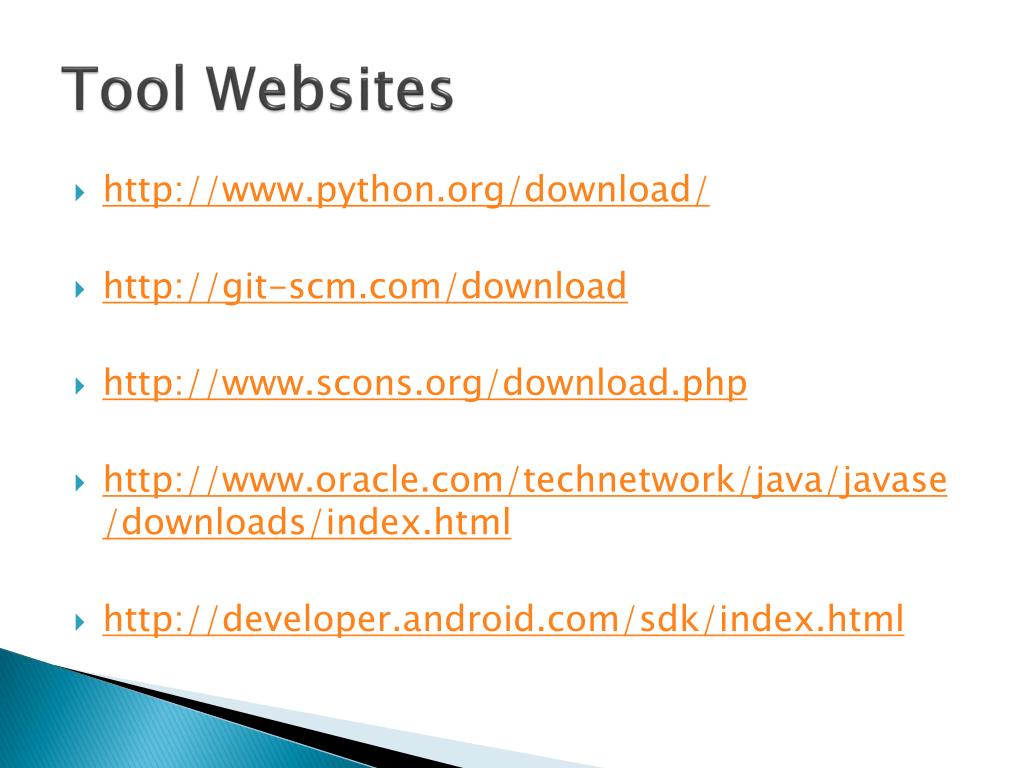

  38. Tool Websites • http://www.python.org/download/ • http://git-scm.com/download • http://www.scons.org/download.php • http://www.oracle.com/technetwork/java/javase/downloads/index.html • http://developer.android.com/sdk/index.html

  39. Installation Resources • http://wiki.appcelerator.org/display/guides/Installing+on+Windows+7 • http://wiki.appcelerator.org/display/guides/Titanium+Compatibility+Matrix • http://wiki.appcelerator.org/display/guides/Installing+on+Windows+7+-+Install+Diagnostics+Output • http://developer.appcelerator.com/blog/2011/07/page/2#debugging

  40. Application Resources • Application Project Structure • http://wiki.appcelerator.org/display/guides/The+Application+Project+Structure • Hello World Example • http://www.sparklepod.com/myblog/appcelerator-titanium-hello-world/ • Ignoring Subversion Files • http://developer.appcelerator.com/question/114541/excluding-svn-files
