  1. Phone: 1-888-UCI FOR U 1-888-824-3678 Fax: 1-609-654-0957 e-mail: kfenn@uci-consulting.com InformixPerformance Optimization by Kevin Fennimore

  2. Overview: • Discuss steps for optimizing • Discuss the output of the Set Explain command • Discuss Indexing Strategies • Table Scans & Table Joins • Optimizer Directives • Discuss optimization techniques and examples • XTREE command

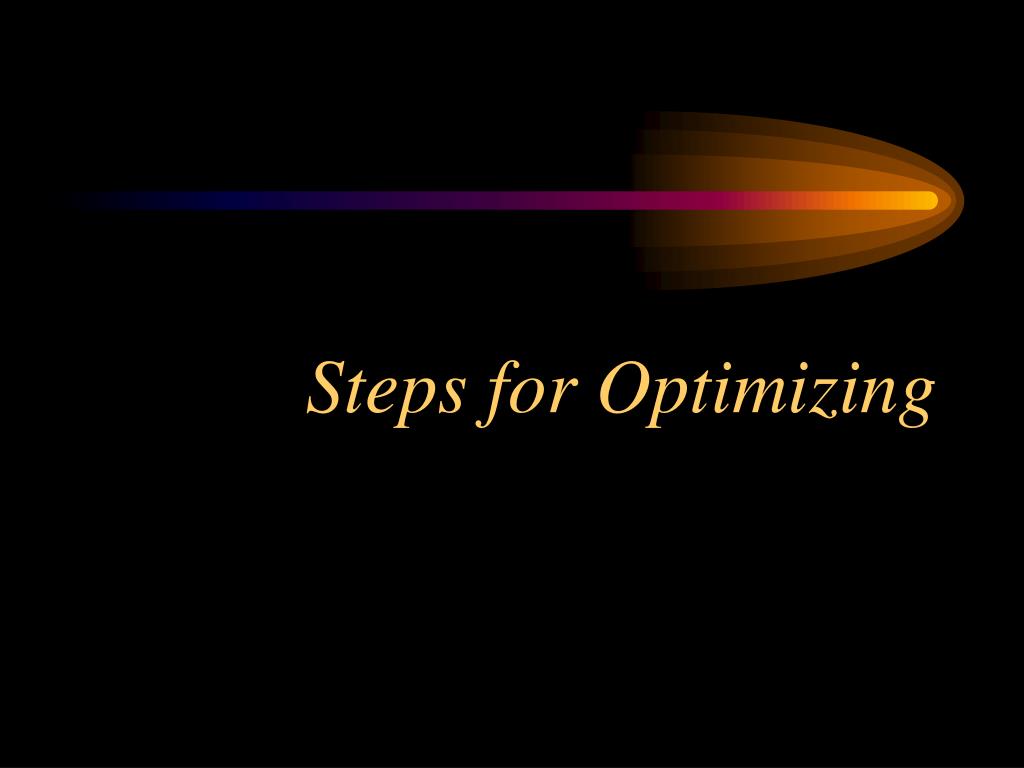

  3. Steps for Optimizing

  4. Optimization Goal:Increase Performance • Reduce I/O • reduce I/O performed by the engine • reduce I/O between the back-end and the front-end • Reduce processing time

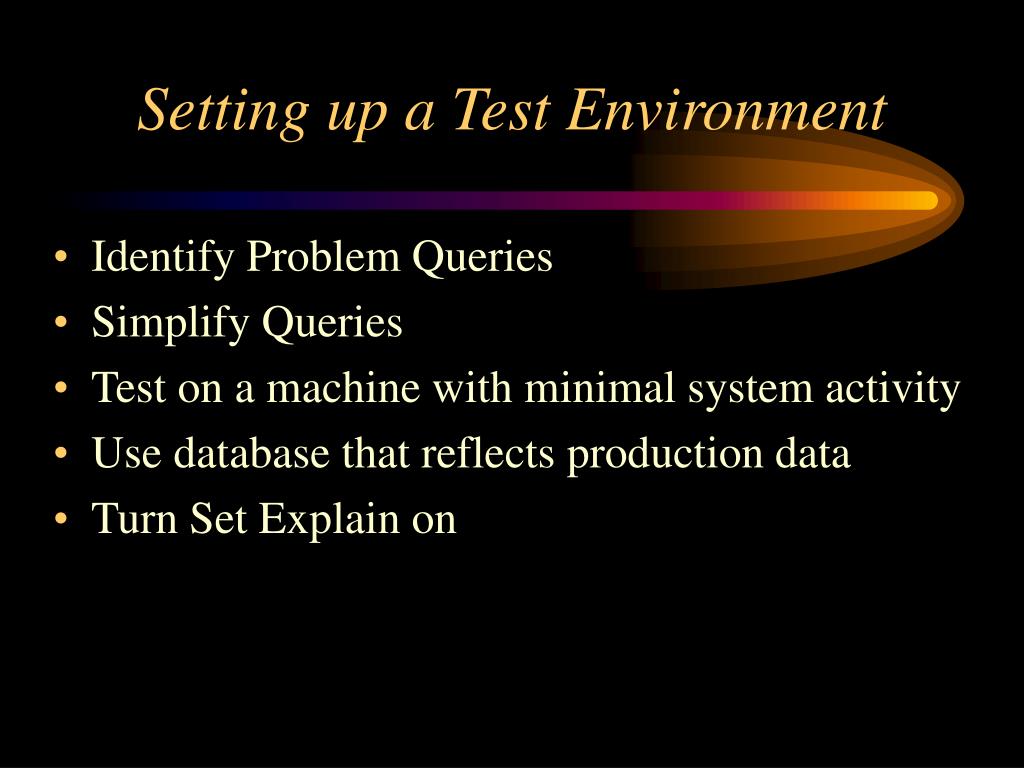

  5. Setting up a Test Environment • Identify Problem Queries • Simplify Queries • Test on a machine with minimal system activity • Use database that reflects production data • Turn Set Explain on

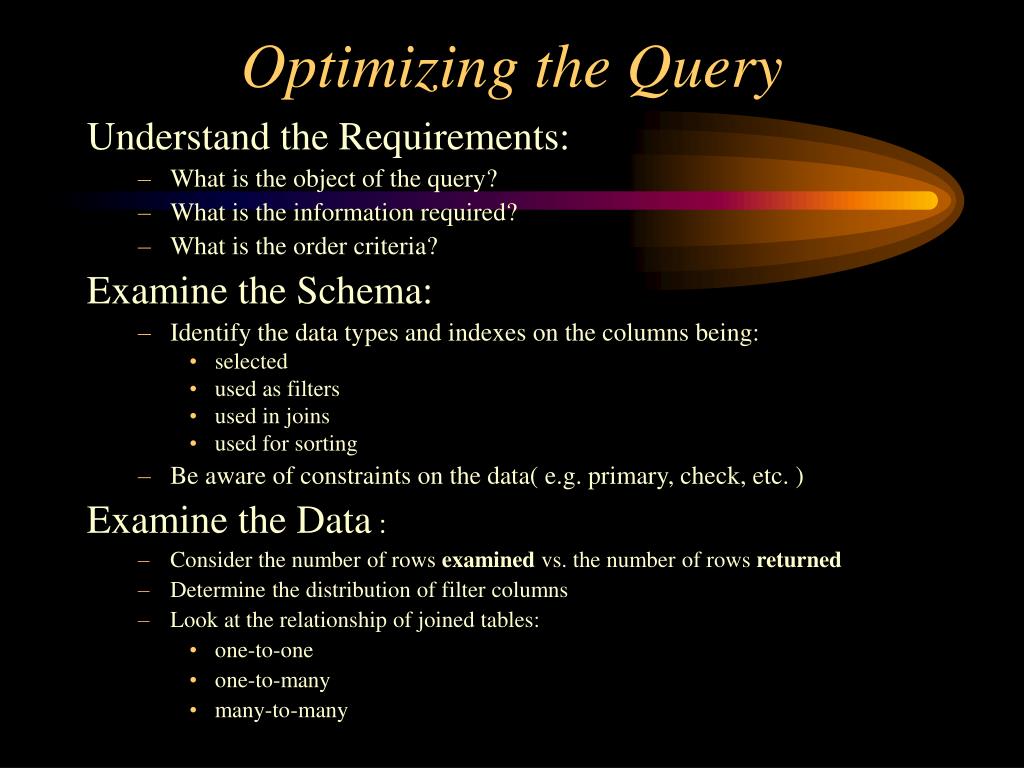

  6. Optimizing the Query Understand the Requirements: • What is the object of the query? • What is the information required? • What is the order criteria? Examine the Schema: • Identify the data types and indexes on the columns being: • selected • used as filters • used in joins • used for sorting • Be aware of constraints on the data( e.g. primary, check, etc. ) Examine the Data : • Consider the number of rows examined vs. the number of rows returned • Determine the distribution of filter columns • Look at the relationship of joined tables: • one-to-one • one-to-many • many-to-many

  7. UPDATE STATISTICS ON TABLE query_table; SET EXPLAIN ON; SELECT . . . Optimizing the Query:Run, Examine and Modify • Run the Query: query.sql $ timex dbaccess db query.sql > try1.out 2>&1 • Examine the Set Explain output • Modify the query and/or schema (use directives to test various paths) • Run the query again

  8. Any Questions?

  9. Set Explain Output

  10. Set Explain: Example 1 QUERY: select * from stock order by description Estimated Cost: 6 Estimated # of Rows Returned: 15 Temporary Files Required For: Order By 1) informix.stock: SEQUENTIAL SCAN

  11. Set Explain: Example 2 QUERY: select * from stock where unit_price>20 order by stock_num Estimated Cost: 3 Estimated # of Rows Returned: 5 1) informix.stock: INDEX PATH Filters: informix.stock.unit_price > 20 (1) Index Keys: stock_num manu_code

  12. Set Explain: Example 3 QUERY: select manu_code from stock Estimated Cost: 2 Estimated # of Rows Returned: 15 1) informix.stock: INDEX PATH (1) Index Keys: stock_num manu_code (Key-Only)

  13. Set Explain: Example 4 QUERY: select * from stock where stock_num>10 and stock_num<14 Estimated Cost: 1 Estimated # of Rows Returned: 1 1) informix.stock: INDEX PATH (1) Index Keys: stock_num manu_code Lower Index Filter: informix.stock.stock_num > 10 Upper Index Filter: informix.stock.stock_num < 14

  14. Set Explain: Example 5 QUERY: select * from stock, items where stock.stock_num = items.stock_num and items.quantity>1 Estimated Cost: 9 Estimated # of Rows Returned: 22 1) informix.stock: SEQUENTIAL SCAN 2) informix.items: INDEX PATH Filters: informix.items.quantity > 1 (1) Index Keys: stock_num manu_code Lower Index Filter: informix.items.stock_num = informix.stock.stock_num

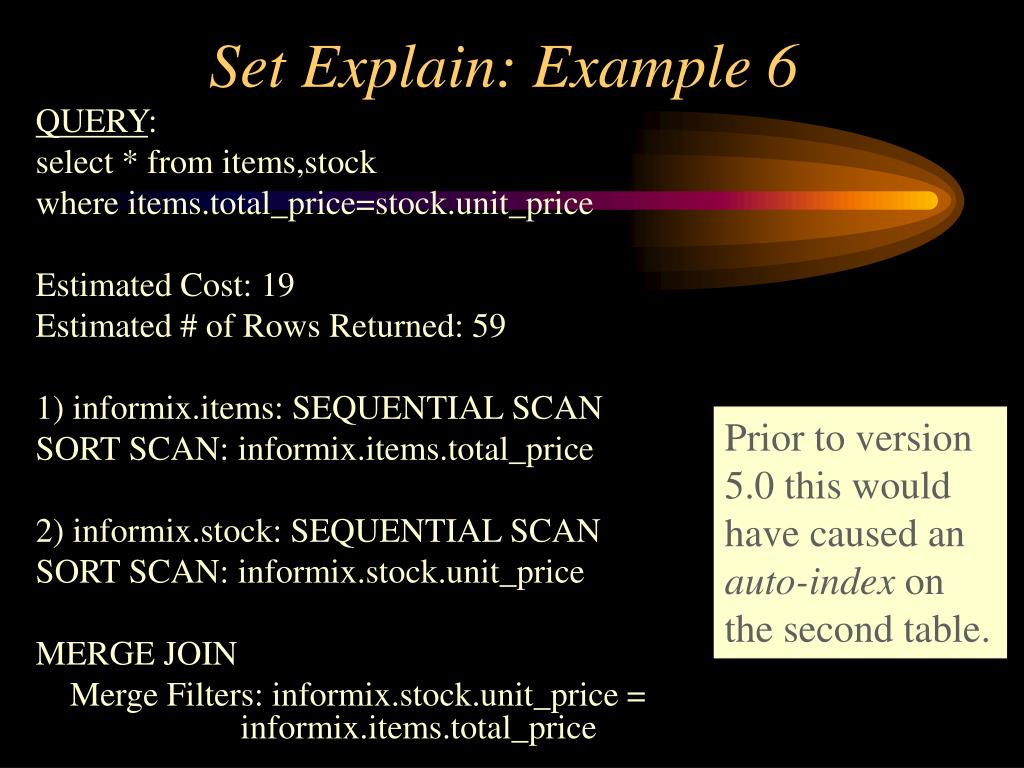

  15. Set Explain: Example 6 QUERY: select * from items,stock where items.total_price=stock.unit_price Estimated Cost: 19 Estimated # of Rows Returned: 59 1) informix.items: SEQUENTIAL SCAN SORT SCAN: informix.items.total_price 2) informix.stock: SEQUENTIAL SCAN SORT SCAN: informix.stock.unit_price MERGE JOIN Merge Filters: informix.stock.unit_price = informix.items.total_price Prior to version 5.0 this would have caused an auto-index on the second table.

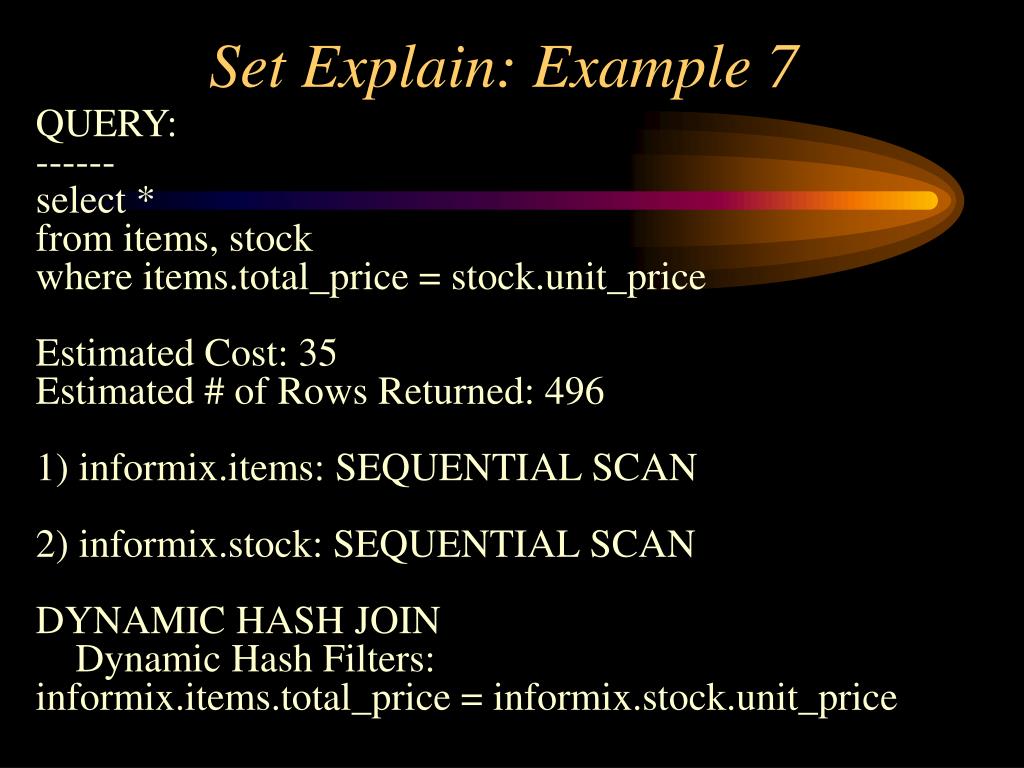

  16. Set Explain: Example 7 QUERY: ------ select * from items, stock where items.total_price = stock.unit_price Estimated Cost: 35 Estimated # of Rows Returned: 496 1) informix.items: SEQUENTIAL SCAN 2) informix.stock: SEQUENTIAL SCAN DYNAMIC HASH JOIN Dynamic Hash Filters: informix.items.total_price = informix.stock.unit_price

  17. Set Explain: Example 8 Table ps_ledger has the following index: create index psaledger on ps_ledger ( account, fiscal_year, accounting_period, business_unit, ledger, currency_cd, statistics_code, deptid, product, posted_total_amt ) fragment by expression ( fiscal_year = 1999 ) in dbspace1, ( fiscal_year = 2000 ) in dbspace2, remainder in dbspace3

  18. Set Explain: Example 8 cont. QUERY: ------ select fiscal_year, account, posted_total_amt from ps_ledger where fiscal_year = 1999 and accounting_period = 10 and account between '1234' and '9999' 1) sysadm.ps_ledger: INDEX PATH Filters: (ps_ledger.fiscal_year = 1999 AND ps_ledger.accounting_period = 10 ) (1) Index Keys: account fiscal_year accounting_period business_unit ledger currency_cd statistics_code deptid product posted_total_amt (Key-Only) (Serial, fragments: 0) Lower Index Filter: ps_ledger.account >= '1234' Upper Index Filter: ps_ledger.account <= '9999'

  19. Any Questions?

  20. Indexing Strategies

  21. 1 0 0 > Level 2 (Root Node) 1 0 0 > 5 0 0 > Level 1 1 3 2 1 9 0 4 0 0 5 0 0 5 0 1 6 9 9 8 5 0 9 9 9 1 5 2 5 9 9 1 0 0 Level 0 D A T A Indexing Strategies: B+ Trees

  22. Indexing Strategies:Types of Indexes • Unique • Duplicate • Composite • Clustered • Attached • Detached

  23. Indexing Strategies:Leading Portion of an Index Index is not used for: SELECT * FROM XYZ WHERE b = 2 AND c = 3 SELECT * FROM XYZ WHERE b = 2 SELECT * FROM XYZ WHERE c = 3 ORDER BY b, c Index is used for: SELECT * FROM XYZ WHERE a = 1 AND b = 2 AND c = 3 SELECT * FROM XYZ WHERE a = 1 AND b = 2 SELECT * FROM XYZ WHERE a = 1 ORDER BY a, b, c Consider an index on columns a, b and c on table xyz.

  24. Indexing Strategies: Guidelines • Columns used in joining tables • Columns used as filters • Columns used in ORDER BY’s and GROUP BY’s • Avoid highly duplicate columns • Keep key size small • Limit indexes on highly volatile tables • Use the FILL FACTOR option (version 7)

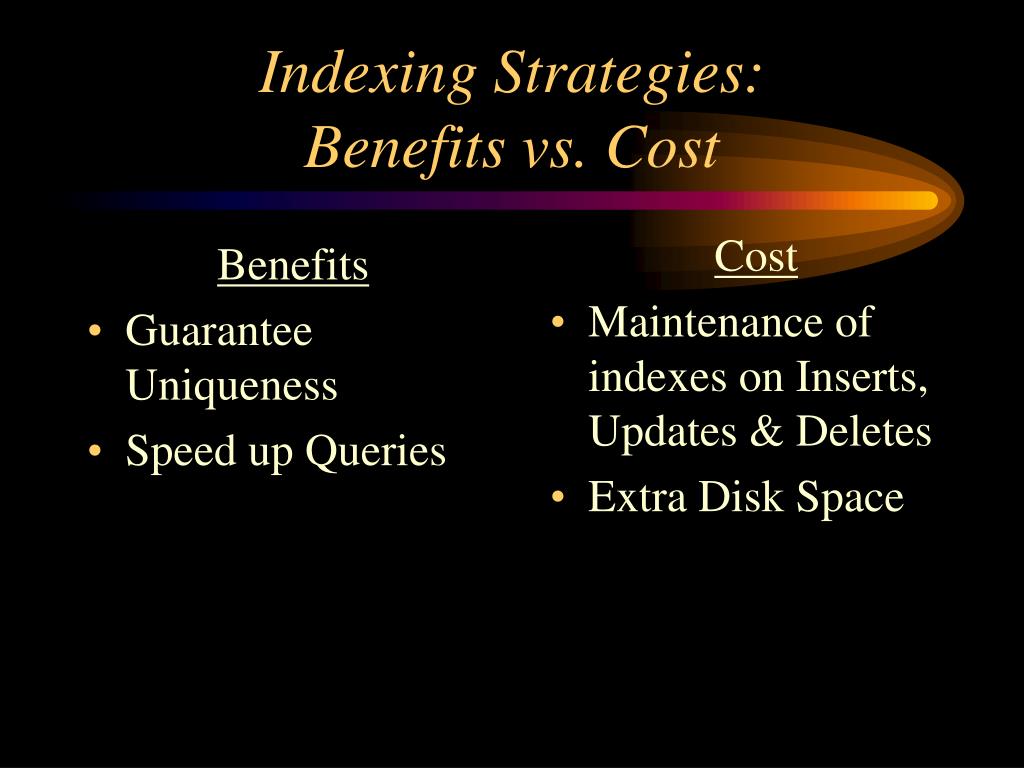

  25. Indexing Strategies:Benefits vs. Cost • Cost • Maintenance of indexes on Inserts, Updates & Deletes • Extra Disk Space Benefits • Guarantee Uniqueness • Speed up Queries

  26. Any Questions?

  27. Table Scans

  28. Types of Table Scans • Sequential • Auto Index • Index

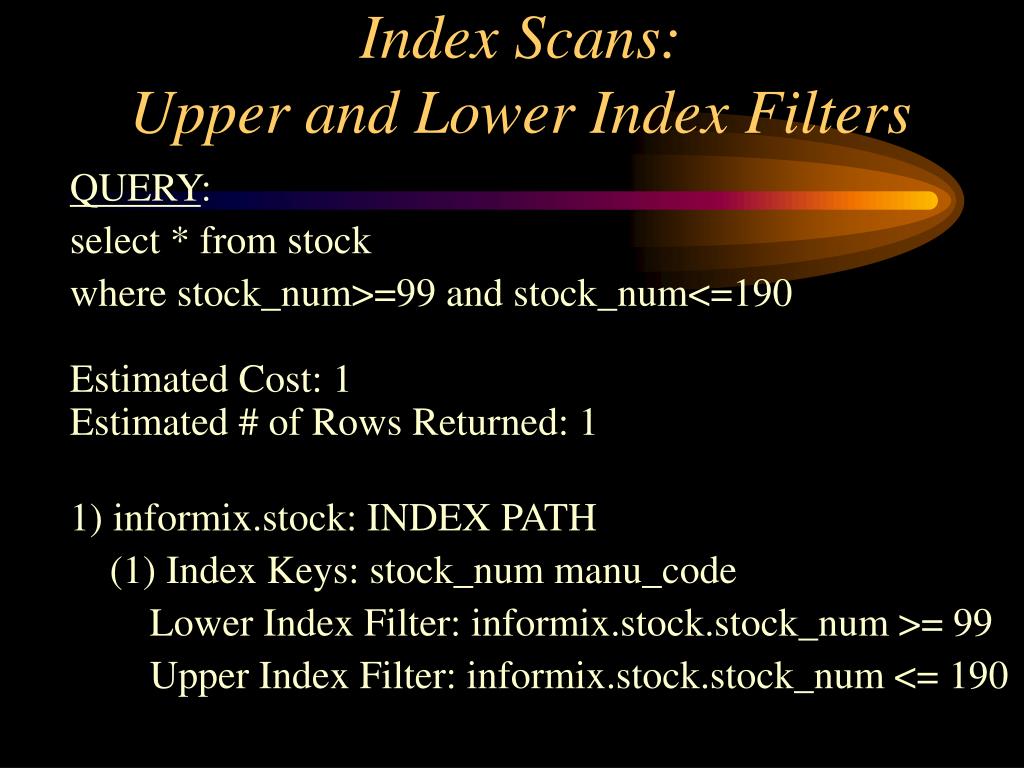

  29. Index Scans:Upper and Lower Index Filters QUERY: select * from stock where stock_num>=99 and stock_num<=190 Estimated Cost: 1 Estimated # of Rows Returned: 1 1) informix.stock: INDEX PATH (1) Index Keys: stock_num manu_code Lower Index Filter: informix.stock.stock_num >= 99 Upper Index Filter: informix.stock.stock_num <= 190

  30. 1 0 0 > 1 0 0 > 5 0 0 > 1 3 2 1 9 0 4 0 0 5 0 0 5 0 1 6 9 9 8 5 0 9 9 9 1 5 2 5 9 9 1 0 0 Index Scans:Upper and Lower Index Filters

  31. Index Scans:Upper and Lower Index Filters Create indexes on columns that are the most selective. For example: SELECT * FROM CUSTOMER WHERE ACCOUNT BETWEEN 100 and 1000 AND STATUS = “A” AND STATE = “MD” Which column is the most selective? Account, status or state?

  32. Index Scans:Key-Only QUERY: select manu_code from stock where stock_num = 190 Estimated Cost: 2 Estimated # of Rows Returned: 15 1) informix.stock: INDEX PATH (1) Index Keys: stock_num manu_code (Key-Only) Lower Index Filter: informix.stock.stock_num = 190

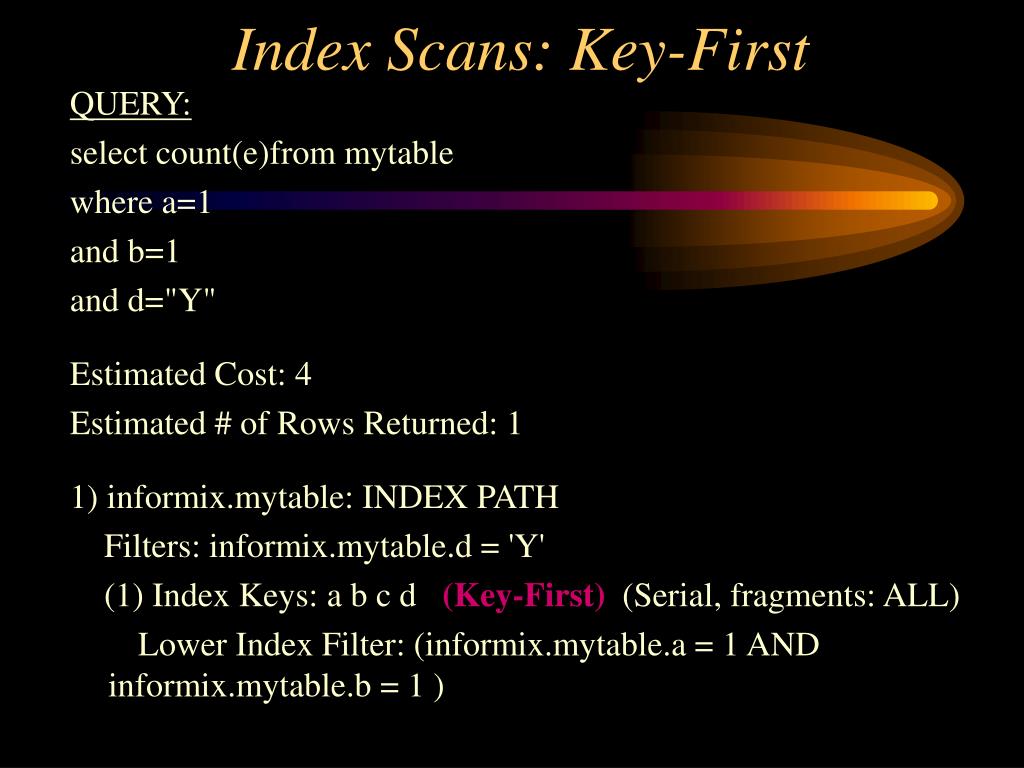

  33. Index Scans: Key-First QUERY: select count(e)from mytable where a=1 and b=1 and d="Y" Estimated Cost: 4 Estimated # of Rows Returned: 1 1) informix.mytable: INDEX PATH Filters: informix.mytable.d = 'Y' (1) Index Keys: a b c d (Key-First) (Serial, fragments: ALL) Lower Index Filter: (informix.mytable.a = 1 AND informix.mytable.b = 1 )

  34. Any Questions?

  35. Table Joins

  36. Joining Tables Consider the following query: select * from stock, items where stock.stock_num = items.stock_num and items.quantity>10 What we’re looking for is: All of the items records with a quantity greater than 10 and their associated stock records.

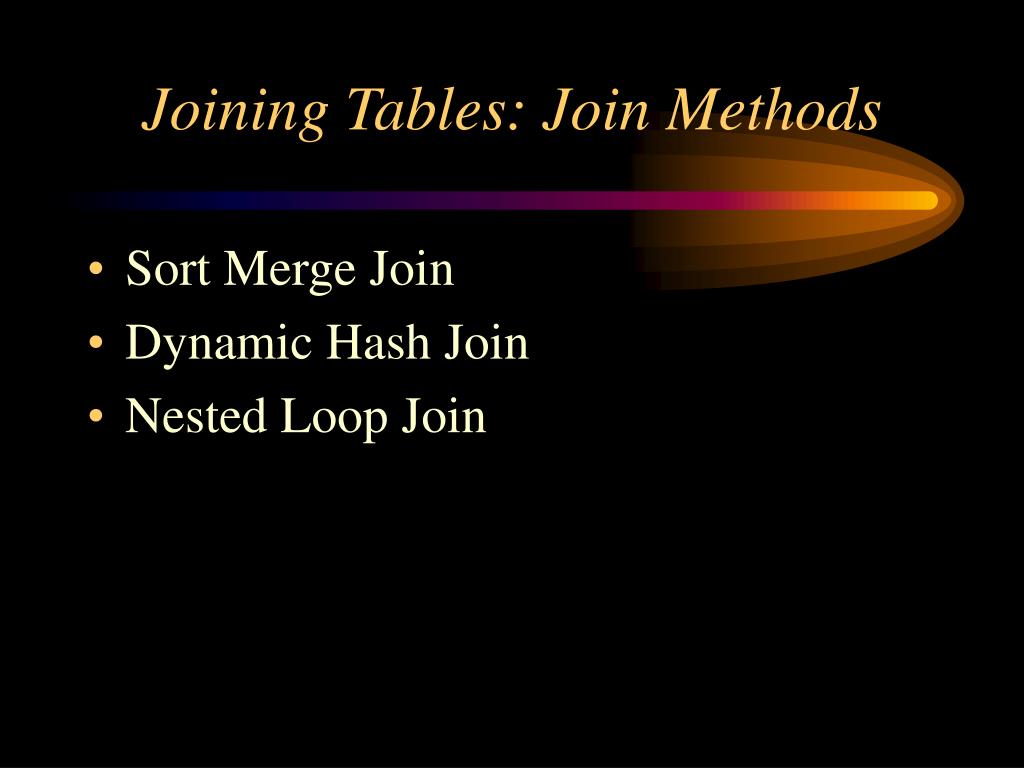

  37. Joining Tables: Join Methods • Sort Merge Join • Dynamic Hash Join • Nested Loop Join

  38. Join Methods: Nested Loop Join QUERY: select * from stock, items where stock.stock_num = items.stock_num and items.quantity>10 Estimated Cost: 9 Estimated # of Rows Returned: 22 1) informix.stock: SEQUENTIAL SCAN 2) informix.items: INDEX PATH Filters: informix.items.quantity > 10 (1) Index Keys: stock_num manu_code Lower Index Filter:items.stock_num = stock.stock_num NESTED LOOP JOIN Notice the index on the joined column New Output in version 7.3

  39. Joining Tables: Table Order Consider the select: Select * from A, B where A.join_col = B.join_col How can the database satisfy this join? • Read from A then find matching rows in B • Read from B then find matching rows in A

  40. A then B 1,000 reads from A For each A row do an index scan into B (4 reads) Total reads: 5,000 (1,000 for A + 1,000*4 for B) B then A 50,000 reads from B For each B row do an index scan into A (3 reads) Total reads: 200,000 (50,000 for B + 50,000*3 for A) Joining Tables: Table OrderWho Cares? Table A - 1000 rows Table B - 50,000 rows This is a difference of 195,000 reads!!!

  41. A then B 1,000 reads from A For each A row do an index scan into B (4 reads) Total reads: 5,000 (1,000 for A + 1,000*4 for B) Total Rows Returned: 10 B then A Index scan of B (3 reads), then the data (10 reads) for a toal of 13 For each B row do an index scan into A (3 reads) Total reads: 43 (13 for B+10*3 for A) Total Rows Returned: 10 Joining Tables: Table OrderWhat is the best order? Assume 10 rows meet this condition • Table A - 1,000 rows Table B - 50,000 rows • Select * from A, B • where A.join_col = B.join_col • and B.filter_col = 1 General Rule: The table which returns the fewest rows, either through a filter or the row count, should be first.

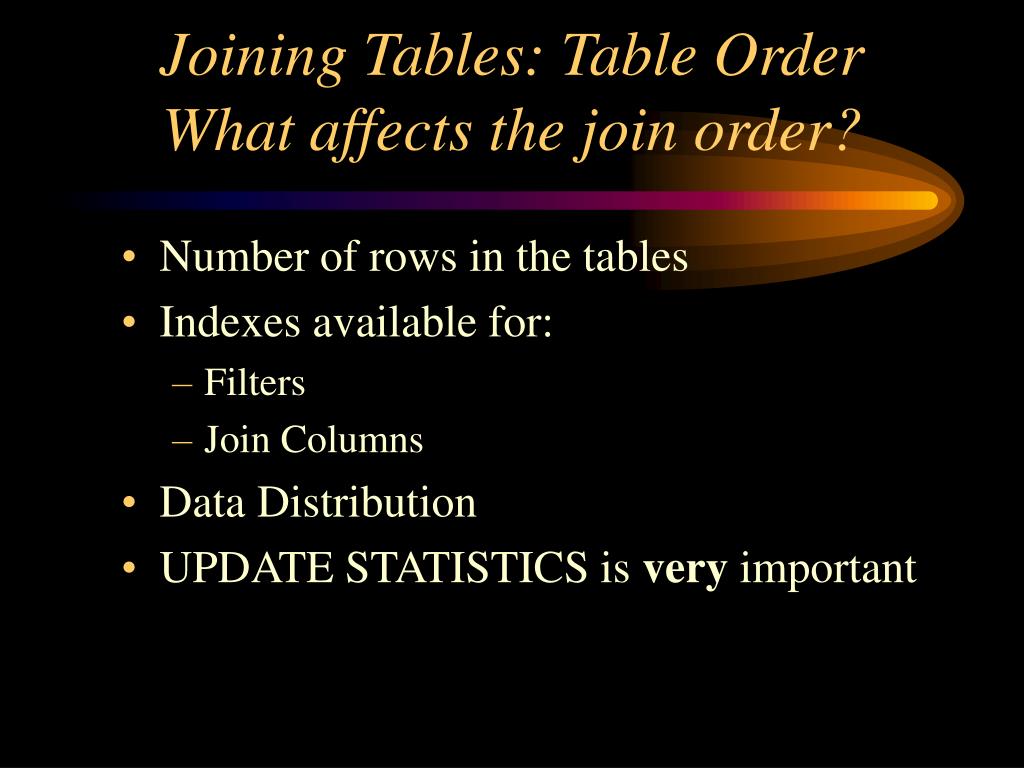

  42. Joining Tables: Table OrderWhat affects the join order? • Number of rows in the tables • Indexes available for: • Filters • Join Columns • Data Distribution • UPDATE STATISTICS is very important

  43. Any Questions?

  44. Optimizer Directives

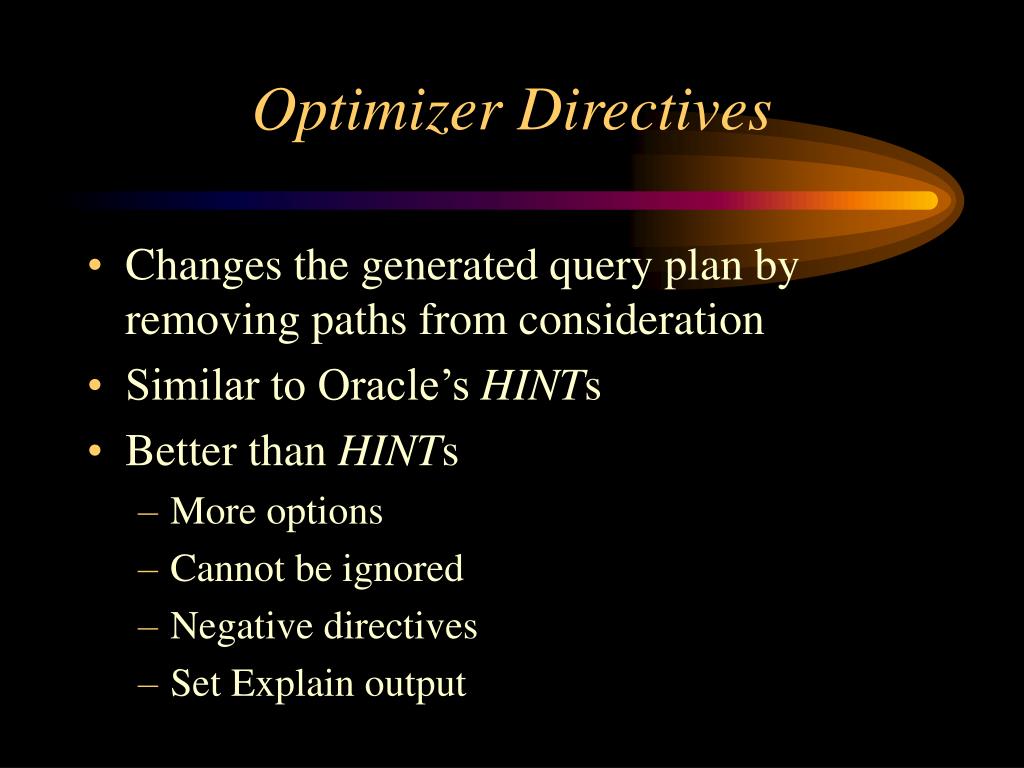

  45. Optimizer Directives • Changes the generated query plan by removing paths from consideration • Similar to Oracle’s HINTs • Better than HINTs • More options • Cannot be ignored • Negative directives • Set Explain output

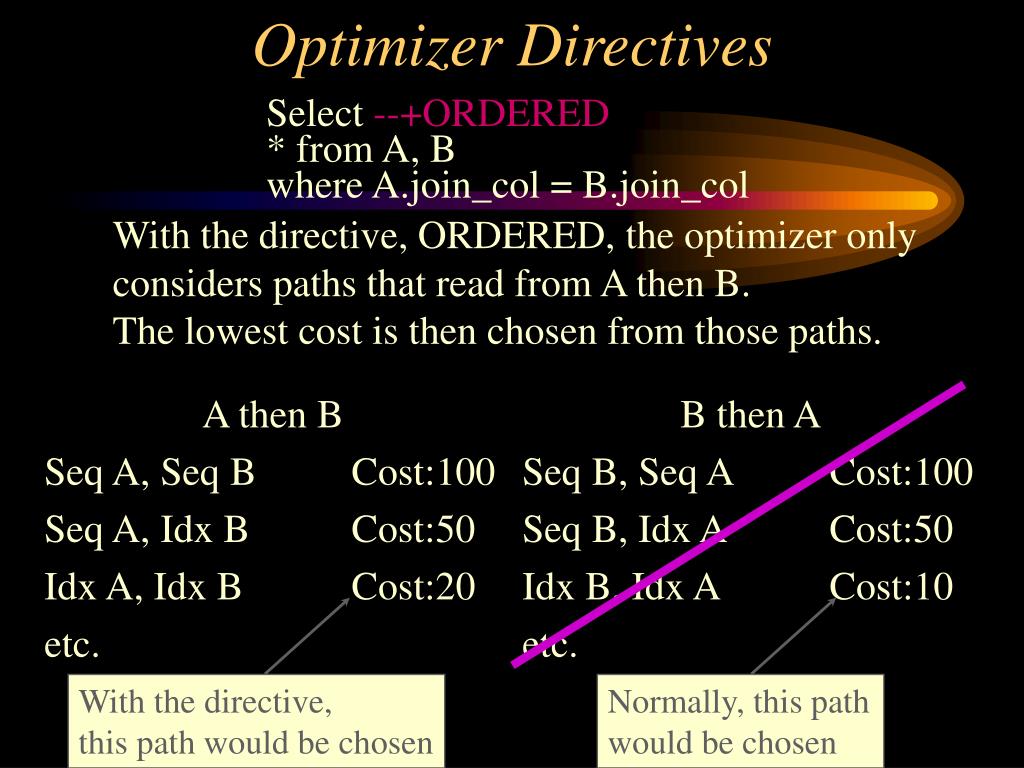

  46. A then B Seq A, Seq B Cost:100 Seq A, Idx B Cost:50 Idx A, Idx B Cost:20 etc. B then A Seq B, Seq A Cost:100 Seq B, Idx A Cost:50 Idx B, Idx A Cost:10 etc. Optimizer Directives Select --+ORDERED * from A, B where A.join_col = B.join_col With the directive, ORDERED, the optimizer only considers paths that read from A then B. The lowest cost is then chosen from those paths. With the directive, this path would be chosen Normally, this path would be chosen

  47. Optimizer Directives:Syntax • SELECT --+ directive text • SELECT {+ directive text } • UPDATE --+ directive text • UPDATE {+ directive text } • DELETE --+ directive text • DELETE {+ directive text } C-style comments are also valid as in: SELECT /*+directive*/

  48. Types of Directives • Access Methods • Join Methods • Join Order • Optimization Goal

  49. Types of Directives:Access Methods • index - forces use of a subset of specified indexes • index_one - forces use of one of the specified indexes • index_all - forces use of all of the specified indexes • avoid_index - avoids use of specified indexes • full - forces sequential scan of specified table • avoid_full - avoids sequential scan of specified table

  50. Types of Directives:Join Order • ordered - forces table order to follow the from clause
