Manning’s Equation

CE EN 270 – BRIGHAM YOUNG UNIVERSITY. Manning’s Equation. Open Channel Flow. Open Channel Flow. Manning’s Equation. Q = Flow rate u = 1.0 (metric) or 1.49 (English) n = Manning friction factor concrete 0.020 earth 0.022 streams 0.045 pipe 0.013. A = Cross-sectional area of flow

howell
Télécharger la présentation

Manning’s Equation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CE EN 270 – BRIGHAM YOUNG UNIVERSITY Manning’s Equation

  2. Open Channel Flow

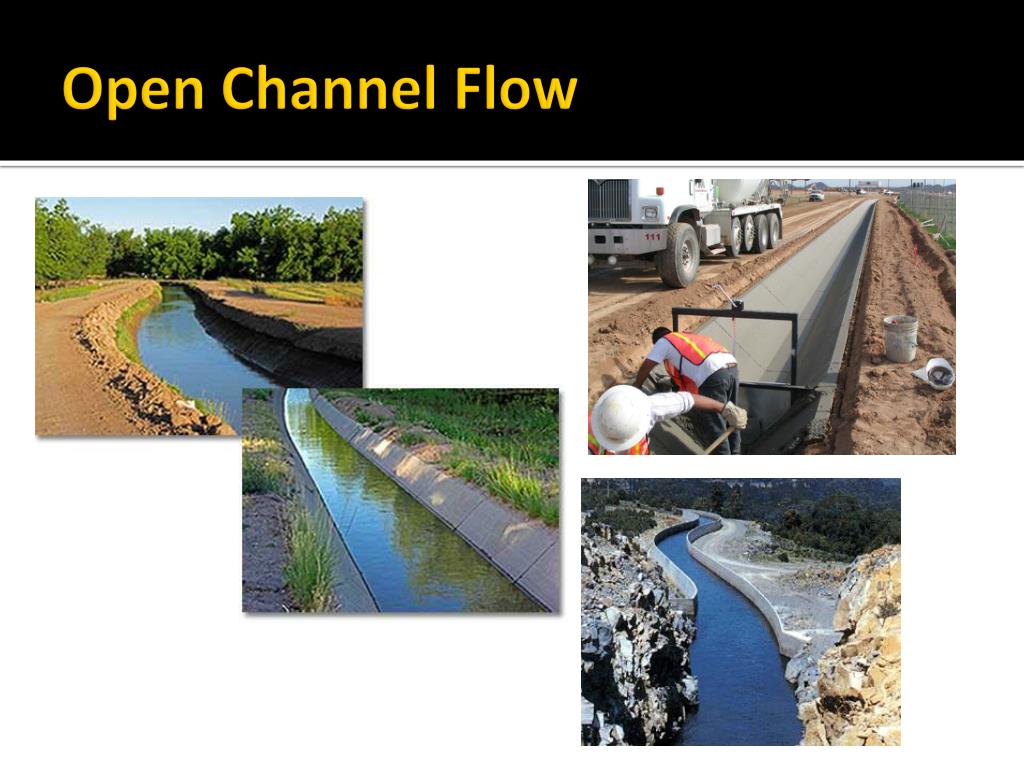

  3. Open Channel Flow

  4. Manning’s Equation • Q = Flow rate • u = 1.0 (metric) or 1.49 (English) • n = Manning friction factor • concrete 0.020 • earth 0.022 • streams0.045 • pipe 0.013 A = Cross-sectional area of flow Rh= Hydraulic radius = A/Pw Pw = Wetted Perimeter So = Slope of channel bottom

  5. Trapezoidal Channel

  6. Rectangular Channel

  7. Circular Channel If y<r: If y≥r:
