Students’ Strategies & Mistakes • Using a Map in the Real World • Kim A. Kastens • MG&G Seminar • 8 March 2007

Mind Earth Fertile research area at interface

Mind Earth Fertile research area at interface • Kim’s Priority List of Research Topics in ROLE/ GEO • Complex systems of the Earth & environment • Geologic time • Learning in the Field • Spatial thinking in Geosciences

versus Field photo from: http://www.ldeo.columbia.edu/users/menke/slides/EESC2200FIELDTRIP04/fieldtrip_3.html Lab photo from: www.ldeo.columbia.edu/edu/DLESE/activities/Galileo/index.html

Lab Report Methods: We made our observations at 40° 47' N, 73° 58' W, 72 cm above the floor level, at the front table, in room 558 Schermerhorn. versus Field photo from: http://www.ldeo.columbia.edu/users/menke/slides/EESC2200FIELDTRIP04/fieldtrip_3.html Lab photo from: www.ldeo.columbia.edu/edu/DLESE/activities/Galileo/index.html

A Manual for Deeptow Transponder Navigators A Tool for Understanding and Improving how Children Learn to Use Maps

“THE WORLD IN SPATIAL TERMS… • The geographically informed person knows and understands... • How to use maps and other geographic representations, tools, and technologies to acquire, process, and report information from a spatial perspective… • By the end of the fourth grade, the student knows and understands: … • How to display spatial information on maps and other geographic representations.”

Knowing how to use a map is important for everyone who wants to be able to travel to new places.

Field-based investigations of children’s map skills:• Baseline Group• Self-Explaining Group• Verbal Description Group

The “Baseline” Group

The “Baseline” Group “Put the blue sticker on the map to show where you think the blue flag is located….”

2001-2002 and 2002-2003 classes (now 6th & 7th graders): The “Baseline” Group The “Baseline” Group

2001-2002 and 2002-2003 classes (now 6th & 7th graders): The “Baseline” Group Two scoring methods for sticker placements: (1) Quantitative: distance from center of student sticker to exact location, in sticker diameters. (2) Categorical

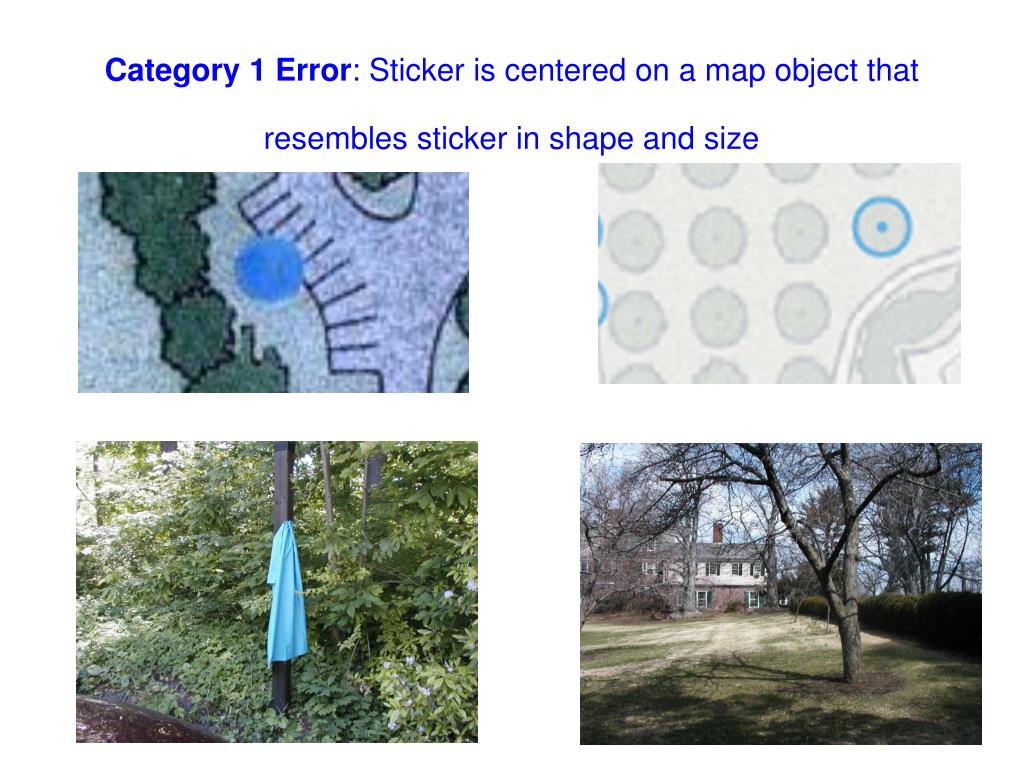

Category 1 Error: Sticker is centered on a map object that resembles sticker in shape and size Type 1 Error Correct Answer

Category 2 Error: Sticker is placed on symbol for grass, trees, or bushes; not on or adjacent to any built object Type 2 Error Correct Answer

Category 3b Error: Sticker should have been adjacent to a road or path; placed instead on or adjacent to a structure Correct Answer Type 3b Error

Category 4a Error: Sticker should have been on structure; placed on or adjacent to the wrong structure Correct Answer Type 4a Error Type 4a Error

Category 5a Error: Sticker should be on structure; placed on correct structure but outside of “correct” ring Type 5a Errors Correct Answers

Category 5b Error: Sticker should be adjacent to a road or path; placed on correct path or road segment, but outside the “correct” ring Correct Answer 5b Errors

2001-2002 and 2002-2003 classes (now 6th & 7th graders): The “Baseline” Group The “Baseline” Group Correct location is on a wall. Student stickers on the wrong building. Student sticker on the grass. Student sticker on trees or shrubs. Good student stickers.

2001-2002 and 2002-2003 classes (now 6th & 7th graders): The “Baseline” Group The “Baseline” Group Result #1: Without instruction, many 4th graders (and some adults) find it difficult to accurately locate a real-world object onto a map.

The “Explaining” Group Same as “Baseline”:

The “Explaining” Group Same as “Baseline”: Different: “After you put one of the stickers on the map, write down what clues you used to decide where to put the sticker…”

The “Explaining” Group

The “Explaining” Group Result #2: Children who explained their reasoning did better than those who did not. Baseline Explaining

…..even though: • the two groups of students were from the same school • had the same teachers • were the same age (end of 4th grade) • and were indistinguishable on standard paper and pencil tests of mental rotation ability.

The “Self-Explaining Effect”: Eliciting “self-generated explanations” improves student performance on a wide range of tasks

The “Explaining” Group Why? Self-explaining activates existing spatial competencies. Students find and self-correct incipient errors. Baseline Explaining

The “Explaining” Group Insights from clue-answers should be taken as indicative of students performing closer to peak capacity.

Coding of Clue-Answers • Did clue-answer include at least one landmark that exists in the real world? (landmark/no landmark) • If so, did the clue-answer accurately describe the real world? (veridical/ counterfactual) • If so, was the clue-answer sufficient to pinpoint the flag location within 15m? (sufficient/ accurate but insufficient) • If so, did the landmark exist on the map as well as in the real world? (Viable/ nonviable) • If so, did the position of the sticker agree with the position described in the clue-answer? (agree/ disagree) • Did the clue-answer include topological, projective, or Euclidean spatial elements? • Did the clue-answer include at least two elements of spatial information? • Did the clue-answer describe process as well as observations? (kinesthetic, visual)

Did the clue-answer include at least one landmark that exists in the real world? And if so, did the clue-answer accurately describe the flag’s position in the real world? (true flag locations) Counterfactual Veridical

Did the clue-answer include at least one landmark that exists in the real world? And if so, did the clue-answer accurately describe the flag’s position in the real world? (light blue K09) “Well I was walking along a road that goes in a circle, I saw this flag by cars so I knew it was near the parking area.” (white K18) “It was across the tree on a light post.” (true flag locations) Counterfactual Veridical

Did the clue-answer include at least one landmark that exists in the real world? And if so, did the clue-answer accurately describe the flag’s position in the real world? (light blue K09) “Well I was walking along a road that goes in a circle, I saw this flag by cars so I knew it was near the parking area.” (white K18) “It was across the tree on a light post.” (true flag locations) Counterfactual Veridical Counterfactual clue-answers are very rare in our data: only 7 out of the 223 Landmark clue-answers.

If the clue-answer is a veridical description of reality, does the clue-answer contain enough information to pinpoint the flag location? Accurate but Insufficient Sufficient (true flag locations)

If the clue-answer is a veridical description of reality, does the clue-answer contain enough information to pinpoint the flag location? (white K03) “I put my white sticker where I put it because I saw it on a tree in the circling road.” (black H06) “I saw the flag on the statue while I was walking.” (white H14) “I found the white flag by the big tree close to the mansion.” (orange H13) “It’s on the mansion.” Accurate but Insufficient Sufficient (true flag locations)
