Presentation Transcript

  1. Step Construction of Visual Cryptography Schemes IEEE TRANSACTIONS ON INFORMATION FORENSICS AND SECURITY, VOL. 5, NO. 1, MARCH 2010 Feng Liu, Chuankun Wu, Senior Member, IEEE, and Xijun Lin Reporter:Bibitana

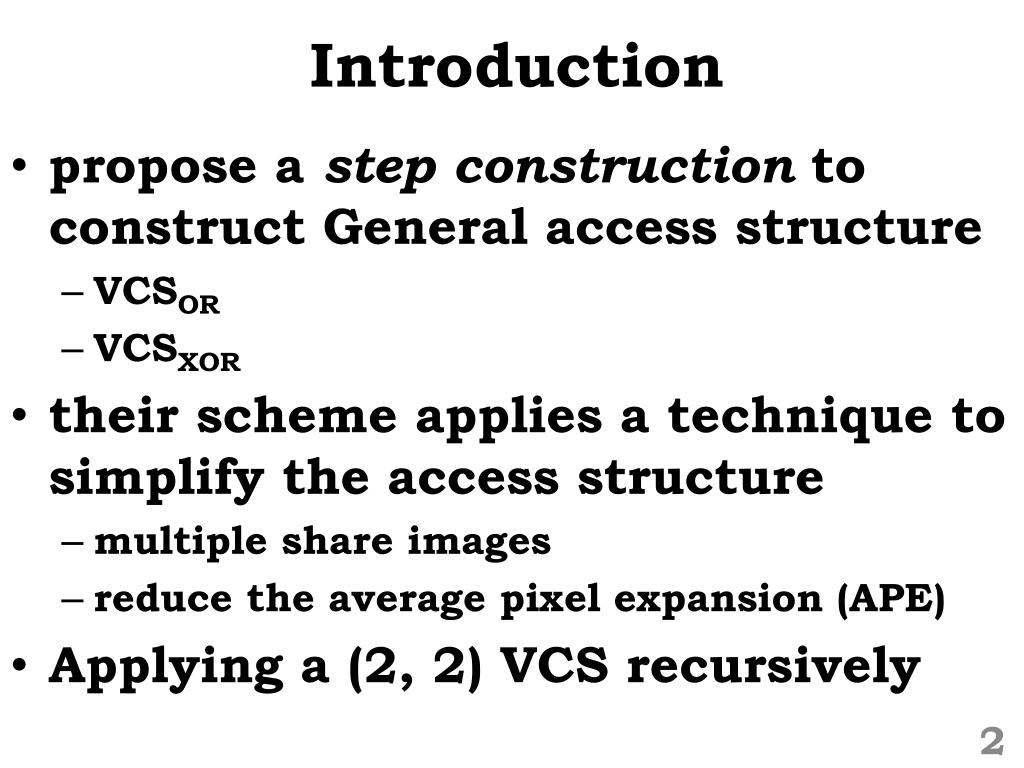

  2. Introduction • propose a step construction to constructGeneral access structure • VCSOR • VCSXOR • their scheme applies a technique to simplify the access structure • multiple share images • reduce the average pixel expansion (APE) • Applying a (2, 2) VCS recursively

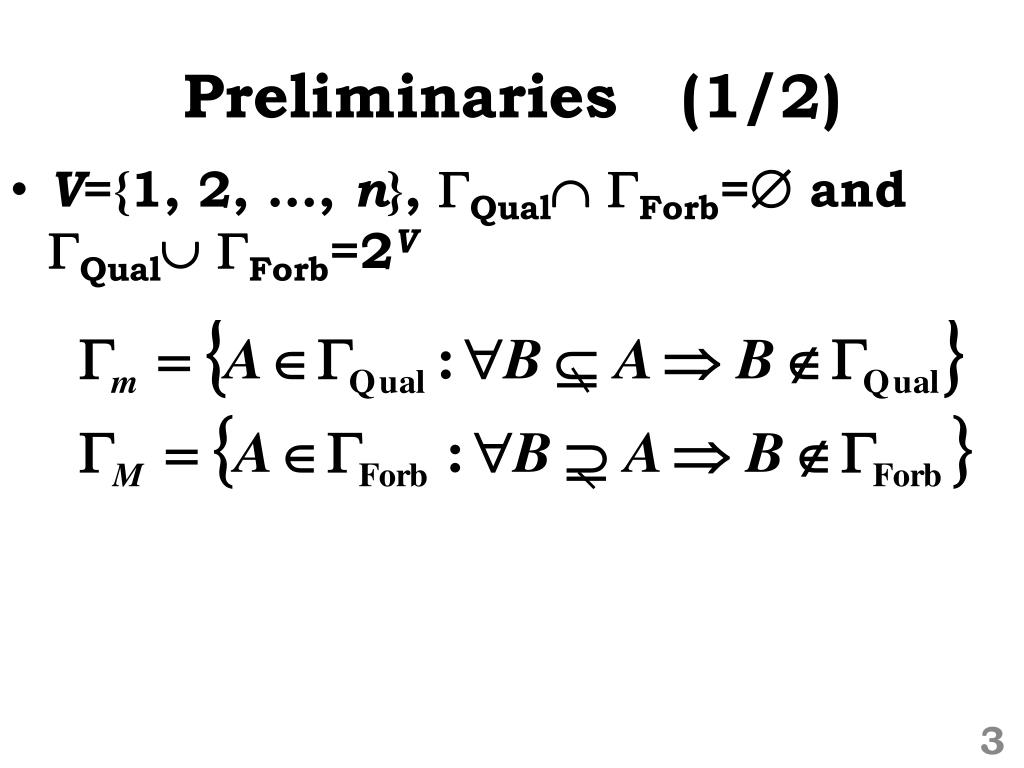

  3. Preliminaries (1/2) • V={1, 2, …,n}, Qual Forb= and Qual Forb=2V

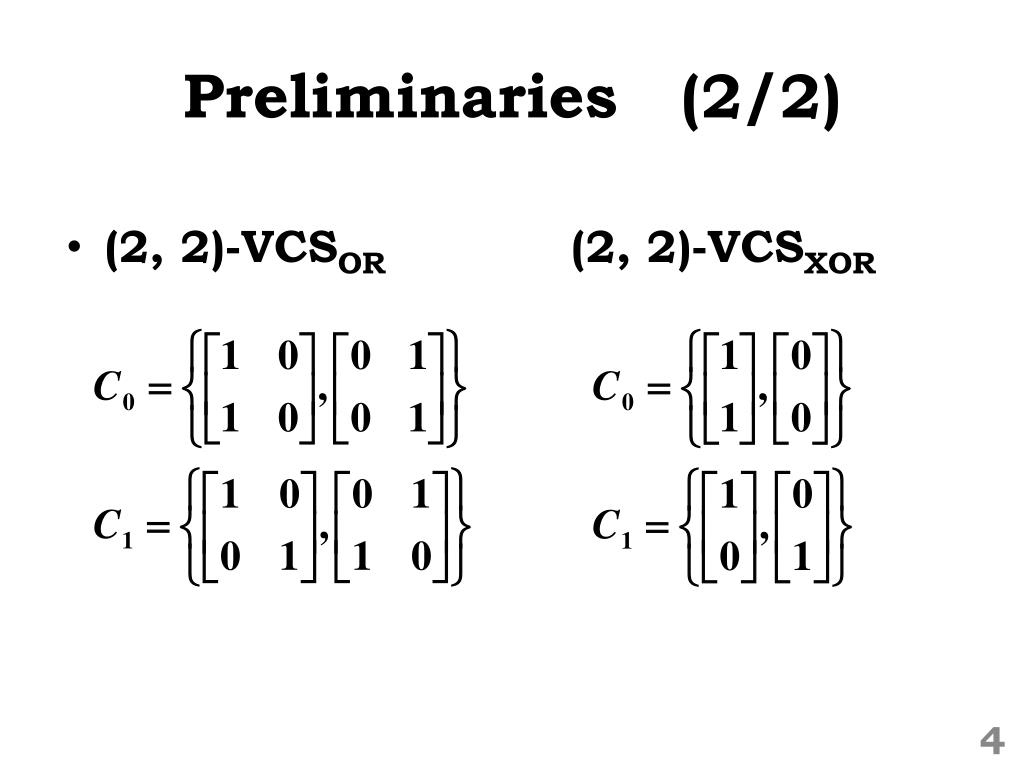

  4. Preliminaries (2/2) • (2, 2)-VCSOR (2, 2)-VCSXOR

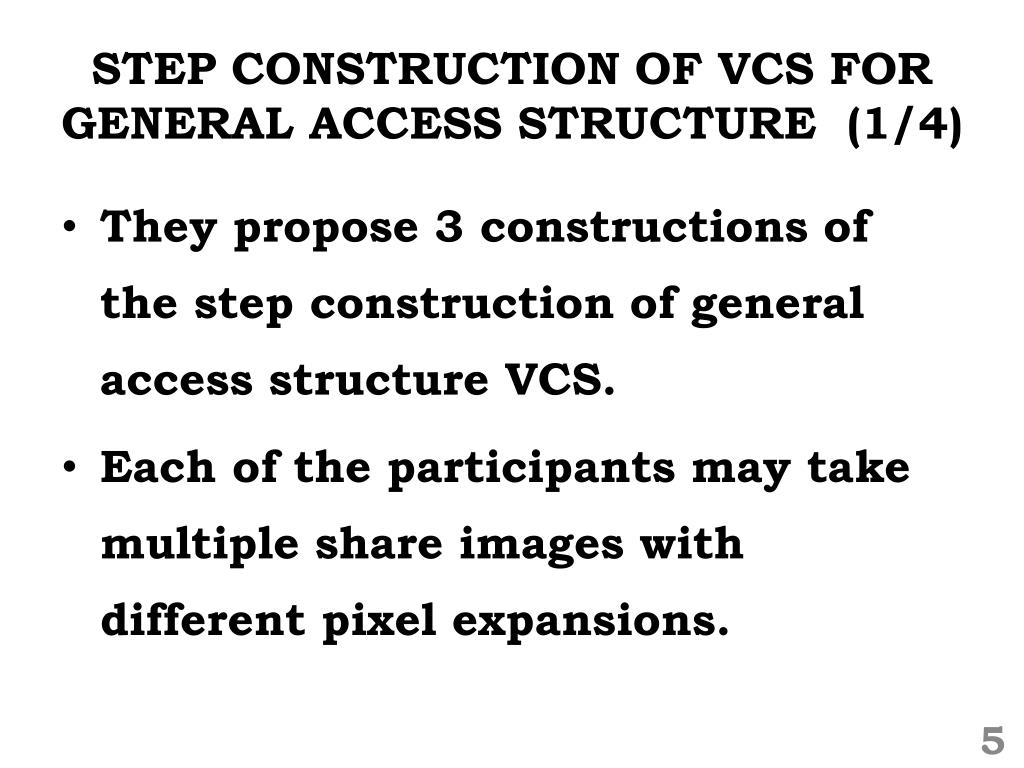

  5. STEP CONSTRUCTION OF VCS FOR GENERAL ACCESS STRUCTURE (1/4) • They propose 3 constructions of the step construction of general access structure VCS. • Each of the participants may take multiple share images with different pixel expansions.

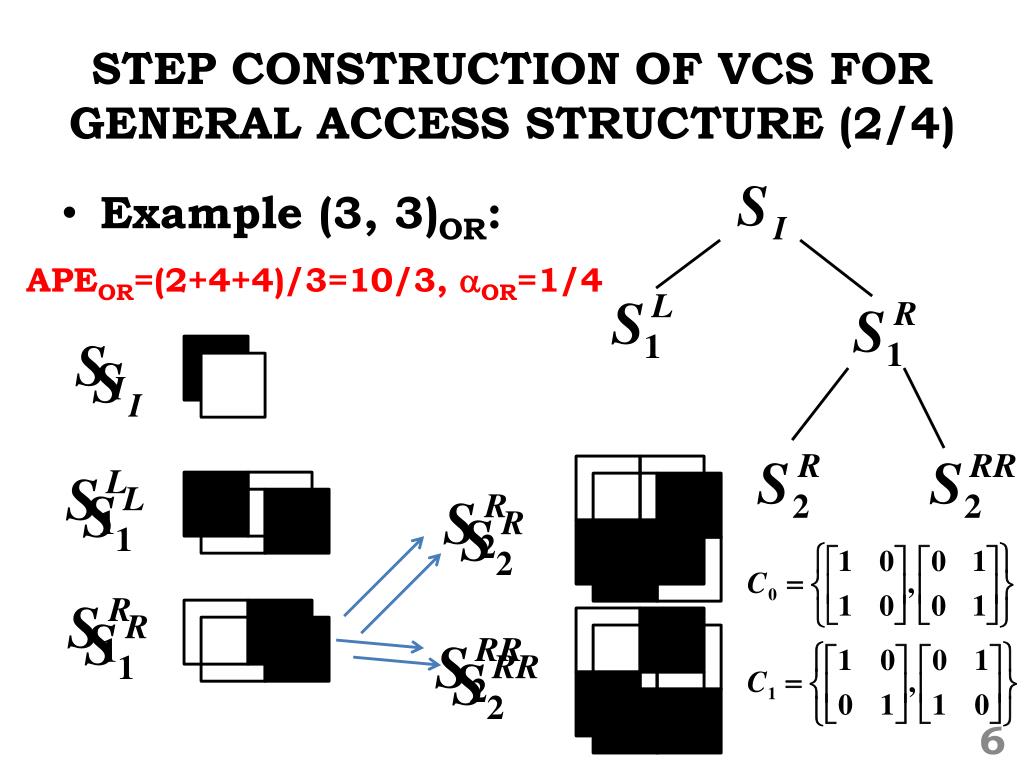

  6. STEP CONSTRUCTION OF VCS FOR GENERAL ACCESS STRUCTURE (2/4) • Example (3, 3)OR: APEOR=(2+4+4)/3=10/3, OR=1/4

  7. STEP CONSTRUCTION OF VCS FOR GENERAL ACCESS STRUCTURE (3/4) • Example (3, 3)XOR: APEXOR=1, XOR=1

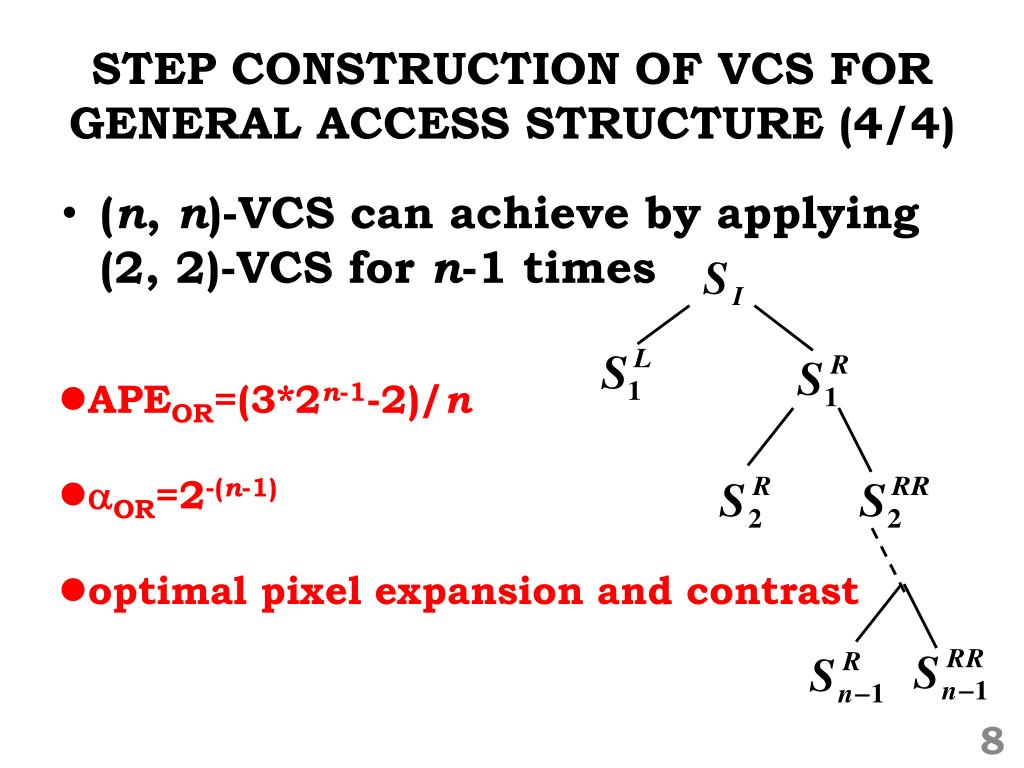

  8. STEP CONSTRUCTION OF VCS FOR GENERAL ACCESS STRUCTURE (4/4) • (n, n)-VCS can achieve by applying (2, 2)-VCS for n-1 times • APEOR=(3*2n-1-2)/n • OR=2-(n-1) • optimal pixel expansion and contrast

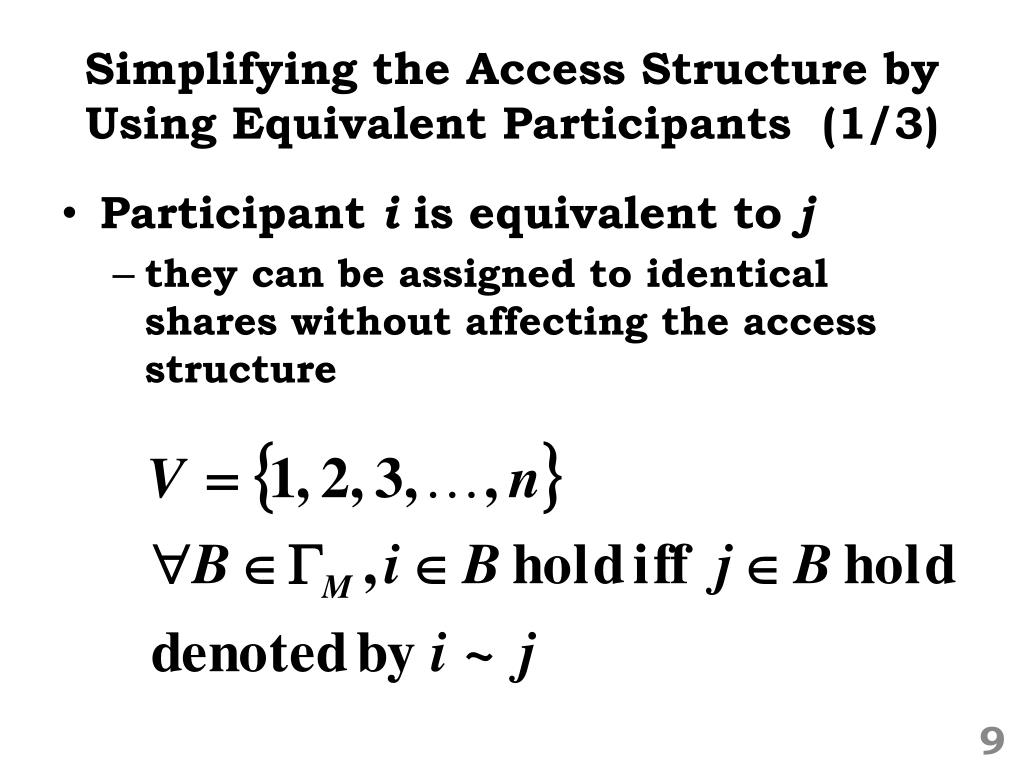

  9. Simplifying the Access Structure by Using Equivalent Participants (1/3) • Participant i is equivalent to j • they can be assigned to identical shares without affecting the access structure

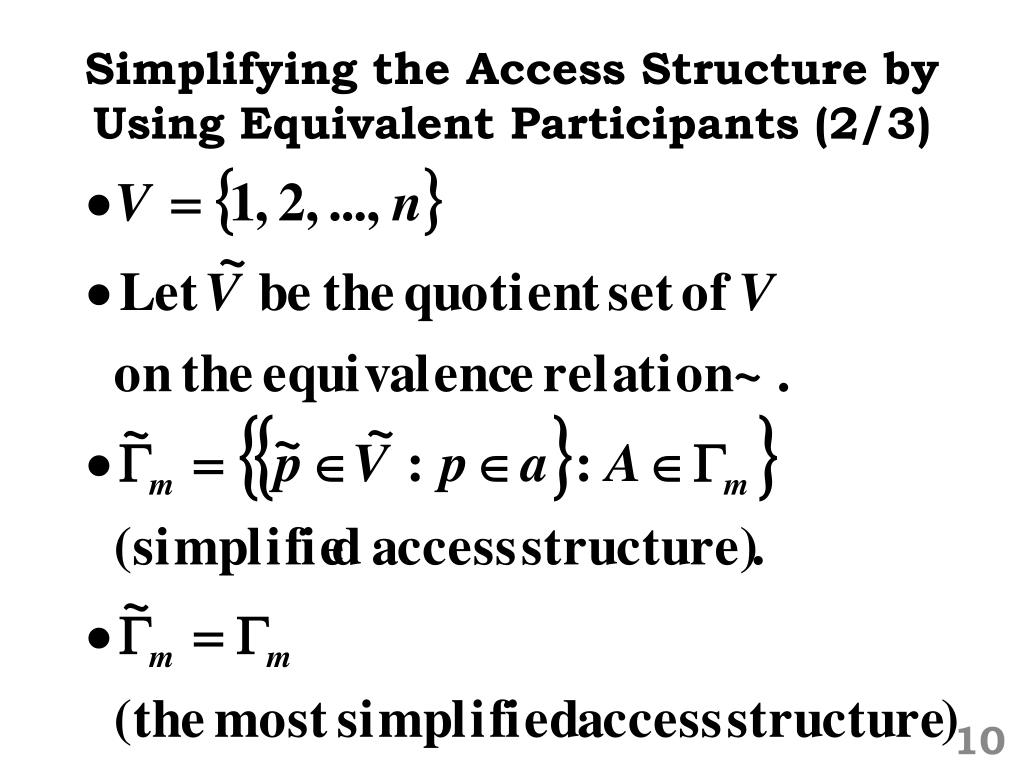

  10. Simplifying the Access Structure by Using Equivalent Participants (2/3)

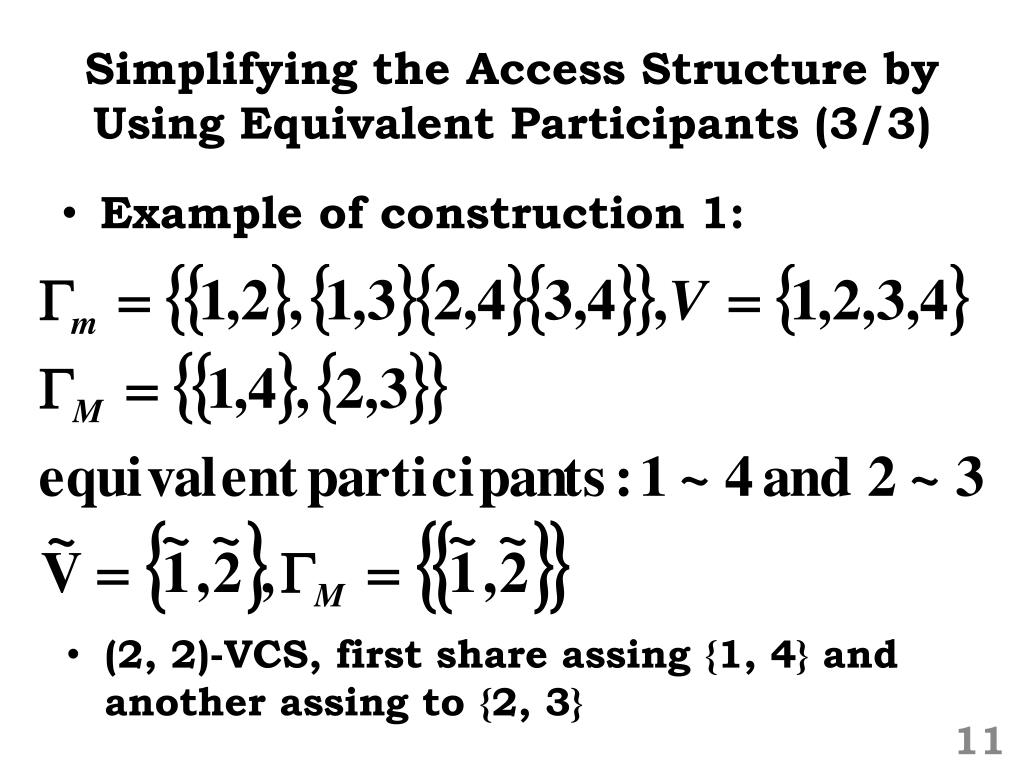

  11. Simplifying the Access Structure by Using Equivalent Participants (3/3) • Example of construction 1: • (2, 2)-VCS, first share assing {1, 4} and another assing to {2, 3}

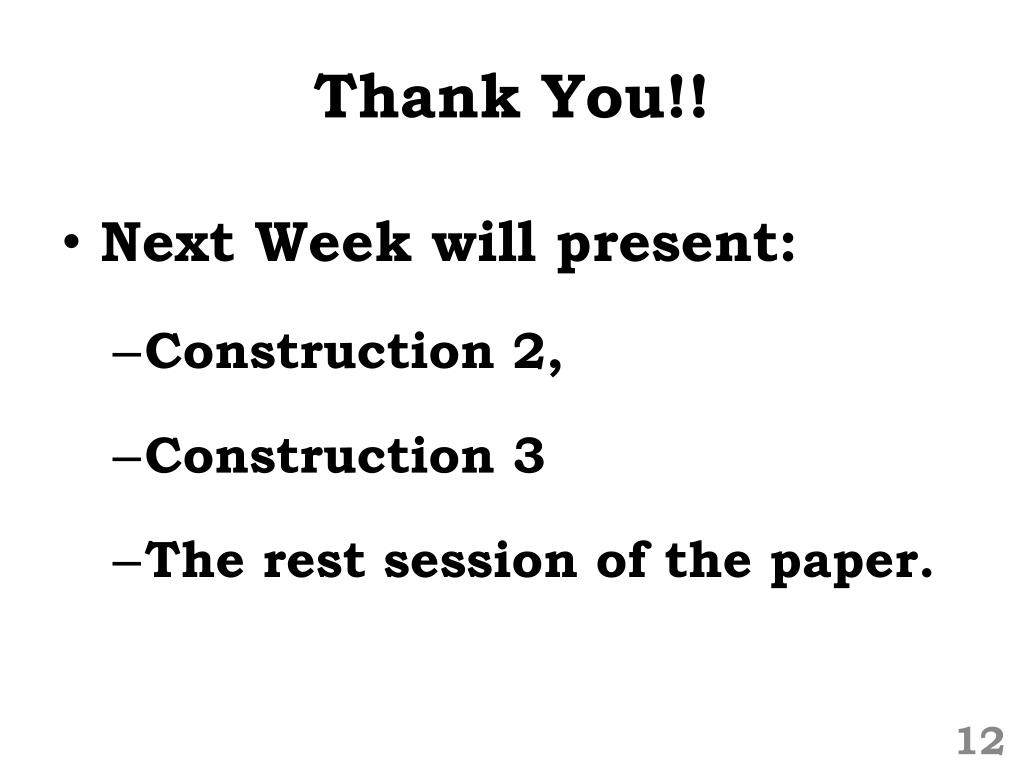

  12. Thank You!! • Next Week will present: • Construction 2, • Construction 3 • The rest session of the paper.
