Study of the highest energy cosmic rays

ICHEP `06, Moscow The Auger project – status and results G. Matthiae University and Sezione INFN of Roma “Tor Vergata”. Study of the highest energy cosmic rays

hyman
Télécharger la présentation

Study of the highest energy cosmic rays

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ICHEP `06, MoscowThe Auger project – status and resultsG. MatthiaeUniversity and Sezione INFN of Roma “Tor Vergata” Study of the highest energy cosmic rays • 17 Countries: Argentina, Bolivia, Australia, Brazil, Rep.Ceca, France, Germany, Italy, Mexico, Netherlands, Poland, Portugal, Slovenia, Spain, UK, USA, Vietnam. • About 300 physicists

  2. 1 particle/km2/century

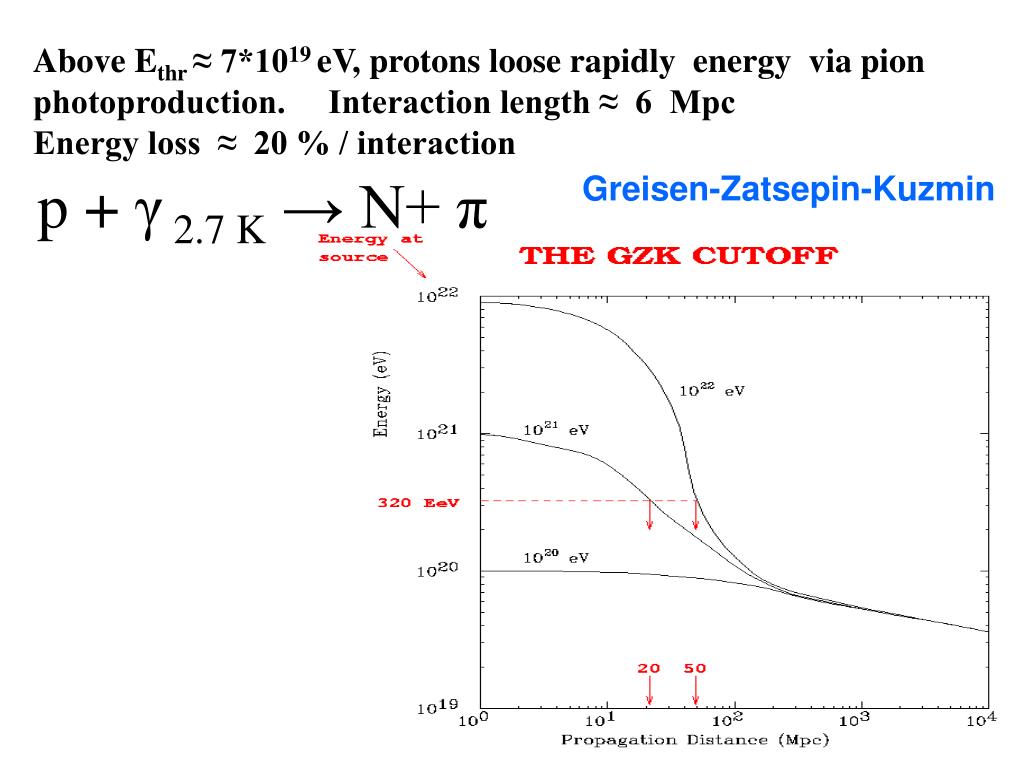

  3. Above Ethr ≈ 7*1019 eV, protons loose rapidly energy via pion photoproduction. Interaction length ≈ 6 Mpc Energy loss ≈ 20 % / interaction p + γ 2.7 K → N+ π Greisen-Zatsepin-Kuzmin

  4. AGASA sees a continuation of the spectrum beyond the GZK suppression • Dashed curve represents the spectrum expected for extragalactic sources distributed unifomly in the Universe. • Extremely poor statistics - only 11 events above 1020 eV

  5. Fluorescence Detector (FD) • Longitudinal development of the shower • Calorimetric measurement of the energy • Calibration of the energy scale • Direction of the shower • 12% duty cycle ! Auger hybrid detector • Surface Detector (SD) • Front of shower at ground • Direction of the shower • “High” statistics

  6. Very flat region “Pampa Amarilla” Malargüe (Argentina) Southern Observatory (Argentina) 35o S latitude 69o W longitude ≈ 1400 m height ≈ 875 g/cm2 • Very low population density (< 0.1 / km2) • Very good atmospheric conditions (clouds, aerosol…) Future plan for Northern Observatory in Colorado (USA)

  7. The Auger Observatory • Total area ~3000 km2 • Surface detectors (“water tanks”) • 1.5 km spacing • 24 fluorescence telescopes • 6 in each of 4 buildings About ¾ installed and operational Completion in 2007 50 km

  8. A surface detector (“water tank”) installed in the Pampa

  9. Communicationantenna GPSantenna Electronics enclosure 40 MHz FADC, local triggers, 10 Watts Solar Panel three 9” PMTs Plastic tank with 12 tons of water Battery box Water Tank in the Pampa

  10. m-response ~ track • e/g-response ~ energy Inclined: m/em UP m-signal of order em-signal

  11. VEM SD calibration & monitoring Base-Temperature vs Time Single tank response single muons ~100 p.e. Noise Signal-Height vs Time Signal-Height vs Base-Temp ± 3% Huge Statistics! Systematic error ~5%

  12. Vertical Equivalent Muon (VEM)

  13. Doublets 11m Time resolution Dia Noche Low energy events (~ 1015 eV) used to compare the time measurement of each tank : physical dispersion due~13 ns) Time precision of individual tanks ~ 12 ns

  14. density falls by factor ~150 … by factor ~4 Young & Old Shower ‘young’ shower ‘old’ shower

  15. One event of high energy:~1020 eV, q ~60° 34 tanks ~60° ~ 8 km (m) ~ 14 km propagation time of 40 µs LDF S=A [r/rs (1+r/rs)] -β rs = 700 m A, β from fit (β= 2-2.5) S(1000) energy estimator Lateral Distribution Function ~1020eV ~11020eV

  16. Angular resolution from the surface detector depends on the number of tanks Improved for hybrid events: ~ 0.6 degrees

  17. The FD telescope(Schmidt optics)Field of view 30x30 degrees Diaphragm Spherical mirror PMT camera Shutter UV Filter

  18. Spherical aberration Coma aberration The Schmidt optics C C C F spot Diaphragm Coma suppressed C Spherical focal surface

  19. Six Telescopes viewing 30°x30° each

  20. Fluorescence Telescope Spherical mirror (R=3.4 m) Diaphragm and camera

  21. Diaphragm, corrector ring and camera Field of view: 300x300 Camera: 440 photomultipliers Aperture of the pixels: 1.50

  22. Atmospheric Fluorescence Photon yield as a function of height Error about 15% Nitrogen emission spectrum 300 – 400 nm

  23. light flux measured by absolutely calibrated PMT light diffusing Tyvek walls Drum: uniform camera illumination pulsed light sources, several wavelengths and intensity FD Absolute Calibration About 5 photons/ADC count

  24. 355 nm Steerable laser SD tank optical fiber FD “TEST BEAM” Central Laser Facility

  25. Atmospheric absorption LIDAR Backscattering Elastic bcks. molecular/Rayleigh & aerosol/Mie (Raman) DAQ Laser Mirror

  26. LIDAR Station Steerable system: “Shoot on shower” technique

  27. bin=100 ns Event FD on-line

  28. Background event

  29. Longitudinal profile of showers from the FD telescopesFit with empirical formula of Gaisser-HillasCalorimetric measurement of the energy.

  30. Another event well contained

  31. Correction for energy loss (neutrinos, muons) 8 – 12 % at 1019 eV

  32. New upper limit on photon fraction E0>10 EeV events • Xmax from showers longitudinal profile observed by the fluorescence detector • ΔXmax ≈ 25 g cm-2 • 29 events

  33. Distribution of the differences Δγin standard deviations between primary photon prediction and data Δγ = 2 – 3.8

  34. New Photon Limit (29 events) 16% upper limit HP: Haverah Park A1,A2: AGASA Constraint on top-down/non acceleration models End 2009: about 2% limit at 10 EeV, 15% at 35 EeV

  35. Study of excess from the Galactic Center Comparison to AGASA Energy interval (1.0 – 2.5 EeV), angular scale 20° 2116 / 2159.5 ratio = 0.98 ± 0.02 ±0.01 (22% excess would give 2634 and a 10- excess) Comparison to SUGAR Energy interval (0.8 – 3.2 EeV), angular scale 5° 286 / 289.7 ratio = 0.98 ± 0.06 ± 0.01 (85% excess would give 536 and a 14.5- excess)

  36. Zenith angle dependence of the energy estimator S(1000)

  37. Energy calibration – hybrid eventsEnergy obtained by the calorimetric measurement of the fluorescence detector sets the absolute energy scaleSimulation not needed. FD energy log10 E (EeV) Absolute calibration of the energy estimator S(1000) log10 S(1000) Corrected to 38 degrees

  38. Statistics is now about ½ year of full Observatory (~7000 km2 sr yr) Efficiency =100% above 3 EeV Systematic error on the energy ±~ 25%

  39. Auger
