Simple S-Video and DVD Projection Setup with External Audio Options

This guide outlines a straightforward setup for S-Video and DVD projectors, detailing connections for audio and video. Whether you're using internal or external speakers, we'll help you configure your system effectively. Connect your DVD player and projector directly without external speakers or integrate them with a sound system for enhanced audio quality. We also cover connections for computer projection via VGA/RGB, ensuring both video and sound are well-integrated. Easily manage your setup with clear instructions on power and audio configurations.

ianna
Télécharger la présentation

Simple S-Video and DVD Projection Setup with External Audio Options

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Diagrams forDigital Video Projector

  2. S-VIDEO Projector AUDIO Simple DVD Projection – No External Speakers DVD Player POWER CORD POWER CORD TO AC POWER SURGEPROTECTOR

  3. S-VIDEO Projector Simple DVD Projection – with External Speakers MAY NEED ADAPTER HERE AUDIO DVD Player POWER CORD POWER CORD TO AC POWER SURGEPROTECTOR

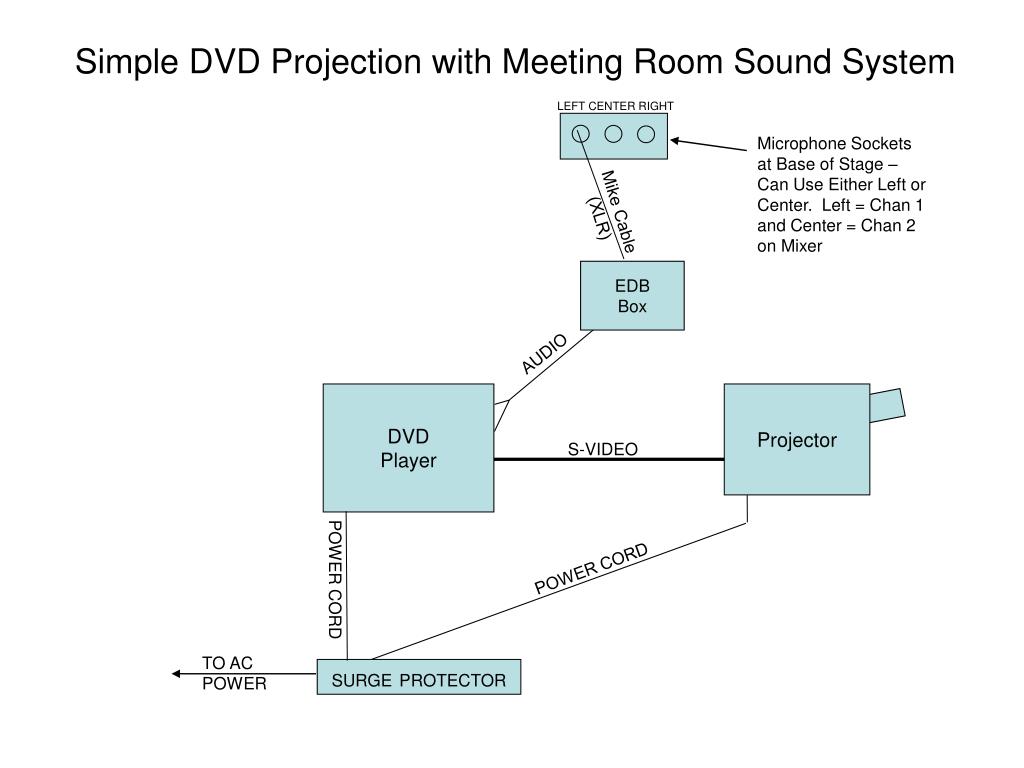

  4. S-VIDEO Projector Simple DVD Projection with Meeting Room Sound System LEFT CENTER RIGHT Microphone Sockets at Base of Stage – Can Use Either Left or Center. Left = Chan 1 and Center = Chan 2 on Mixer Mike Cable (XLR) EDB Box AUDIO DVD Player POWER CORD POWER CORD TO AC POWER SURGEPROTECTOR

  5. Projector Video Projection from Computer Source; Sound (if needed) via Meeting Room System LEFT CENTER RIGHT Microphone Sockets at Base of Stage – Can Use Either Left or Center. Left = Chan 1 and Center = Chan 2 on Mixer Mike Cable (XLR) EDB Box AUDIO (If Needed) Computer – Windows OS “Computer 1” Connector VGA/RGB Computer Cable POWER CORD POWER CORD TO AC POWER SURGEPROTECTOR
